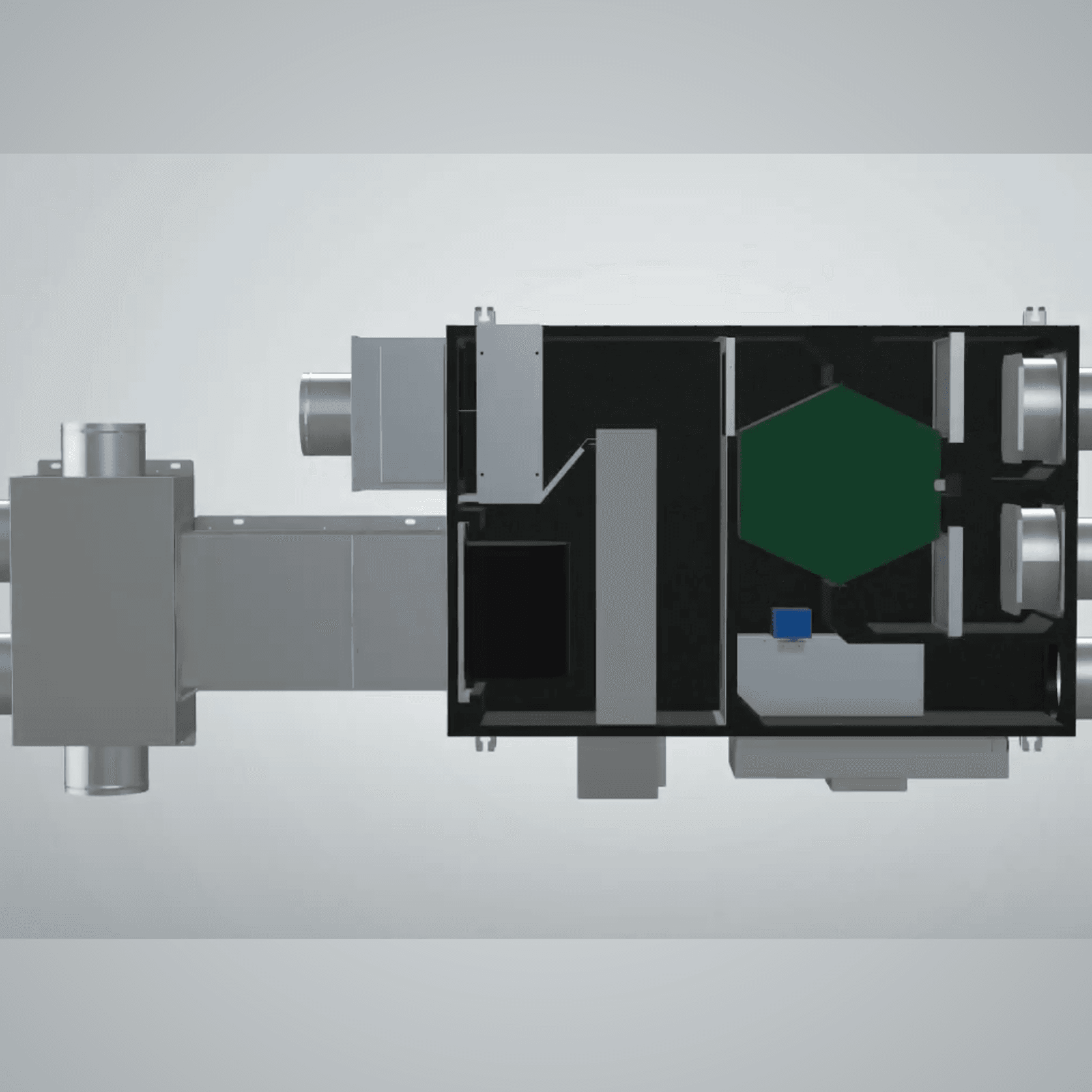

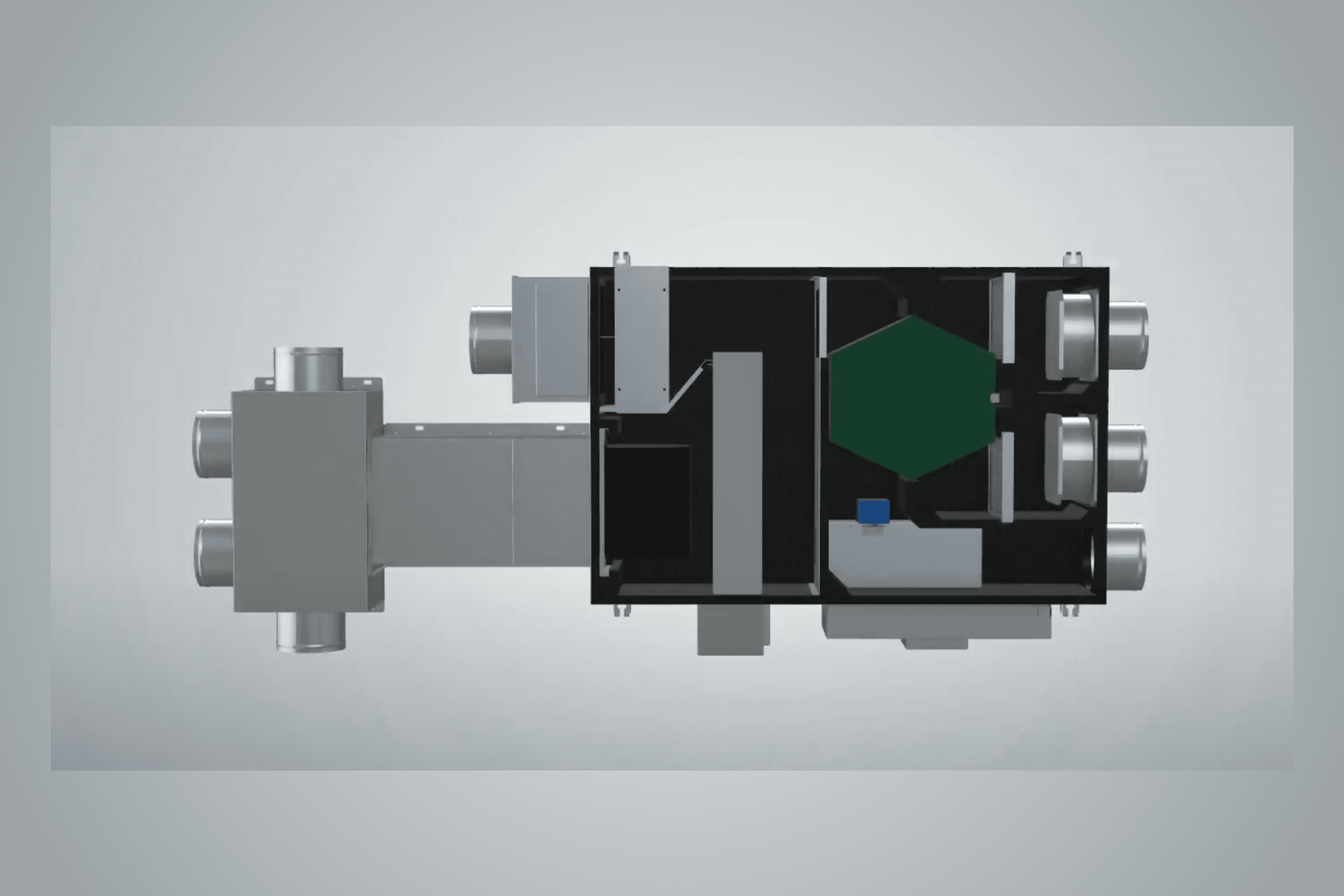

Aertesi EOS B Air Handling Unit for Heating, Cooling and Ventilation

Aertesi EOS B1- Ventilation & Heating/Cooling Unit

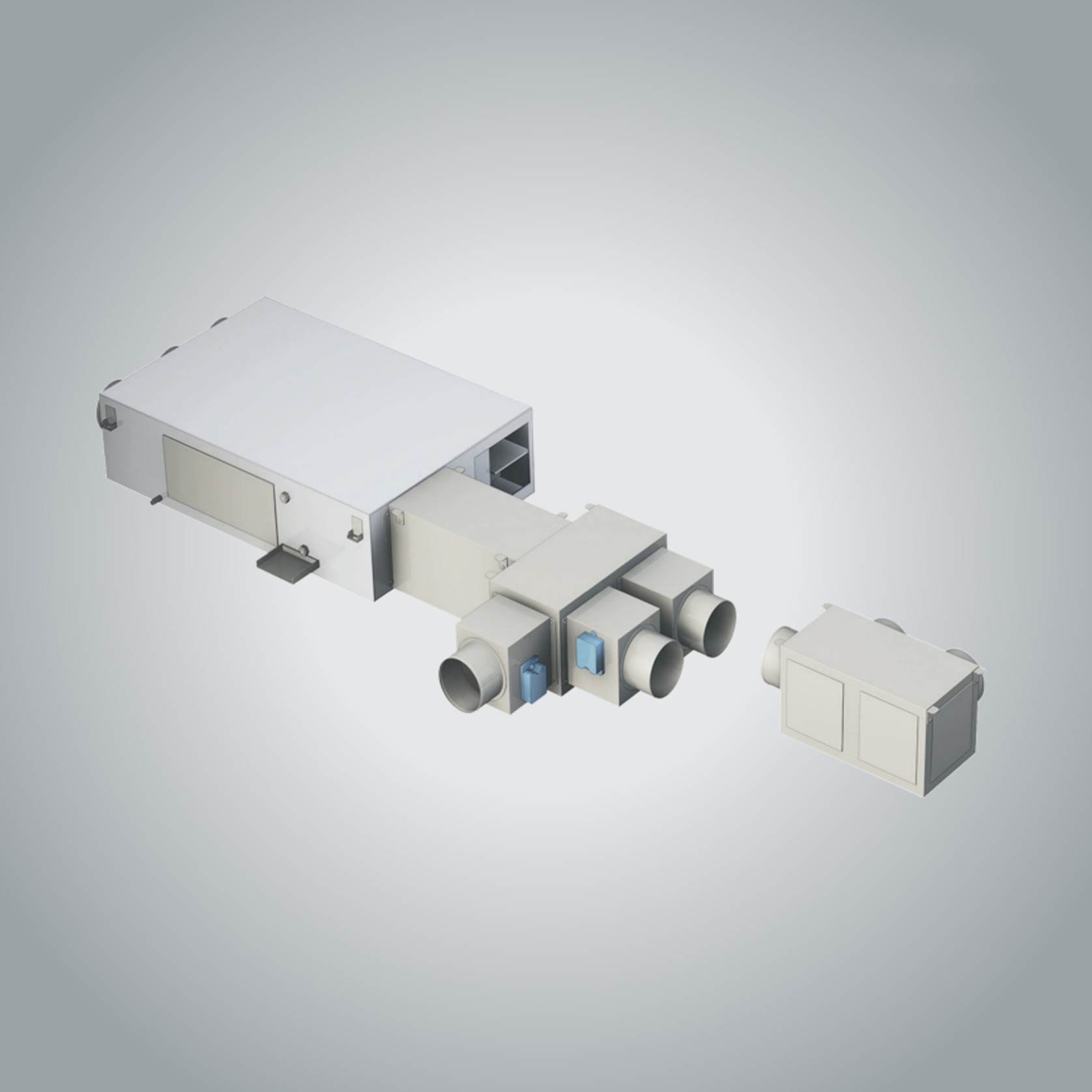

EOS B is an Italian-made, patented and high-efficiency air handling unit that does it all: Heating, Cooling and Balanced Ventilation.

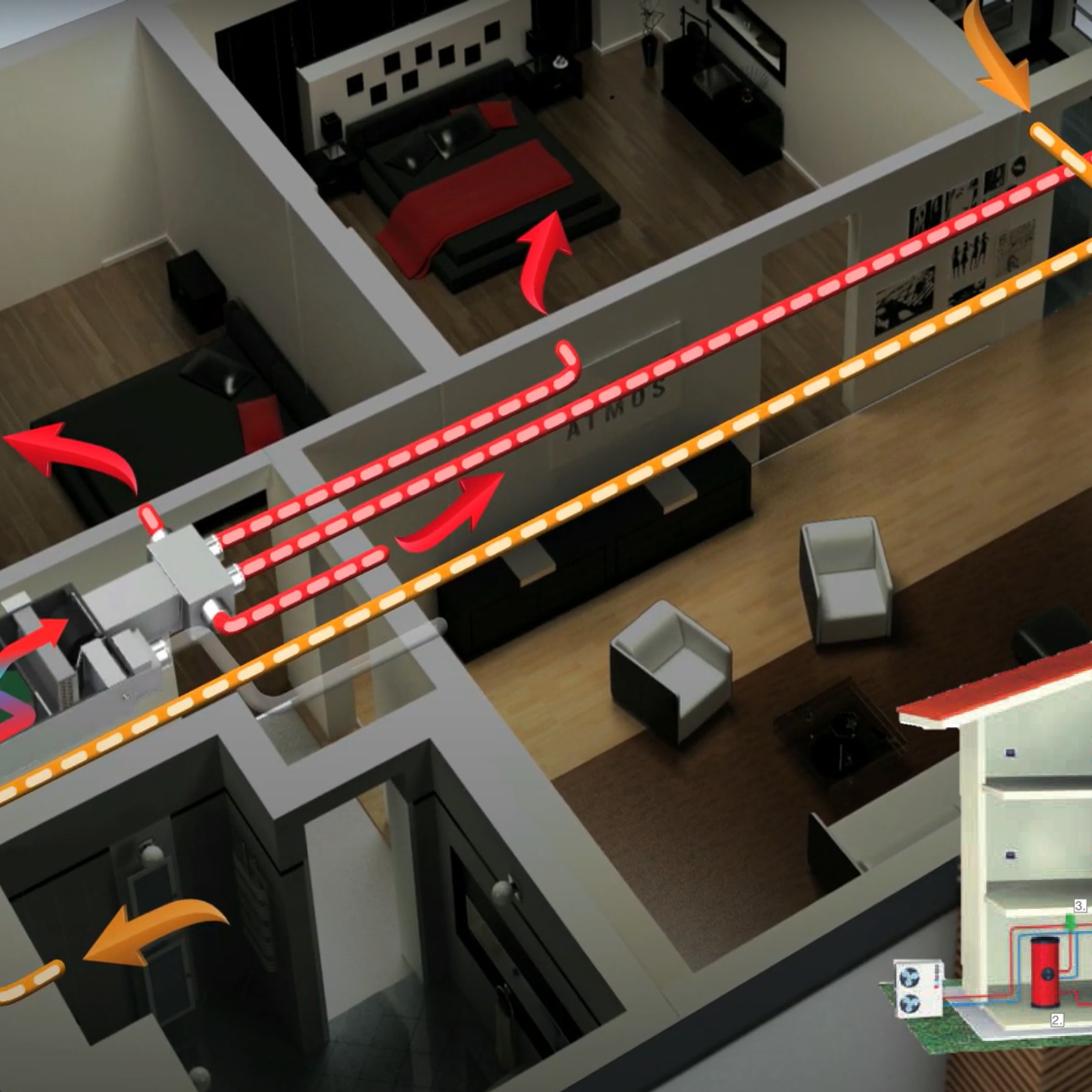

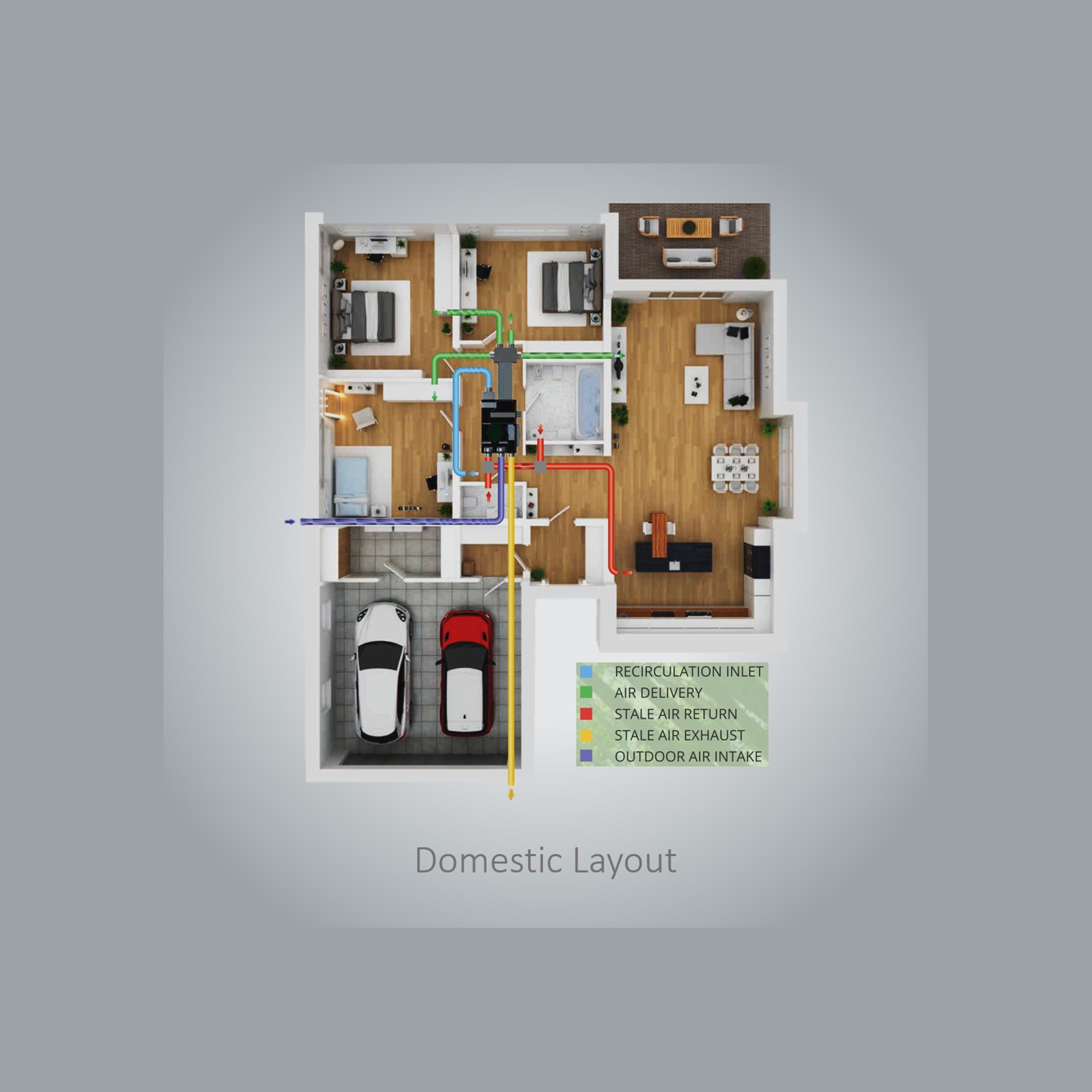

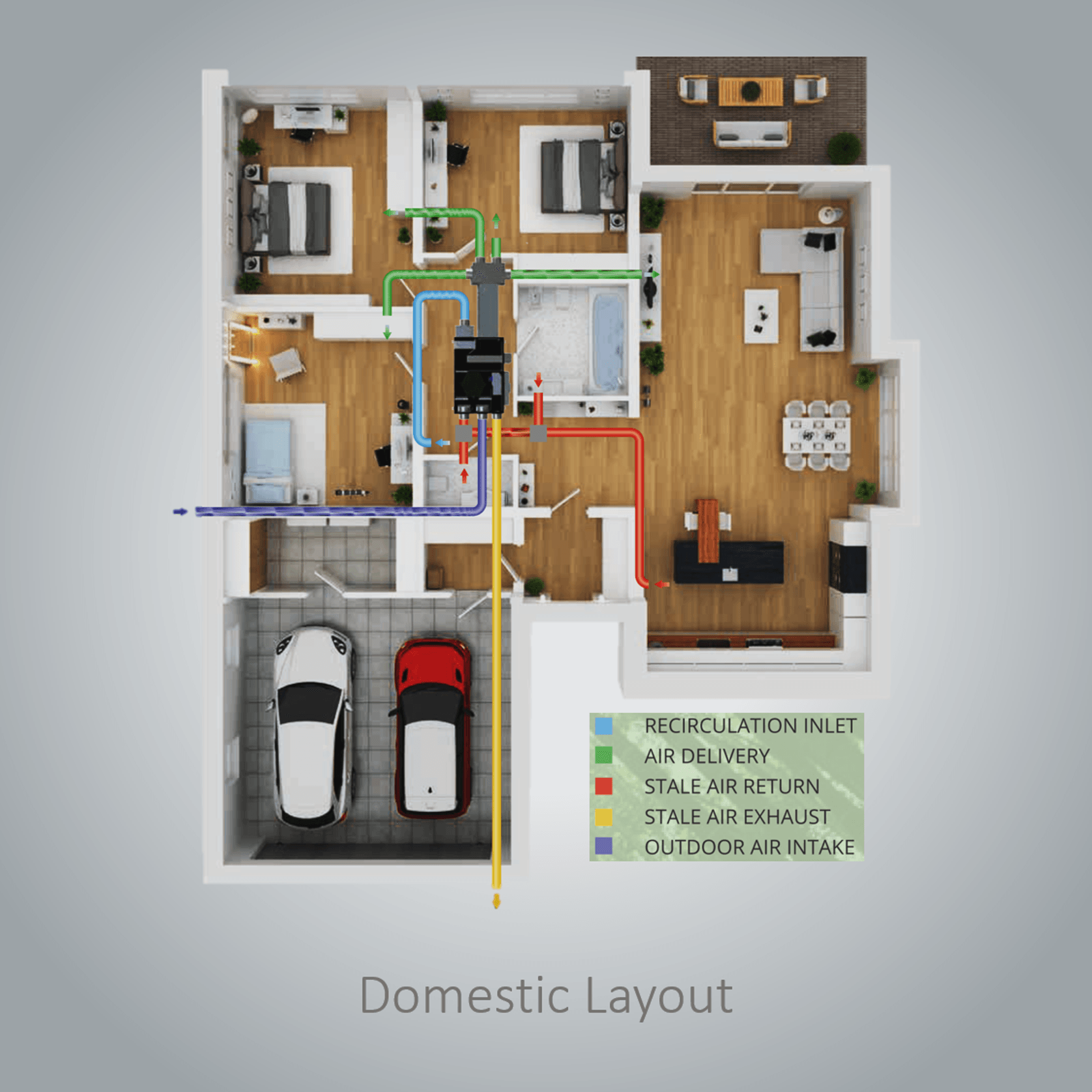

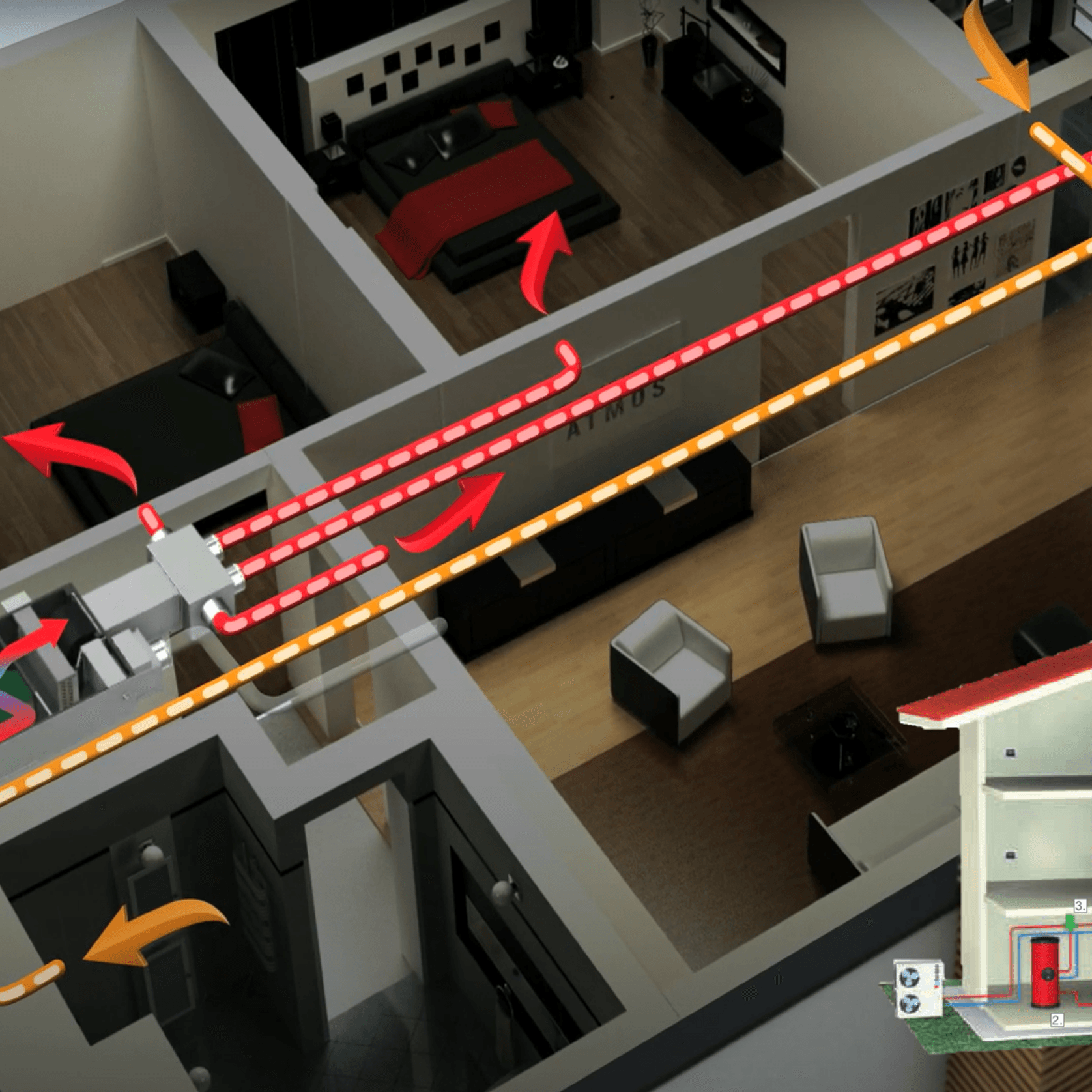

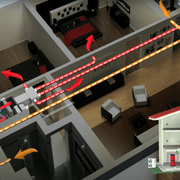

With an external air to water heat-pump it can be used as a single unit to heat, cool and ventilate houses up to 180m², or as a decentralised system for multiple living areas or apartments. A smart solution for highest home comfort.

Highlights

  • All in one solution - Ventilation, Heating and Cooling
  • Smart management of ventilation and heating or cooling
  • Summer Bypass (Free Cooling Module)
  • Option to create up to 4 individual temperature zones
  • Water based coil unit, suitable for hydronic heat-pumps

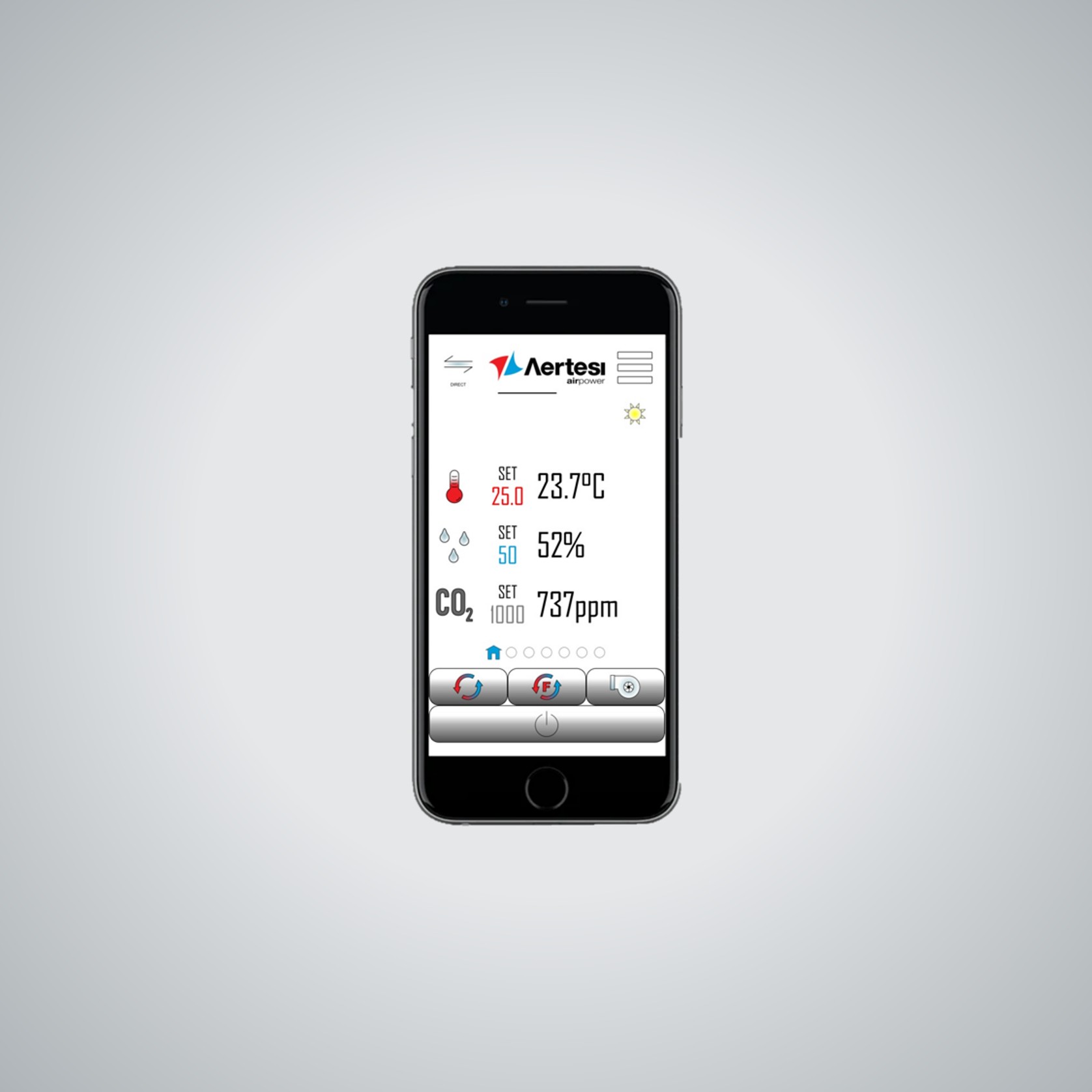

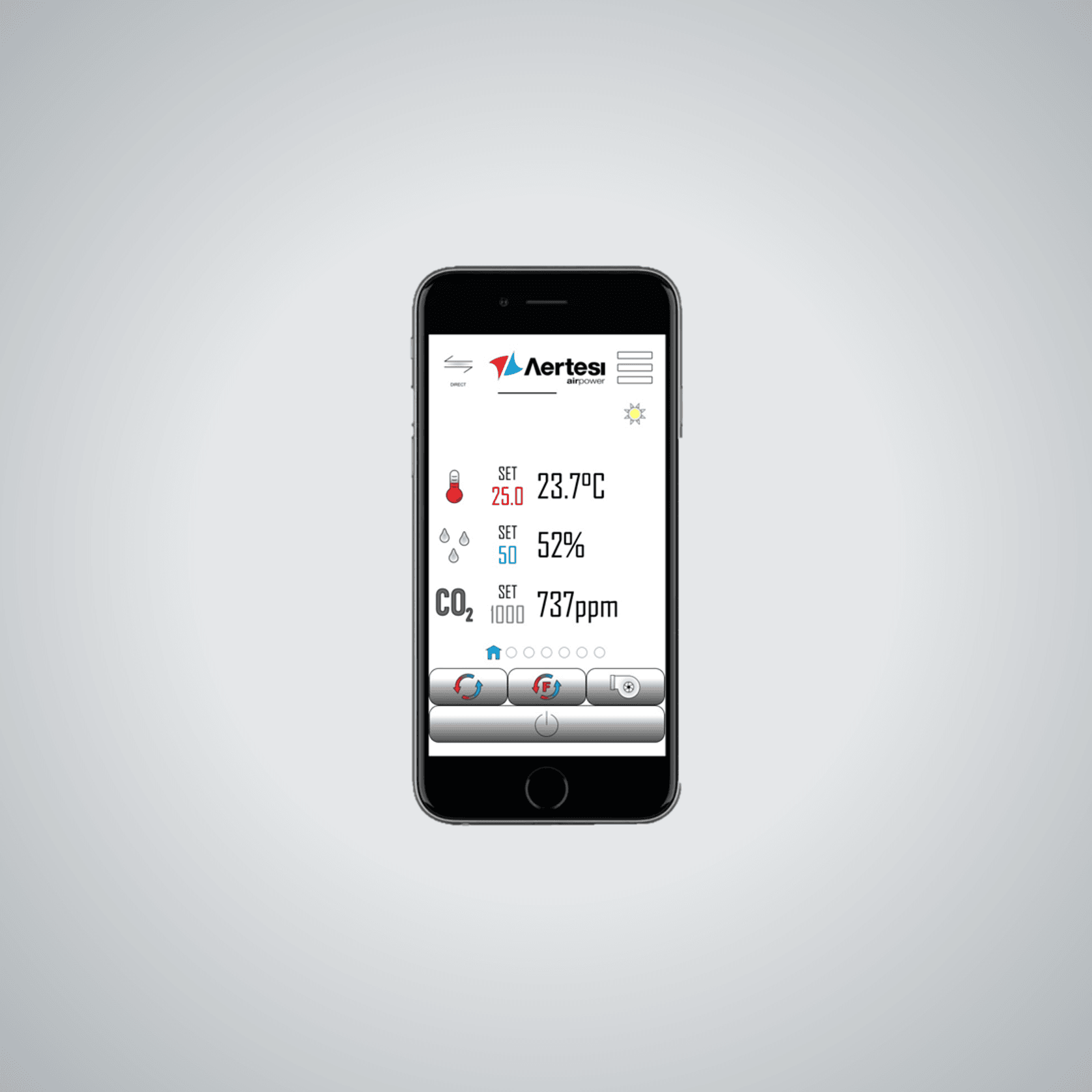

  • Optional Wi-Fi Controller for iOS and Android App (free download)
  • Meets highest efficiency standards, suitable for Passive-Houses
  • Meets G4 and Healthy Home Standard

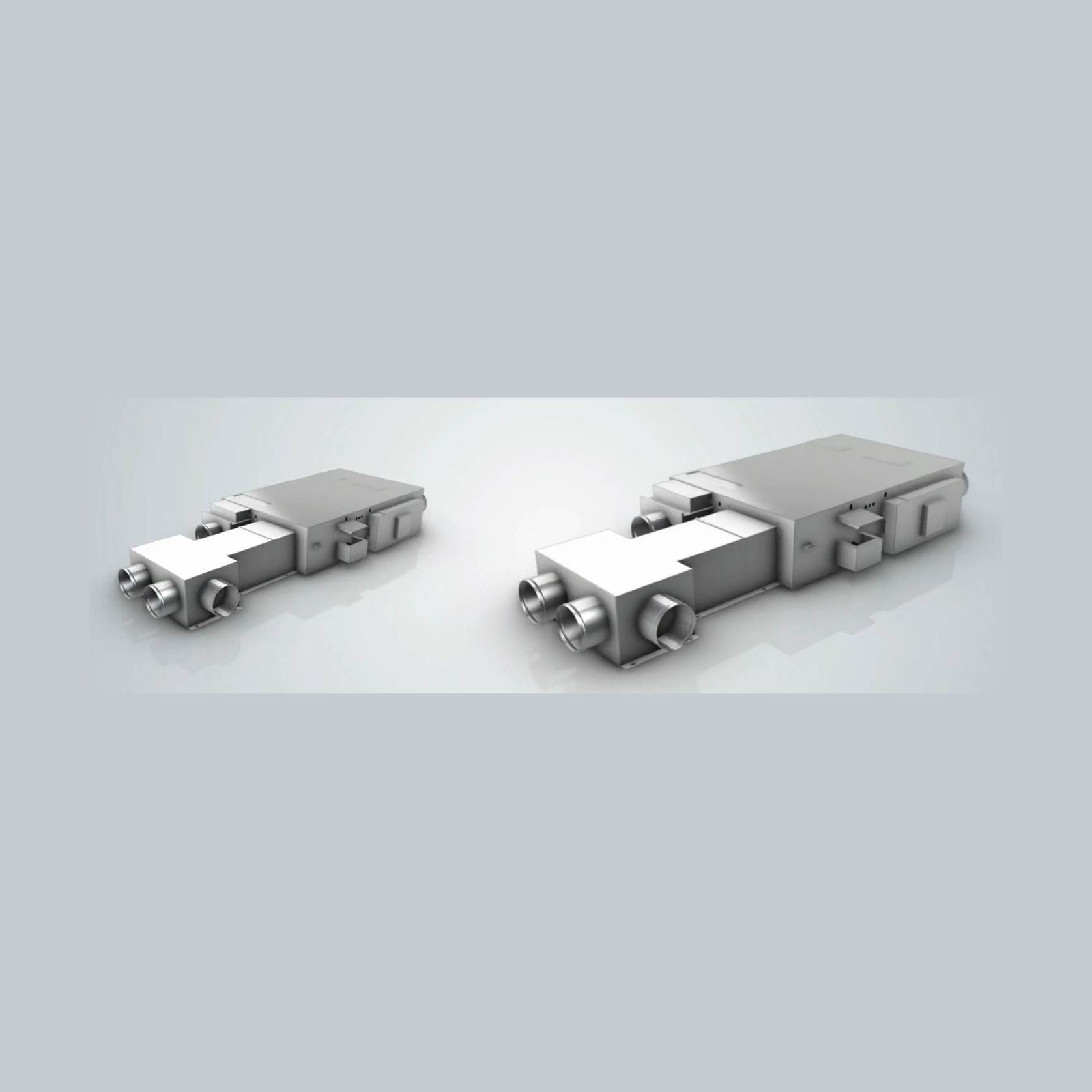

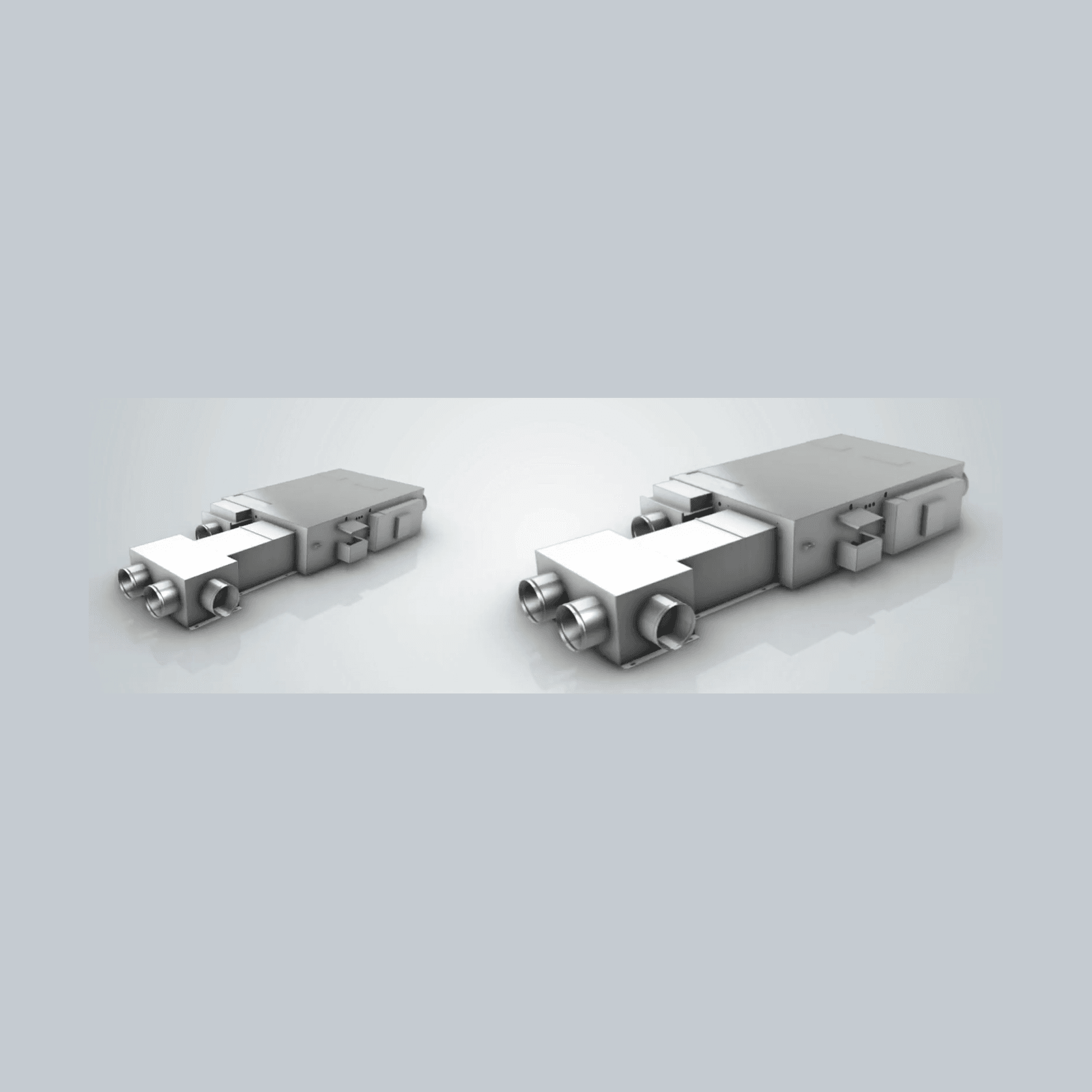

  • 2 different sizes (EOS 3 and EOS 6)

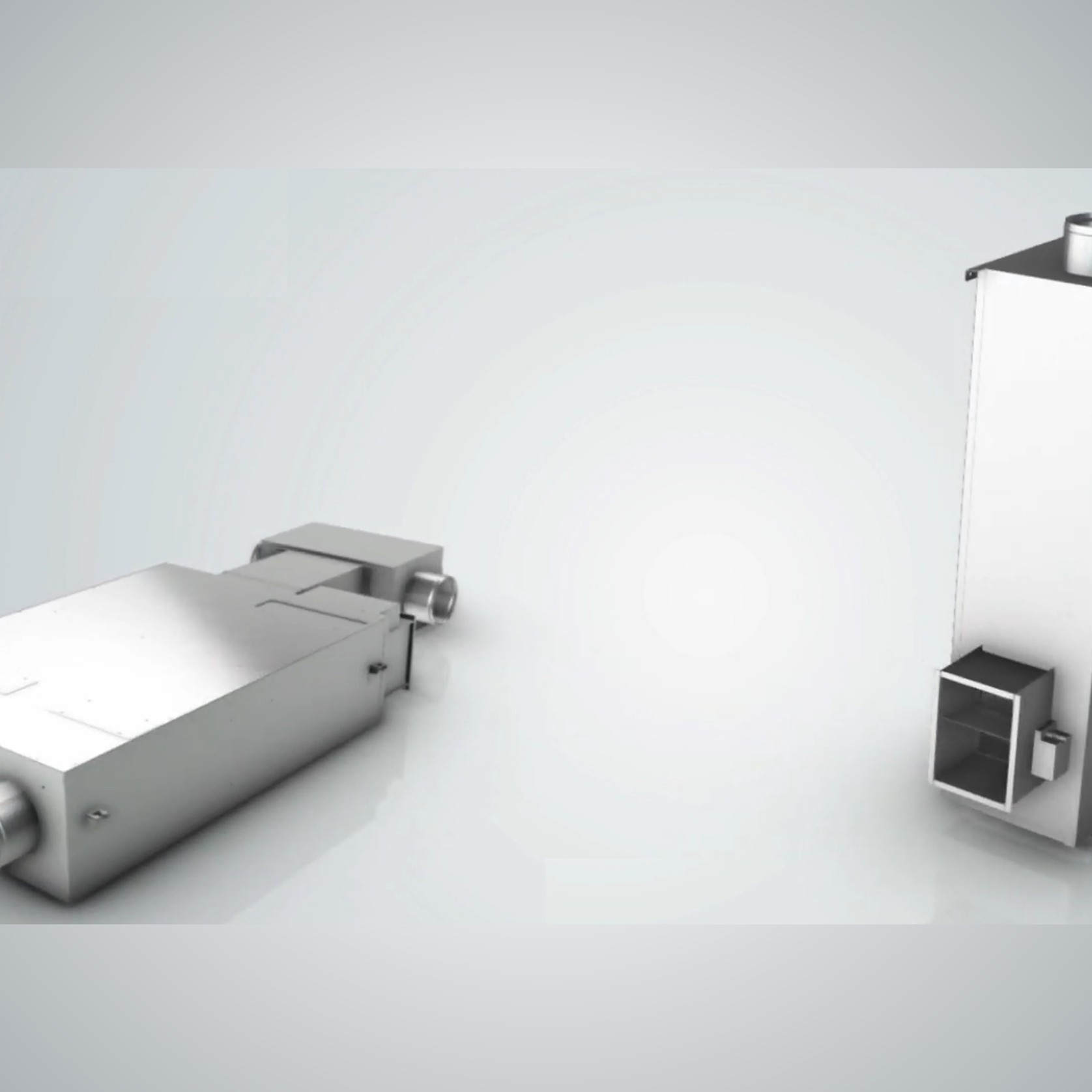

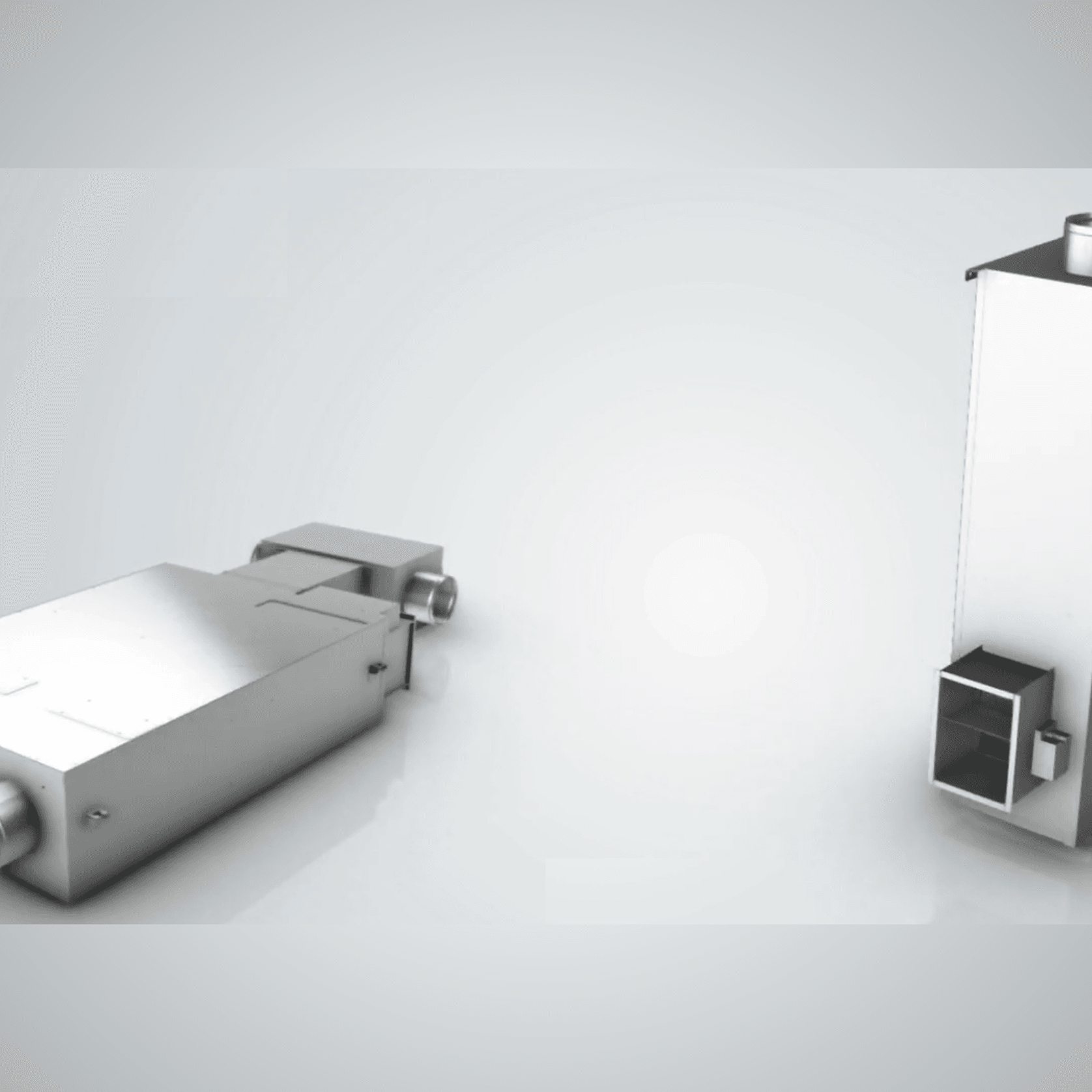

  • In vertical and horizontal version available
  • 2-year warranty
Details
  • Category
    Mechanical Ventilation Systems, Ducted Heat Pump Systems, Heat Recovery Ventilation
  • Range
    Ventilation Systems
  • Brand
    Aertesi - Italy
  • Warranty
    2 years

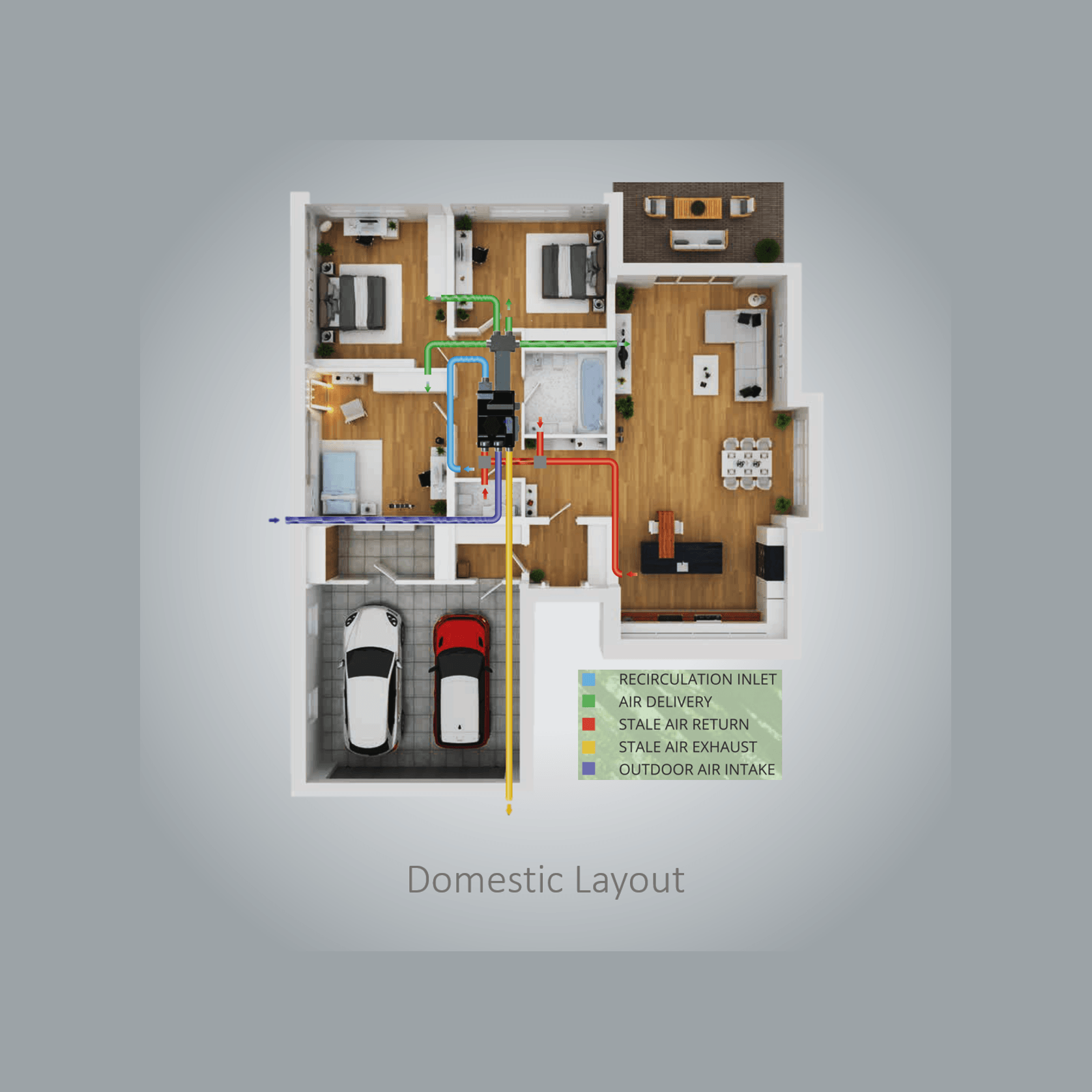

Scope of use

Typical Application

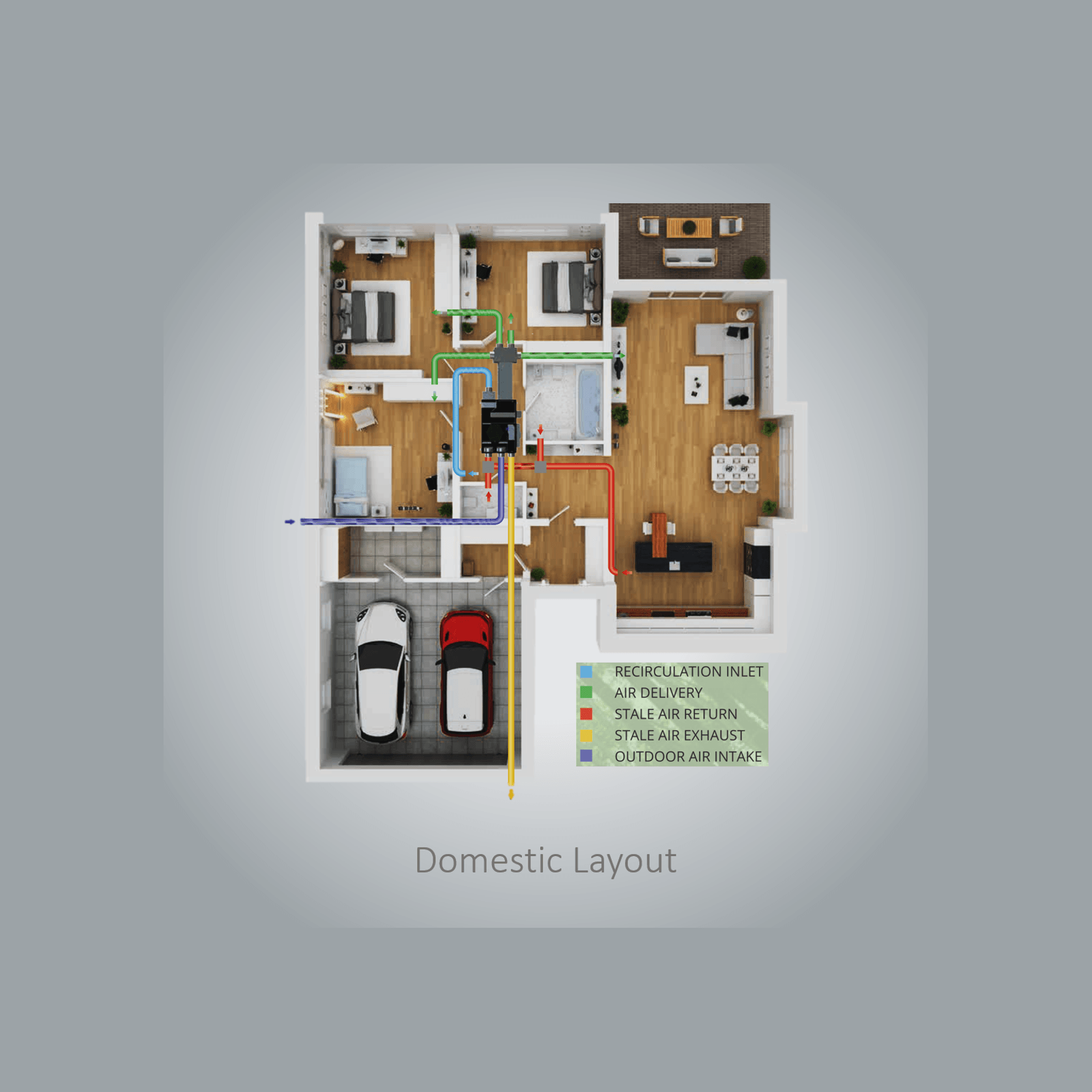

  • Suitable for single- and multi-level houses
  • For larger buildings or apartment blocks (multiple units run independently, connected to same heat-pump/chiller)
  • Includes dedicated bathroom, kitchen and laundry extraction
Features
  • Suitable for single- and multi-level houses or apartment blocks
  • Each unit can cover up to 200m²
  • All in one solution - Ventilation, Heating and Cooling
  • Smart management of ventilation and heating or cooling
  • Option to create individual climate zones
  • Optional Wi-Fi Controller for iOS and Android App (free download)
  • Meets highest efficiency standards, suitable for Passive-Houses
Performance

EOS B3
Total Capacity Heating/Cooling: 4.0kW/3.2kW
Air volume for Ventilation: 200m³/h (approx.)
Air volume for Air Conditioning: 500m³/h

EOS B6
Total Capacity Heating/Cooling: 8.0kW/6.3kW
Air volume for Ventilation: 400m³/h (approx.)
Air volume for Air Conditioning: 1,000m³/h (approx.)

Versions
  • Aertesi EOS-B1-3VW  -  EOS3 Vertical, water-based
  • Aertesi EOS-B1-6VW  -  EOS6 Vertical, water-based
  • Aertesi EOS-B1-3HW  -  EOS3 Horizontal, water-based
  • Aertesi EOS-B1-6HW  -  EOS6 Horizontal, water-based
In The Box

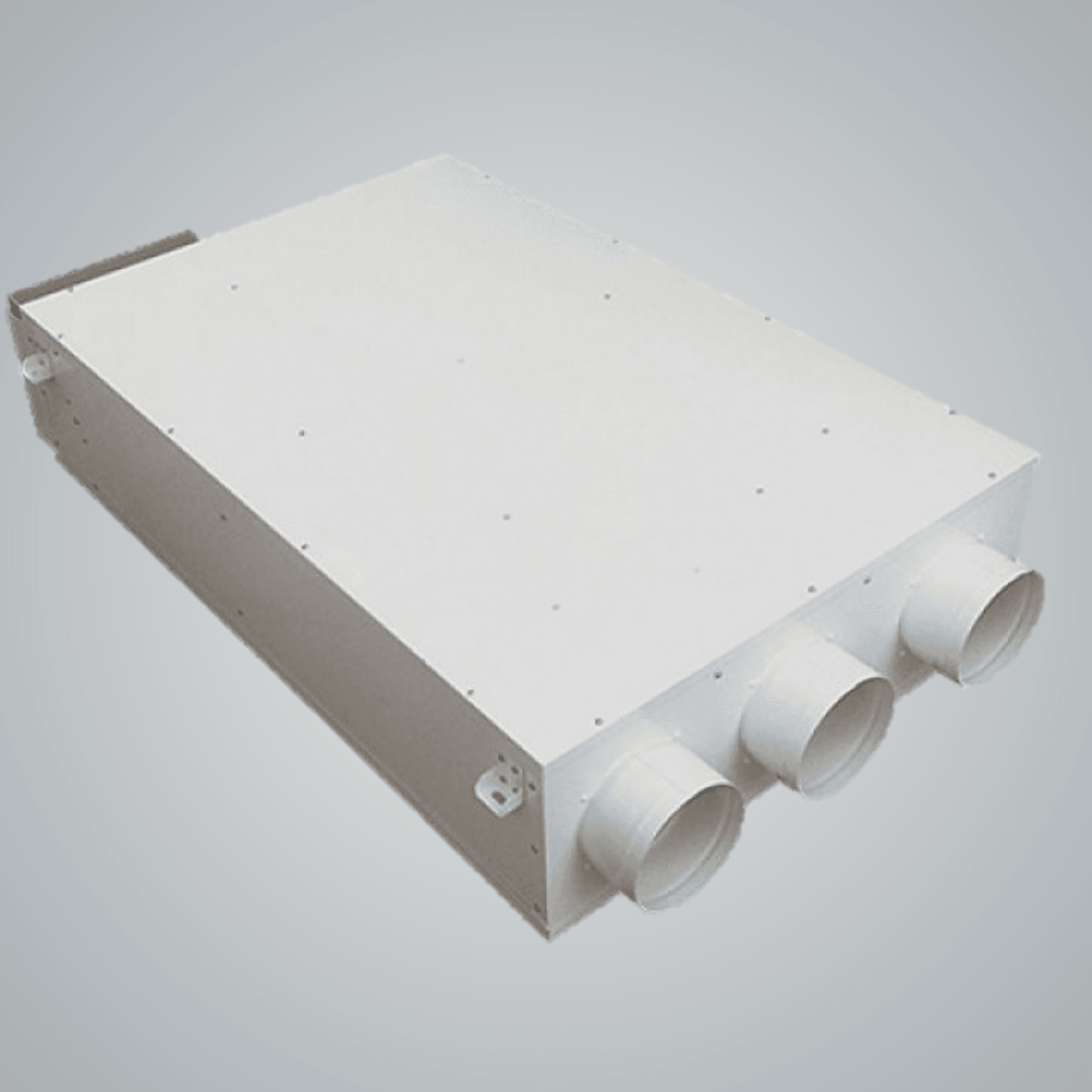

  • Air Handling Unit
  • Main Wall Controller
  • Silencer
  • Electro Valve hydronic connection
  • Controller Extension Cable
  • User manual

Optional Accessories

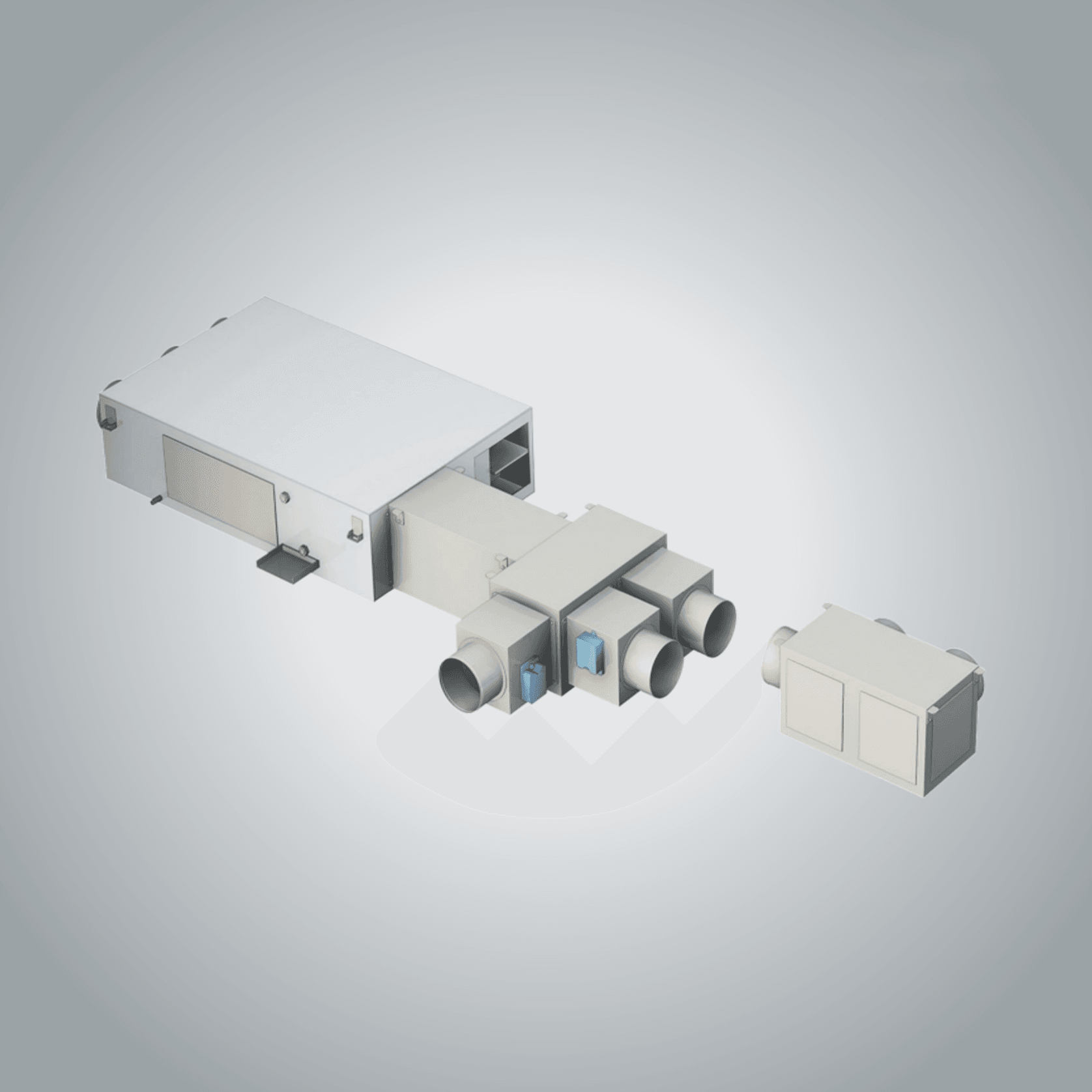

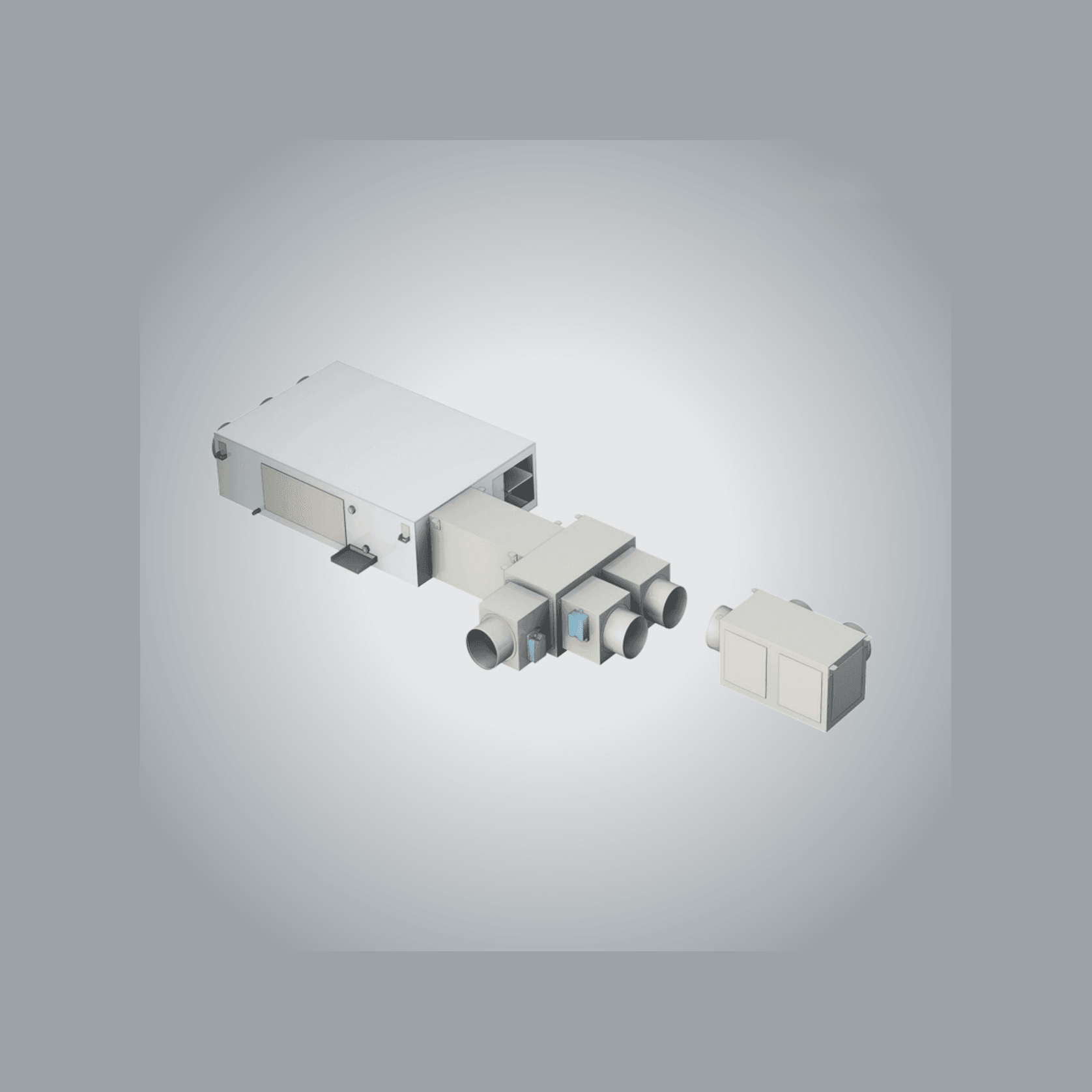

  • Zone-Control Kit to create up to 4 different climate zones
  • Wi-Fi modem for mobile app and remote control
  • CO2 for ventilation on demand
  • Humidity sensor for active dehumidification cycle

Typically required for domestic installation

  • Tools and consumables (e.g. duct tape and screws)
  • Indoor Duct System (Recommended: BlauFast 90)
  • Ducting and vent for Recycle Return
  • Ducting to outside (Recommended: EPP 160mm)
  • Outdoor grills/ Trade seals*
  • *Check with local council for acceptability
