Dado Dave 20 Linear LED Light

By Offspring Profiles®
Website

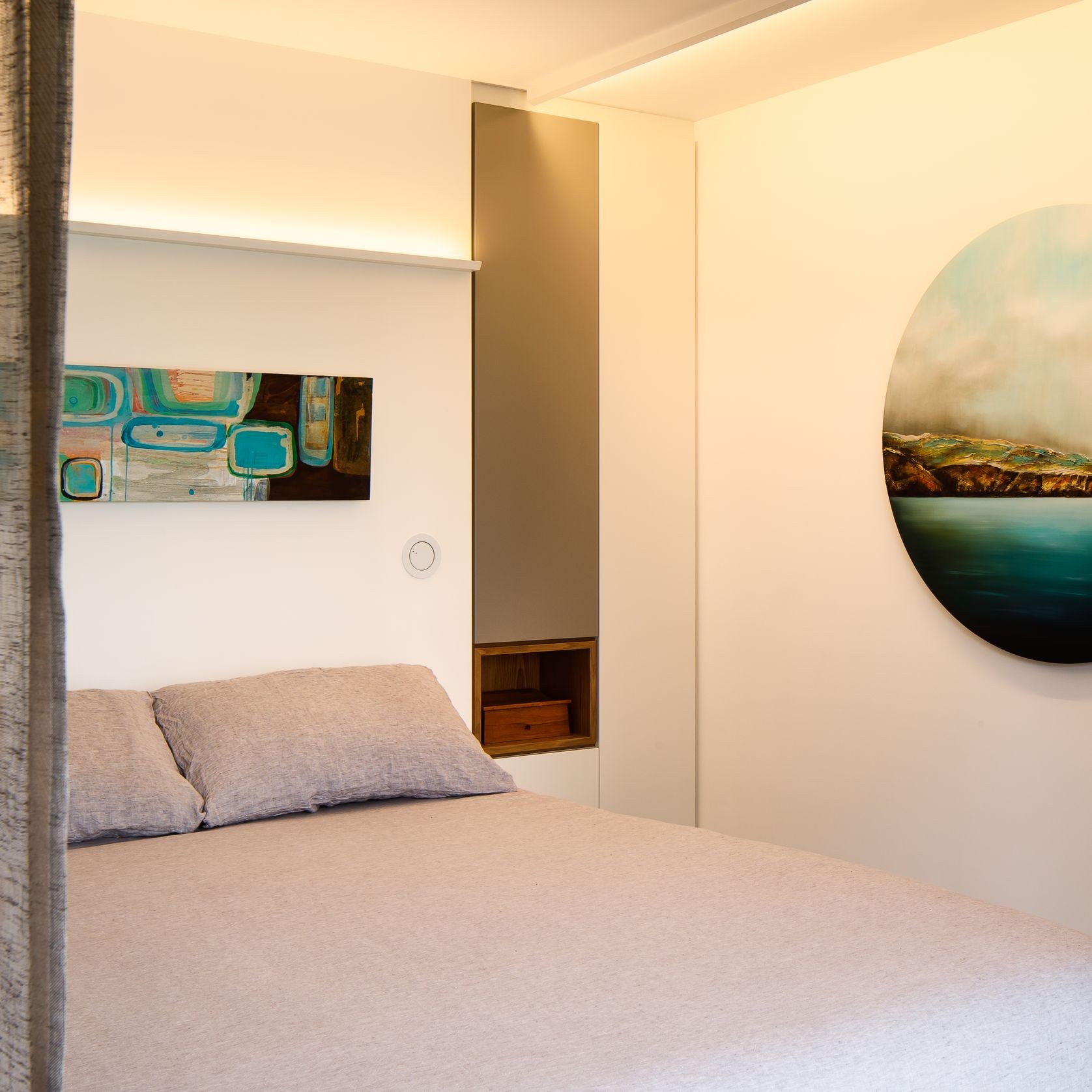

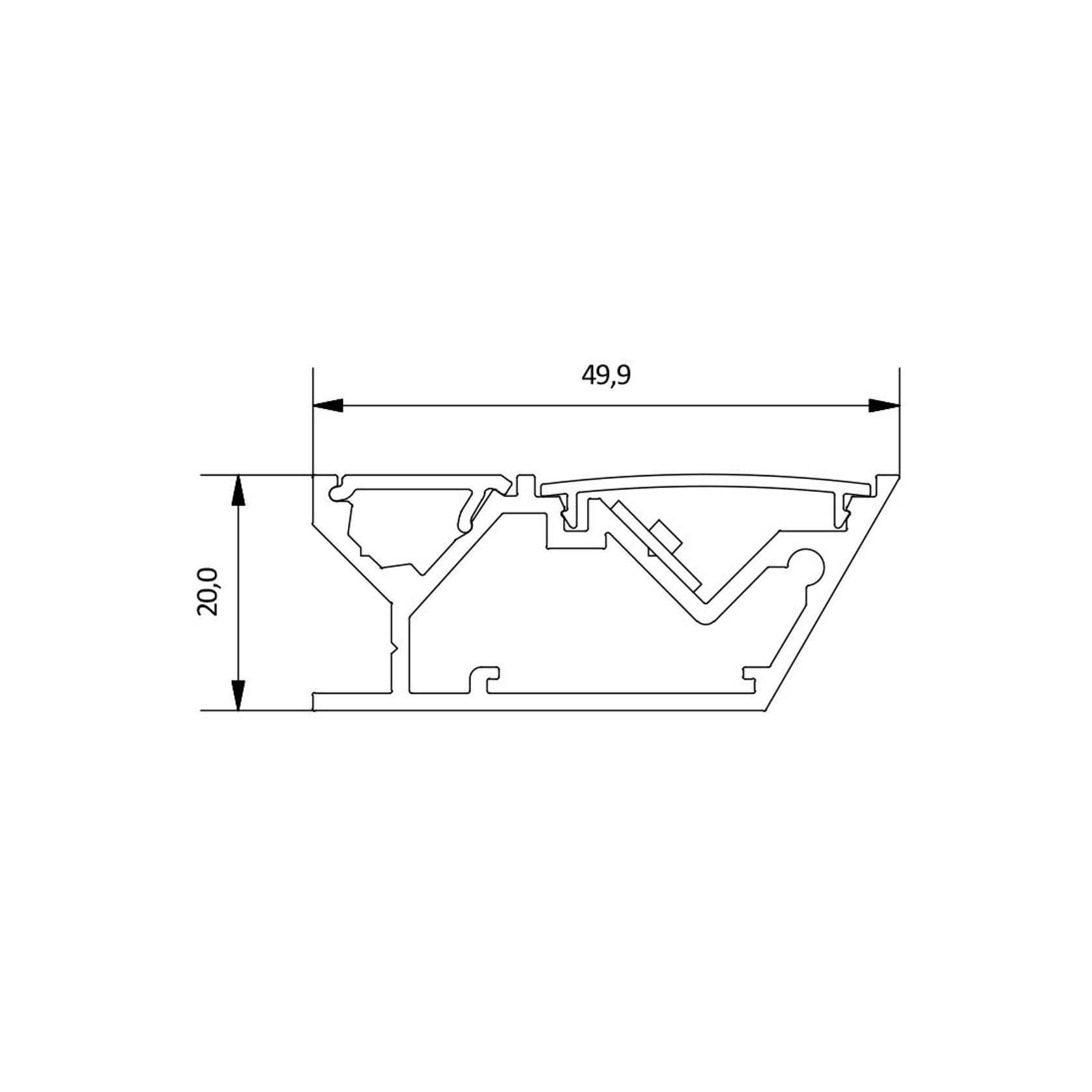

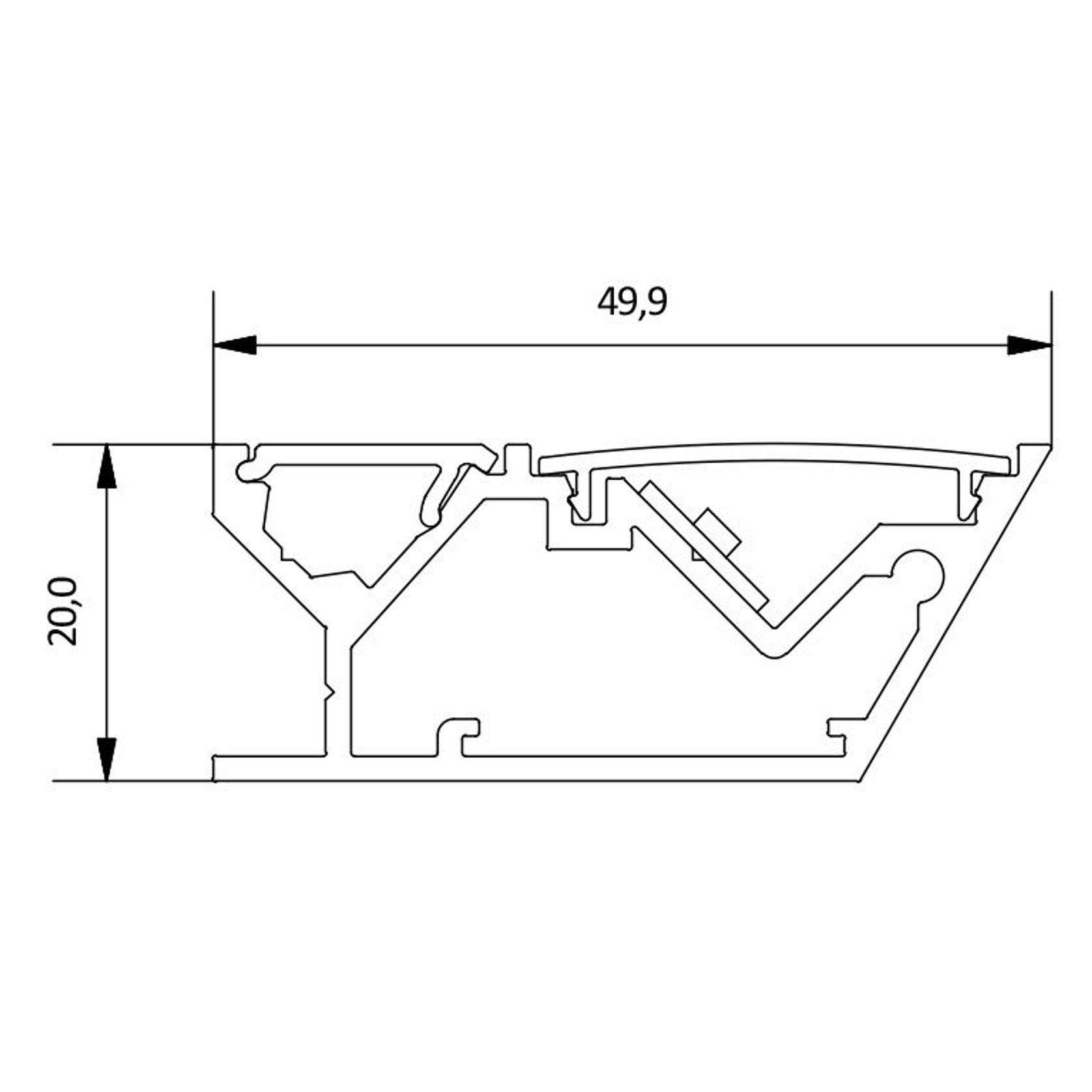

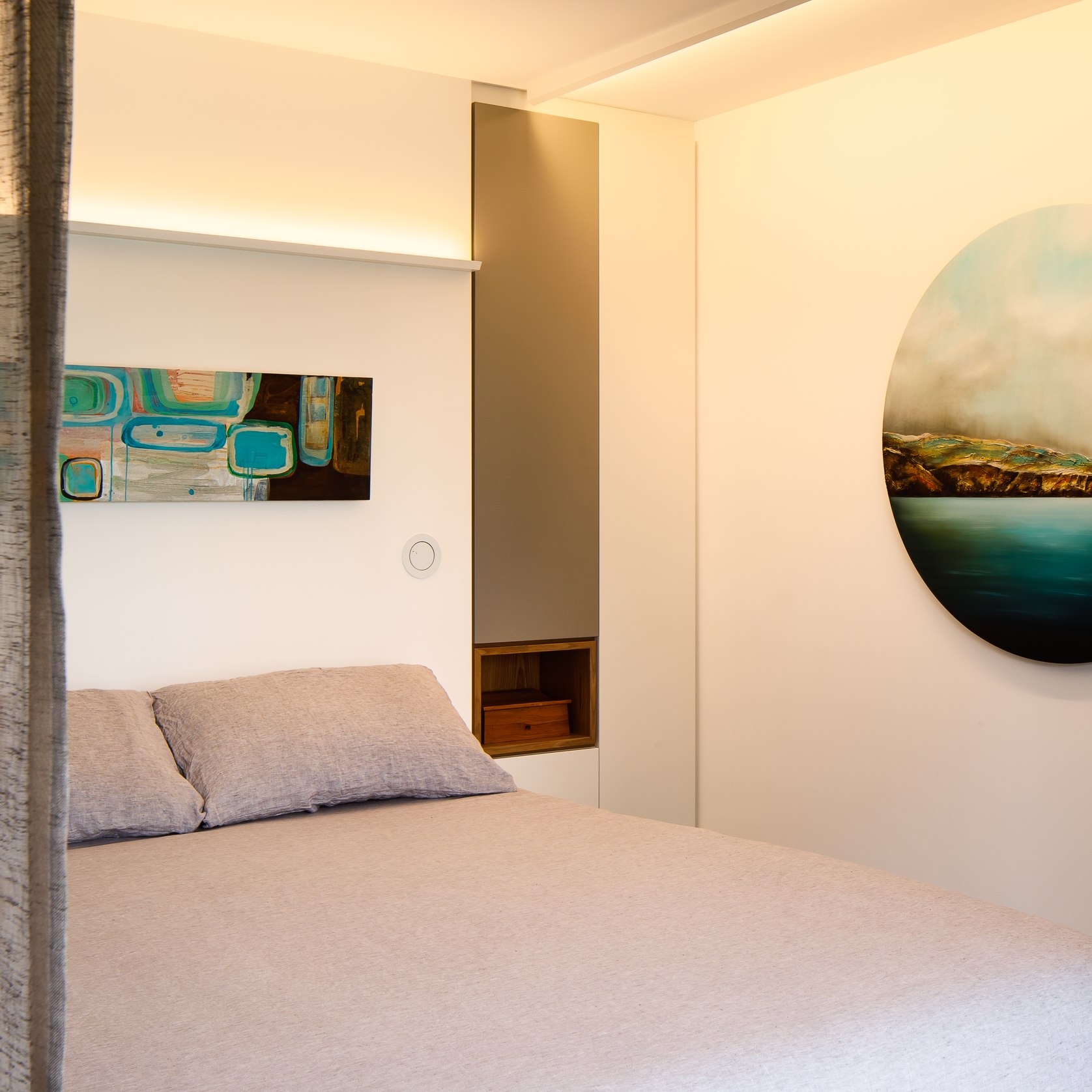

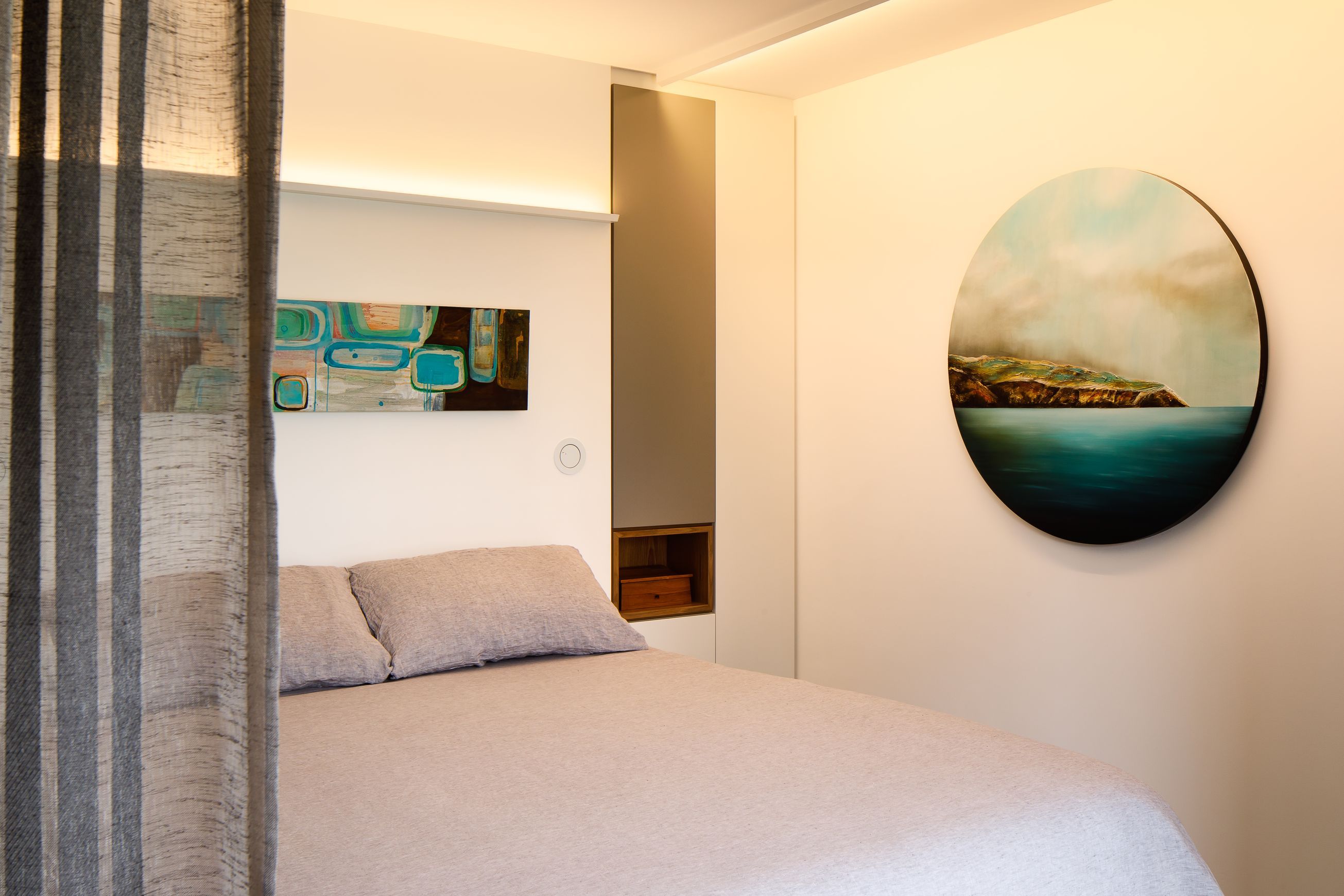

Dado Dave 20 Linear LED Light is a sleek, architectural profile designed to provide high-output up lighting. The LED strip is positioned to maximise asymmetric distribution which offers smooth light out into the space. The concealed light source keeps glare to a minimum, while up to 2650 lumens per metre LED strip means it packs a punch.

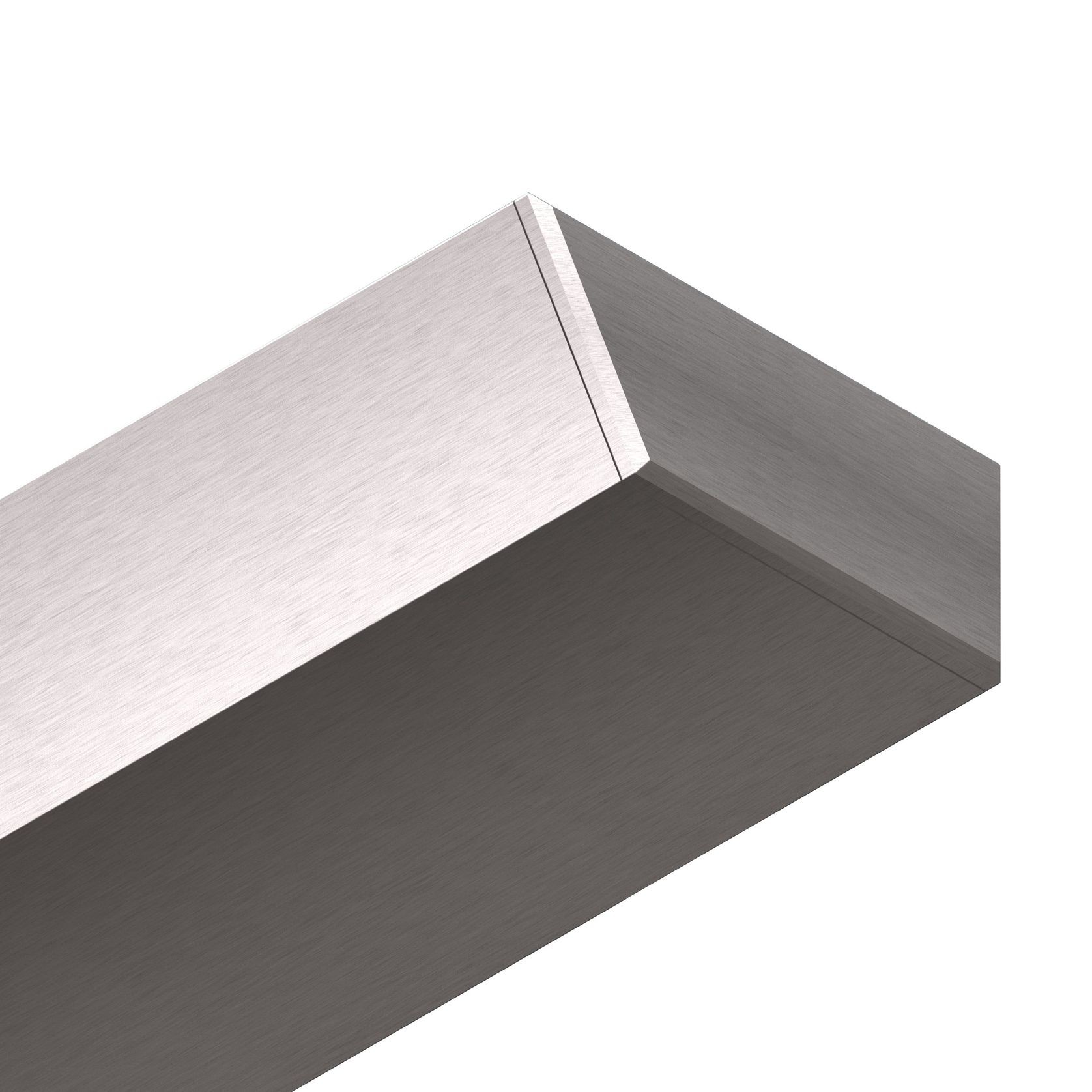

The extrusion is designed for super-quick screw-fixing, while a clip-in aluminium lid covers the screw heads and provides a smooth, easy-to-clean surface. For applications where Dado Dave 20 is being mounted flush with the bottom of a bulkhead, then the mounting adaptor can be used to reverse the direction of the mounting screw.

Details
  • Category
    Linear Lighting
  • Brand
    Offspring Profiles
Specifications
  • Applications - Concealed indirect lighting for living rooms, board rooms, hallways.
  • Installation - Interior only
  • Material - Aluminium body, polycarbonate diffuser, aluminium end caps
  • Finish - Natural silver anodised or custom powder coat
  • Light source - LED ribbon strip
  • Power supply - 24V DC - remote driver options ranging from 6W up to 320W
  • Dimming - Various options available including DALI, 0-10V, DMX - please enquire
  • Mounting options - Ceiling surface mounted, wall mounted
  • Features - New Zealand designed and made, uniform lighting (reduces or eliminates the appearance of LED 'dots' with opal diffuser), provides heat sinking for high wattage LED strips, dust & grease protection
  • Diffuser options - Opal polycarbonate, clear polycarbonate
