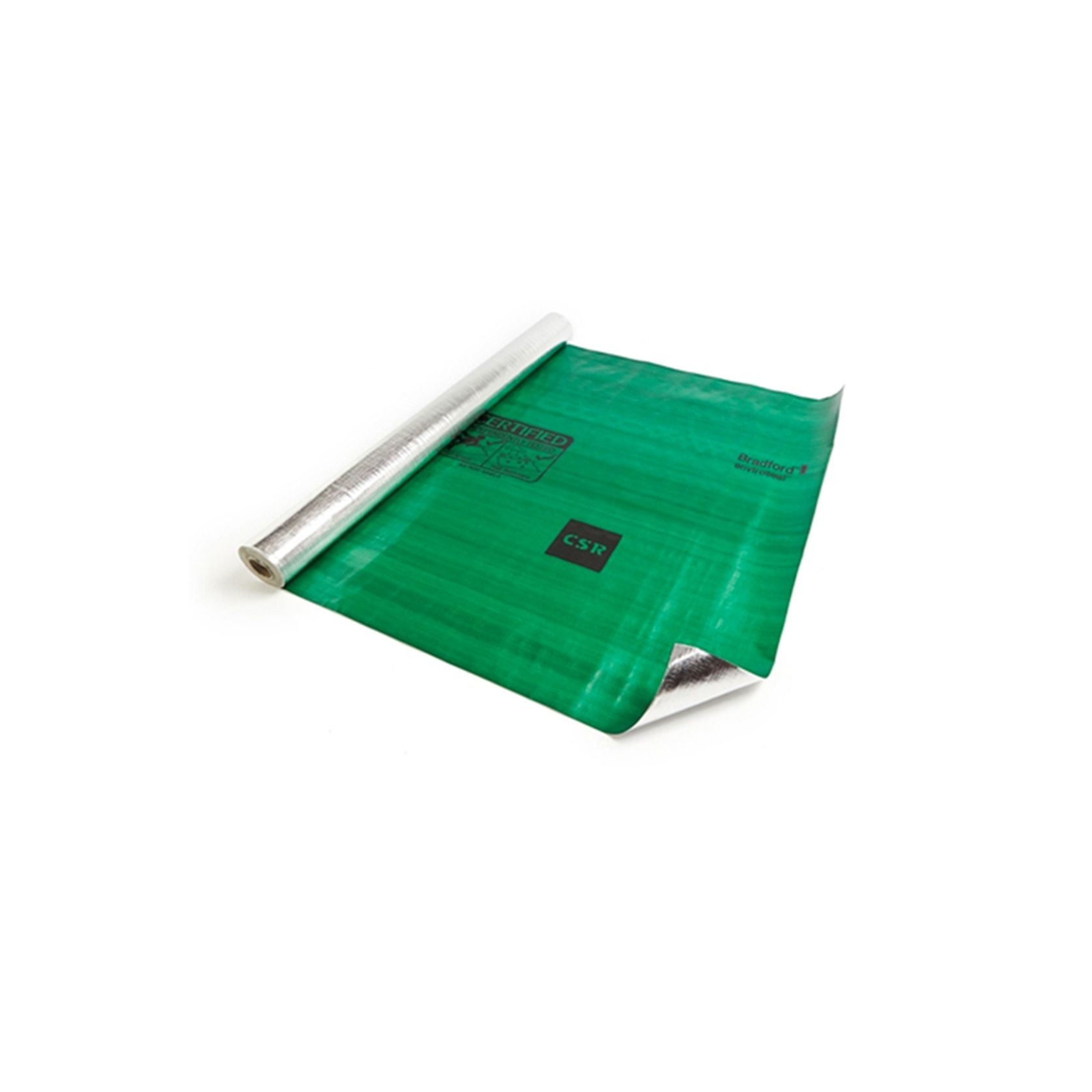

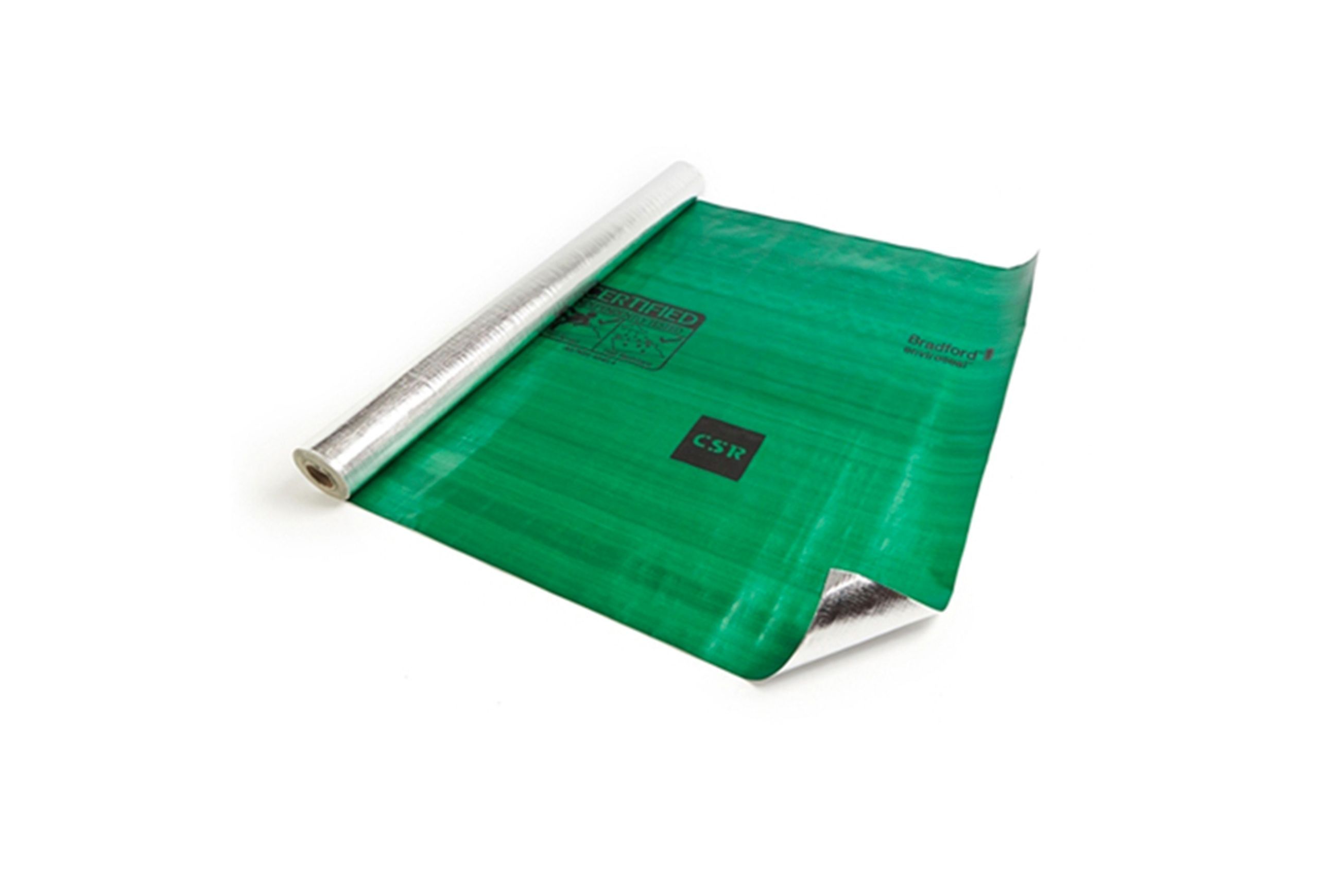

Thermoseal Heavy Duty Perforated Facing

By CSR Bradford Insulation
Website

Bradford Thermoseal Heavy Duty Perforated Facing (750PERF) foil is an excellent high strength acoustic facing for Glasswool and Rockwool when used as a facing for internal lagging of air conditioning duct work.

Bradford Thermoseal Heavy Duty Perforated Facing is a heavy duty perforated aluminium foil often used for facing Glasswool or Rockwool bulk insulation. It consists of two layers of aluminium foil and kraft papers bonded with flame retardant adhesive, with additional strength provided by reinforced fibreglass scrim.

Perforations on this product are 2.4mm in diameter giving a total open area of 10% providing acoustic treatment of walls and ceilings and can be used in combination with a Glasswool blanket as facing for internal lagging of air conditioning duct work.

Features and Benefits:

  • Extra weight and heavy duty perforated foil for acoustic applications
  • Excellent facing for Glasswool and Fibertex Rockwool insulation
  • Cost effective facing of bulk insulation for acoustic treatment of industrial and commercial equipments
  • Used as an effective facing for acoustic insulation
Details
  • Category
    Wall Insulation, Rigid Air Barriers
  • Range
    Commercial Insulation
Specifications
  • Product Code 15166 - Width (1200mm), Length (60m), m sq per roll (72), rolls per pallet (33)
  • Product Code 15168 - Width (1200mm), Length (300m), m sq per roll (360)
  • Product Code (None) - Width (1200mm), Length (500m), m sq per roll (600)
  • Product Code 15174 - Width (1350mm), Length (60m), m sq per roll (81), rolls per pallet (33)
  • Product Code 15177 - Width (1350mm), Length (300m), m sq per roll (405)
  • Product Code 15180 - Width (1500mm), Length (300m), m sq per roll (450)
  • Product Code 15181 - Width (1500mm), Length (500m), m sq per roll (750)
Scope of use

Bradford Thermoseal Heavy Duty Perforated Facing is a facing material suitable for adhesion to Glasswool or Rockwool insulation products where protection of the insulated surface is required whilst maintaining sound absorptive properties of the bulk insulation.

Typical applications for Thermoseal Heavy Duty Perforated facing include; facing onto Glasswool and Fibertex air-conditioning internal ductliners and for sound absorption.

Perforated foil protects the insulation whilst giving a bright smooth foil aesthetic functional use.
