Can you install a garage door on a sloped driveway in Wellington?

Why sloped driveways are common in Wellington

Wellington is built on hills. Suburbs like Karori, Brooklyn, Kelburn, Newlands, Hataitai, Island Bay and Johnsonville sit on hillside blocks where a flat driveway is the exception. Compact sections, narrow street frontages and older homes never designed for modern vehicles create sites where awkward garage access is just part of the landscape.

Many Wellington garages were built decades ago. Replacing an old door often means working with an opening that faces sideways to the street, a driveway that falls steeply to one side, or a floor that sits above or below the apron. Properties near the coast also face corrosion risks worth checking before any new door goes in.

What a garage door installer checks on a sloped driveway

A professional installer looks at several site-specific factors before recommending a door type.

Driveway gradient and approach angle

Does the driveway slope up towards the garage, or down into it? A rising driveway needs enough level apron space so the car arrives reasonably flat. A falling driveway directs surface water towards the threshold, which is the primary drainage problem on sloped Wellington sites. A steep approach angle can also create vehicle clearance issues at the base of the opening.

Garage opening and floor level

Garage doors and tracks need to be installed perfectly plumb and level to function correctly. If the floor follows the ground slope, or the opening has settled unevenly on one side, the bottom of the new door will sit unevenly, leaving gaps that let in water and cold air. The installer will assess whether a standard door can work or whether a custom approach is needed.

Headroom, side room and backroom

Headroom is the space between the top of the opening and the ceiling above it. Sectional doors need more headroom because the top panels must travel horizontally before the rest follow. Roller doors need less headroom but still require space for the drum. Side room is the clearance on either side for the track system and brackets. Backroom is the ceiling depth needed for the horizontal track run and for mounting automatic openers. In compact older Wellington garages built into a hillside, one or more of these clearances is frequently tight.

Drainage and water flow

When a driveway runs down to the garage, the slope channels surface water towards the threshold, posing a risk of internal flooding during heavy Wellington rain. Driveways sloping downward require good drainage channels in front of the door. A tapered concrete threshold, or a slightly raised edge, can help direct rainwater away from the garage door and prevent pooling.

Vehicle Access and Manoeuvring Space

MBIE guidance on domestic garages indicates that vehicle access is unlikely to be practical if more than a three-point turn is needed to enter or exit. On steep Wellington sites where garages often face sideways to the street or are accessed via a shared right-of-way, this is worth thinking through before settling on any door type.

Which garage door types work best on sloped driveways?

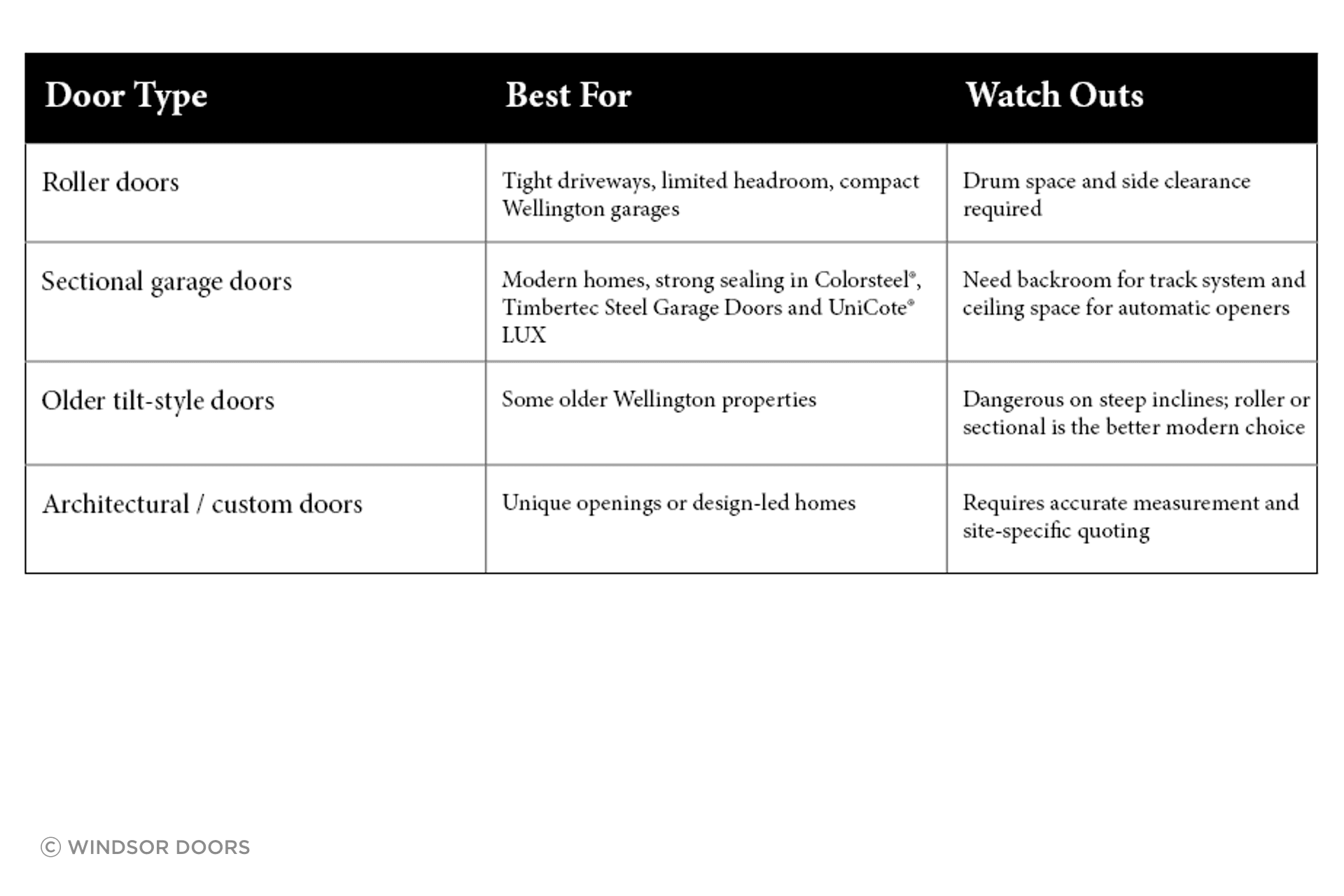

Not all door types suit sloped driveways equally. Here's how the main options compare for Wellington properties.

Roller Doors

Roller doors open vertically into a compact drum above the opening. Because the panels do not swing outward, roller doors suit tight Wellington driveways where apron space is limited. They are available with insulation options and windows in some configurations, and are among the most practical choices for hillside sites with restricted space.

Sectional Garage Doors

Sectional garage doors travel up and back along a ceiling-mounted track system. They offer strong weather sealing and can accommodate tapered bottom seals to compensate for minor driveway slopes. Windsor Doors sectional garage doors are available in woodgrain Colorsteel®, Timbertec Steel Garage Doors for a timber-look finish, and UniCote® LUX for a premium powder-coated result. Panels with windows are available across the range. Where the garage is attached to the house or used as a workspace, Mammoth® Insulation provides temperature and sound performance, with options varying across the range.

Architectural and custom doors

For unique openings or design-led homes, architectural garage doors can be built to suit non-standard dimensions, and windows and custom features can be incorporated. These require accurate site measurement and site-specific quoting.

A note on older tilt-style doors

If an older tilt-up door is in place, a roller or sectional replacement is the better modern choice for sloped Wellington sites. Both types handle slope conditions more reliably and offer stronger weather sealing.

Common problems with garage doors on sloped driveways

Gaps under the door

When the driveway or floor is uneven, the door cannot make consistent contact across its full width. Heavy-duty weatherstripping, such as oversized rubber or PVC seals, is necessary to prevent water ingress on sloped driveways. Where variation is significant, a custom threshold or driveway correction may be needed before the door goes in.

Poor sealing against wind and rain

Wellington properties need heavy-duty weatherproofing to handle the region's wind. On exposed sites, improperly specified doors can fail under sustained wind loading, so wind-rated engineering matters. A poor seal at the bottom, sides or top lets in water, draughts and debris, and on a sloped opening, getting the seal right from the start takes more care than on a flat site.

Strain on the door and automatic openers

A door operating on a misaligned surface puts extra load on the track system, springs and automatic openers. Modern automatic openers include soft start and stop, auto-reverse and safety features that help manage this, though automatic openers work best when the underlying installation is correctly set up and the door is properly balanced.

Vehicle scraping

On a steep driveway, the underside of a vehicle can contact the apron at the street-to-garage transition. This tends to be a driveway issue rather than a door issue, but it directly affects daily usability. Checking clearance with every vehicle you use is worth doing before any work begins.

Do you need to change the driveway first?

When a seal or threshold is enough

Minor slope issues can often be resolved through door selection, a quality bottom seal, or a tapered threshold design. Many replacement jobs on existing driveways proceed with only minor modifications and are non-disruptive.

When driveway work needs to come first

Where the slope channels significant water towards the opening, or where the apron is substantially uneven, driveway work may need to come first. That is a matter of sequence rather than a reason to abandon the project. If the work involves altering the vehicle crossing or kerb, Wellington City Council approval is required for that specific change, separate from any building consent requirements for the garage door installation itself.

Building consent for garage door installation in Wellington

Consent requirements catch many Wellington homeowners off guard, particularly on a sloped site where the project scope isn't always straightforward.

When building consent is not required

In most cases, replacing a garage door with a new door of the same size, without altering the opening or structure, does not require building consent. However, all work must still comply with the New Zealand Building Code, and homeowners should check with their local council if they are unsure.

When building consent is required

Building consent is generally required when a garage door installation involves structural modifications to the garage. This includes enlarging the door opening, modifying load-bearing walls, or altering structural elements such as lintels, beams or framing around the opening. These types of structural changes typically require building consent before work begins.

Building consent may also be required if the garage is being converted into a habitable space, such as a bedroom, living area or home office, as the work must meet additional Building Code requirements for occupancy, insulation, ventilation and safety.

If structural defects or damage are discovered during the project and repairs involve load-bearing elements of the building, building consent may also be required depending on the scope of the work.

Resource consent and Wellington City Council

Resource consent may be required separately where the project affects the vehicle crossing, encroaches on the road reserve, or falls within a heritage area. Contact Wellington City Council early to clarify requirements before they become a problem. Both building consent and resource consent timelines are worth factoring into your project plan from the start.

Wellington City Council advises that building consent for straightforward projects is typically processed within 20 working days. Complex projects can take considerably longer.

Sloped driveway checklist for Wellington homeowners

Before contacting an installer, work through these slope-specific questions. They cover what makes a hillside or sloped Wellington site different from a flat one.

• Does your driveway slope up towards the garage, or down into it?
• Is there a risk of water running towards the door opening along the slope?
• Does the garage floor appear level from side to side, or does it follow the ground slope?
• Does the door opening look square, or does one side sit noticeably higher?
• How much vertical space is there above the opening to the ceiling?
• Is there enough ceiling depth for the track system and automatic openers?
• Is the driveway wide enough to manoeuvre comfortably each day?
• Would any driveway changes involve altering the vehicle crossing or kerb?
• What vehicles need to fit inside, and do any have specific clearance requirements?

For a full installation checklist covering structural checks, power supply requirements, consent requirements and site preparation, see our guide to preparing your Wellington property for garage door installation.

Why professional measurement matters more on a sloped driveway

DIY work is not suitable for garage door installations on sloped sites. The slope introduces additional variables around alignment, seal performance and spring tension that require professional work and experience with Wellington's specific site conditions.

A professional measure covers the opening size, slope, floor level, track system routing, clearances and automatic openers placement. Door removal and frame prep are assessed and handled as part of the job. Spring tension alone makes this a professional job from start to finish, and on a sloped site, the margin for error is smaller than most homeowners expect.

The right door for a Karori hillside may be different from the right solution for a Hataitai garage or a semi-basement entry in Kelburn. Get the site assessed first, then choose the door.

Not sure whether your driveway is too steep for a standard door? Book a free measure and quote with Windsor Doors Wellington and get a site-specific answer.

Can Windsor Doors help with sloped driveways in Wellington?

Windsor Doors supplies and installs garage doors across Wellington and the wider region, including Wellington City, Upper Hutt, Lower Hutt, Porirua and surrounding hillside suburbs. With installers across New Zealand, from East Tamaki to Wellington and the South Island, Windsor Doors services are available wherever you need them.

The full range of roller doors, sectional garage doors and architectural doors is available, along with automatic openers, accessories and insulation options. Whether the right job calls for a roller door for a compact garage, a Timbertec Steel Garage Doors sectional door for a modern build, or a custom architectural door for a design-led renovation, every job starts with a proper site assessment.

Explore the full range through our virtual showroom online. Visit our showroom in Hamilton to see doors in person, or book a virtual showroom appointment from anywhere in Wellington. For further information on services, products and insulation options, visit our website. When ready, find a local Windsor Doors installer and book your free measure and quote today.
