How to Detail Service Integrations in Feature Ceilings

At Sculptform, we have developed three refined methods for integrating services into feature ceilings:

1. Folded Metal Channel
2. Integrated Timber Channel
3. Black MDF Channel

Each option offers a seamless integration of function and design, allowing services to disappear into the architecture rather than compete with it.

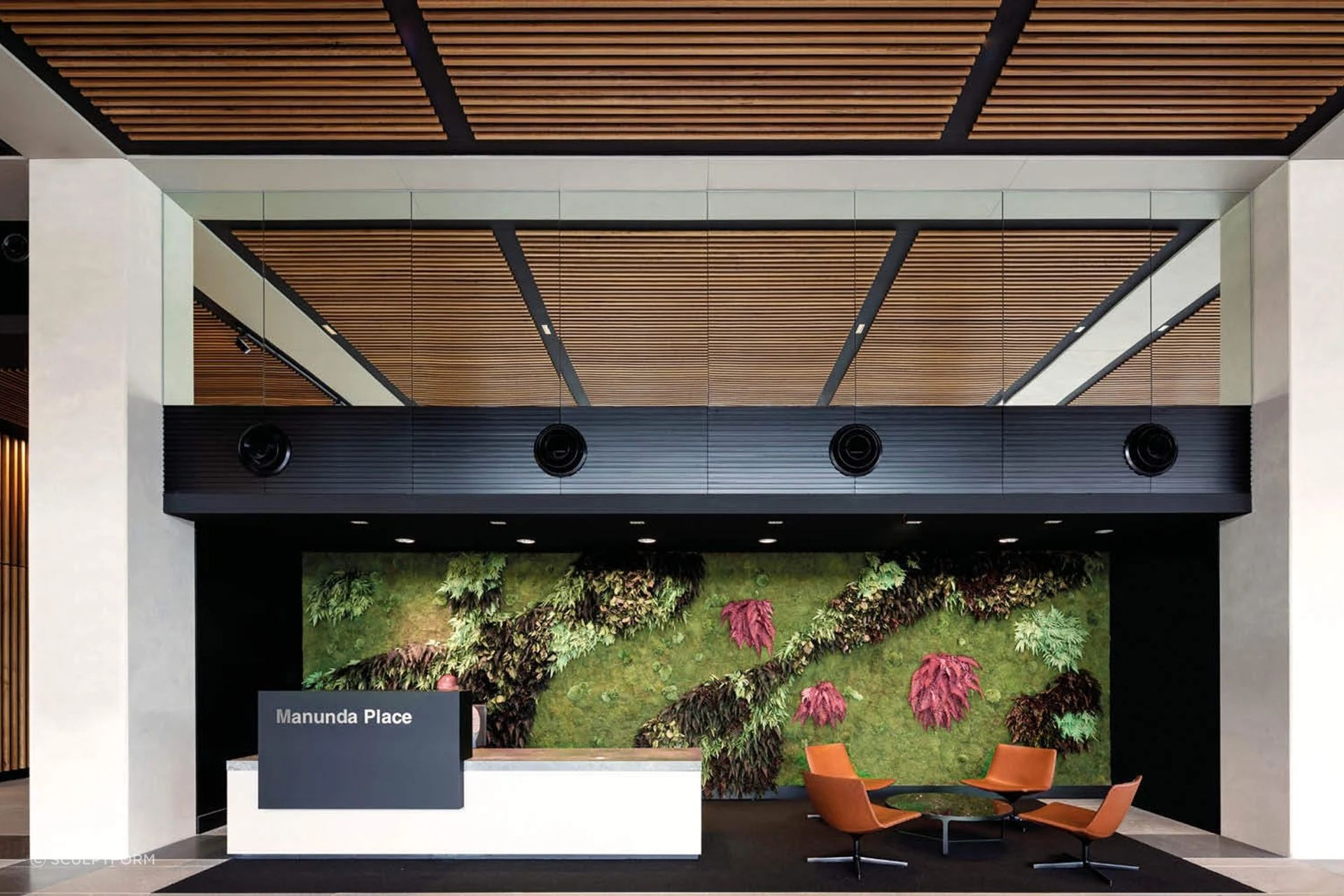

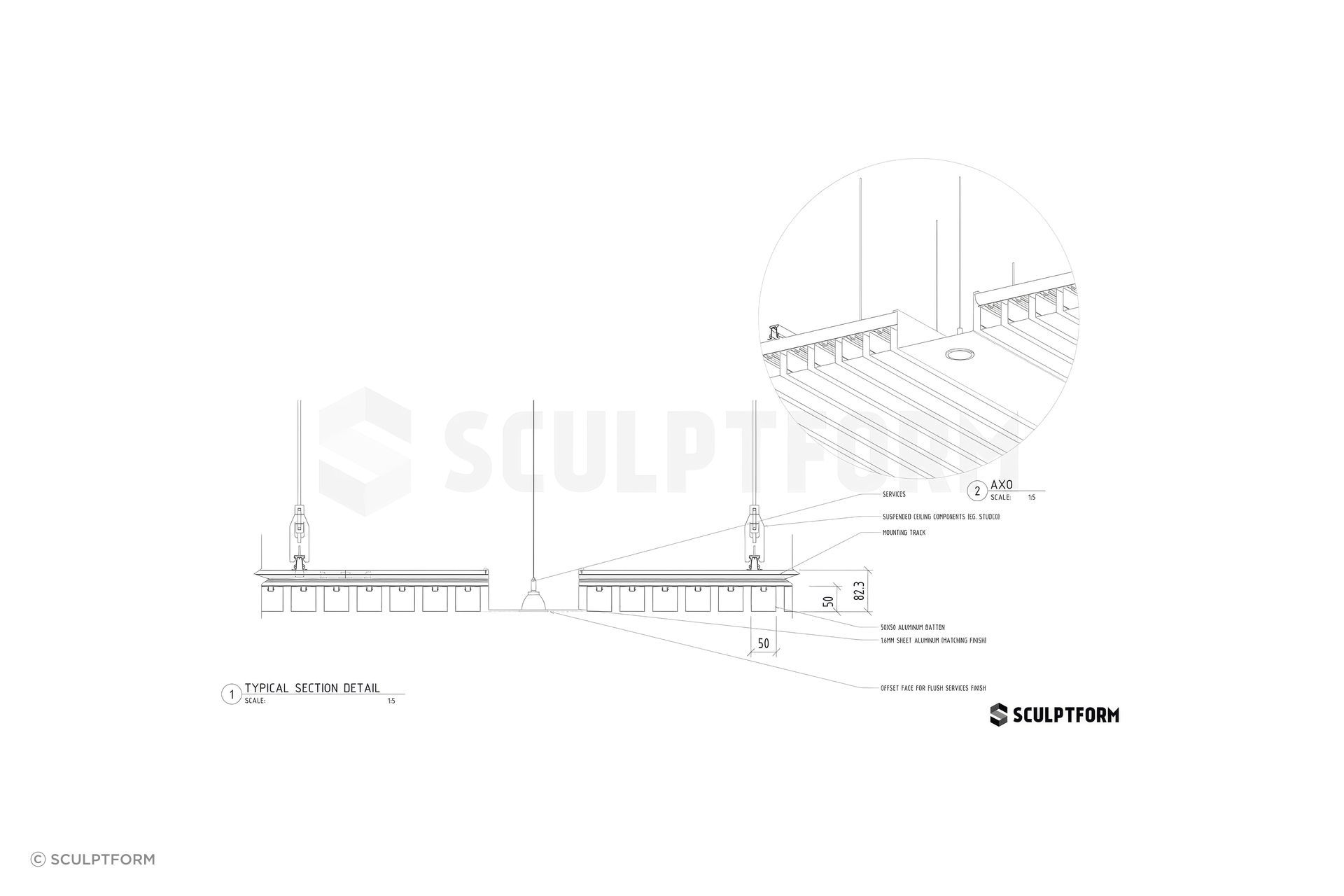

1. Folded Metal Channel

The Folded Metal Channel offers a highly durable and precise integration method, often specified for commercial fitouts where a crisp, architectural finish is required. Its folded form creates a strong linear definition, complementing contemporary workplace interiors while accommodating a variety of service types.

Key Benefits:

• Sharp, architectural detail
• High durability for commercial applications
• Flexibility for integrating multiple services

2. Integrated Timber Channel

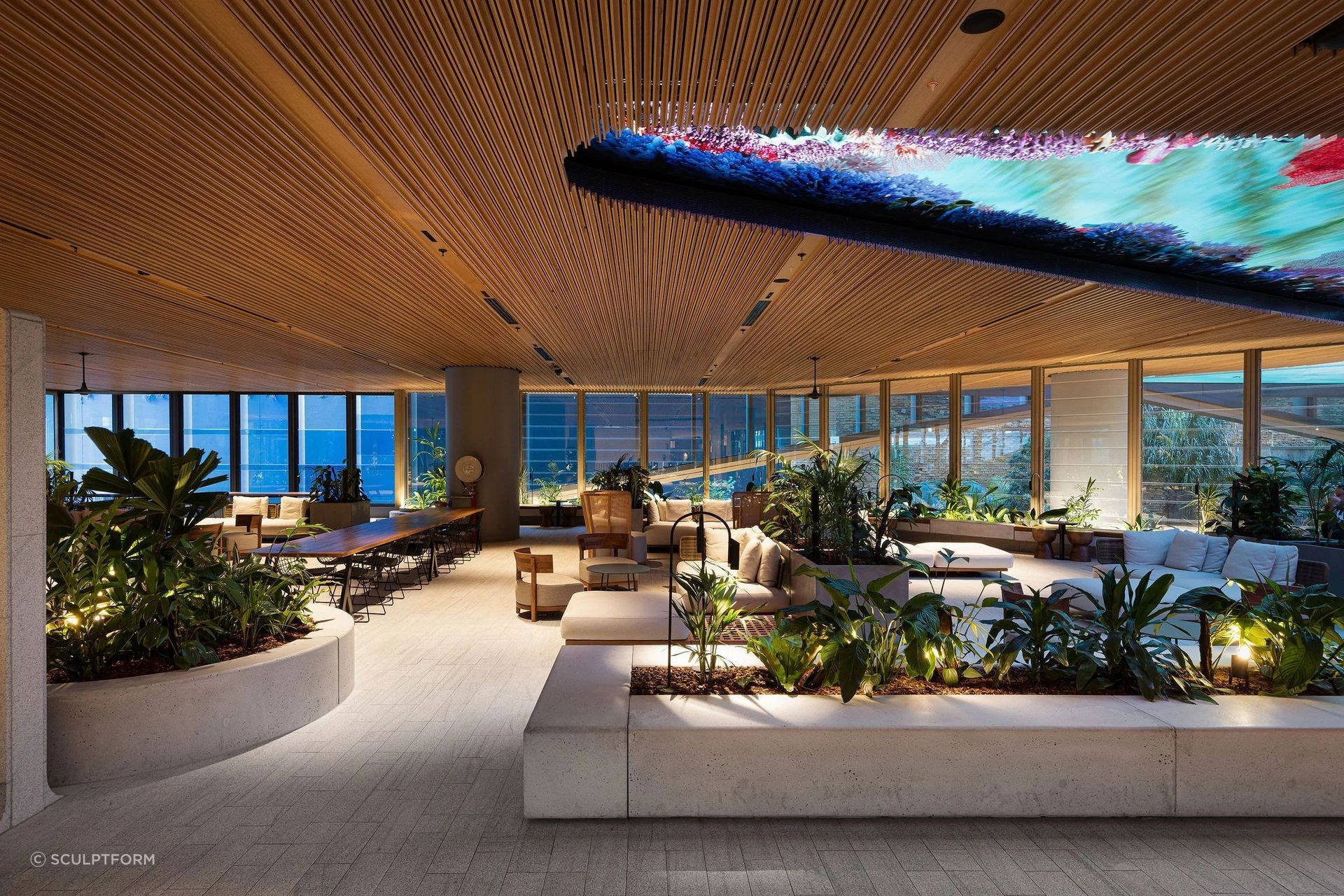

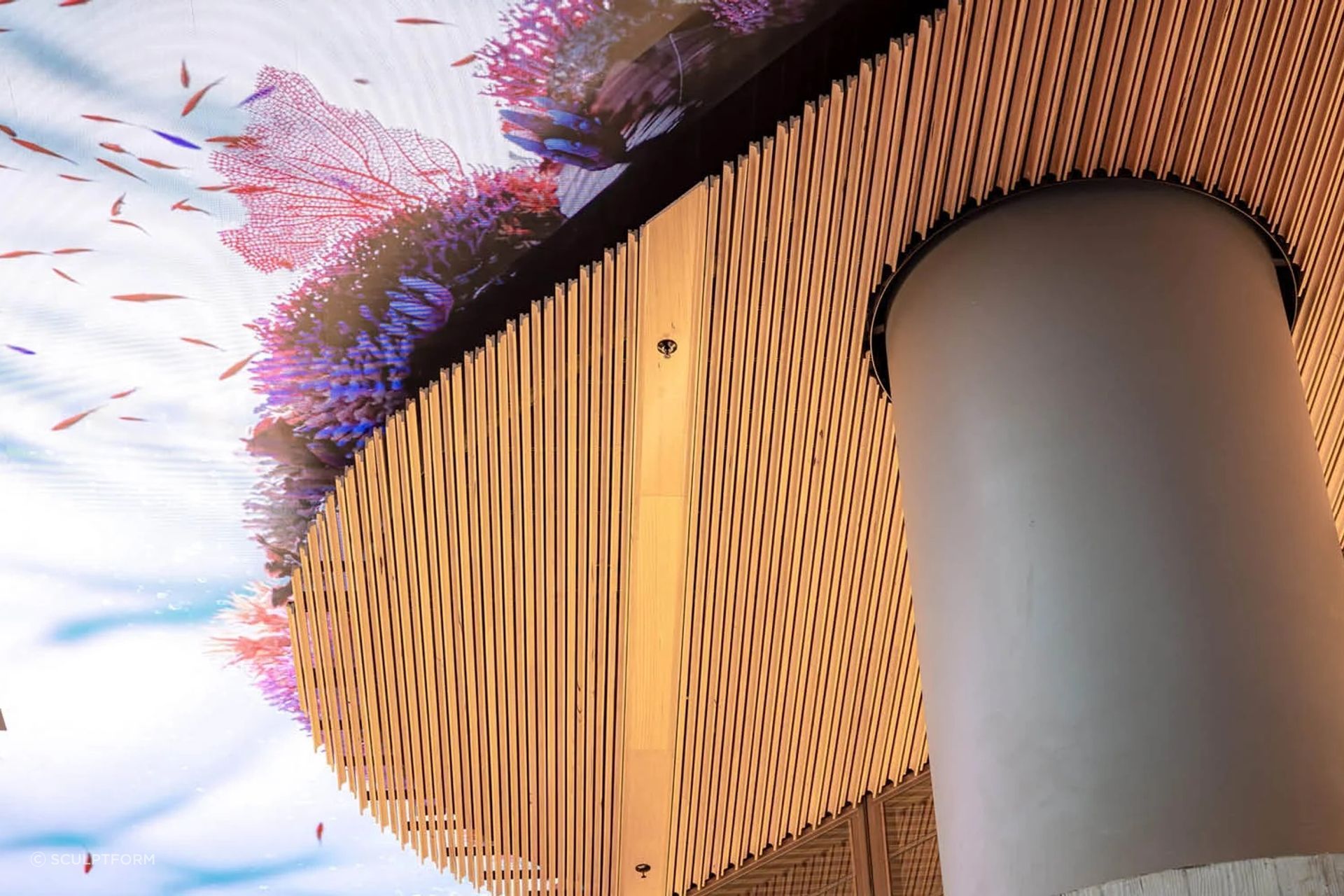

Drawing inspiration from our work on 80 Ann Street in Brisbane, the Integrated Timber Channel is a premium solution where the service channel becomes part of the ceiling system itself.

This method allows for consistent alignment with timber battens, providing a fully integrated look without the need for secondary trims or compromise in spacing. The result is a warm, refined ceiling with services concealed within the natural rhythm of the battens.

Key Benefits:

• Seamless alignment with timber battens
• Premium aesthetic suitable for high-end workplace projects
• Customisable dimensions to suit service requirements

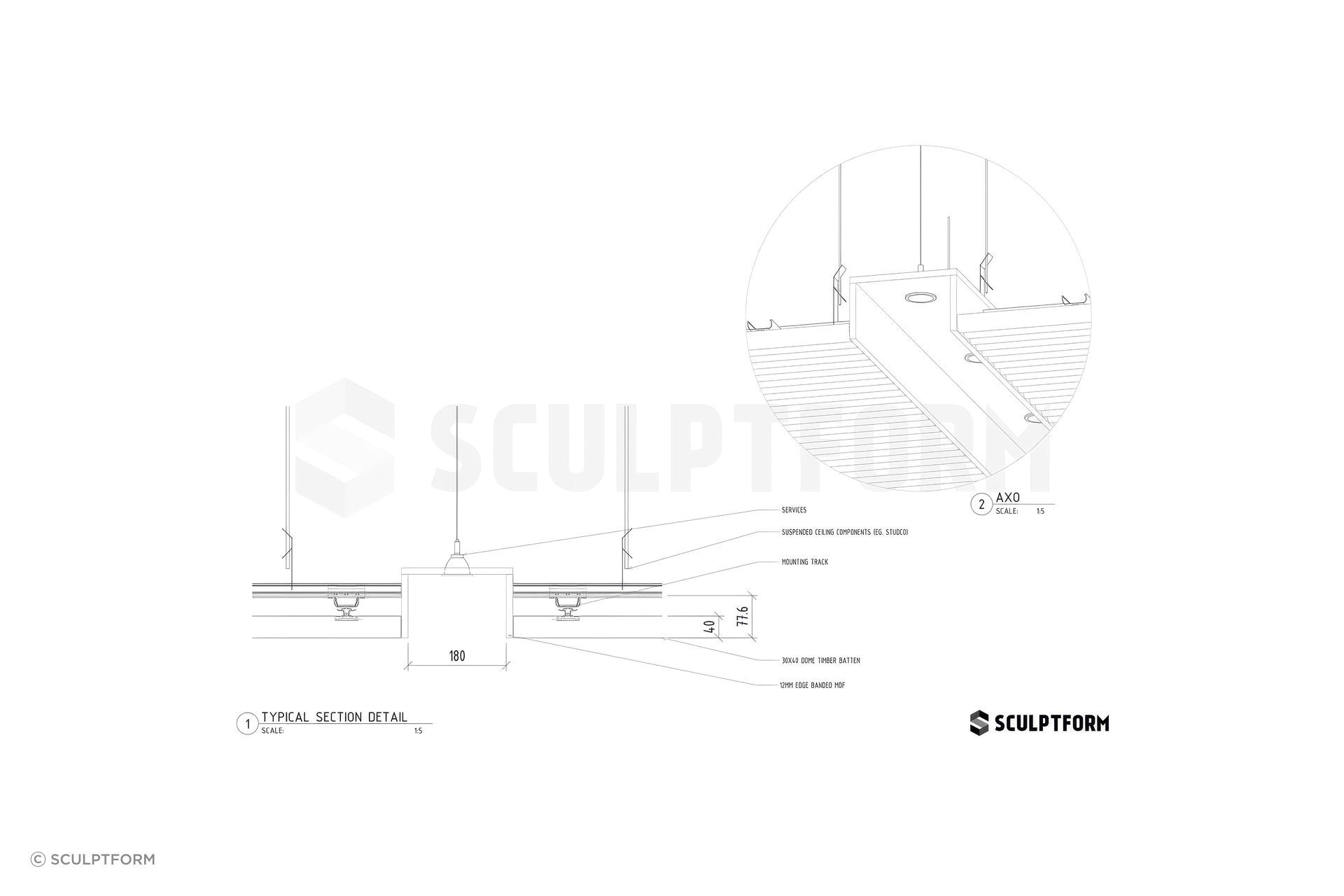

3. Black MDF Channel

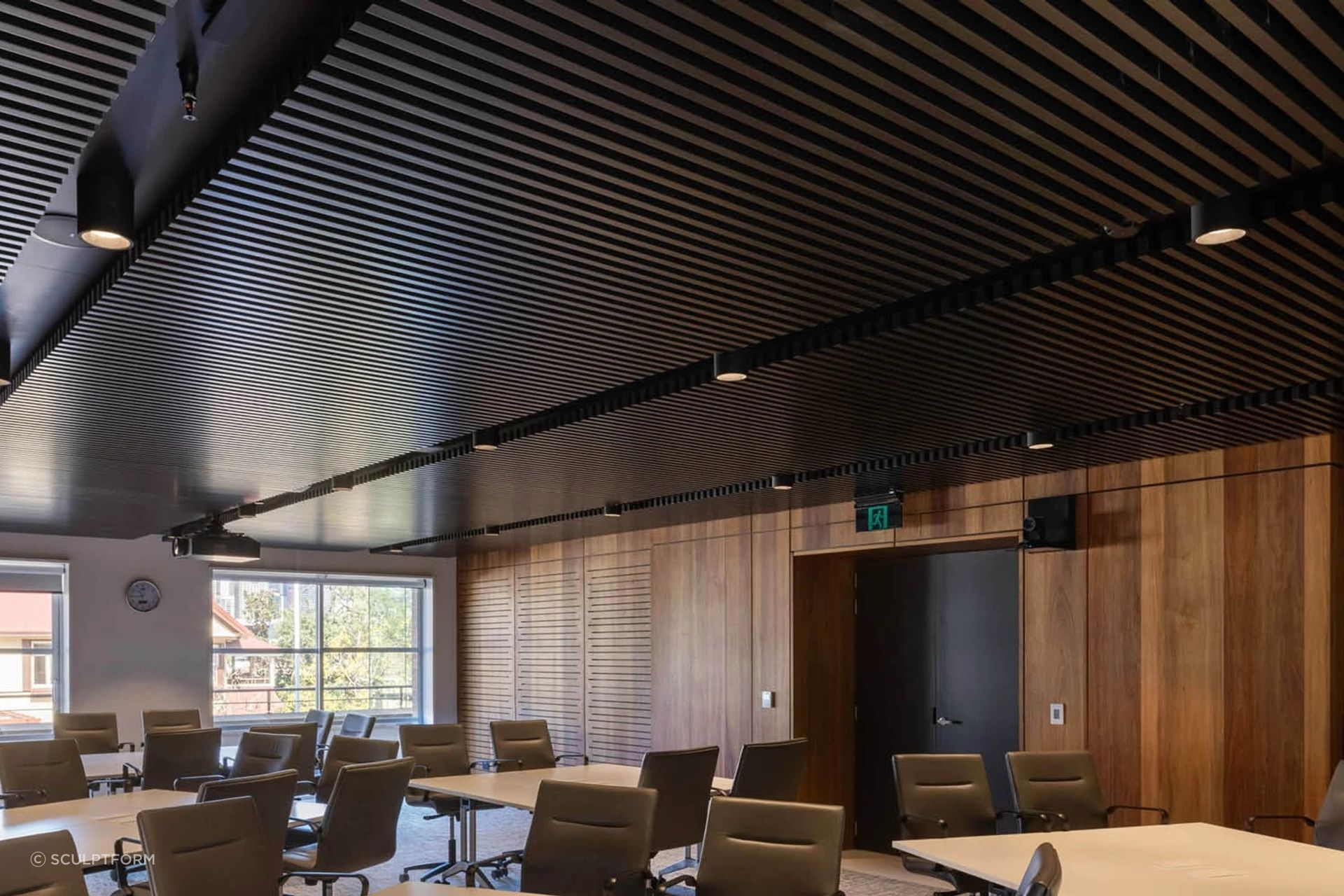

For projects where services need to visually recede, the Black MDF Channel provides a cost-effective and discreet solution. The dark channel creates shadow lines, allowing lighting fixtures and other services to blend into the background while the feature ceiling remains the hero.

Key Benefits:

• Creates a shadow effect to disguise services
• Provides an economical alternative to timber channels
• Maintains a clean, uninterrupted ceiling rhythm

Design Considerations for Service Channels

Purposeful service channels are not only functional, they can also become a design feature in their own right. By breaking up the expanse of a linear ceiling, they introduce subtle layers of depth and variation, adding visual interest without overwhelming the overall composition.

The orientation of the channels is an important consideration. Running them parallel to the battens reinforces the natural rhythm of the ceiling, while positioning them perpendicular creates deliberate moments of contrast that can define spaces or highlight key areas. This ability to control both function and expression makes service channels an effective tool for architects seeking refined, adaptable ceiling solutions.

Bring Clarity to Your Project

Every workplace fitout has its own unique challenges, and service integrations are often where complexity arises. By detailing services with purposeful channels, architects can ensure their ceiling designs remain both functional and refined.

At Sculptform, we work closely with architects to detail service integrations that align with both design vision and construction efficiency.
