The Original BetaFix Clips are Back!

The Original BetaFix Clips are Back!

Words by Studco

The Studco BetaFix Clip is an adjustable furring channel clip, used when installing furring channels to masonry walls, where the surface is uneven. The BetaFix clip allows the furring channel to clip in at different positions on each BetaFix clip along the surface area, to account for variations in the masonry. This eliminates the need of shimming and provides for a faster and more accurate installation.

Once the BetaFix clips is securely fastened onto the wall, the furring channel simply snaps into the BetaFix clip at the required position, without the need for additional fasteners.

Benefits of Studco BetaFix Clips:

  • Eliminates the need for time consuming packers to account for uneven wall surfaces.
  • Pre-punched with fixing holes for easy installation and minimal drilling.
  • BetaFix clips are available in a 30mm (MBF) or 50mm (MBFS) height.
  • Suitable for use with 16mm and 28mm furring channels.

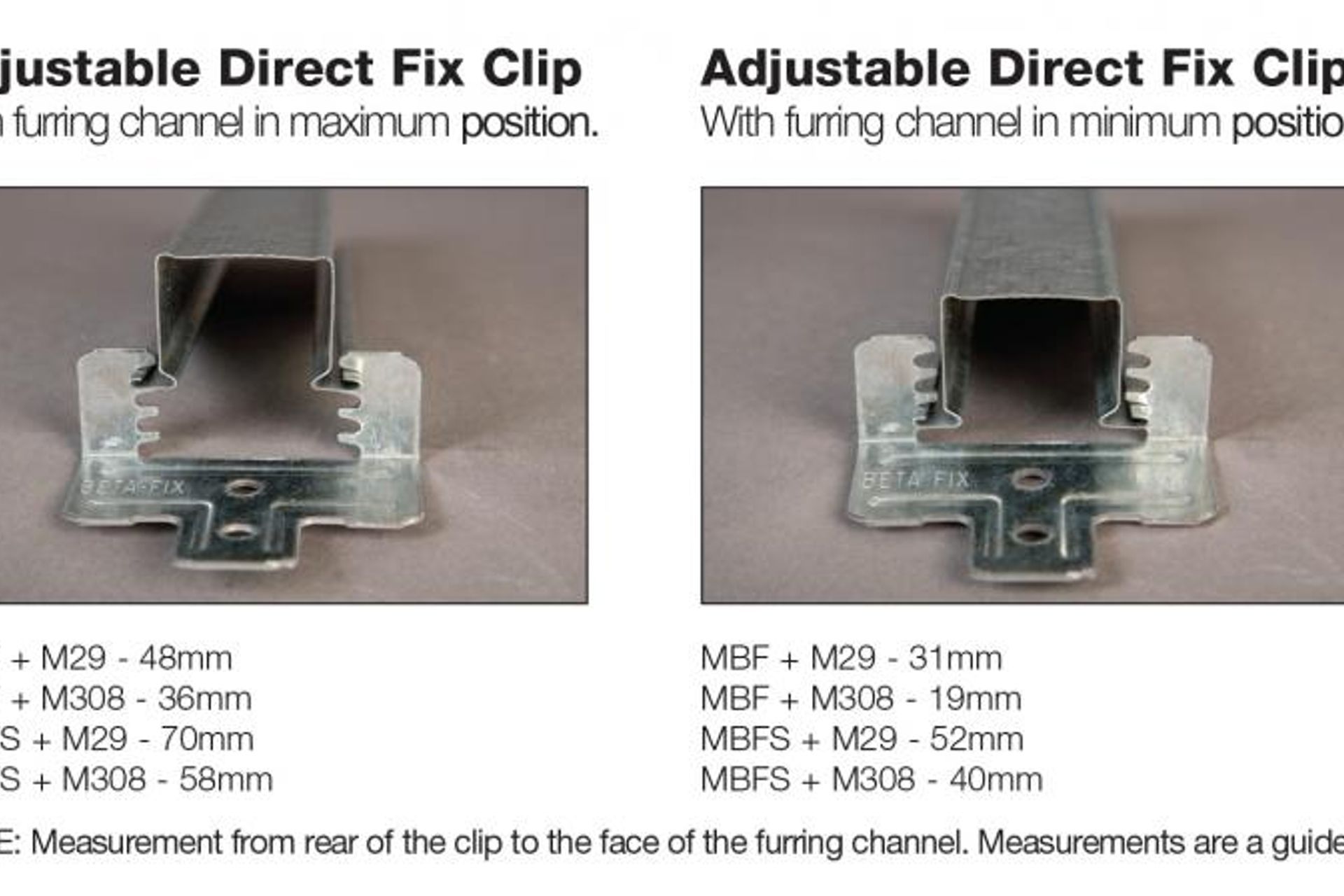

  • 4 adjustable positions at 6mm increments, to suit various furring channel sizes (as shown below).

The Studco BetaFix clip can also be used in conjunction with Resilmount for soundproofing assemblies.

For more information about the Resilmount MBFR and MBFR6 Adjustable Direct Fix Clips, please click below:

View Resilmount MBFR & MBFR6

For more information about Studco BetaFix clips, contact sales@studcosystems.com.au

Studco

Brought to life in 1986 in Melbourne, Australia, when contractor and founder Gordon Stevens developed a creative idea to improve the way ceiling systems were constructed...
