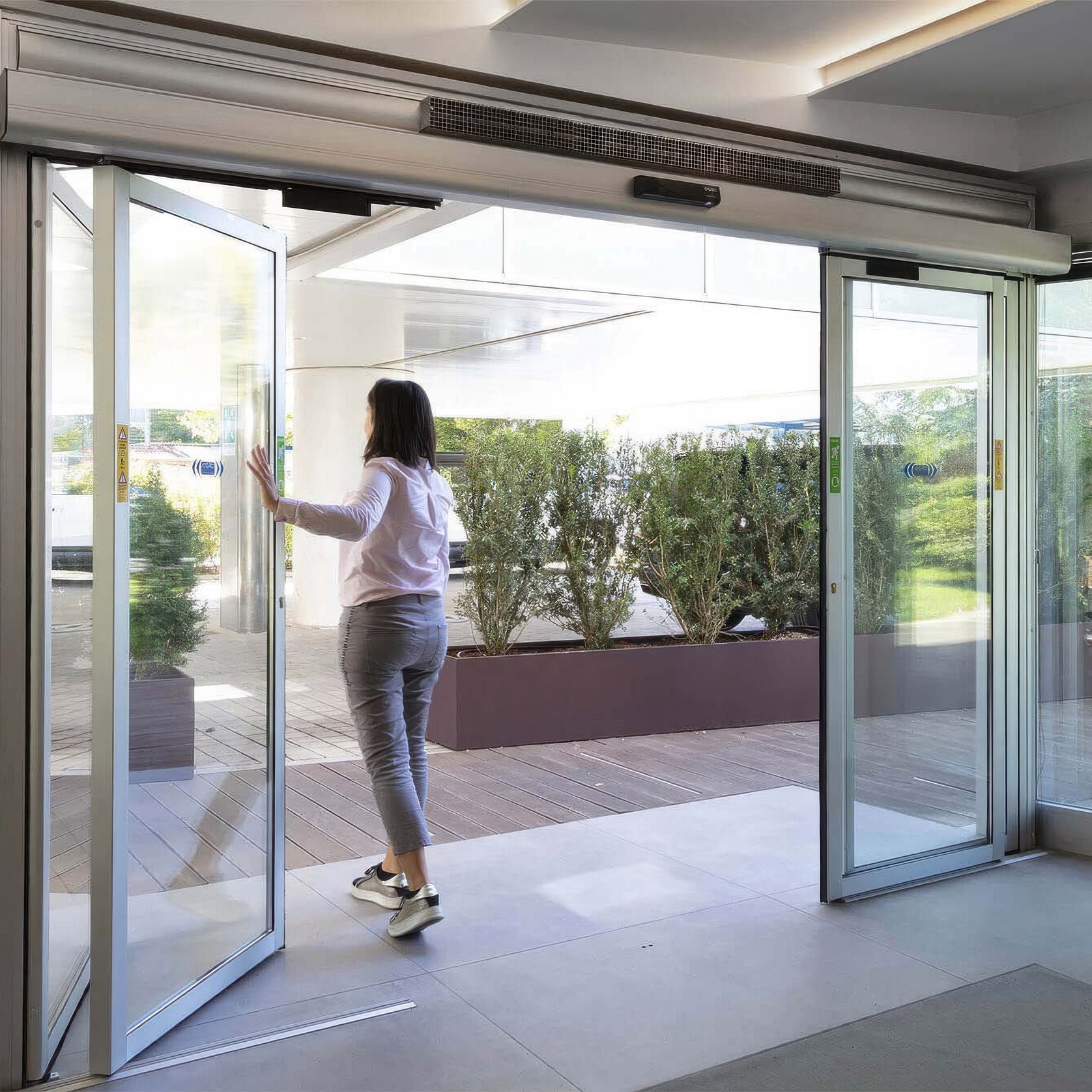

Airslide | Automatic Sliding Doors

• Passage opening: 2.500 - 4.800 mm
• Power supply voltage: 220-240 V~ - 50/60 Hz
• Electric motor: Single-phase asynchronous motor
• Max absorbed power: 160 W (single motor) - 330 W (double motor)
• Use frequency: 100%
• Motor rotation speed: 2850 rpm
• Fan diameter: 80 mm
• Fans' length: 360 mm - 500 mm
• Transom dimension (DxH): 182,1x 252,5 mm (Grill included)
• Speed of air exiting the grids (0÷2,8 m): 15.3 - 3.7 (m/s)
• Airflow capacity (m3/h): 1250
• Sound level (dB) at 5 m: 49,5 - 57,5
• Operating ambient temperature: - 20° C / + 55° C
• Protection class: IP23 (AIRSLIDE) – IP54 (E1AS control board)

AIRSLIDE must always be used with a FAAC automated system.

• Model Item code: AIRSLIDE 1055661

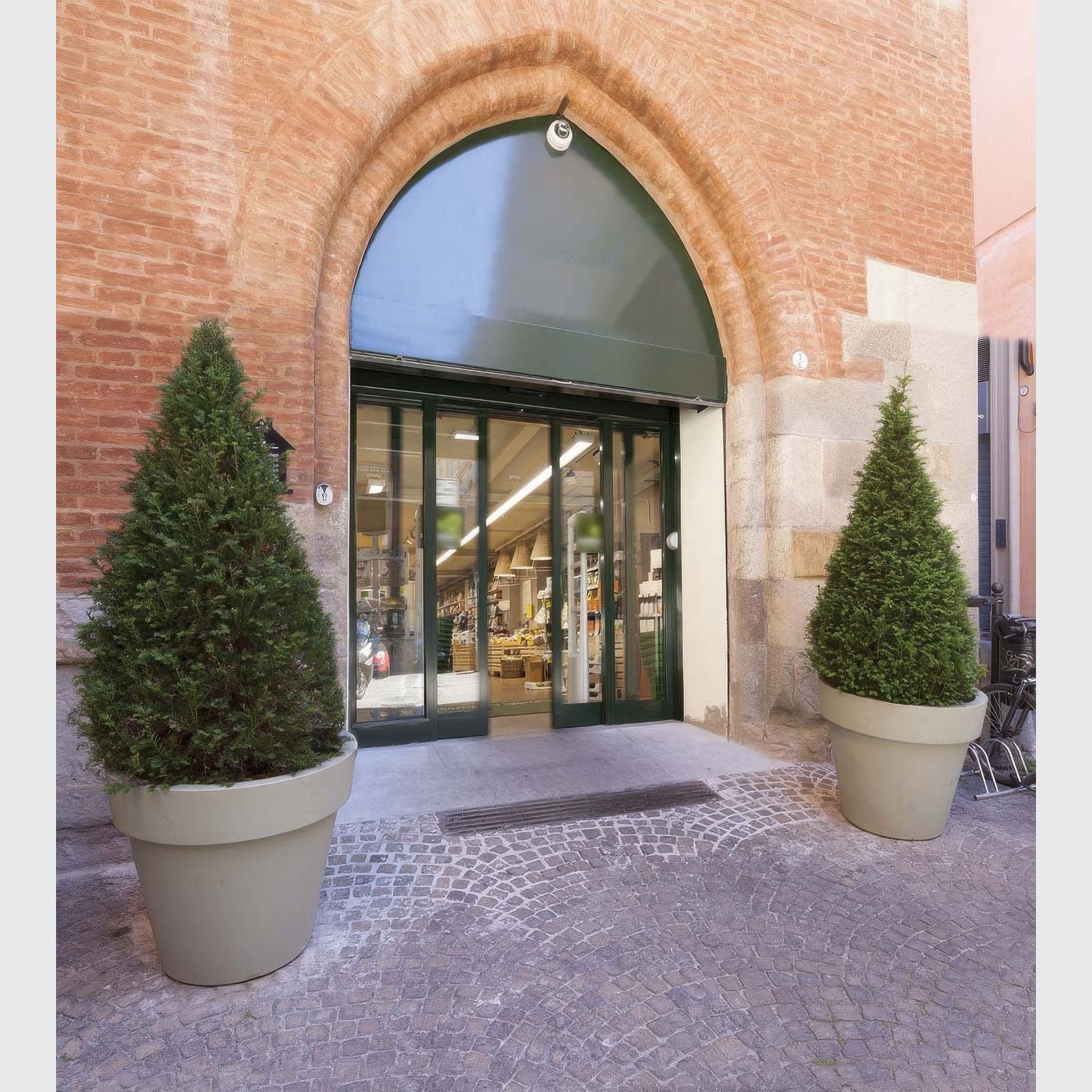

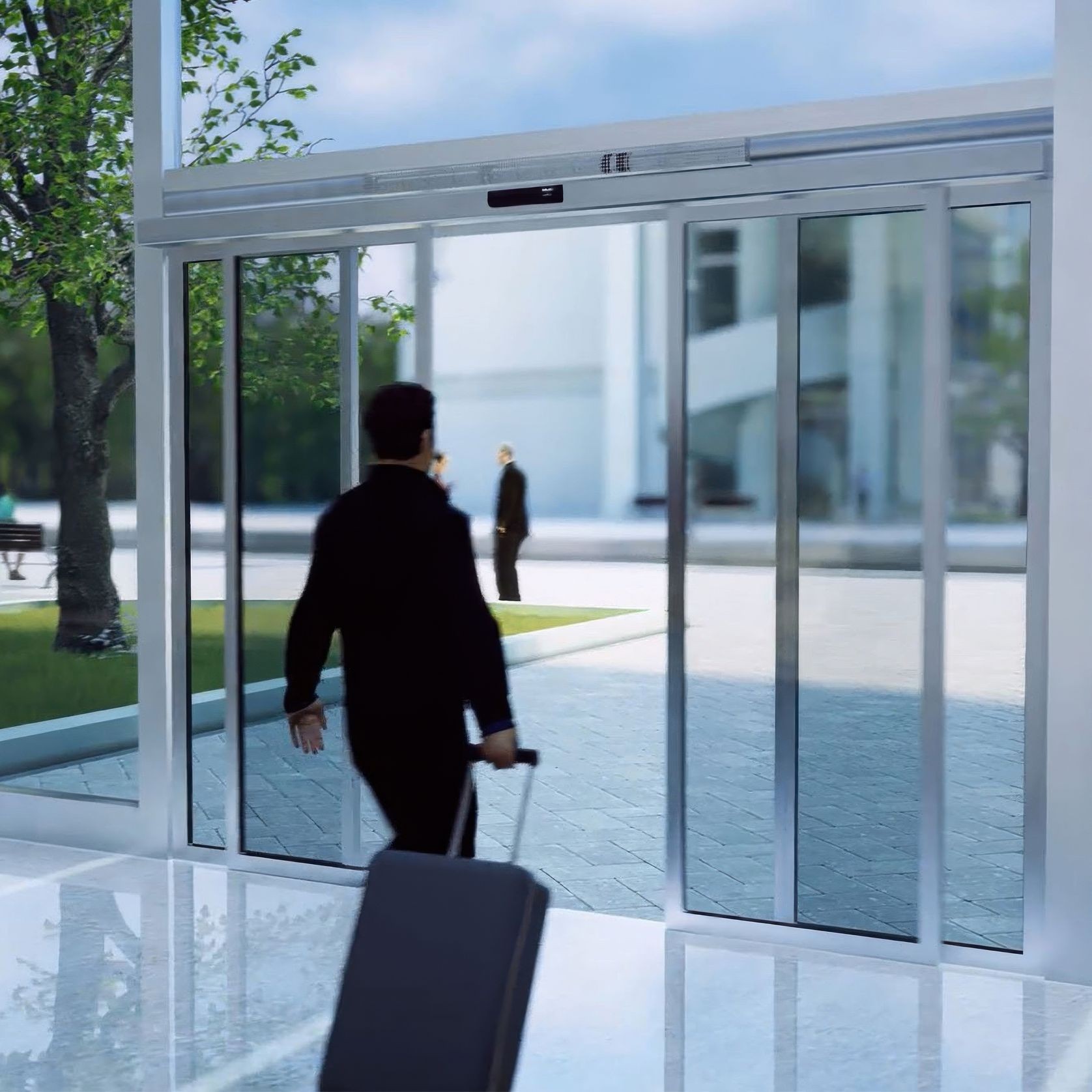

• Suitable for areas open to the public such as shops, supermarkets, offices, banks, hospitals, airports and railway stations.

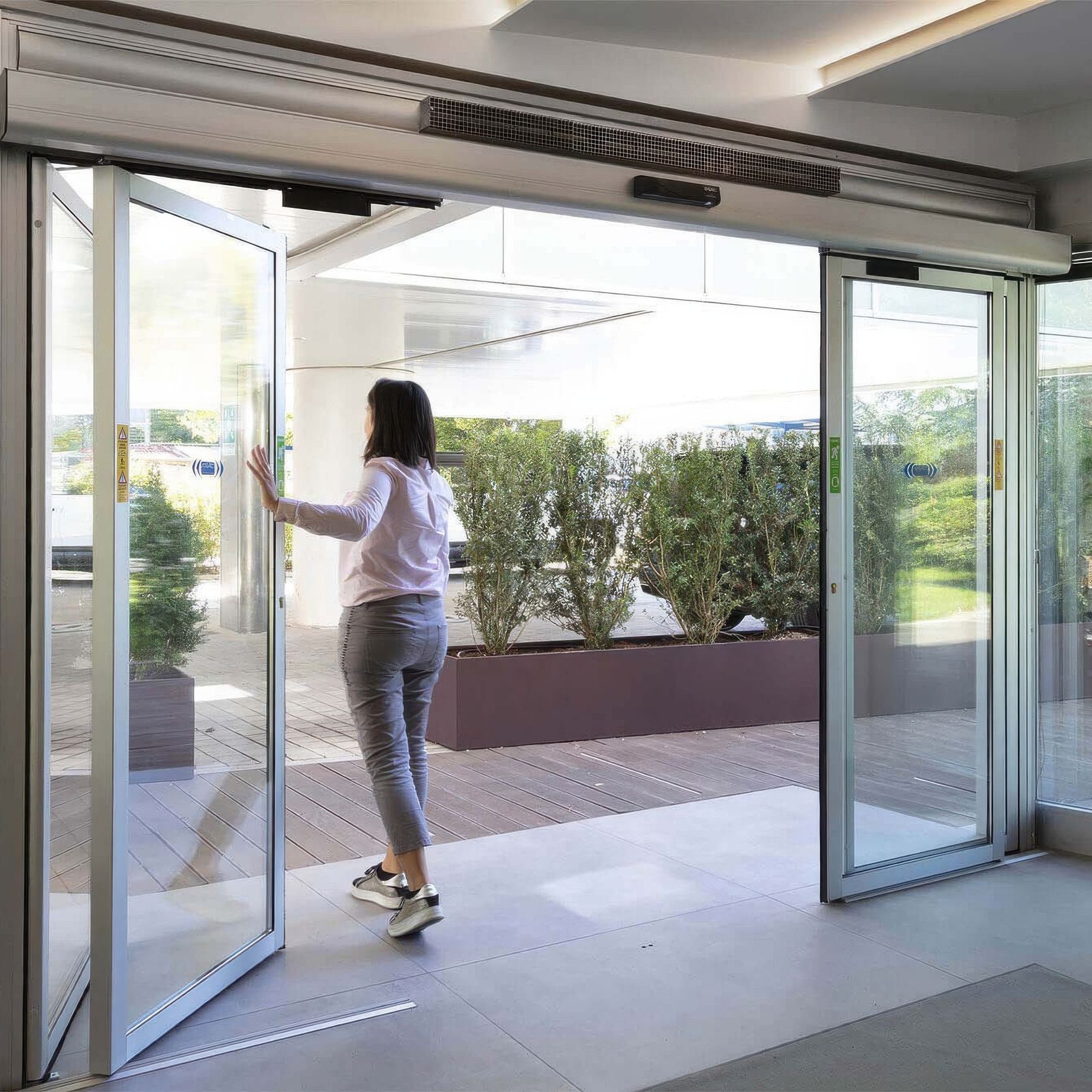

• Possibility of adding an integrated automatically resetting anti-panic breakout system in compliance with European Standard EN 16005.
• By combining the door with FAAC SERIES A1400 AIR automated system, thanks to its innovative 'Energy Saving' device, it identifies the walking path and perfectly optimises opening/closing times thus avoiding unnecessary air dispersal, even in the event of cross traffic.
• Product features: energy efficiency up to 62%, air quality up to 62%, improved environmental comfort up to 48%.
