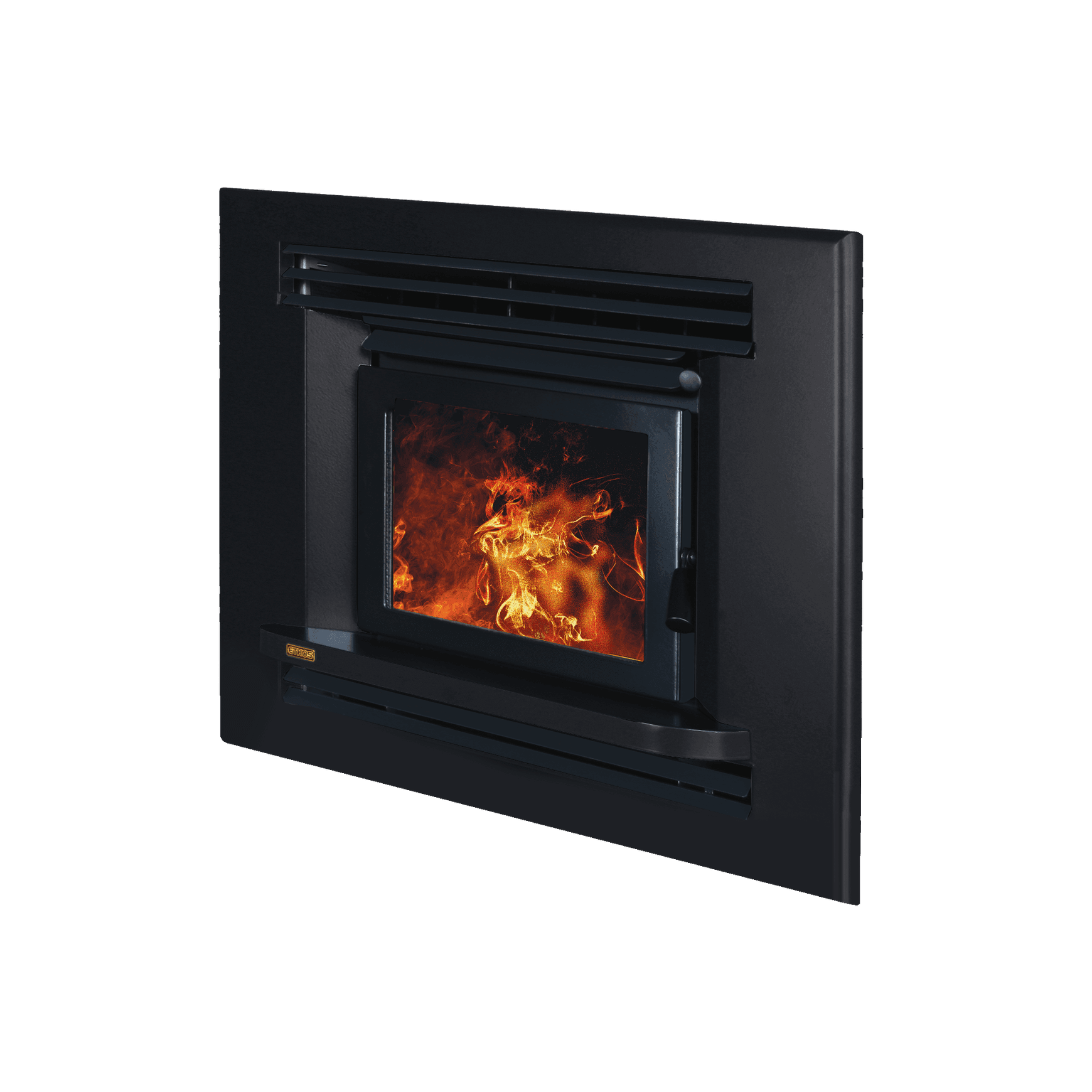

Ares Frame Insert Fire
- 70.9K profile views
- 17 saves

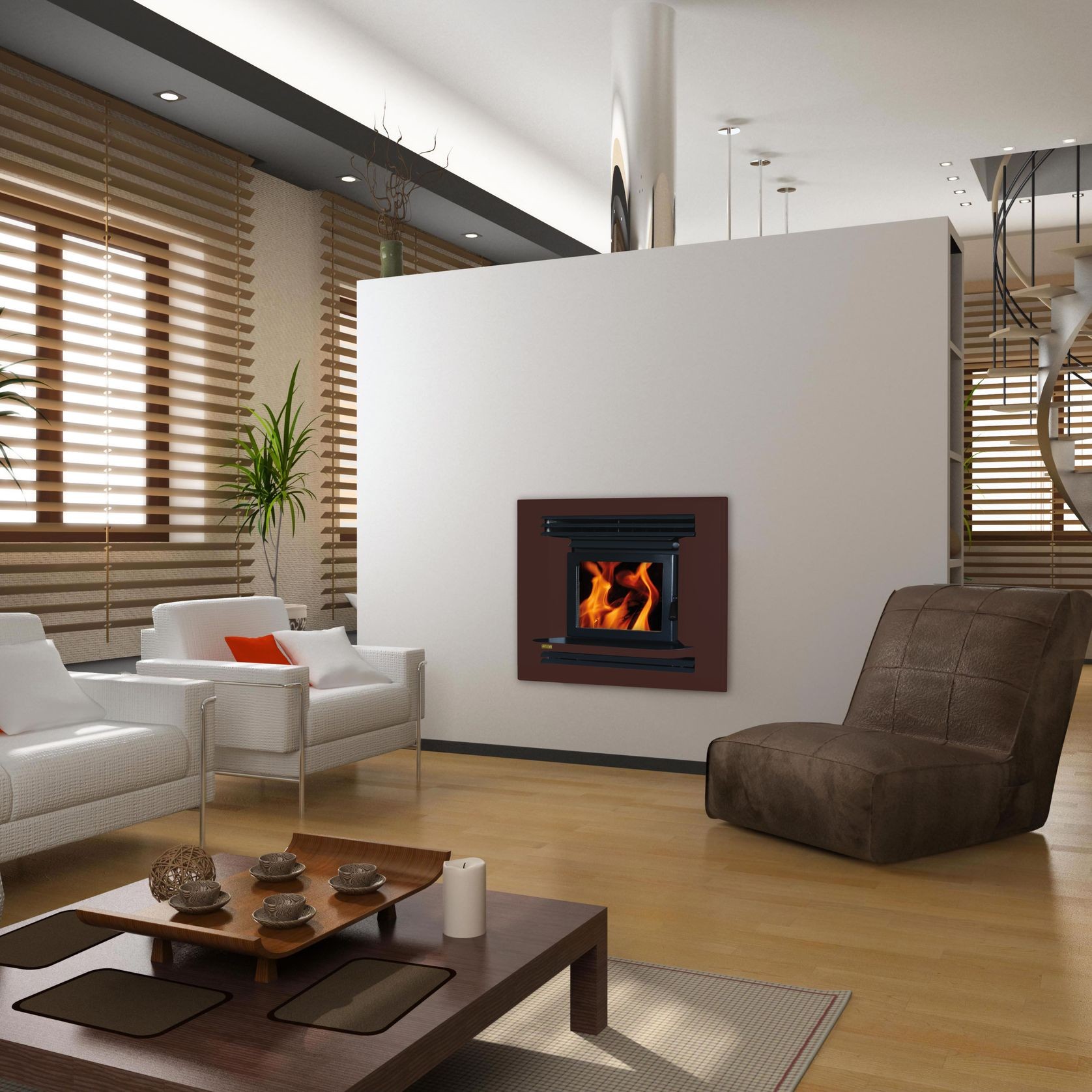

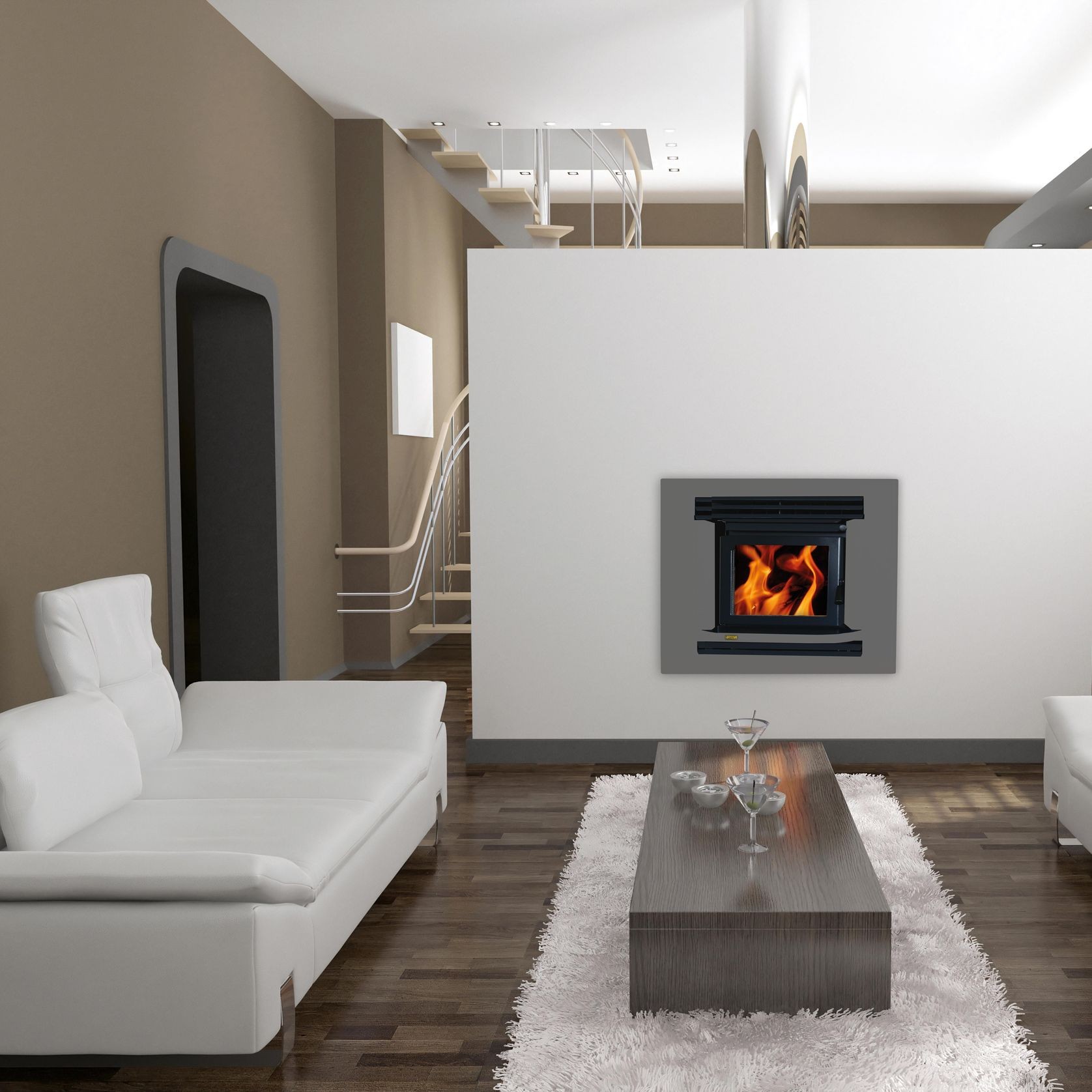

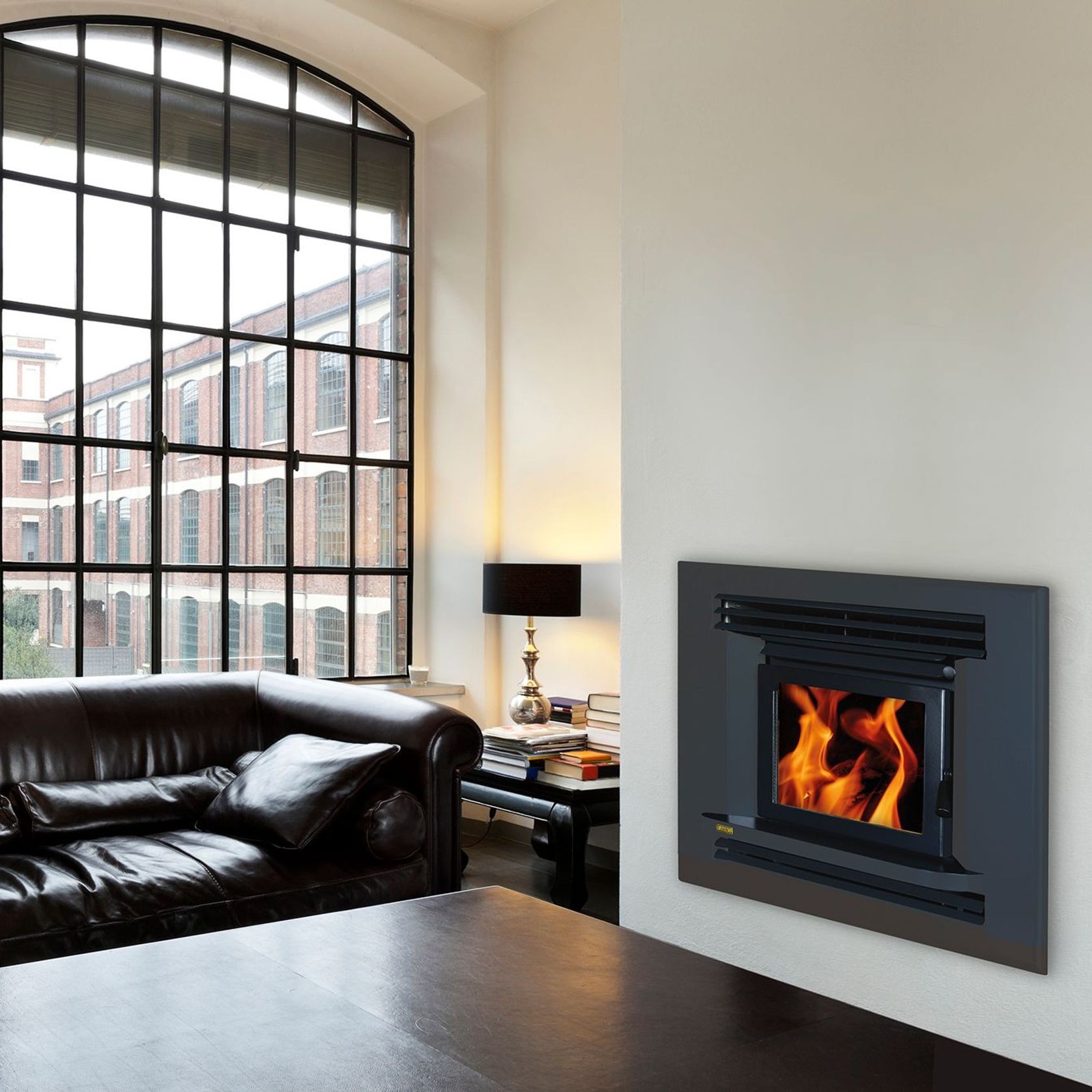

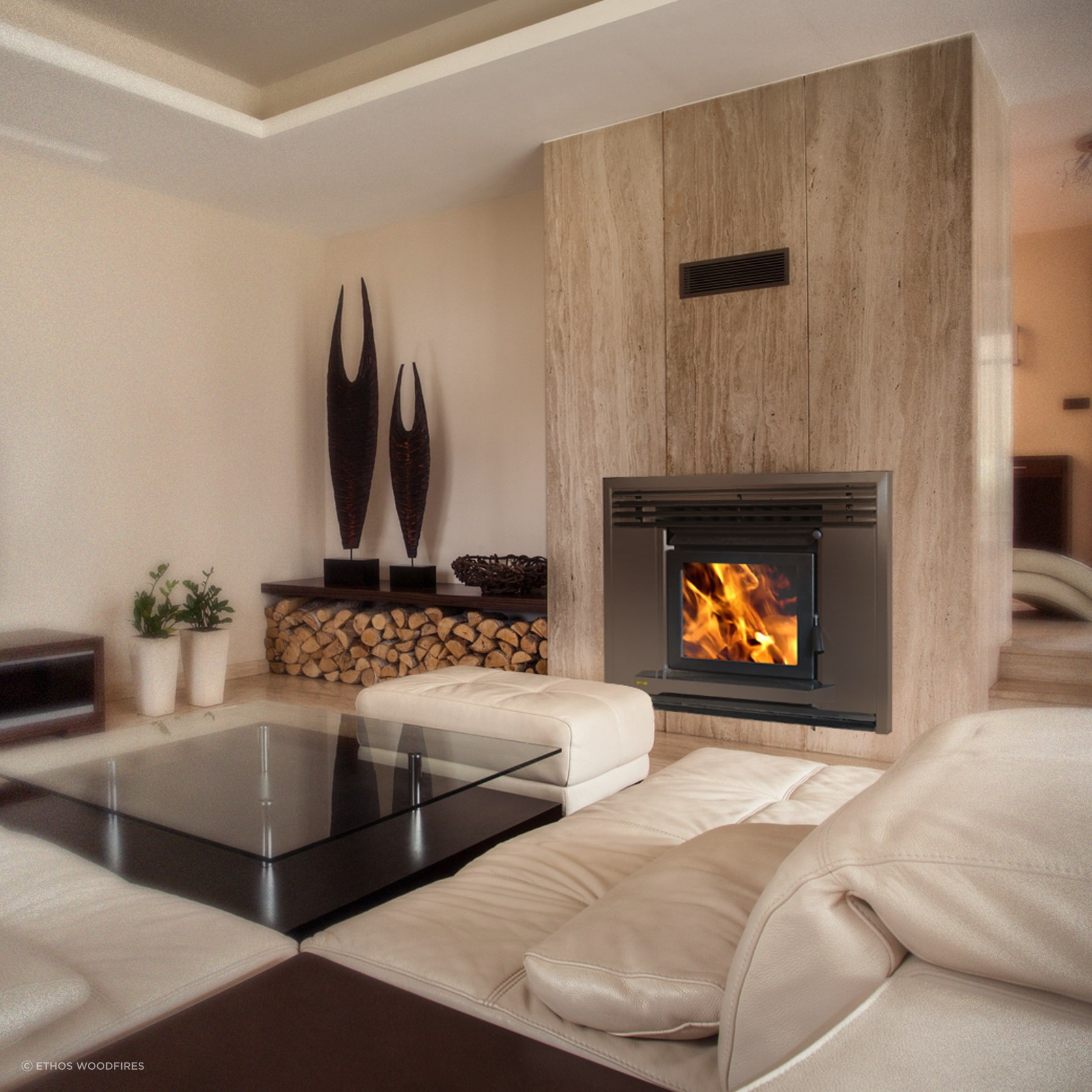

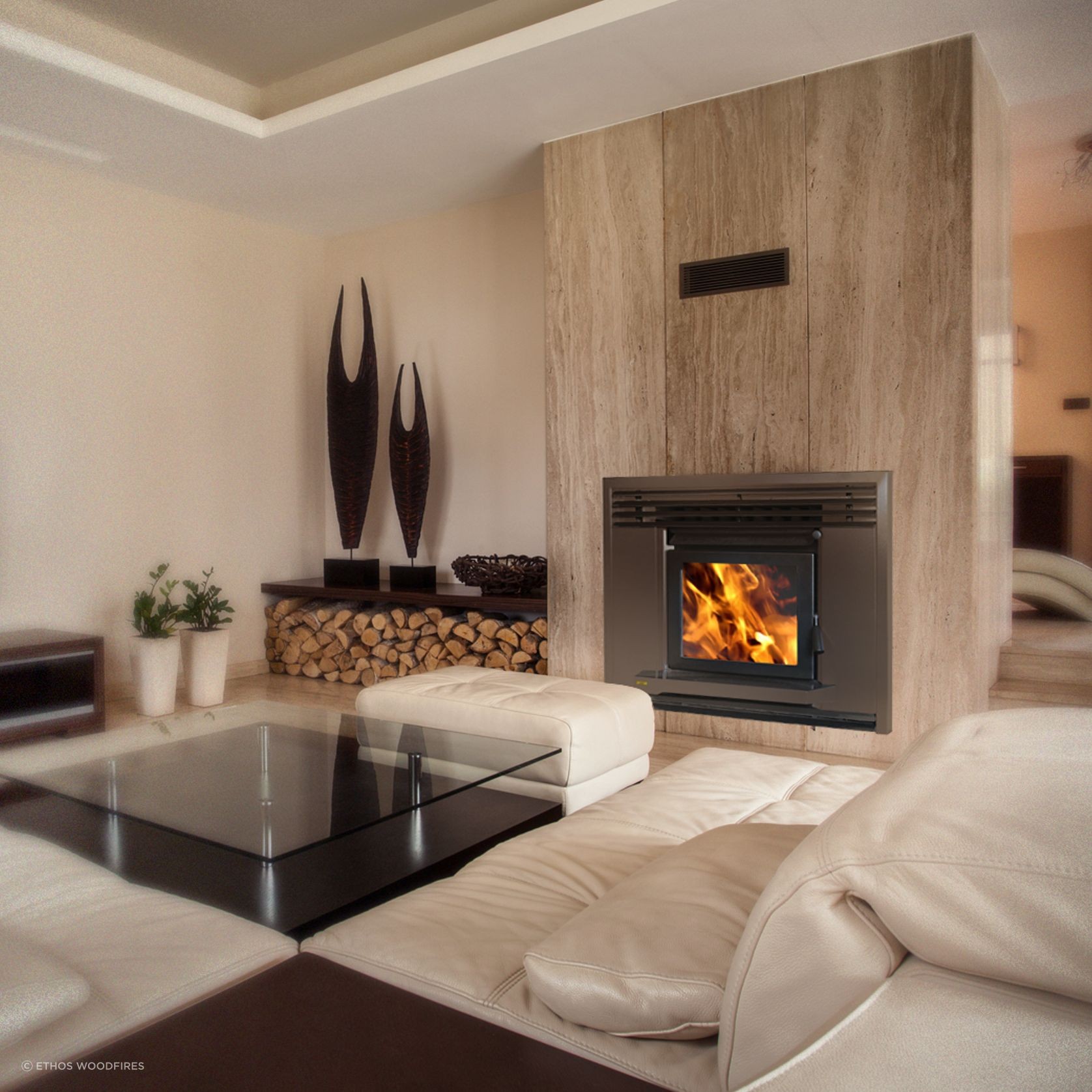

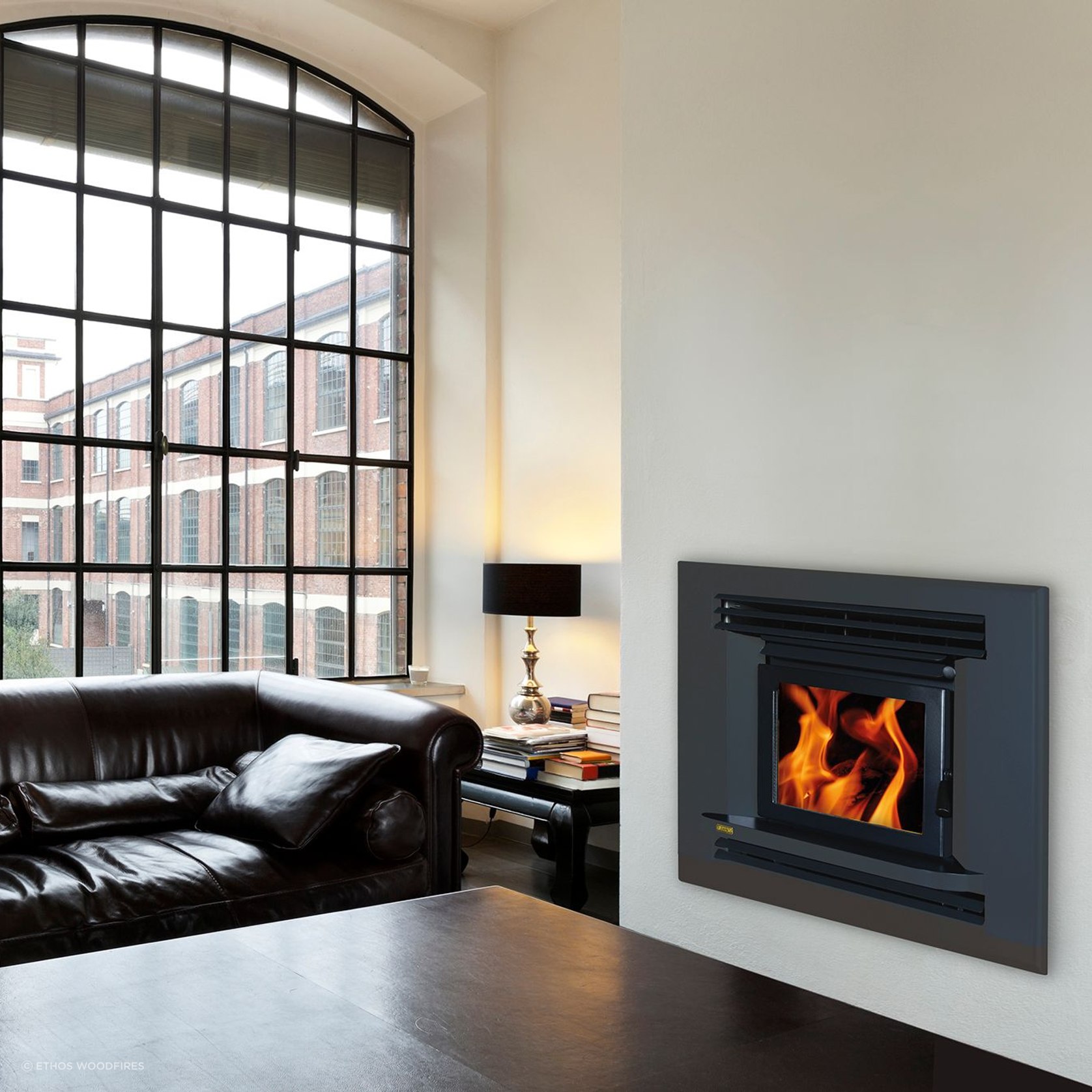

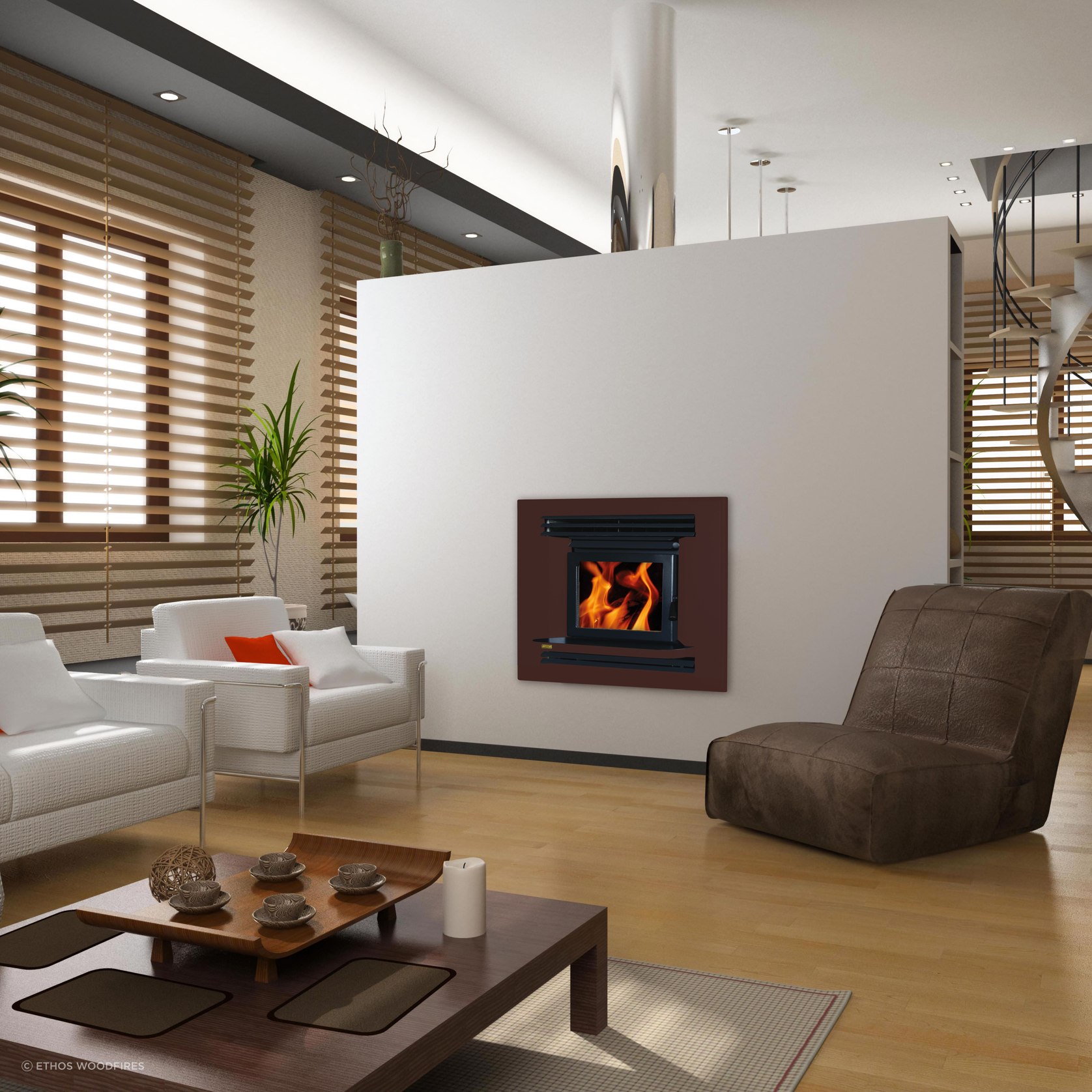

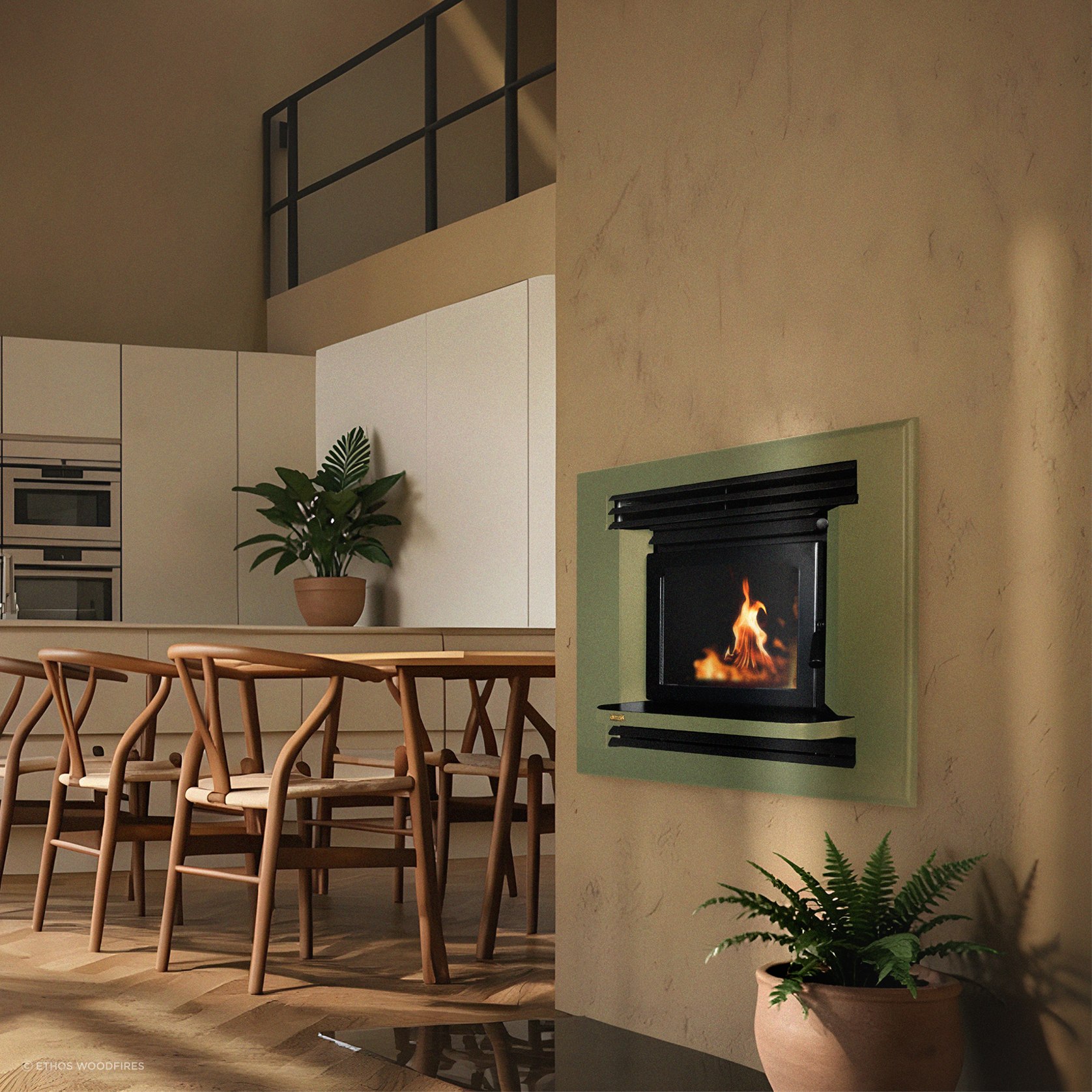

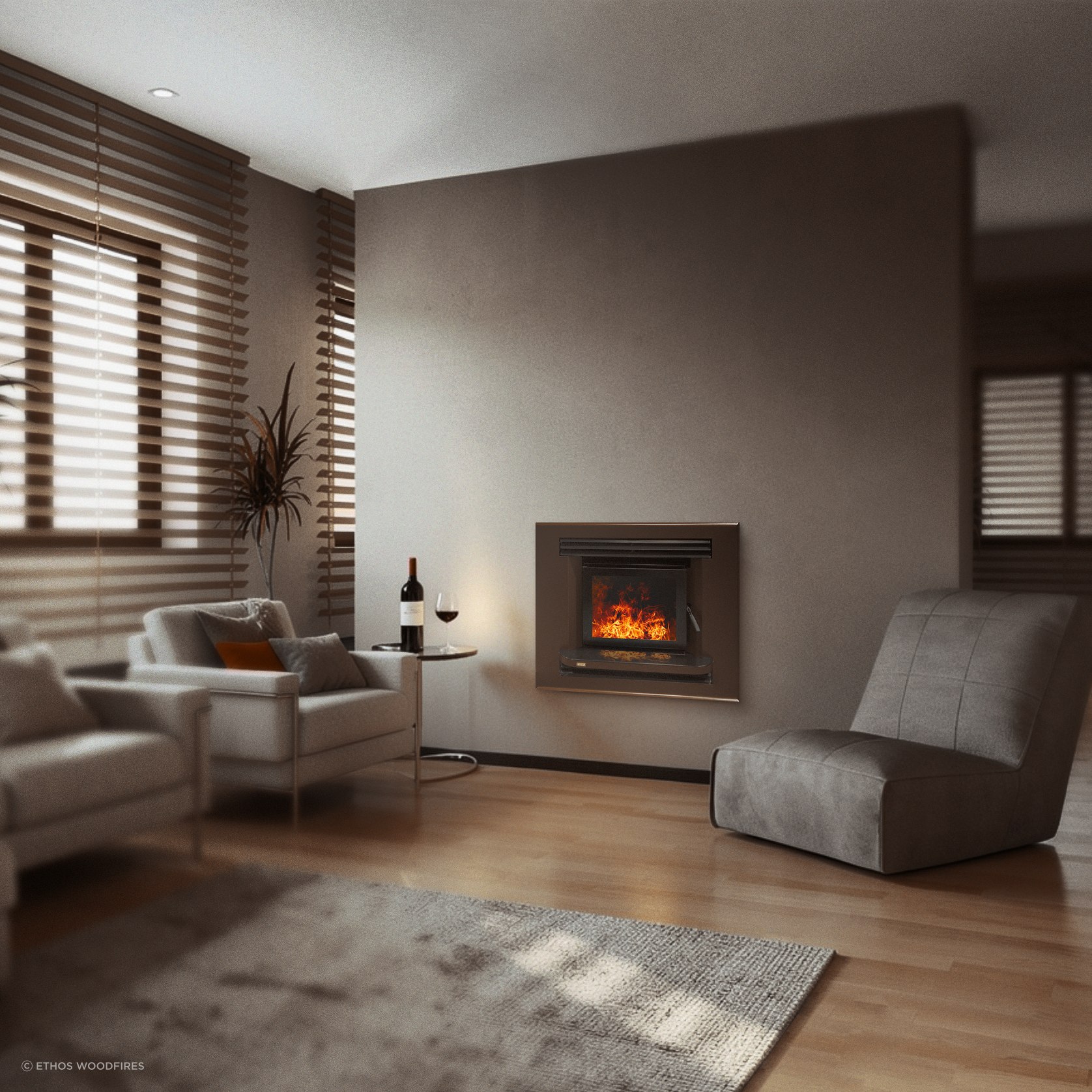

Nothing quite beats the clean lines and uncluttered look of an insert fire. No flue to look at, just an appliance on the wall surface. Clean, elegant and simple.

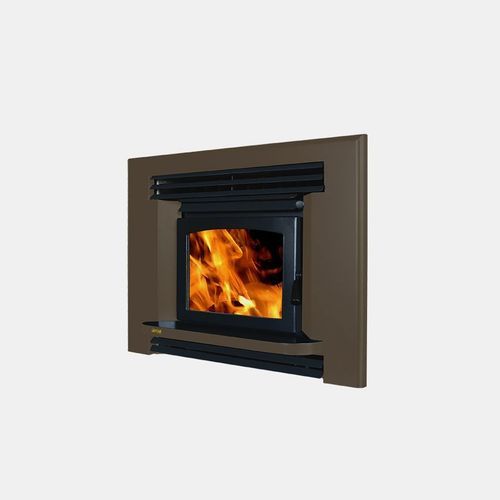

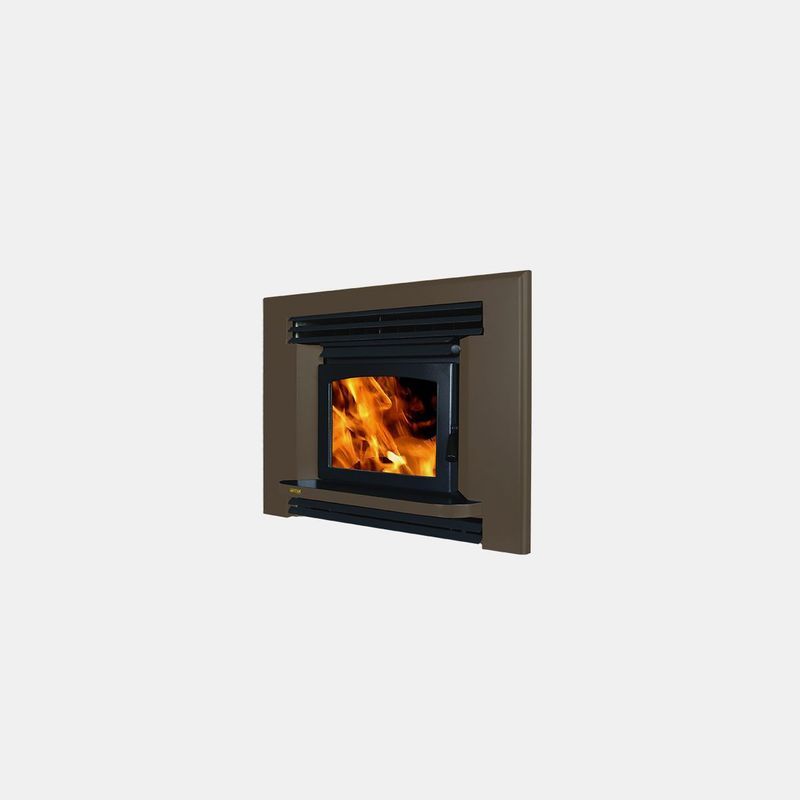

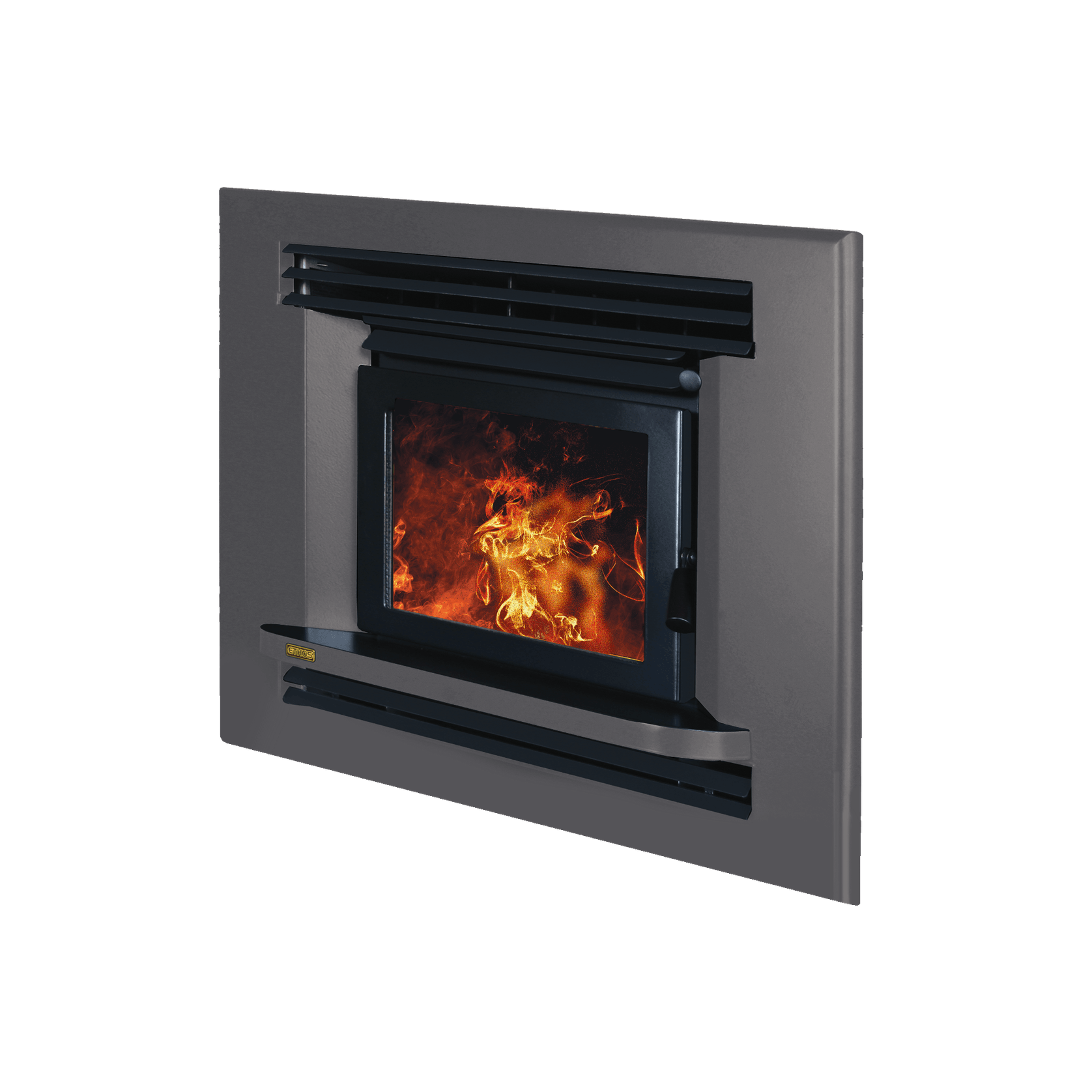

The Ares Frame has all the intelligent combustion features of the standard Ares fire, but has a revised facia designed to be raised above ground level, and installed into timber framed walls with a Zero Clearance Kit.
This configuration means you can design your fire to truly be an elegant wall appliance, for a beautiful minimalist design.
Add the extremely low emissions and high efficiency, and you’ll realise that you’re generating heat where other fires are just making smoke. Better for the environment, better for your wallet, and better for your home.

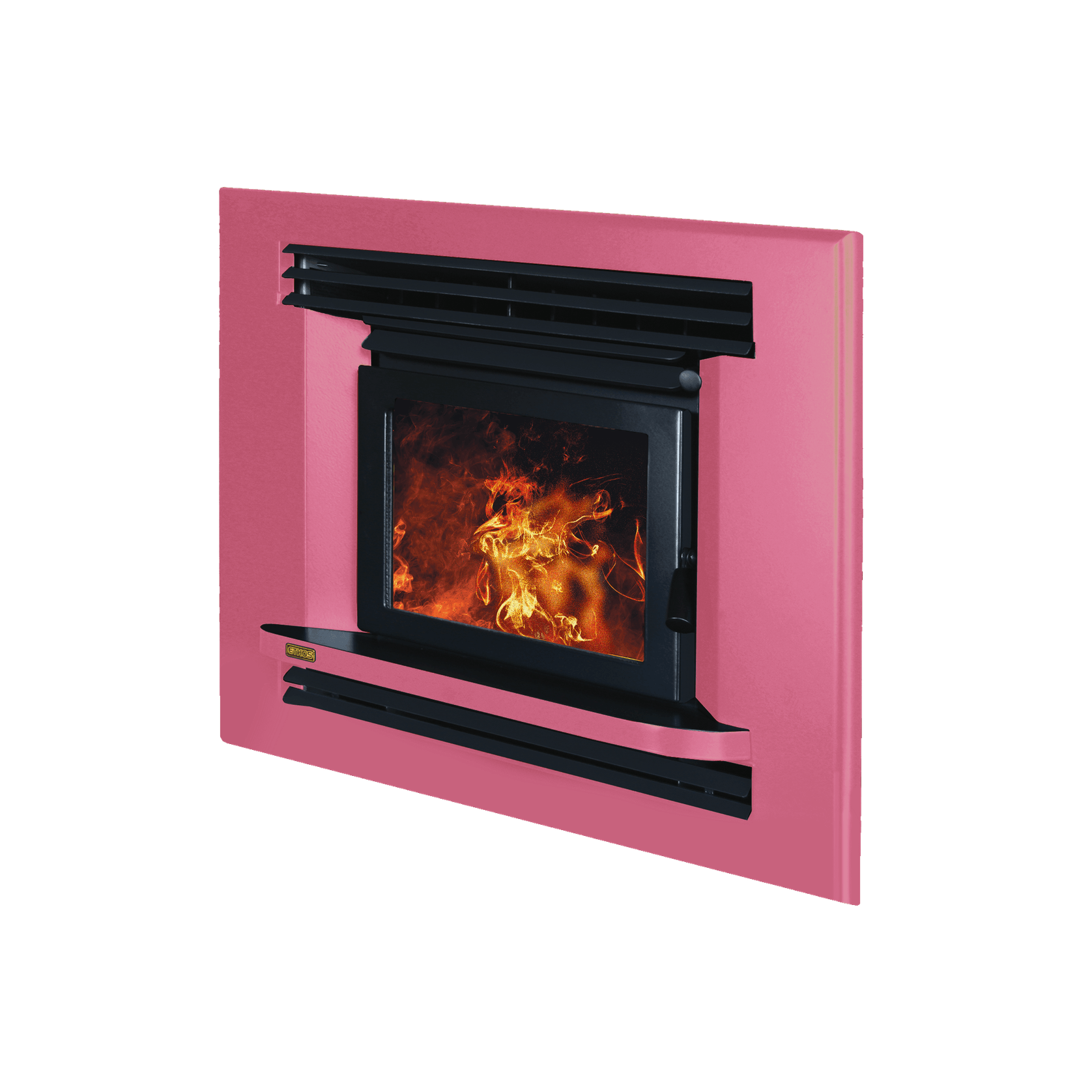

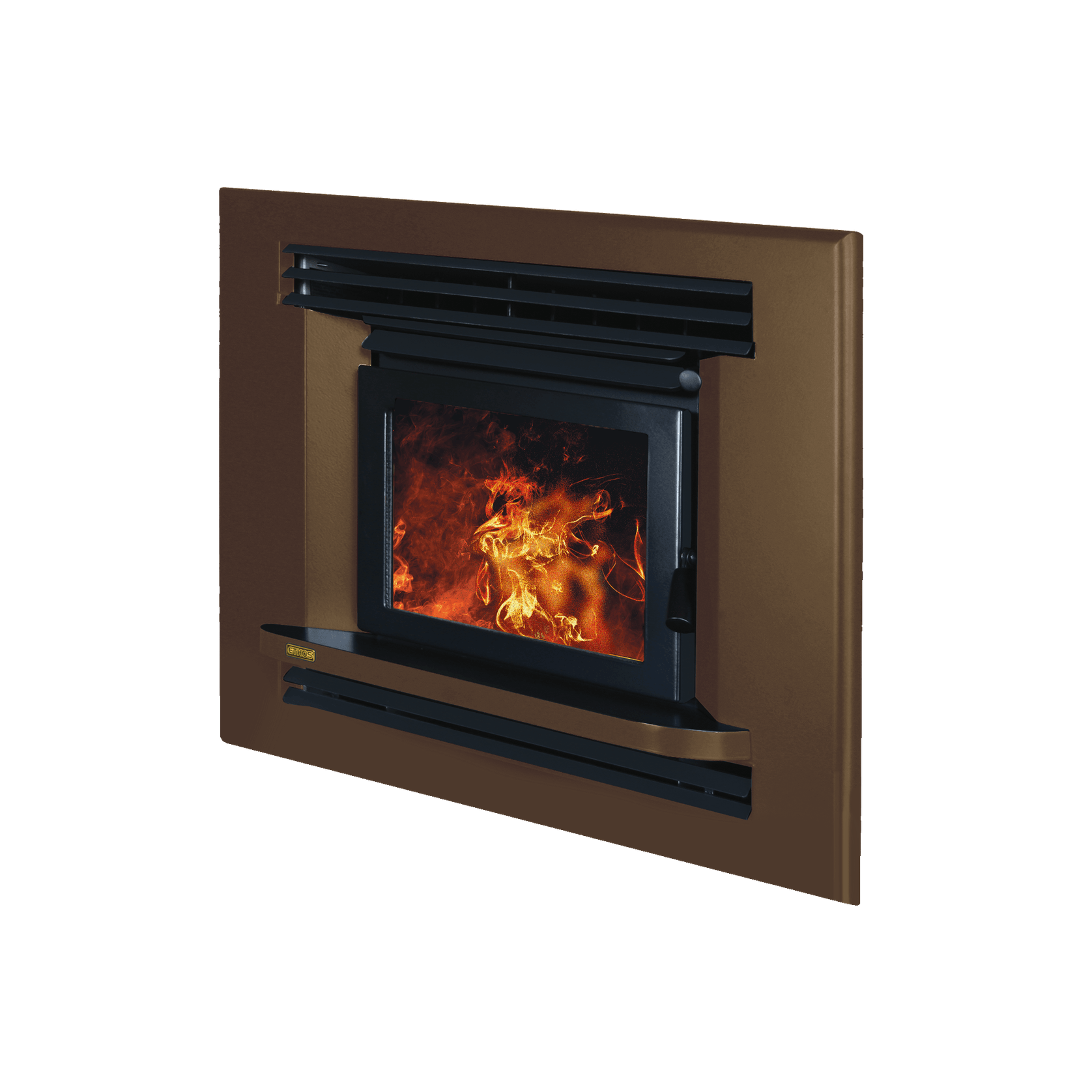

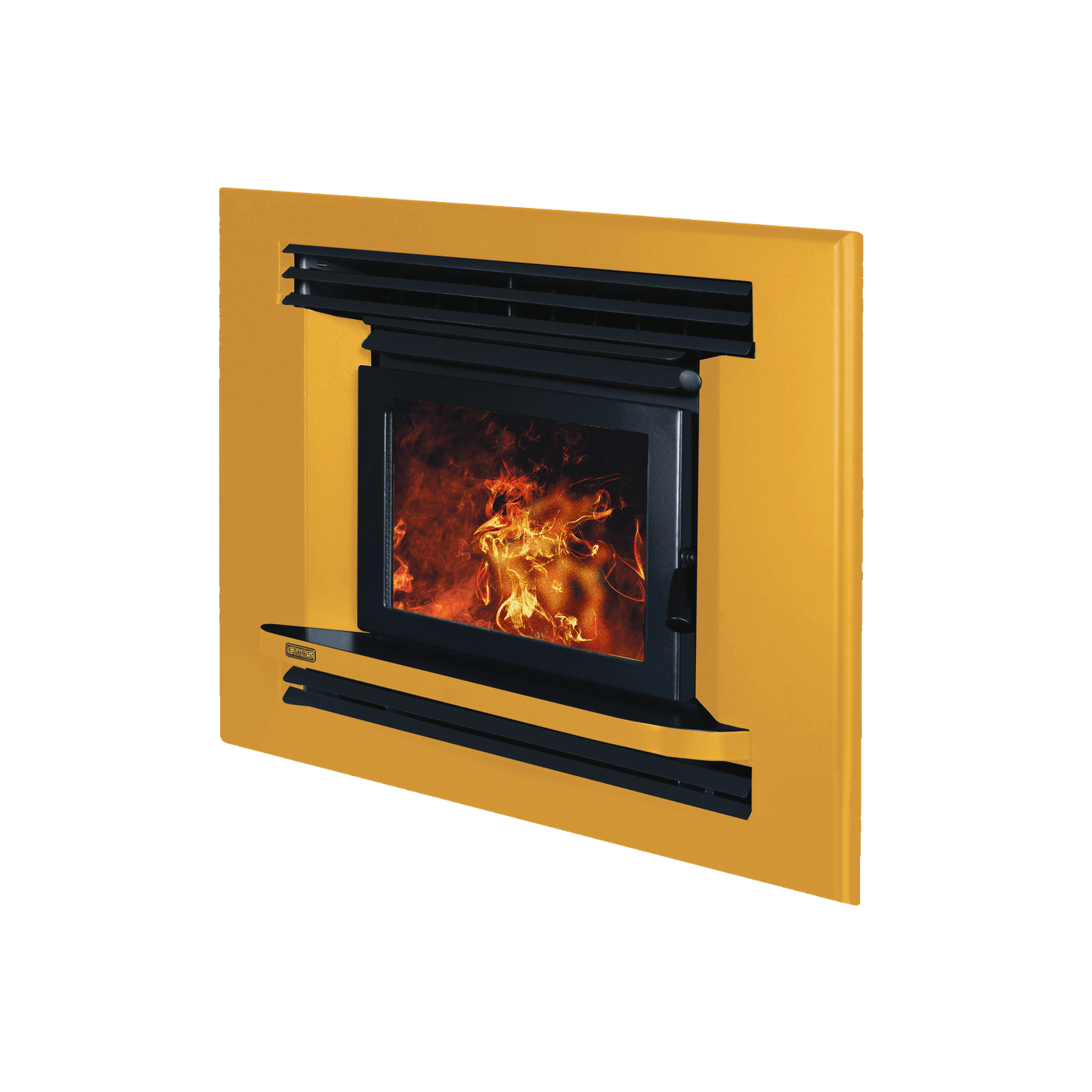

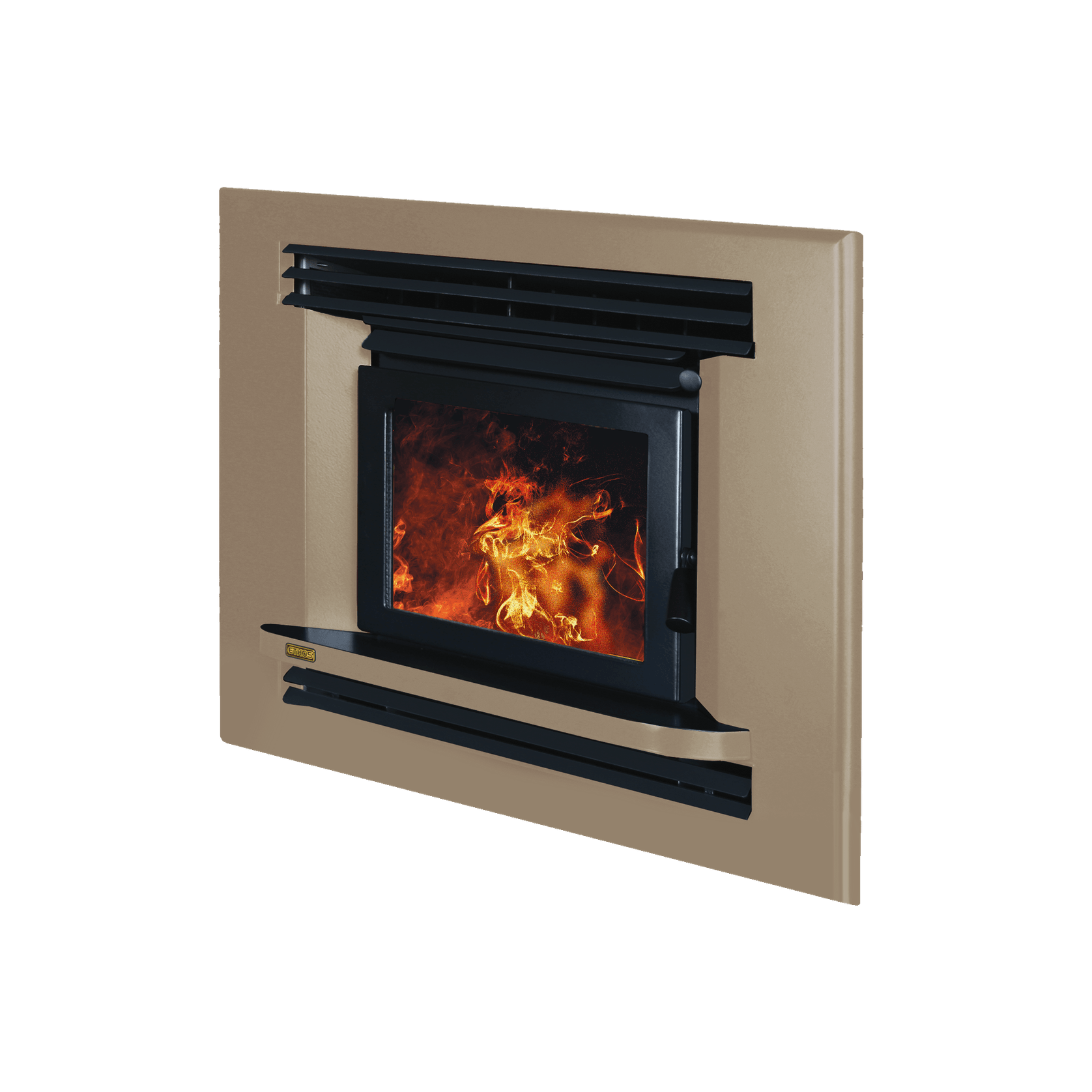

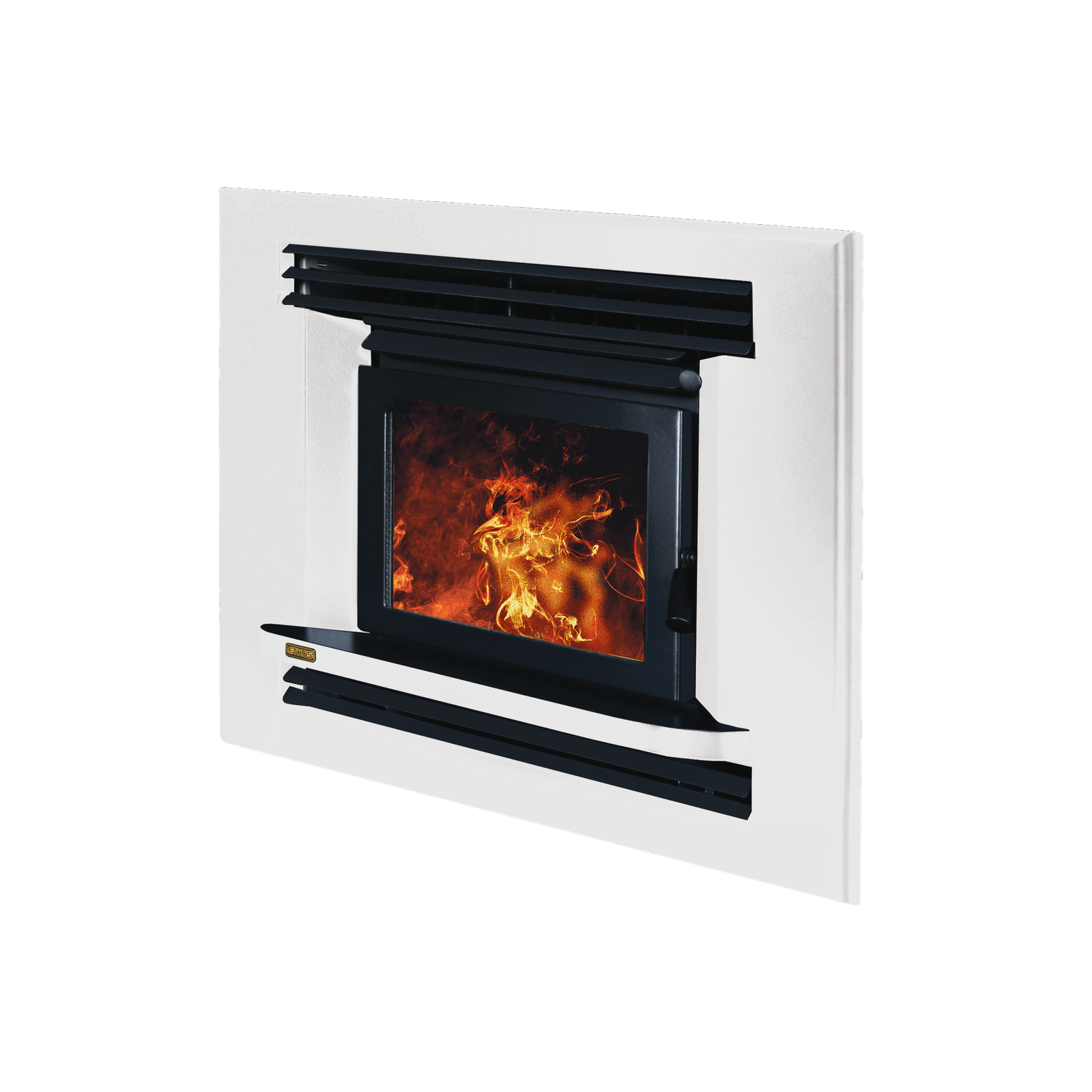

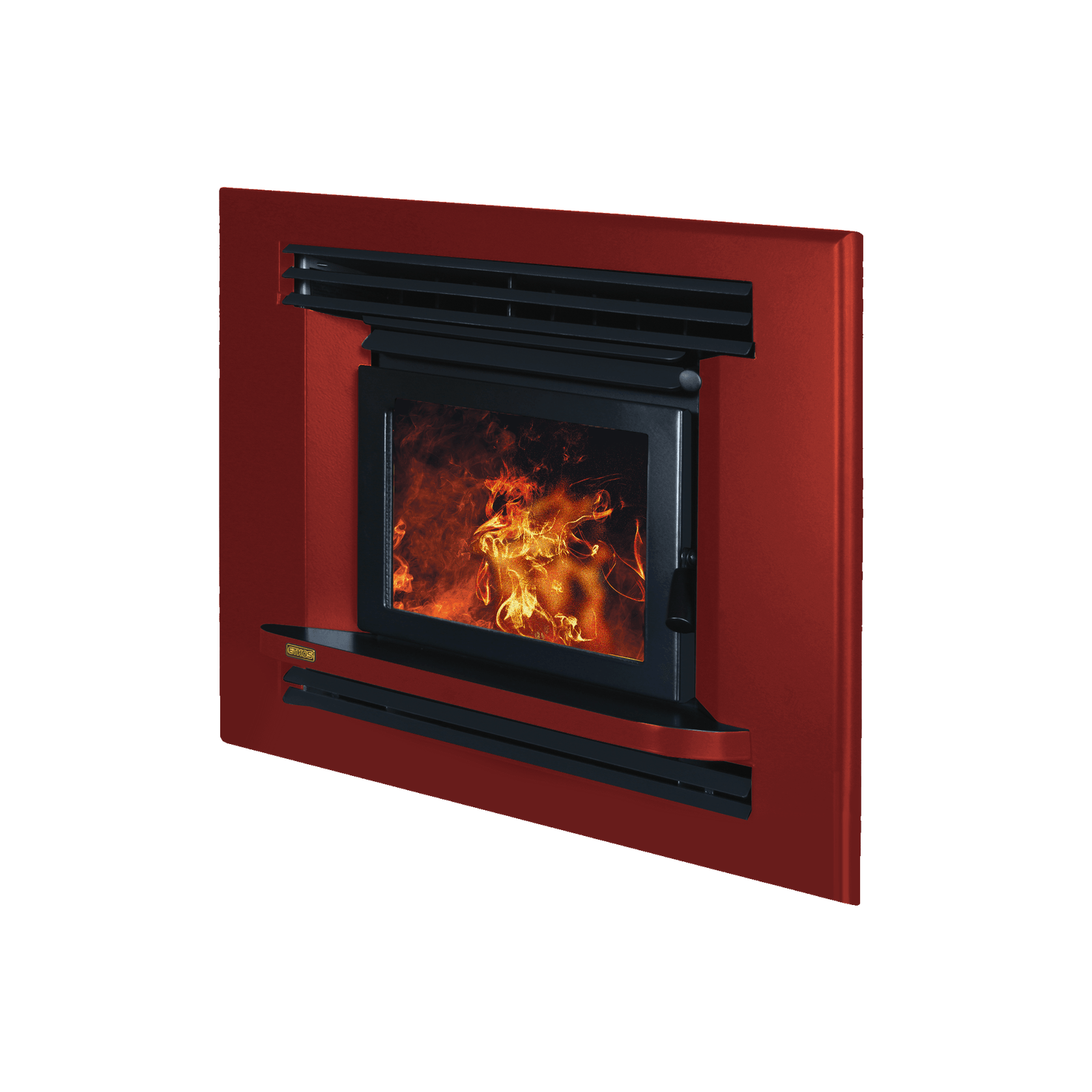

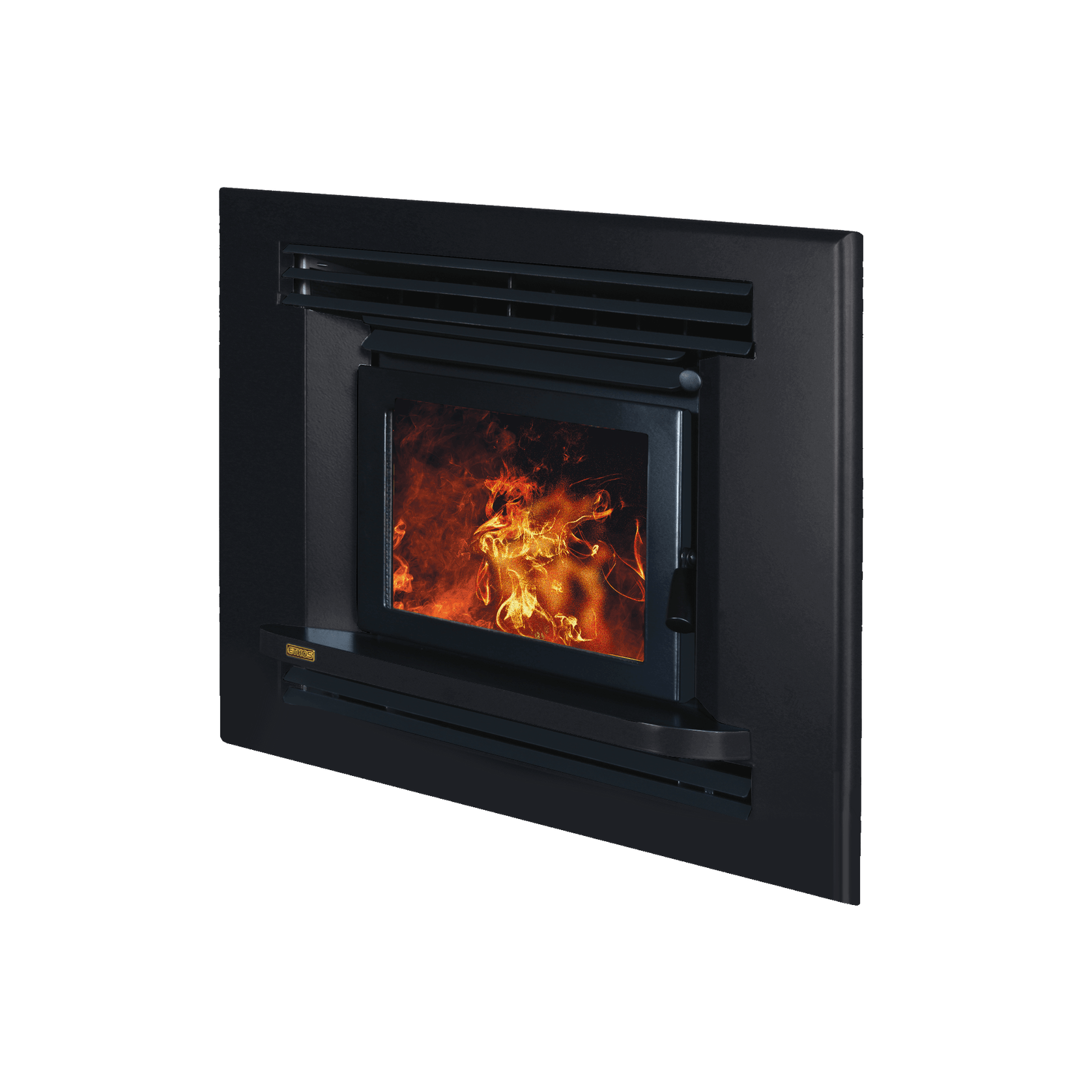

Couple all this with the large entertaining viewing window, and the ability to choose from over 100 custom colours for the front facia and you have everything you need to stylishly heat your room.
Product Details
- Product
- Ares Frame Insert Fire
- Category
- Heating, Cooling & Ventilation
- Sold by
- Ethos Woodfires
- Range
- Insert Fires
- Designer
- Paul Sintes
- Brand
- Ethos Woodfires
- Country of origin
- New Zealand
- Warranty
- 15 years
Ethos Woodfires is specified by
Chaney & Norman ArchitectsArchitects
First Light Studio LtdArchitects
Leuschke Kahn ArchitectsArchitects
BOONArchitects
Husk Design + DraftArchitectural Designers
eHausDesign & Build
Pro ClimaManufacturers and Suppliers
The Fireplace LtdManufacturers and Suppliers
CBG Quality ConstructionBuilders
Solace HomesBuilders
Nothing quite beats the clean lines and uncluttered look of an insert fire.
No flue to look at, just an appliance on the wall surface. Clean, elegant and simple.
The Ares Frame has all the intelligent combustion features of the standard Ares fire, but has a revised facia designed to be raised above ground level, and installed into timber framed walls with a Zero Clearance Kit.
This configuration means you can design your fire to truly be an elegant wall appliance, for a beautiful minimalist design.
Add the extremely low emissions and high efficiency, and you’ll realise that you’re generating heat where other fires are just making smoke. Better for the environment, better for your wallet, and better for your home.
Couple all this with the large entertaining viewing window, and the ability to choose from over 100 custom colours for the front facia and you have everything you need to stylishly heat your room.
- Specs / Details
ARES PERFORMANCE
Estimated Peak Output: 14kW
Average Efficiency: 67%
Average Emissions: 0.3 grams per kilogram
Emissions per Output : 22 milligrams per megajoule
DIMENSIONS
Flue Diameter: 130mm
Fire Height: 600mm
Fire Width: 615mm
Fire Depth: 465mm
Facia Height: 736mm
Facia Width: 850mm
APPROVALS
NZ MFE/ECAN approval number: 103880
Tested and compliant to the following standards:
AS/NZS 4012:1999 Power output and heating efficiency
AS/NZS 4013:1999 Flue gas emissions
AS/NZS 2918:2001 Safety
Downloads
Downloads (6)6 Direct downloads • 8 Available on request
Awards
Clean Air Achievement Award
CASANZ
