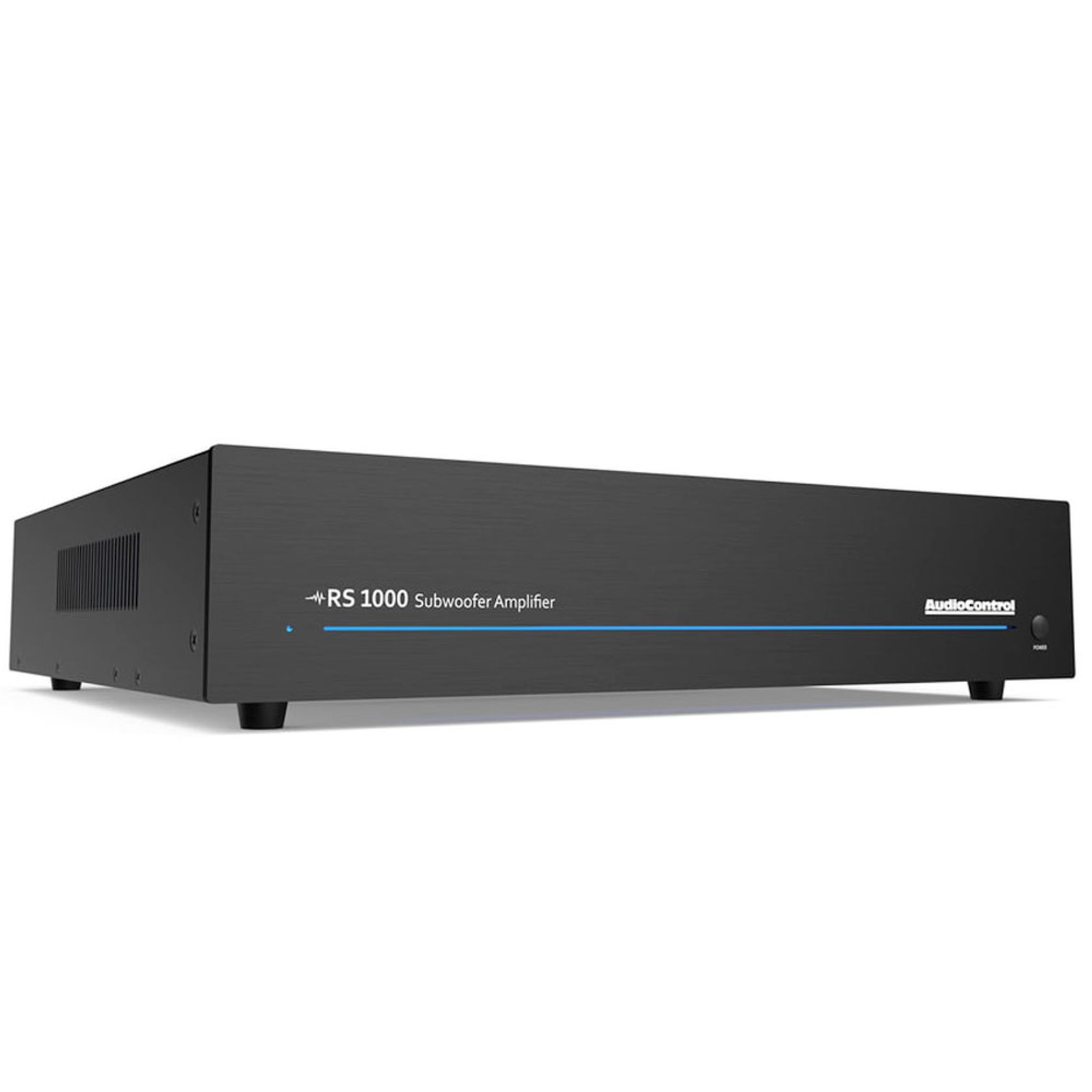

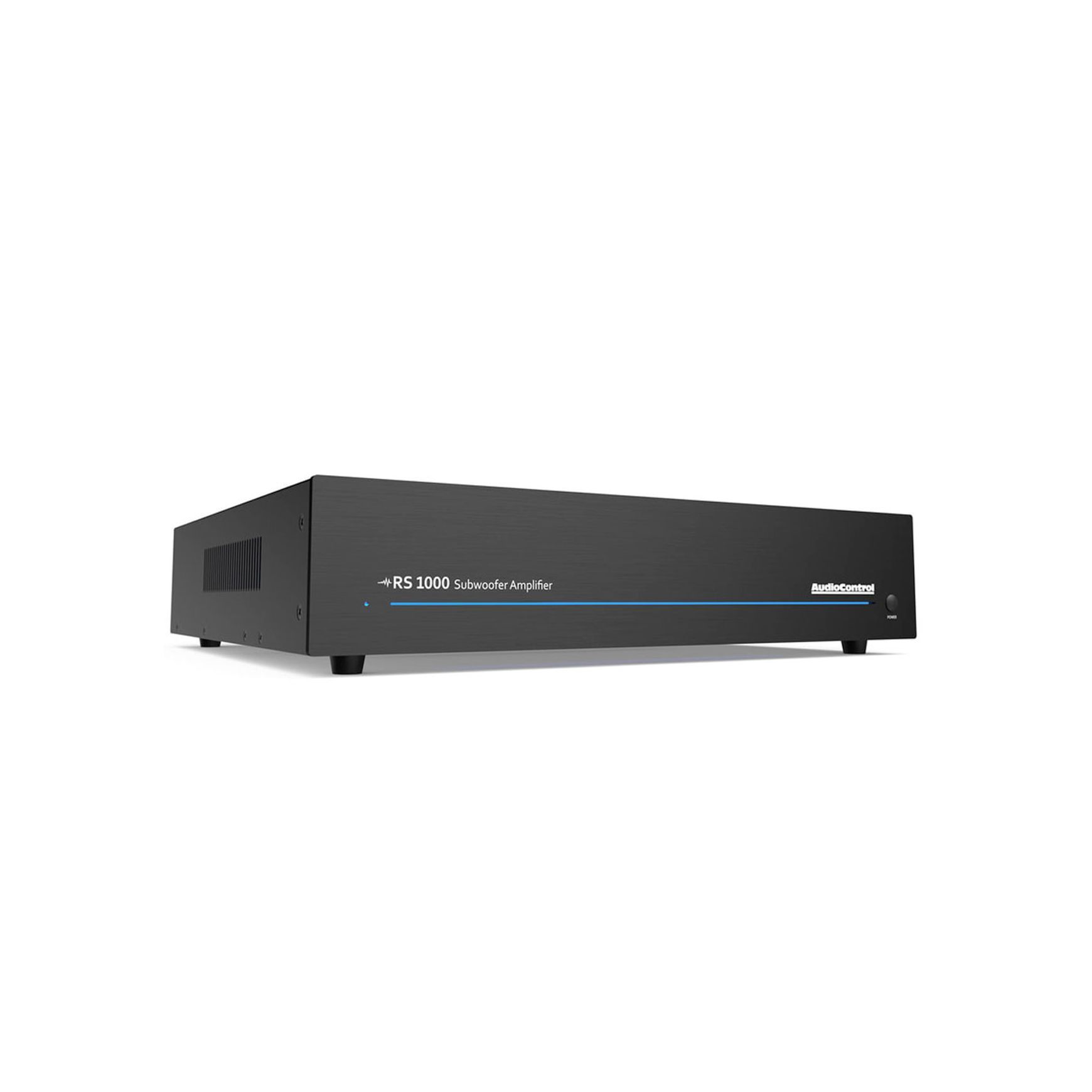

The AudioControl RS 1000 DSP-controlled subwoofer amplifier is the ultimate bass amplification solution for any home cinema, multi-zone audio, or 2.1 channel music system.
The RS Series amplifiers deliver constant power at all common impedances. Like other models in the AudioControl lineup, RS Series amplifiers offer IP and IR control, as well as loop outputs with an optional high-pass filter.
These features, coupled with the power of AudioControl’s multi-award-winning DSP engine that puts graphic and parametric EQs, crossover, delay and phase control at your fingertips for precise calibration and tuning, make the RS Series amplifiers a definitive choice to power any subwoofer in entertainment systems that demand the very best.
Product Details
- Product
- AudioControl Subwoofer Amplifier 1000 Watt
- Category
- Amplifiers
- Sold by
- Oceanic Distribution
- Pricing
- $3,999
- Brand
- Audiocontrol
- Warranty
- 5 years
Oceanic Distribution is specified by
The AudioControl RS 1000 DSP-controlled subwoofer amplifier is the ultimate bass amplification solution for any home cinema, multi-zone audio, or 2.1 channel music system.The RS Series amplifiers deliver constant power at all common impedances.
Like other models in the AudioControl lineup, RS Series amplifiers offer IP and IR control, as well as loop outputs with an optional high-pass filter.
These features, coupled with the power of AudioControl’s multi-award-winning DSP engine that puts graphic and parametric EQs, crossover, delay and phase control at your fingertips for precise calibration and tuning, make the RS Series amplifiers a definitive choice to power any subwoofer in entertainment systems that demand the very best.
- Specs
INPUTS
Audio Inputs: 1 Balanced, 2 Unbalanced, 1 LFE, 2 Speaker Level
Nominal sensitivity: 0.5V to 4V (user selectable)
Signal to Noise (A-wtd ref full output): 95 dB
Frequency Response: 20 Hz – 350 HzOUTPUTS
Amplifier Channels: 1
Continuous power output: 1000W
Minimum Speaker Load: 2Ω
Loop/Thru Audio Outputs: 1 Balanced, 2 Unbalanced, 1 LFE
Total Harmonic Distortion: 0.1%CONTROL
Remote Power Trigger: +12 VDC or Dry Contact Closure
Network Connection/Protocol: 10BaseT Ethernet TCP/IP
Communication Protocol: HTTP or Telnet
12 Volt Trigger Outputs: 1
IR Receiver Inputs: 1WEIGHT & DIMENSIONS
Dimensions (including terminals and feet): 17”W x 17.5”D x 3.5”H (2U)
Weight: 17.0 lbs. (7.7 kg)IN THE BOX
RS 1000, power cord, user manual, warranty- Features
- 1000 Watts at 8/4/2 Ohms
- Digital Signal Processing (DSP) Performance
- Six-band Graphic EQ
- Eight-band Parametric EQ
- Crossover with Subsonic Filter
- Built-In Speaker Optimization Profiles
- Ethernet Port for Status Monitoring, Source Switching and 12 Volt Trigger Control
- Network Programmable Graphic & Parametric Equalization with User Memories
- Digital Signal Sense
- AudioControl LightDrive Anti-Clipping Speaker Protection
- Balanced Inputs/Thru
- Unbalanced Input/Thru
- LFE Input/Thru
- Speaker Level Inputs
- Home and Commercial Installations
- POWER AND CONTROL AT YOUR FINGERTIPS
The RS Series subwoofer amplifiers feature on-board digital signal processing, graphic & parametric equalization, network monitoring and programming, plus the addition of volume control, and EQ presets.
- SPEAKER OPTIMIZATION PROFILES
AudioControl has partnered with a growing number of prominent architectural loudspeaker manufacturers to implement speaker performance profiles directly accessible from RS Series onboard DSP. Each speaker manufacturer has provided critical performance data to AudioControl, enabling tailored profiles to be created and stored in software form. Factoring in the individual room acoustics for each home, these speaker profiles achieve an important step in providing the custom integrator the tools to deliver a premium entertainment experience by calibrating systems for their clients.
