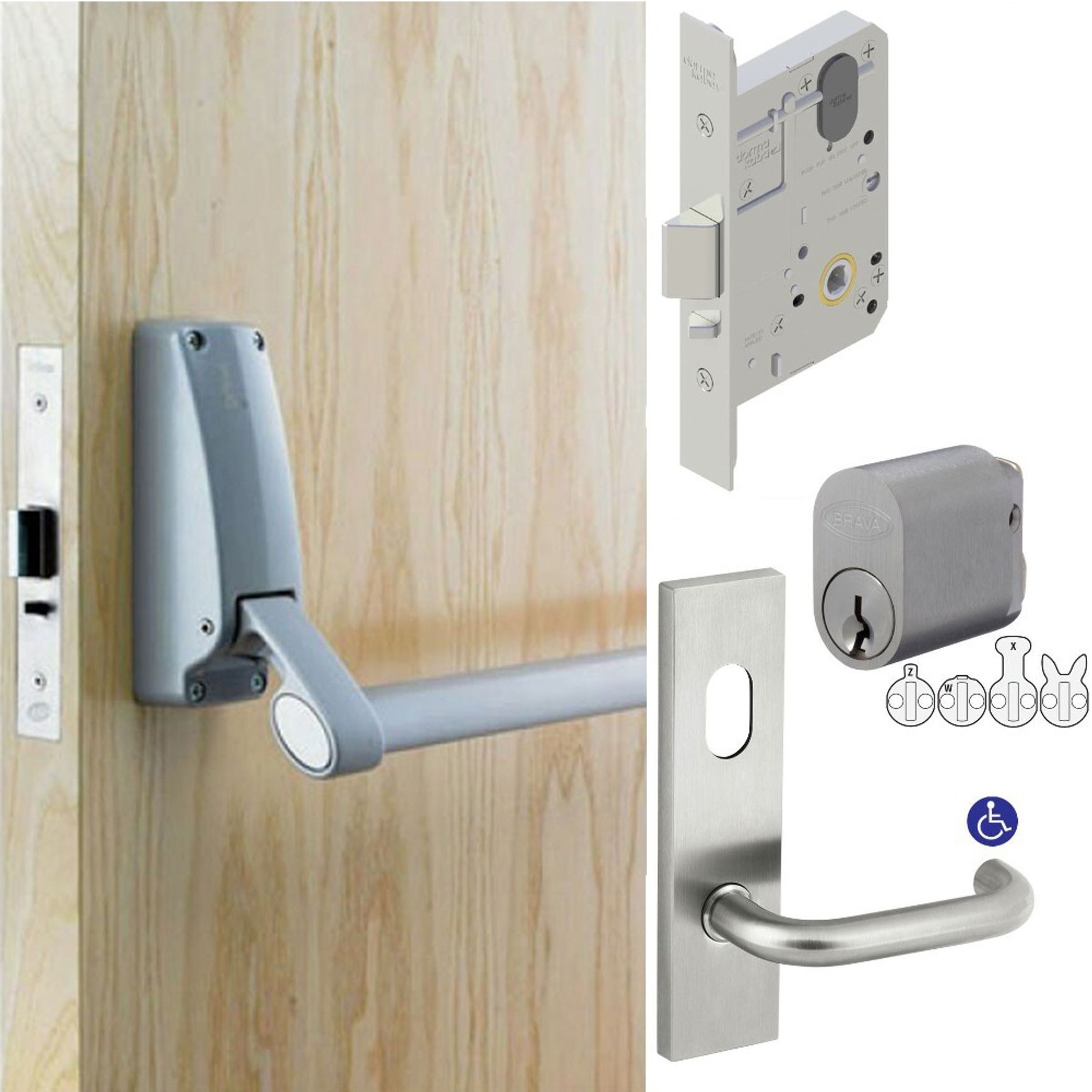

Briton Panic Bar Pack w/ Mortice Lock, Lever & Cylinder

Briton Panic Bar Lock Pack

Panic Bar Function - Operated by a horizontal push bar, which when pushed in a downward arc withdraws either the bolts or latch, releasing the door for immediate escape in the event of an emergency.

• The Briton 376E Series is an economical range of push bar devices designed to suit single and double door applications. The 376E Series can be used on aluminium, hollow metal or wood swinging commercial doors. Available as rim and surface mounted vertical panic bolt devices.

• Each model in the 376E Series is operated by a horizontal push bar, which when pushed in a downward arc withdraws either the bolts or latch, releasing the door for immediate escape in the event of an emergency.

B379 Features:

• The 379E is suitable for all types of single doors.
• The 379E is supplied right handed, but can be handed on site.
• Suitable for use on the first opening leaf in double door application.
• Optional model available with manual dogging (hold open)
• 13mm rebate kits are available for double rebated door applications.

Dormakaba MS2602 Multi Function Primary Mortice Lock

Mortice Lock a pocket cut into the short edge of the door, allows a longer and thicker mortise box to slide into the door itself, providing superior protection.

Mortice Lock Function - latch retracted by knob / lever from either side. Deadbolt extended or retracted by key from outside or turn knob from inside.

Kaba mortice locks are constructed from heavy duty materials including stainless steel case, face plate, strike and latchbolts. The MS2 primary mortice lock is available with a full range of functions including privacy, passage, vestibule, escape, anti-lockout, etc. Typical applications include commercial, health, institutional and defense projects.

The Kaba 100 series square end solid forged brass door furniture is designed for use with contemporary Australian style mortice locks and latches.

Features:

• Heavy duty construction with Stainless Steel case, face plate, strike and latchbolt
• Deadlatching and kick-off is standard on all functions
• Most functions are non-handed or field changeable/reversible
• Supplied complete with all fixings suit door thickness from 32mm-50mm
• Fabricator kit available to suit aluminium doors
• Universal strike plate as standard with extended strikes also available
• Accepts standard Australian oval cylinders
• Can be supplied with high security Kaba master keying systems Kaba experT or pExtra
• Rebate kit available to suit standard 13mm rebate-part #MA840
• Compatible with most electric strikes

Dormakaba 6600/30G Lever on Rectangular Exterior Square End Plate with Cylinder Hole 316SSS

• Designed for use with most commercial standard backset mortice locks.

Brava 570 Oval Cylinder
5070USCKD

Features:

• Brava type 570 cylinder
• Includes X, W, Z & Rabbit Cams
• 2 keys supplied
