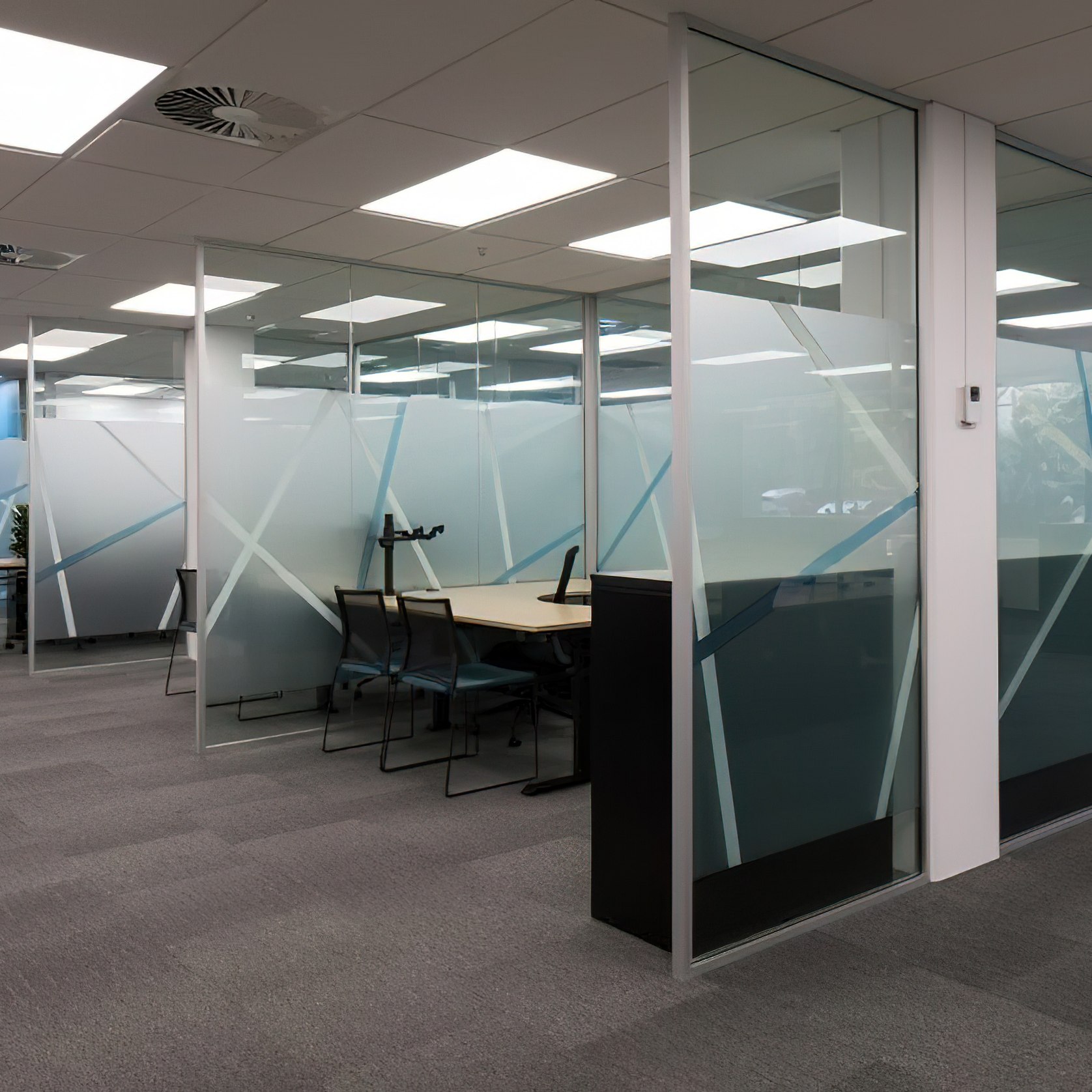

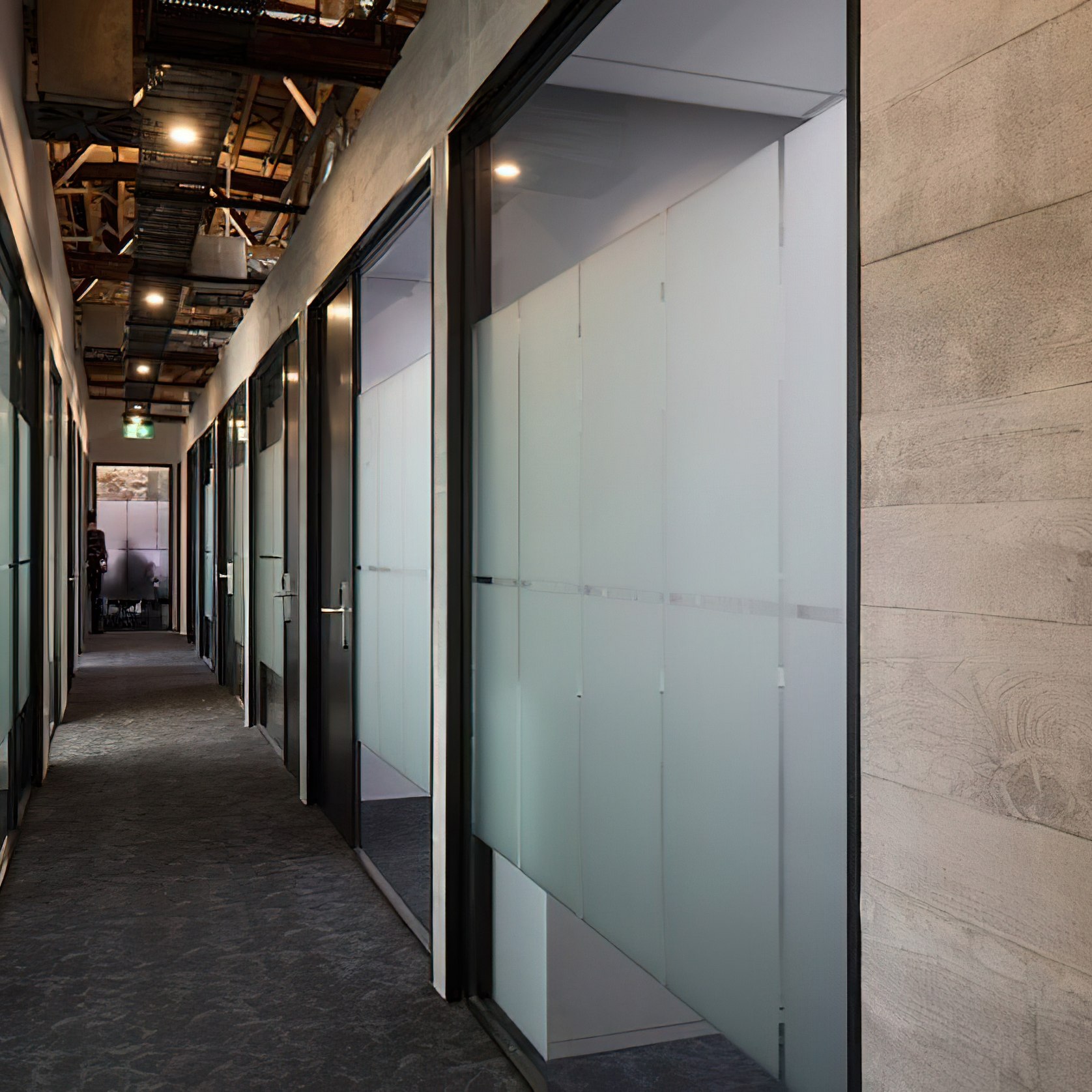

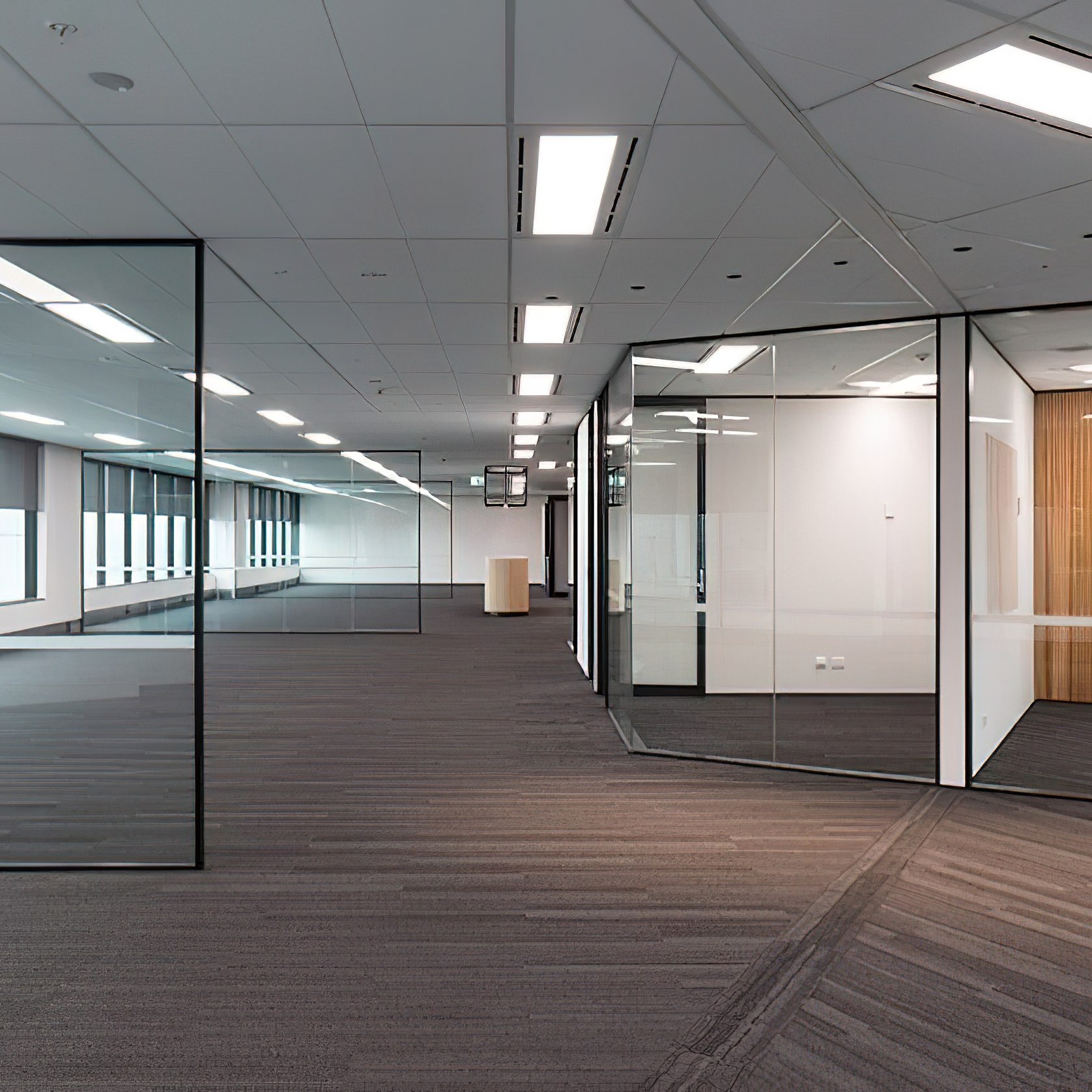

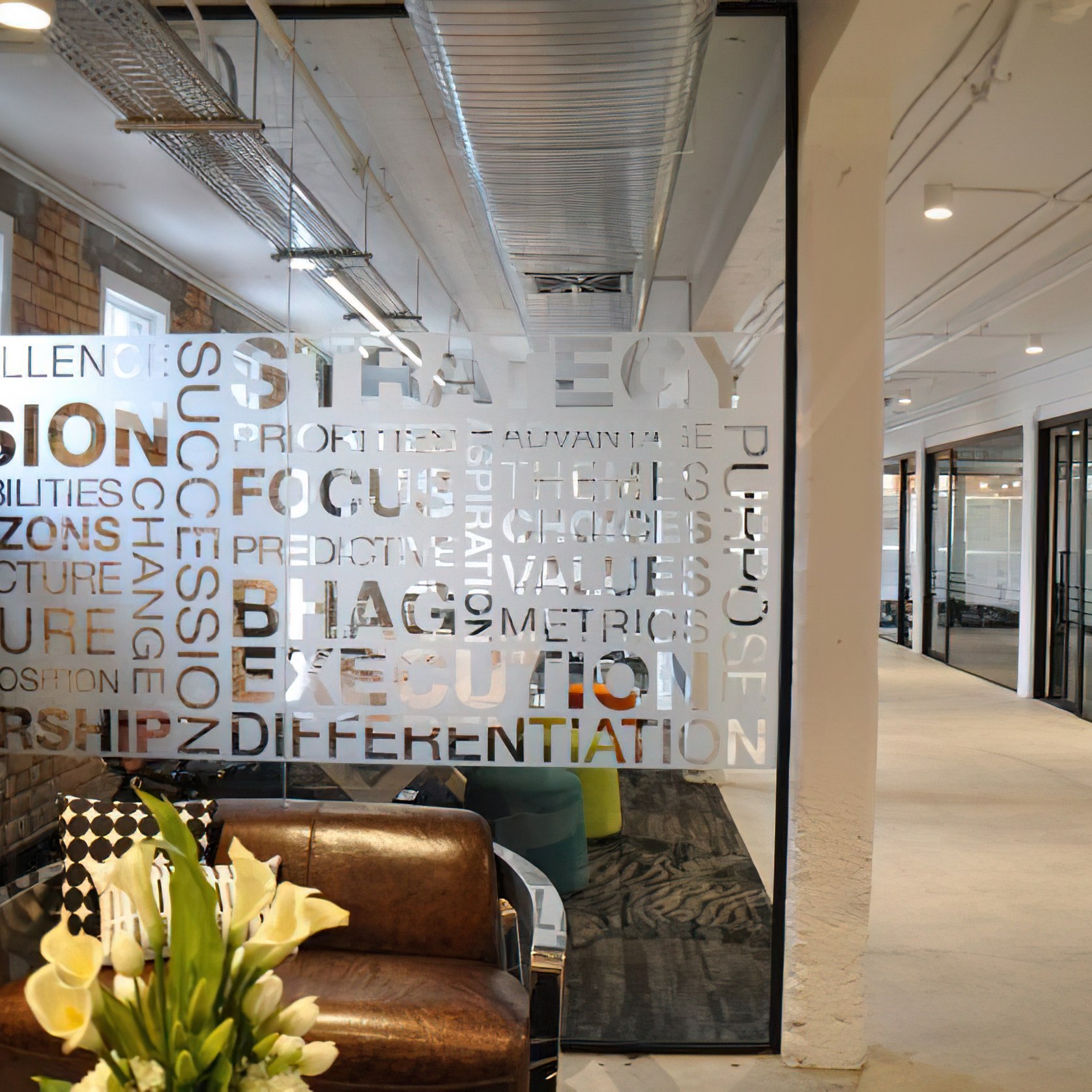

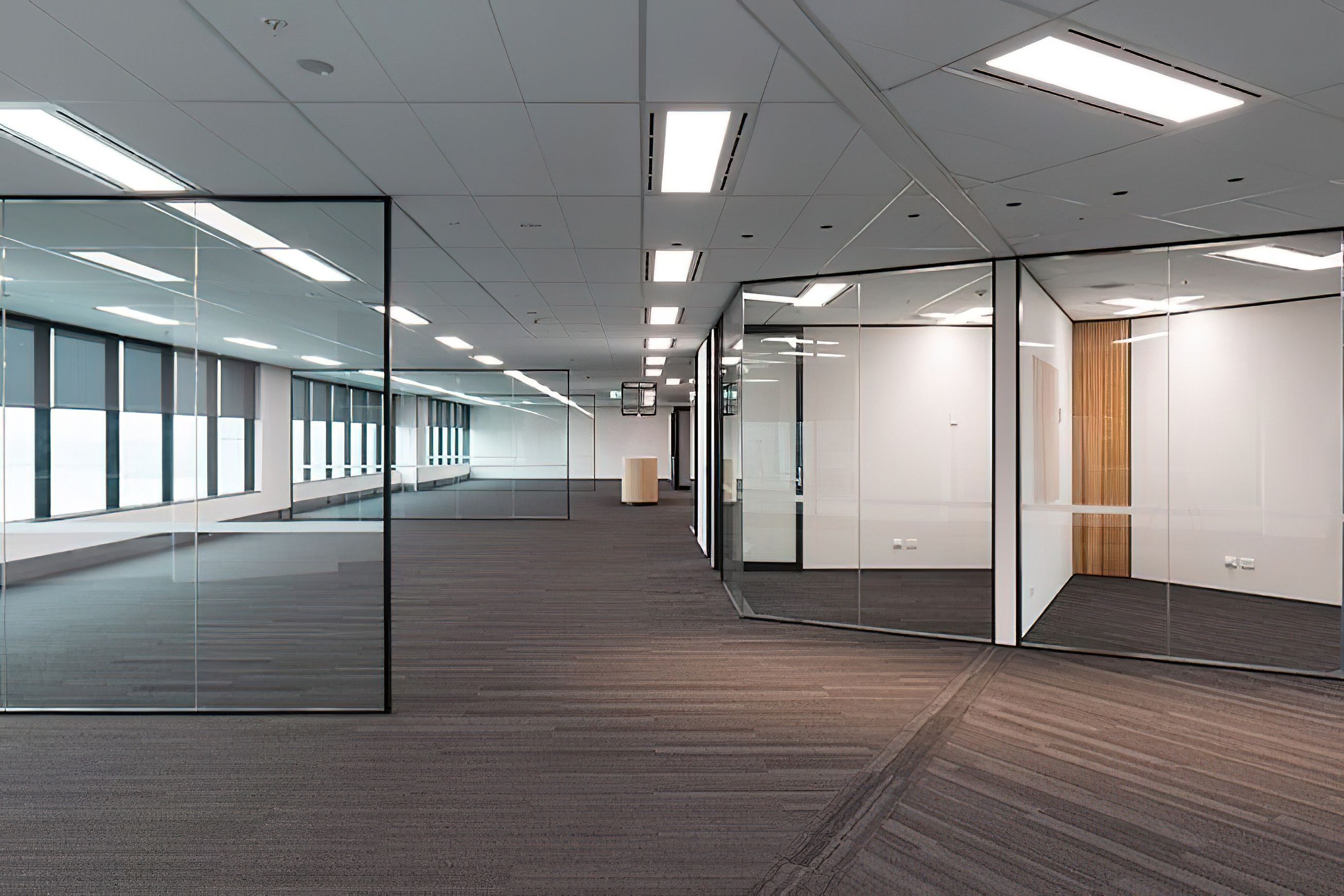

C SERIES 45 Aluminium Partition System

C Series 45 Aluminium Partitions are used as a commodity system when the budget is a factor.
It can be designed into the A Series Aluminium Partitions for a slimmer look.

The system has the following features:

• Standard glazing profile of 45mm wide x 25mm high
• Standard wall size based on 64mm steel stud with either a single or double layer of 13mm plaster board on each side
• Can accommodate glass thicknesses between 6mm and 13mm
• Door thicknesses between 35mm and 50mm can be used
• Can be fixed to standard openings or fixed to 105 or 132 series head/sill track

All our aluminium partition suites carry the Declare label.
Final Assembly: New Zealand. Life Expectancy: 50+ years.
End of of Life Options: 100% Reusable/Recyclable.
