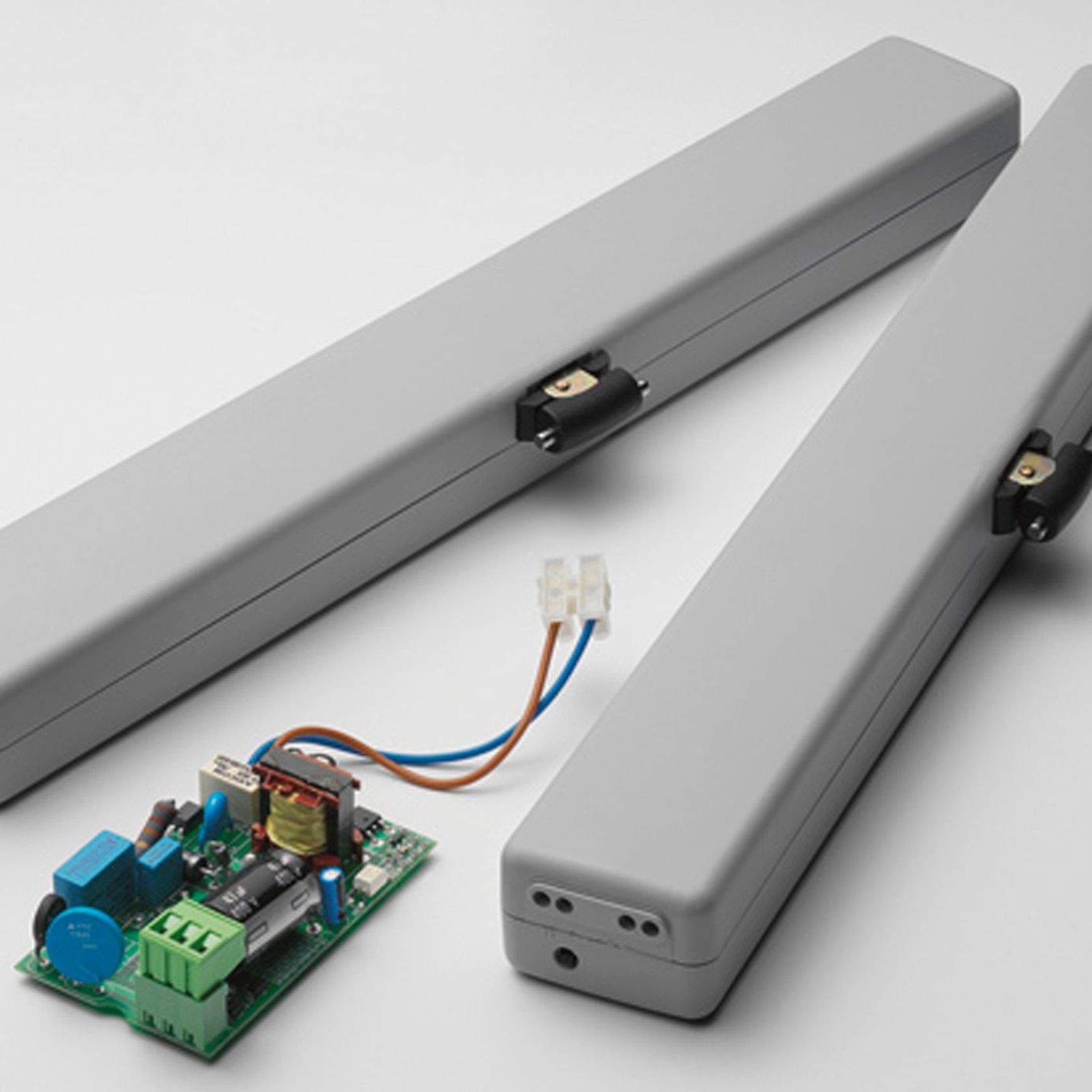

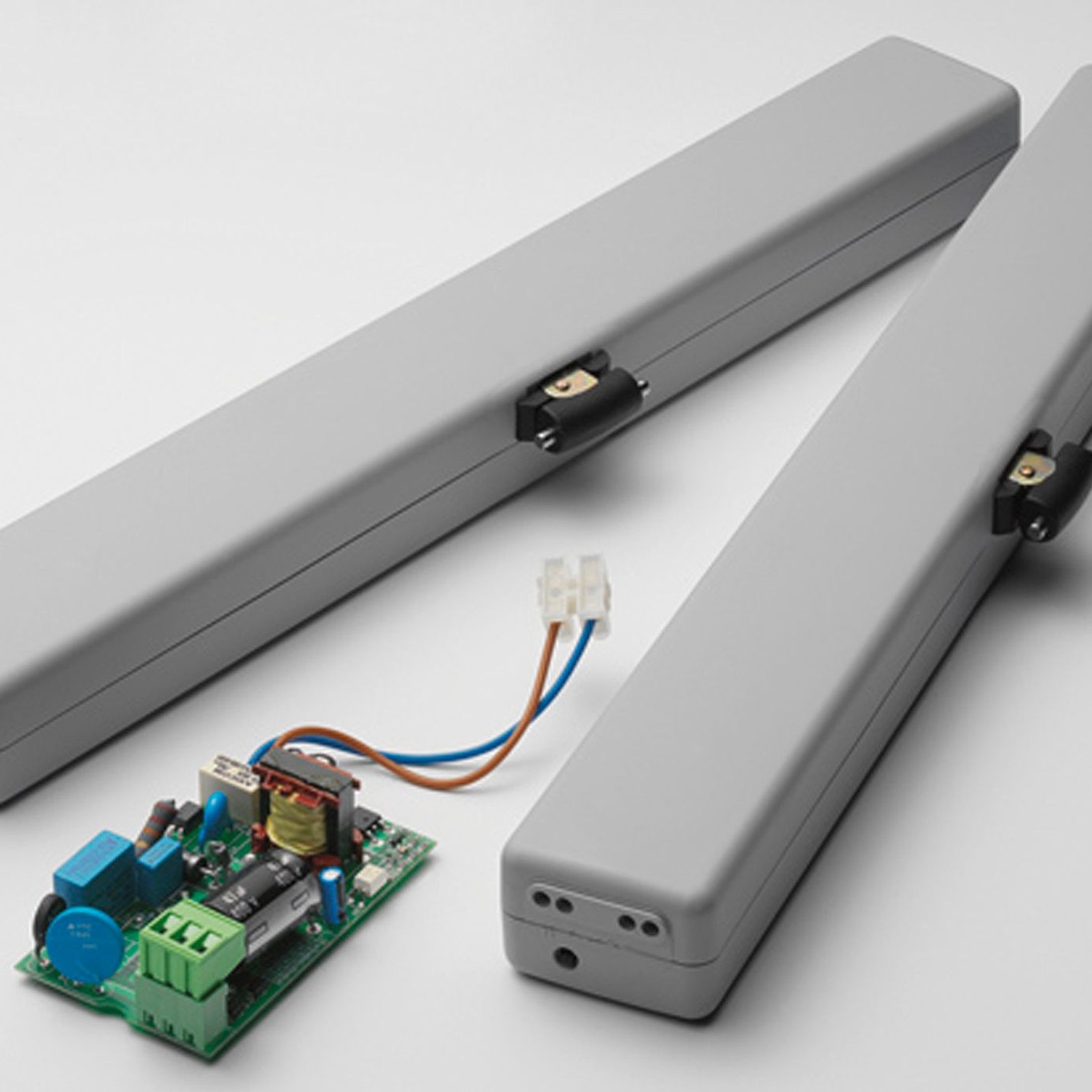

Electric C20 actuator with double link articulated chain, enclosed in a suitable casing, with different mounting accessories for top and bottom hung windows. Operation at 230V 50Hz or, as an alternative, at 24V DC. Maximum applicable load 300N. Fast hooking and unhooking system of the chain to the window. Adjustment of the force and of the stroke at 240 or 360mm by external knobs. Electronic end of stroke in closing by current absorption control. CE marked device.
- Chain actuator
- Thrust force 300 N
- Max stroke 360 mm
- CategoryElectronics & Automation
- RangeNatural Ventilation

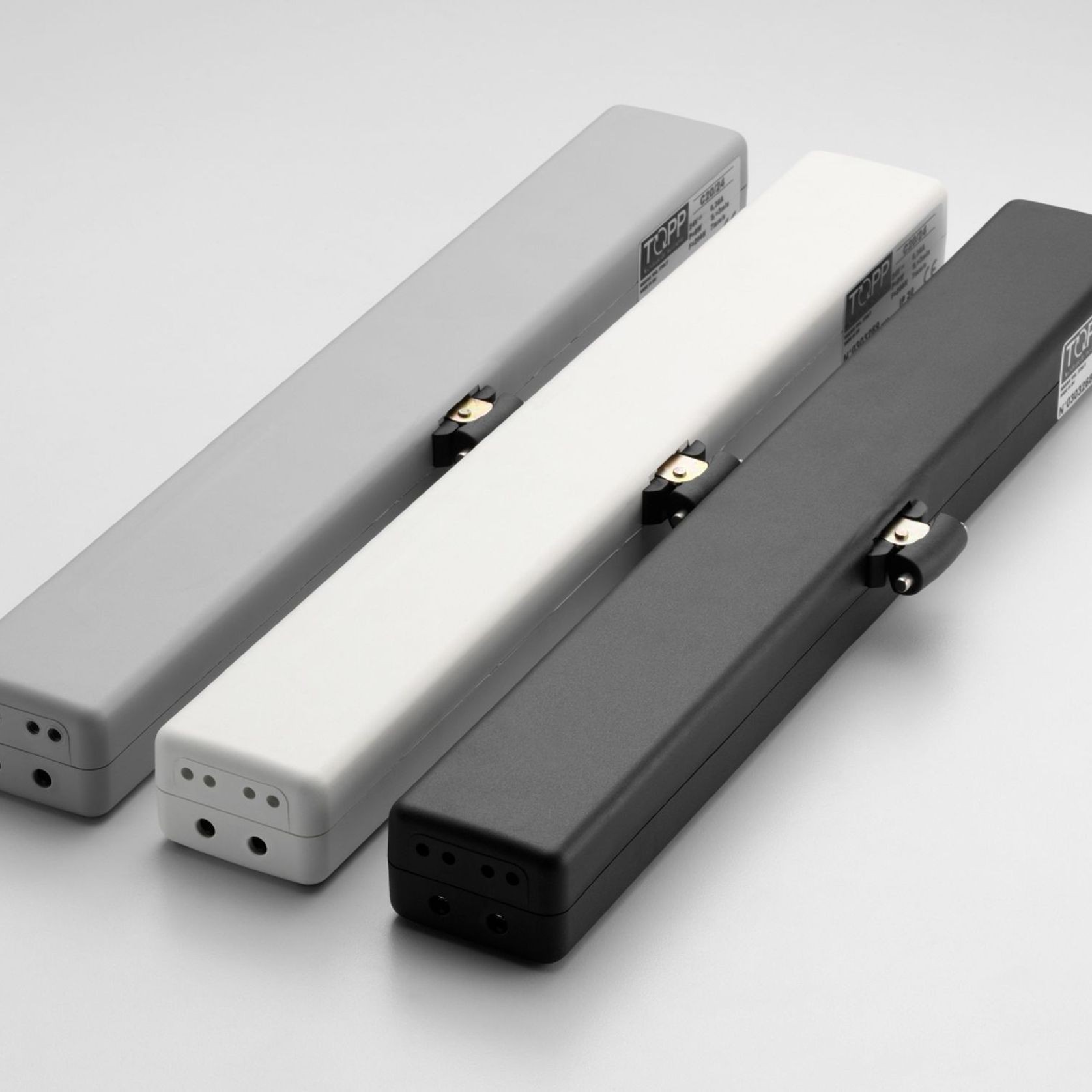

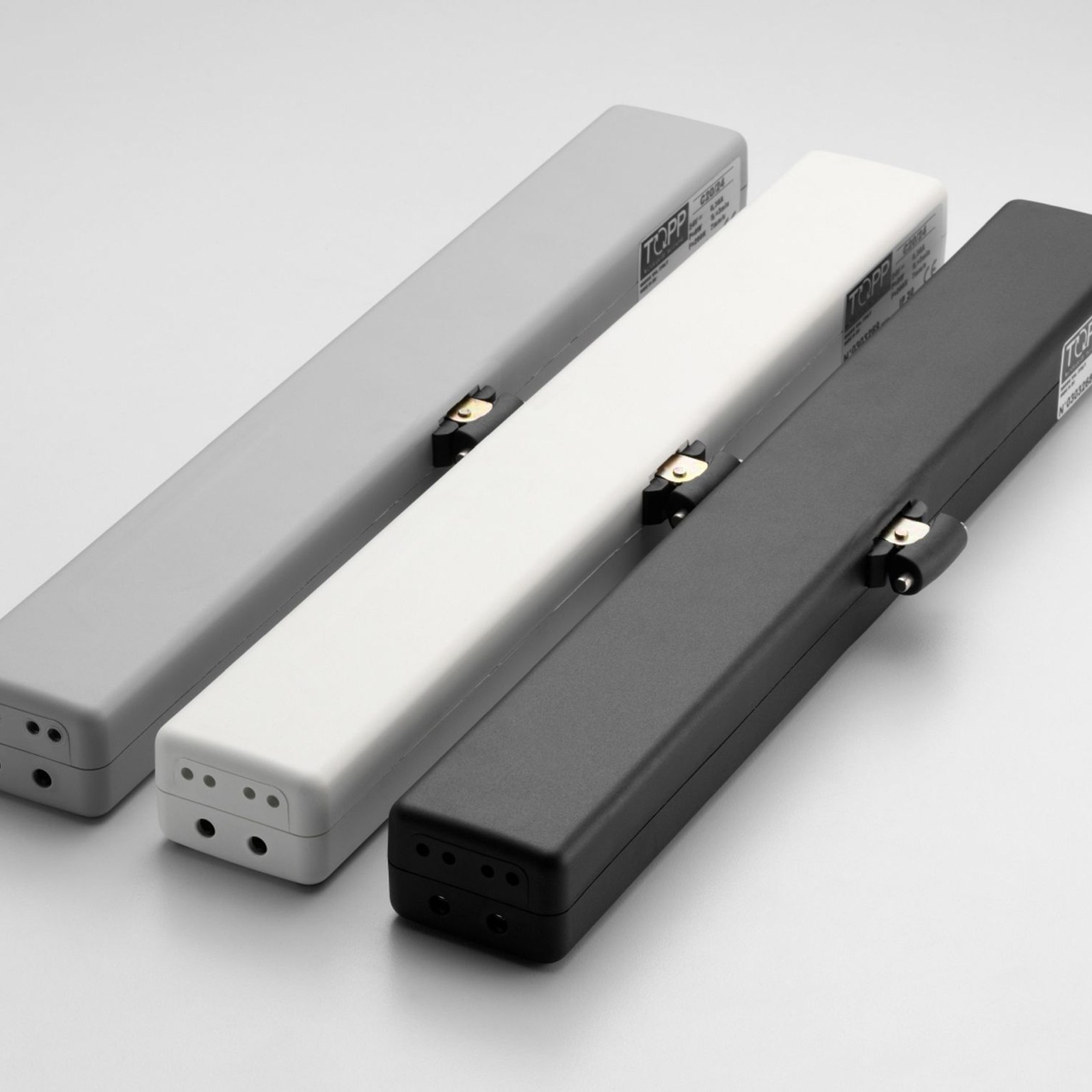

Available in:
SKU: 3A3#000007357 - Black
SKU: 3A3#000007358 - White
SKU: 3A3#000007359 - Grey

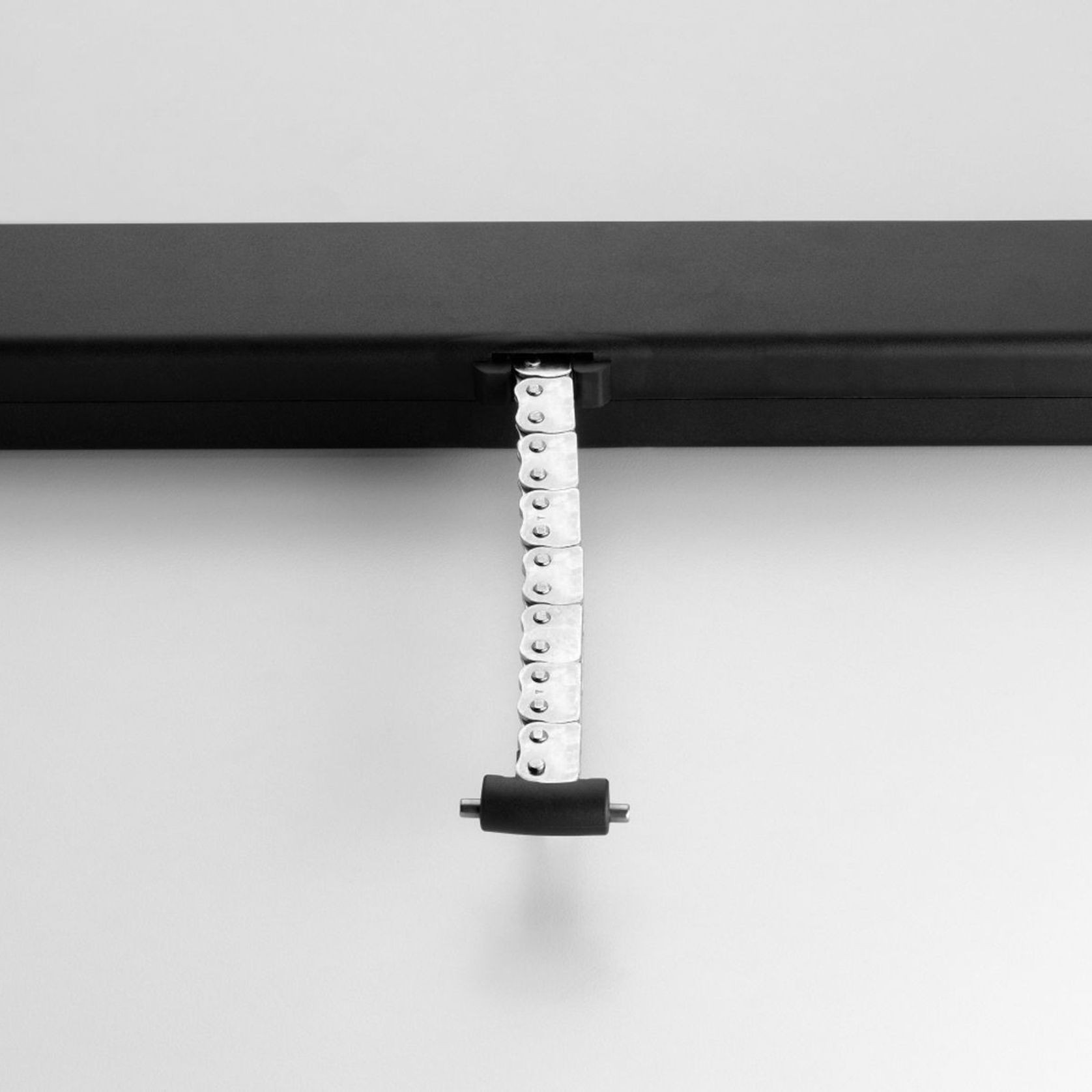

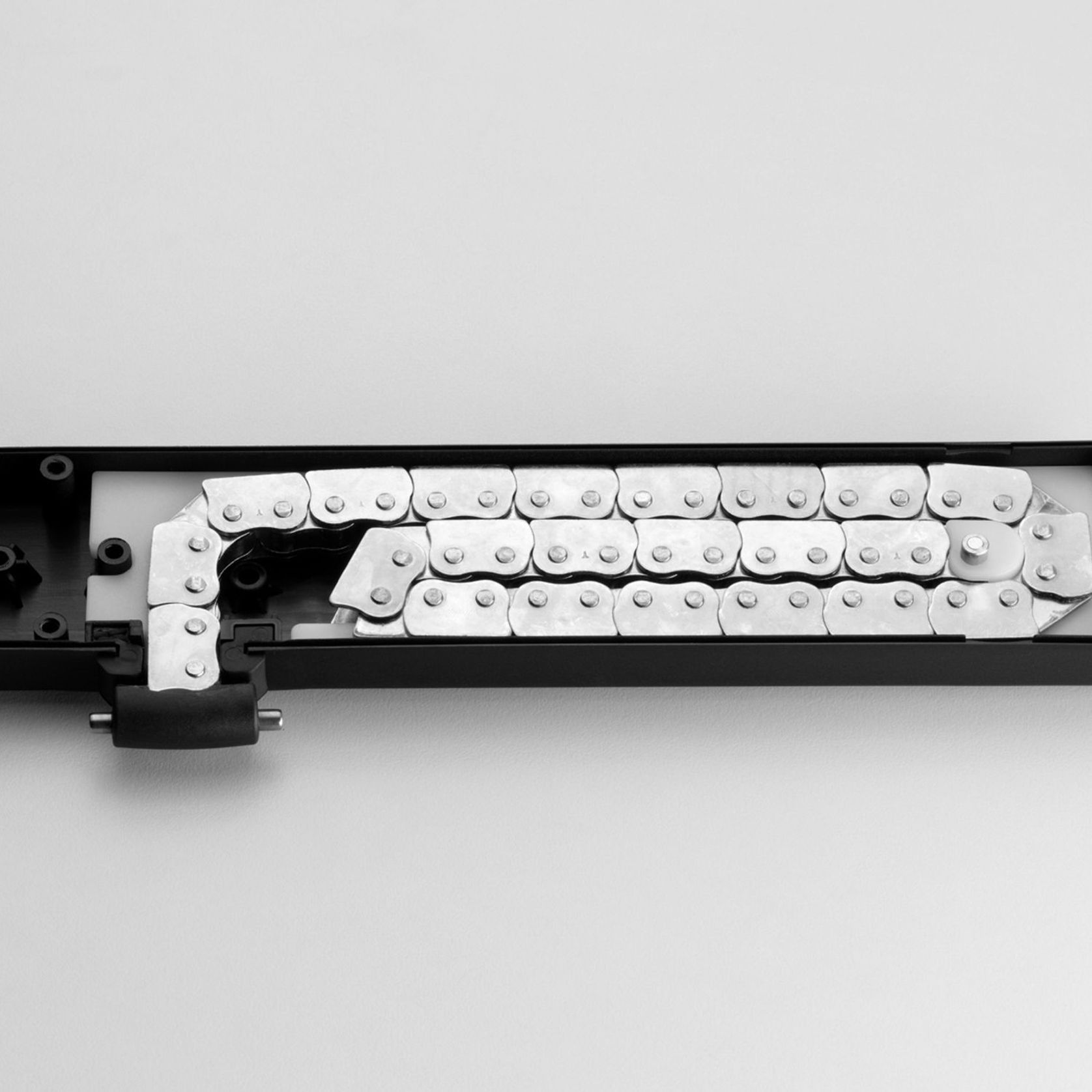

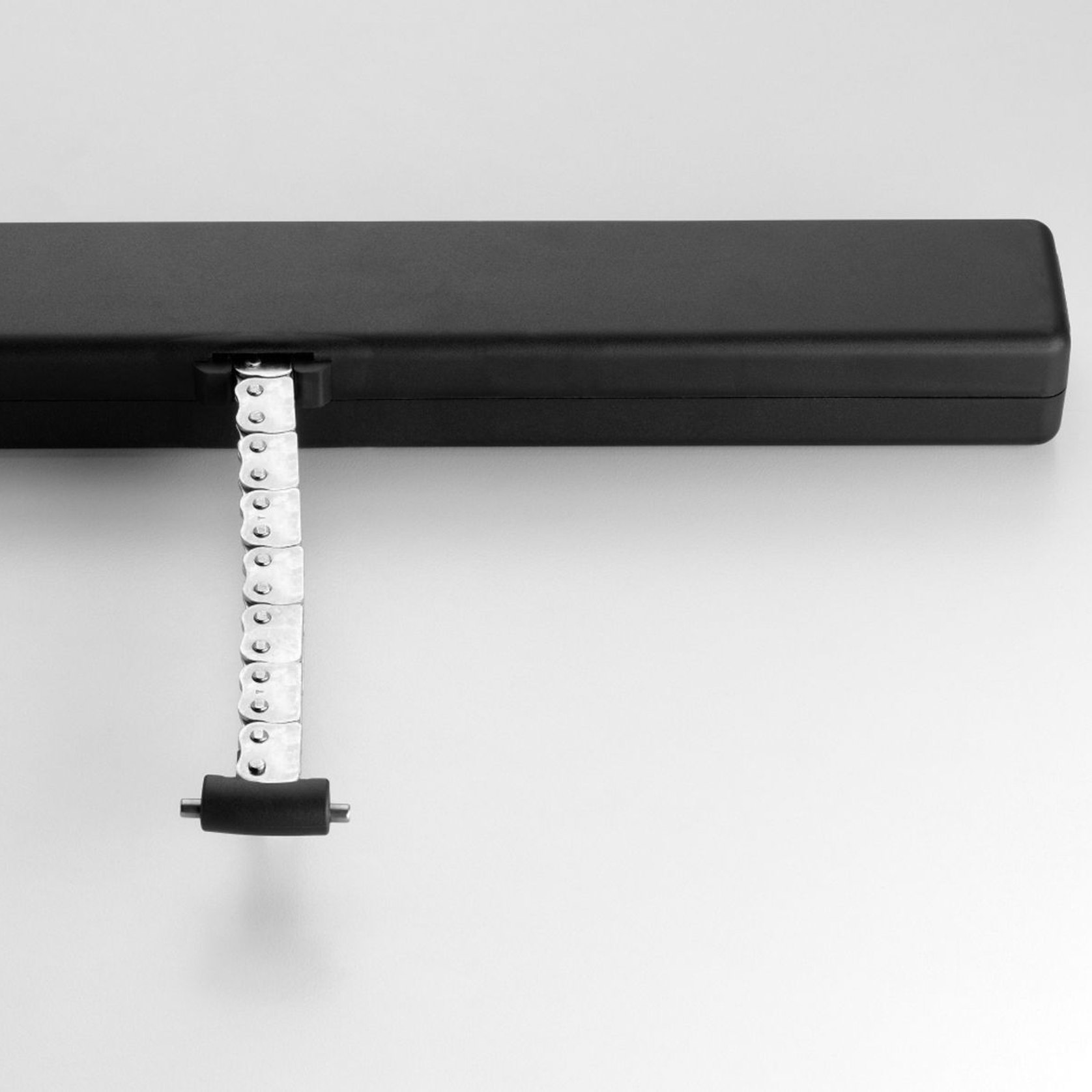

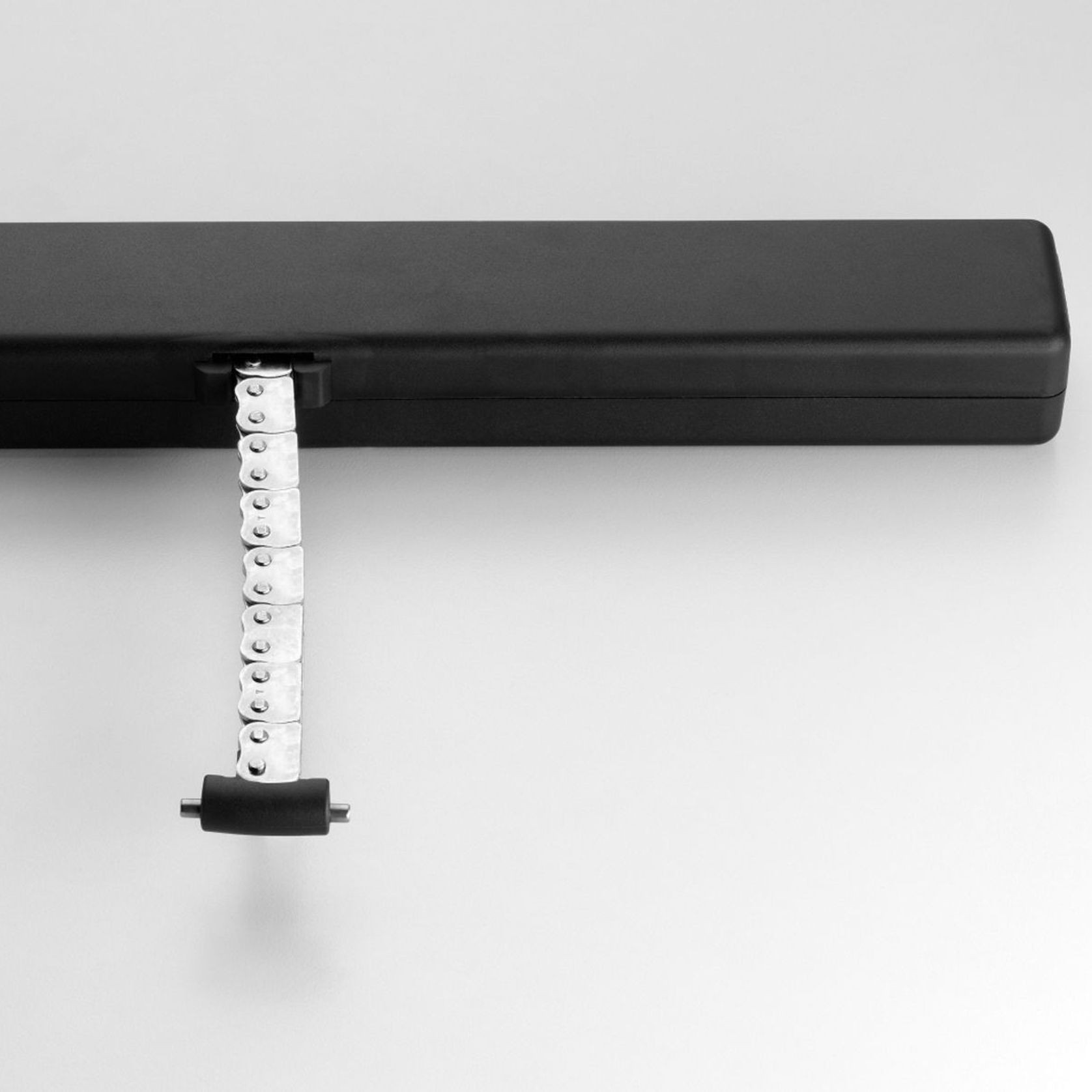

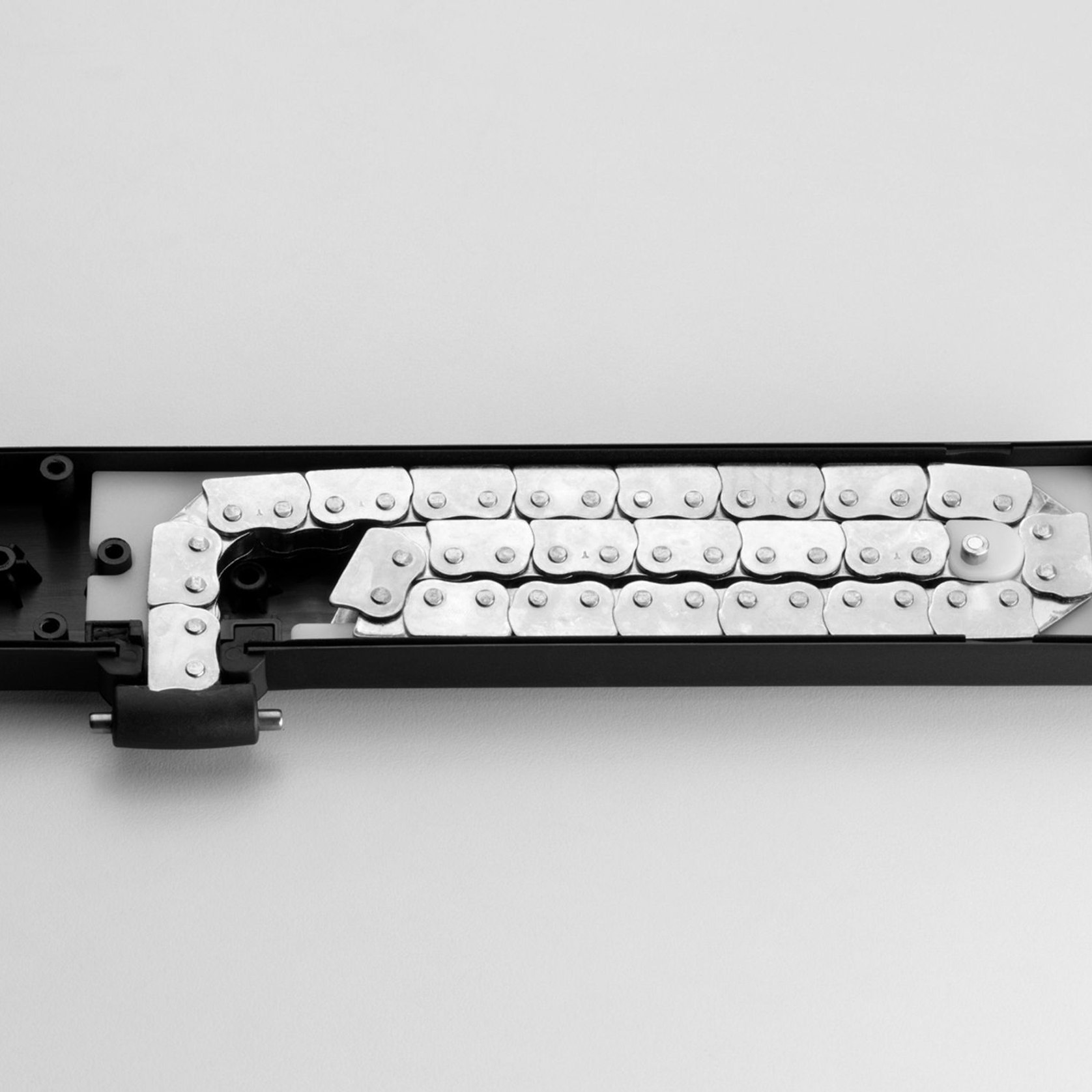

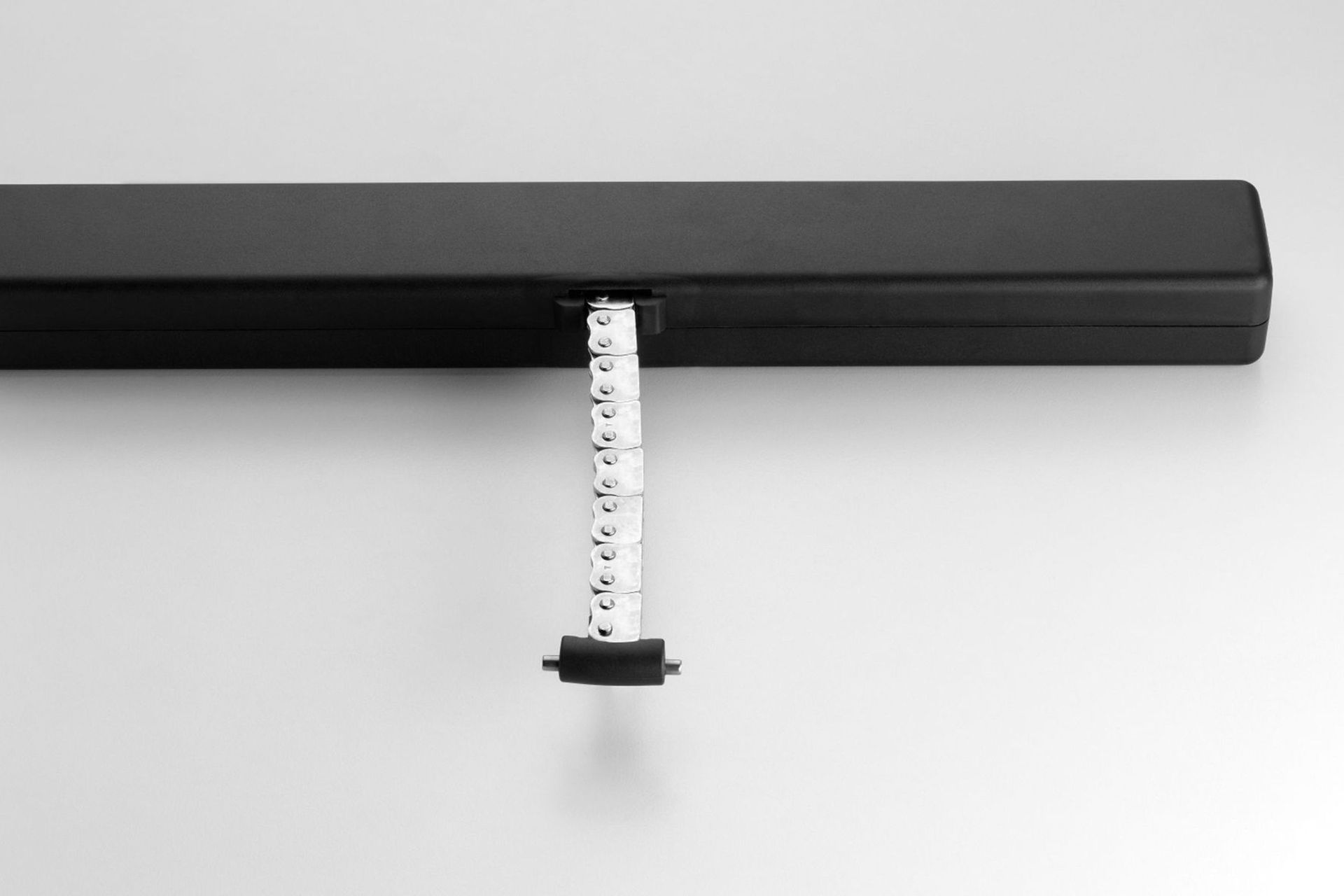

- Double link chain
- Stroke 240/360mm selectable
- Thrust force 300N
- Tractive force 200N

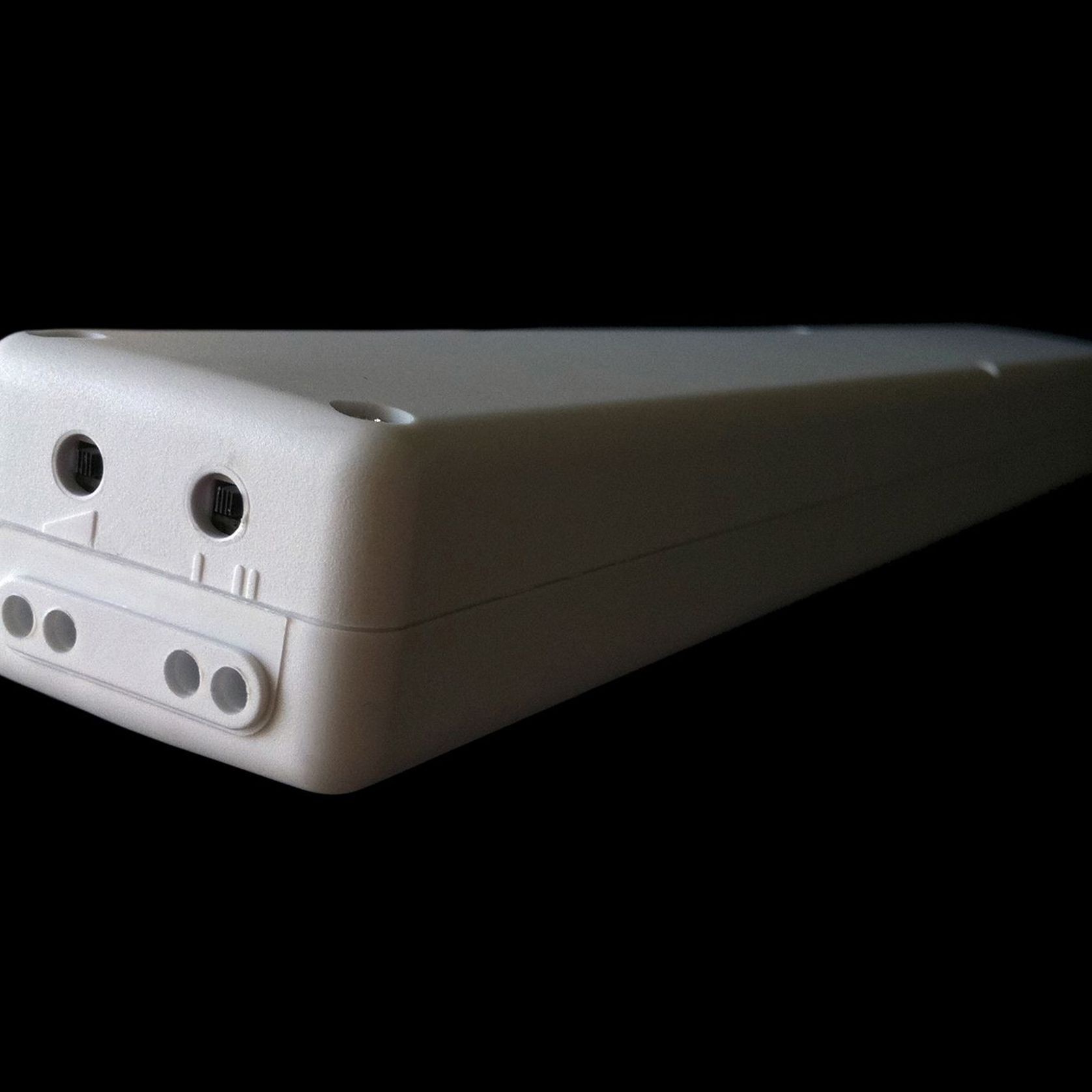

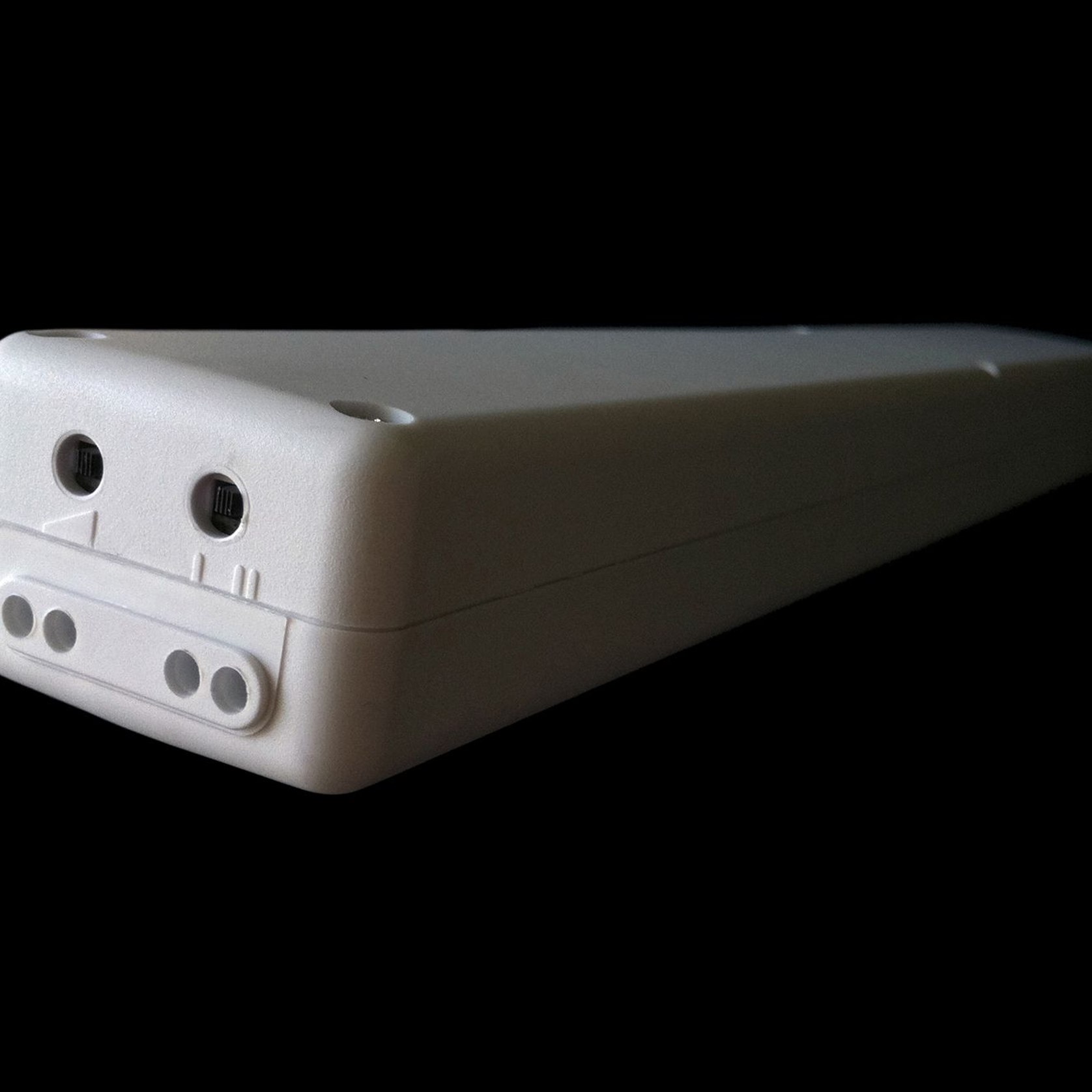

- Easy stroke adjustment via external dip switch
- Fast hooking and unhooking system
- Slimline profile
- Complete with frontal and vertical brackets for top hung windows
OTHER PRODUCTS
IN THIS RANGE

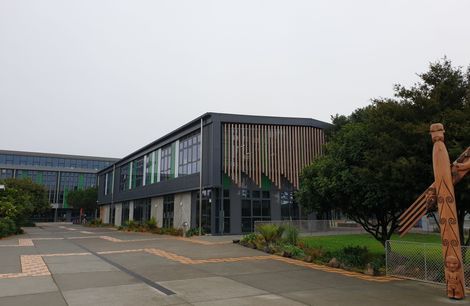

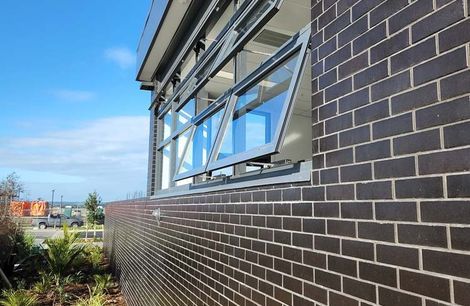

Projects featuring
