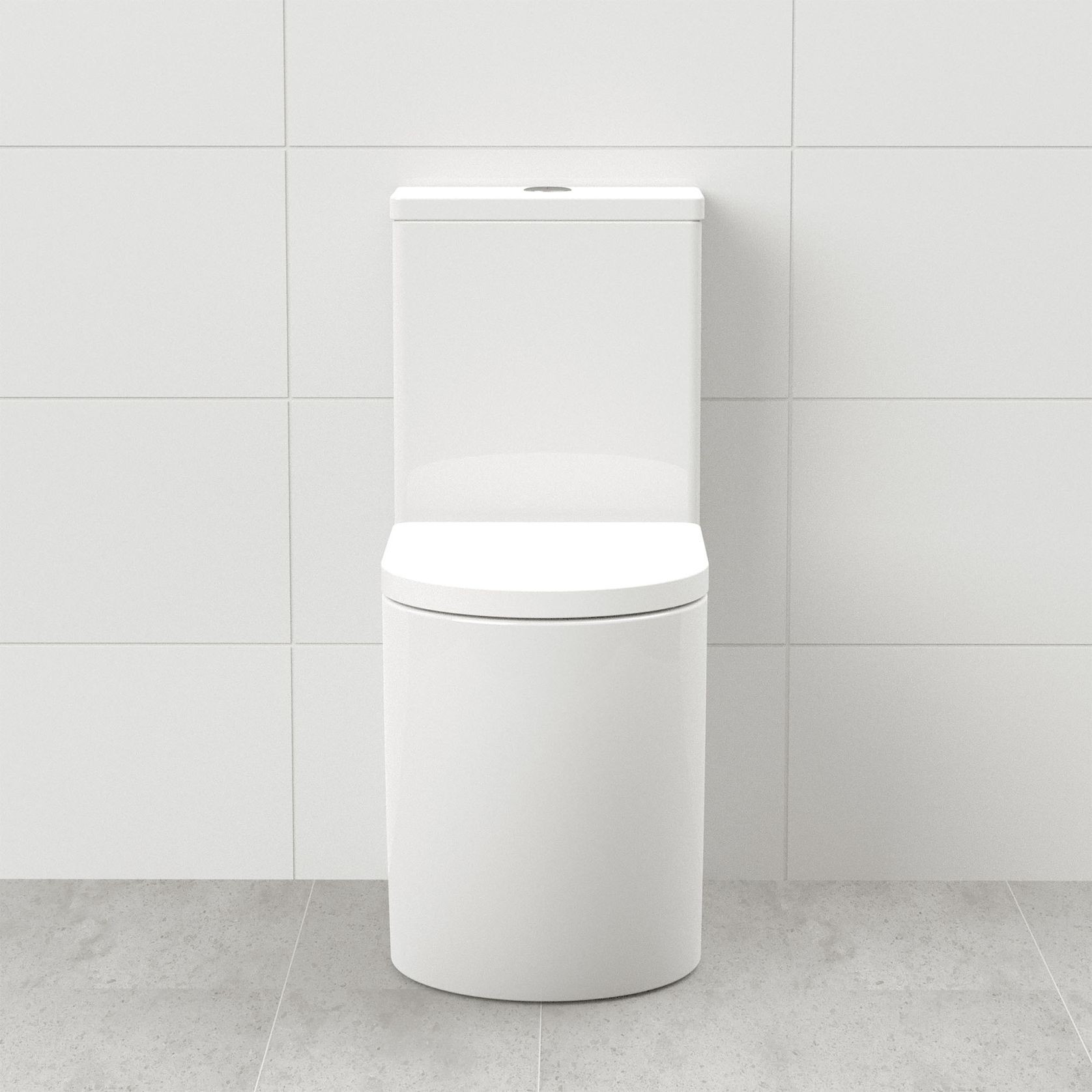

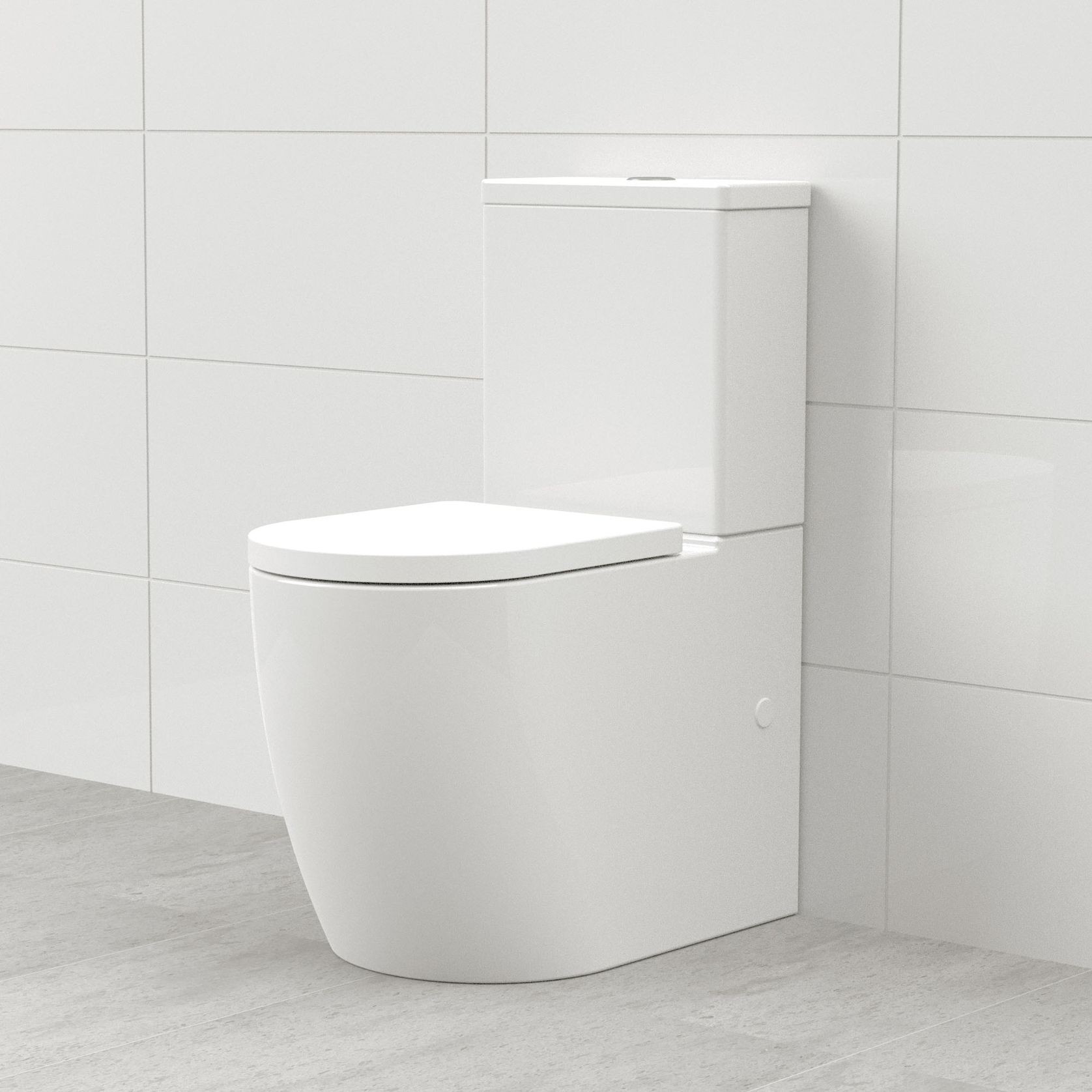

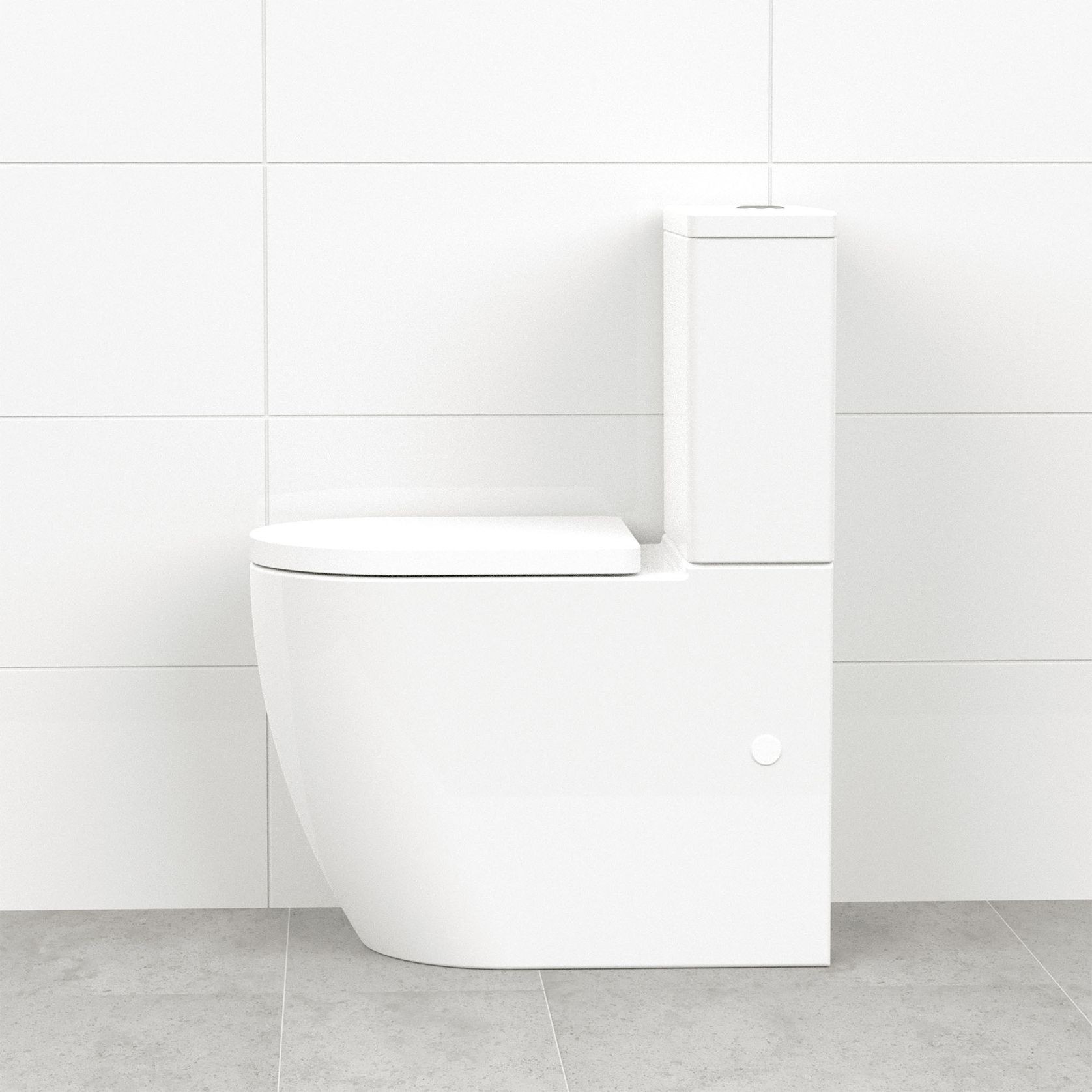

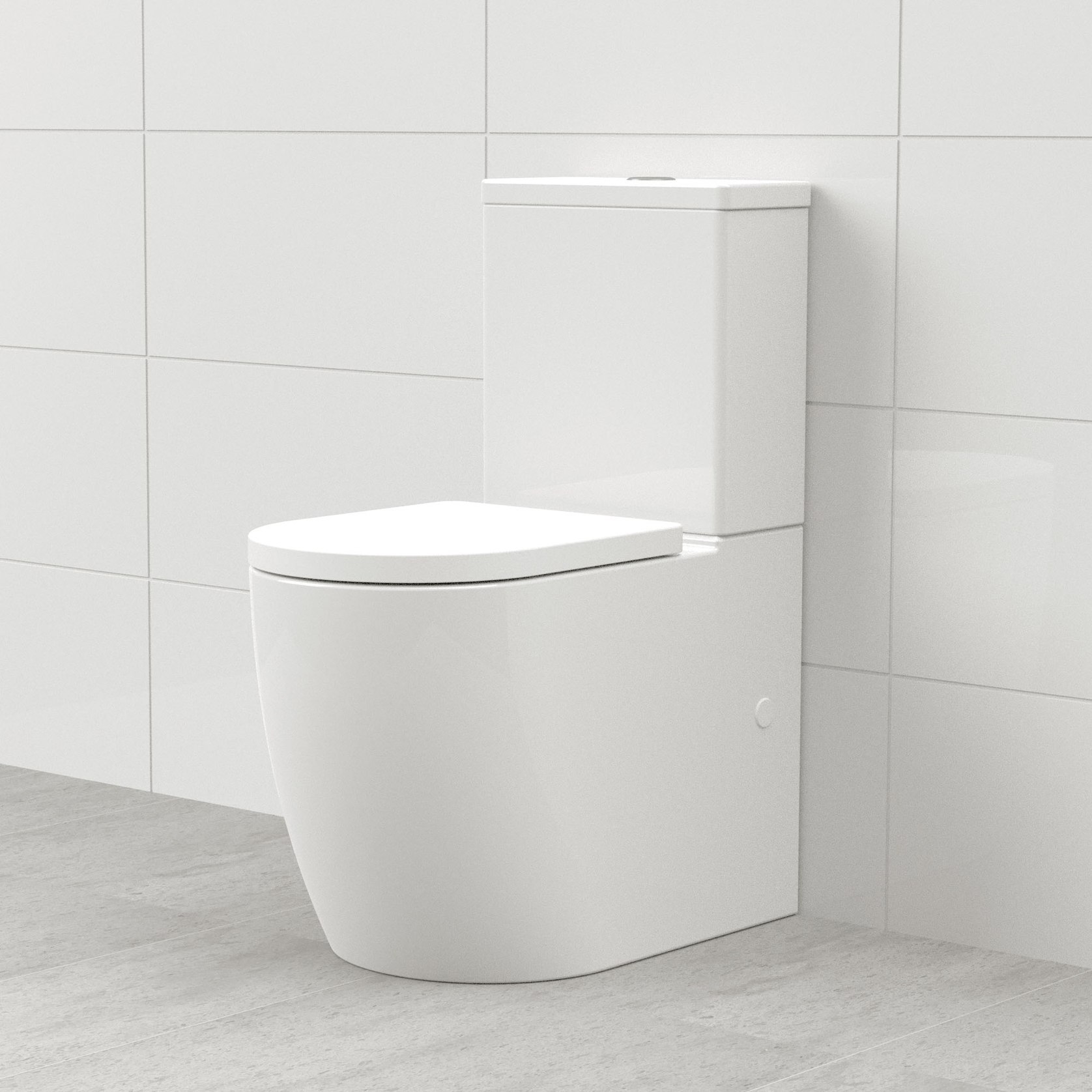

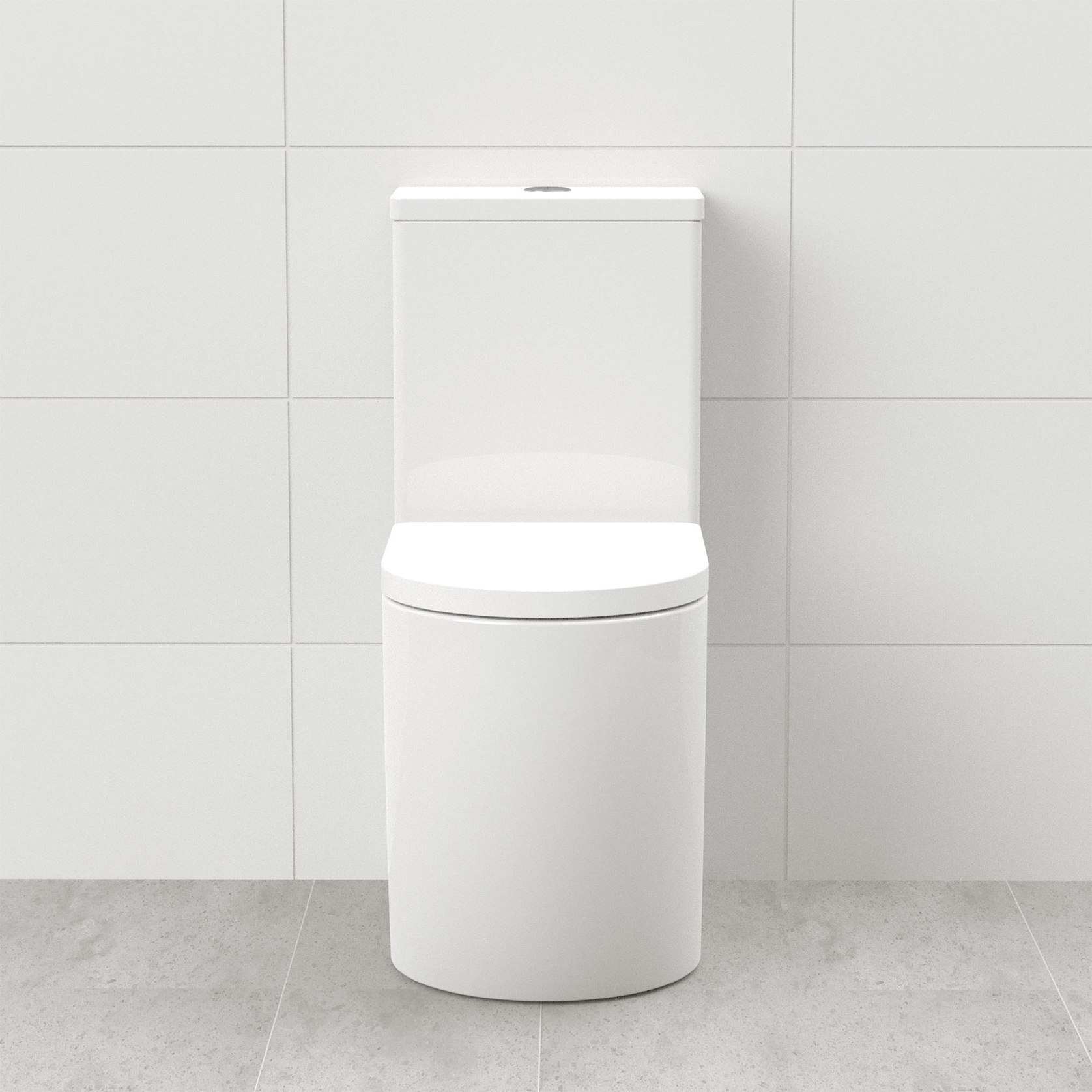

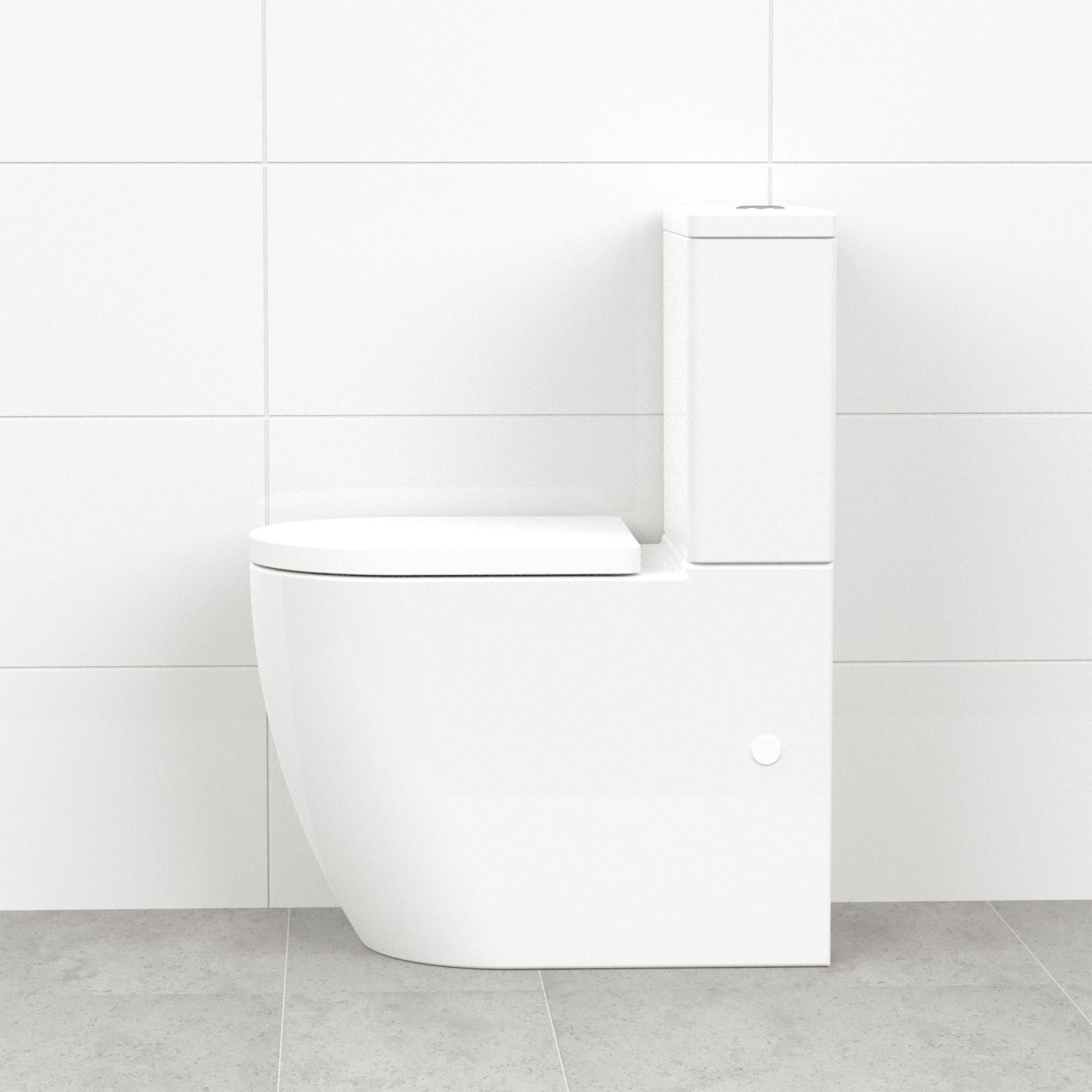

Caroma Urbane II Cleanflush Odourless Toilet Suite

Expella
$1,390

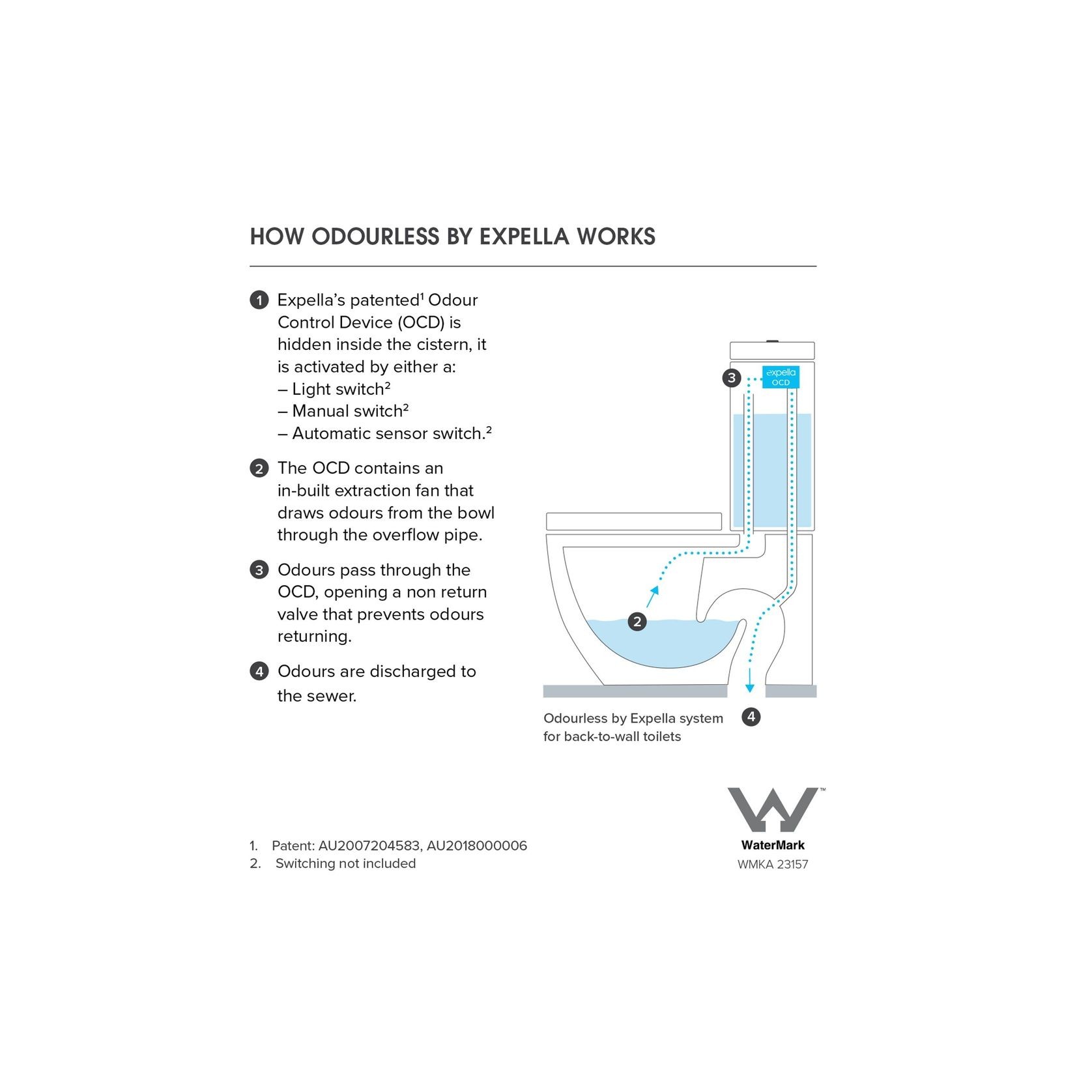

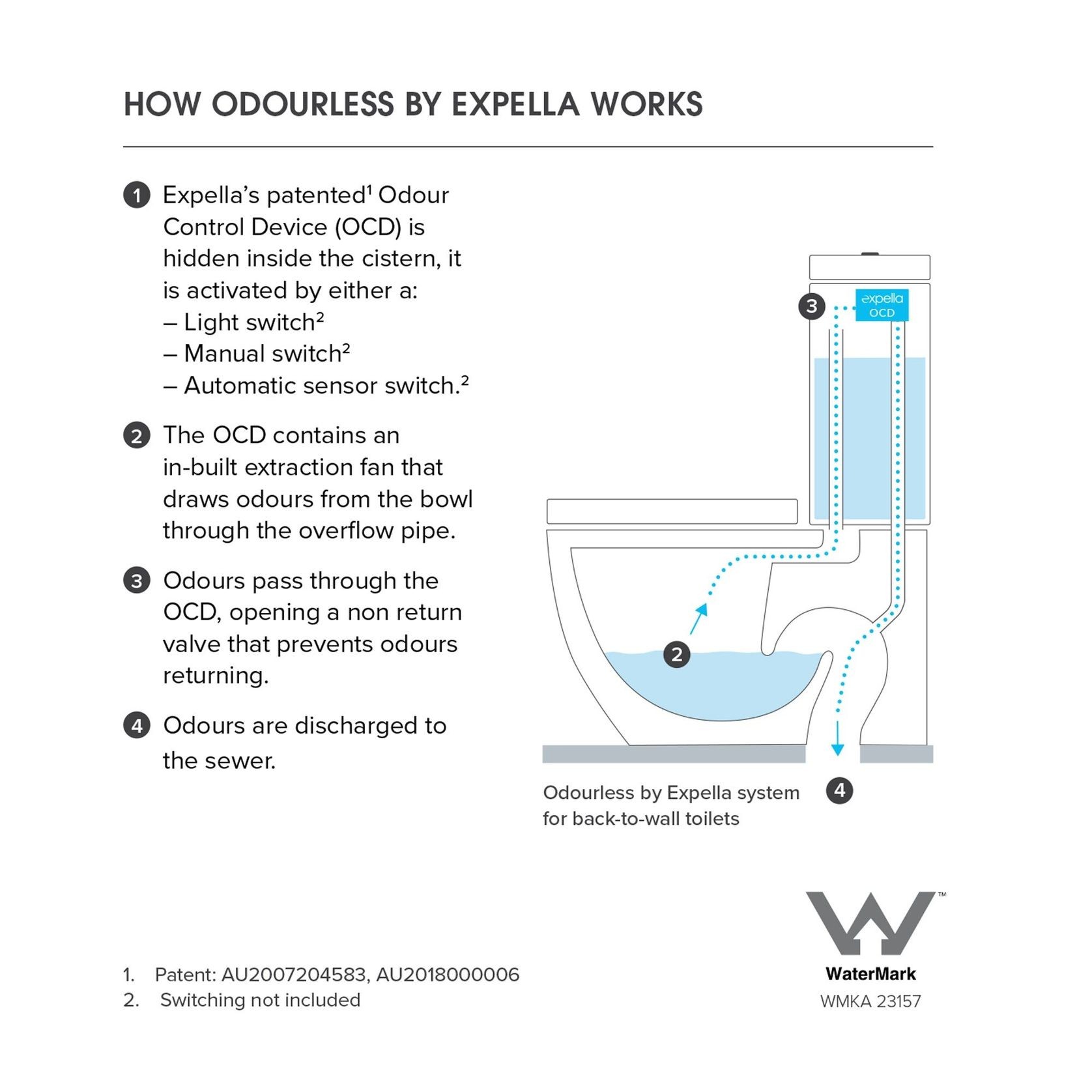

This hygienic toilet solution, packed with Australian design innovation, is water efficient and easy to clean with it’s revolutionary rimless CleanFlush® that provides a whole bowl clean with no splashback. The award-winning integrated Odourless by Expella system eliminates the need for air fresheners by quietly extracting malodorous air from the toilet bowl as it is being used and discreetly sending it into the sewer, keeping intimate moments private.

 Download Caroma Urbane II Back-to-wall Suite with Odourless by Expella fact sheet

Details
  • Category
    Toilet Suites, Bathroom Extractor Fans
  • Range
    Odourless Toilets
  • Brand
    Expella
  • Designer
    Expella
Specifications
  • Water Rating: WELS 4 Star at 4.5L flush and 3L flush. LIC. 0001
  • Compliance: Complies with Australian Standards – AS1172.1, AS1172.2, WMTS-425:201
  • Fixing: Toilet pan screwed and silicone to floor
  • Rim Configuration: Rimless – CleanFlush
  • Trap Configuration: Universal. Patented Caroma Uni-Orbital® connector supplied for S or P-trap installation
  • Material: Vitreous China
  • Seat: Vogue soft-close quick release thermoset toilet seat with GermGard® Antibacterial Protection provided as standard with seat caps in Stainless Steel (SS). Optional seat caps are available in Matte Black and Brushed Brass (sold separately)
  • Flush Button: Caroma Urbane II Back-to-wall Dual Flush Button, Chrome. Flush buttons also available in Matte Black, Brushed Brass, and Brushed Nickel (sold separately)
  • Water Inlet: Back inlet (left) and bottom inlet
  • Power Supply: 9 volt, 1.5amp (transformer provided)

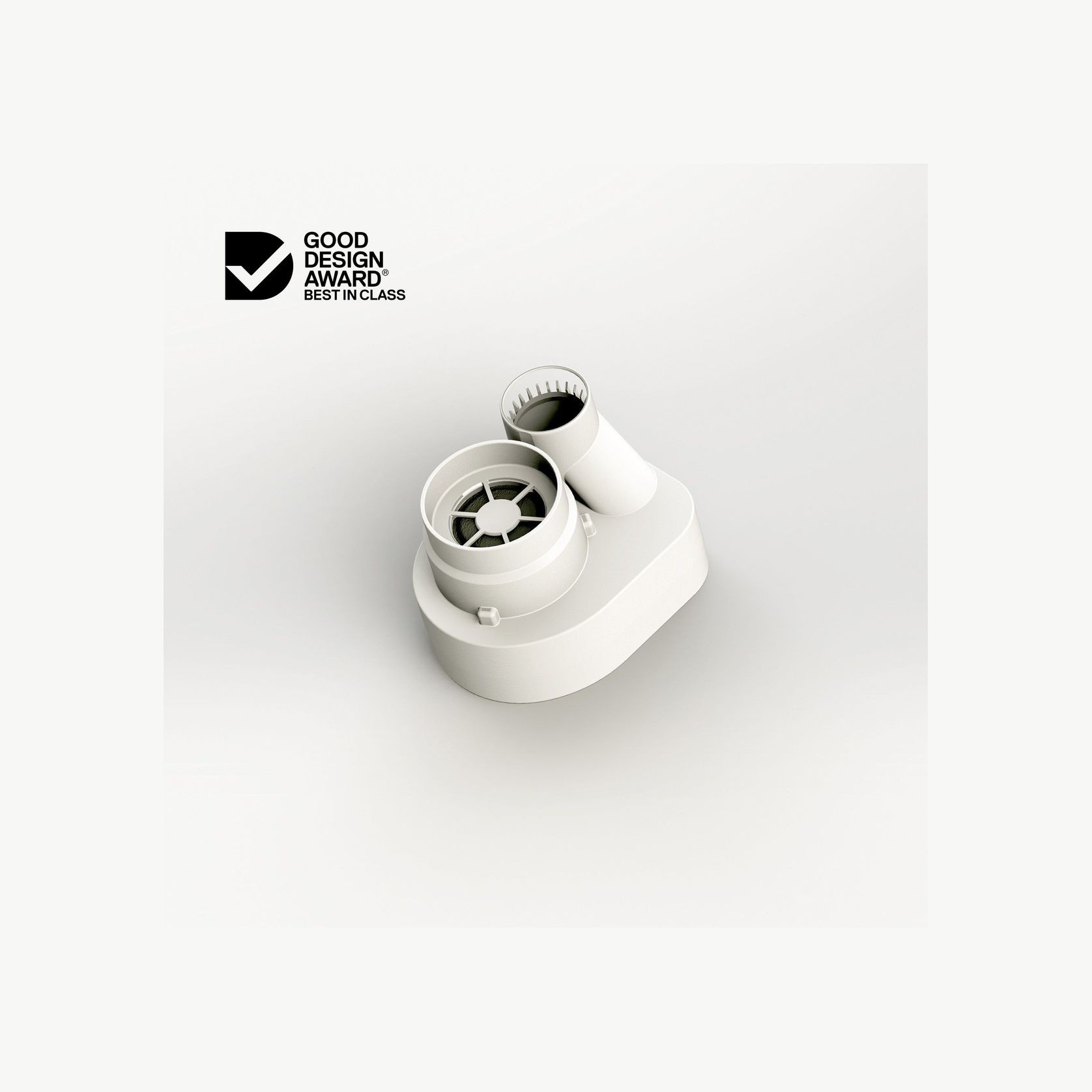

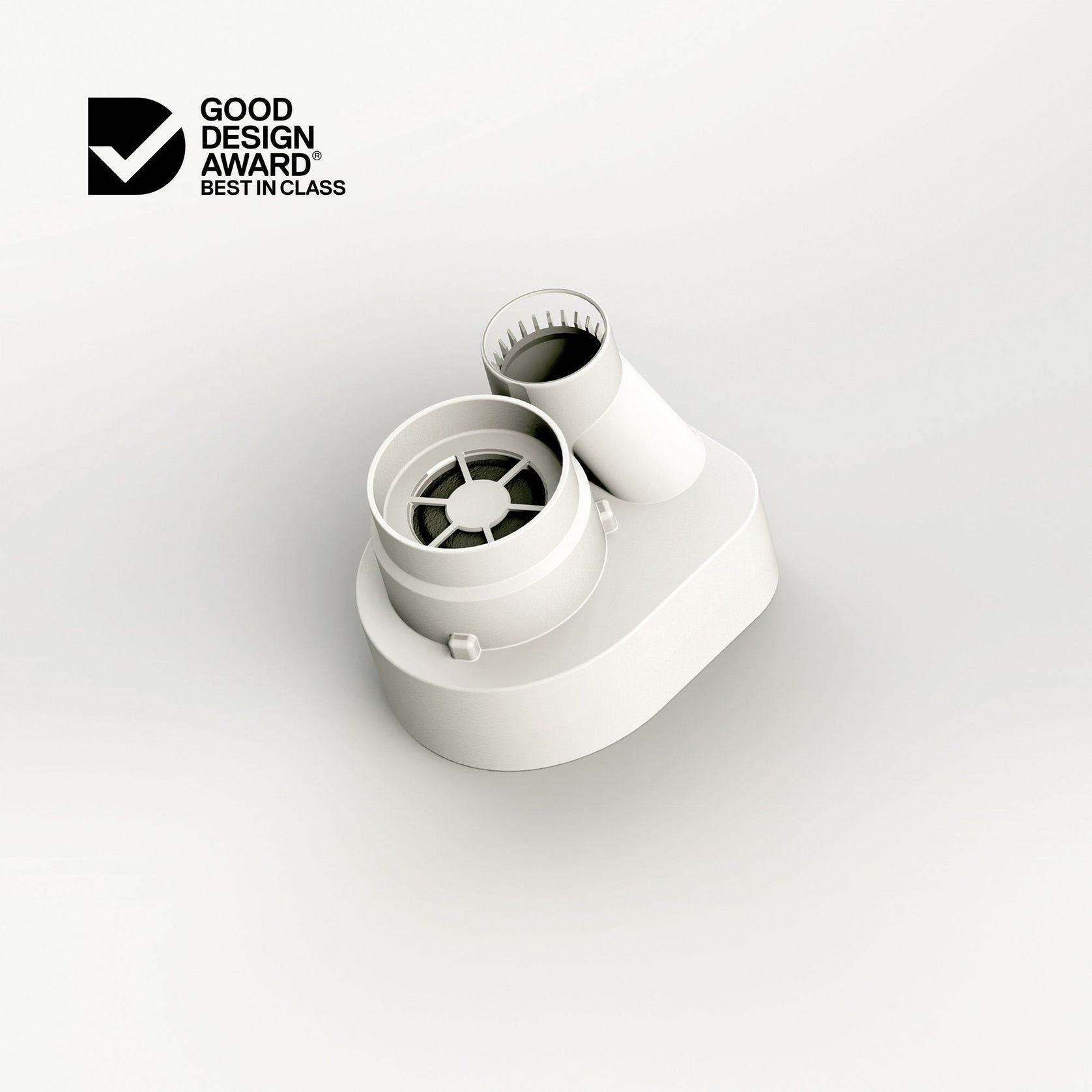

  • Fan (Odourless by Expella): Expella C-fa
  • Noise: 38.6 dBA (9 Volt) at 3
Scope of use
  • Domestic
  • Hotel
  • Commercial
  • Aged Care (AS1428.1 Ambulant compliant
Installation

The Caroma Urbane II with CleanFlush® Back-to-wall Suite is a standard toilet with Odourless by Expella pre-installed inside the cistern. The suite must be installed by a qualified plumber in accordance with AS/NZS 3500. Installation is the same as installing any other standard back-to-wall toilet but requires the addition of an electrical power source for the Odourless by Expella system. A qualified electrician should install a general power outlet (GPO) within 3.5 meters of cable length to the toilet. The location of the GPO should allow future access to the 9VDC power transformer.
Expella recommends that the Odourless by Expella system switch on with the Expella PIR Motion Sensor or with the bathroom light. It can also be shared with the exhaust fan switch or by a designated switch depending on your preference.
The Caroma Urbane II with CleanFlush® Back-to-wall Suite comes with back and bottom water inlet options. If you are replacing your existing toilet, consult with your plumber to ensure the correct option is purchased. You should also consult with them over the water inlet location and floor waste set-out. A full installation manual is provided with the toilet suite—refer to the product sheet for dimensions.

Maintenance

Maintain the Caroma Urbane II with CleanFlush® Back-to-wall Suite as you would a normal toilet with regular cleaning. The seat has a top fixing with quick release when required for cleaning. All internal components (inlet valve, flush valve, and Odourless by Expella system) are accessible by removing the cistern lid. The Odourless by Expella system is secured within an ultrasonically welded ABS plastic case and requires no maintenance. As with all electrical products, access to the adaptor is recommended.

Warranty
  • Vitreous China: 10 years
  • Odourless by Expella: 3 years
  • Inlet and Flush Valve: 2 years
  • Toilet Seat: 5 years (Caroma warranty for parts only)
    Warranty applies from the date of purchase. Proof of purchase required. Refer to our warranty page for more information.
Awards and Recognition
Need advice on a ventilation system that performs in the most effective, energy-efficient and enduring way? Tell us about your project, our team of experts are here to help.
Visit Website

About the
Seller

Australian innovation and excellence in residential and commercial ventilation systems

Expella is an Australian business specialising in healthy, architectural and effective mechanical ventilation solutions.

Founded on good design principles and practicality, Expella’s approach means that homeowners, architects, designers and builders no longer need to settle for unattractive grilles, squashed ducting and underpowered fans.

With Expella’s range of architectural grille designs and airflow system solutions, you have function and form. And our systems are more than just beautiful; wherever possible, our designs reduce noise, increase airflow and make installation simpler and more secure.

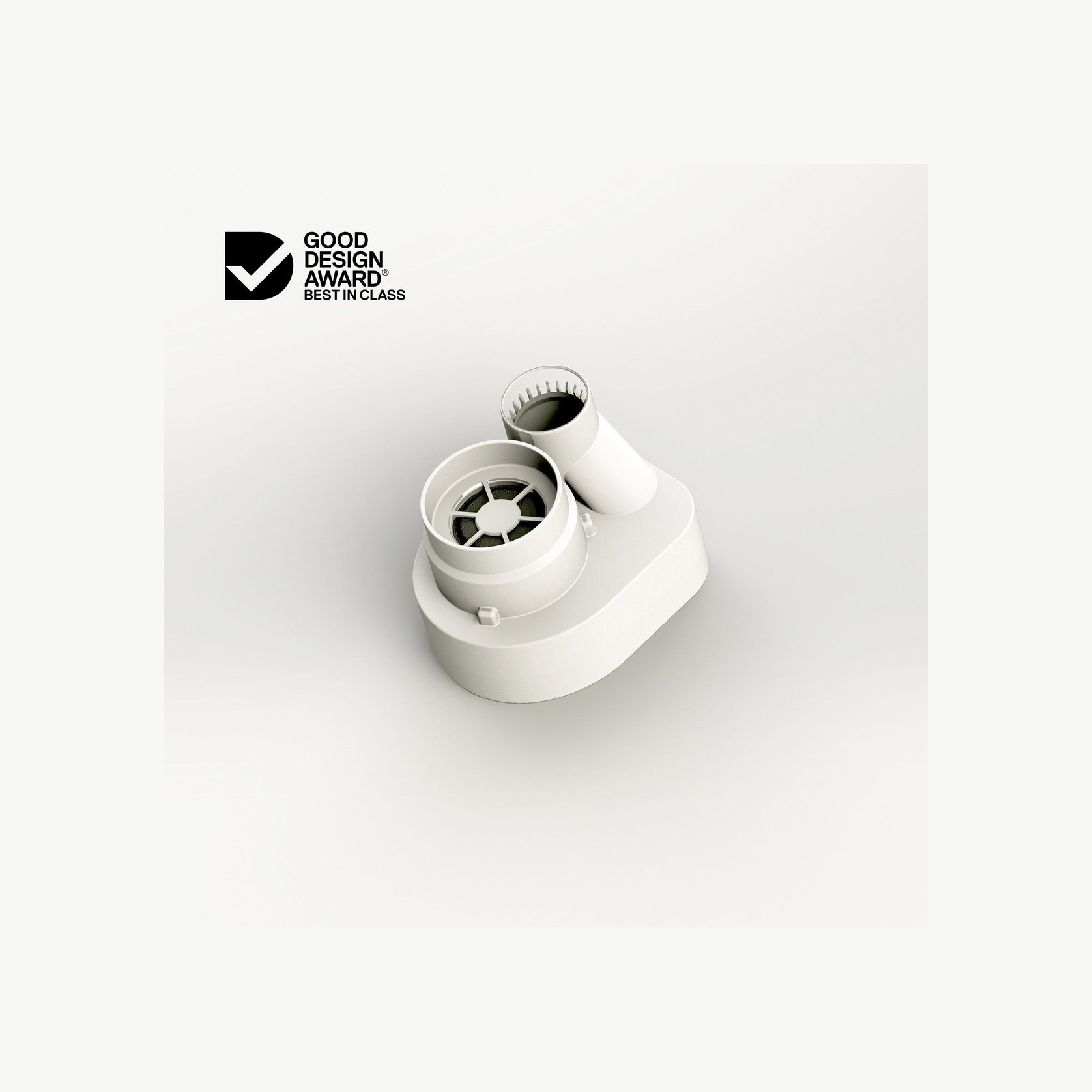

Our approach is best exemplified by our world-first odourless toilet. Odourless by Expella is a self-contained ventilation system that runs inside the toilet cistern to send odours straight to the sewer. No more putting up with toilet odour travelling up from the bowl and around the room before it reaches a window or extractor fan.
