Compact Bin Storage - 2 x 40 Litre Bucket - Handle Pull

Hideaway Bins logo
  • 410.7K profile views
  • 64 saves
Visit Website

All measurements given are internal (wall to wall) and are the minimum required to fit each unit. Hideaway® Compact bins are 'compact' in design making the range ideal for areas of limited space. The units can be top and / or side mounted and the mounting panel acts as a cover for the bucket.

KC240SCH - 2 x 40L Buckets, Handle pull.

  • Recommended use - Largest available double bin solution - 80ltrs.

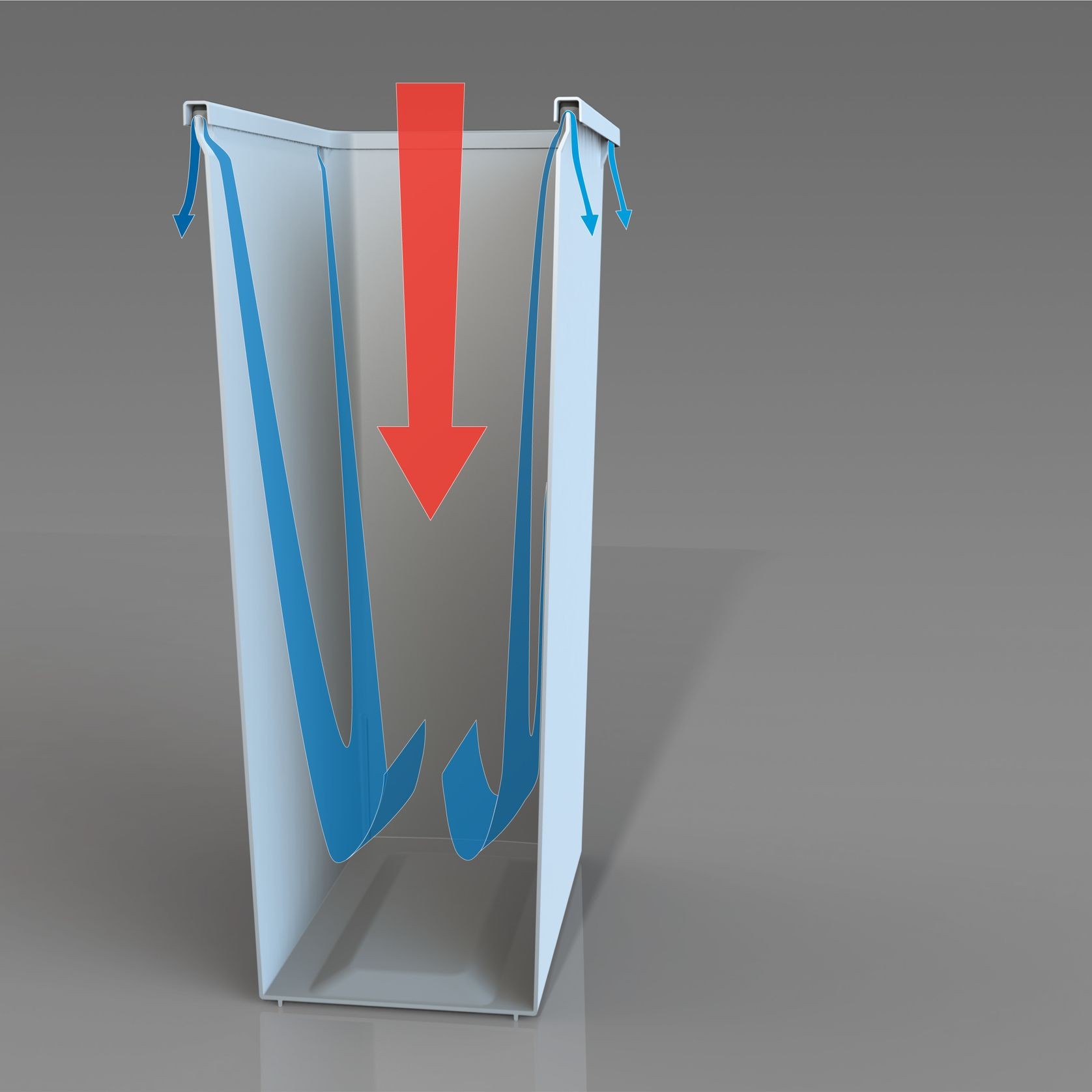

  • Vents - Four U-shaped air vents allow trapped air to escape through the lip of the bucket, as you push your bag into the bucket cavity.
  • Vent design - This unique, patented design will eliminate the frustration of trapped air restricting your liner, maximising bag volume.
  • Liner holder - holds your bag in place without covering the vents, so trapped air can escape as you begin to fill your bag.
  • Larger bucket capacity for areas of limited space
  • Metal Gauge - 1.0mm zinc treated steel for strength and powder coated for durability.
  • Runners -  High quality soft close, ball bearing runners. Runners over-extend to ensure the back bucket will come clear of the bench top without the need to remove the front bucket and have a dynamic weight loading of 45kgs.
  • Colour - Arctic White
  • Bucket - Made from a recyclable, food grade polypropylene plastic. All buckets come complete with a liner holder to hold your bin liner in place.
  • Mounting Options - Top mount and / or side mount.

Installation Information:

If hinges are used that do not allow the door to clear the opening fully, allow an extra 10mm width. Installation also requires that the top door hinge be 150mm from the top of the door to allow clearance for the bin handle.

Download our brochure HERE

NOTE: The Hideaway Compact range is designed for residential use and is not recommended for commercial applications. Its use in this application will void the warranty.

Compact Bin Storage - 2 x 40 Litre Bucket - Handle Pull
Visit site

All measurements given are internal (wall to wall) and are the minimum required to fit each unit.

Hideaway® Compact bins are 'compact' in design making the range ideal for areas of limited space. The units can be top and / or side mounted and the mounting panel acts as a cover for the bucket.

KC240SCH - 2 x 40L Buckets, Handle pull.

  • Recommended use - Largest available double bin solution - 80ltrs.
  • Vents - Four U-shaped air vents allow trapped air to escape through the lip of the bucket, as you push your bag into the bucket cavity.
  • Vent design - This unique, patented design will eliminate the frustration of trapped air restricting your liner, maximising bag volume.
  • Liner holder - holds your bag in place without covering the vents, so trapped air can escape as you begin to fill your bag.
  • Larger bucket capacity for areas of limited space
  • Metal Gauge - 1.0mm zinc treated steel for strength and powder coated for durability.
  • Runners -  High quality soft close, ball bearing runners. Runners over-extend to ensure the back bucket will come clear of the bench top without the need to remove the front bucket and have a dynamic weight loading of 45kgs.
  • Colour - Arctic White
  • Bucket - Made from a recyclable, food grade polypropylene plastic. All buckets come complete with a liner holder to hold your bin liner in place.
  • Mounting Options - Top mount and / or side mount.

Installation Information:

If hinges are used that do not allow the door to clear the opening fully, allow an extra 10mm width. Installation also requires that the top door hinge be 150mm from the top of the door to allow clearance for the bin handle.

Download our brochure HERE

NOTE: The Hideaway Compact range is designed for residential use and is not recommended for commercial applications. Its use in this application will void the warranty.

Specs / Details

Colour: White

Suits Cabinet Width: 450mm

Bucket Configuration: 2 x 40L

Mount Type: Top / Side Mount

Pull Type: Handle

Runner Specification: 45kg Soft Close Ball Bearing

Unit Dimensions (WxHxD)mm: 418 x 615 x 518

*Bench Overhang Clearance - The KC240 has been designed with over extension drawer runners which allow for a bench overhang of up to 40mm, allowing the back bucket to come clear independent of the front bucket. If more bench overhang clearance is required, please mount the bin lower in the cabinet.

*The Hideaway Compact Range is not recommended for commercial applications. Its use in this application will void the warranty.
