Compact Wash Basin

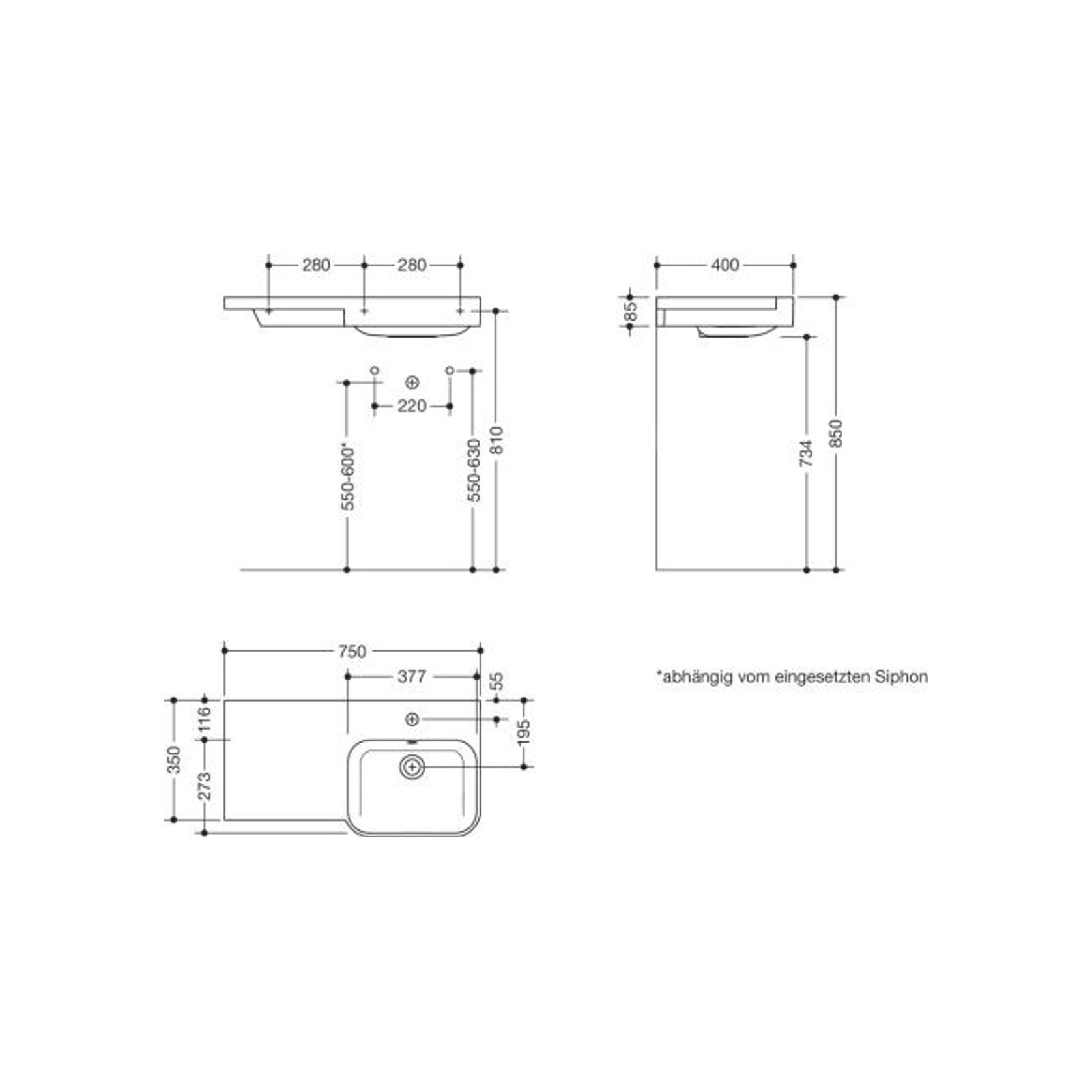

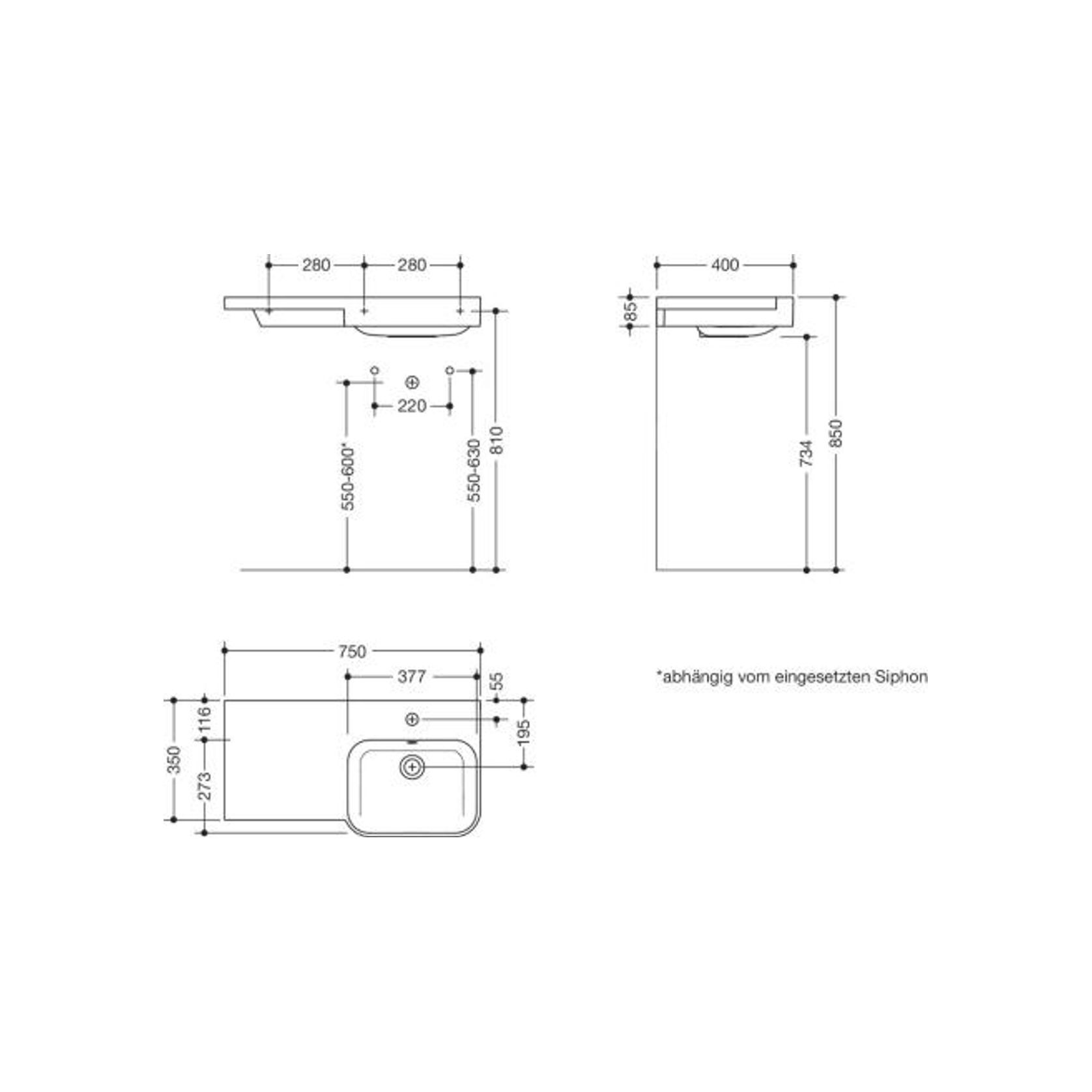

750mm width x 400mm depth x 85mm height

Hanger bolt mounting

Form and function in harmony: With new, reduced-size washbasin models and the stylish AQ 111 and AQ 477 fittings, HEWI is expanding the sanitary range and extending fit-out options. While the compact washbasins address spaces with particularly limited dimensions, the fittings set design accents and at the same time blend into the HEWI system. This results in solutions that are just as convincing in private bathrooms as they are in hotel projects, public buildings, nursing care facilities or the education sector.

Compact washbasins – equipment options for limited floor plans

The existing washbasin product range is now being supplemented by three space-saving models that have been specially developed for small bathrooms and guest bathrooms. Different design approaches – with fittings positioned to the side, an integrated storage area or a particularly reduced form with softly rounded edges – open up solutions for compact and sophisticated room situations.

The version with fittings positioned to the side also fulfils the Document M requirements and thus enables compliant, accessible implementation in the UK.

All models are made of cast mineral material and finished with a gelcoat coating. This material enables a sealed, non-porous surface and a homogeneous design from a single mould. The look is calm and coherent. At the same time, the material retains its high-quality appearance even with intensive use.

In addition, the new washbasins are integrated into the HEWI system concept. Their look is based on existing ranges and carries on the design principles of these ranges at the washbasin. From the aspect of universal design, too, the models are conceived to take different requirements into account without surrendering their design independence.

Right Hand and left hand bowl options.

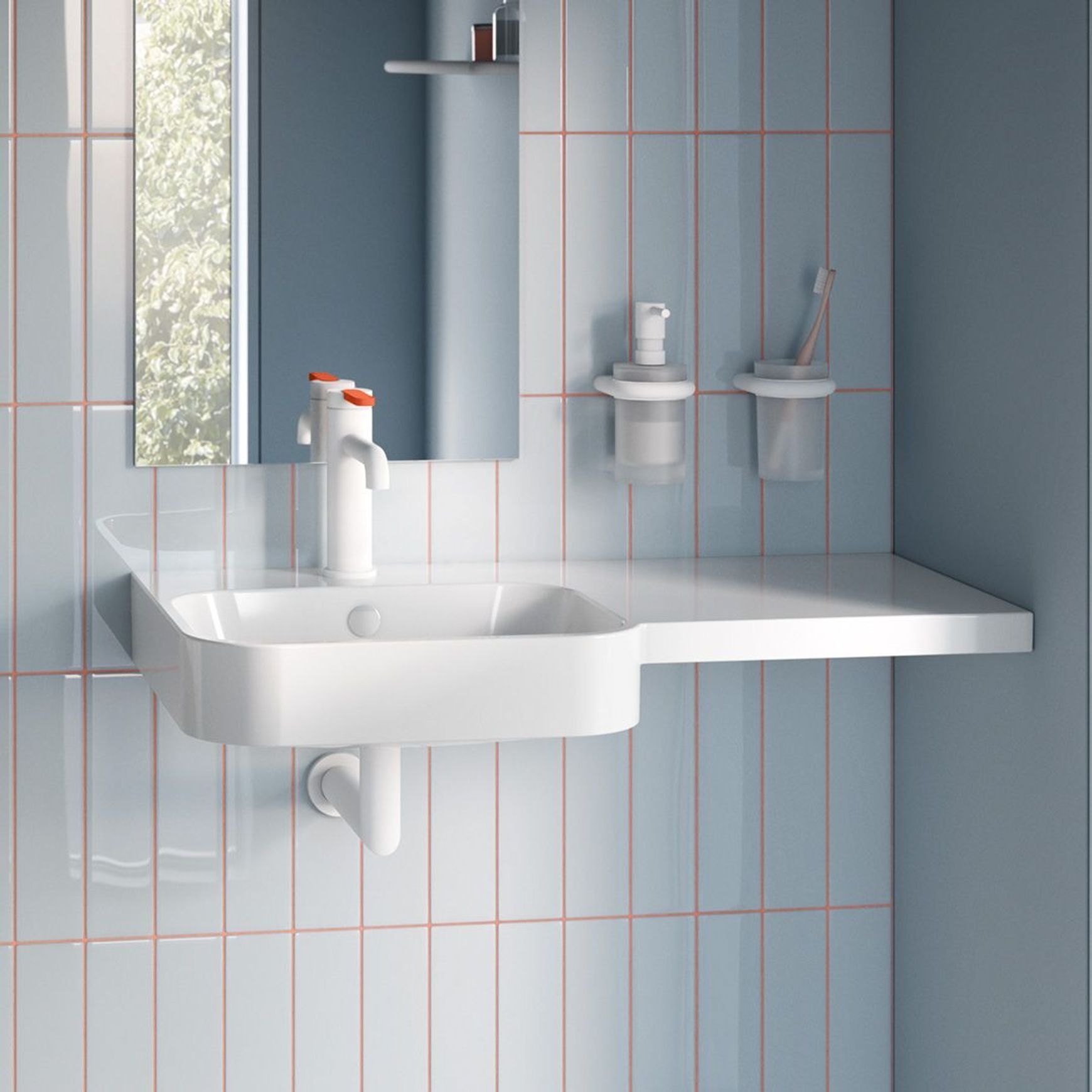

HEWI Hand-rinse basin with shelf
Mineral composite, alpine white, Rectangular basin with generous radii, with large shelf on the left, Width 750 mm, Depth 400 mm, wash bowl recess 100 mm, including overflow, with rose and cover, prepared for single hole mixer tap, fulfils the requirements of SIA 500, resilient according to DIN EN 14688, CE and UKCA marking in accordance with Construction Products Regulation No. 305/2011.
