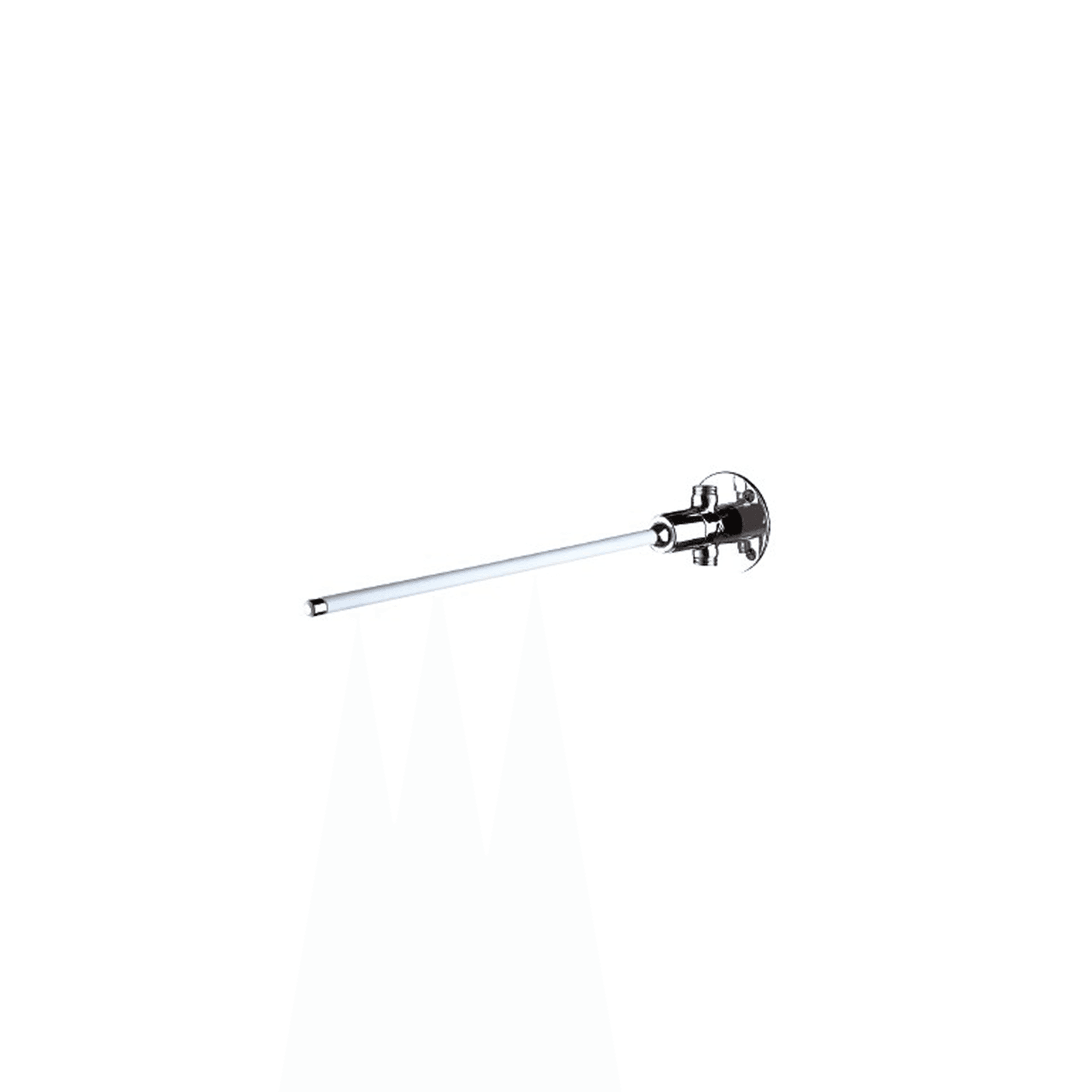

DELABIE Tempogenou inline m15mm lever L350 - Lead free*

Name: DELABIE Tempogenou inline m15mm lever L350 - Lead free*
Brand: MacDonald Industries

Auckland

287.9K profile views
19 saves

Delabie DE735400AS is a knee-operated time flow valve for cold or tempered water supply. Time flow is ~7 seconds. Operation is by pushing the reinforced control lever with the user’s knee. Flow rate is pre-set at 3L/min at 300kPa, can be adjusted from 1.5 to 6L/min. Operating pressure is 100-500kPa, 300kPa is recommended. Chrome-plated solid brass body with solid brass wall plate with reinforced fixing via 4 stainless steel screws. Straight M1/2” in-line water connections.
We recommend installing a thermostatic mixing valve (see Water Tempering section) and a wall or basin mounted spout (see Spouts section).

*‘Lead free’ has been defined as a plumbing product or material in contact with potable water that has a weighted average lead content of no more than 0.25%.

Tags

lead free lead-free knee vlave hands free delabie

Product Details

Product: DELABIE Tempogenou inline m15mm lever L350 - Lead free*
Category: Basin Mixers & Taps
Sold by: MacDonald Industries
Range: Delabie
Designer: Delabie

MacDonald Industries is specified by

(39) Professionals

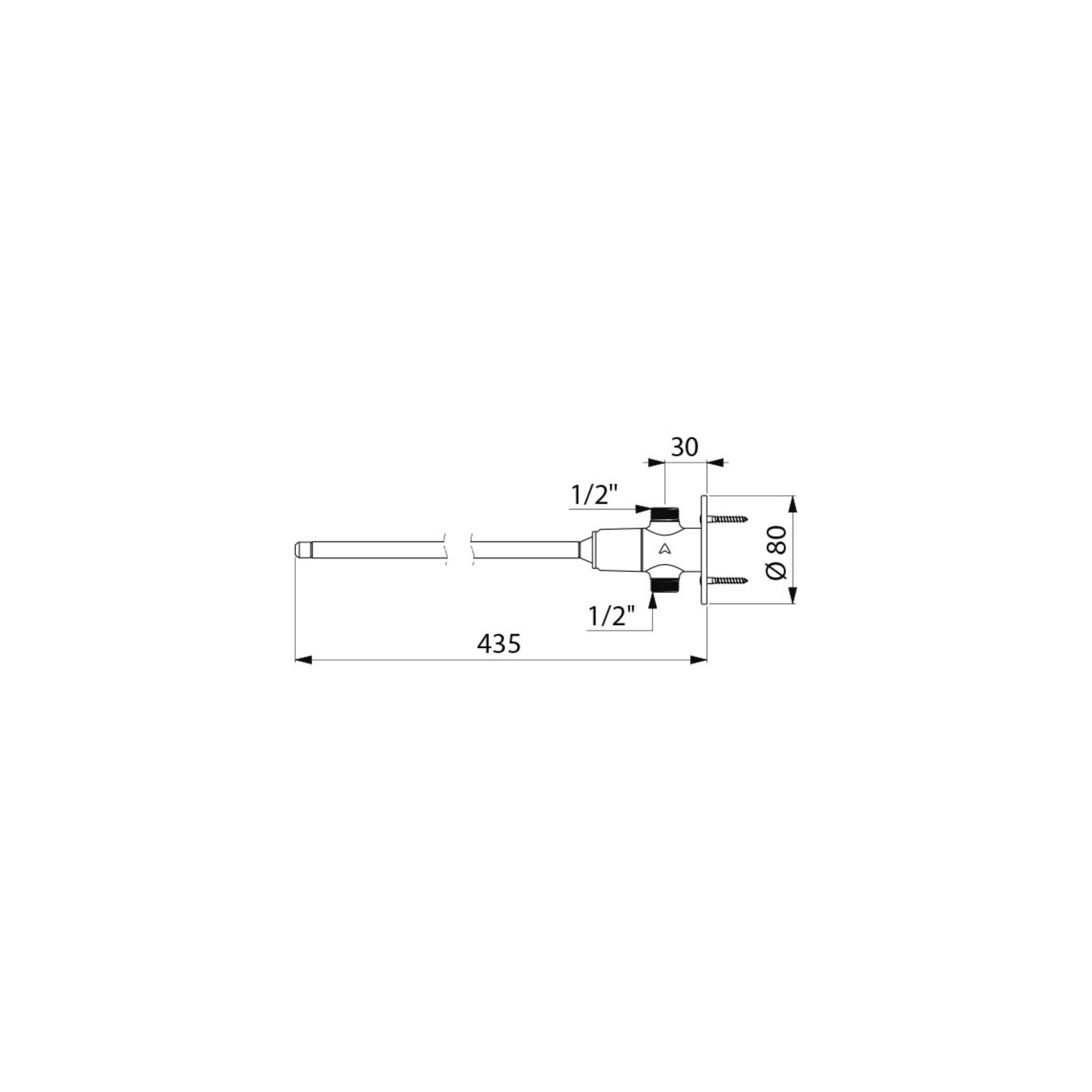

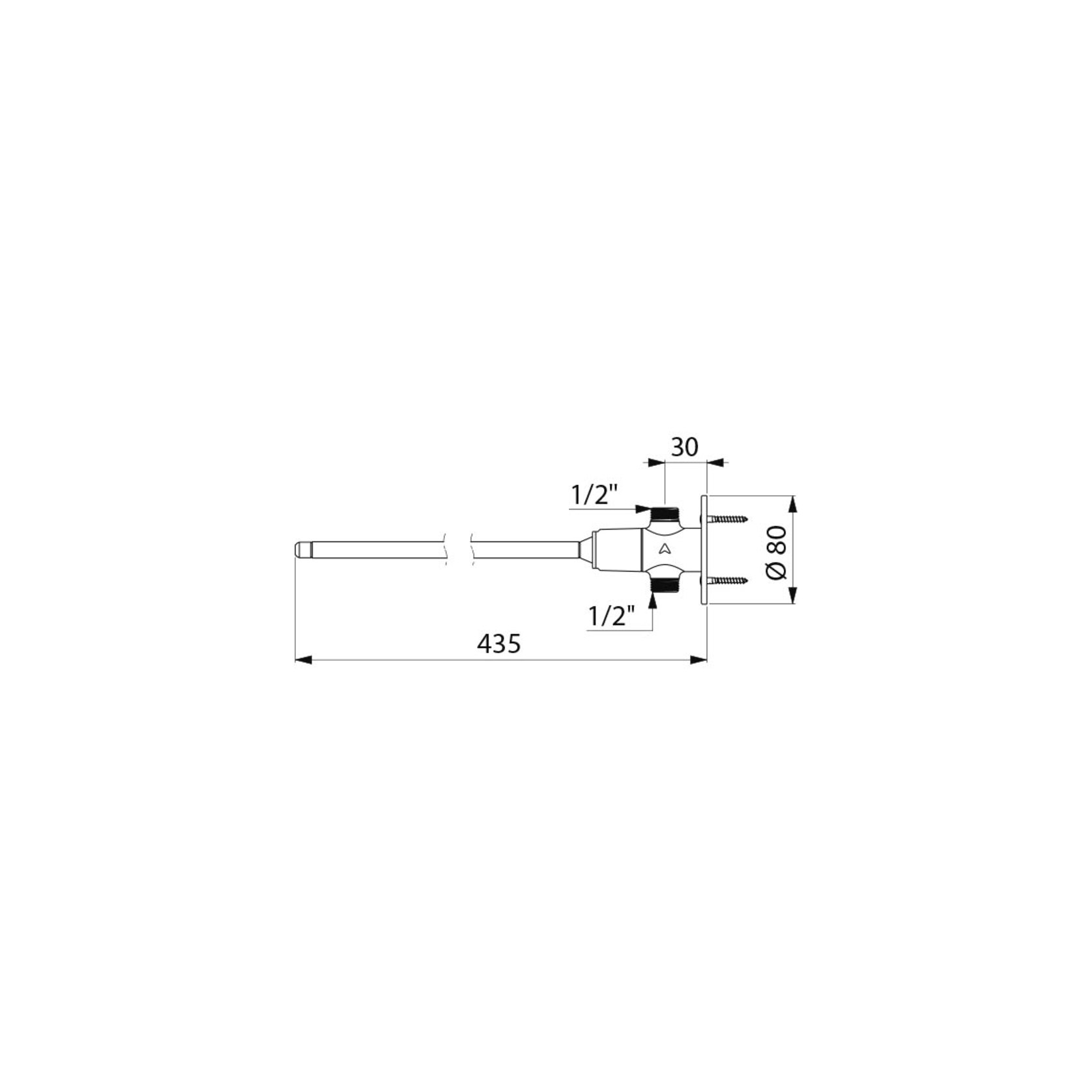

DELABIE Tempogenou inline m15mm lever L350 - Lead free* dimensions

Visit site

Time flow is ~7 seconds. Operation is by pushing the reinforced control lever with the user’s knee. Flow rate is pre-set at 3L/min at 300kPa, can be adjusted from 1.5 to 6L/min. Operating pressure is 100-500kPa, 300kPa is recommended. Chrome-plated solid brass body with solid brass wall plate with reinforced fixing via 4 stainless steel screws. Straight M1/2” in-line water connections. We recommend installing a thermostatic mixing valve (see Water Tempering section) and a wall or basin mounted spout (see Spouts section). *‘Lead free’ has been defined as a plumbing product or material in contact with potable water that has a weighted average lead content of no more than 0.25%.

Delabie DE735400AS is a knee-operated time flow valve for cold or tempered water supply.

Time flow is ~7 seconds. Operation is by pushing the reinforced control lever with the user’s knee. Flow rate is pre-set at 3L/min at 300kPa, can be adjusted from 1.5 to 6L/min. Operating pressure is 100-500kPa, 300kPa is recommended. Chrome-plated solid brass body with solid brass wall plate with reinforced fixing via 4 stainless steel screws. Straight M1/2” in-line water connections.
We recommend installing a thermostatic mixing valve (see Water Tempering section) and a wall or basin mounted spout (see Spouts section).

*‘Lead free’ has been defined as a plumbing product or material in contact with potable water that has a weighted average lead content of no more than 0.25%.

Specs: • Hands-free operation, total hygiene.
• Chrome-plated brass wall plate with reinforced fixings.
• Exceptional water savings ~85%. • Control lever length L.435mm from wall.
• For cold or tempered single water supply.
• Maximum Hot water temperature 55°C, recommended tempered supply of ~40°C.
• Flow rate pre-set at 3L/min at 300kPa, adjustable 1.4-6L/min.
