Elevate | Series 672 | UltraEDGE™ Sliding Window 150mm

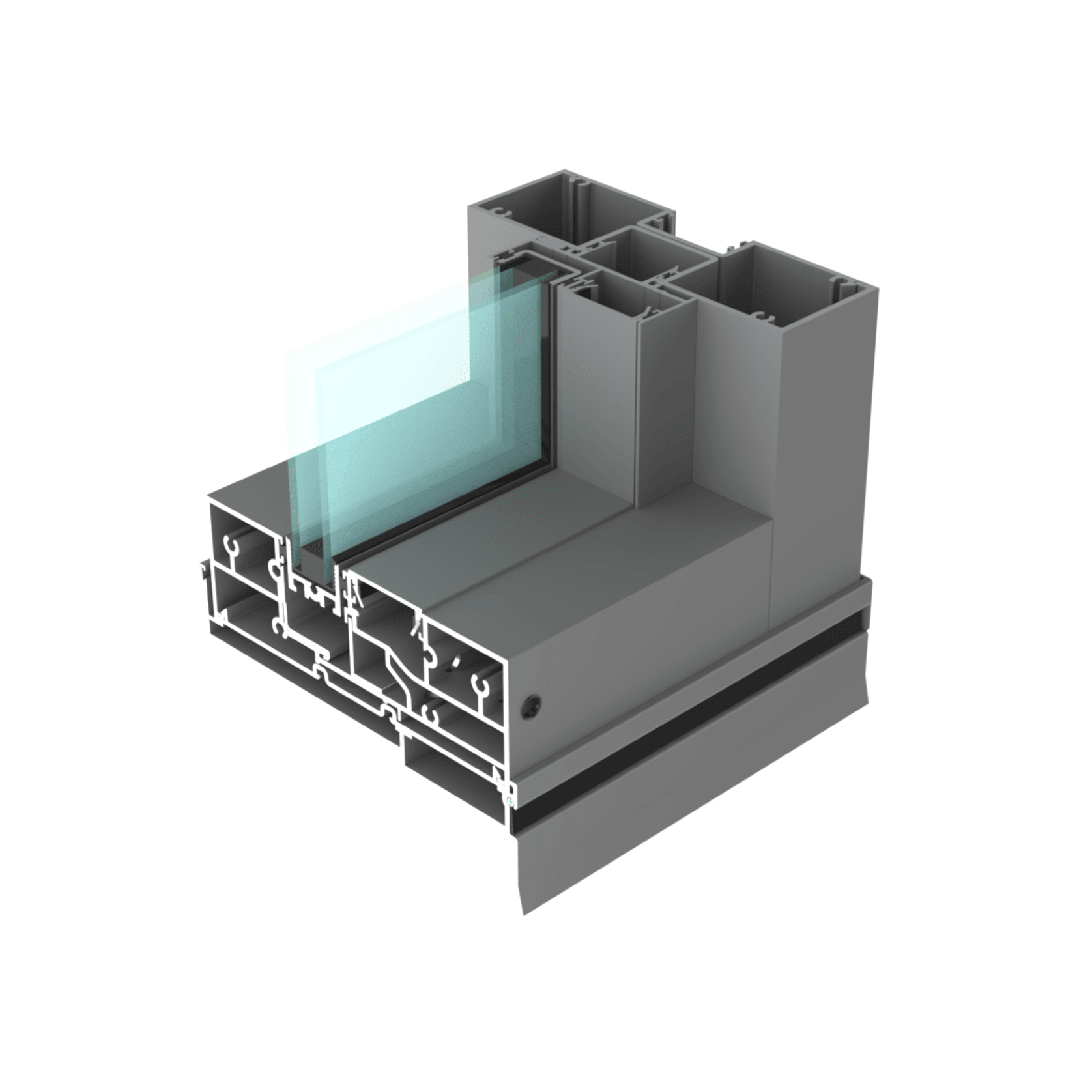

The UltraEDGE™ Sliding Window (150 mm) frame delivers a clean, modern glazing solution with concealed sash rails for a smooth, minimalist look.

Specs

• Seamless Form and Function – The top and bottom sash rails are completely concealed within the frame, producing a smooth transition between glass and structure that enhances visual purity and reinforces UltraEDGE™’s signature clean, architectural lines.
• Engineered for Australian Conditions – With a water resistance rating of 500Pa and an Ultimate Pressure of 7450Pa +/-, UltraEDGE™ is designed to perform in Australia’s most exposed environments.
• Versatile Glazing Capability – The wrap-around double-glazed sash accommodates 20mm IGUs with a continuous glazing channel, while single-glazed options accept glass from 4mm to 10.38mm for maximum flexibility.
• Integrated Framing Compatibility – Fixed lights are glazed directly into the matching AWS commercial framing system, maintaining visual continuity and performance integrity across the façade.
• Refined Minimalism – Sashes feature multiple interlock options, including an ultra-slim 15mm stile that accentuates the minimalist aesthetic without compromising strength.
• Adaptable Structural Options – Optional sash and mullion reinforcements support a wide range of design wind loads, ensuring reliable performance across commercial, residential and mixed-use applications.
• Flexible Locking and Security – Sliding sashes can be configured with a custom meeting stile key lock, push-button jamb lock, or vent lock for tailored security and ventilation control.
• Discreet Screening Solution – Optional flyscreens fit neatly into the head and sill, secured by custom-moulded nylon clips for a clean, unobtrusive finish.
