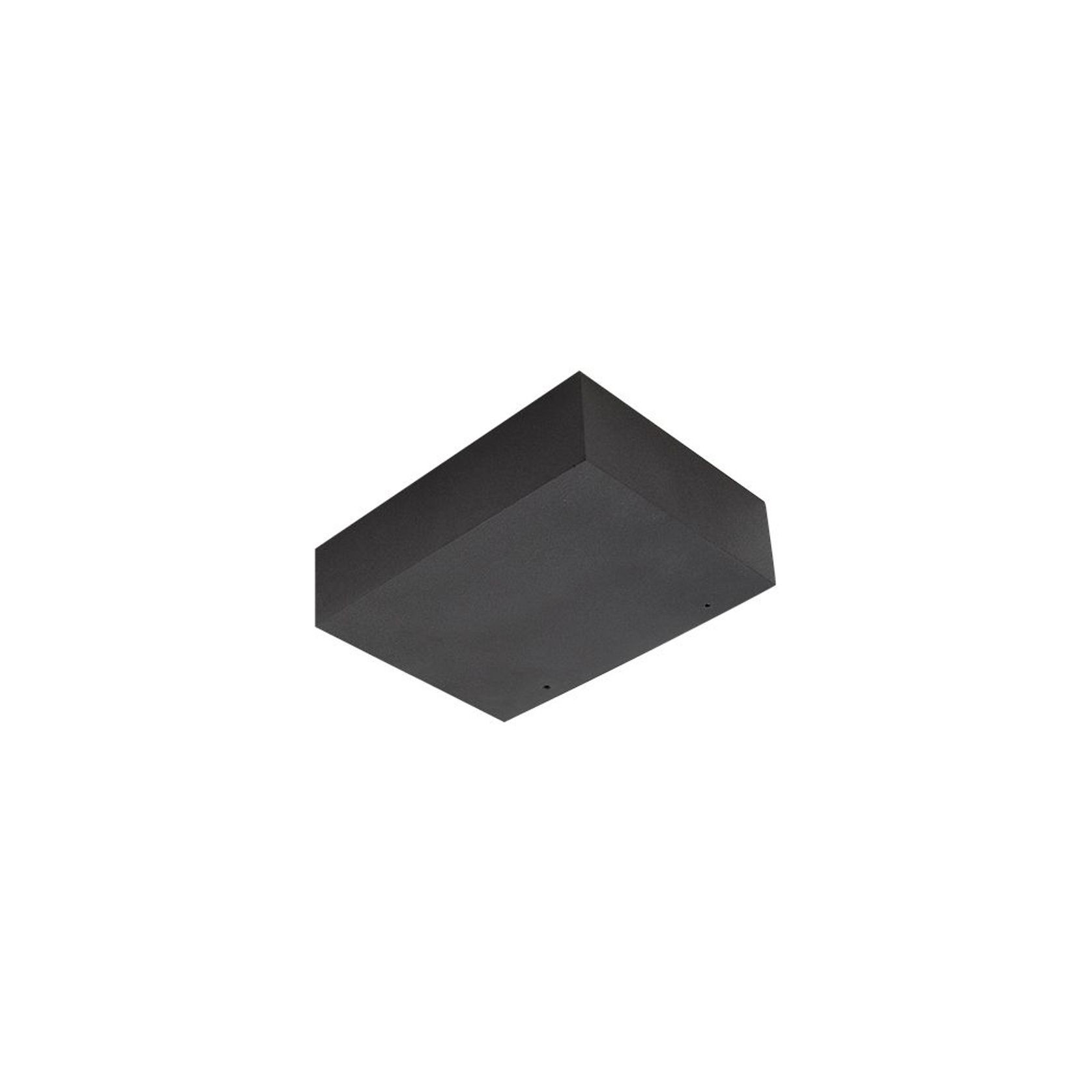

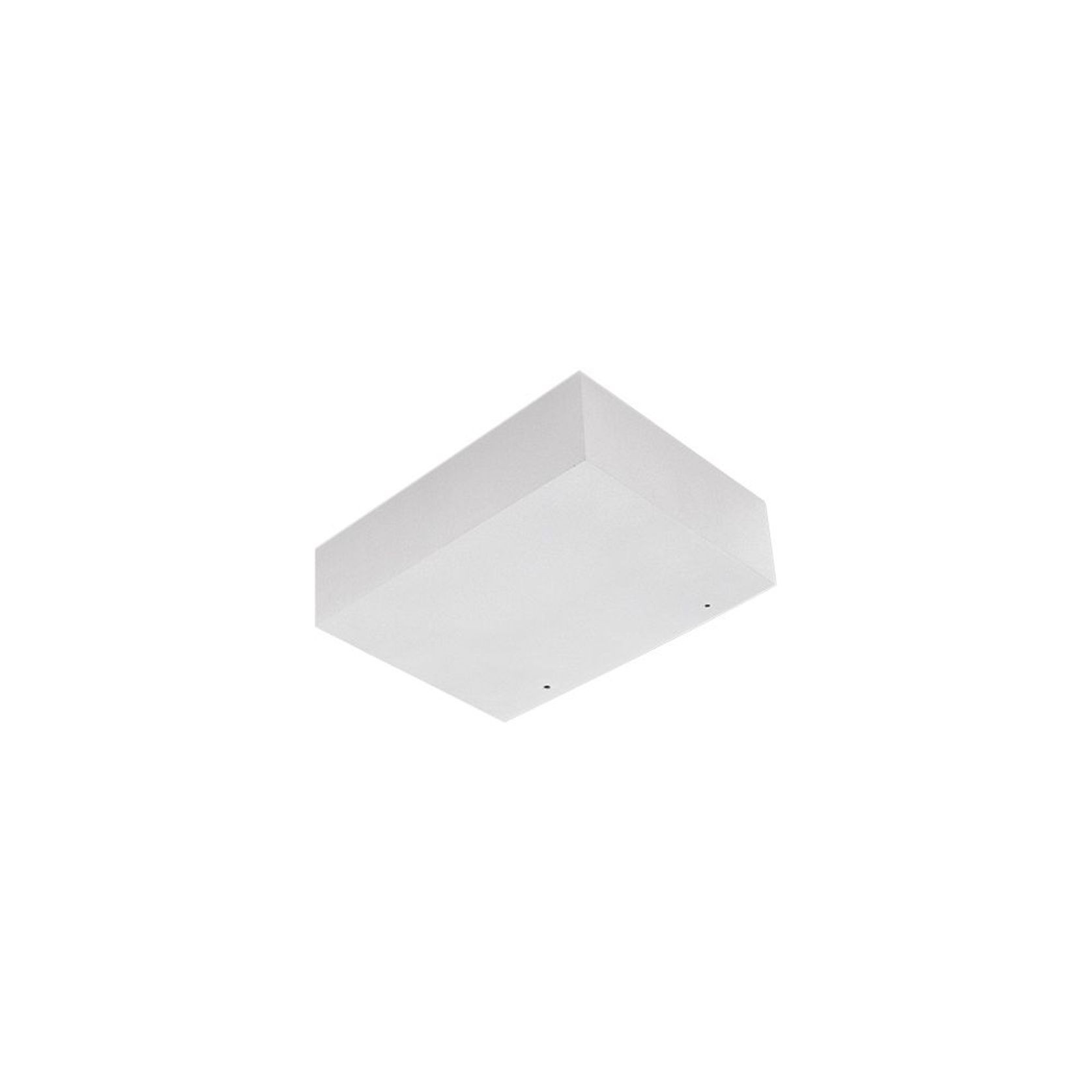

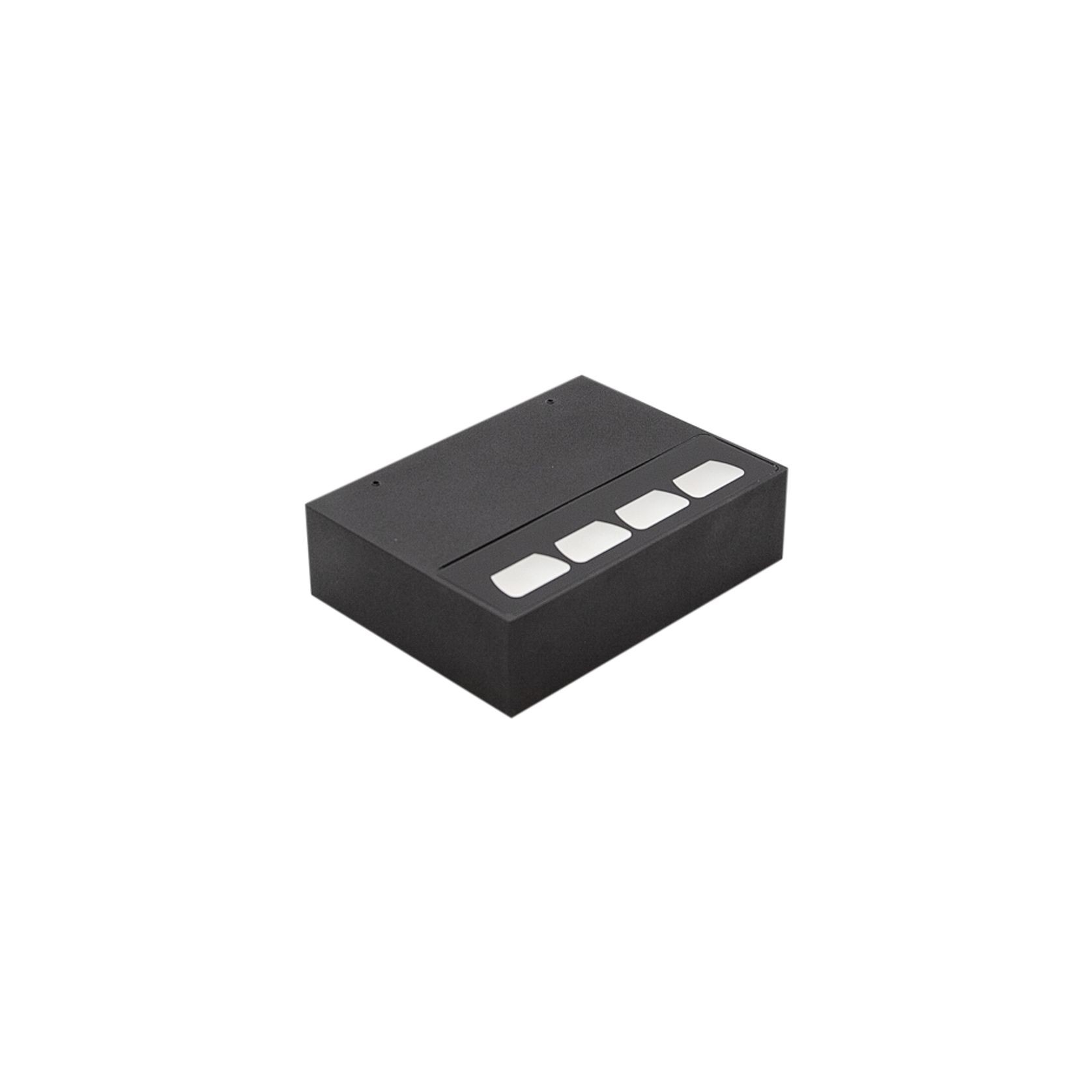

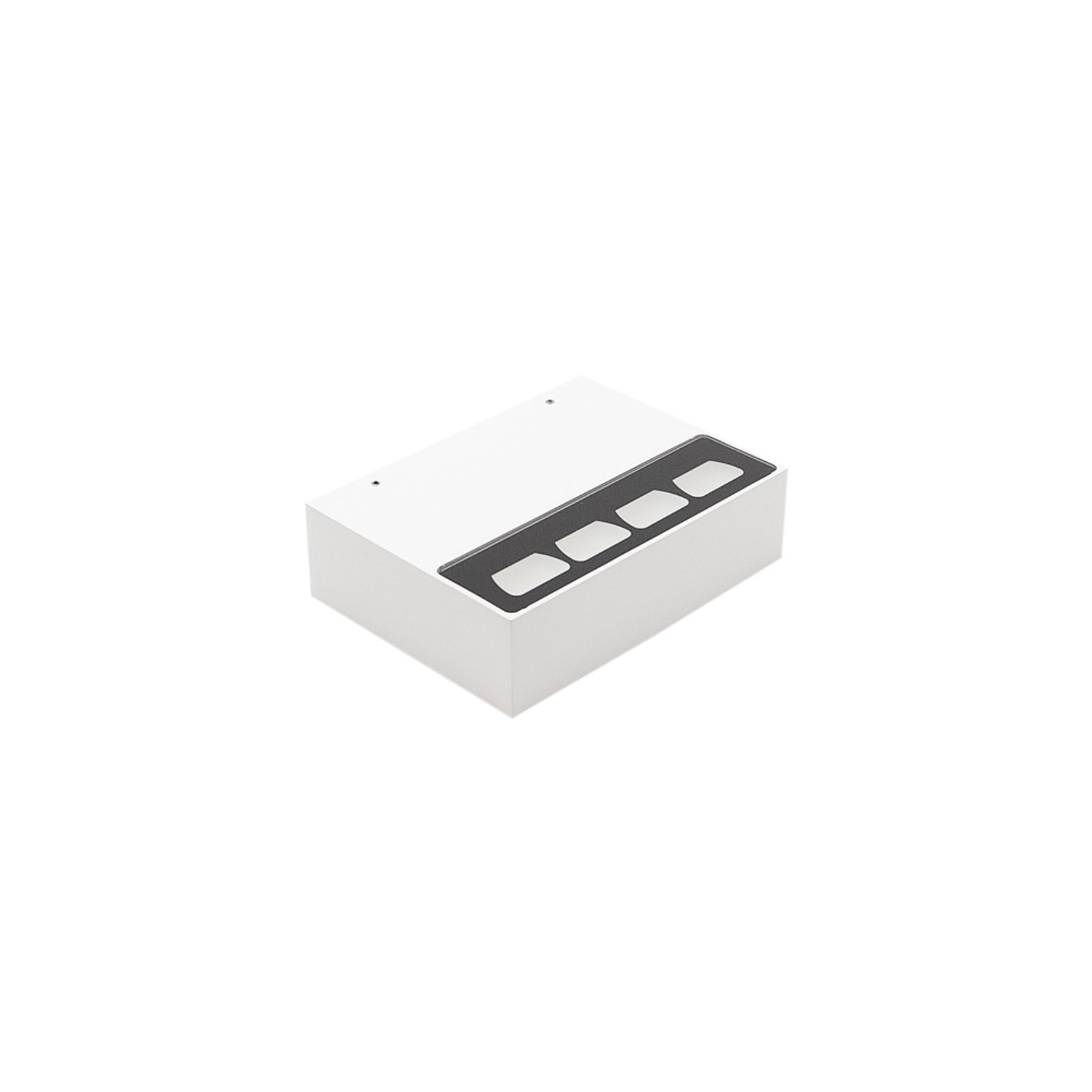

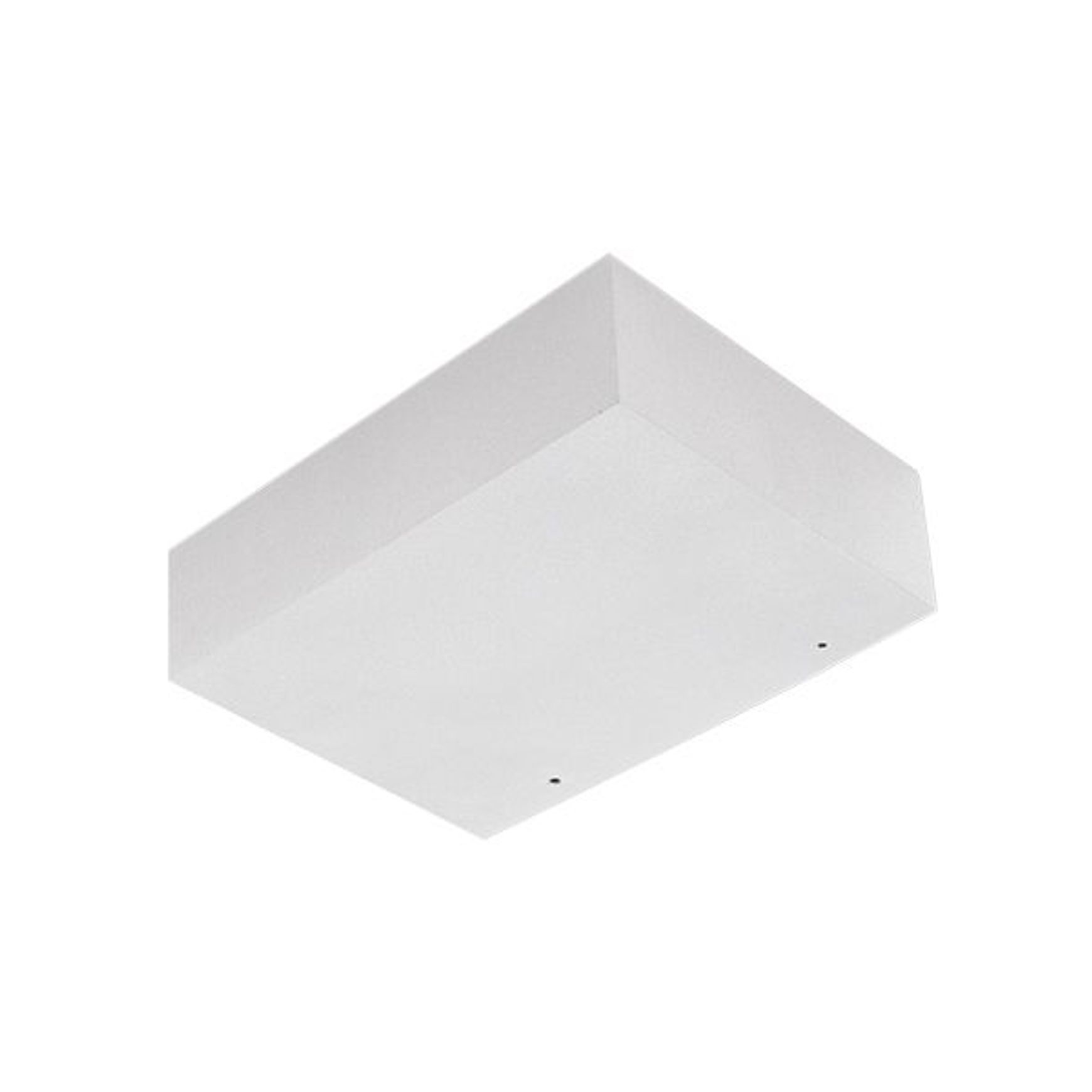

Fixed Slim 160mm Select Asymmetric Uplight

By Halcyon Lighting
Visit Website

The U970 is designed to be used as an uplight and features a special asymmetric lens to achieve an even wash of light on the wall and ceiling. The 180 degree aspect gives it a nice even wash from wall to ceiling. The 25 degree aspect gives it the punch to wash extra high pitched or flat ceilings.

Halcyon recommends installing no closer than 600mm to a flat or pitched ceiling for best results. Always aim to install with the bottom of the fitting above average eye height. The key with uplighting is correct positioning to find the balance between light intensity and light distribution. Too close to the ceiling and you will get a “hot spot” effect, too far and the fitting may be too low on the wall.

In some circumstances it is also suitable to be used as a downlight. However, keep in mind this is the exact opposite of what this luminaire has been designed for so if installed downwards at an incorrect height it will throw light outwards directly into the viewers eye.

Details
  • Category
    Uplights, Wall Sconces
  • Range
    Fixed Slim Select Uplight Asymmetric
  • Warranty
    5 years
Attributes
  • Light bulb type
    LED
  • Fitting type
    Surface-mounted
Specifications

U970

Watts 12W
Dimensions L160 x D120 x H45mm
Cut Out N/A - Surface Mount
Colour Temp Selectable 3000K Warm White or 4000K Natural White
Lumens 3000K Warm White 825lm, 4000K Natural White 940lm
CRI90+
Lifespan >54,000 hours (L90)
Beam Angle 180 x 25 degree beam
Material Aluminium
IP Rating IP65
Driver TRIAC dimmable driver incorporated
Electrical Class Class I luminaire, requires earth
Application Interior & Exterior Wall
Available in Black or White
Warranty 5 Year Warranty

Scope of use

Interior & Exterior Wall Light

Performance
  • CRI90
  • IP65
  • 54,000 hour (L90) lifespan
  • Selectable 3000K or 4000K
  • Dimmable
  • Available in Black or White
  • 5 Year Warranty
