Fixplus Pedestal and Tile Support Deck System

By Equus Industries
Visit Website
Not Applicable

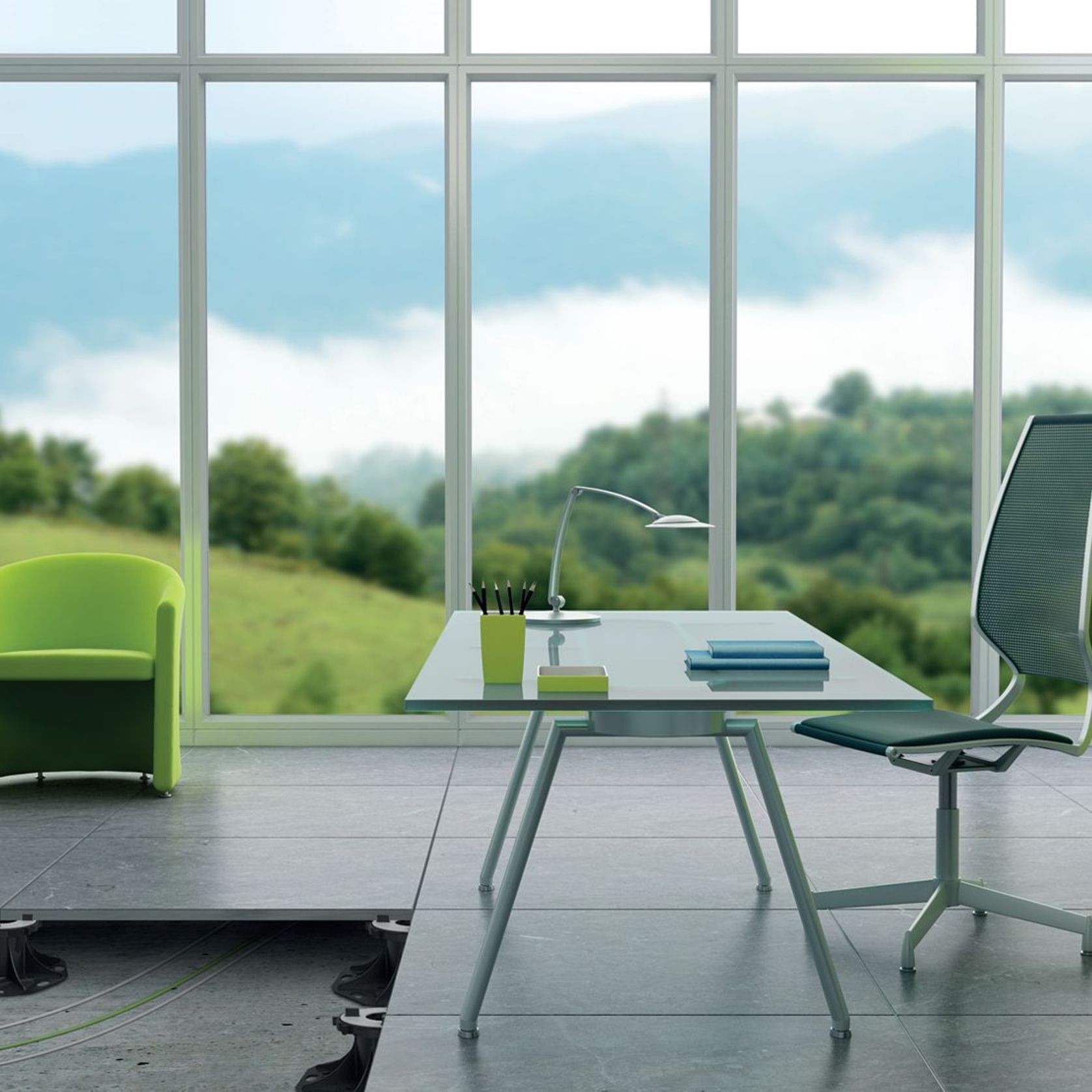

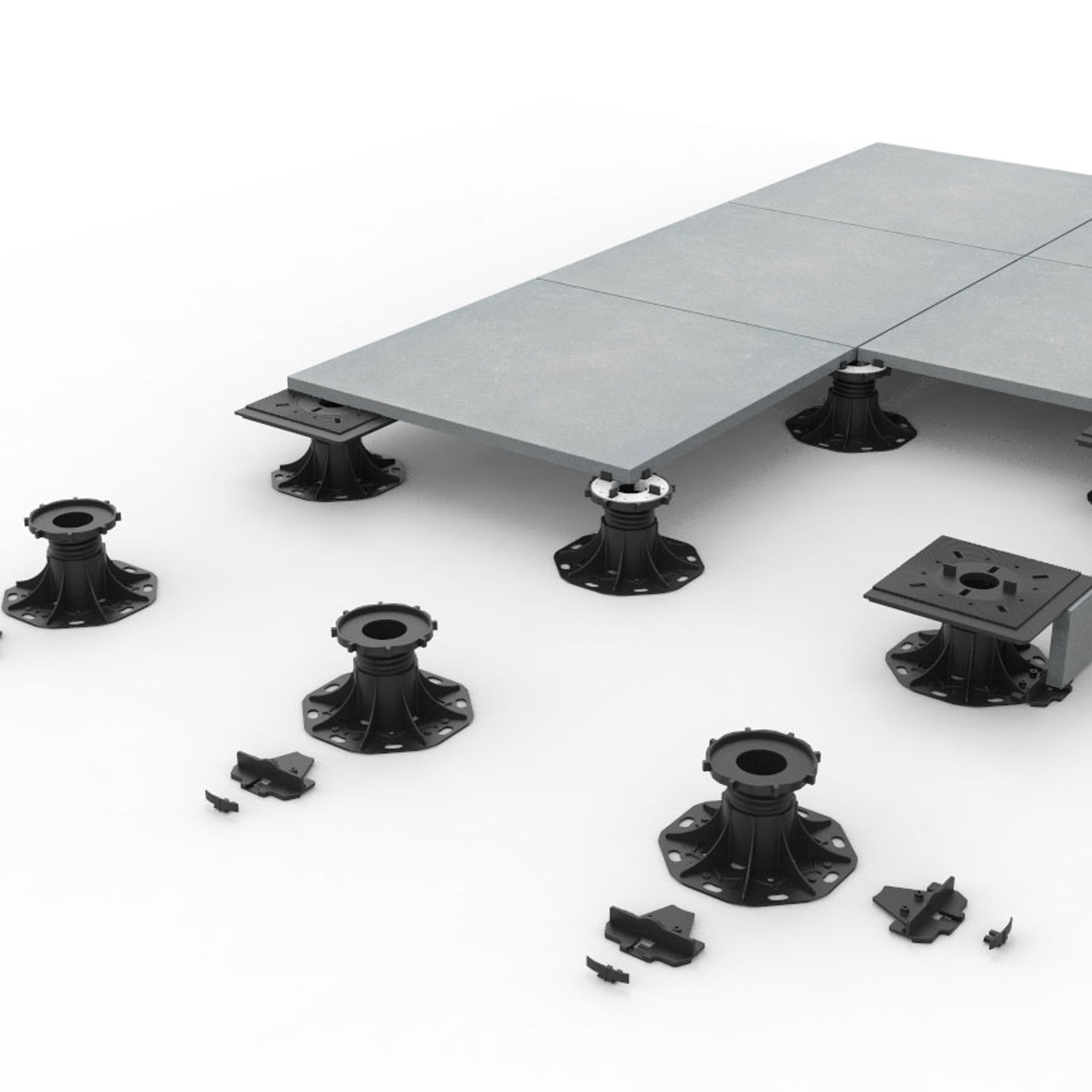

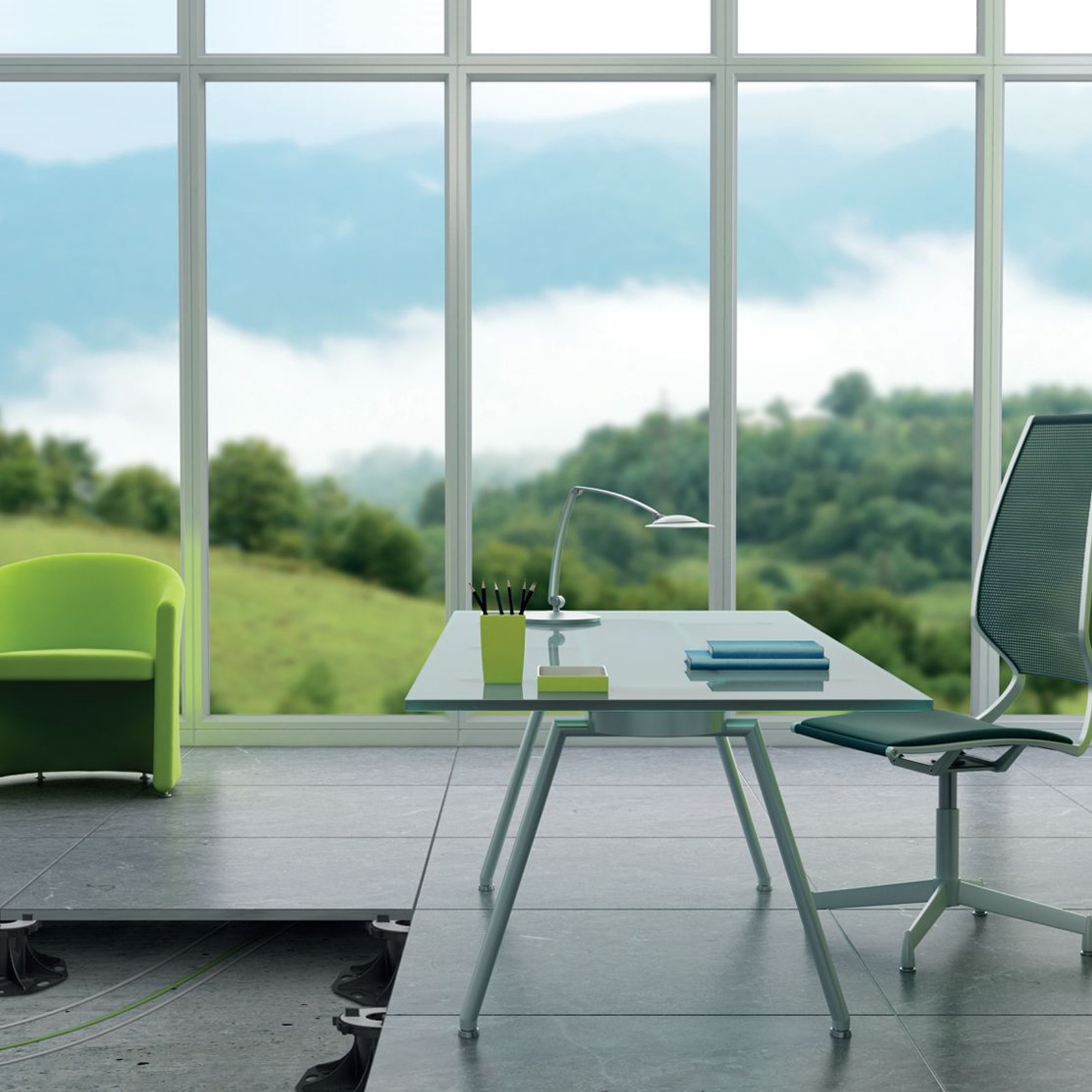

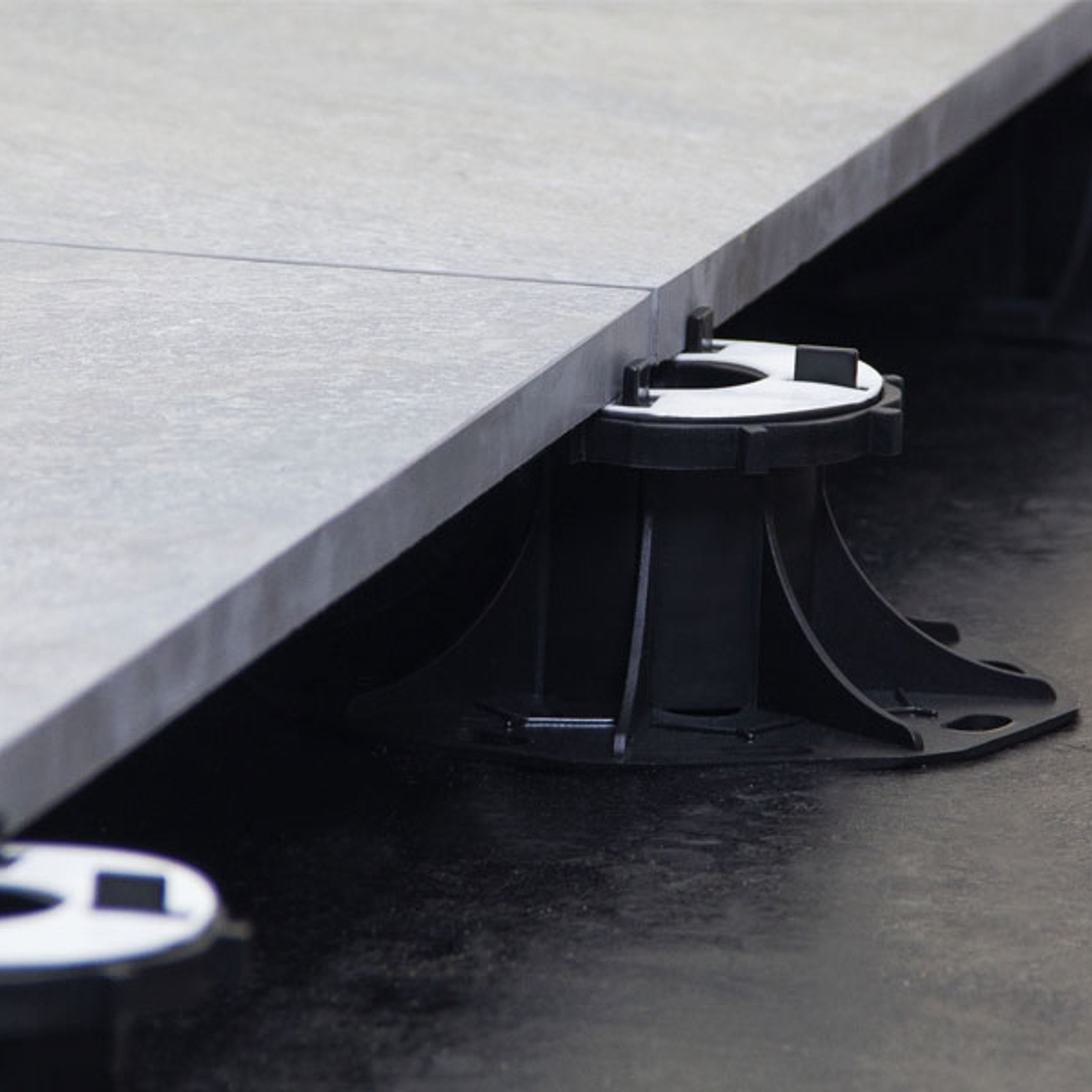

The Equus Fixplus Pedestal and Tile Support range consists of a series of fully customisable pedestals for raised floor applications. Customisable to be compatible with multiple flooring materials, they are suitable for decking systems such as ceramic and natural stone tiles, and aluminium or wooden beams.

The pedestals come in a range of adjustable heights, basic or self-levelling, and with a range of accessories.

Our mission to provide our customers with a full range of the highest quality waterproofing products and systems the world has to offer, as well as a full range of accompanying accessories. As such, we are always working on expanding our product portfolio to help us achieve this goal. A recent addition to our collection, the Fixplus Pedestal and Tile Supports are compatible with our flat roofing and decking waterproofing systems and enable us to provide a full solution to our customers.

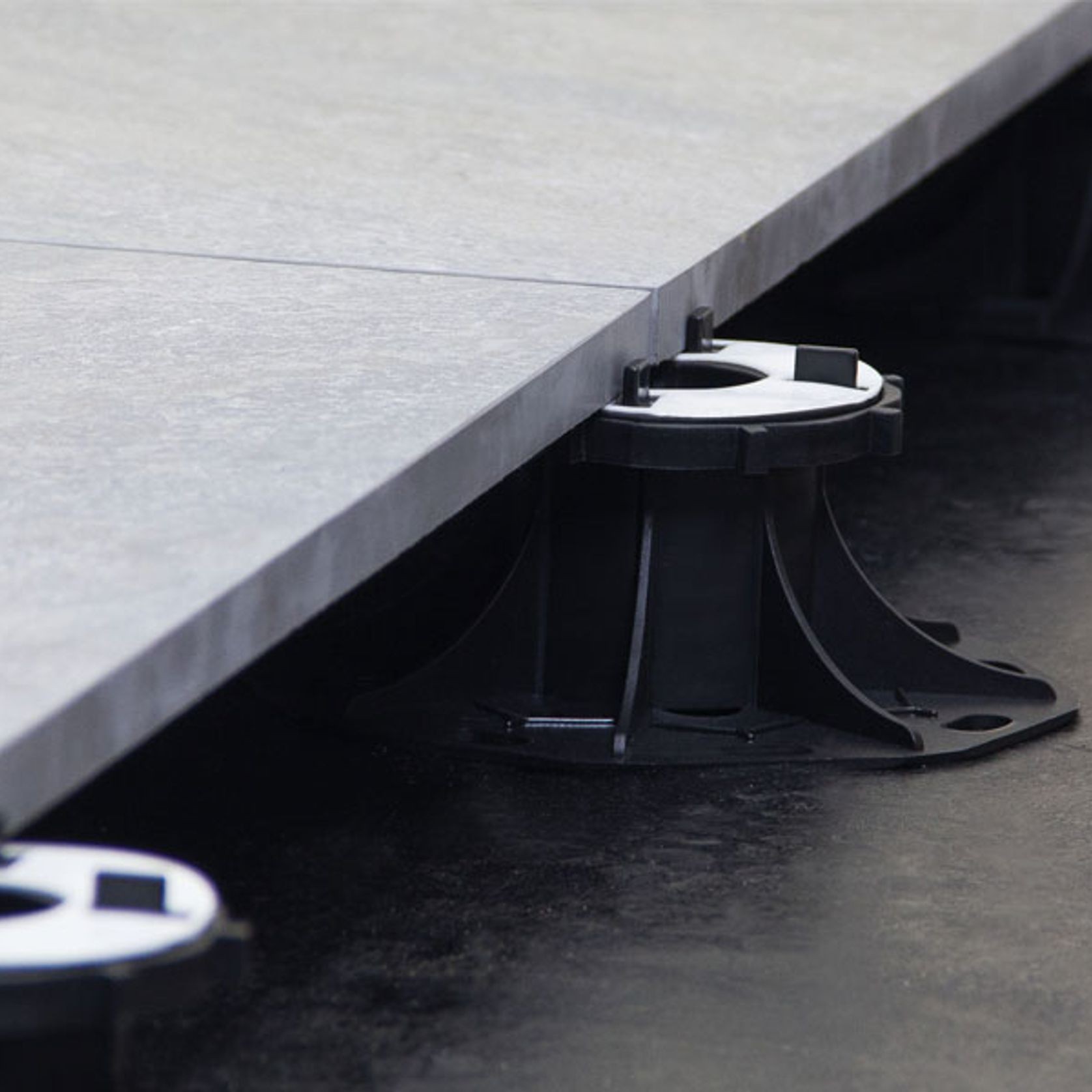

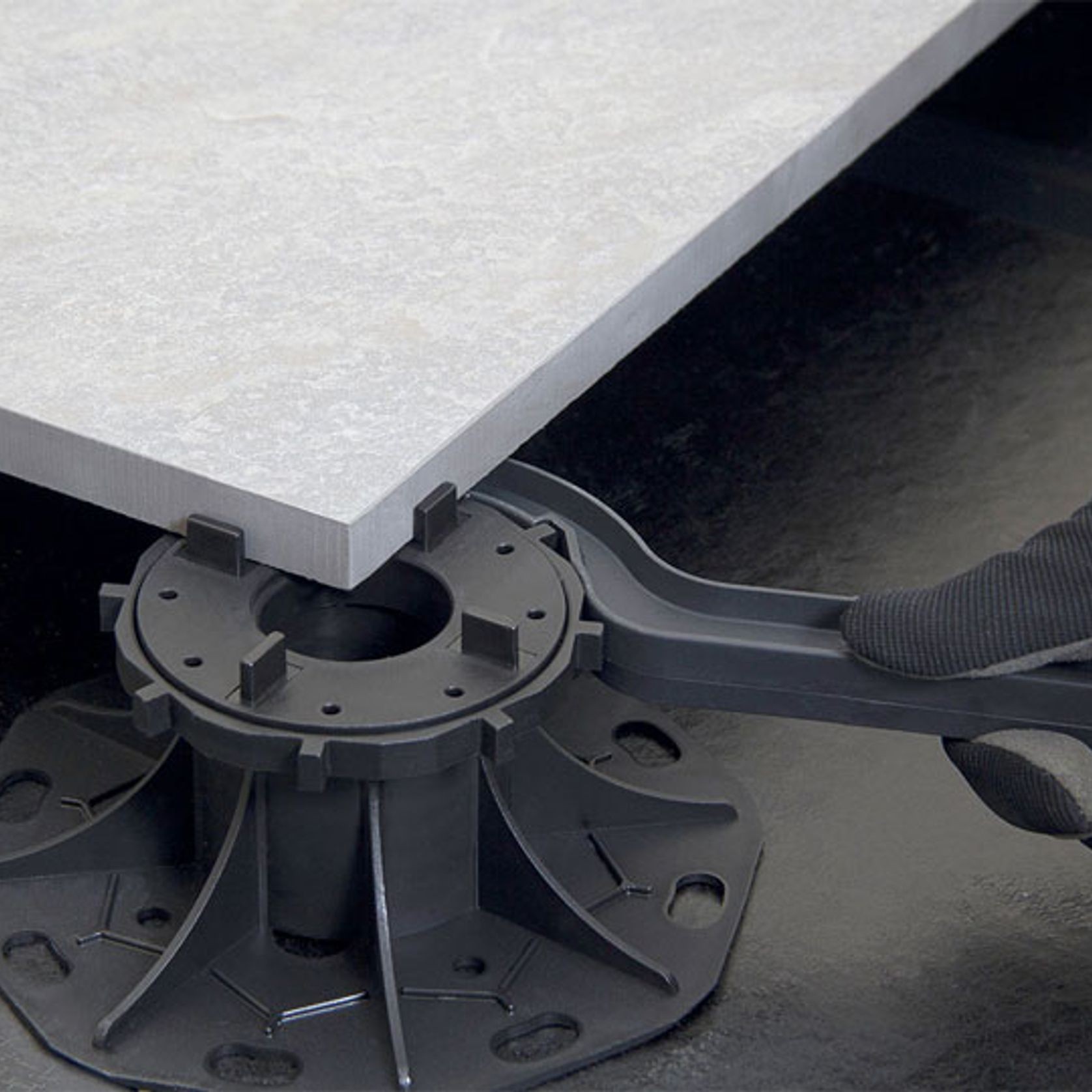

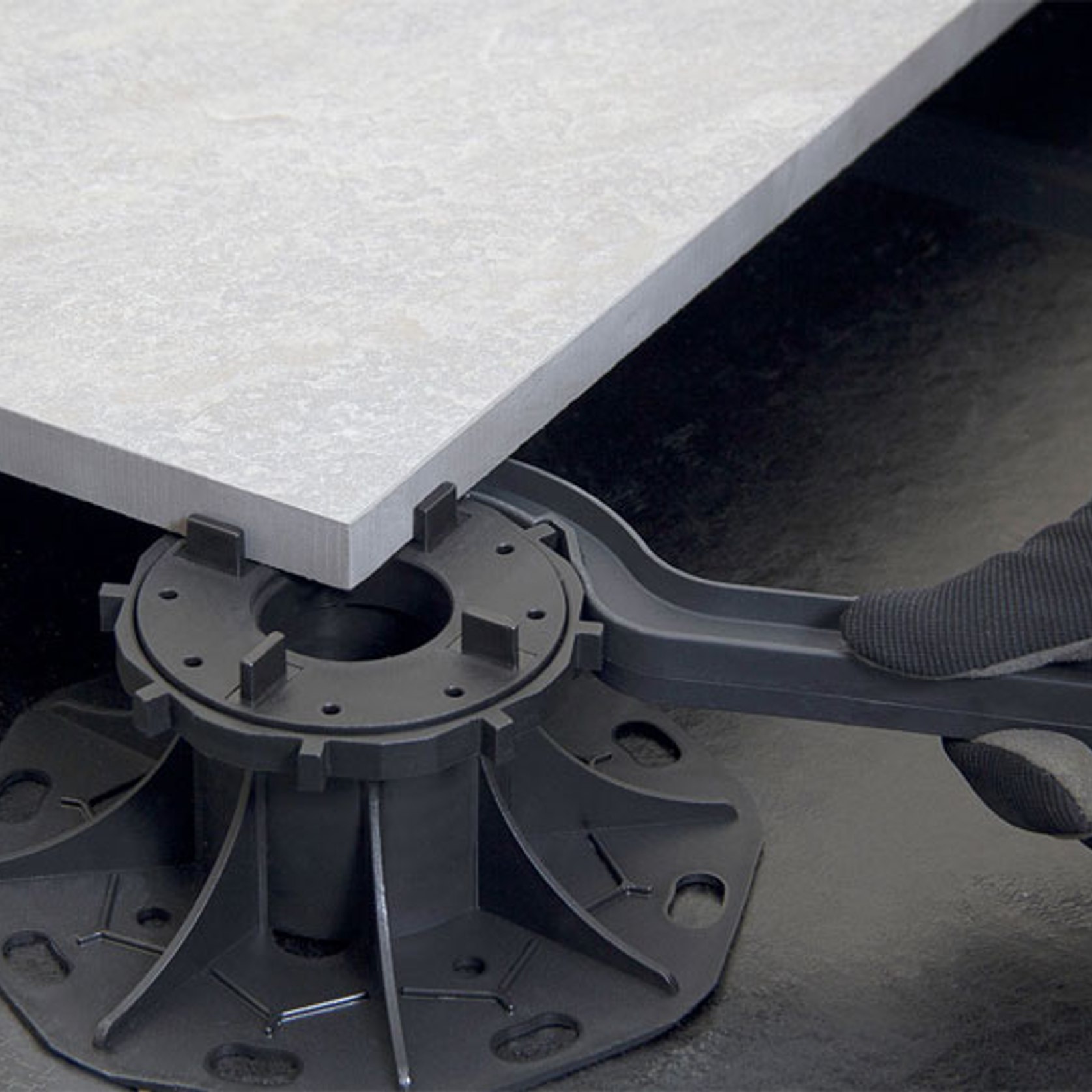

A self-levelling pedestal system for raised floor applications with tiles, that allows auto-slop correction on surfaces up to a maximum 5% gradient. Customisable to be used with wooden or aluminium beams. Full range of accessories and customisations available. Height ranges from 85mm-272mm

Details
  • Category
    Deck Pedestals, Substrate & Underlay
  • Range
    Roofing Accessories
  • Brand
    FIXPLUS
Attributes
  • Room/Use
    • Indoor/outdoor
    • Wall/floor tiles
General
  • Type of use
    Commercial and Residential
  • Care and cleaning
    Easy maintenance
  • Installation
    Professional installation recommended
  • Assembly
    Professional assembly recommended
Scope of use

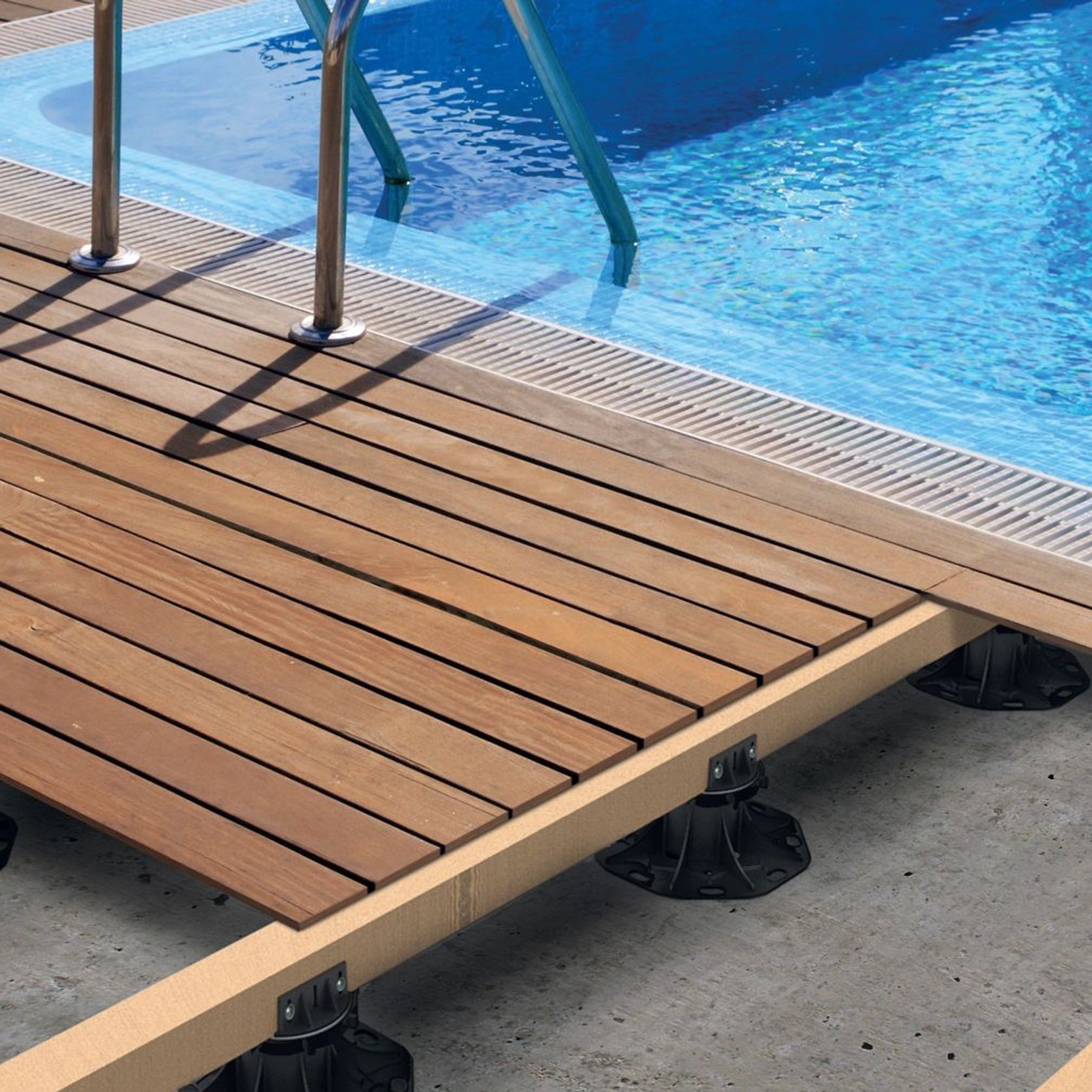

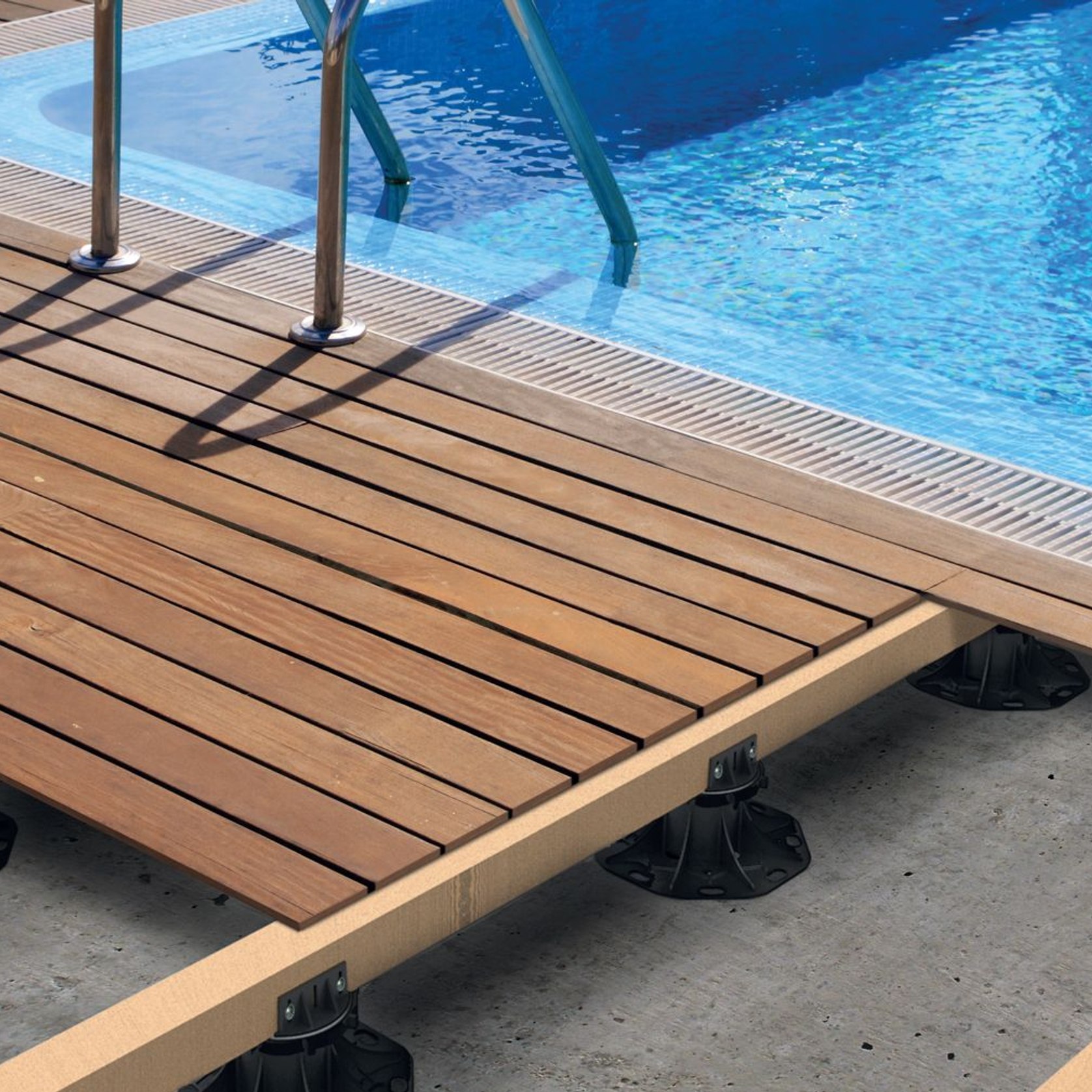

Height adjustable pedestal support systems for raised floors, floating decks and paved patios. Including: support systems for self-supporting natural stone/concrete pavers. Support systems for self-supporting tiles. Support systems for raised floors/decks with timber or aluminium joists.

Product List

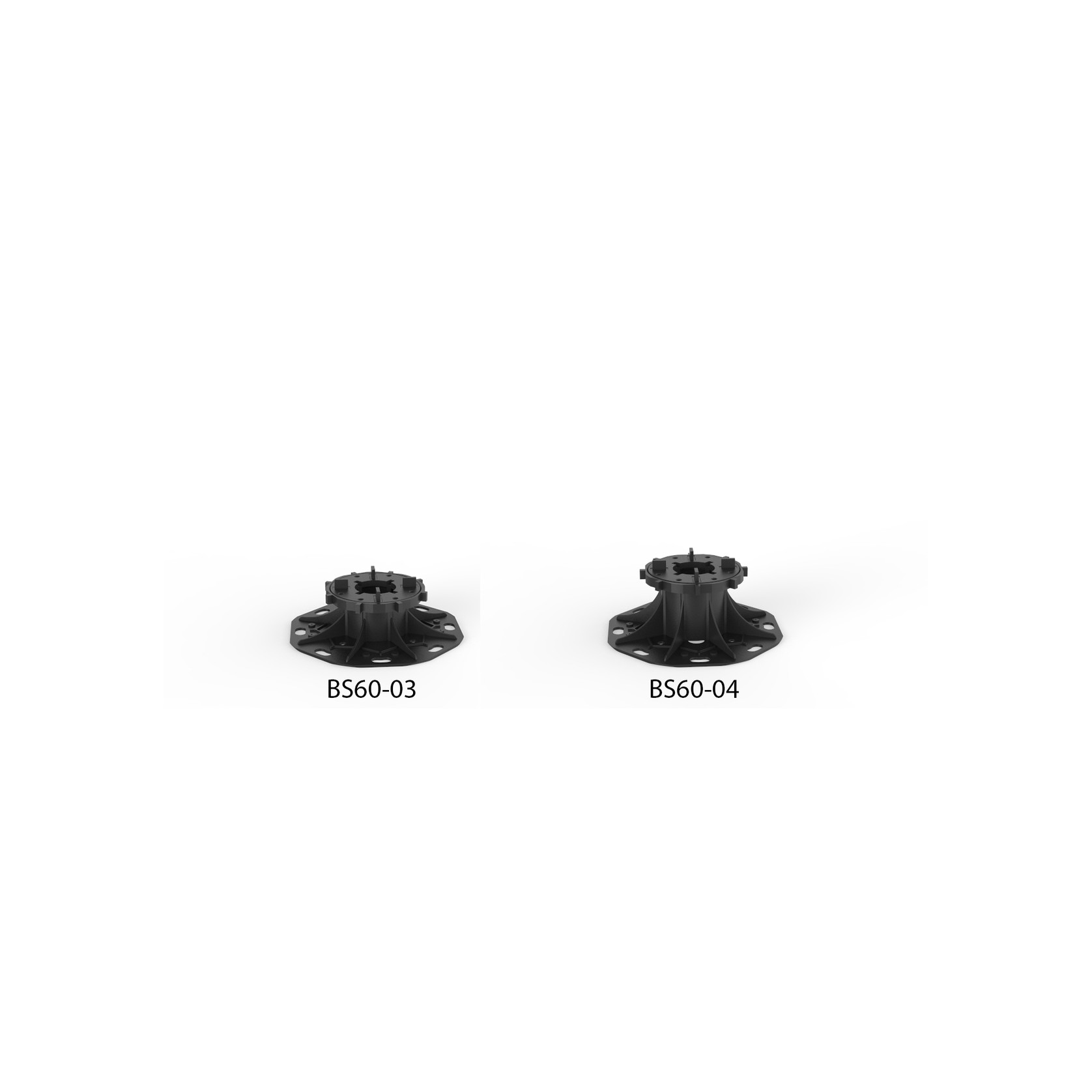

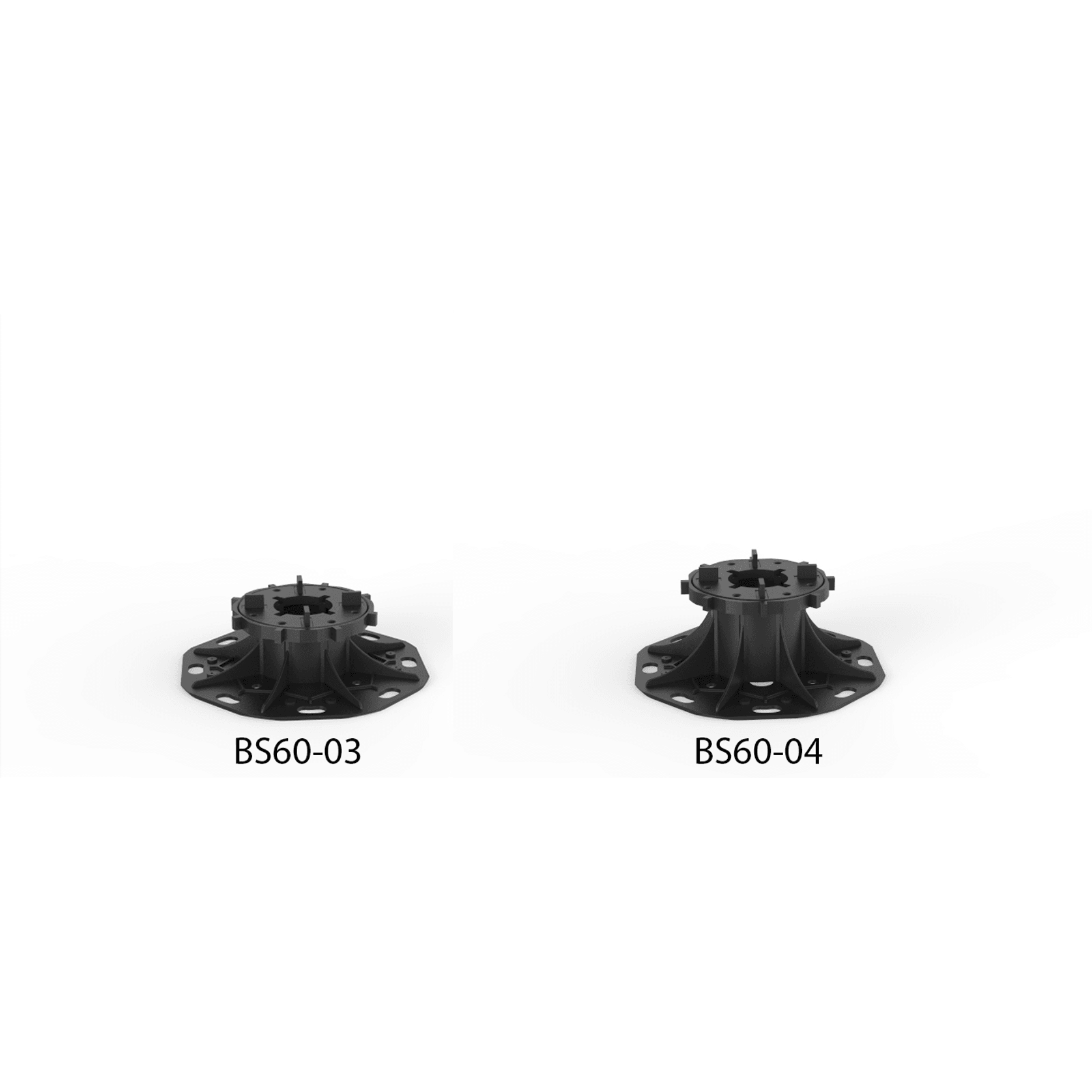

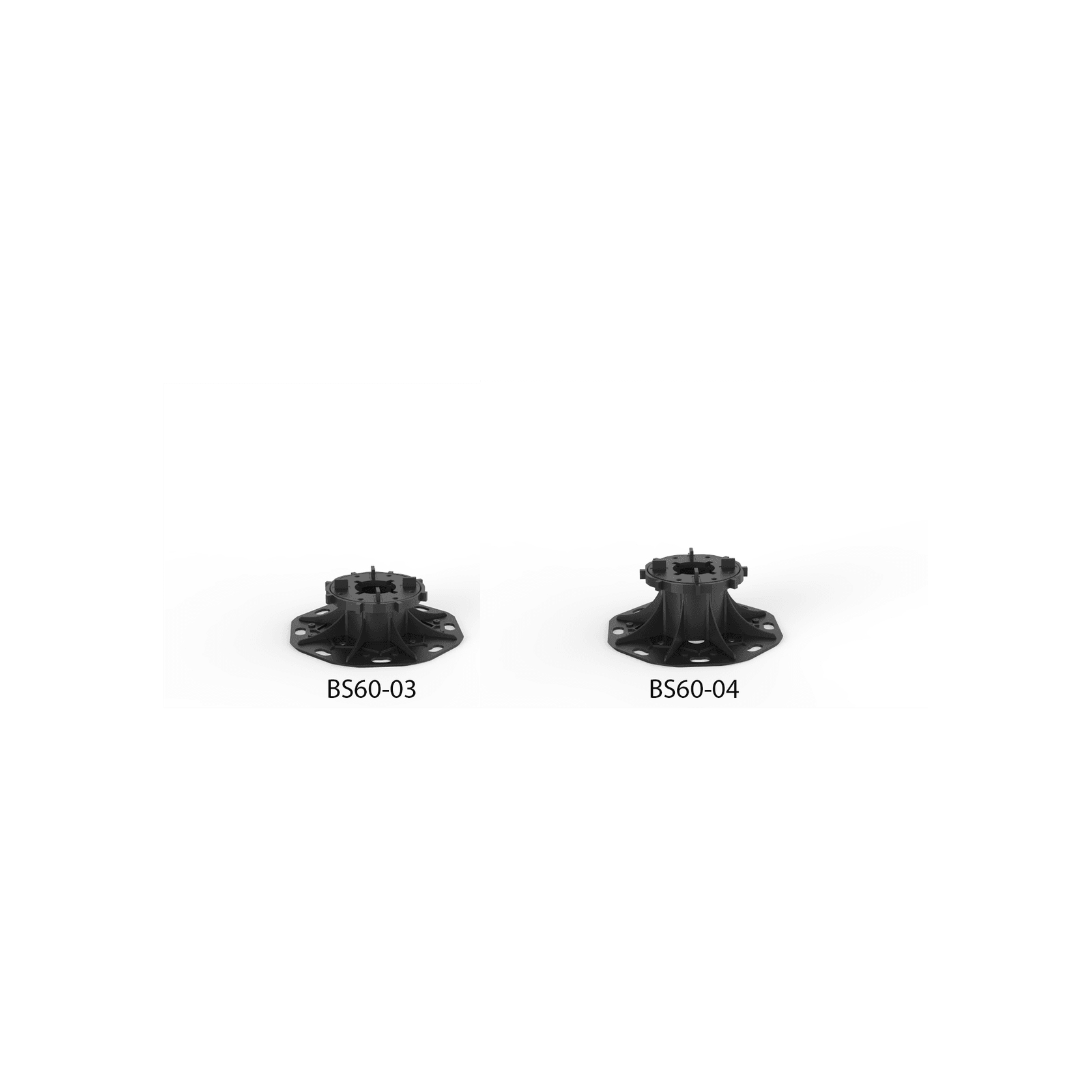

BS60 Basic Series:

  • BS60-03 (50-75mm)
  • BS60-04 (73-110mm)

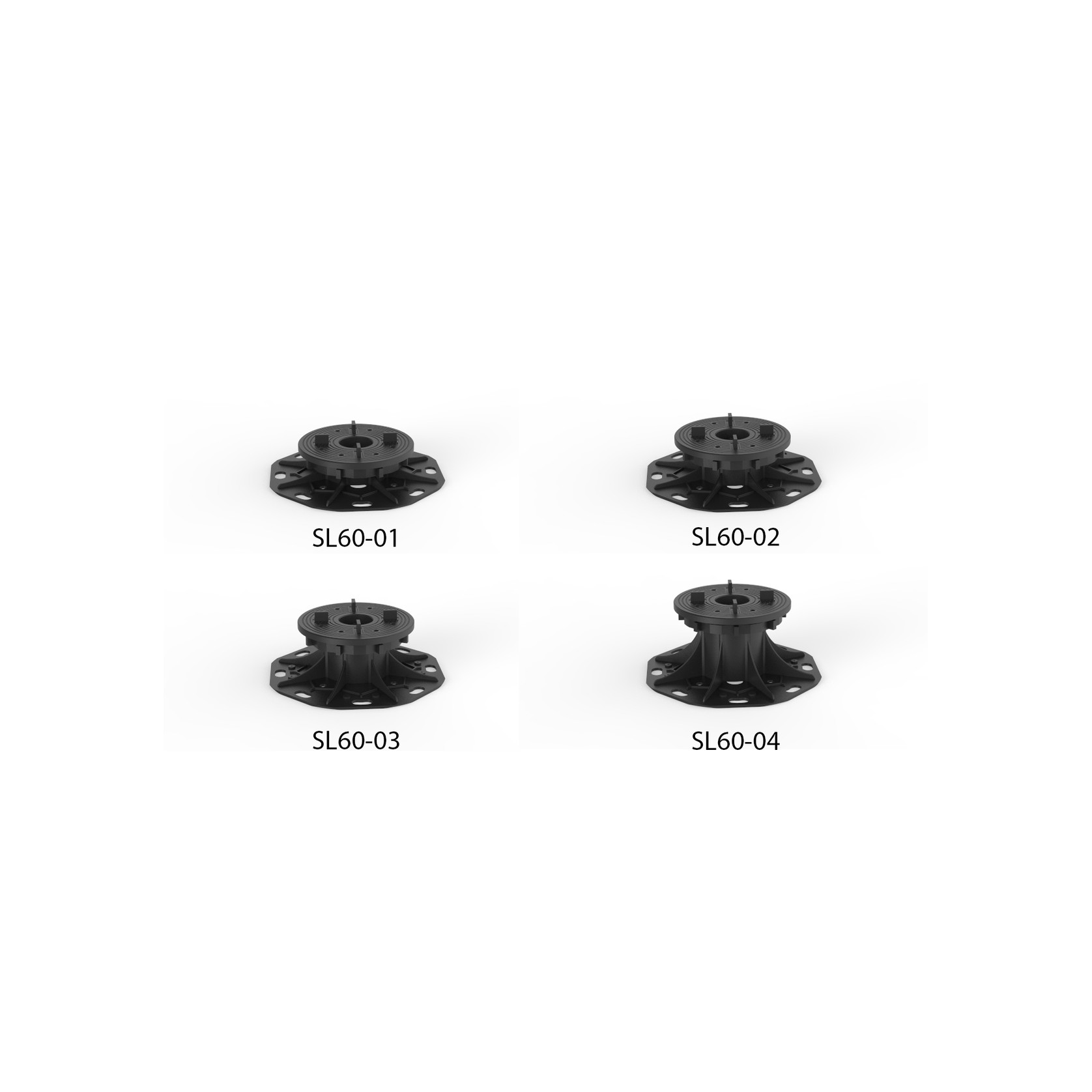

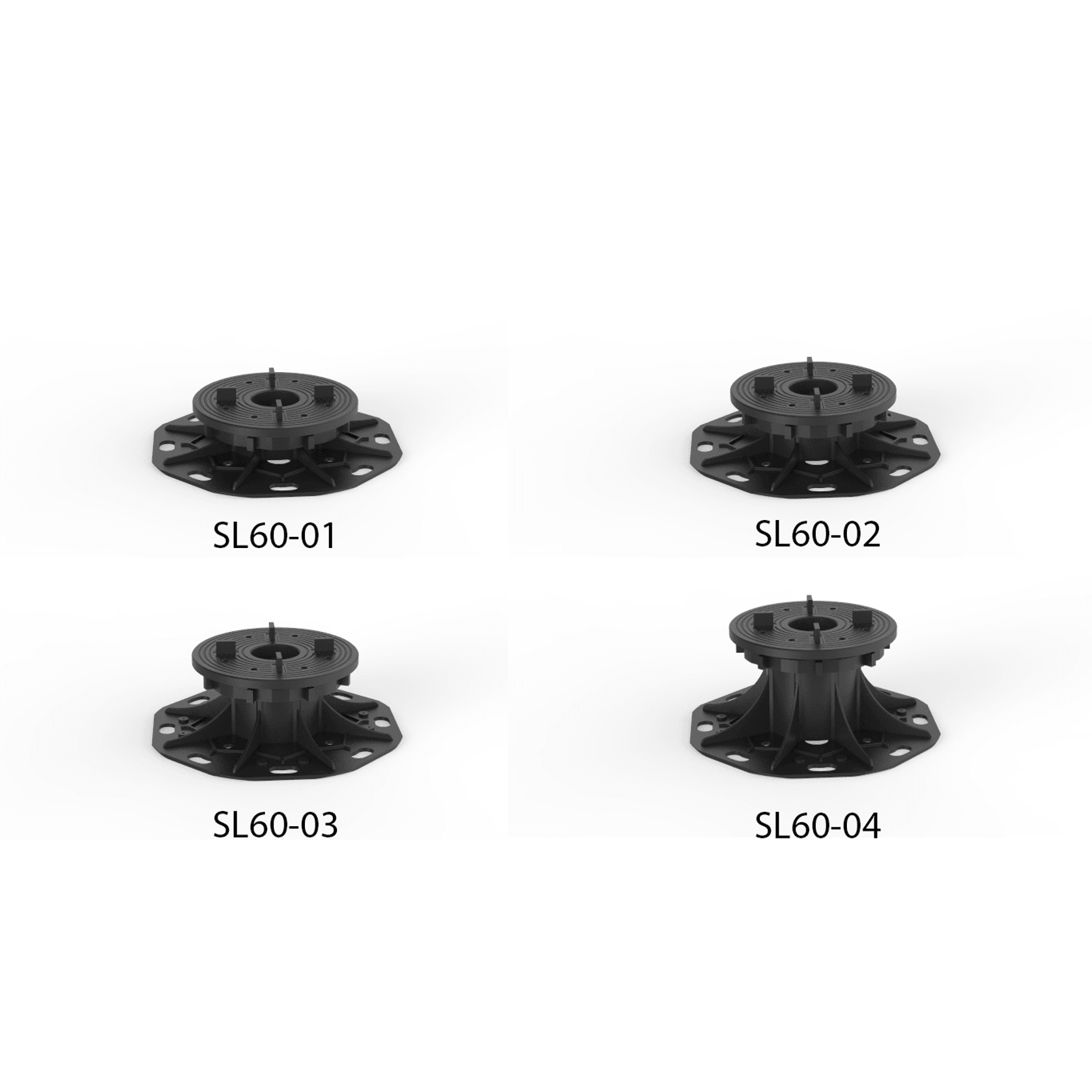

SL60 Basic Self Levelling Series:

  • SL60-01 (42-48mm)
  • SL60-02 (48-60mm)
  • SL60-03 (60-85mm)
  • SL60-04 (83-120mm)

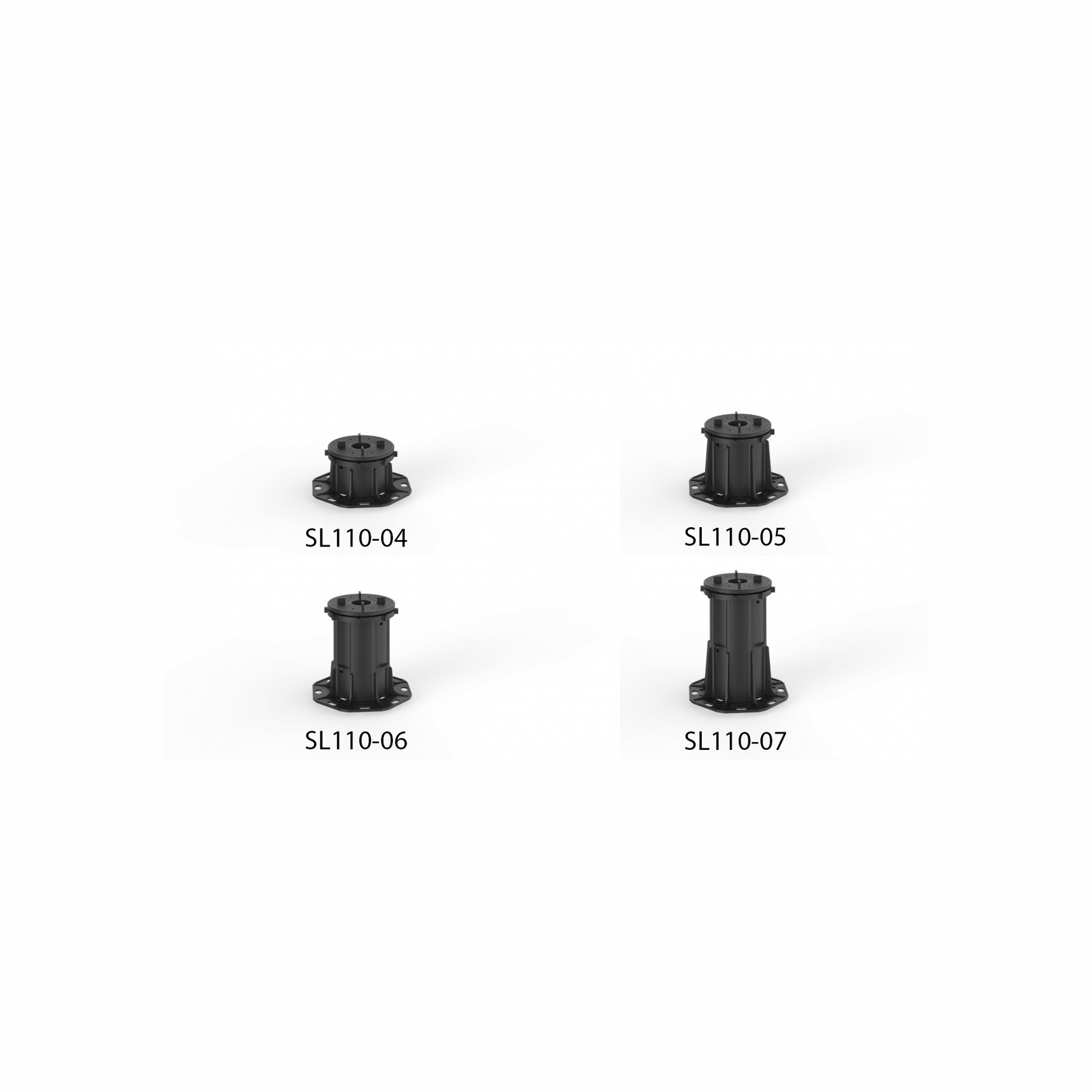

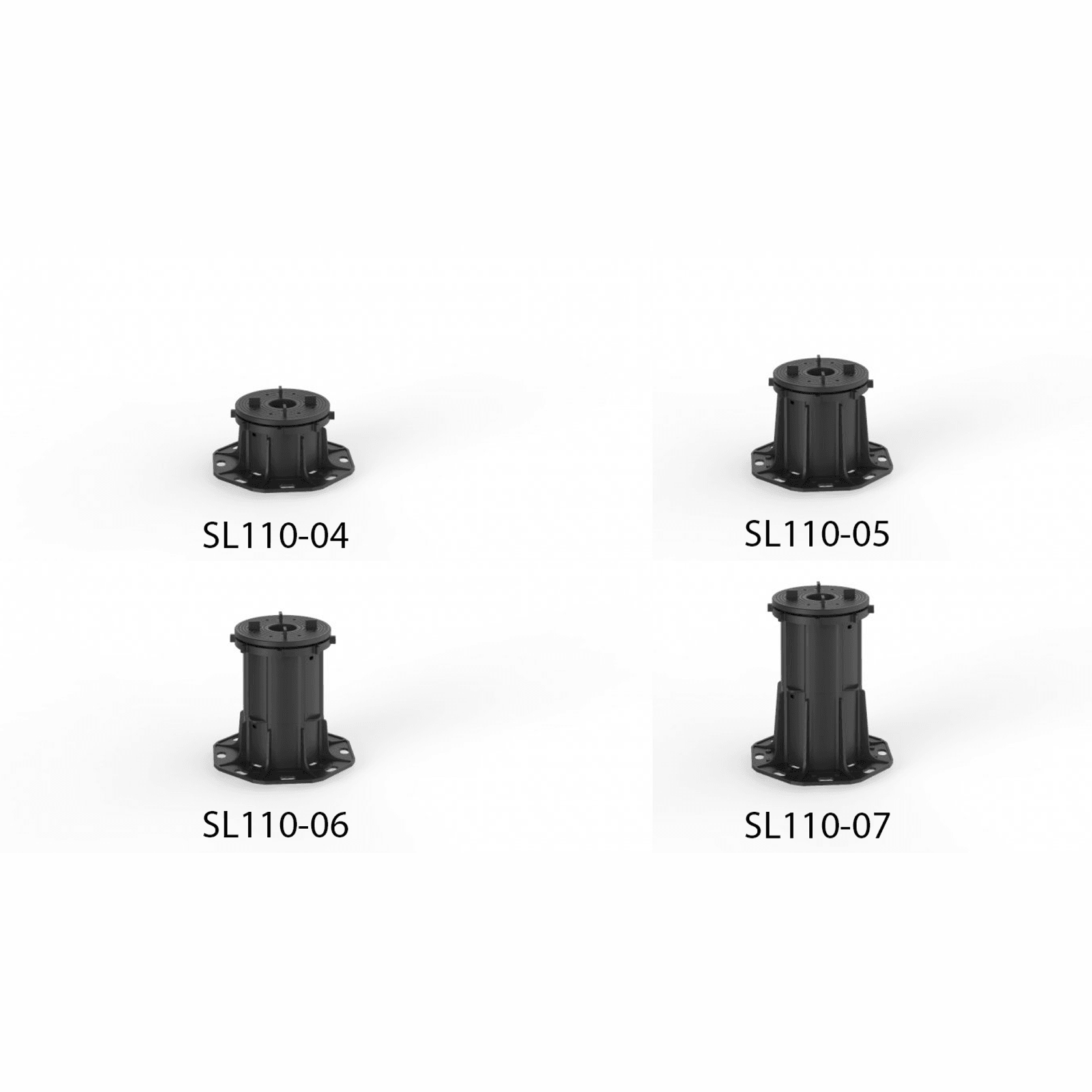

SL110 Maxi Self Levelling Series:

  • SL110-04 (85-135mm)
  • SL110-05 (130-180mm)
  • SL110-06 (180-228mm)
  • SL110-07 (224-272mm)

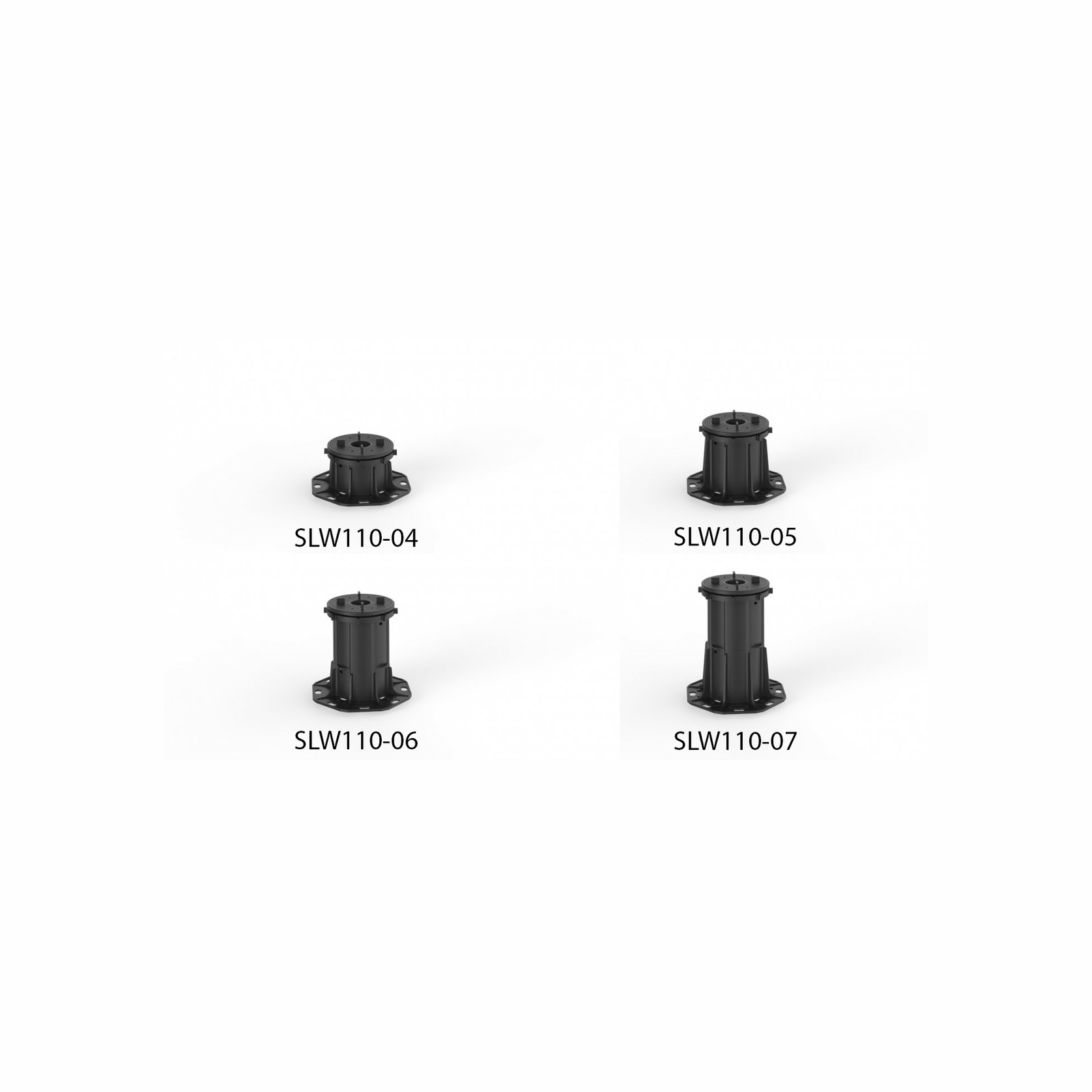

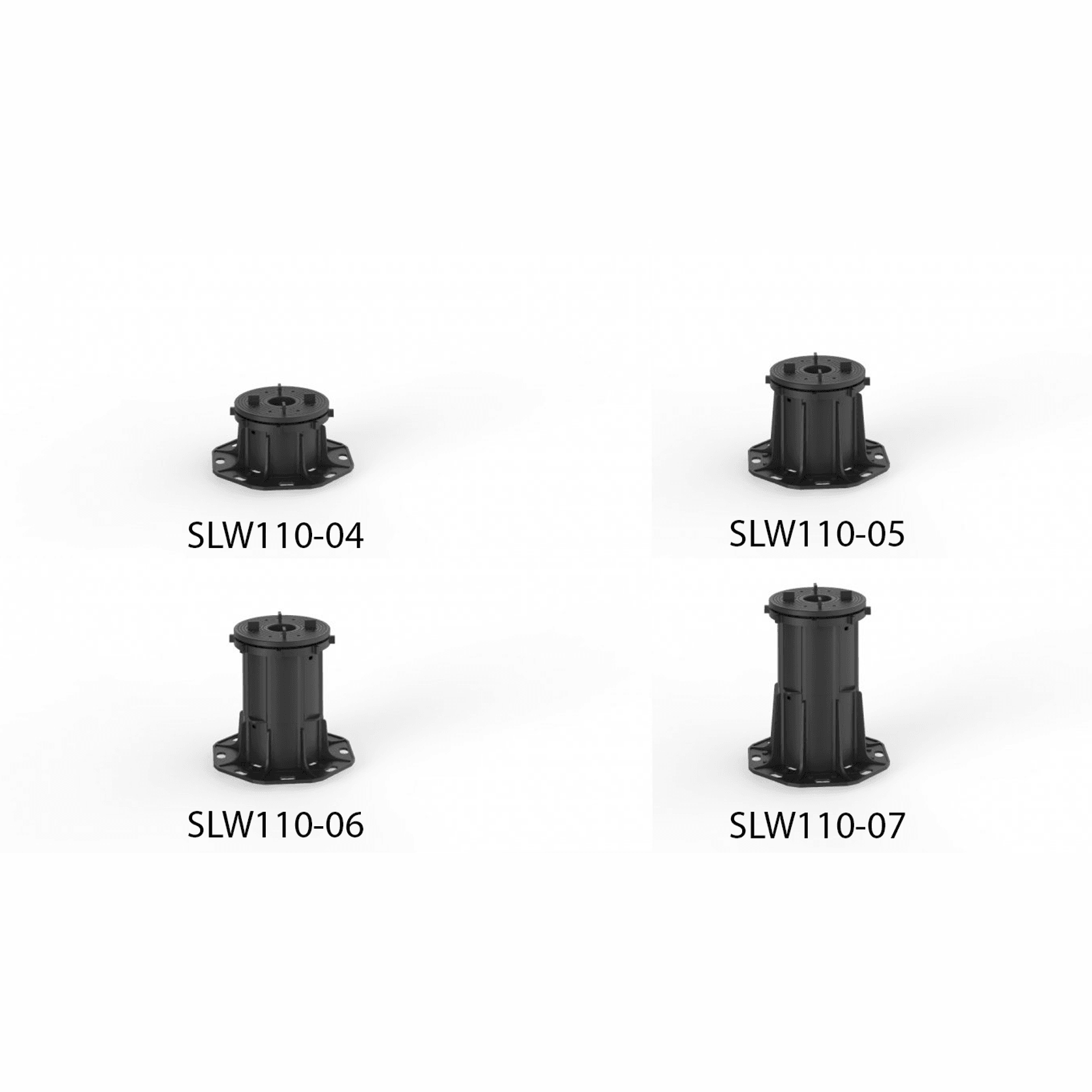

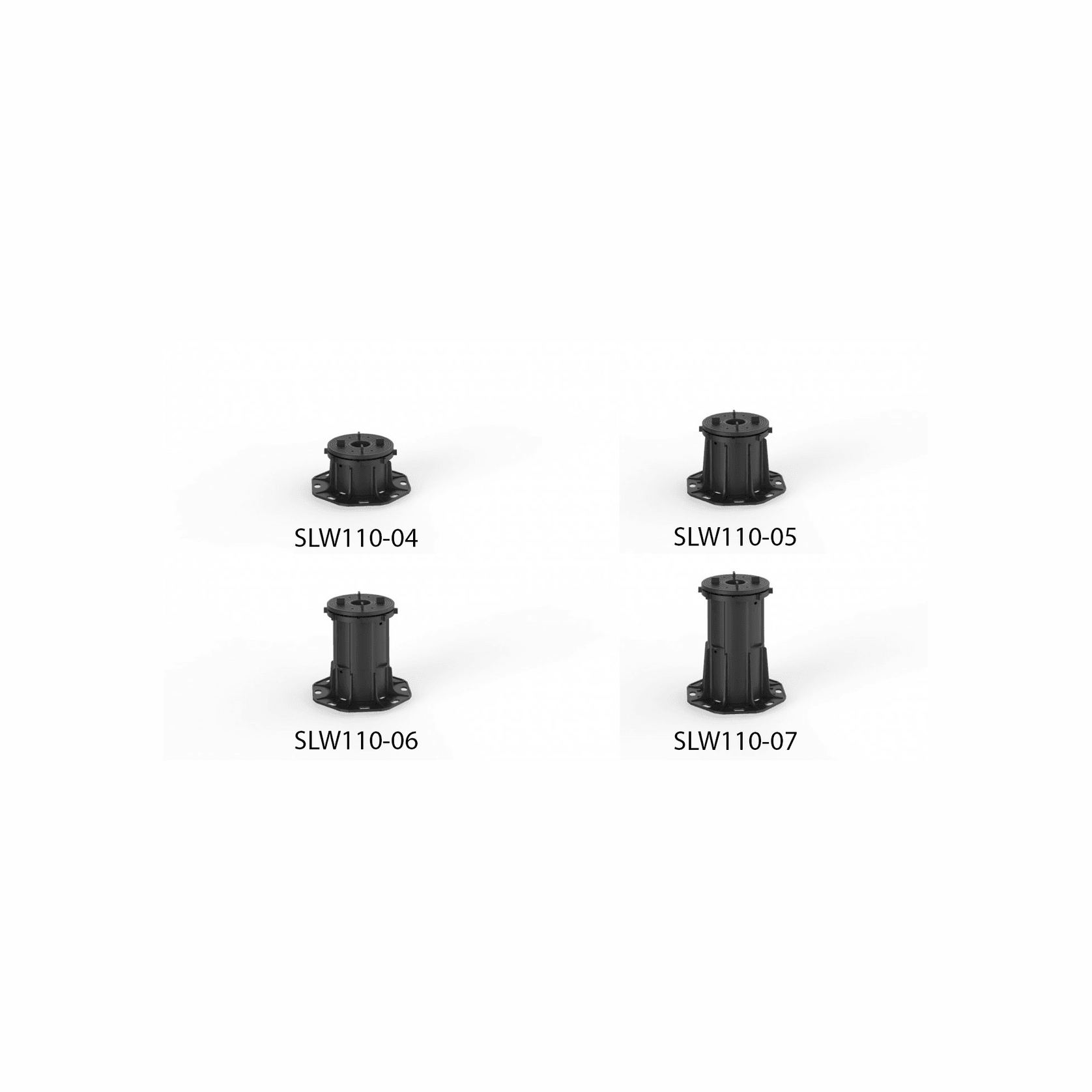

SLW110 Maxi Raft Self Levelling Series:

  • SLW110-04 (85-135mm)
  • SLW110-05 (130-180mm)
  • SLW110-06 (180-228mm)
  • SLW110-07 (224-272mm)

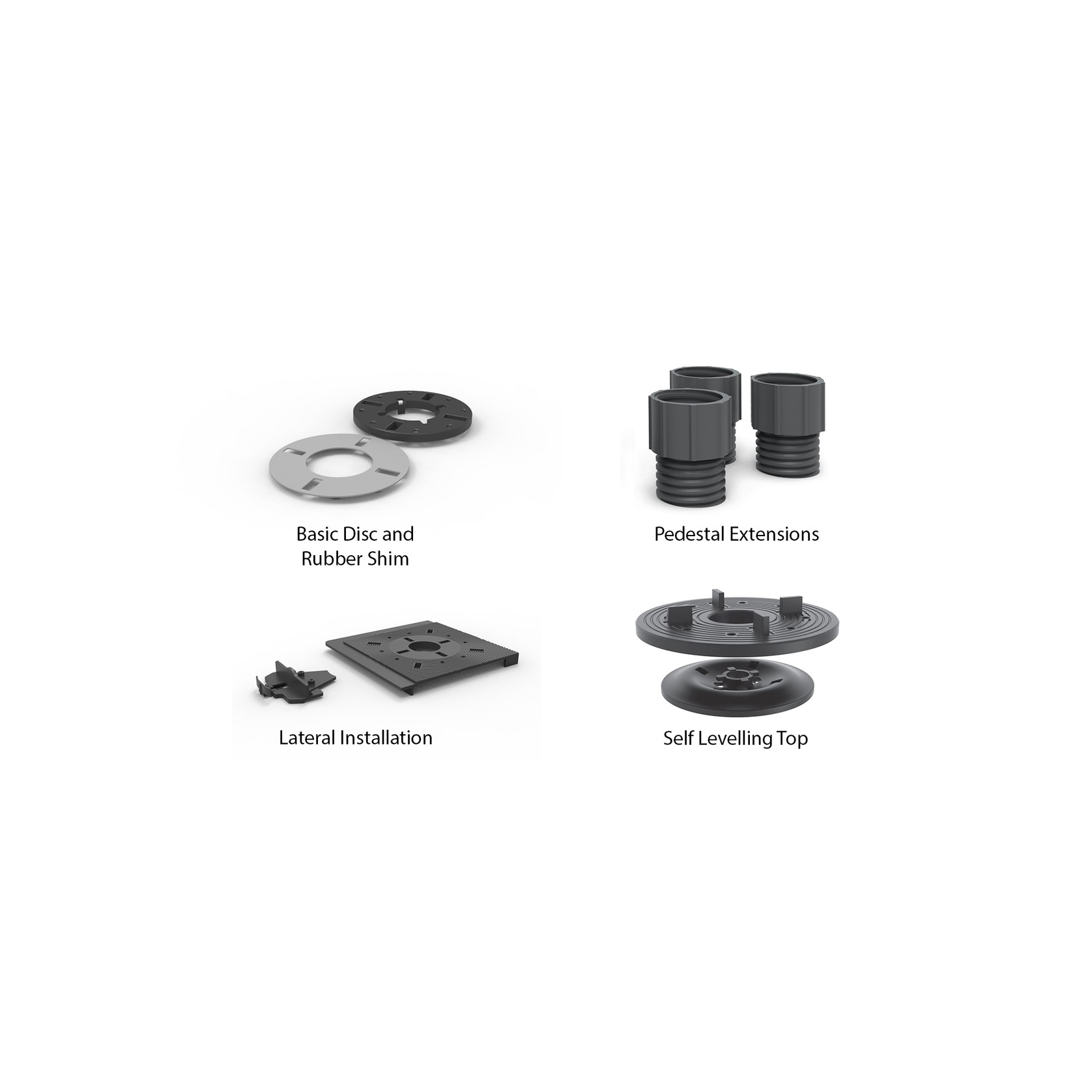

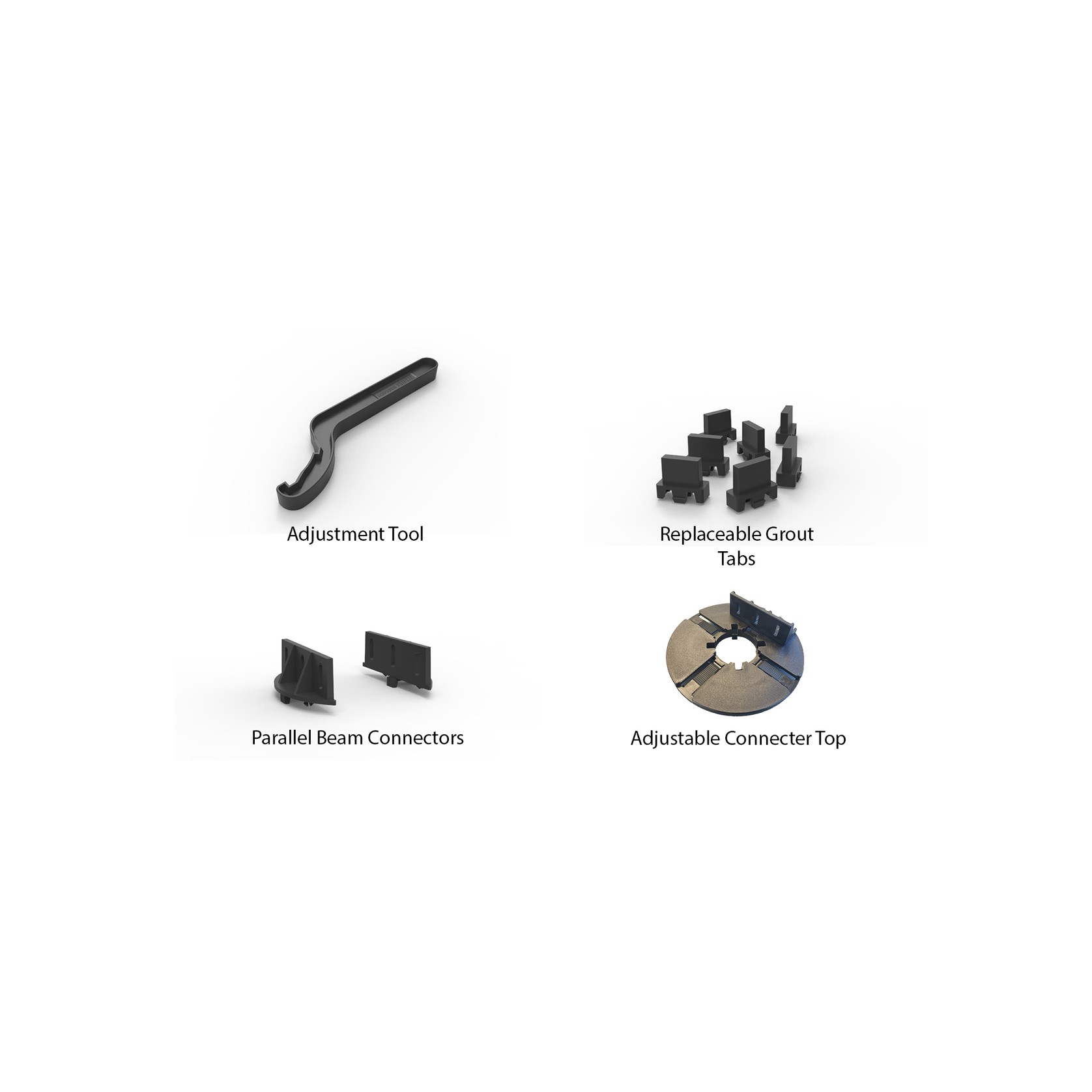

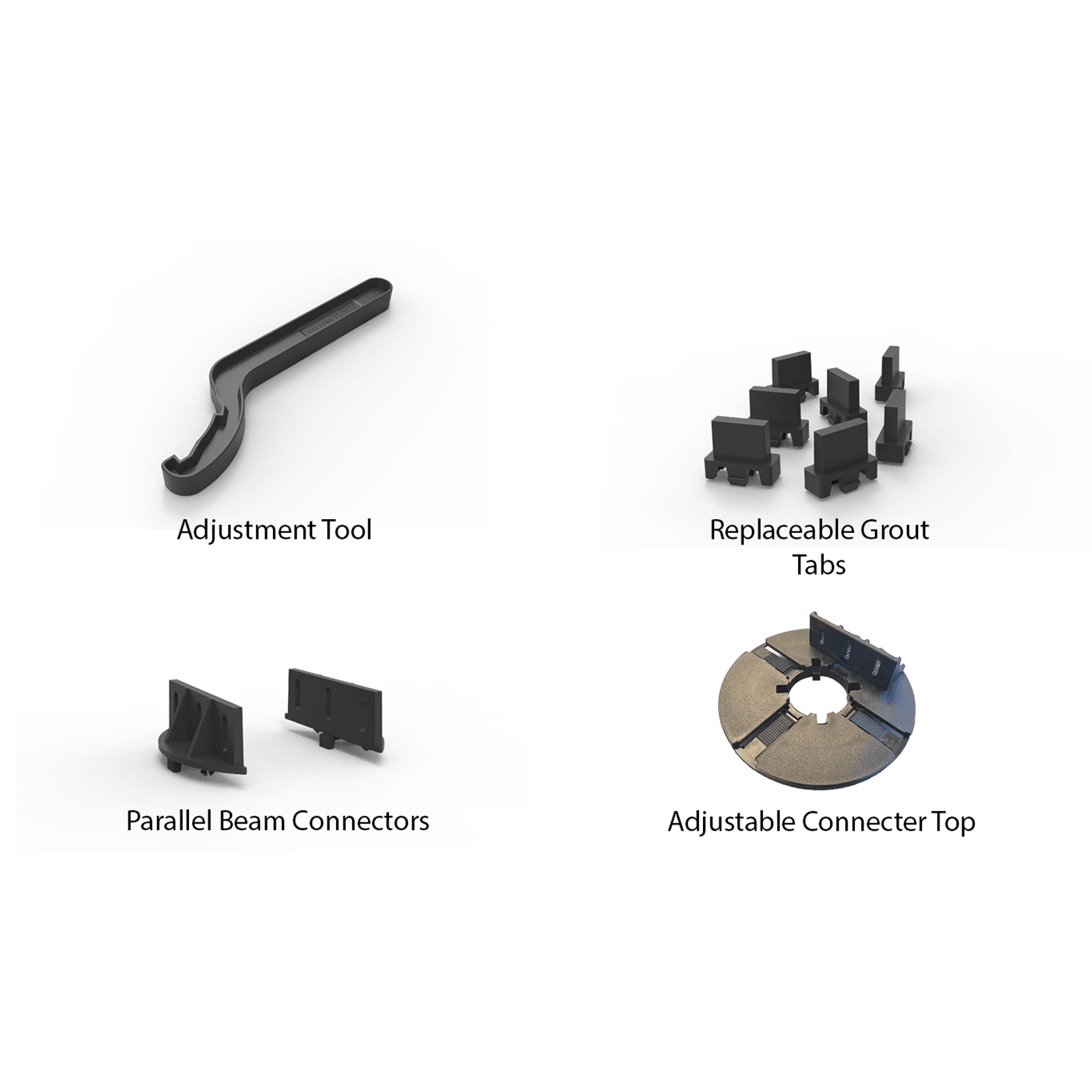

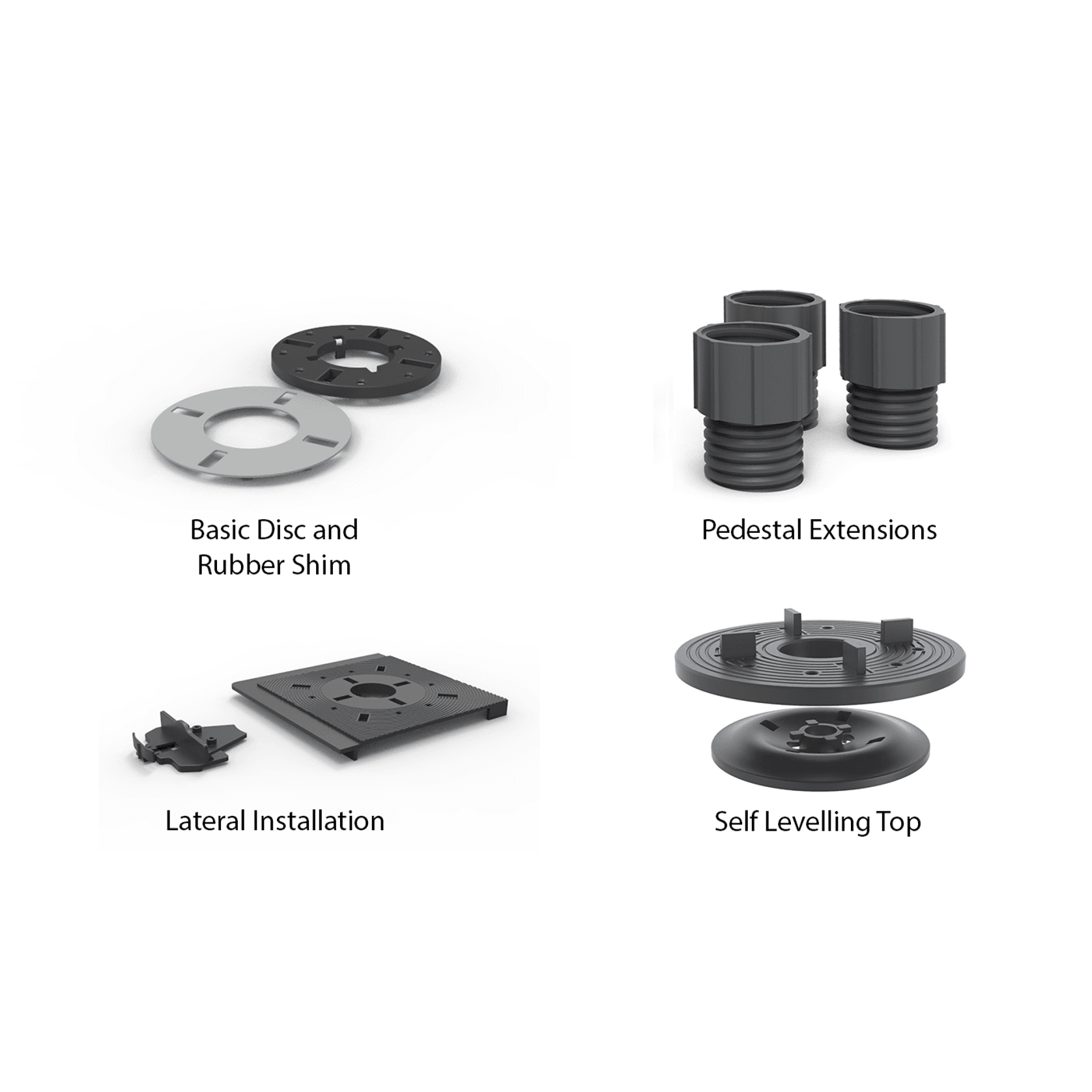

Accessories:

  • Basic Parallel (Beam Joint) Connector
  • Replaceable Grout Tabs (2mm - 4mm)
  • Basic Disc and Rubber Shim
  • Pedestal Extensions
  • Lateral Flooring Installation
  • Maxi Self Levelling Disc Pad
  • Maxi Raft Disc and Beam Joint Connector
EQUUS Technical Support
  • Project specific specifications and details.
  • Condensation risk analysis for warm roof systems.
  • Wind uplift study for warm roof systems
  • On-site quality assurance
  • Nationwide network of Certified Applicators
  • Warranties available
Why Use Equus Fixplus Pedestals?
  • A flat floor area is created with the self-levelling system.
  • Simple installation, and can be removed and reused with ease.
  • The cavity between the decking material and the waterproofing helps to extend the life of the membrane.
  • Strong and durable pedestals can withstand a weight load of 1,500kgs.
  • Pedestals are 100% recyclable.

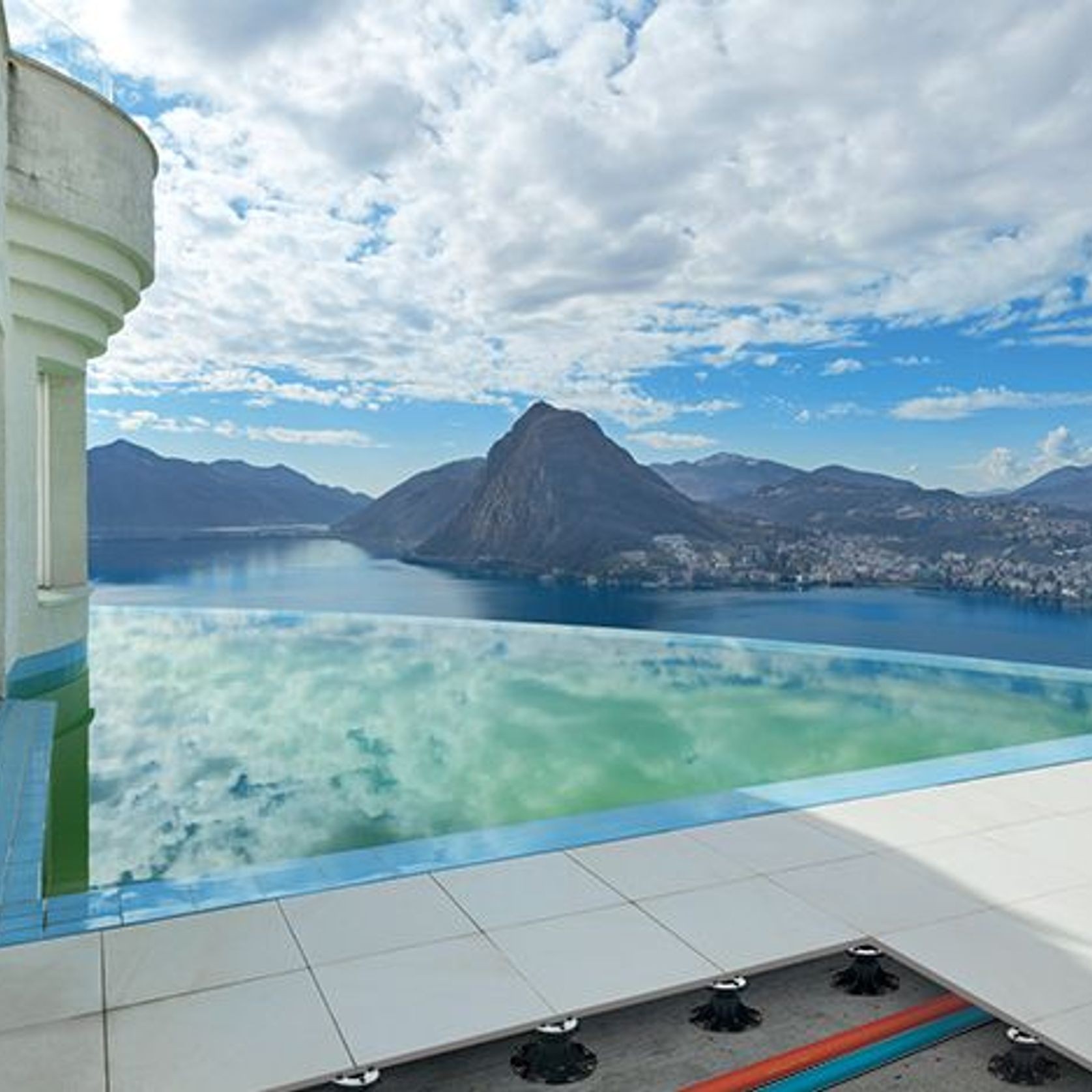

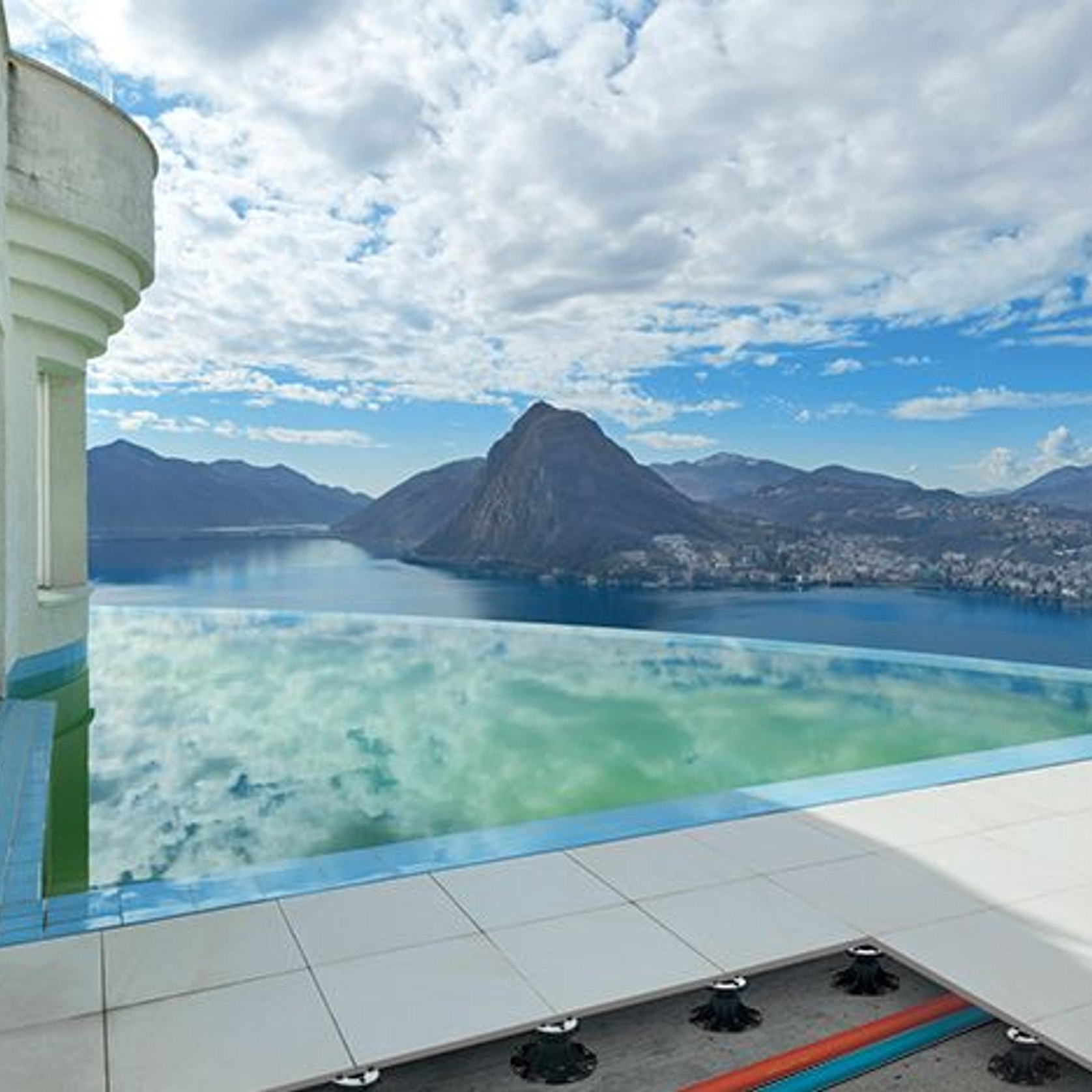

  • Empty space between the flooring material and the substrate provides storage areas for lighting, cables, pipes and more.
SKU: SL110-Maxi-Self-Levelling-Pedesta-Set.-SL110-04
Visit Website

Other products
in this range

SOPRASOLAR FIX EVO TILT Pedestals
SOPRASOLAR FIX EVO TILT Pedestals
By Equus Industries

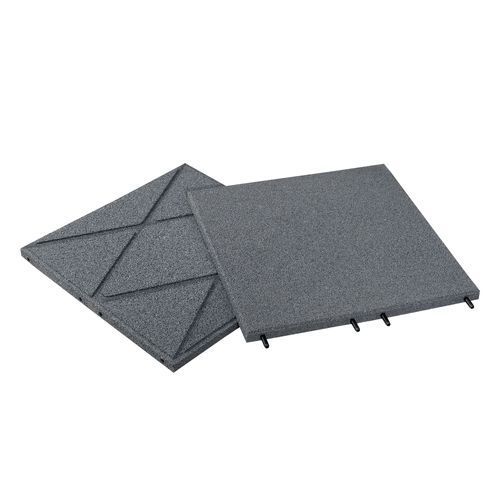

Kraitec Step Rubber tiles
