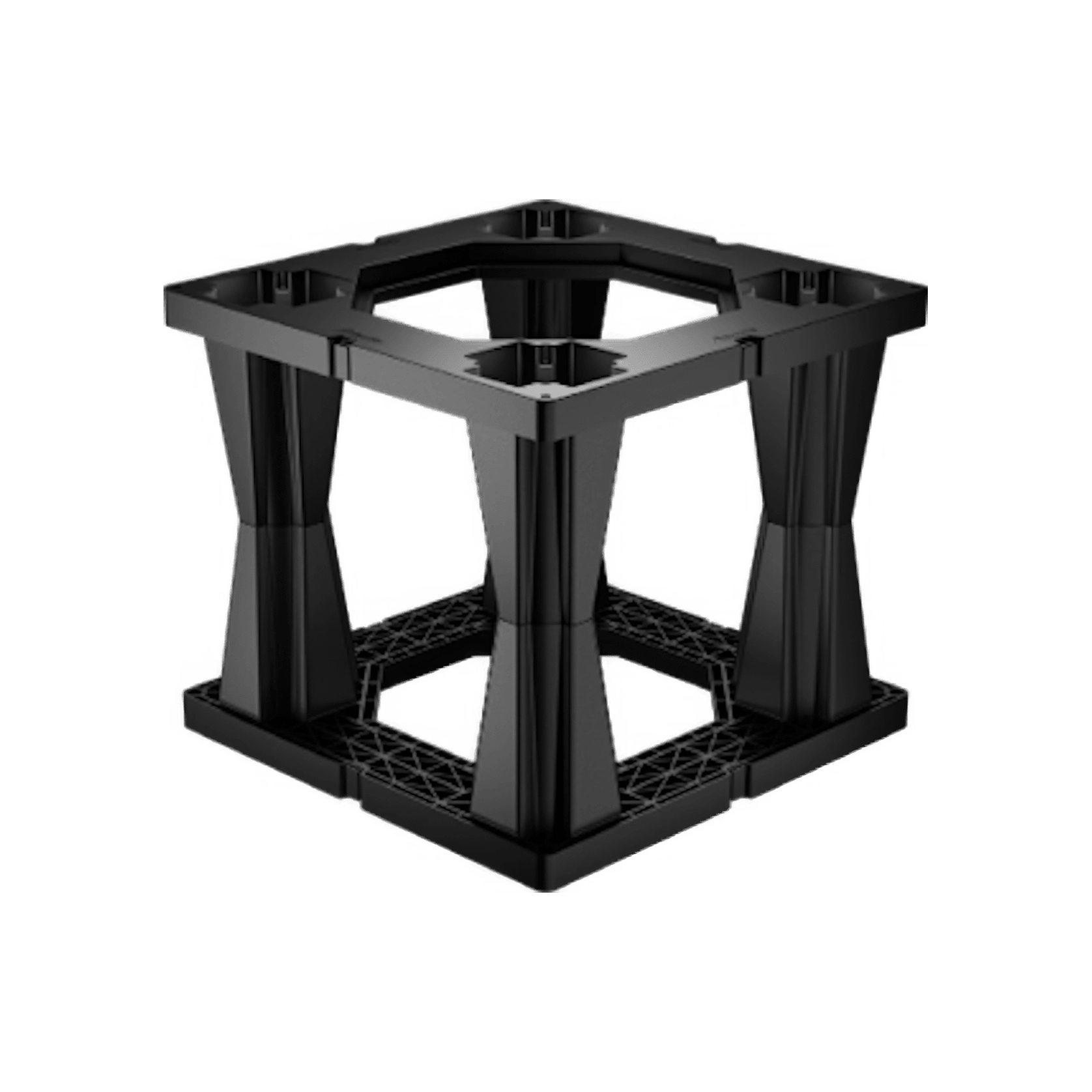

Geo-Vault^® Structural Soil Matrix System

• Part Number: 78081
• Part Size: (H) 500mm (W) 575mm (L) 575mm | (H) 19.68” (W) 22.64” (L) 22.64”
• Part Weight: 6.8kg module (14.99 lbs)
• Ultimate Strength: 34.37 tonnes/SQM (48.89 PSI) *Ultimate strength till failure (not yield)
• Flow Rate: 1% (1V:100H) = 50 Litres/second | 5% (5V:100H) = 110 Litres/second
• Volume Void: 95.5%
• Material: 100% Recycled Materials, 95% Polypropylene 5% Propriety Materials
• Colour: Black
• Chemical & Bilogical Resistance: Unaffected by molds, algae, soil-bourne chemicals, bacteria and bitumen
• Service Temperature: -100 C - 700 C ( 14 F0 - 158 F0 )
• Approximate Material Lifespan: 100 years + with no ultra violet exposure

Underground Services Made Simple

Geo-Vault® is engineered to streamline the installation and maintenance of subterranean utilities:

Modular Access

Easily remove and replace modules to access utilities without disturbing the entire structure.

Fast Repairs

Minimize downtime and costs with efficient access to pipes and conduits.

Compatible with All Services

Supports water pipes, sewer lines, stormwater systems, electrical conduits, and irrigation networks.
