Heat Pump Hot Water Cylinders ECOS270

Name: Heat Pump Hot Water Cylinders ECOS270
Brand: EcoSpring
Price: 4495.00 NZD
Availability: InStock

Heat Pump Hot Water Cylinders ECOS270 gallery detail image

$4,495

Designed by Kiwis, for Kiwi homes. The EcoSpring isn’t just a hot water heat pump, it’s a smarter way to heat water and manage home energy use. EcoSpring naturally harnesses thermal energy from the air heating water at a fraction of the cost of a traditional cylinder. All while delivering hot water whenever you desire.The EcoSpring Heat Pump Hot Water Cylinders come in two sizes.

ECOS270 – 270 litre model designed for a standard New Zealand household of 3-4 people with average water use. Has the same great technology to save money on heating water.

A heat pump is like an energy amplifier. From 1 kW of power input, it can create over 4.15kW of output heat. That’s a remarkable performance efficiency of over 400%. Conventional electric storage water heaters can only convert 1 kW of input power into 1 kW of output heat.

Details

Category
Heat Pumps, Hot Water Cylinders
Warranty
5 years

Specifications

Power supply 220V-240V/50HZ
Rated Input Power (Heat pump) 1.2KW
Rated Input Current (Heat pump) 5.3A
Rated Heating Capacity (Heat pump) 2.78KW
Rated Input Power (Resistance) 1.8KW
Rated Input Current (Resistance) 7.5A
Max Current (HP&Resistance) 14A
Water tank volume 270L
Recovery Rates (lires per hour) 60
COP (A 20/15, W 15-55)* 4.15
STC in zone 4 31 or 32
Refrigerant R290 (400g)
Compressor GMCC / Rotary
Expansion valve EEV
Fan Axial
Ventilation Horizontal discharge
Heat exchanger Microchannel / Wrap around tank
Inner tank material Enamel
Inner tank thickness Dome 3.0mm / Wall 2.5mm
Inner tank type Concave
Insulation / thickness Polyurethane / 40mm
Outer Casing Galvanized painted sheet
PTR valve 850KPA
Rated Outlet Water Temperature 60°C
Max Outlet Water Temperature 75°C
Working range with element -15°C - 43°C
Working range without element -7°C - 43°C
IP Class IPX4
Unpacked Dimension (outdoor unit) 620mm x 1875mm
Packed Dimension (outdoor unit) 700mm x 700mm x 1975mm
Net Weight 119kg
Gross Weight 139kg
Noise (Measured one metre from unit) 43dBA
Warranty 5-Year

Scope of use

Install Recommendations

Install on north facing side of property.
Interior installation – Please contact us at 0800 200 510 for requirements.

270 Litre Cylinder

Suitable for 3-4 person household with average water use

Features

Cut the Cost: Save up to 70% on water heating. That’s real money back in your pocket.
Heat from Thin Air: Pulls free energy from the air. Renewable, reliable and ridiculously efficient.
Timer On. Costs Down: 24-hour programmable control lets you target warmer times of day and avoids night-time noise.
Pays for Itself: In just four years (or faster, depending on use), your EcoSpring has paid you back.(subject to usage).
Quiet as a Whisper: At 43 dBA, it’s more hush than hum. You won’t even hear it. (*Measured one metre from unit)

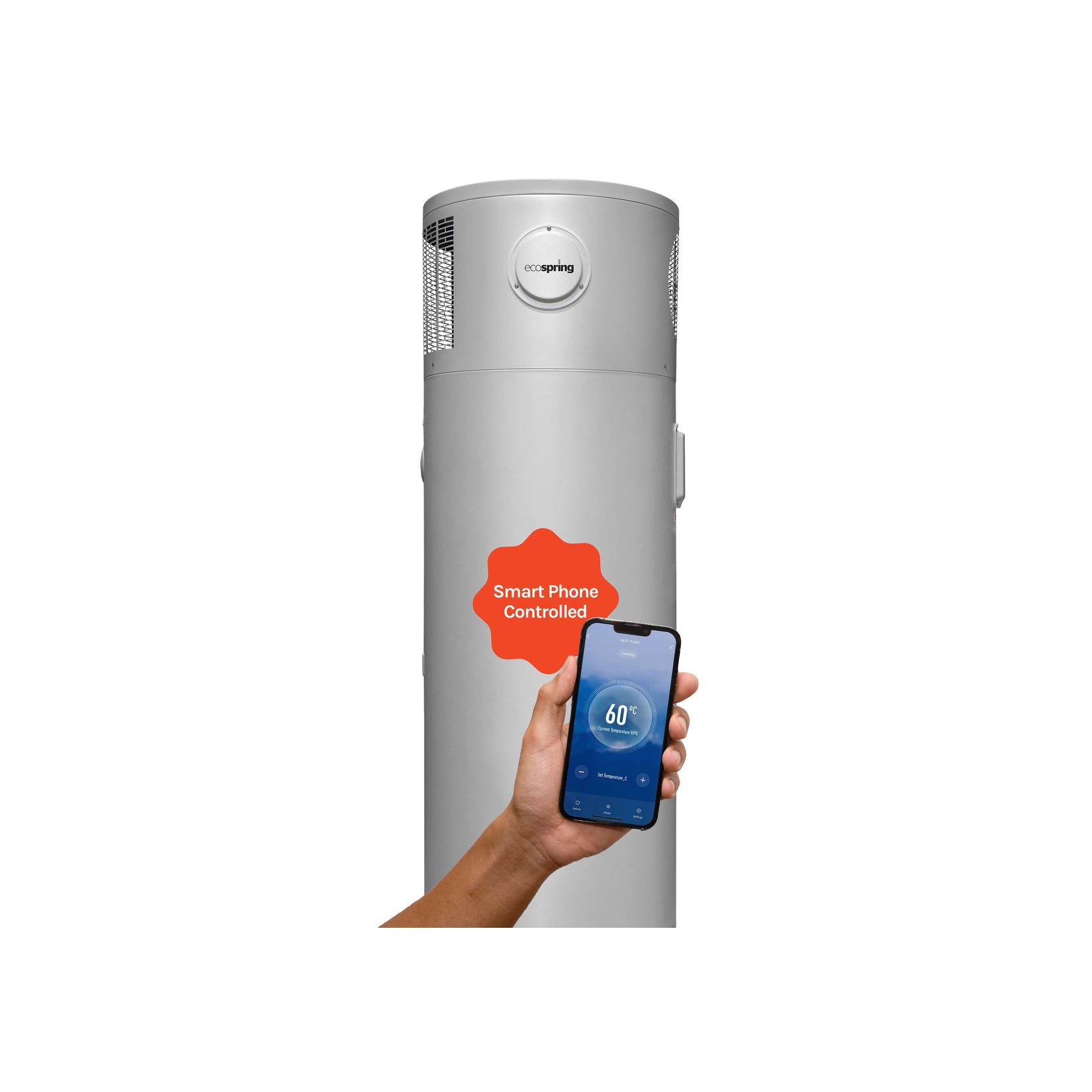

Your Phone = Your Control Panel: Remote access through the Smart Life app lets you adjust water temperature, change modes and set timers all from the convenience of your mobile phone.
