HB2050 ADJUSTABLE ROLLER BALL LOCK 55MM BACKSET

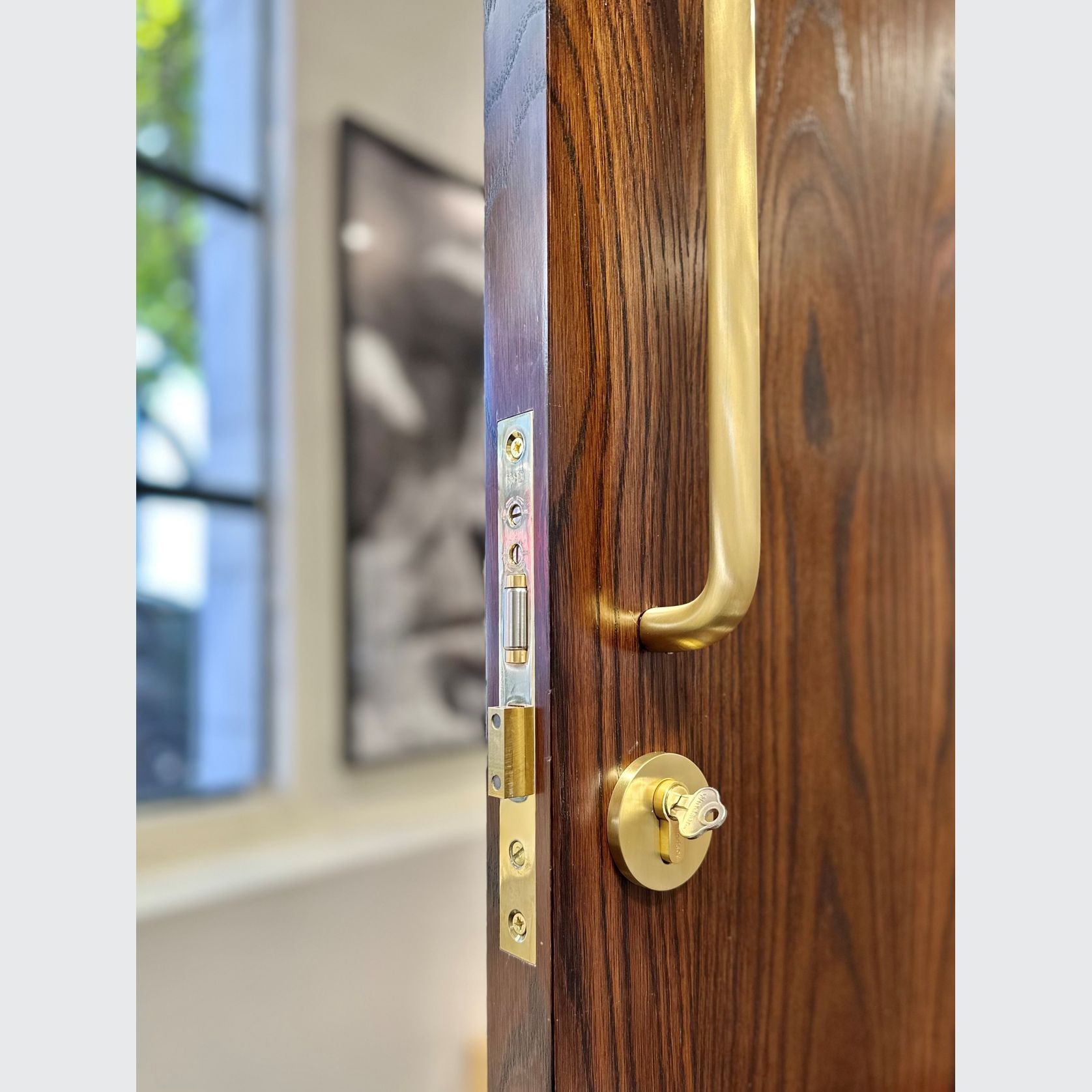

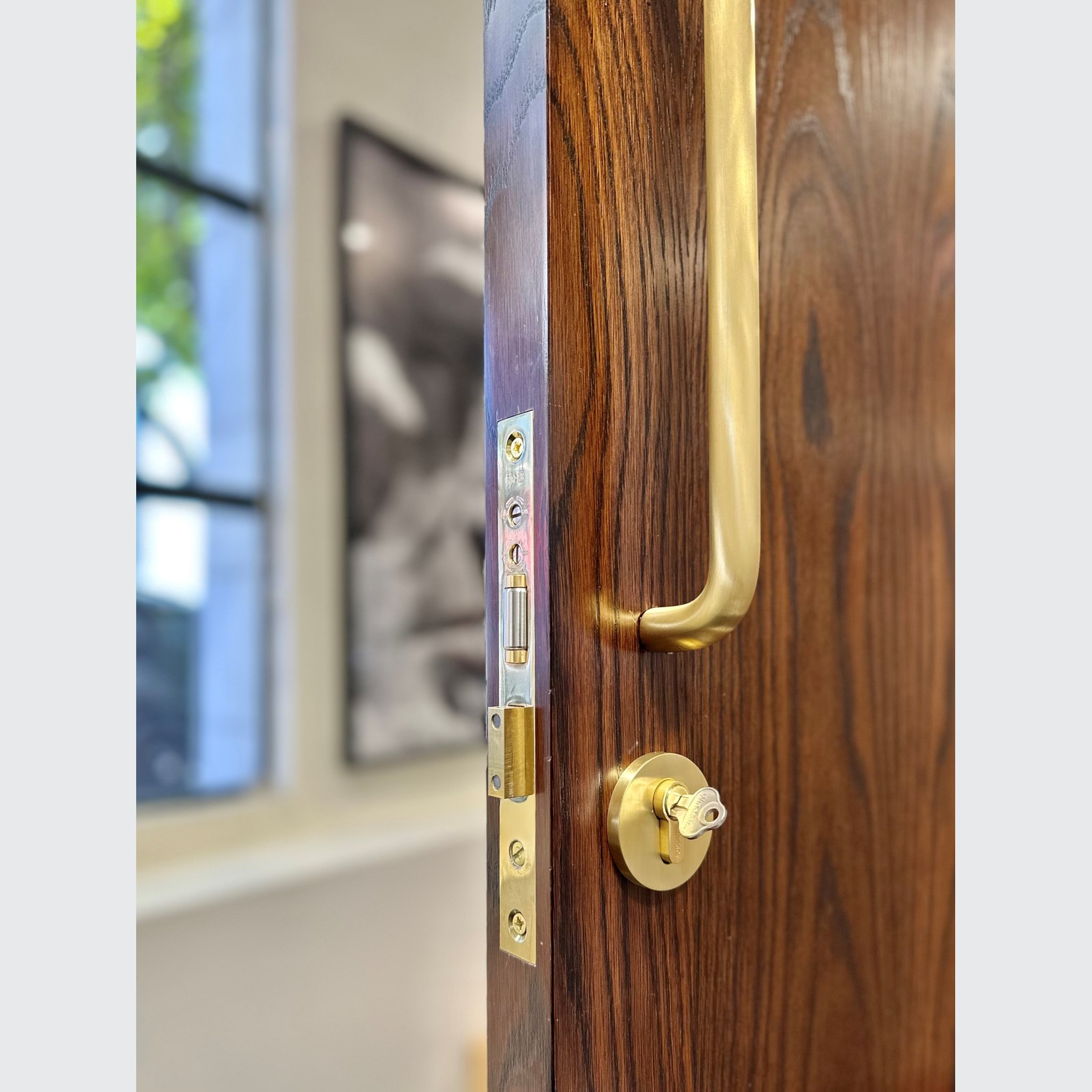

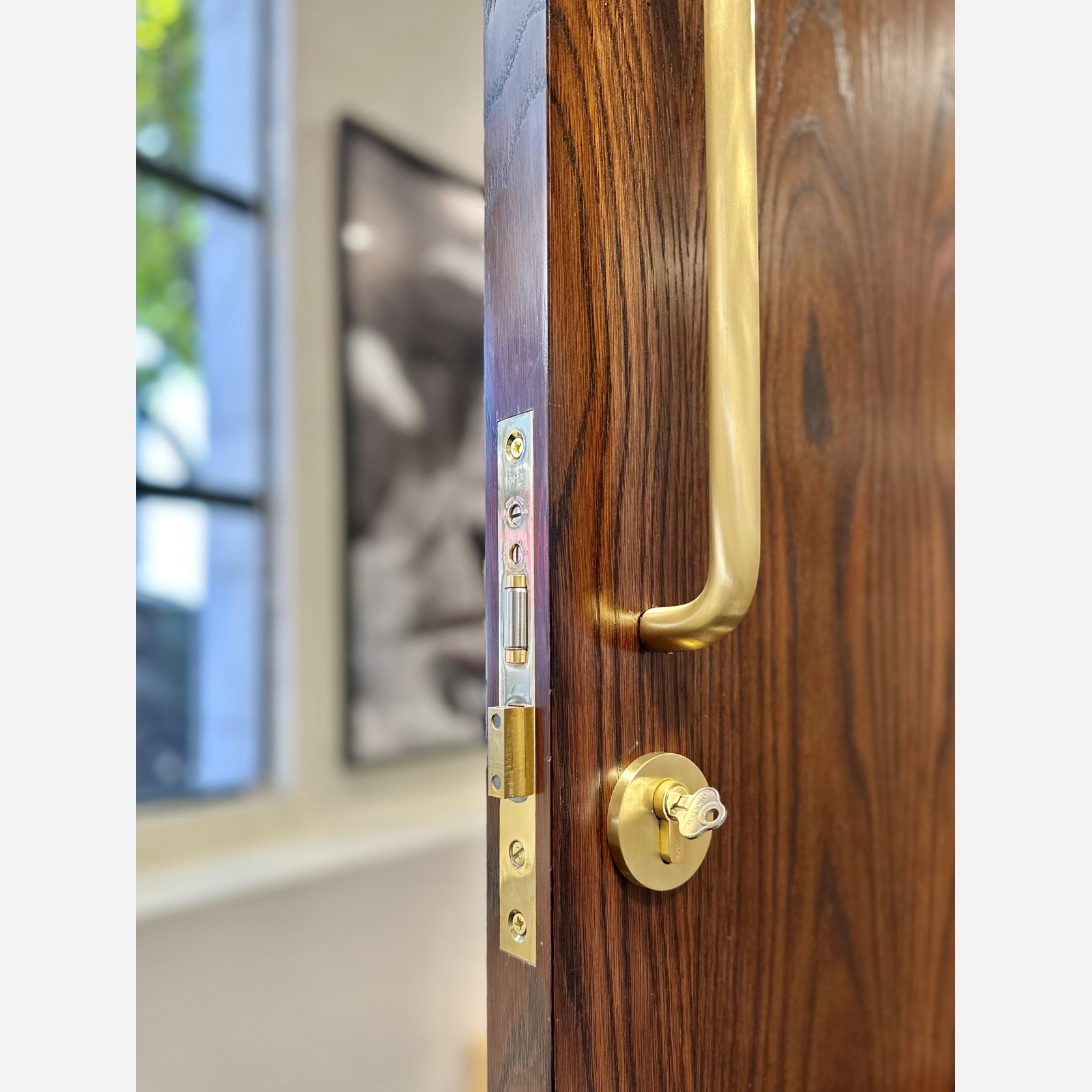

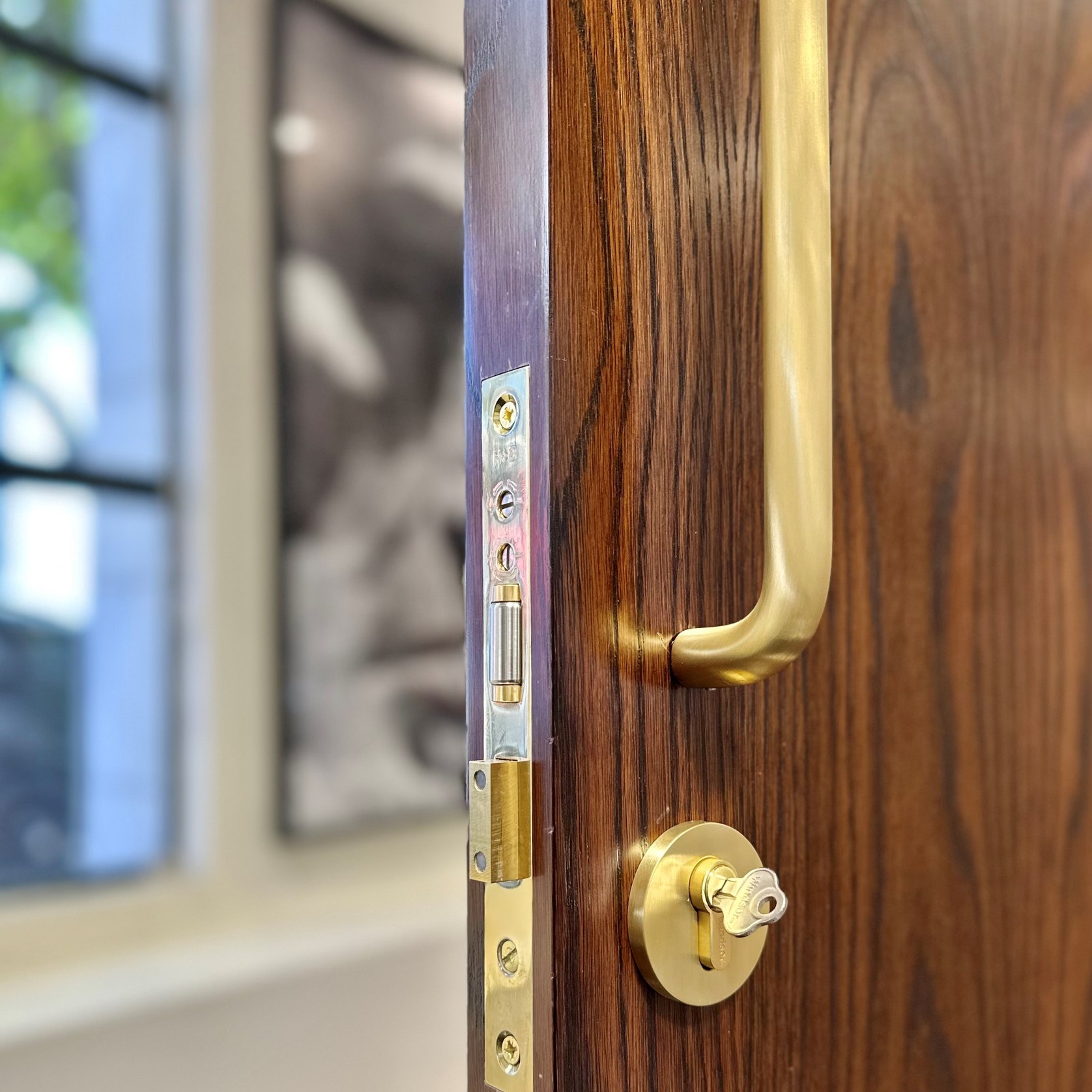

The largest of the Halliday + Baillie stand alone mortice locks, the HB 2050, combines a fully adjustable roller ball catch with a high security dead bolt. Designed specifically for use on hinge and pivot doors where pull handles are used rather than a lever handle, the roller ball allows for door control even when unlocked and can be used with any standard Euro cylinder escutcheon. For ultimate flexibility pull handles, door furniture and cylinders are sold separately, enabling you to mix and match to your projects aesthetic.

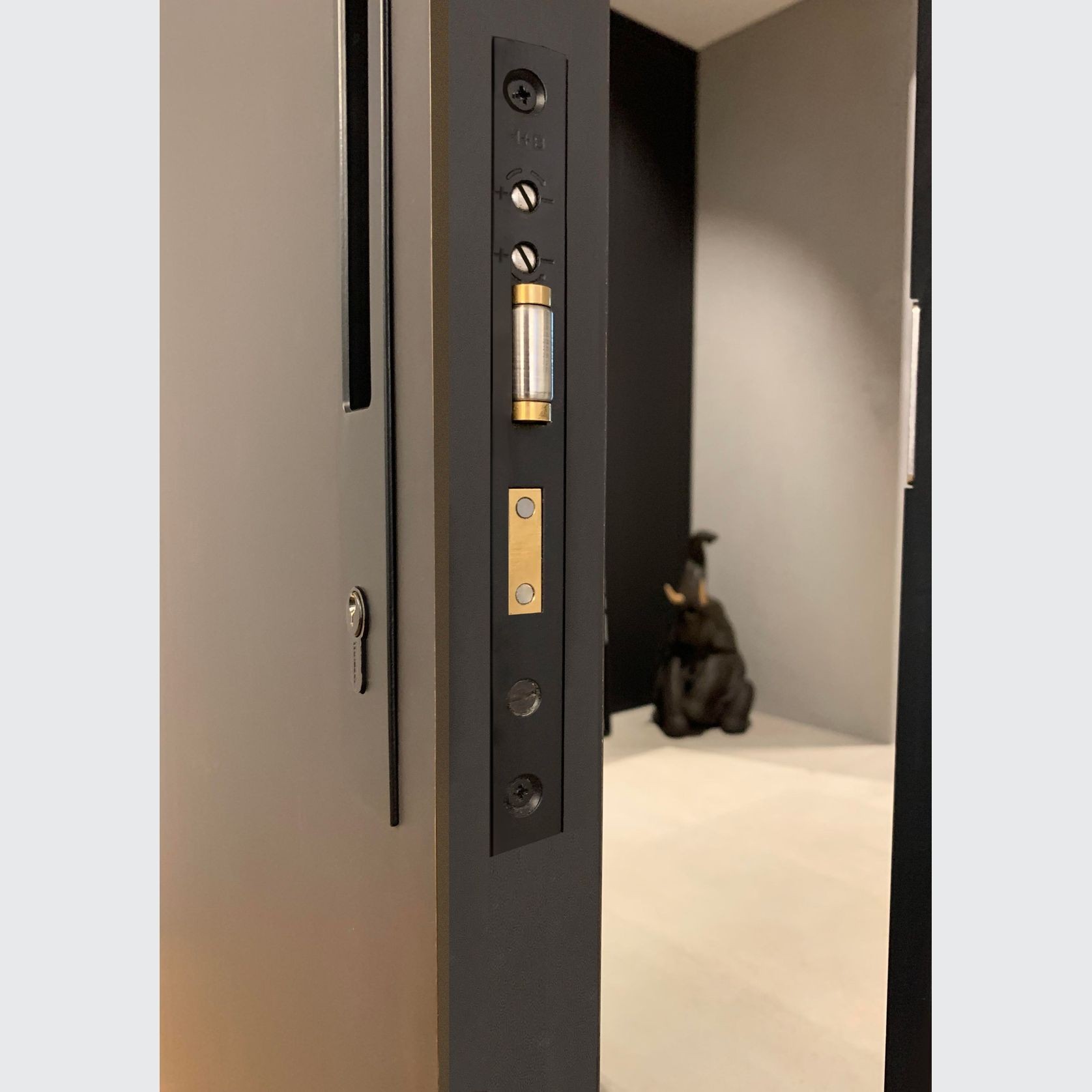

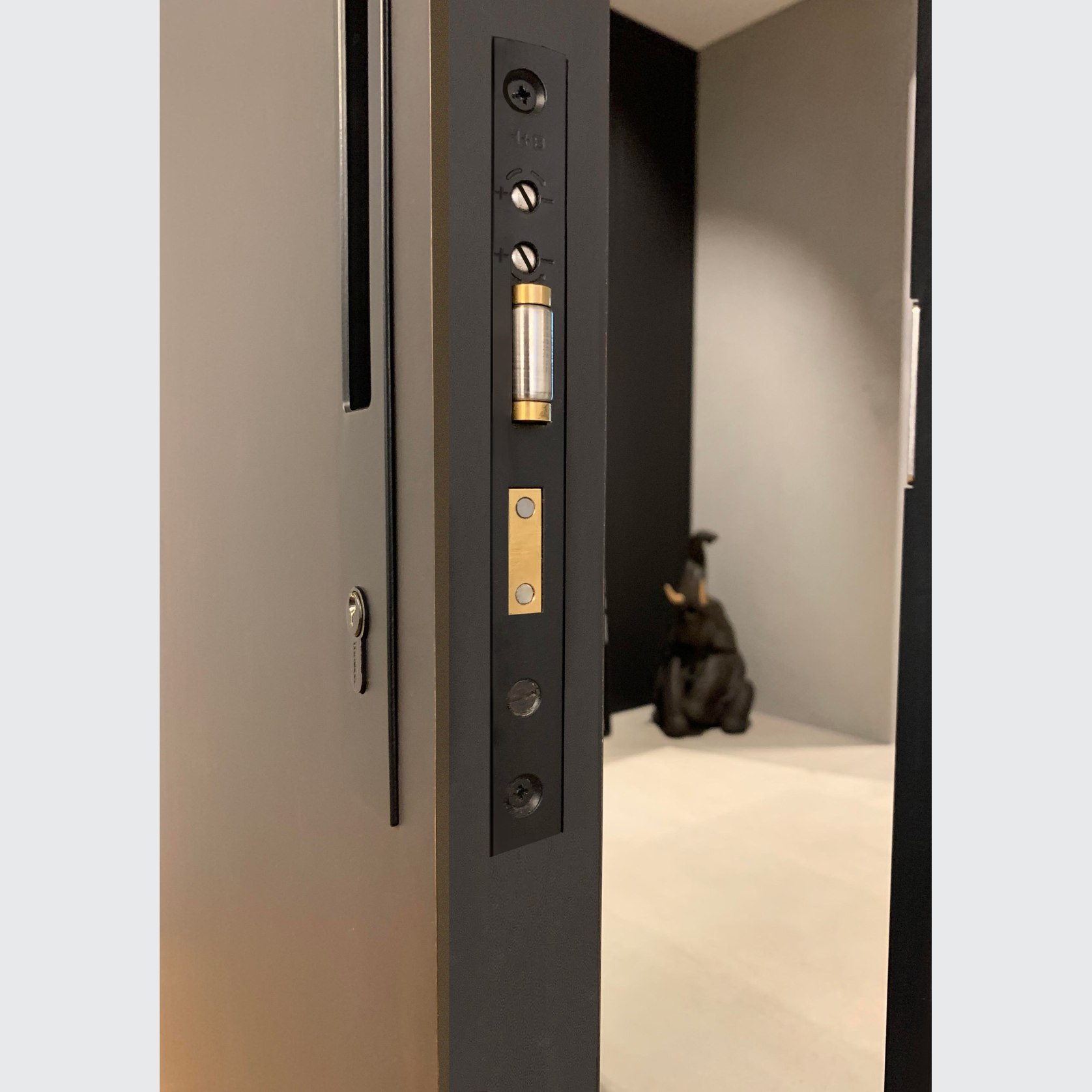

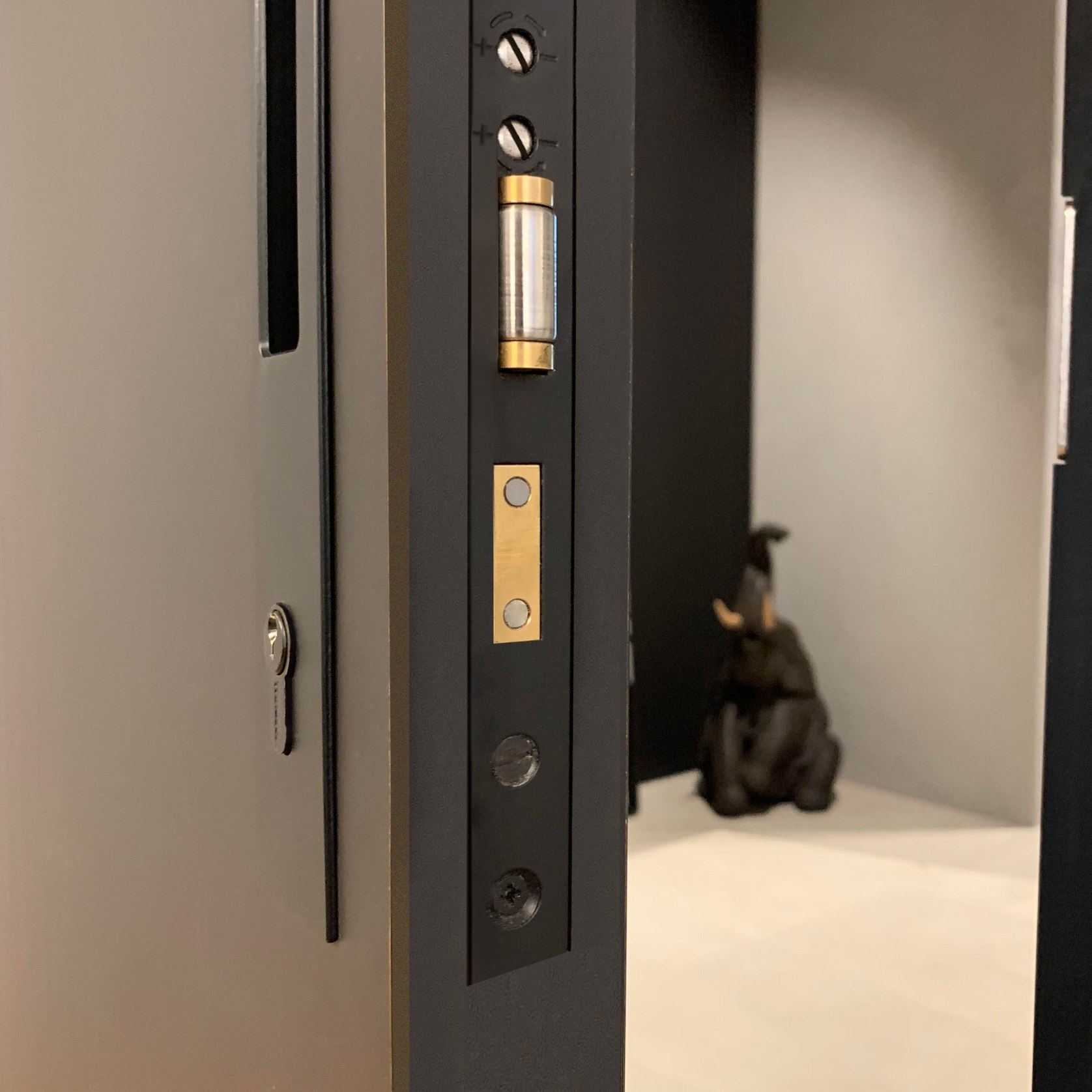

The roller ball is milled from 316 marine grade stainless steel, with double adjustment screws. The top screw adjusts the tension and pressure of the roller ball, with the bottom screw adjusting the projection of the roller from the lock body. Irrespective of the door detail the roller ball is designed to firmly seat in the strike plate no matter what the situation.

Fact sheet below:

https://www.hallidaybaillie.com/au/wp-content/uploads/sites/10/2022/08/HB2050_Roller-Ball-Lock-5mm-Backset.pdf

Details
  • Category
    Latches and Locks
  • Range
    Euro Rollerball lock - 55mm backset
  • Brand
    Halliday + Baillie
  • Designer
    Halliday + Baillie
  • Year
    2019
  • Warranty
    5 years
General
  • Country of origin
    New Zealand
  • Type of use
    Commercial and Residential
  • Package type
    Special packaging required
  • Installation
    Professional installation recommended
  • Assembly
    No assembly required
Specifications

The high security bolt is a double action 20mm length throw with integrated tungsten carbide pins. Known for it’s superior hardness and scratch resistance the pins will hold the bolt secure even under sustained force.

Material : Diecast Zinc, Brass, 316 Stainless Steel

Dimensions (faceplate) : 215mm x 24mm Dimensions (case) : 165mm x 85mm

Backset : 55mm Minimum door thickness : 35mm

Suitable for timber and aluminium doors, or steel doors with an integrated lock box.

Scope of use

Interior/Exterior

Features

The high security bolt is a double action 20mm length throw with integrated tungsten carbide pins. Known for it’s superior hardness and scratch resistance the pins will hold the bolt secure even under sustained force.

Material : Diecast Zinc, Brass, 316 Stainless Steel

Dimensions (faceplate) : 215mm x 24mm Dimensions (case) : 165mm x 85mm

Backset : 55mm Minimum door thickness : 35mm

Suitable for timber and aluminium doors, or steel doors with an integrated lock box.
