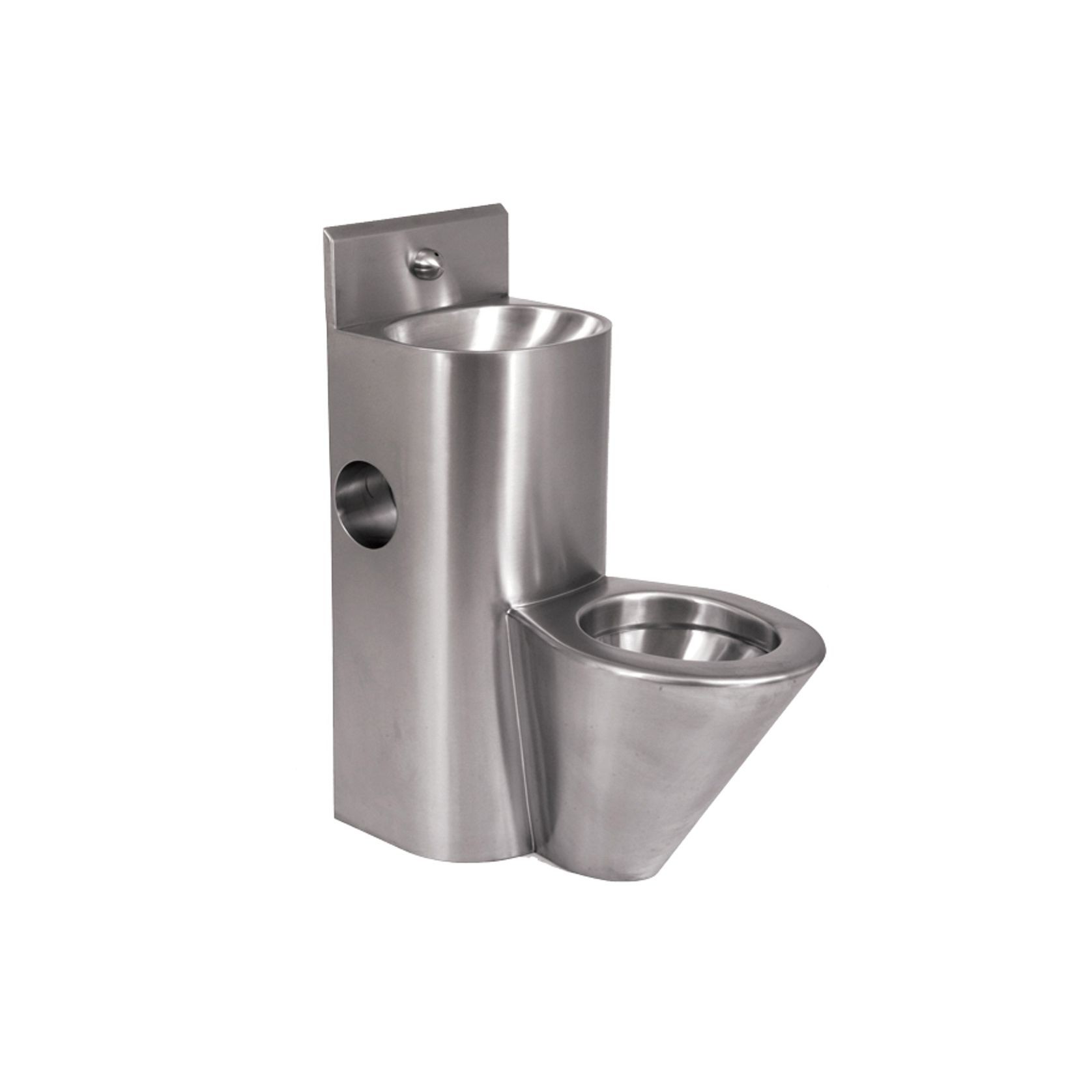

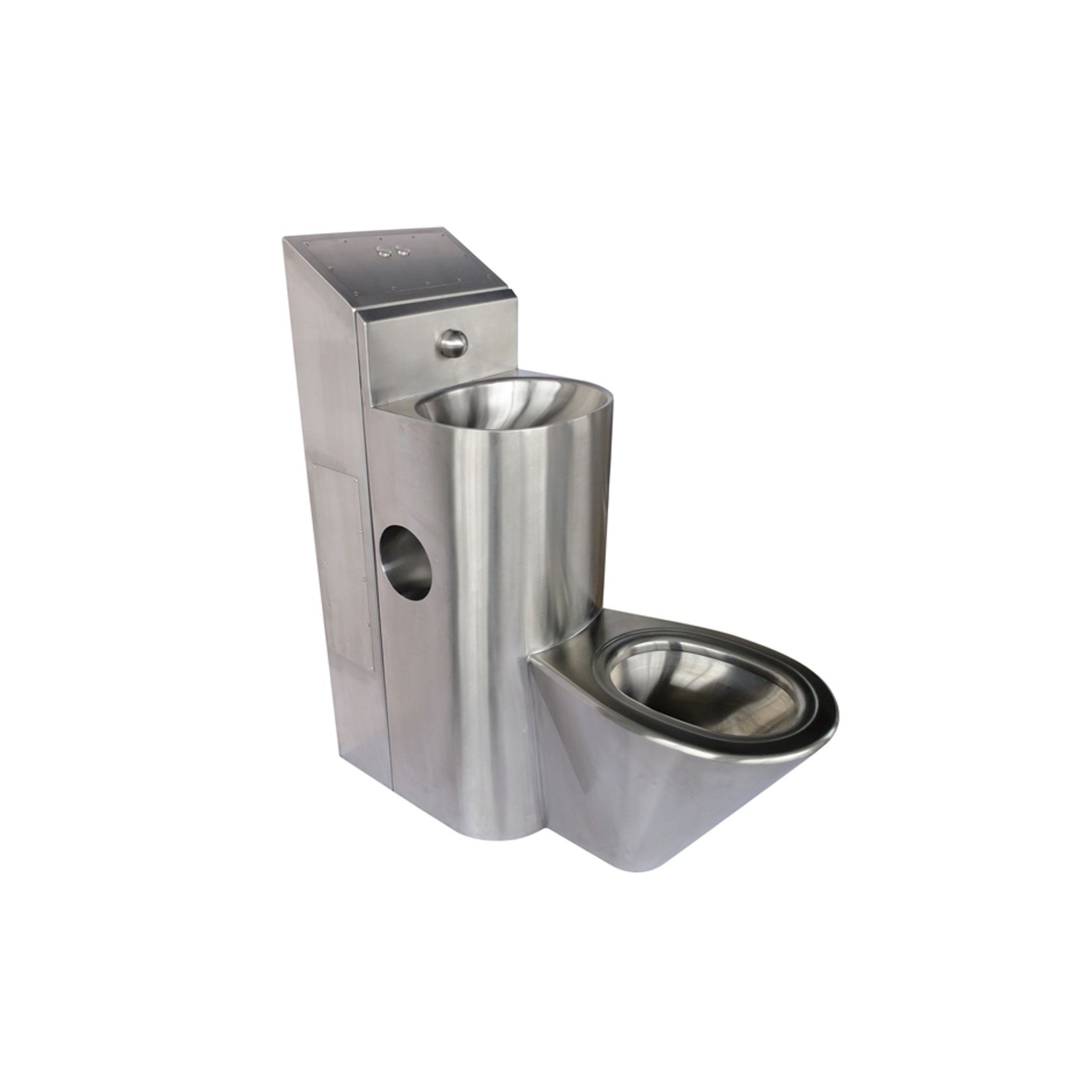

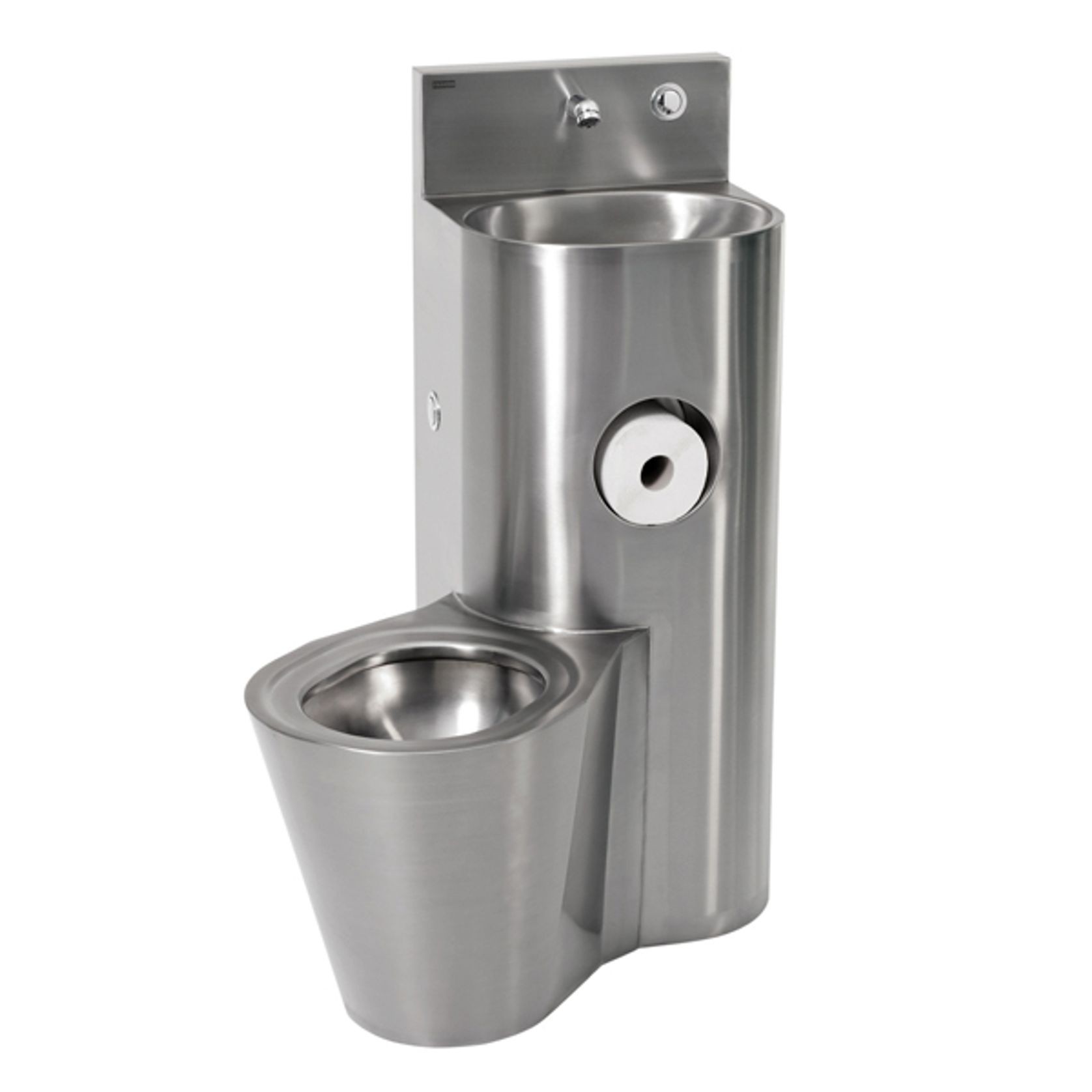

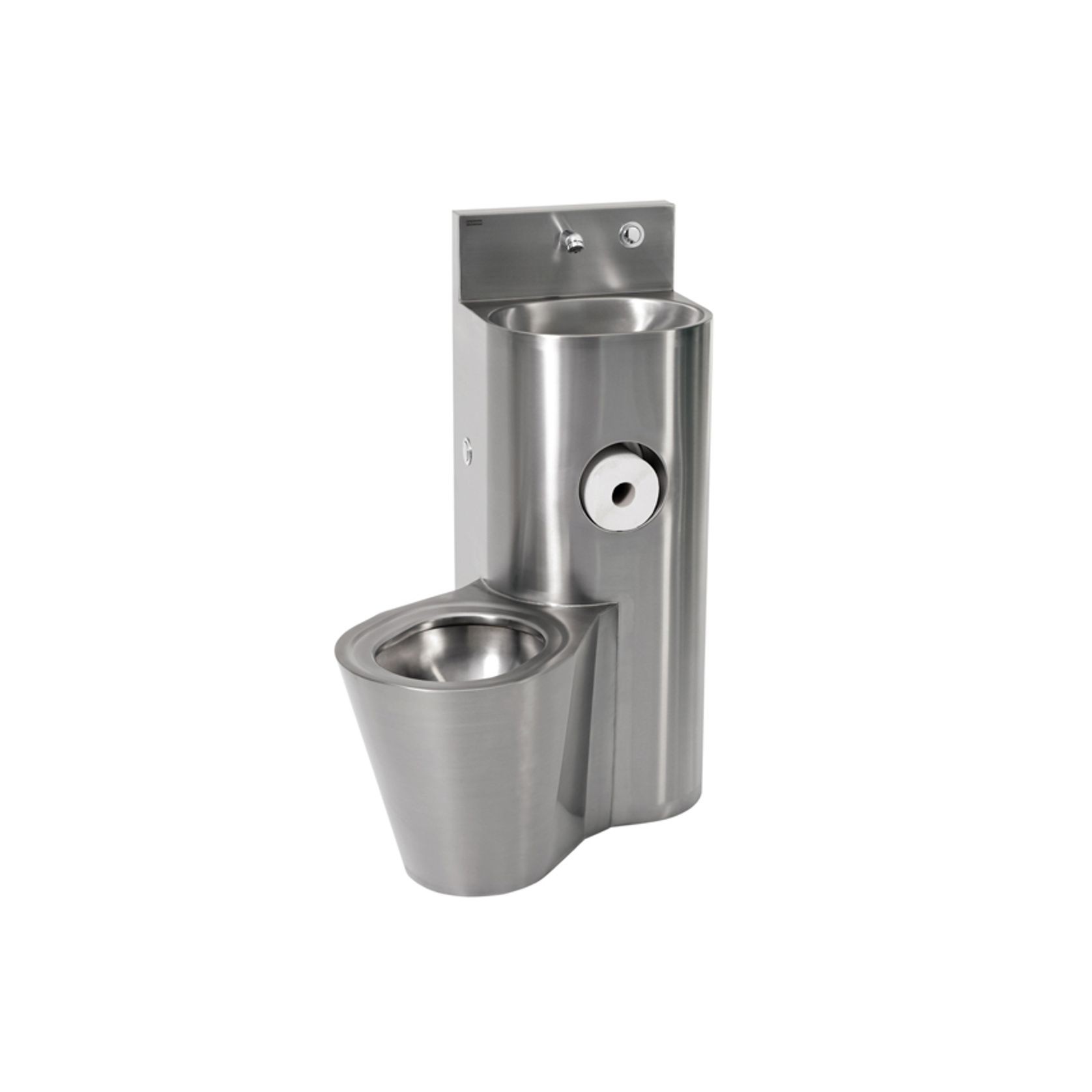

KWC Franke S/S Combination Toilet Pan & Wash Basin

Supplied as standard with LH toilet roll holder but can be supplied on special indent with RH toilet roll holder or without holder. Fabricated in 1.2 and 1.6mm Type 304 stainless steel with a satin finish, the combis are supplied standard without seats but can be fitted with seat pads, specify as required. All Franke WC’s are designed to flush with 6L of water. They are ideal partners for a Zurn Model ZH6152XL flushing valve, Delabie high security water controls or a Warden high security electronic plumbing control - refer separate literature.

The Franke stainless steel combi units are designed for bolting through a wall that is structurally sound where flushing equipment is either installed in wall or in a duct behind the wall. Alternatively they can be installed using a 175mm extension box which allows for surface mounting of all valves - ideal for retrofit applications. The extension box is dynabolted to the wall, all valving installed and then the combi is bolted to the extension box. Access panels allow waste connection and servicing if necessary. This also allows for S trap installations if preferred. Either the straight or angled combi can be fitted to the extension box

They are supplied pre-punched ready for through wall bubbler (specify wall thickness).

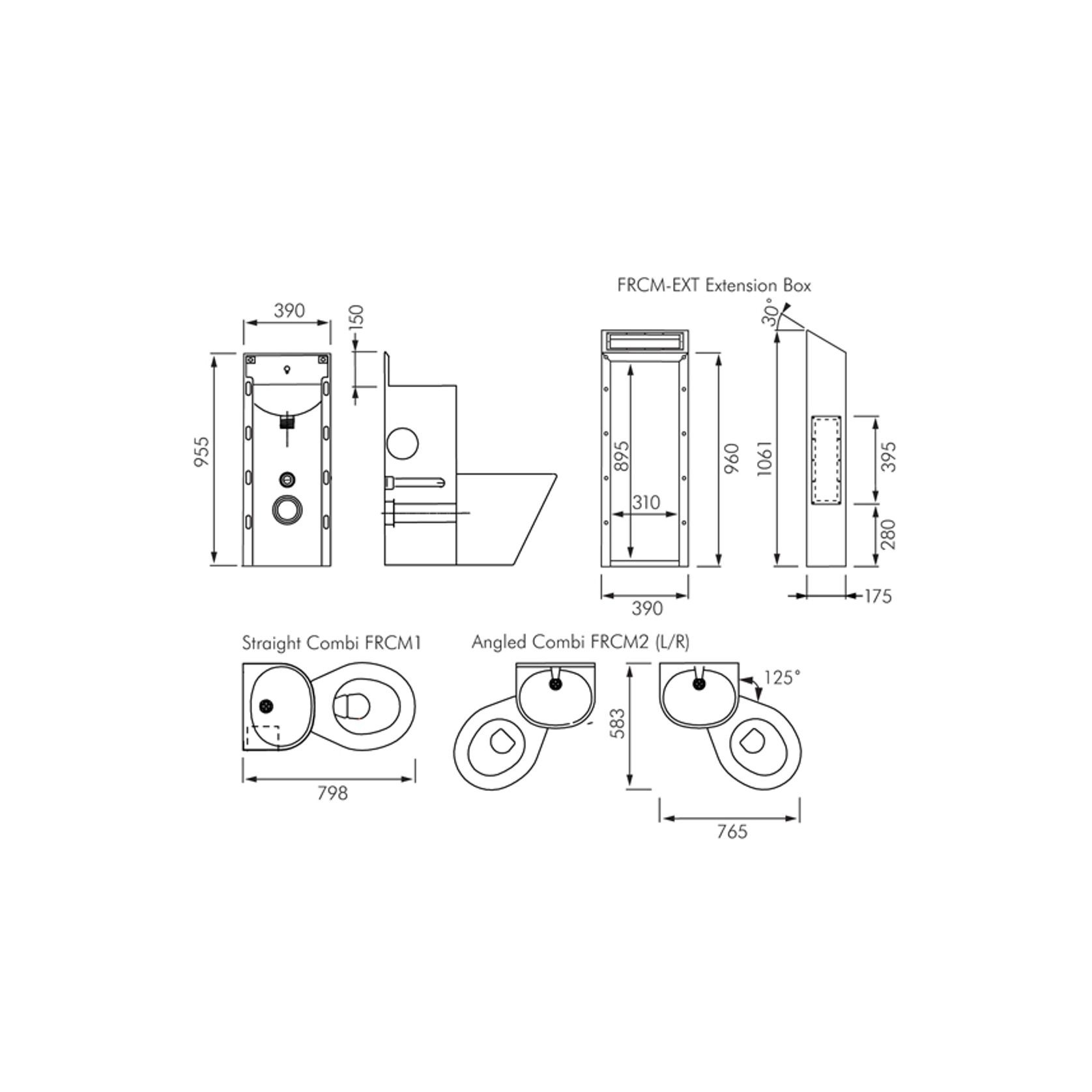

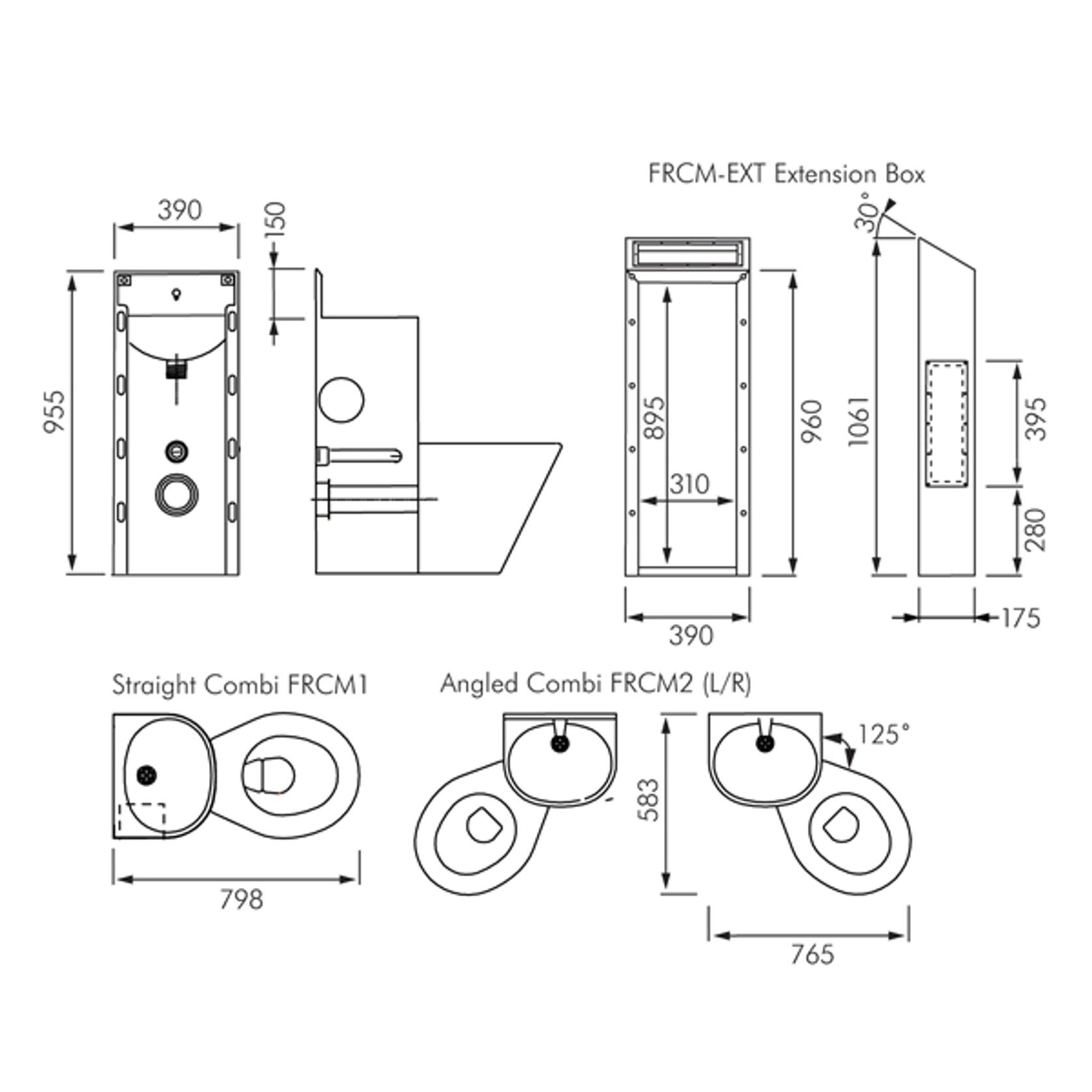

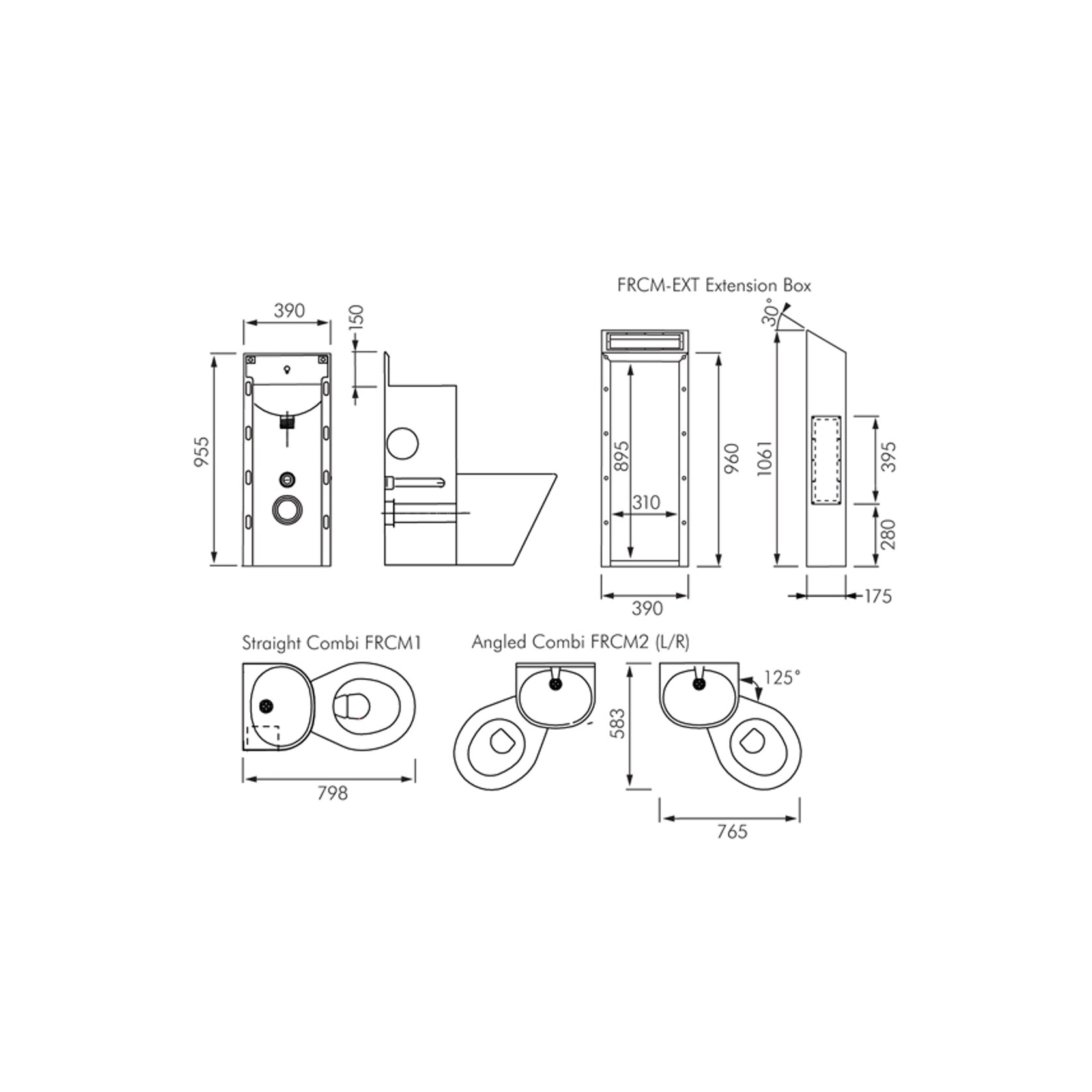

RCM1 - Straight combi
FRCM1-L - Straight combi with left hand toilet roll holder
FRCM1-R - Straight combi with right hand toilet roll holder
FRCM1-A - Straight combi with no toilet roll holder

FRCM2(L/R) - Angled combi (specify LH or RH as you look at it from the front)

FRCM/EXT - 175mm extension box
FRSP - Grey plastic seat pads
