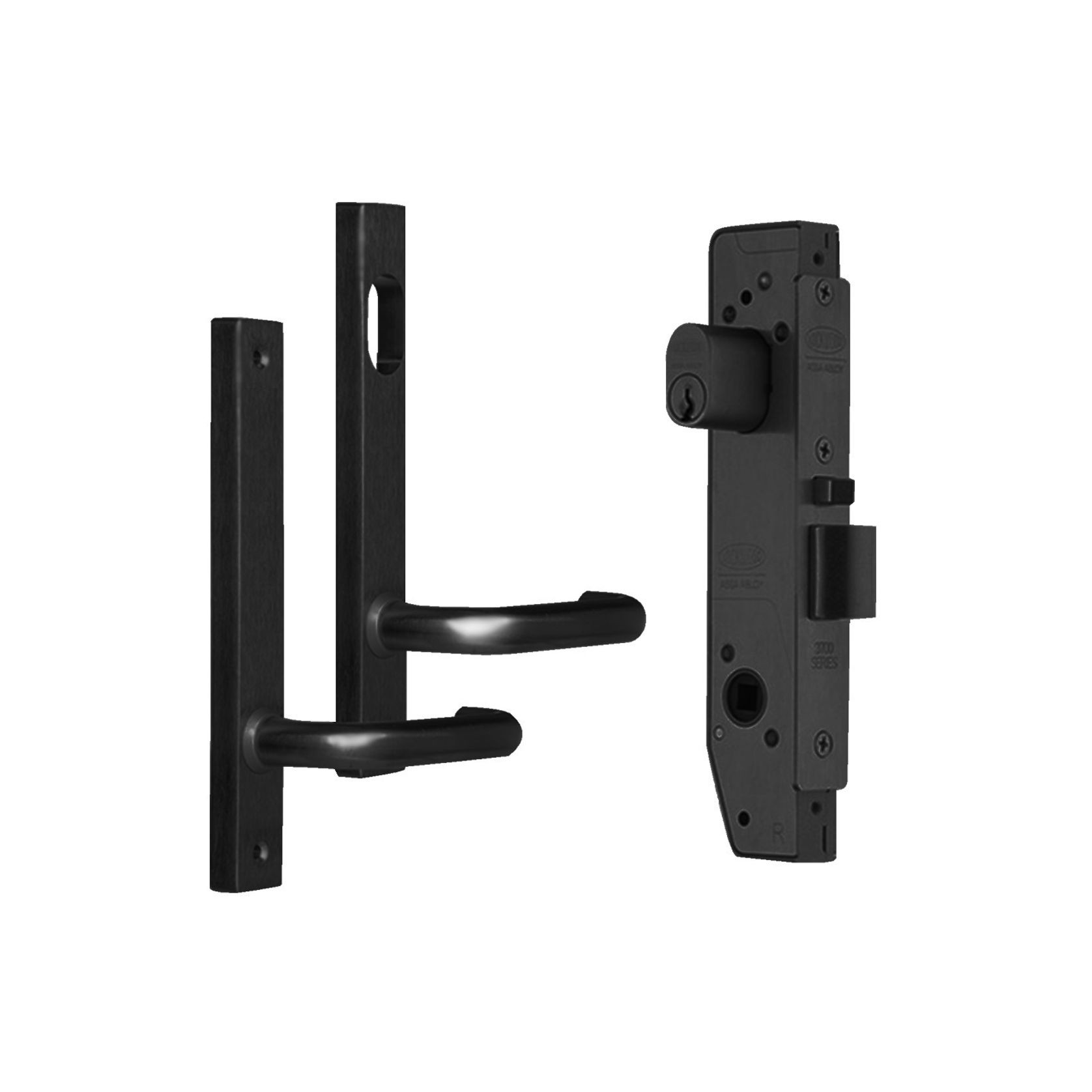

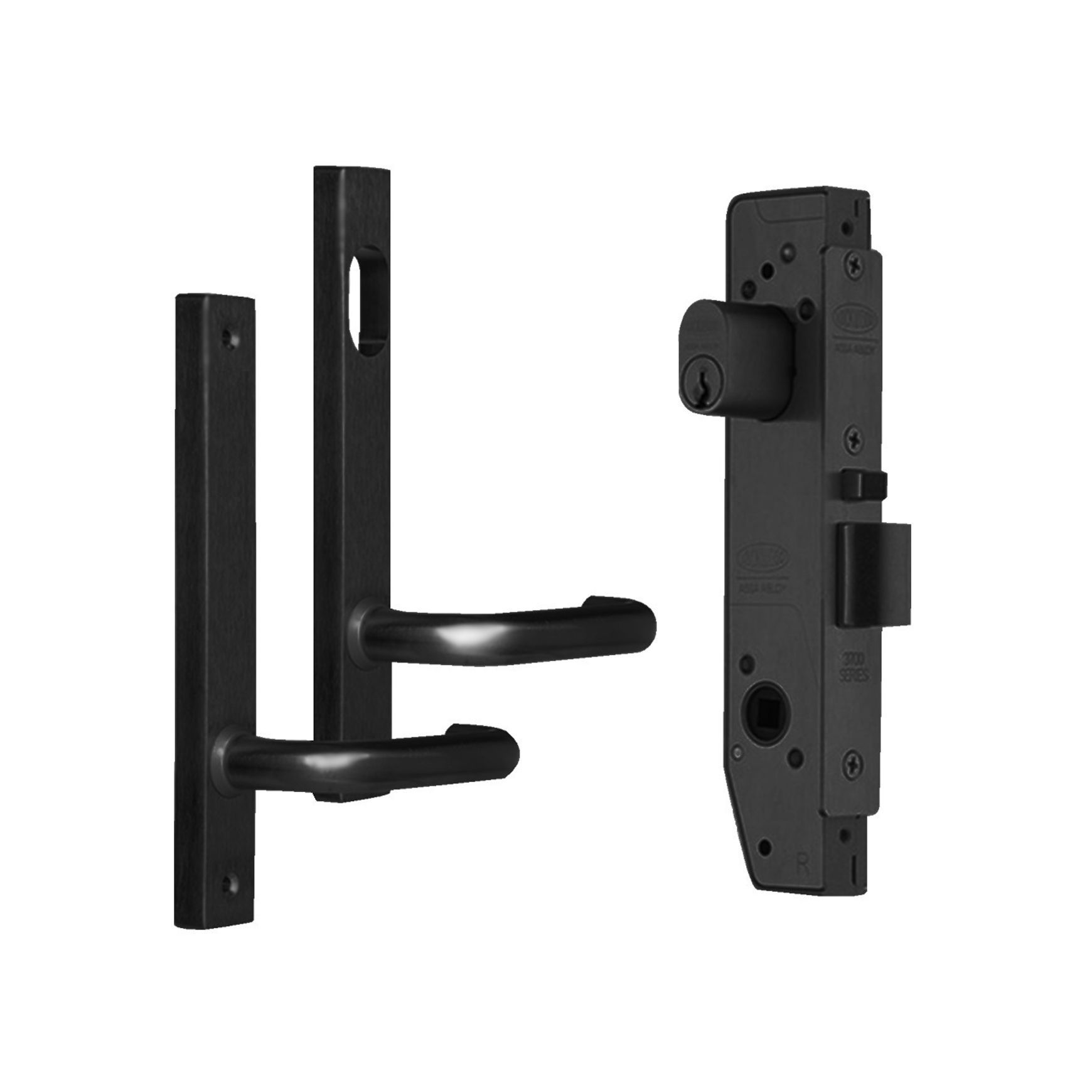

Lockwood Narrow Mortice Lock Kit Cyl/Handles Black

Name: Lockwood Narrow Mortice Lock Kit Cyl/Handles Black
Brand: Lockwood

Wetherill Park, Australia

993.3K profile views
51 saves

Lockwood 3782 Narrow Mortice Lock Kit Classroom Function
3782KIT05MBK

Mortice Lock Function - latch retracted by knob / lever from either side. Deadbolt extended or retracted by key from outside or turn knob from inside.

Features:

Mortice lock

Short backset universal primary mortice lock.
Easy Red /Green function setting.
All lock settings are made from under the faceplate allowing for simple in-door configuration.
Standard primary locks include holdback and anti-lockout capabilities.
Lock is always holdback capable, no setting is required. Holdback can be activated at any time - unless anti-lockout is selected.
Operated by key or handle outside or by turnsnib, key or handle inside.
Zinc diecast body with stainless steel chassis plates for improved strength.
Electric Strike compatibility.
23 mm backset as standard, 25.4, 30 and 38 mm available upon request.
Suits metal door thickness 35-50 mm.
15 mm stainless steel reversible latch bolt.
Supplied with cylinders.
Supplied with Selector® 'V' cam.
Compatible to most restricted keying systems.
Finish: Matt Black

Tags

hardware door hardware door handles door locks handles

Product Details

Product: Lockwood Narrow Mortice Lock Kit Cyl/Handles Black
Category: Digital Door Locks
Sold by: Keeler Hardware
Range: Lockwood
Brand: Lockwood
Country of origin: Australia
Type of use: Commercial and Residential
Package type: Fragile - handle with care
Care and cleaning: Easy maintenance
Installation: Tools required
Assembly: Professional assembly recommended

Product Variants

Colours
Backset
Door Thickness

Keeler Hardware is specified by

(34) Professionals

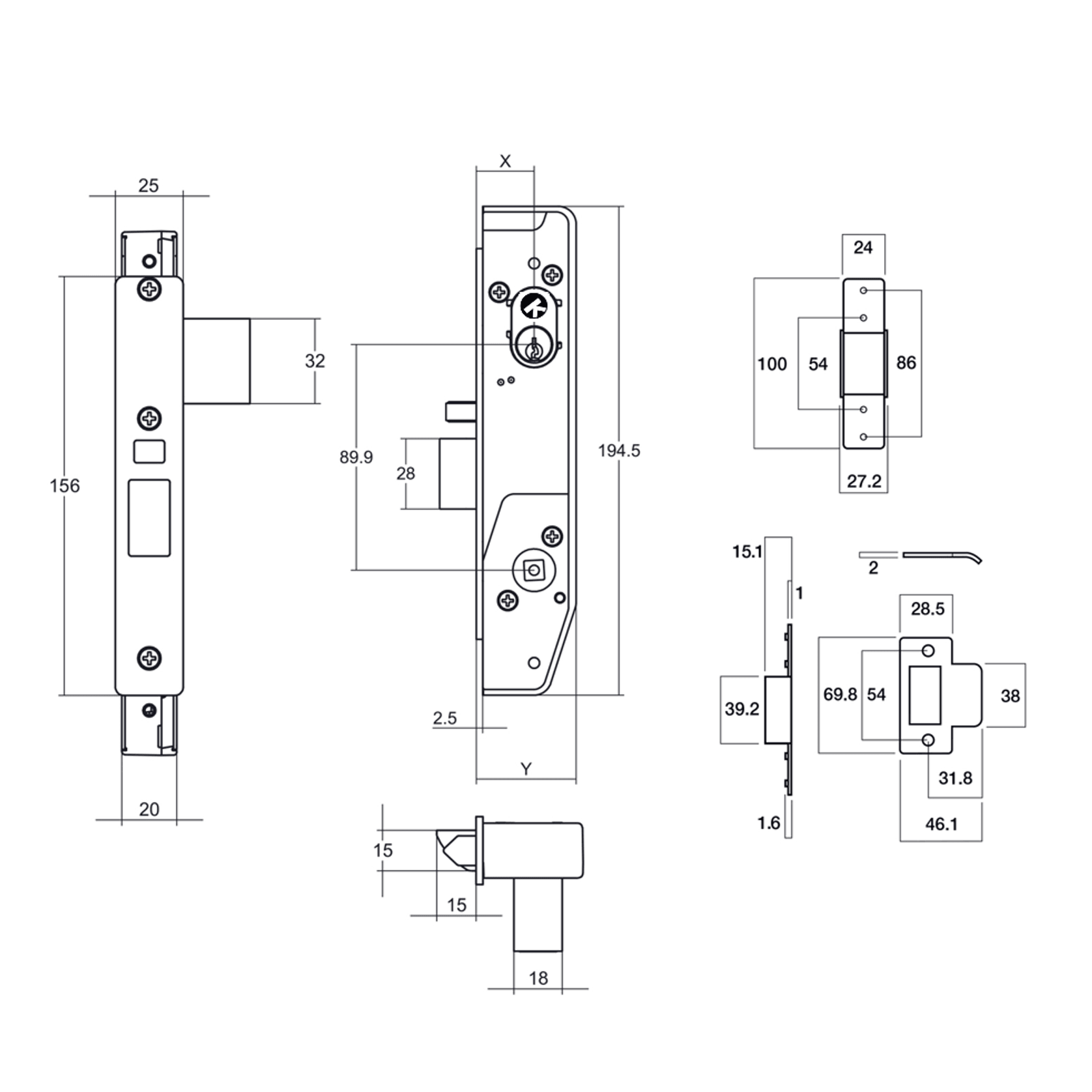

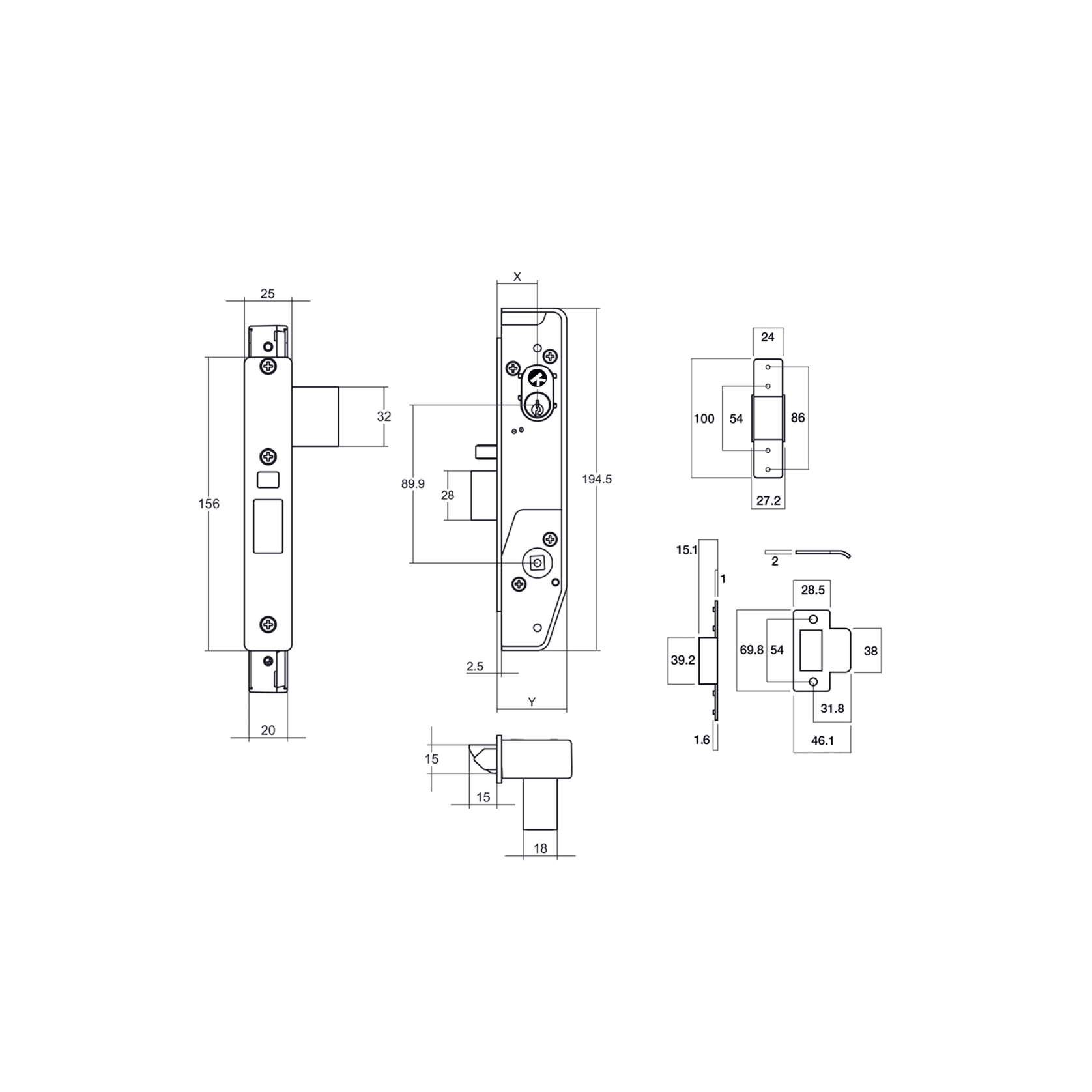

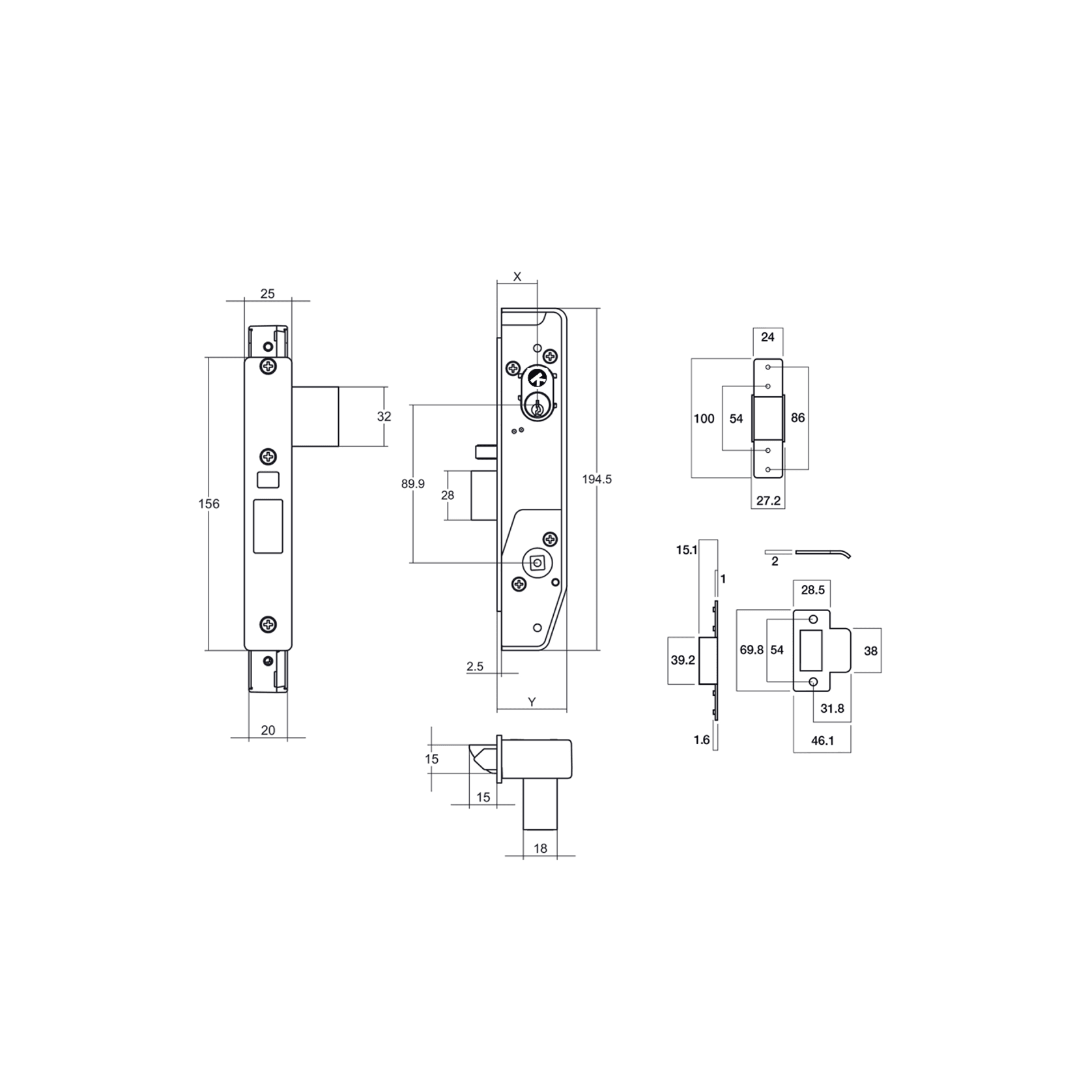

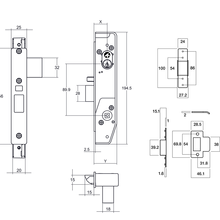

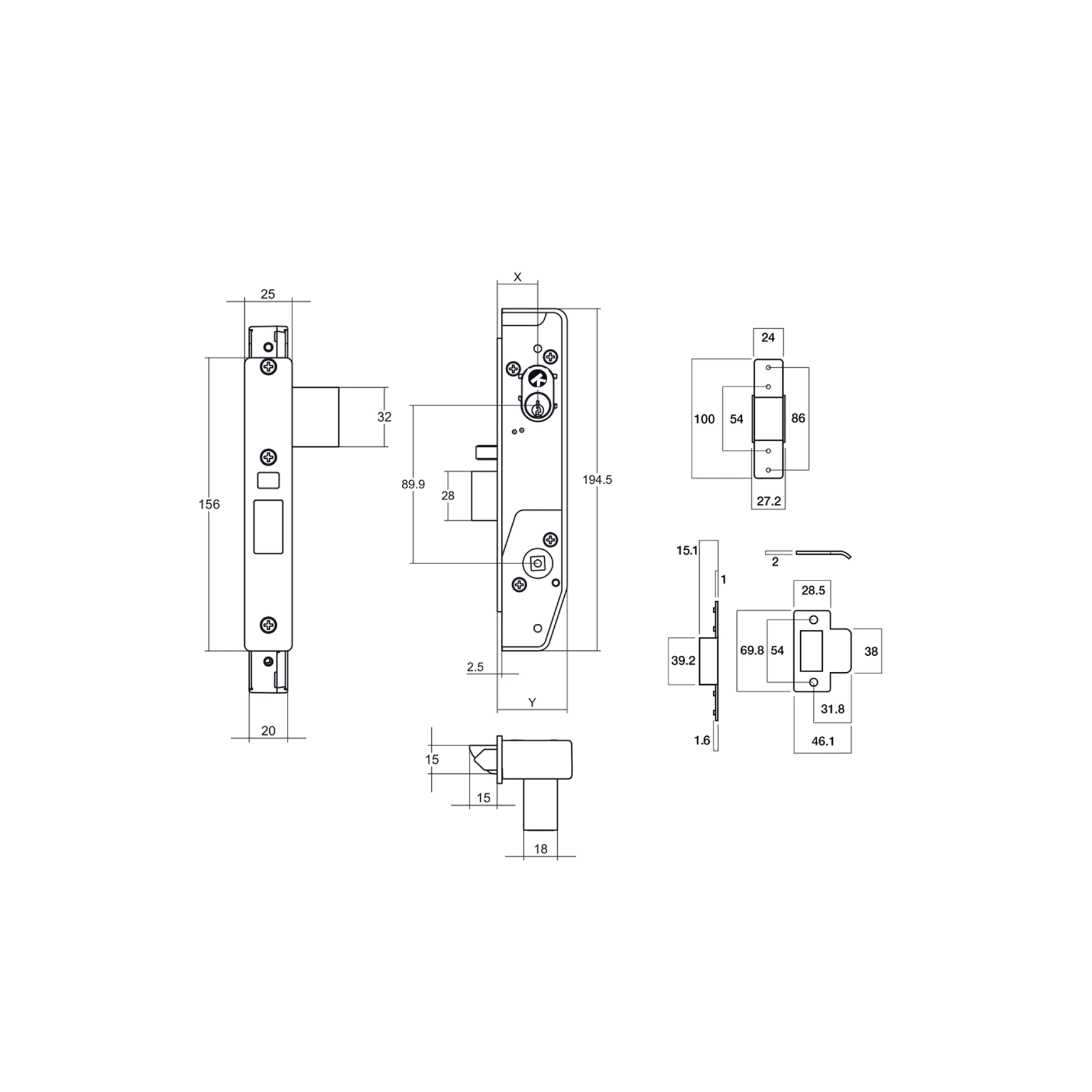

Lockwood Narrow Mortice Lock Kit Cyl/Handles Black dimensions

Visit site

Deadbolt extended or retracted by key from outside or turn knob from inside. Features: Mortice lock Short backset universal primary mortice lock. Easy Red /Green function setting. All lock settings are made from under the faceplate allowing for simple in-door configuration. Standard primary locks include holdback and anti-lockout capabilities. Lock is always holdback capable, no setting is required. Holdback can be activated at any time - unless anti-lockout is selected. Operated by key or handle outside or by turnsnib, key or handle inside. Zinc diecast body with stainless steel chassis plates for improved strength. Electric Strike compatibility. 23 mm backset as standard, 25.4, 30 and 38 mm available upon request. Suits metal door thickness 35-50 mm. 15 mm stainless steel reversible latch bolt. Supplied with cylinders. Supplied with Selector® 'V' cam. Compatible to most restricted keying systems. Finish: Matt Black

Lockwood 3782 Narrow Mortice Lock Kit Classroom Function3782KIT05MBK Mortice Lock Function - latch retracted by knob / lever from either side.

Deadbolt extended or retracted by key from outside or turn knob from inside.

Features:

Mortice lock

Short backset universal primary mortice lock.
Easy Red /Green function setting.
All lock settings are made from under the faceplate allowing for simple in-door configuration.
Standard primary locks include holdback and anti-lockout capabilities.
Lock is always holdback capable, no setting is required. Holdback can be activated at any time - unless anti-lockout is selected.
Operated by key or handle outside or by turnsnib, key or handle inside.
Zinc diecast body with stainless steel chassis plates for improved strength.
Electric Strike compatibility.
23 mm backset as standard, 25.4, 30 and 38 mm available upon request.
Suits metal door thickness 35-50 mm.
15 mm stainless steel reversible latch bolt.
Supplied with cylinders.
Supplied with Selector® 'V' cam.
Compatible to most restricted keying systems.
Finish: Matt Black

Specs

External furniture

Narrow stile exterior square end plate.
Cylinder hole and 70 series tubular lever.
Concealed fixing.
Plates are designed to fit back to back.
External plates supplied with fixing screws.
Disabled access AS1428.1 compliant lever.
Plate size: 185 x 26 x 11.5 mm.
Door Thickness: 32-50 mm.
Screw fixing centres: 160 mm.
Finish: Matt Black

Internal furniture

Narrow stile internal square end plate.
Plain plate and 70 series tubular lever.
Visible fixing.
Plates are designed to fit back to back.
Disabled access AS1428.1 compliant lever.
Plate size: 185 x 26 x 11.5 mm.
Door Thickness: 32-50 mm.
Fixing holes centres: 160 mm.
Finish: Matt Black

Technical Specifications

AS1428.1 Compliant Lever (AS1428.1CO): Yes
Classroom Function: Yes
Includes Cylinder/s: Yes
Narrow Stile Kit 23 mm: Yes
Square End Furniture: Yes

Scope of use

Mortice Lock a pocket cut into the short edge of the door, allows a longer and thicker mortise box to slide into the door itself, providing superior protection.

What's in the box

Includes:

1 x Lockwood Selector Mortice Lock 23mm Backset (3782SS)
1 x Lockwood 4800 Series Square End Narrow Plate Internal Furniture (4801/70SC)
1 x Lockwood 4800 Series Square End Narrow Plate External Furniture (4905/70SC)
1 x Lockwood 570 Oval Cylinder (570C4/VSC)
