Lockwood Narrow Mortice Lock Kit Black 3782KIT01MBK

Name: Lockwood Narrow Mortice Lock Kit Black 3782KIT01MBK
Brand: Lockwood

Wetherill Park, Australia

993.3K profile views
51 saves

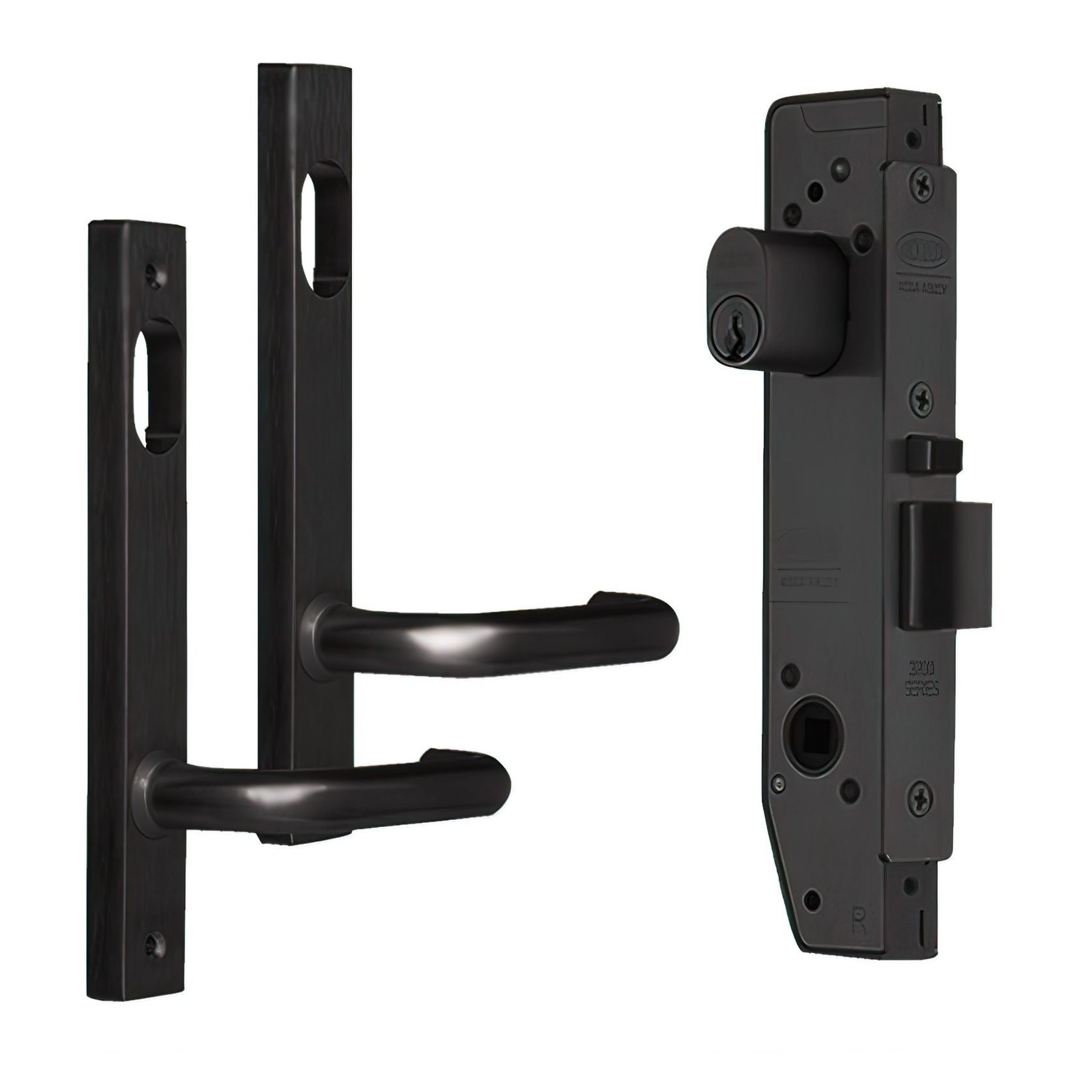

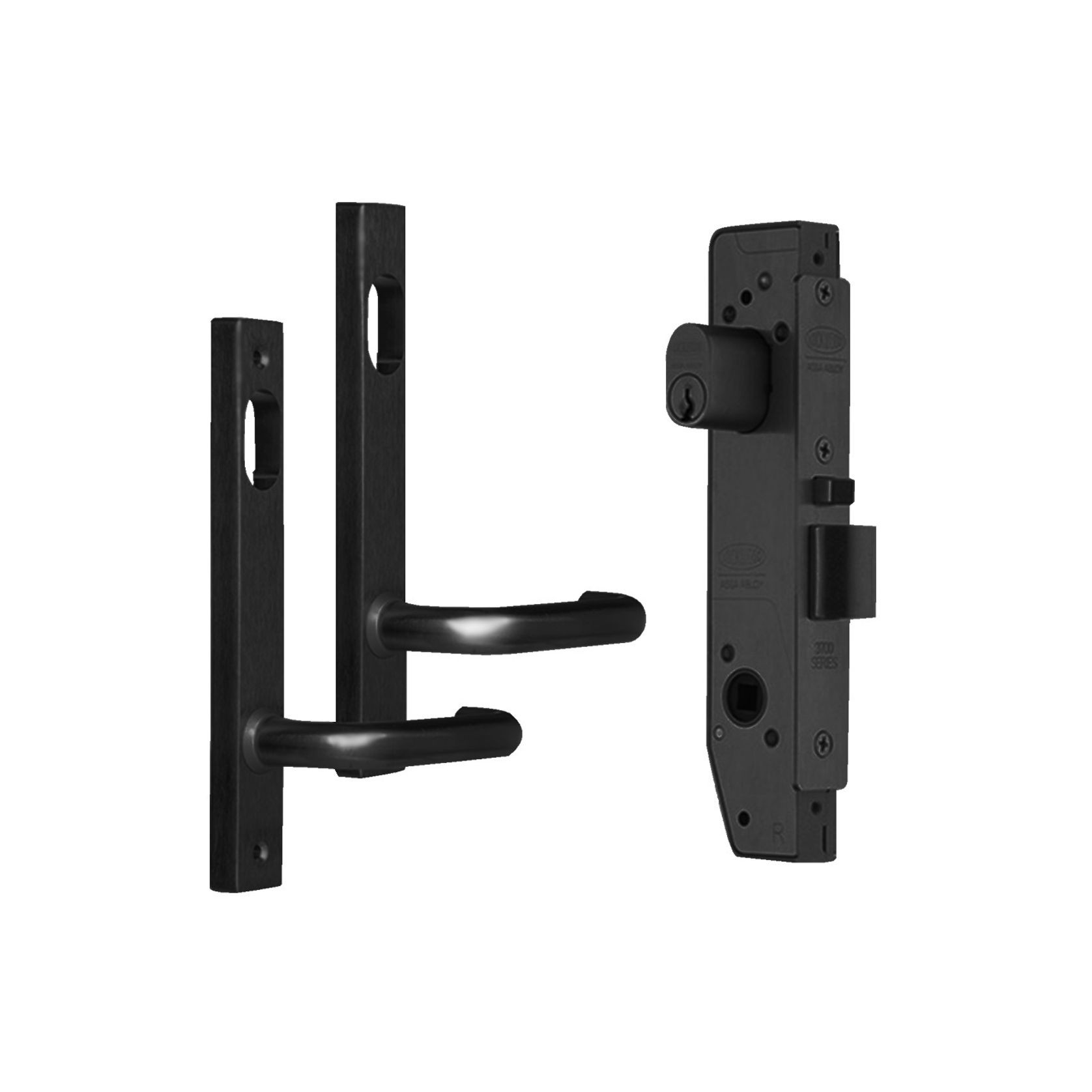

Lockwood 3782 Narrow Mortice Lock Kit with Double Cylinder
3782KIT01MBK

Mortice Lock Function - latch retracted by knob / lever from either side. Deadbolt extended or retracted by key from outside or turn knob from inside.

Lockwood Universal Backset Mortice Lock

Features:

Short backset universal primary mortice lock
Easy Red /Green function setting.
All lock settings are made from under the faceplate allowing for simple in-door configuration
Standard primary locks include holdback and anti-lockout capabilities
Lock is always holdback capable, no setting is required. Holdback can be activated at any time - unless anti-lockout is selected
Operated by key or handle outside or by turnsnib, key or handle inside
Electric Strike compatibility
Supplied with cylinders
Supplied with Selector 'V' cam
Compatible to most restricted keying systems

Specifications:

Backset: 23mm
Door Thickness: 35mm - 50mm
Latch Bolt: Reversible 15mm Stainless Steel
Material:Body: Zinc Diecast
Chassis: Stainless Steel plates
Finish: Matt Black

Approvals/Rating:

Security S7, Corrosion Security C6, Durability D8

Lockwood External and Internal Lever on Plate

Features:

Narrow stile exterior square end plate
Cylinder hole and 70 series tubular lever
Plates are designed to fit back to back
External plates supplied with fixing screws

Specifications:

Fixing: Concealed
Plate Size:Height: 185mm
Width: 26mm
Depth: 11.5mm
Cylinder pitch: 89.9mm
Fixing centres: 160mm
Lever Size:Length: 121mm
Projection: 53mm
Finger clearance: 37mm
Door Thickness: 32mm to 50mm
Screw Fixing Centres: 160 mm
Disabled Access: AS1428.1 Compliant Lever
Finish: Matt Black

Lockwood 570 Oval Cylinder

Features:

Keyed Cylinder single side only
Standard V cam included
Securiturn compatible
Supplied keyed as random
Cylinder can be keyed alike allowing one key to operate a range of different products
Accepts Lockwood Generation 6 BG6570 plug / barrel

Specifications:

Material: Brass cylinder
Width: 18mm
Length: 34mm
Height: 32mm
Finish: Matt Black

Tags

hardware door hardware door handles door locks handles

Product Details

Product: Lockwood Narrow Mortice Lock Kit Black 3782KIT01MBK
Category: Digital Door Locks
Sold by: Keeler Hardware
Size: 34mm
Range: Lockwood
Brand: Lockwood

Keeler Hardware is specified by

(34) Professionals

Lockwood Narrow Mortice Lock Kit Black 3782KIT01MBK

Visit site

Deadbolt extended or retracted by key from outside or turn knob from inside. Lockwood Universal Backset Mortice Lock Features: Short backset universal primary mortice lock Easy Red /Green function setting. All lock settings are made from under the faceplate allowing for simple in-door configuration Standard primary locks include holdback and anti-lockout capabilities Lock is always holdback capable, no setting is required. Holdback can be activated at any time - unless anti-lockout is selected Operated by key or handle outside or by turnsnib, key or handle inside Electric Strike compatibility Supplied with cylinders Supplied with Selector 'V' cam Compatible to most restricted keying systems Specifications: Backset: 23mm Door Thickness: 35mm - 50mm Latch Bolt: Reversible 15mm Stainless Steel Material:Body: Zinc Diecast Chassis: Stainless Steel plates Finish: Matt Black Approvals/Rating: Security S7, Corrosion Security C6, Durability D8 Lockwood External and Internal Lever on Plate Features: Narrow stile exterior square end plate Cylinder hole and 70 series tubular lever Plates are designed to fit back to back External plates supplied with fixing screws Specifications: Fixing: Concealed Plate Size:Height: 185mm Width: 26mm Depth: 11.5mm Cylinder pitch: 89.9mm Fixing centres: 160mm Lever Size:Length: 121mm Projection: 53mm Finger clearance: 37mm Door Thickness: 32mm to 50mm Screw Fixing Centres: 160 mm Disabled Access: AS1428.1 Compliant Lever Finish: Matt Black Lockwood 570 Oval Cylinder Features: Keyed Cylinder single side only Standard V cam included Securiturn compatible Supplied keyed as random Cylinder can be keyed alike allowing one key to operate a range of different products Accepts Lockwood Generation 6 BG6570 plug / barrel Specifications: Material: Brass cylinder Width: 18mm Length: 34mm Height: 32mm Finish: Matt Black

Lockwood 3782 Narrow Mortice Lock Kit with Double Cylinder3782KIT01MBK Mortice Lock Function - latch retracted by knob / lever from either side.

Deadbolt extended or retracted by key from outside or turn knob from inside.

Lockwood Universal Backset Mortice Lock

Features:

Short backset universal primary mortice lock
Easy Red /Green function setting.
All lock settings are made from under the faceplate allowing for simple in-door configuration
Standard primary locks include holdback and anti-lockout capabilities
Lock is always holdback capable, no setting is required. Holdback can be activated at any time - unless anti-lockout is selected
Operated by key or handle outside or by turnsnib, key or handle inside
Electric Strike compatibility
Supplied with cylinders
Supplied with Selector 'V' cam
Compatible to most restricted keying systems

Specifications:

Backset: 23mm
Door Thickness: 35mm - 50mm
Latch Bolt: Reversible 15mm Stainless Steel
Material:Body: Zinc Diecast
Chassis: Stainless Steel plates
Finish: Matt Black

Approvals/Rating:

Security S7, Corrosion Security C6, Durability D8

Lockwood External and Internal Lever on Plate

Features:

Narrow stile exterior square end plate
Cylinder hole and 70 series tubular lever
Plates are designed to fit back to back
External plates supplied with fixing screws

Specifications:

Fixing: Concealed
Plate Size:Height: 185mm
Width: 26mm
Depth: 11.5mm
Cylinder pitch: 89.9mm
Fixing centres: 160mm
Lever Size:Length: 121mm
Projection: 53mm
Finger clearance: 37mm
Door Thickness: 32mm to 50mm
Screw Fixing Centres: 160 mm
Disabled Access: AS1428.1 Compliant Lever
Finish: Matt Black

Lockwood 570 Oval Cylinder

Features:

Keyed Cylinder single side only
Standard V cam included
Securiturn compatible
Supplied keyed as random
Cylinder can be keyed alike allowing one key to operate a range of different products
Accepts Lockwood Generation 6 BG6570 plug / barrel

Specifications:

Material: Brass cylinder
Width: 18mm
Length: 34mm
Height: 32mm
Finish: Matt Black

Specs: SPECIFICATIONS: Material:Brass cylinder Width: 18mm Length: 34mm Height: 32mm Finish: Matt Black
Scope of use: Mortice Lock a pocket cut into the short edge of the door, allows a longer and thicker mortise box to slide into the door itself, providing superior protection.
What's in the box: Includes:

1 x Lockwood Universal Primary Lock 23mm Backset (3782SS)

1 x Lockwood 4800 Series Square End Narrow Plate Internal Furniture (4801/70SC)

1 x Lockwood 4800 Series Square End Narrow Plate External Furniture (4901/70SC)

1 x Lockwood 570 Oval Cylinder (570C4/VSC)
