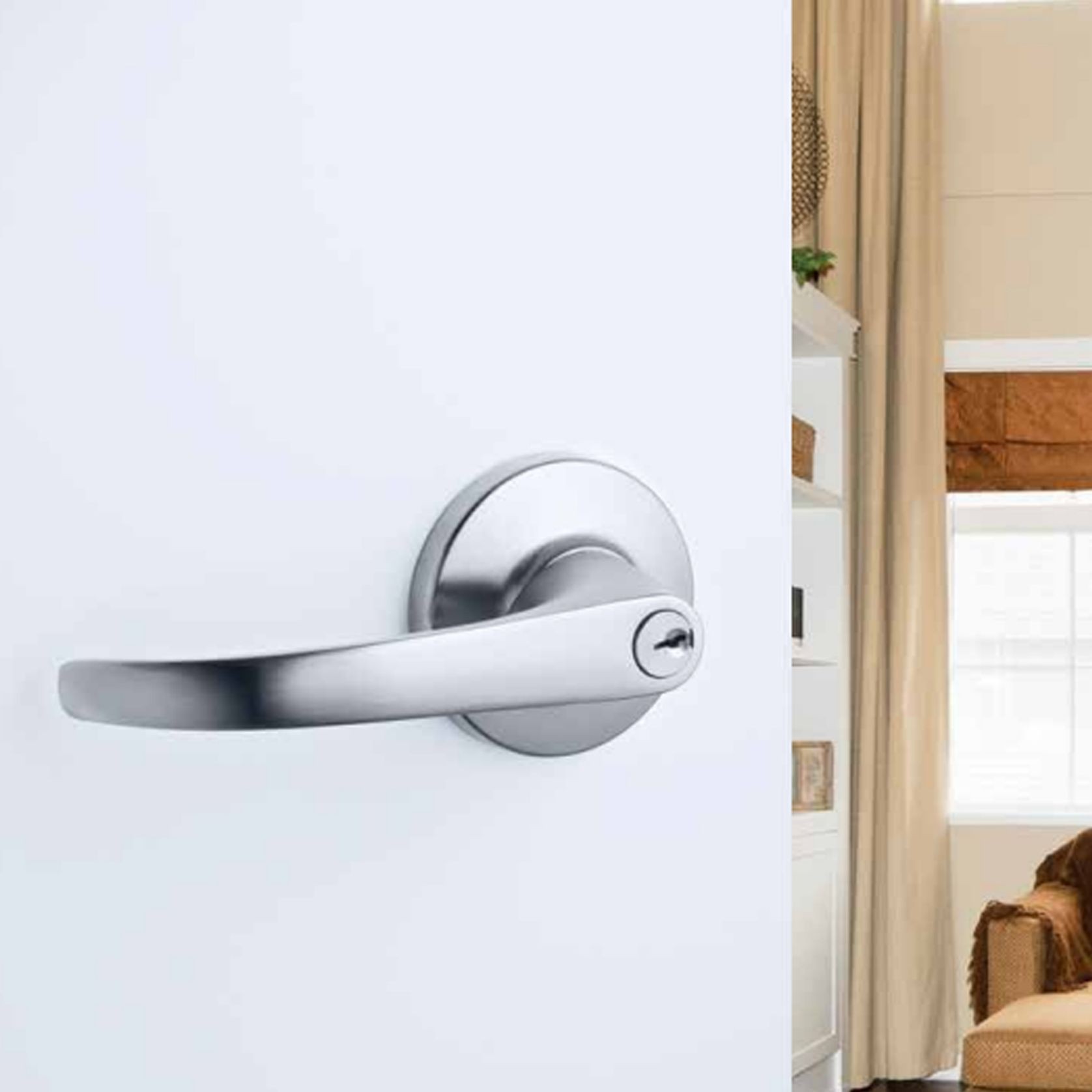

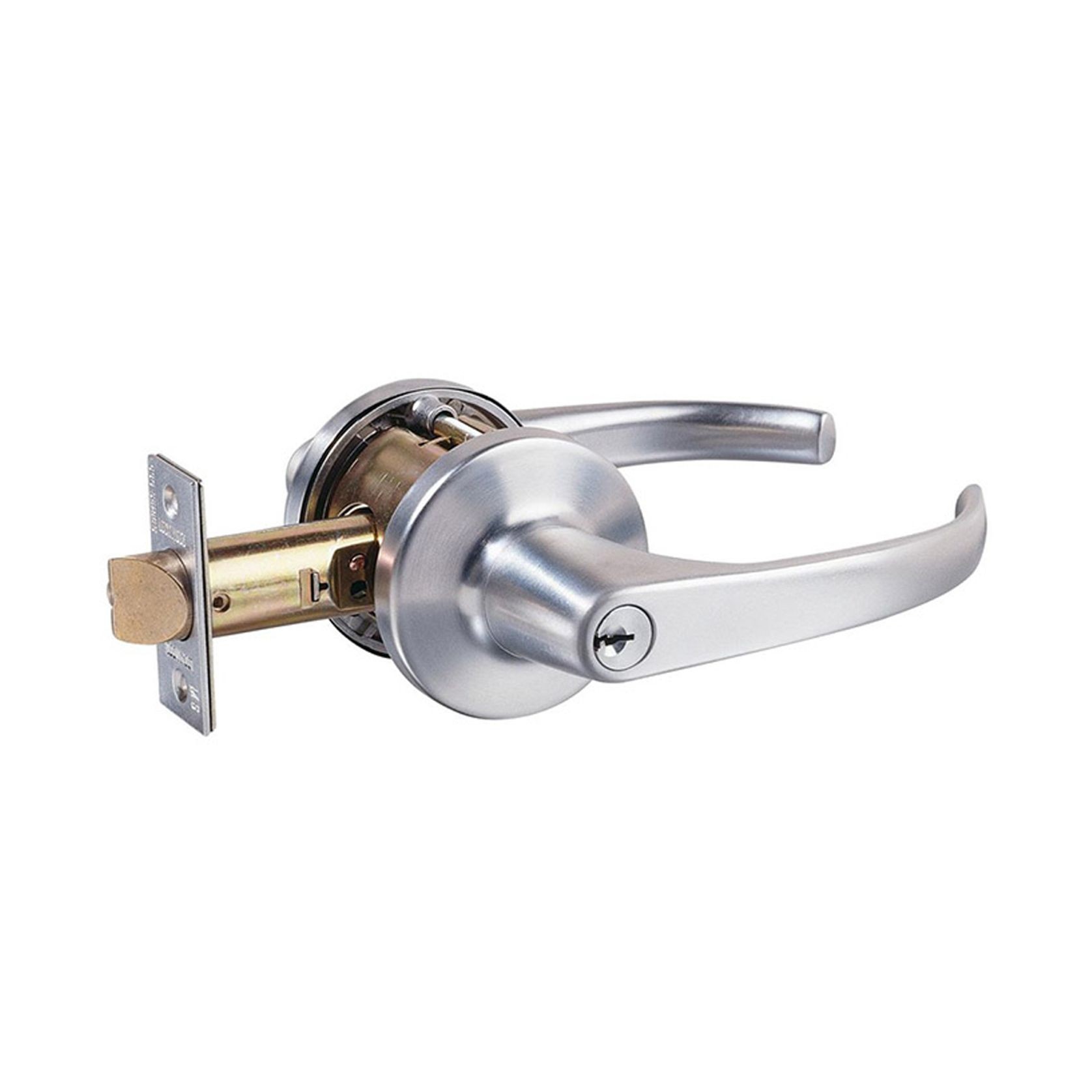

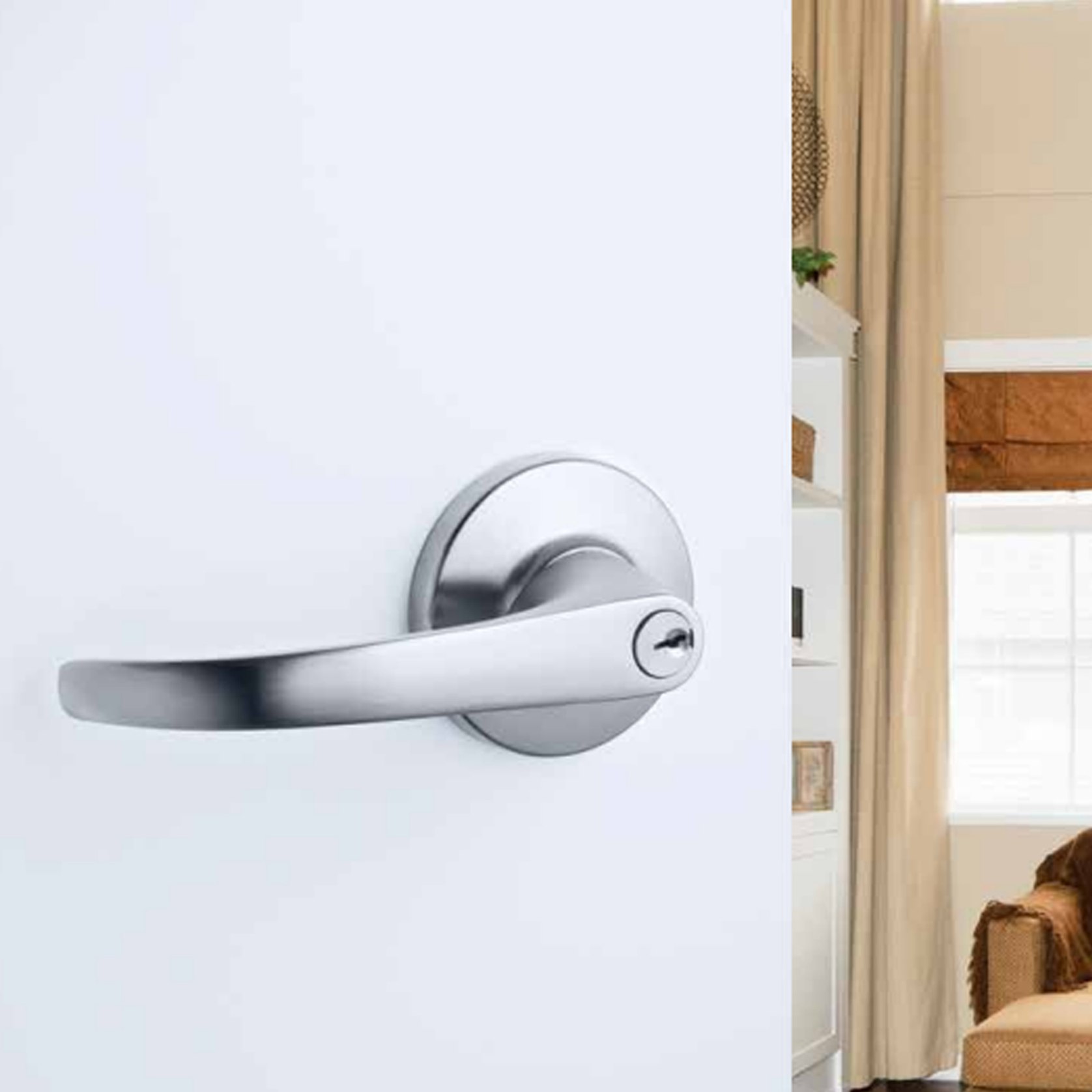

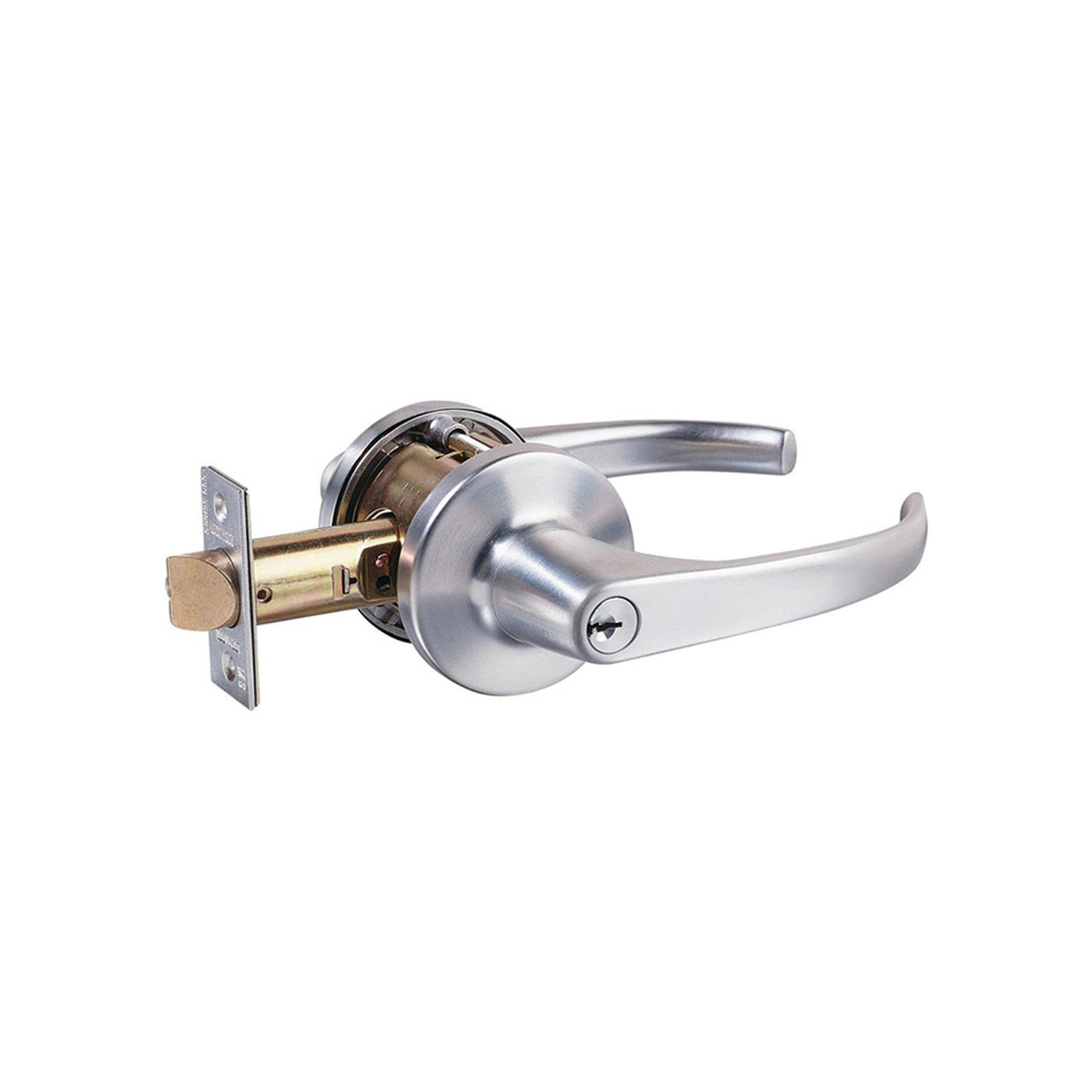

Lockwood 930 Series Entrance Lever Set
930SC
Entrance Lever iscommonly used in residential homes, apartments, schools, libraries, and small commercial buildings.
Entrance Lever Function - Turn/push-button locking, pushing and turning button locks outside lever requiring the use of key until button is manually unlocked Push-button locking: pushing button locks outside lever until unlocked by key or by turning inside lever.
- Produced from high purity zinc alloy and are available in a comprehensive range of functions.
- Designed as a non‑handed, easy‑to‑install lockset.
- Suitable for residential and semi-commercial applications including office partitioning.
Product Details
- Product
- Lockwood 930 Series Entrance Lever Set Satin Chrome Fire Rated 930SC
- Category
- Lever Handles
- Sold by
- Keeler Hardware
- Range
- Lockwood
Keeler Hardware is specified by
Ian Moore ArchitectsArchitects
Cadence & CoArchitects
TDDP ArchitectsArchitects
R ARCHITECTUREArchitects
JOST ArchitectsArchitects
Ha ArchitectureArchitects
Habitat Studio ArchitectsArchitects
Bones StudioArchitects
Dieppe DesignArchitects
J Mammone ArchitectureArchitects
De Moyer ArchitectureArchitects
Bryant Alsop ArchitectsArchitects
Ironbark ArchitectureArchitects
Invilla ArchitectureArchitects
Scale ArchitectureArchitects
Alexander &CO.Architects
Bijl ArchitectureArchitects
Hive ArchitectureArchitects
David Baillie ArchitectArchitects
Anderson ArchitectureArchitects
mcmahon and nerlichArchitects
Schemes & SpacesInterior Designers
Rise Architectural BuildersBuilders
STUDIO GAXAInterior Designers
X + OInterior DesignersDasch AssociatesInterior Designers
Susie Miles DesignInterior Designers
TrueBuild HomesDesign & Build
New SpacesBuilders
Ilm InteriorsJoiners
APC BuildBuilders
Kate NixonInterior Designers
Jumble & StackInterior Designers
Lockwood 930 Series Entrance Lever Set 930SC Entrance Lever iscommonly used in residential homes, apartments, schools, libraries, and small commercial buildings.
Entrance Lever Function - Turn/push-button locking, pushing and turning button locks outside lever requiring the use of key until button is manually unlocked Push-button locking: pushing button locks outside lever until unlocked by key or by turning inside lever.
- Produced from high purity zinc alloy and are available in a comprehensive range of functions.
- Designed as a non‑handed, easy‑to‑install lockset.
- Suitable for residential and semi-commercial applications including office partitioning.
- Specs
Features:
- Commercial grade entrance lever set.
- Outside key locks and unlocks both levers.
- Inside snib locks and unlocks both levers.
- Compatible with most restricted keying systems.
- Baffle (shroud) prevents over-tightening when installing.
- 5 pin tumbler mechanism
- Brass cylinder and brass barrel
- Supplied individually keyed with two keys per lock
- 78,000 key combinations
- Key blank KB2015P

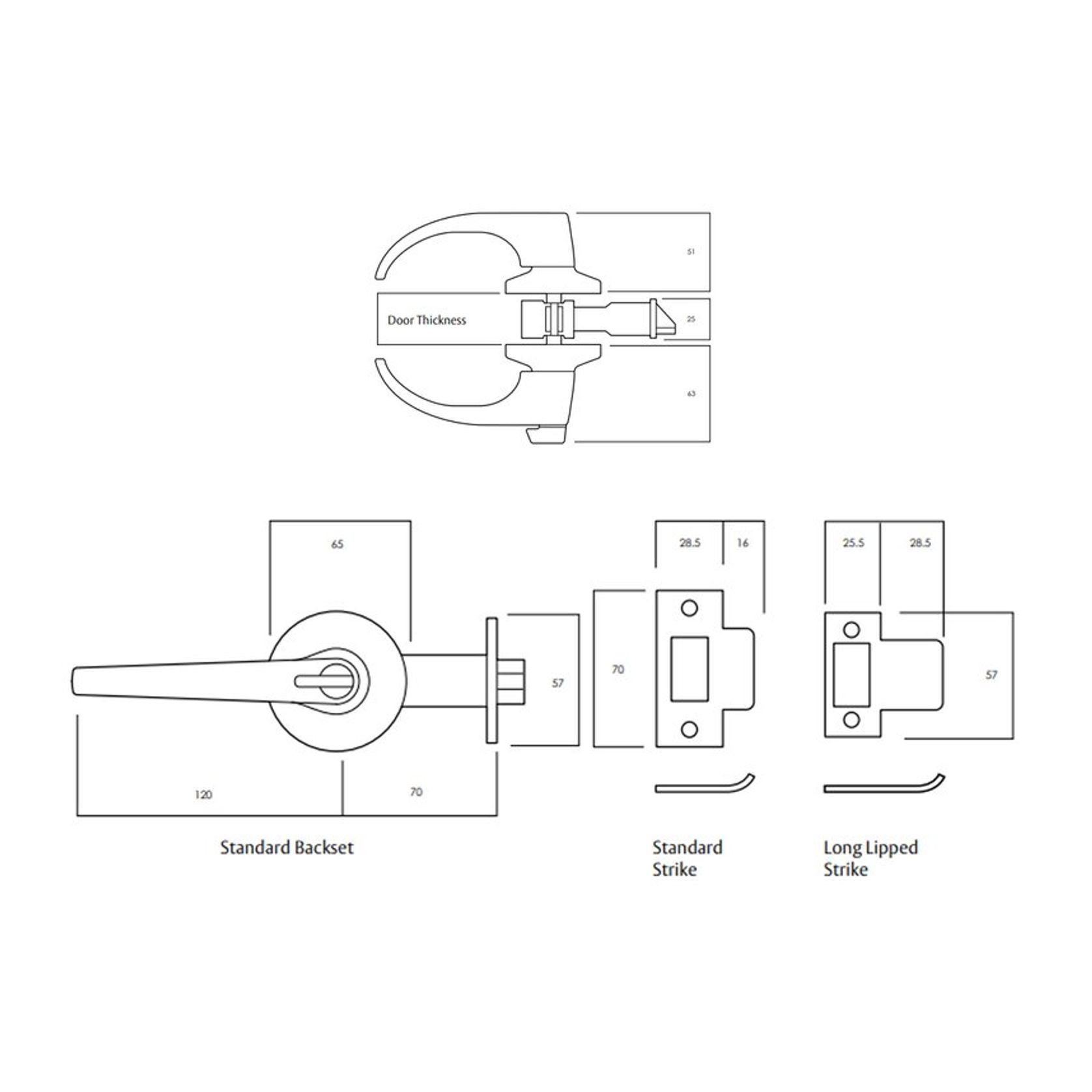

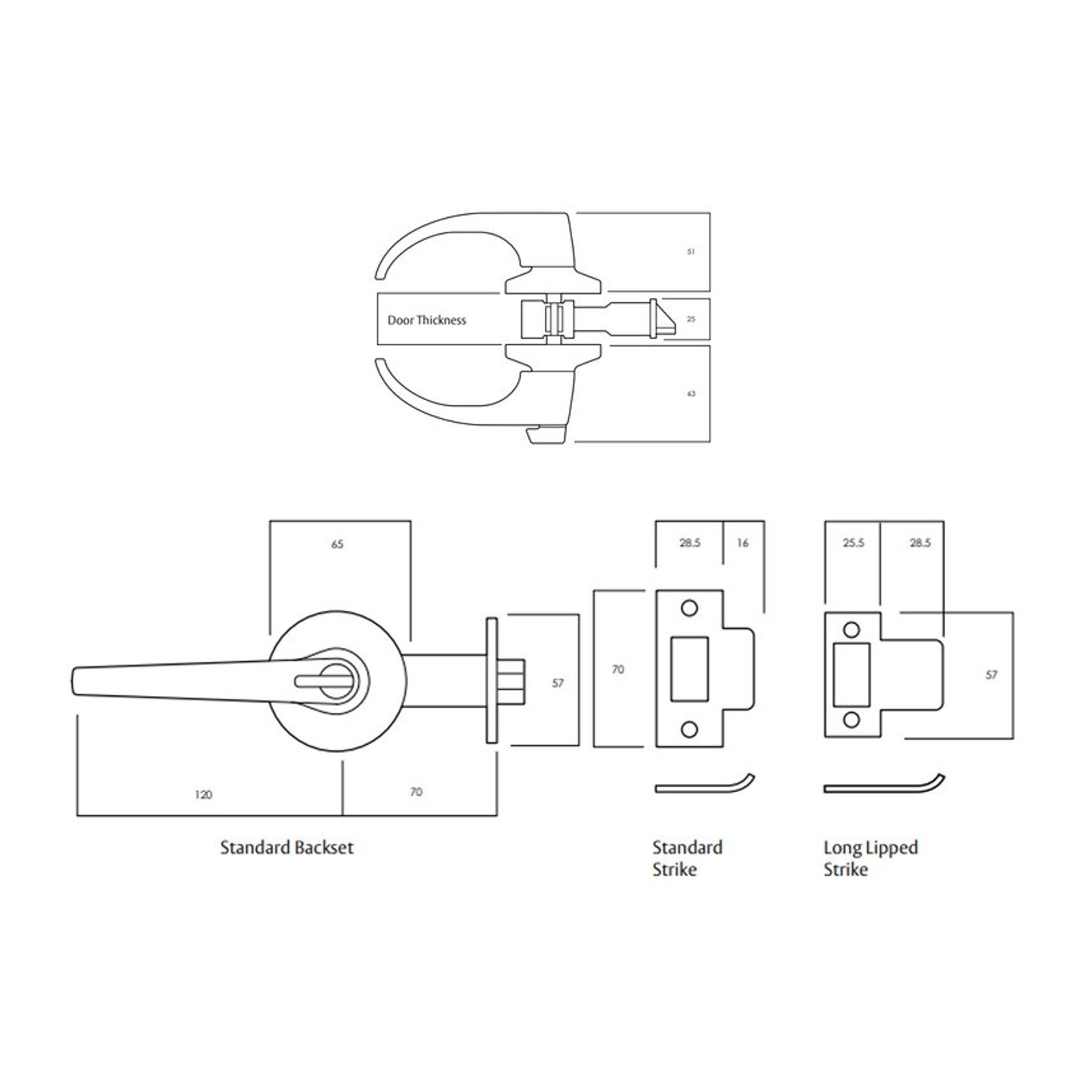

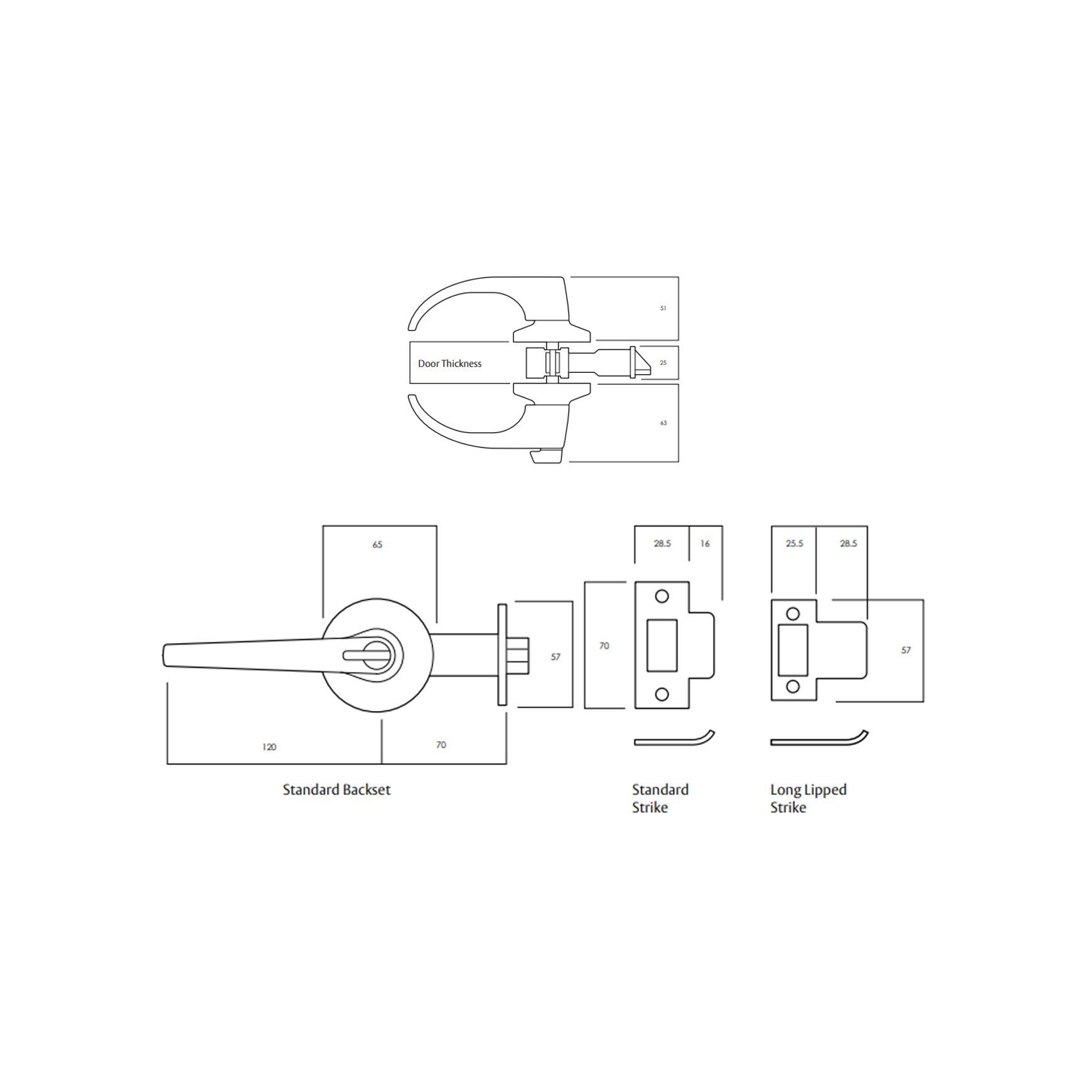

Specifications:
- Handing: Field adjustable handing
- Latch: 13mm projection
- Max. Lever / Knob Projection (distance does not include turn snib): 51 mm
- Strike: 70mm x 28.5mm x 1.2mm
- Backset: 70mm
- Latch Face Plate: 57mm x 25mm
- Cylinder: LW4 profile
- Door handing: Field adjustable
- Rose: 65 mm
- Material: High purity zinc alloy
- Finish: Satin Chrome
Protection:
- Fire Rated: Successfully tested to 2 hours on fire door assemblies in accordance with Australian Standard AS1905.1:2005 Fire Resistant Doorsets.
