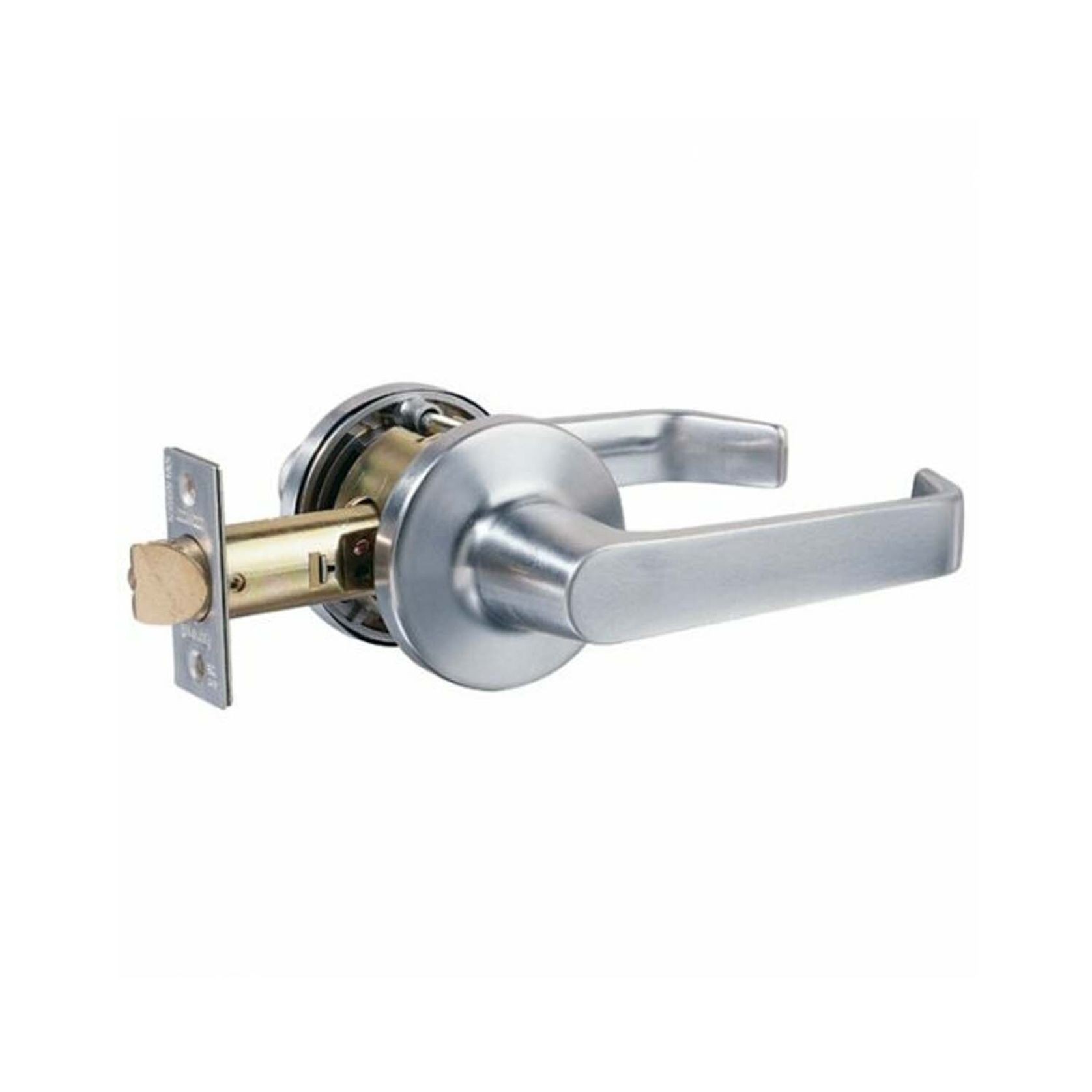

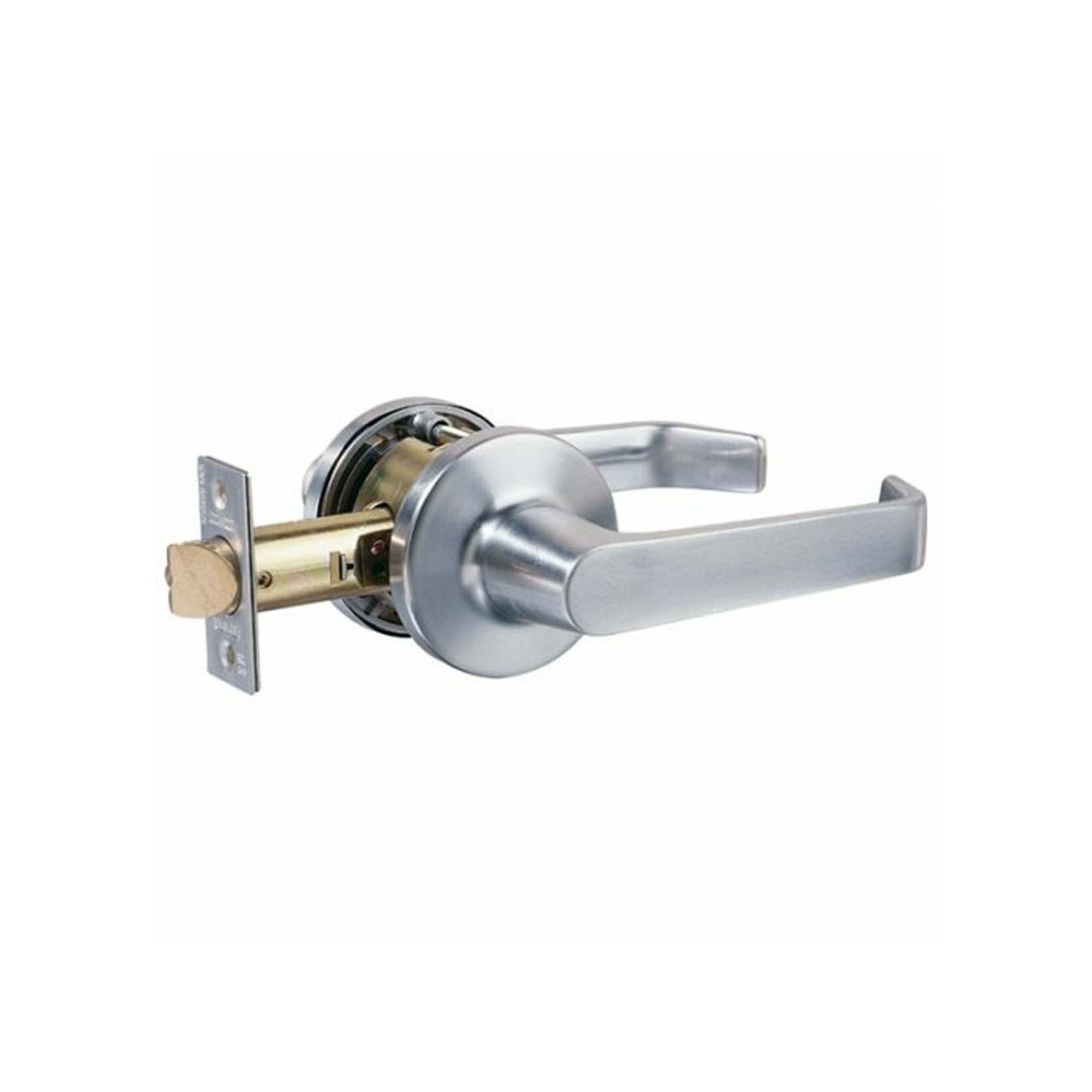

Lockwood 951 Series Passage Lever Set
951SC
Passage door levers are ideal for interior hallways, closets, and other rooms that don't need privacy locks.
Passage Function - Both levers are free at all times.
- Suitable for residential and commercial applications including office partitioning.
- Designed as a non-handed, easy-to-install lockset.
Product Details
- Product
- Lockwood Door Lever Passage Lever Set Commercial Grade Fire Rated Satin Chrome 951SC
- Category
- Lever Handles
- Sold by
- Keeler Hardware
- Range
- Lockwood
Keeler Hardware is specified by
Ian Moore ArchitectsArchitects
Cadence & CoArchitects
TDDP ArchitectsArchitects
R ARCHITECTUREArchitects
JOST ArchitectsArchitects
Ha ArchitectureArchitects
Habitat Studio ArchitectsArchitects
Bones StudioArchitects
Dieppe DesignArchitects
J Mammone ArchitectureArchitects
De Moyer ArchitectureArchitects
Bryant Alsop ArchitectsArchitects
Ironbark ArchitectureArchitects
Invilla ArchitectureArchitects
Scale ArchitectureArchitects
Alexander &CO.Architects
Bijl ArchitectureArchitects
Hive ArchitectureArchitects
David Baillie ArchitectArchitects
Anderson ArchitectureArchitects
mcmahon and nerlichArchitects
Schemes & SpacesInterior Designers
Rise Architectural BuildersBuilders
STUDIO GAXAInterior Designers
X + OInterior DesignersDasch AssociatesInterior Designers
Susie Miles DesignInterior Designers
TrueBuild HomesDesign & Build
New SpacesBuilders
Ilm InteriorsJoiners
APC BuildBuilders
Kate NixonInterior Designers
Jumble & StackInterior Designers
Lockwood 951 Series Passage Lever Set951SC Passage door levers are ideal for interior hallways, closets, and other rooms that don't need privacy locks.
Passage Function - Both levers are free at all times.
- Suitable for residential and commercial applications including office partitioning.
- Designed as a non-handed, easy-to-install lockset.
- Specs
Features:
- Commercial grade passage leverset.
- Levers and roses are made of high purity zinc alloy.
- Baffle (shroud) prevents over-tightening when installing.

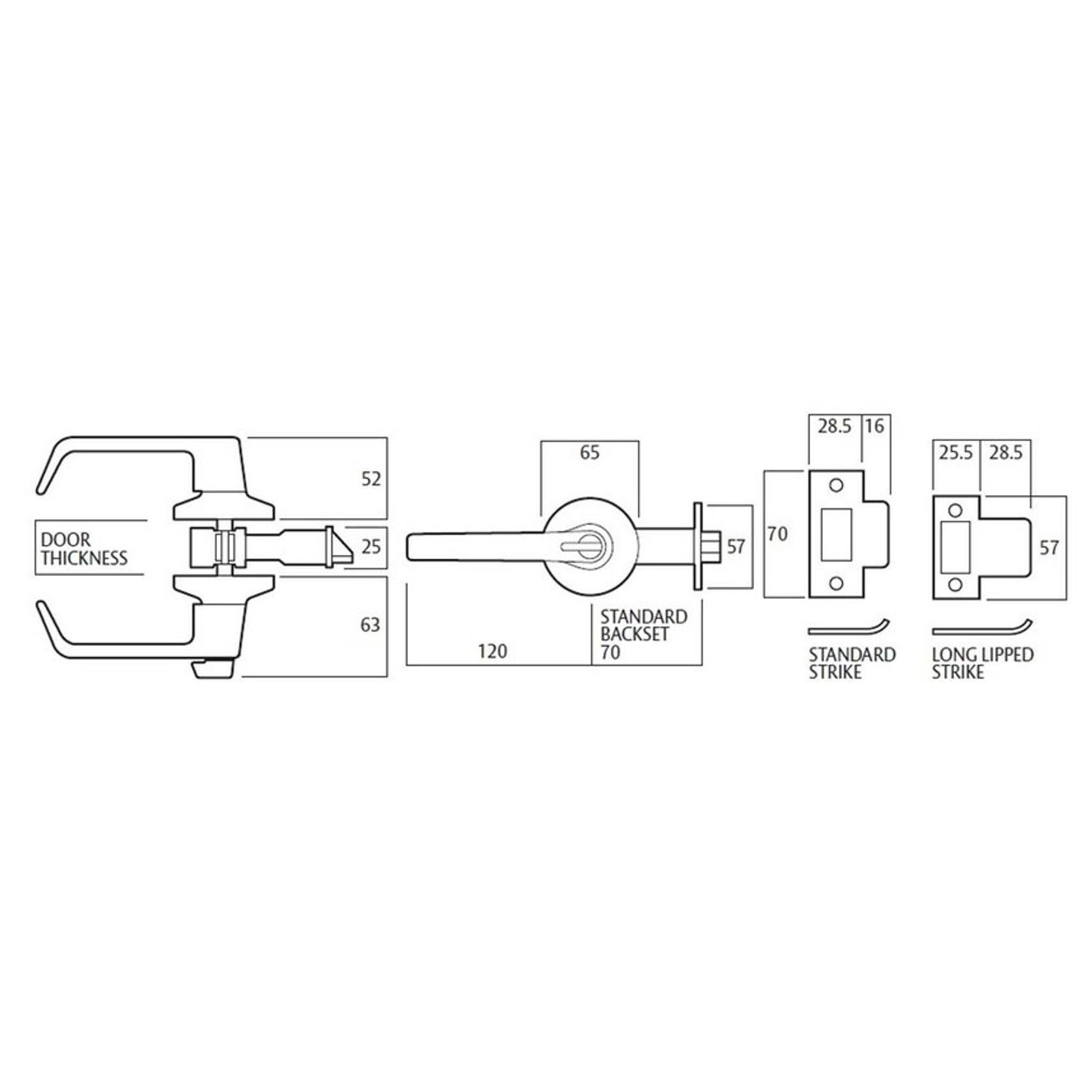

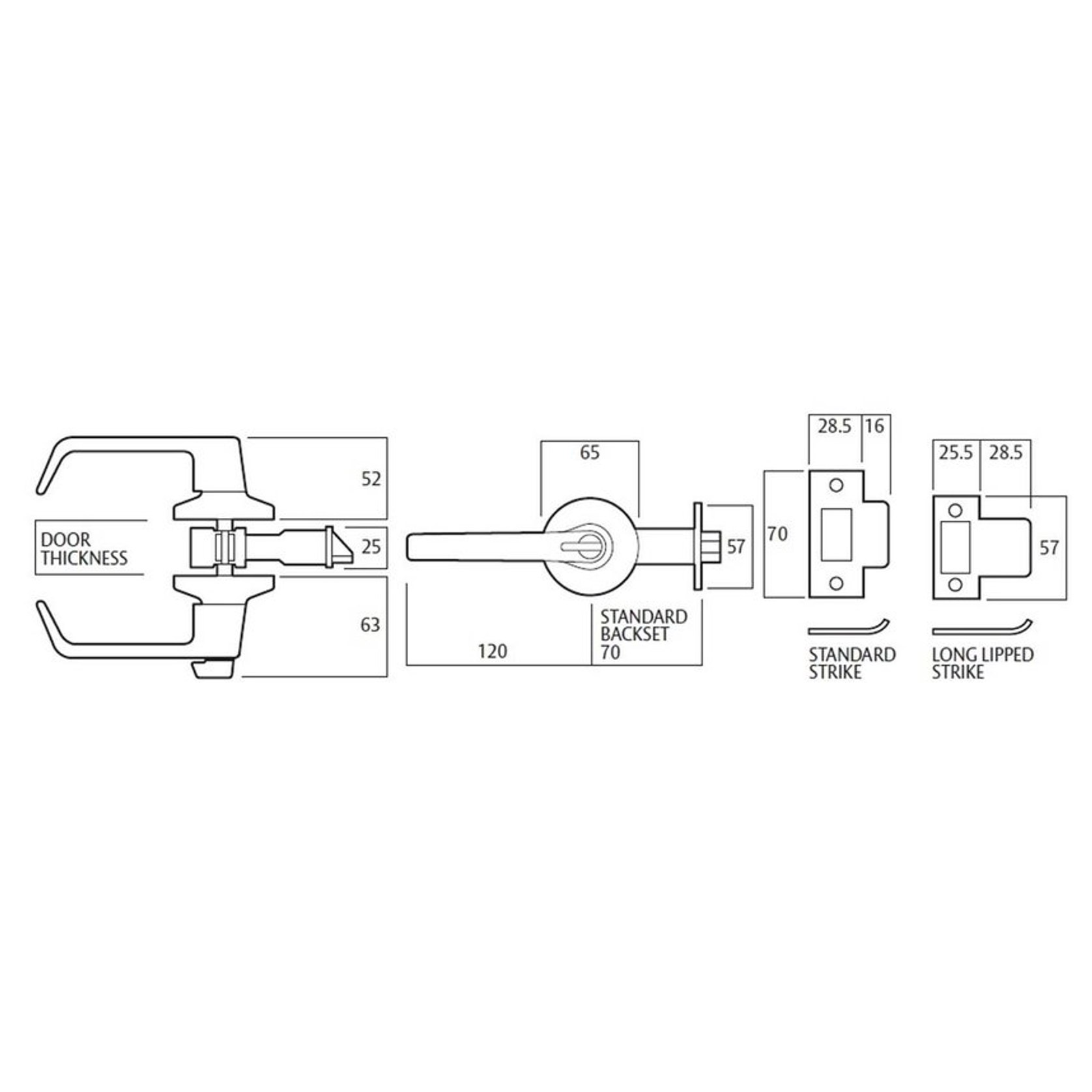

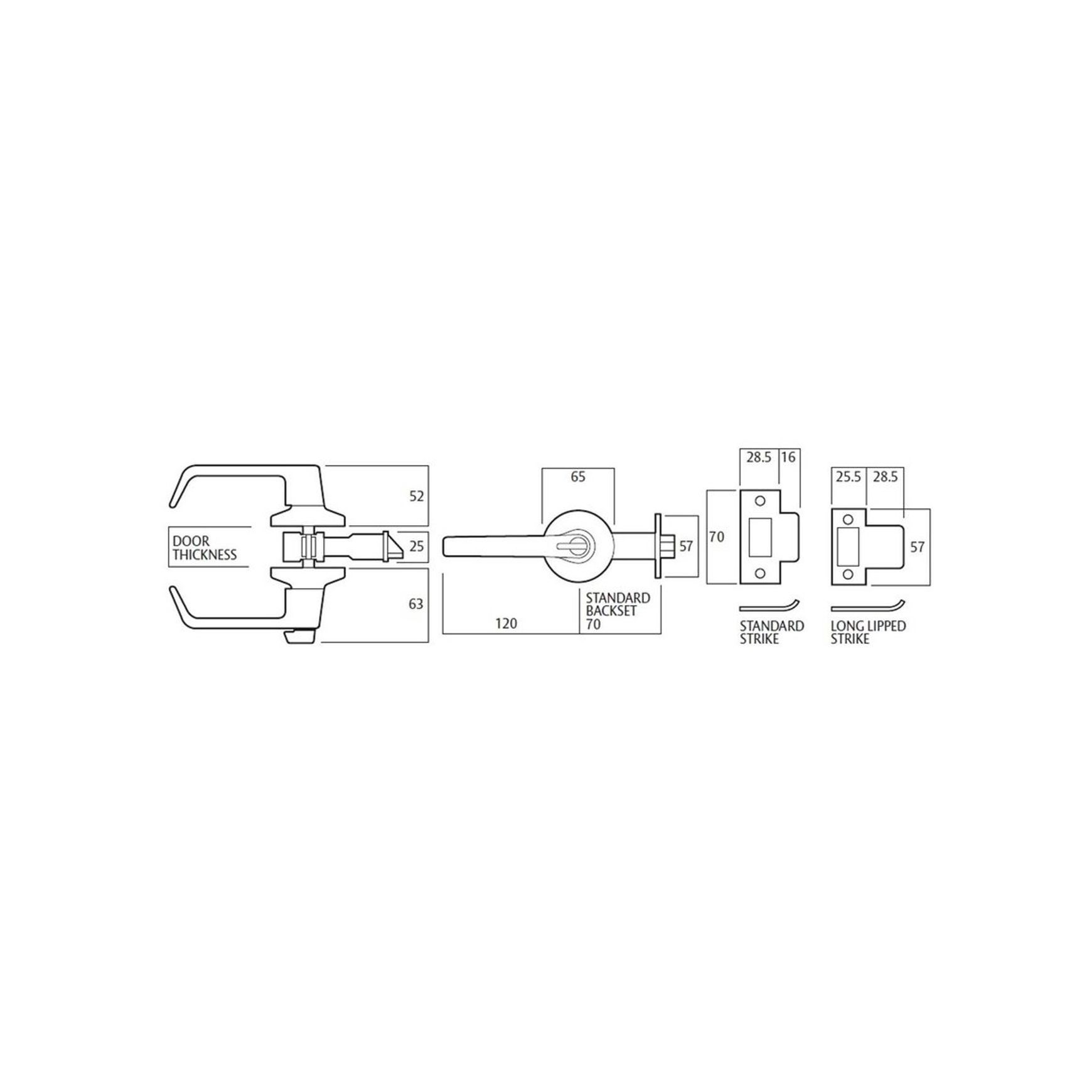

Specifications:
- Door thickness: 32-45mm
- Latch Projection: 13mm
- Rose Diameter: 65mm
- Backset: 70mm
- Max. Projection: 52mm
- Strike: 70mm x 28.5mm x 1.2mm
- Latch: 70mm backset
- Latch Face Plate: 57mm x 25mm
- Door Handing: Field adjustable
- Rose: 65mm
- Material: Zinc Alloy
- Finish: Satin Chrome
Protection:
- Fire Rated: Successfully tested to 2 hours on fire door assemblies in accordance with Australian Standard AS1905.1:2005 Fire Resistant Doorsets.
