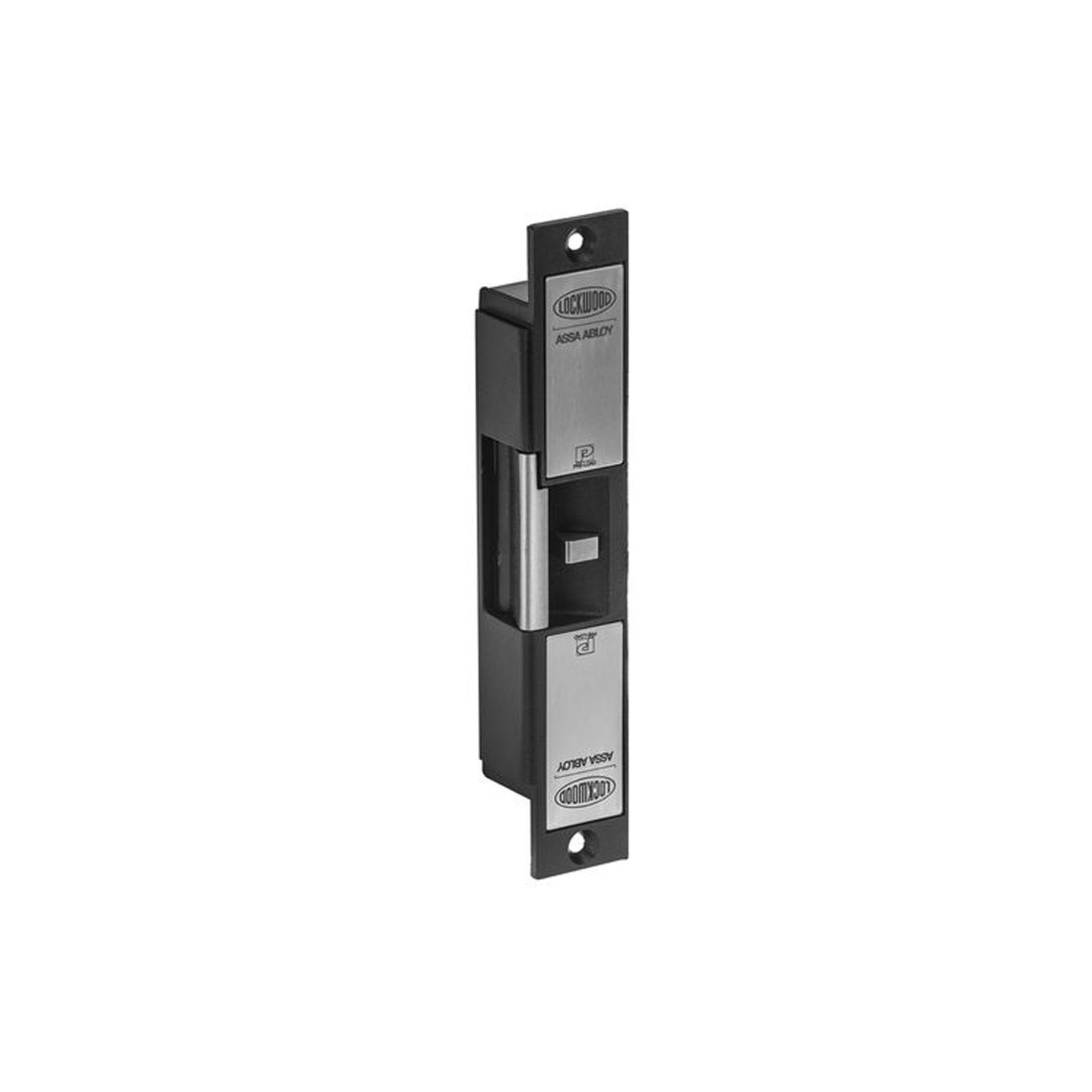

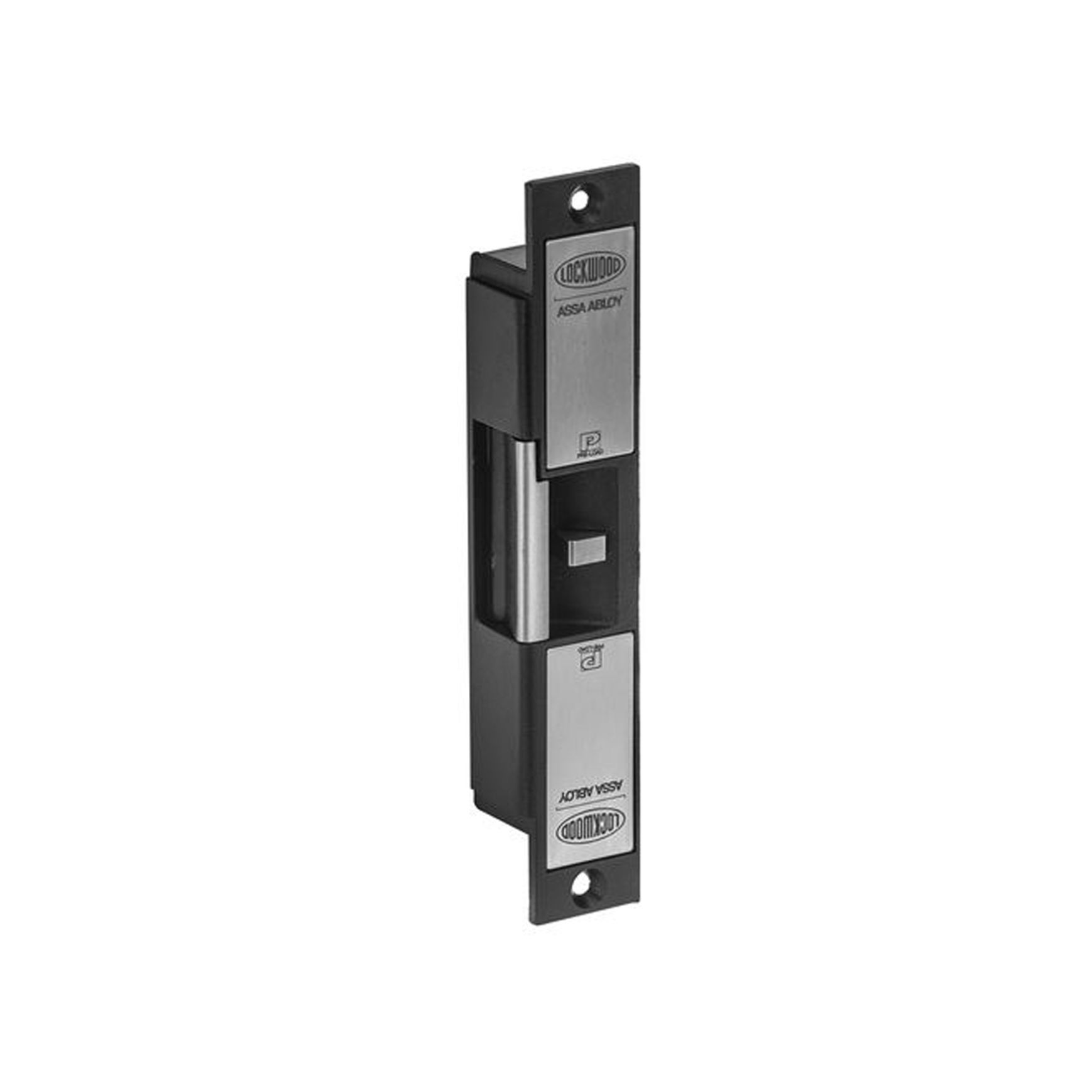

Lockwood Padde Electric Strike 10-30V PA109001060

Wetherill Park, Australia

993.3K profile views
51 saves

Padde By Lockwood Series Electric Strike
ES9000-060

NOTE: This is a non-stocked item and has a handling time of ten(10) business days after payment has been cleared. Please DO NOT purchase if you require this item urgently.

Electric Stike Function - replaces a standard door strike and connected to a power supply. An electric strike's ramped surface can, upon command, pivot out of the way when the lock on the door is in the locked position and the door is opened.

hardware door hardware door handles door locks handles

Product Details

Product: Lockwood Padde Electric Strike 10-30V PA109001060
Category: Latches and Locks
Sold by: Keeler Hardware
Range: Lockwood
Brand: Lockwood
Country of origin: Australia
Type of use: Commercial
Package type: Fragile - handle with care
Care and cleaning: Easy maintenance
Installation: Minor installation required
Assembly: Minor assembly required

Product Variants

Colours

Keeler Hardware is specified by

Lockwood Padde Electric Strike 10-30V PA109001060

Padde By Lockwood Series Electric StrikeES9000-060 NOTE: This is a non-stocked item and has a handling time of ten(10) business days after payment has been cleared.

Please DO NOT purchase if you require this item urgently.

Specs

Specifications:

Current: 250mA@12V DC - 130mA@24V DC
Drilled for Lip Extension: Yes
Field Selectable Fail Safe/Fail Secure: Yes
Holding Strength: 1300kg
IP Rating: 54
Monitored Latch: Yes
Monitored Solenoid: Yes
Operates Under Pre-load up to: 25kg
SCEC Endorsed: Yes
Working Voltage: 10V~30V DC
Fire Rated: Yes
Finish: Black

Scope of use

Electric Strike intended for door security in commercial & industrial applications with heavy traffic that require access control systems. Suitable for use on hinged doors to work with an extensive range of locks.

A high security product manufactured from solid stainless steel and designed to be used with most access control systems.
4 hour fire rating. And Australian Government listed.
Designed, developed and manufactured in Melbourne.
Overcomes the real life issue of side pressure, commonly known as pre-load, easily opening with up to 25kg of pre-load applied to the strike. Pre-load is commonly caused by pulling on a door before it unlocks, by the weight of warped or drooping doors or by differential air pressure created by heating and cooling systems.

Features:

Includes lip holes
Operates under pre-load up to 25kg
4hrs fire rating when used with an approved door set
Suitable for use on hinged doors with fire or security requirements
Field selectable fail safe / fail secure
Equipped with a silencer pad on the keeper which significantly reduces noise when the strike is operated
Fully monitored strike locked and door closed status
Australian designed and made Approvals / Certifications C-Tick & CE compliant.
Solenoid rated for continuous use
Built in protection diode.
Mounting tabs as supplied standard
Weather resistant (IP54)
Solenoid monitor - 1 amp NO/NC microswitch
Door/latch monitor - 1 amp NO/NC microswitch
Stainless steel striker
Suitable for 15 mm latch and 3 mm door gap
3 hardened locking pins.
Solenoid can be continuously powered
Self adhesive installation template
1300kg static strength rating
1,200,000 cycles endurance rating @ 25kg pre-load
