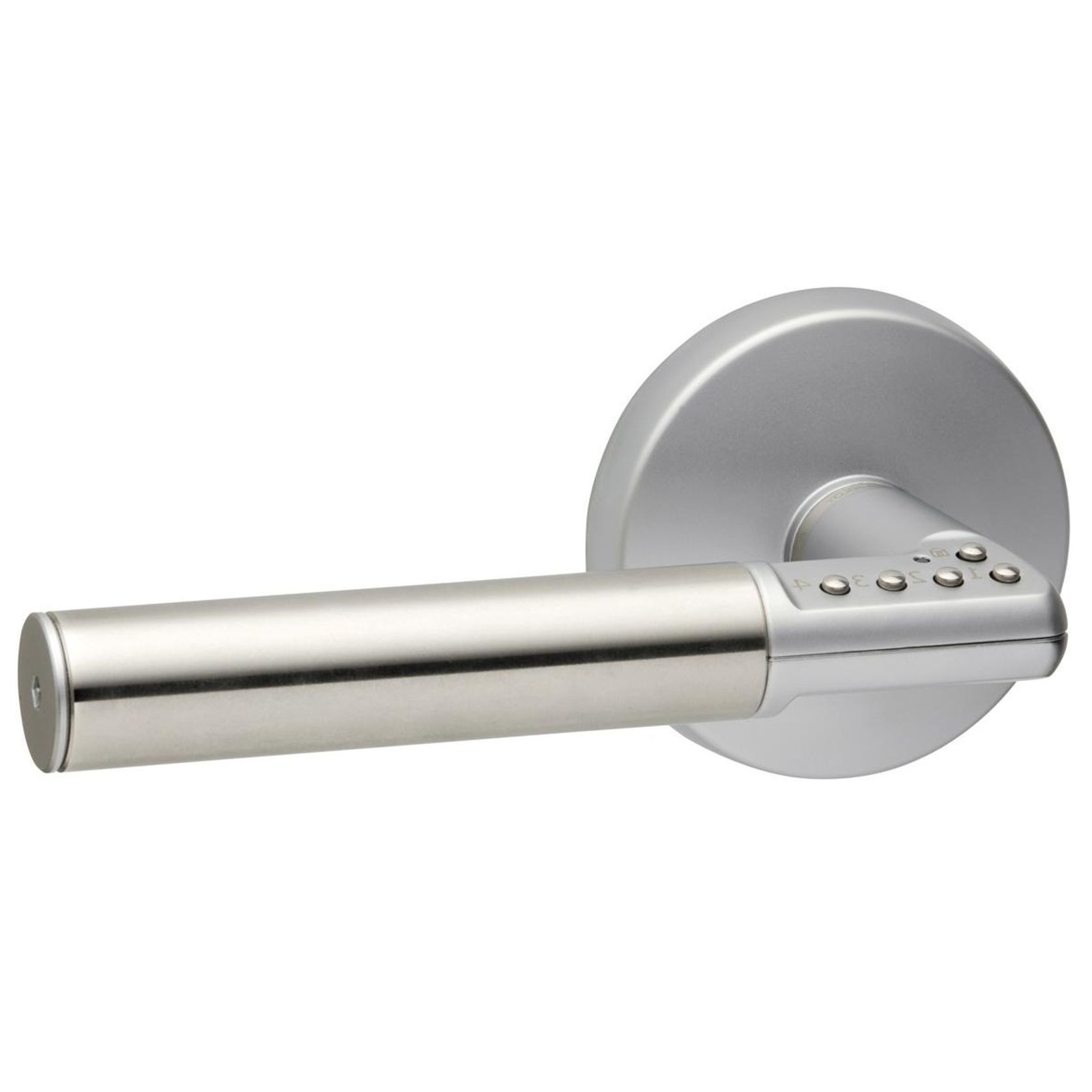

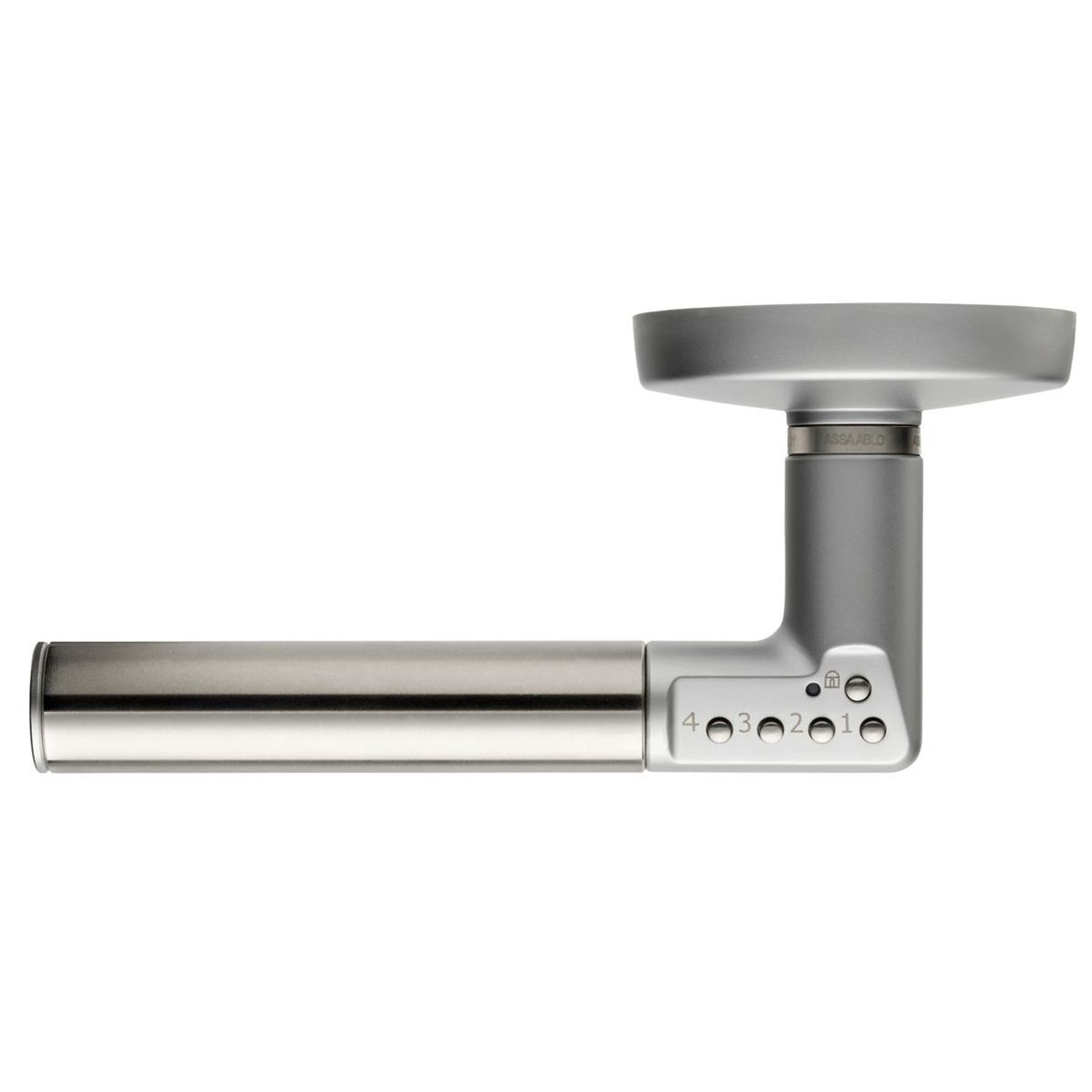

Lockwood Electronic Lock Code Door Lever Right Hand Stainless Steel 8816RSS
Wetherill Park, Australia
- 998.7K profile views
- 53 saves
Lockwood Code Handle
8816RSS
Electronic Lock Door Lever offers a simple solution for keeping private rooms private, allowing access only to those who require it. The PIN code setting allows you to keep control of who has access. Ideal for offices, storerooms, or at home.
Electronic Lock Door Lever Function - flexible locking options for doors that need to be always locked or alternatively can be left open to provide free access during the day and locked at night.
*Note: Handing is determined standing on the outside of the door. So if the hinges are on the right-hand side of the door then you need a left hand 8816 and if the hinges are on the left hand of the door then you need a right hand 8816
Product Details
- Product
- Lockwood Electronic Lock Code Door Lever Right Hand Stainless Steel 8816RSS
- Category
- Lever Handles
- Sold by
- Keeler Hardware
- Range
- Lockwood
Keeler Hardware is specified by
Ian Moore ArchitectsArchitects
Cadence & CoArchitects
TDDP ArchitectsArchitects
R ARCHITECTUREArchitects
JOST ArchitectsArchitects
Ha ArchitectureArchitects
Habitat Studio ArchitectsArchitects
Bones StudioArchitects
Dieppe DesignArchitects
J Mammone ArchitectureArchitects
De Moyer ArchitectureArchitects
Bryant Alsop ArchitectsArchitects
Ironbark ArchitectureArchitects
Invilla ArchitectureArchitects
Scale ArchitectureArchitects
Alexander &CO.Architects
Bijl ArchitectureArchitects
Hive ArchitectureArchitects
David Baillie ArchitectArchitects
Anderson ArchitectureArchitects
mcmahon and nerlichArchitects
Schemes & SpacesInterior Designers
Rise Architectural BuildersBuilders
STUDIO GAXAInterior Designers
X + OInterior DesignersDasch AssociatesInterior Designers
Susie Miles DesignInterior Designers
TrueBuild HomesDesign & Build
New SpacesBuilders
Ilm InteriorsJoiners
APC BuildBuilders
Kate NixonInterior Designers
Jumble & StackInterior Designers
Lockwood Code Handle8816RSS Electronic Lock Door Lever offers a simple solution for keeping private rooms private, allowing access only to those who require it.
The PIN code setting allows you to keep control of who has access. Ideal for offices, storerooms, or at home.
Electronic Lock Door Lever Function - flexible locking options for doors that need to be always locked or alternatively can be left open to provide free access during the day and locked at night.
*Note: Handing is determined standing on the outside of the door. So if the hinges are on the right-hand side of the door then you need a left hand 8816 and if the hinges are on the left hand of the door then you need a right hand 8816
- Specs
Features:
- Lever handle with integrated code lock
- Program up to 9 User codes, 4-6 digits in length
- Keypad access control lever
- Supplied with Lockwood 530 60mm latch
- Easy to install
- Ideal for retrofit installations
- Programmable administration code for setting lock operation and user programing
- Manual or automatic locking
- Passage mode
- Code lockout after 5 incorrect attempts
- Durable stainless steel handles

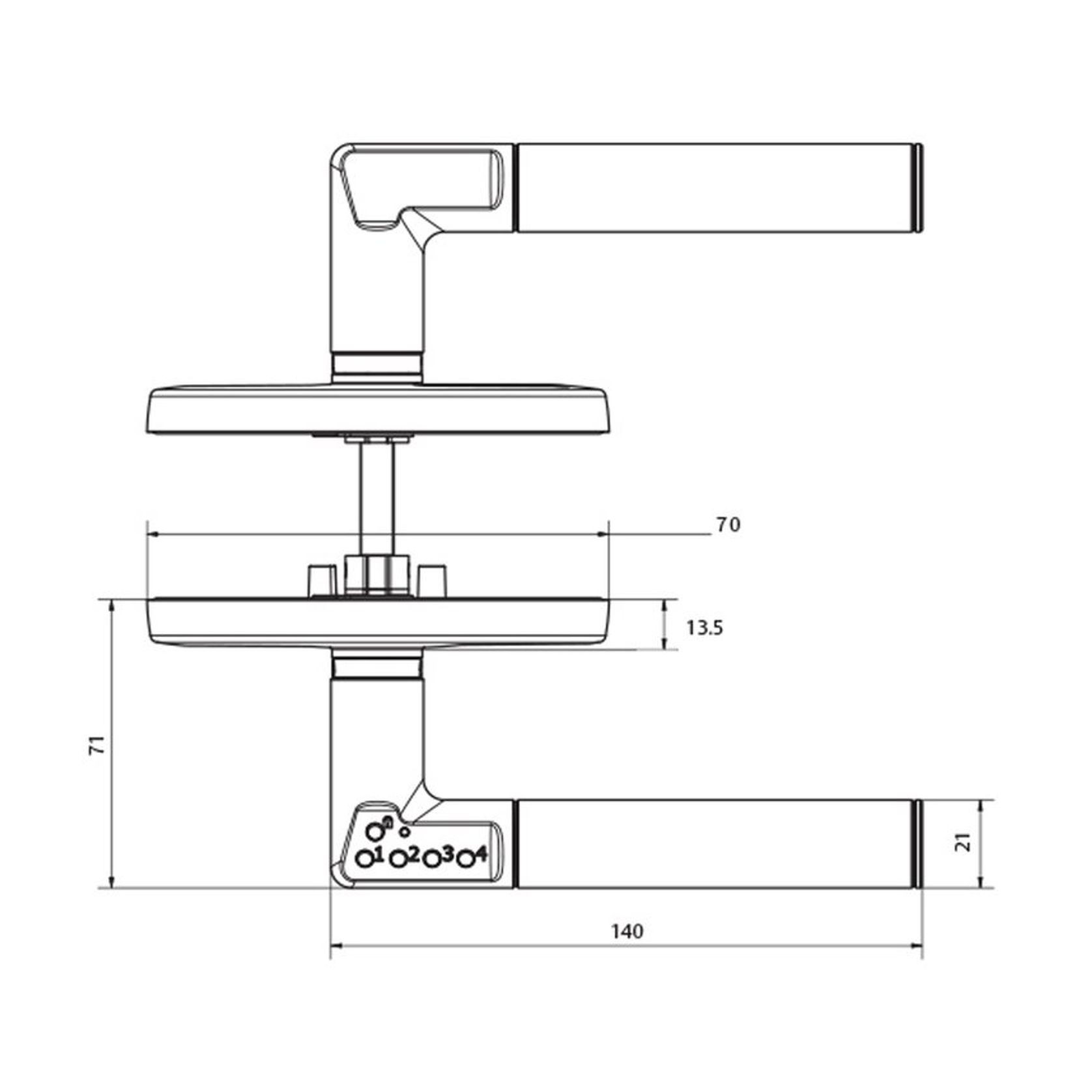

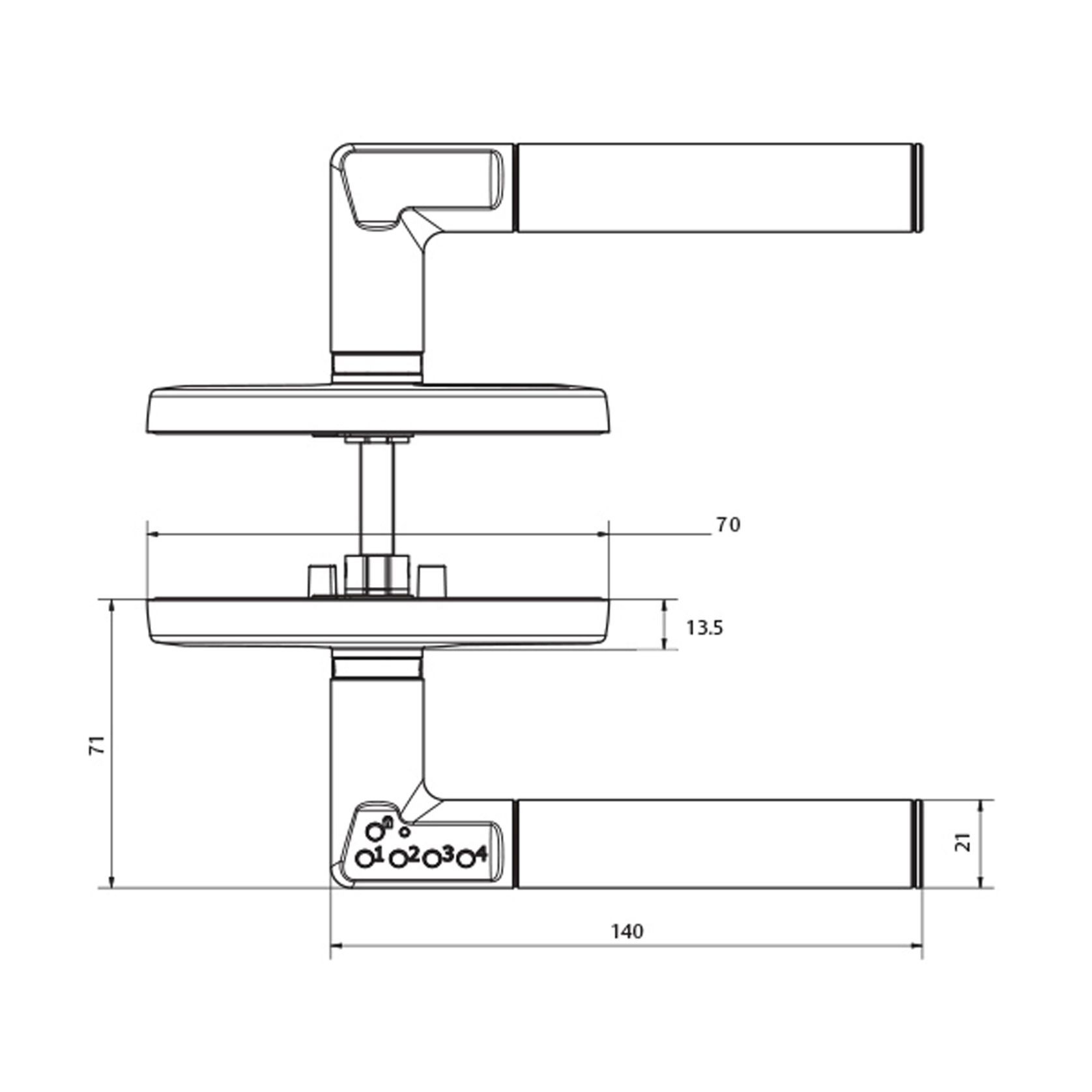

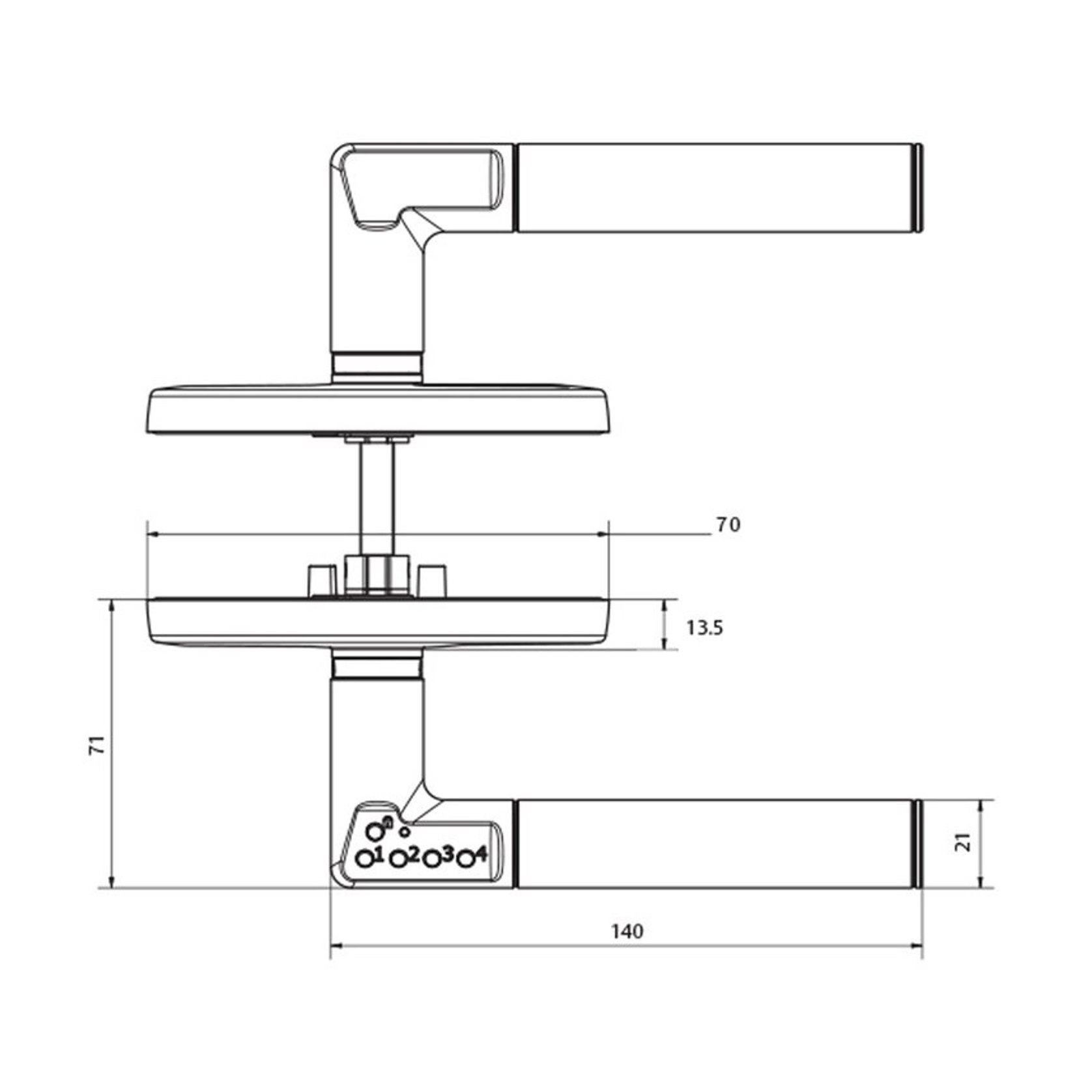

Specifications:
- Latch Hole: 25mm
- Lock Hole: 54mm
- Backset: 60mm
- Latch: Brass 13mm projection deadlatch
- Door Thickness: 32mm to 55mm
- Batteries Included: Approximately 30,000 operations before replacement.
- Handing: Right Hand
- Finish: Satin Pearl with Stainless Steel
Downloads
