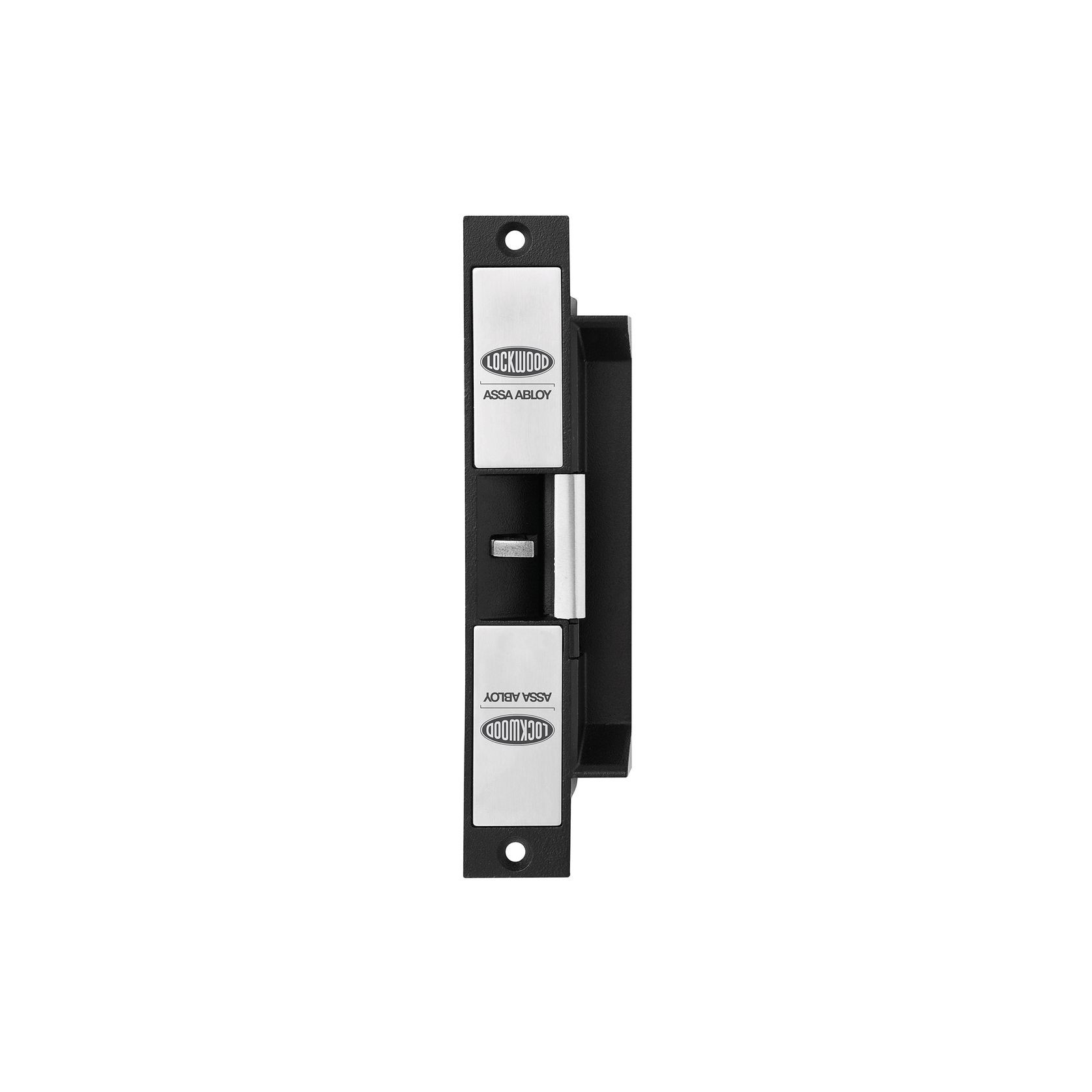

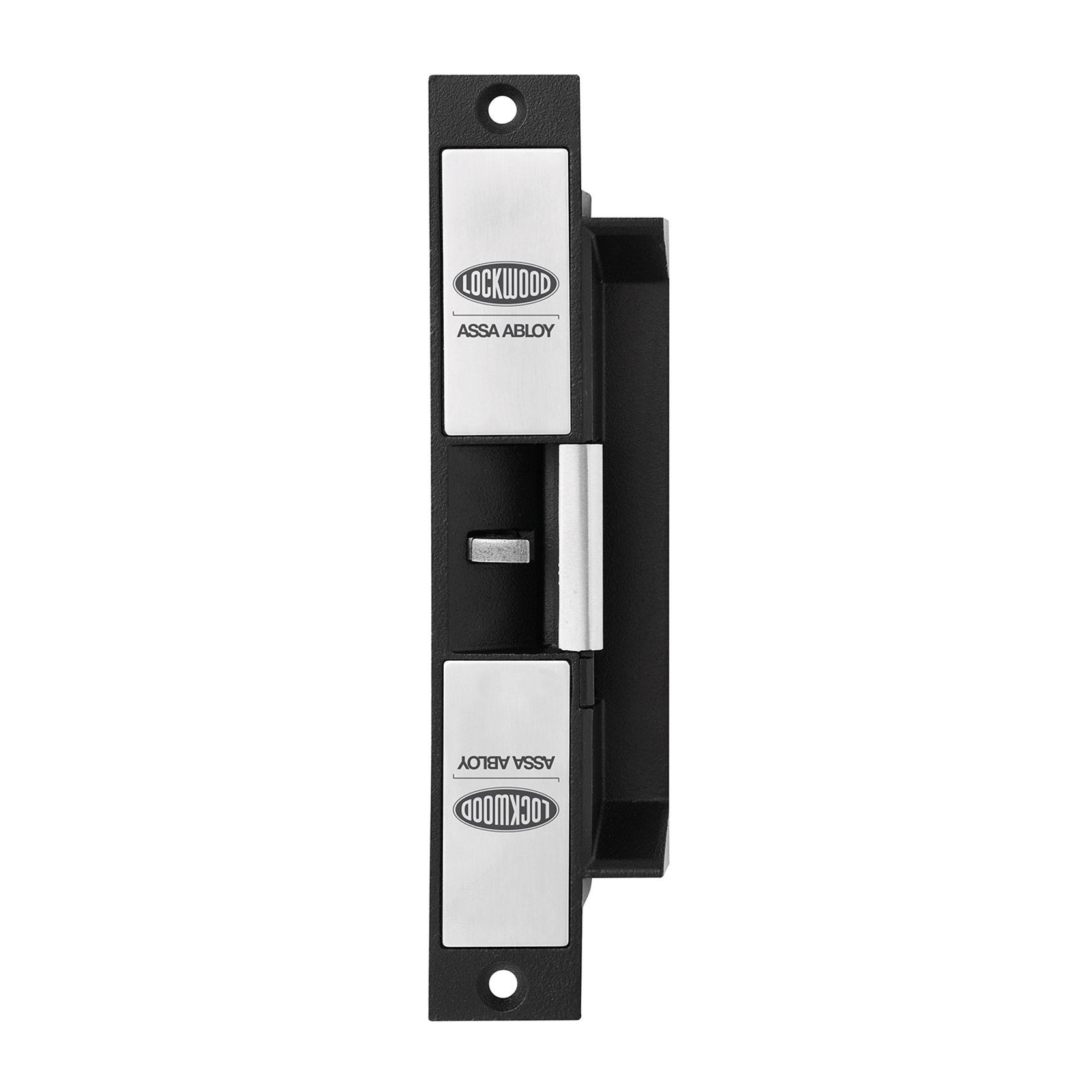

Lockwood ES2000 Monitored Electric Strike Fail Safe

ctric Strike Fail SafeES2000-1 Electric Stike Function - replaces a standard door strike and connected to a power supply.

Specs

Specifications:

• Voltage: 12Vdc
• Current: 175 mA @ 12Vdc
• Solenoids: Solenoids are rated for continuous use
• Holding Force: 850kg Static Strength Rating
• Endurance: Cycle tested to 1,000,000 operations
• Latch: Suitable for 15mm latch bolt with 3mm door gap
• Environment: Operational temperature range - 20°C to +60°C
• Body: Solid Stainless Steel Construction
• Keeper: Stainless Steel

Applications:

• High traffic areas
• Fire rated door sets
• Open in/open out doors
• Suitable for use with all access control systems

Monitoring

• Solenoid Monitor - 1 amp NO/NC microswitch
• Door/Latch Monitor - 1 amp NO/NC microswitch

Specification Statement

• The strike should be constructed of solid stainless steel, have a minimum holding force of 850kg and have an endurance rating of 1 million cycles
• Monitoring must include independent door / latch& solenoid monitoring
• The one strike must be changeable from fail safe to fail secure on site where required
• The strike should not consume current greater than 175mA at 12Vdc and have a solenoid rated for continuous use.
• Certifications must include CE, C-Tick and 4 hr fire rating.

Scope of use

Electric strikes are fully monitored high security products manufactured from stainless steel and designed for use with all access control systems. The strikes are suitable for use with hinged doors which require either fire or security control as part of a building management system.
