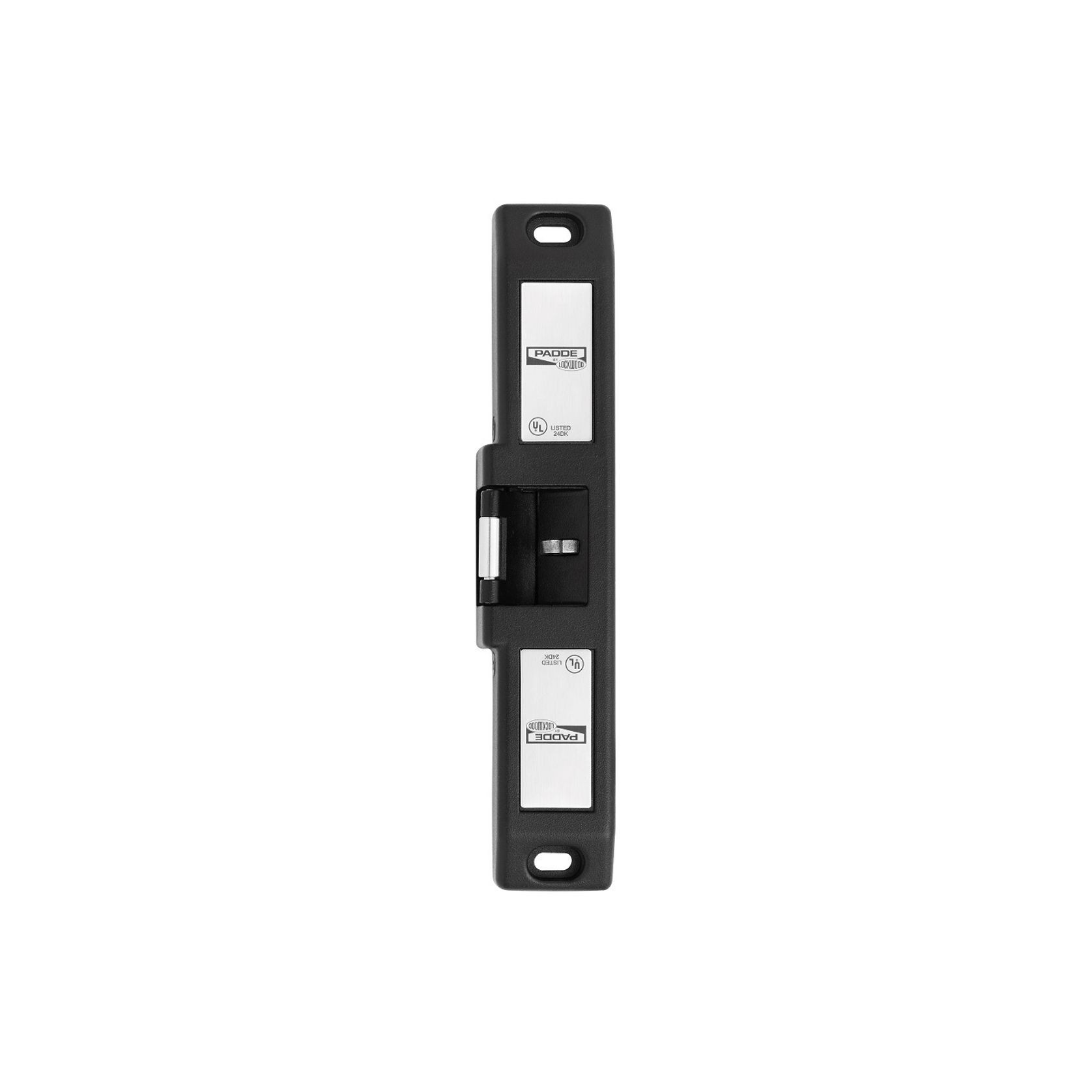

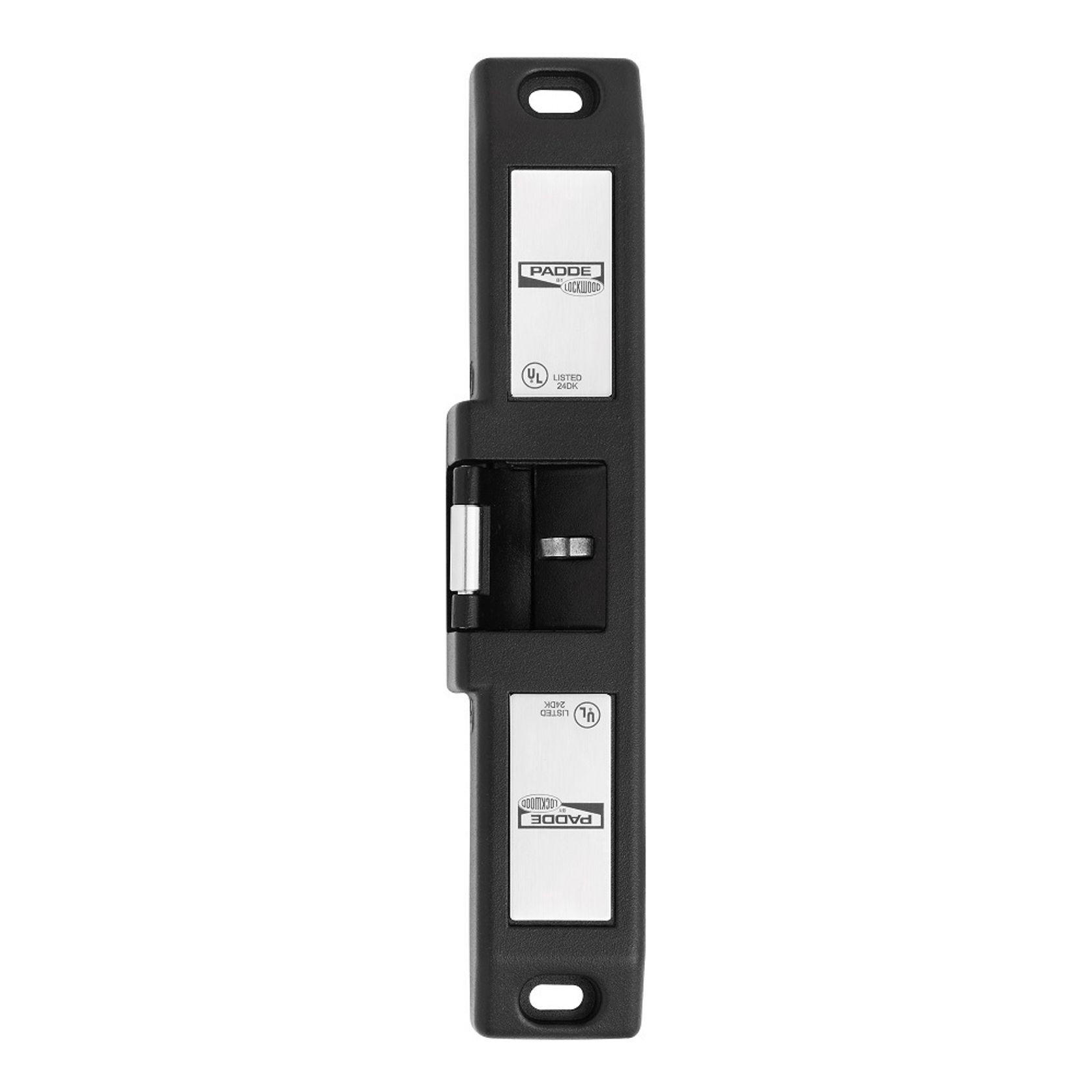

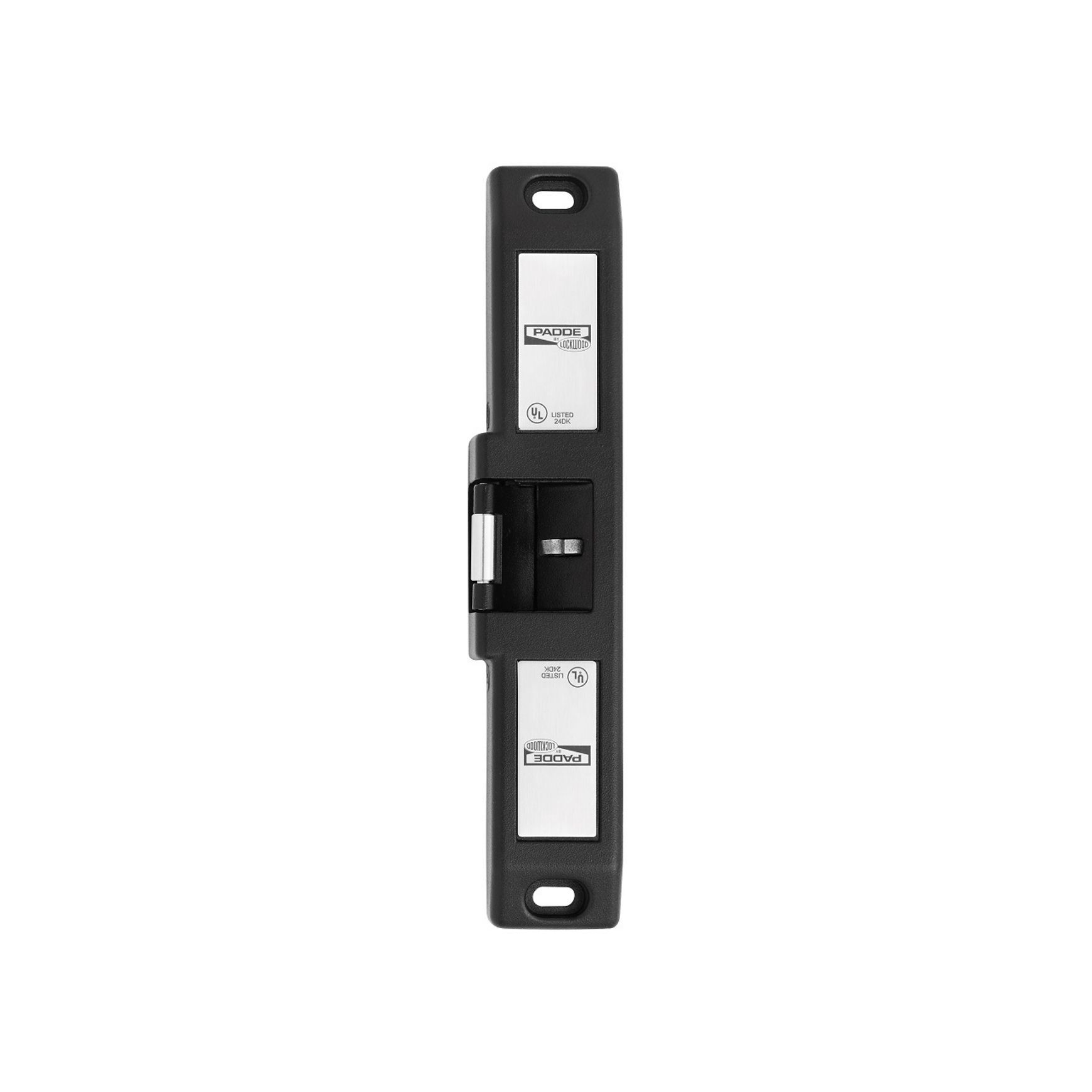

Lockwood Electric Strike 24V Multi Function ES26003

Lockwood Electric Strike 24V Fail Safe Secure Monitored
ES26003

Electric Strike intended for door security in commercial & industrial applications with heavy traffic that require access control systems. Suitable for use on hinged doors to work with an extensive range of locks.

Electric Stike Function - replaces a standard door strike and connected to a power supply. An electric strike's ramped surface can, upon command, pivot out of the way when the lock on the door is in the locked position and the door is opened.

• The ES2600 Series surface mounted electric strikes are high security products manufactured from solid stainless steel and designed to be used with existing and new panic bars fitted to emergency doors.
• When used in conjunction with a standard access control system, these strikes convert "Exit only" doors with "Pullman type" latches into a full access controlled door, thereby allowing authorised access from the secure side.
• The ES2600 series are fully monitored with both solenoid and latch/door monitoring functions & can be changed from fail safe to fail secure on site.

Features:

• Fail safe/fail secure changeable on site
• High security
• Available in 12 or 24Vdc
• 650kg holding force
• 1 million cycles endurance rating
• Body depth only 27mm
• Cast stainless steel body
• Low current consumption - max 175Ma @ 12Vdc
• Continuously rated solenoid
• Installation template
