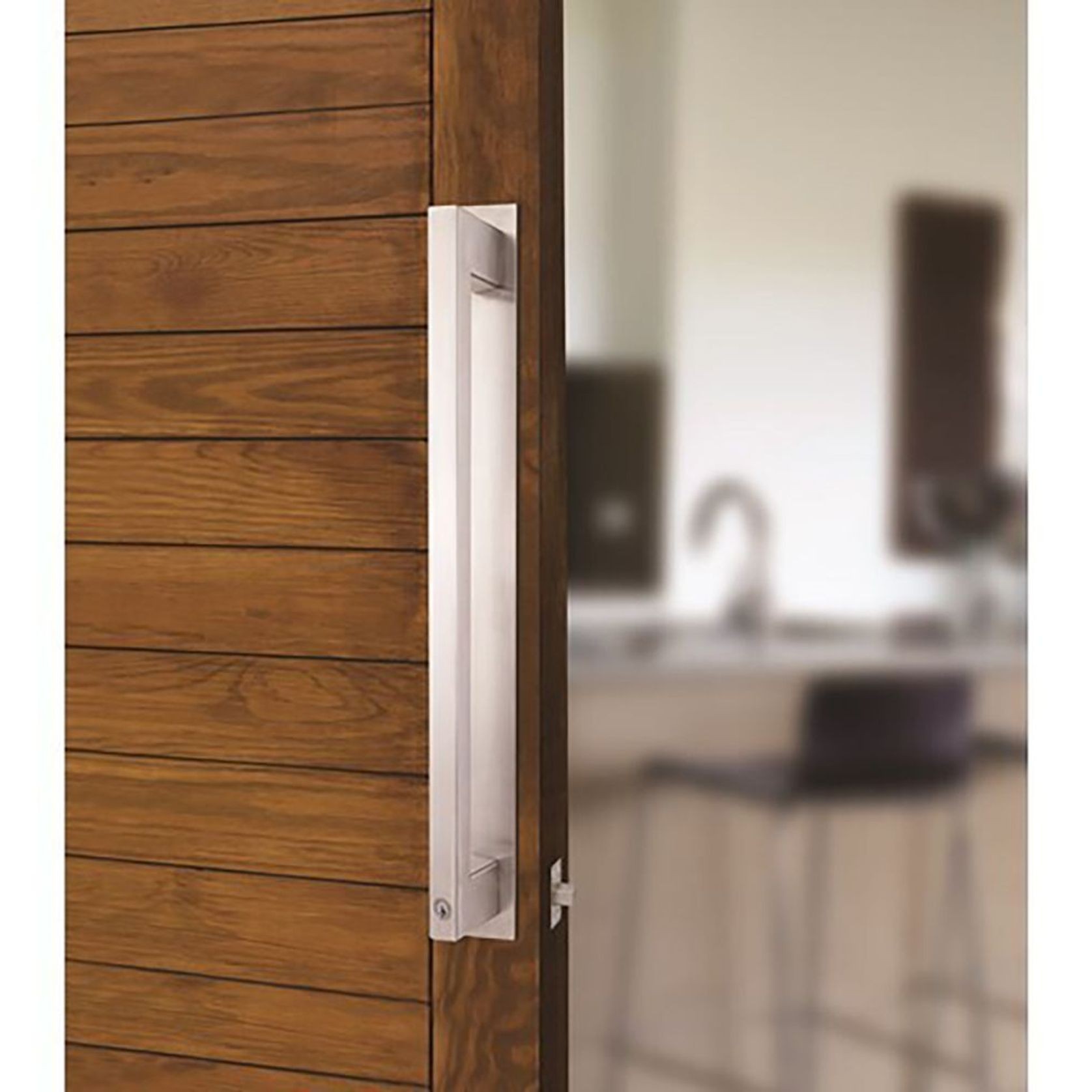

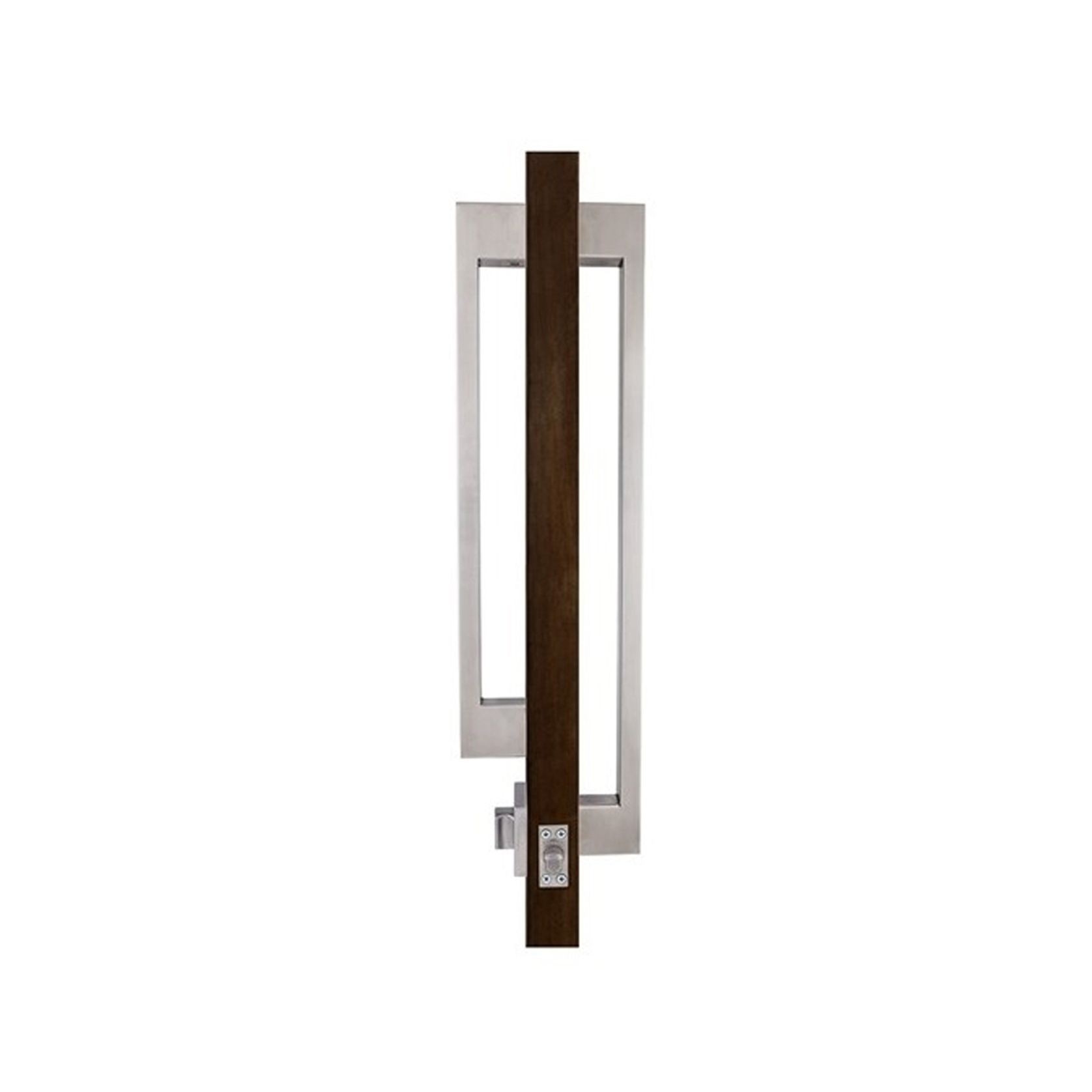

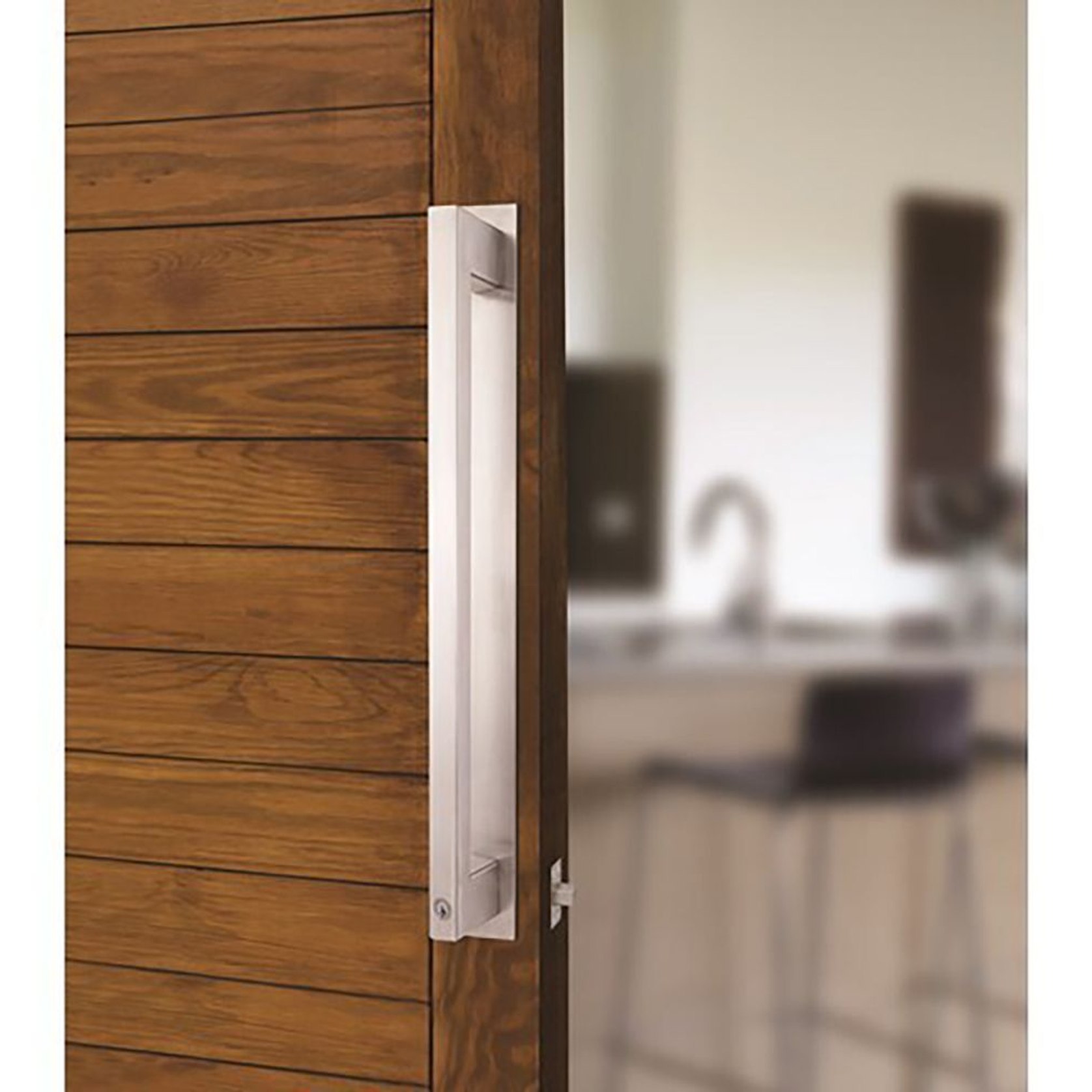

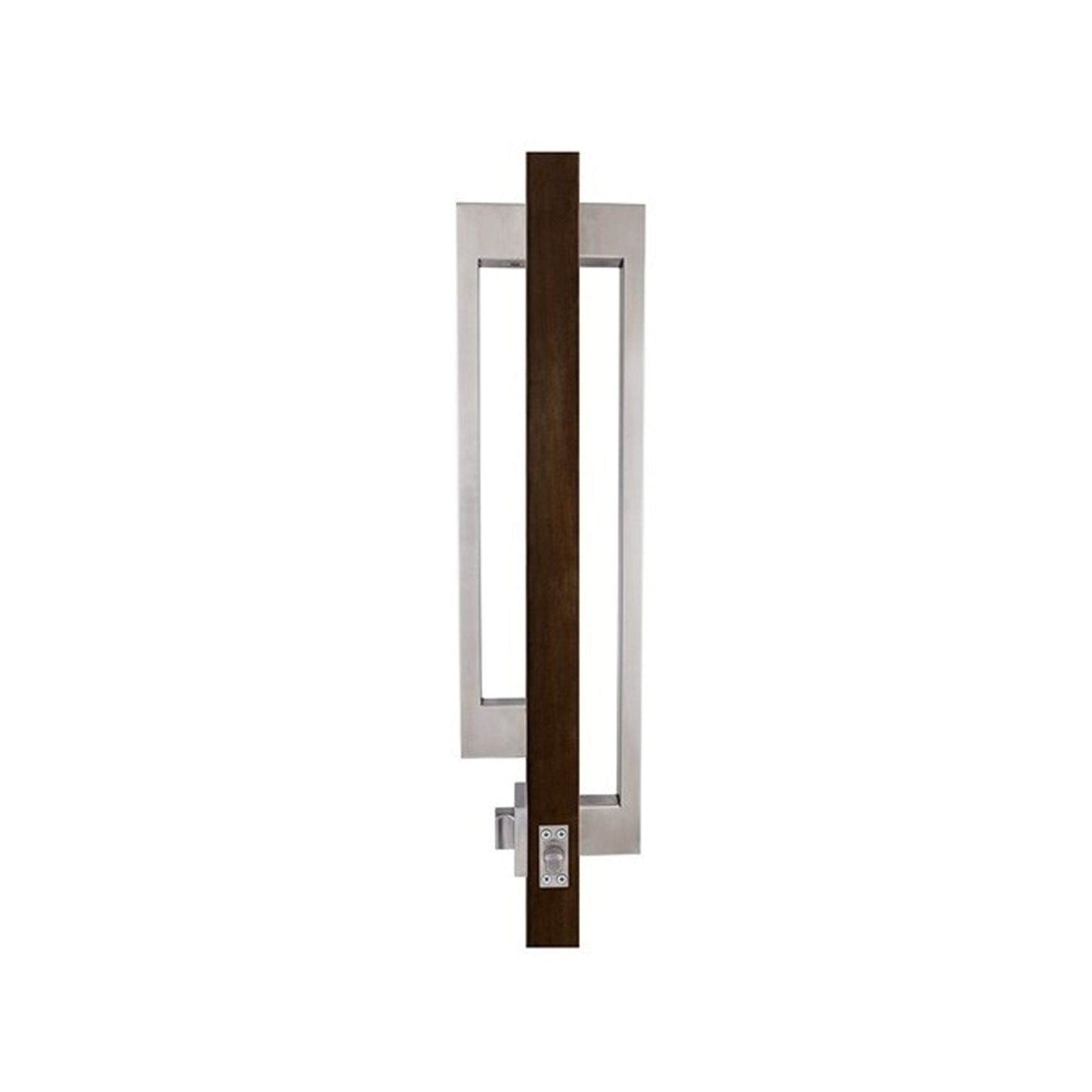

Lockwood Paradigm Door Pull Handle Lockset 005/DPHLSSS

Stainless Steel
60mm - 70mm
Self-latching Double Cylinder

Lockwood Paradigm Pull Handle Lockset
005/DPHLSSS

Pull Handle Function - Facilitates the operation of doors by gripping the pull handle with one or both hands before pulling it to enter or exit the door.

  • Lockwood introduces its new Paradigm Pull Handle lockset for an elegant entry to your home!
  • This Australian designed lockset comes in three variants including a Double Cylinder Deadbolt, Self-Latching Single and Double Cylinder.
  • The Double Cylinder Deadbolt is highly recommended for residential homes whether it's a new build or an upgrade, this piece will make an excellent entrance choice. It incorporates the superior state-of-the-art design and safety features from the existing 005 Paradigm Deadbolt such as DualSelect, Safety Release and LockAlert that are renowned for performance.

Features:

  • Conforms to the security and durability requirements of Australian Standard AS4145.2-2008
  • SL8D8C6K5 High security cut resistant
  • Stainless Steel bolt for added security
  • Brushed 304 grade Stainless Steel Pull Handle
  • Door Magnets included to hold the door(s) in position when it is in passage mode (Deadbolt version only)
  • Concealed screw fixings provide a neat and clean appearance
  • Can be matched with any of Lockwood's internal levers for a stunning and contemporary look throughout the house
  • Can be matched with dummy (non-functioning) pull handle for double door applications
  • LockAlert - The Paradigm® Pull Handle Lockset incorporates Lockwood's patented LockAlert status indicator that shows the Lockset mode at a glance.
  • Key blank KB2015P

The lockset can operate in three modes:

  • Secure Mode - Locked from the inside and outside.
  • Safety Mode - Locked from the outside and free to exit from inside.
  • Passage Mode - Free to enter from outside and free to exit from inside.
  • DualSelect - Turn the key for safety mode. Turn the key further to select secure mode.
  • SafetyRelease - Automatically unlocks the internal knob upon entry minimising the risk of being locked in.
  • Anti-Corrosion - Successfully tested in accordance with AS2332.3.1:2001 neutral salt spray test.
  • Kinetic Defence - Bump and pick resistant.
  • Counterbalance Bolt - Proportionally distributes the load between the door and door frame.
  • 2 Keys Included - Can be keyed alike to other Lockwood door locks.
Details
  • Category
    Pull Handles
  • Range
    Lockwood
  • Brand
    Lockwood
General
  • Country of origin
    Australia
  • Type of use
    Residential
  • Package type
    Fragile - handle with care
  • Care and cleaning
    Easy maintenance
  • Installation
    Tools required
  • Assembly
    Professional assembly recommended
Specifications

Specifications:

  • Fucntion: Self-latching Double Cylinder
  • Backset: 60mm - 70mm adjustable latch
  • External handle length: 600mm
  • Internal handle length: 500mm
  • Handle width: 30mm
  • Cylinder: 5 pin tumbler mechanism
  • Keying: Brass cylinder and brass barrel
  • Keys: Supplied individually keyed with two keys per lock
  • Key Combinations: 78,000
Scope of use

Pull Handle - Used as handling feature for opening and closing doors. (e.g. Usually used but not limited to entrance doors and some commercial buildings)

Performance

Approvals:

  • AS 4145.2-2008 K5 Security
  • Conforms to the security and durability requirements of Australian Standard AS4145.2-2008
  • SL8D8C6K5 Durability Conforms to level D8
  • (Durability) Australian Lock Standard (AS 4145.2: 2008) Anti-Corrosion - Successfully tested in accordance with AS2332.3.1:2001 neutral salt spray test.
SKU: ASS005DPHLSSS
