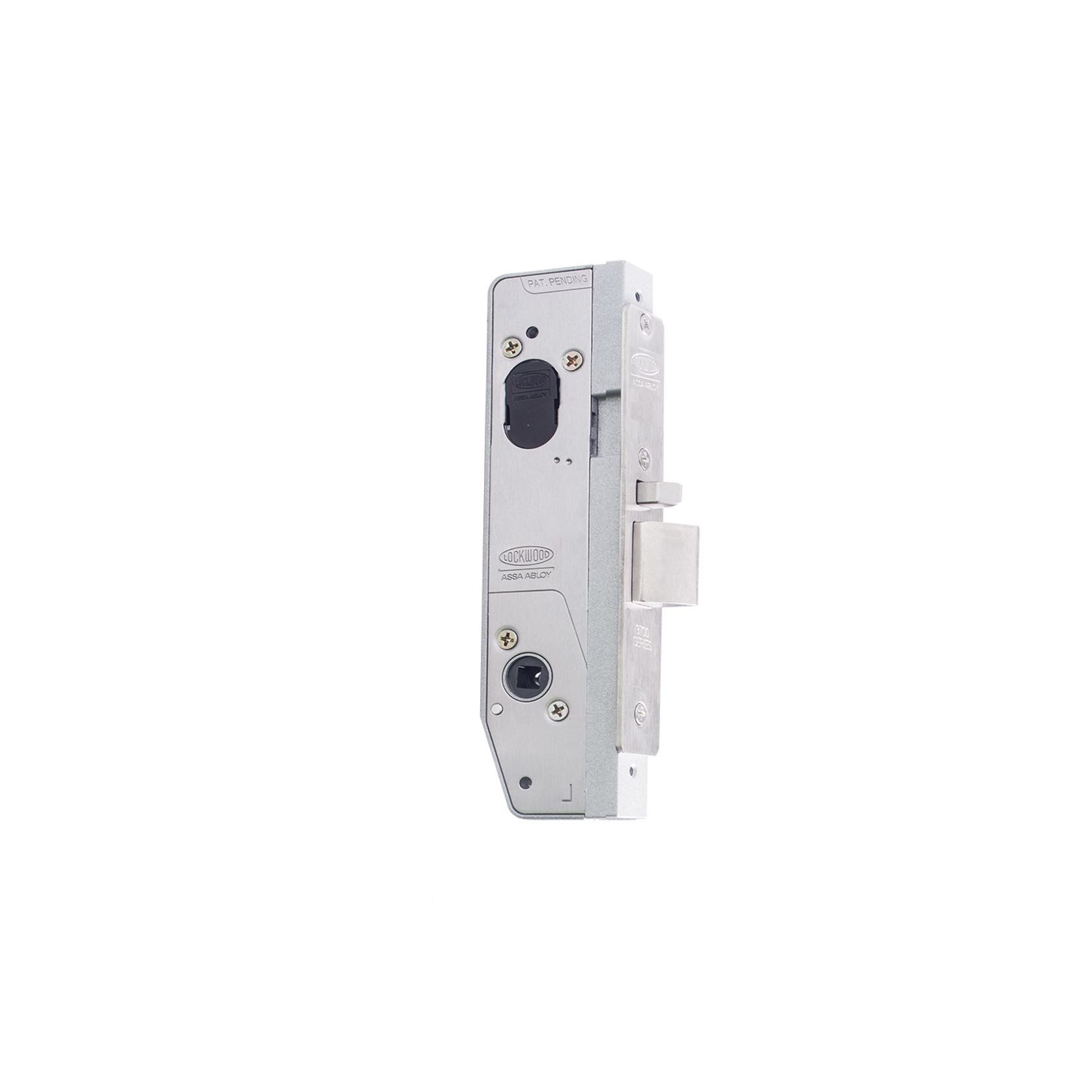

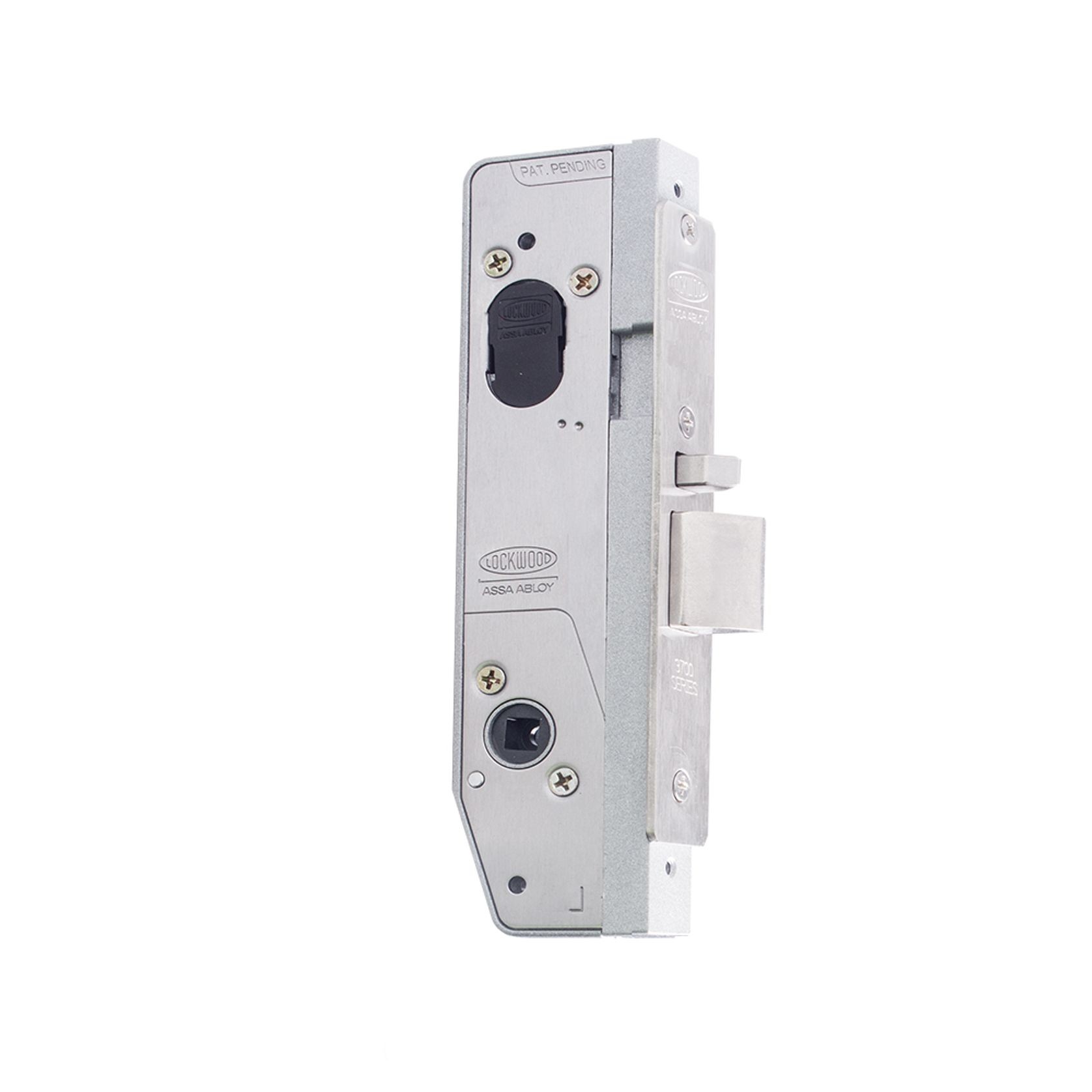

Lockwood Universal Primary Mortice Lock 30mm Backset
Wetherill Park, Australia
- 993.0K profile views
- 51 saves
Lockwood Universal Primary Mortice Lock
5782SS
Mortice Lock Function - latch retracted by knob / lever from either side. Deadbolt extended or retracted by key from outside or turn knob from inside.
- All handing setting (Passage, Combination or Escape) can be adjusted via the hub selector located under the face plate.
Features:
- Short backset universal primary mortice lock.

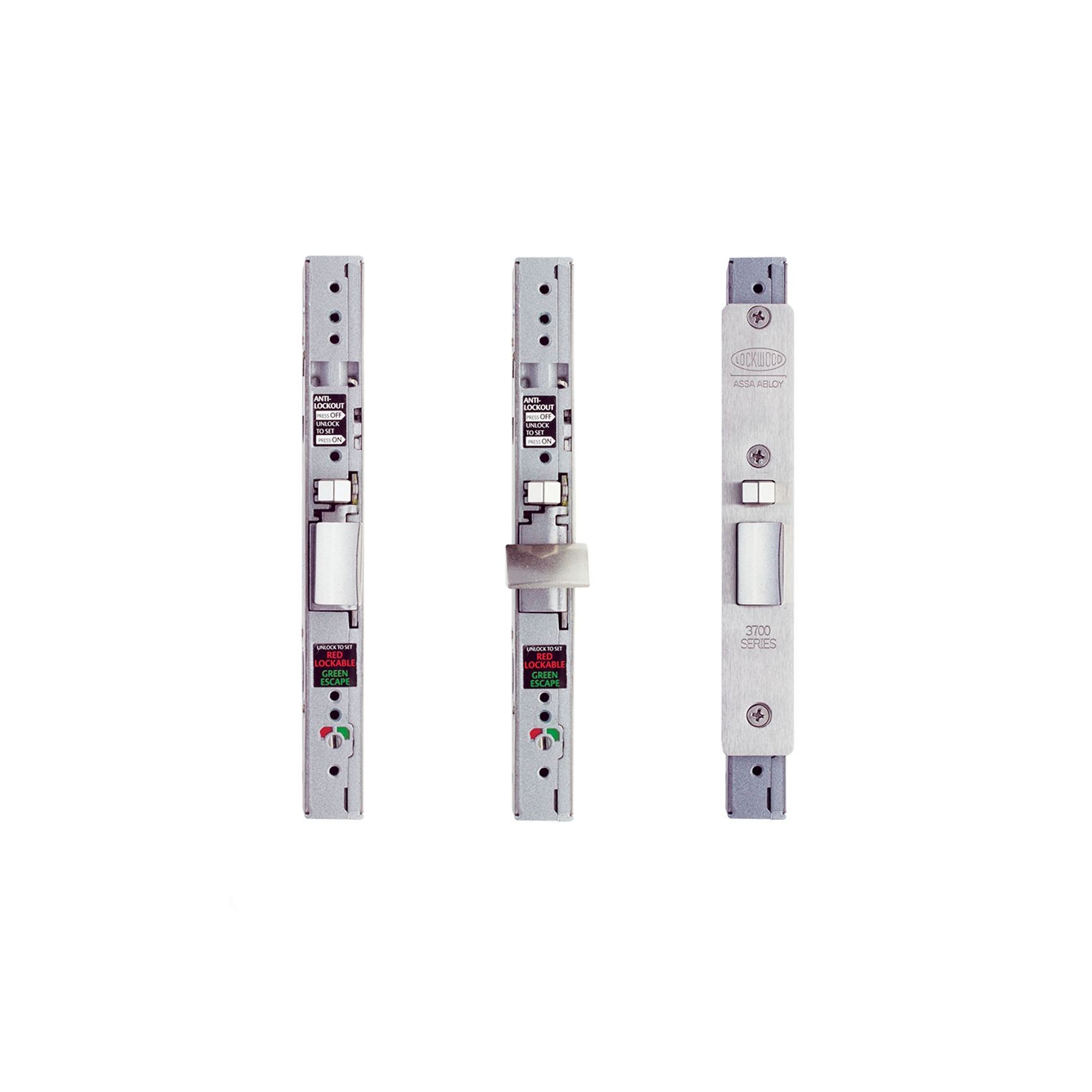

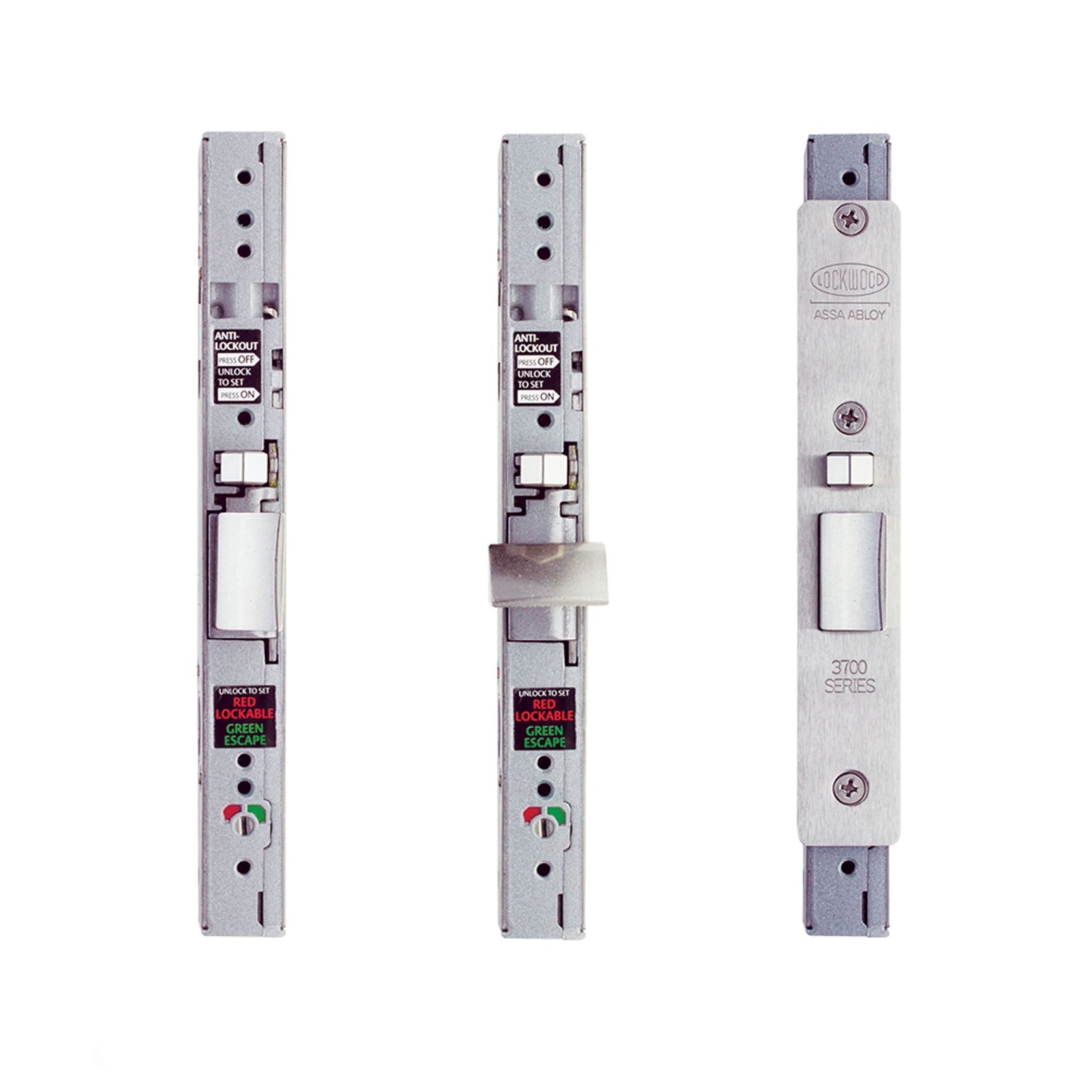

- Easy Red /Green function setting.
- All lock settings are made from under the faceplate allowing for simple in-door configuration.
- Standard primary locks include holdback and anti-lockout capabilities.
- Lock is always holdback capable, no setting is required. Holdback can be activated at any time - unless anti-lockout is selected.
- Operated by key or handle outside or by turnsnib, key or handle inside.
- Zinc diecast body with stainless steel chassis plates for improved strength.
- Electric Strike compatibility.
- Supplied less cylinder.
- Supplied with Selector 'V' cam.
- Compatible to most restricted keying systems.
Product Details
- Product
- Lockwood Universal Primary Mortice Lock 30mm Backset
- Category
- Latches and Locks
- Sold by
- Keeler Hardware
- Size
- 156mm
- Range
- Lockwood
- Brand
- Lockwood
- Country of origin
- Australia
- Type of use
- Commercial
- Package type
- Special packaging required
- Care and cleaning
- Easy maintenance
- Installation
- Minor installation required
- Assembly
- Minor assembly required
Product Variants
- Colours
- Backset
Keeler Hardware is specified by
Bones StudioArchitects
Scale ArchitectureArchitects
JOST ArchitectsArchitects
Anderson ArchitectureArchitects
mcmahon and nerlichArchitects
R ARCHITECTUREArchitects
Bryant Alsop ArchitectsArchitects
Ha ArchitectureArchitects
Ironbark ArchitectureArchitects
Dieppe DesignArchitects
Ian Moore ArchitectsArchitects
De Moyer ArchitectureArchitects
Habitat Studio ArchitectsArchitects
Cadence & CoArchitects
Invilla ArchitectureArchitects
Alexander &CO.Architects
Bijl ArchitectureArchitects
Hive ArchitectureArchitects
J Mammone ArchitectureArchitects
TDDP ArchitectsArchitects
David Baillie ArchitectArchitects
Rise Architectural BuildersBuilders
X + OInterior Designers
Ilm InteriorsJoiners
New SpacesBuilders
Brianda ProjectsBuilders
Dasch AssociatesInterior Designers
Kate NixonInterior Designers
TrueBuild HomesDesign & Build
STUDIO GAXAInterior Designers
IverManufacturers and Suppliers
CastellaManufacturers and Suppliers
APC BuildBuilders
Jumble & StackInterior Designers
Schemes & SpacesInterior Designers
ASSA ABLOY Door Locks & Security SolutionsManufacturers and Suppliers
Susie Miles DesignInterior Designers
Matic by DesignInterior Designers
Lockwood Universal Primary Mortice Lock5782SS Mortice Lock Function - latch retracted by knob / lever from either side.
Deadbolt extended or retracted by key from outside or turn knob from inside.
- All handing setting (Passage, Combination or Escape) can be adjusted via the hub selector located under the face plate.
Features:
- Short backset universal primary mortice lock.
- Easy Red /Green function setting.
- All lock settings are made from under the faceplate allowing for simple in-door configuration.
- Standard primary locks include holdback and anti-lockout capabilities.
- Lock is always holdback capable, no setting is required. Holdback can be activated at any time - unless anti-lockout is selected.
- Operated by key or handle outside or by turnsnib, key or handle inside.
- Zinc diecast body with stainless steel chassis plates for improved strength.
- Electric Strike compatibility.
- Supplied less cylinder.
- Supplied with Selector 'V' cam.
- Compatible to most restricted keying systems.
- Specs

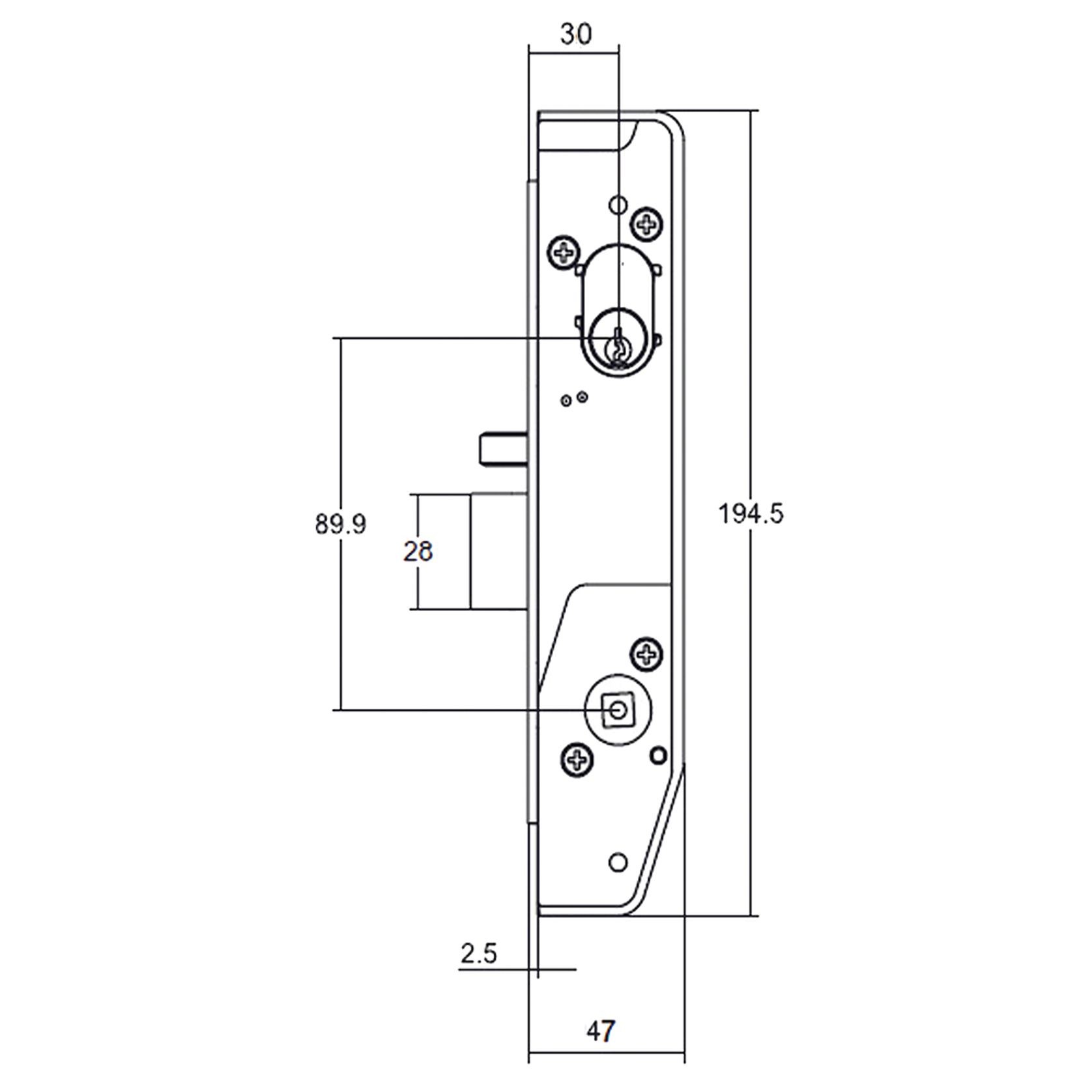

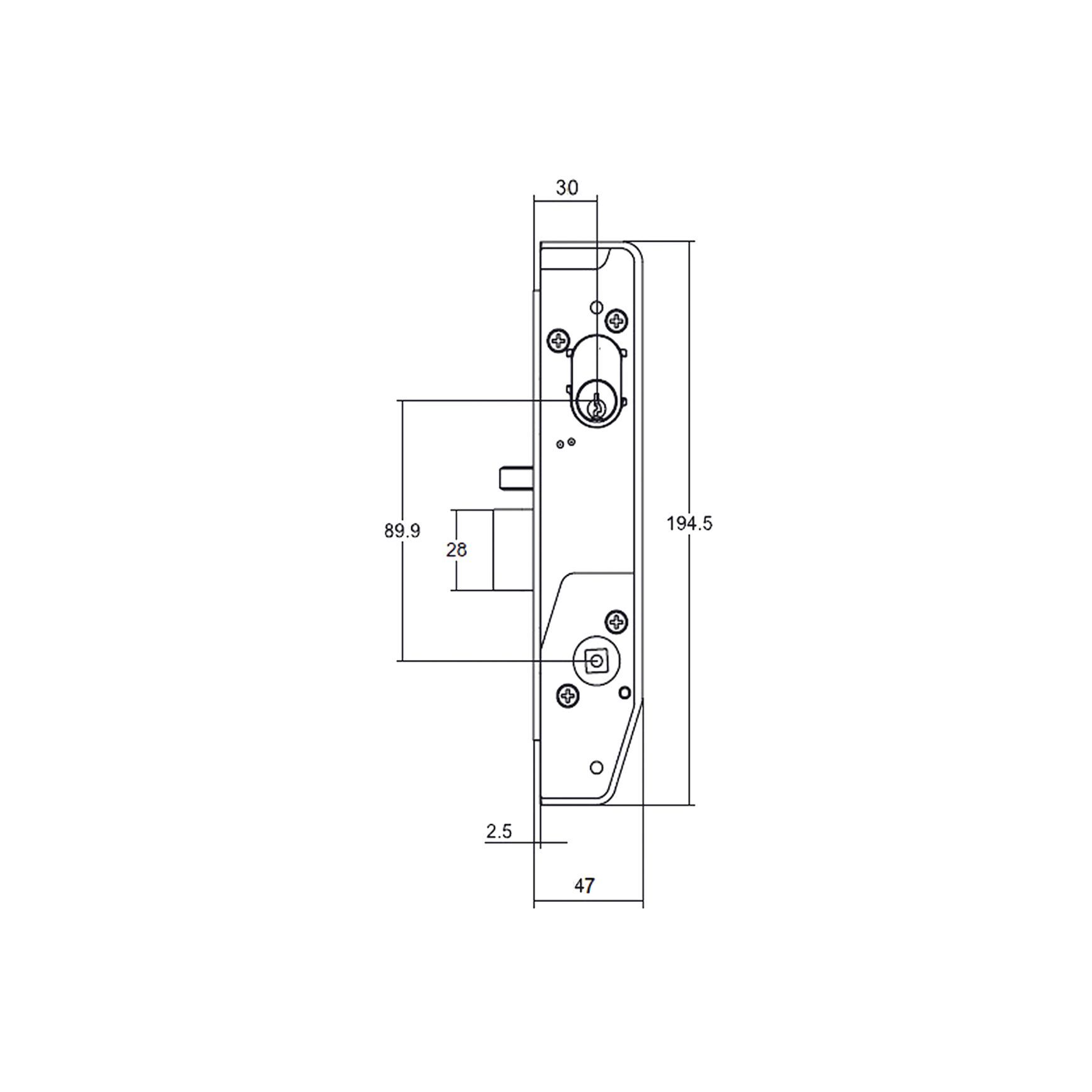

Specifications:
- Anti-lockout Function: Yes
- Door Thickness: 32mm - 50mm
- Lock Pitch: 89.9mm
- Backset: 30mm
- Fire Rated: No
- Face Plate Length: 156mm
- Face Plate Thickness: 2.5mm
- Face Plate Width: 25mm
- Handing: Reversible
- Mortice Lock Case Depth: 47mm
- Mortice Lock Case Height: 194.5mmm
- Mortice Lock Case Thickness: 20mm
- Spindle Type: 7.6mm Square Split Spindle
- Finish: Satin Stainless Steel
- Scope of use
Mortice Lock a pocket cut into the short edge of the door, allows a longer and thicker mortise box to slide into the door itself, providing superior protection
