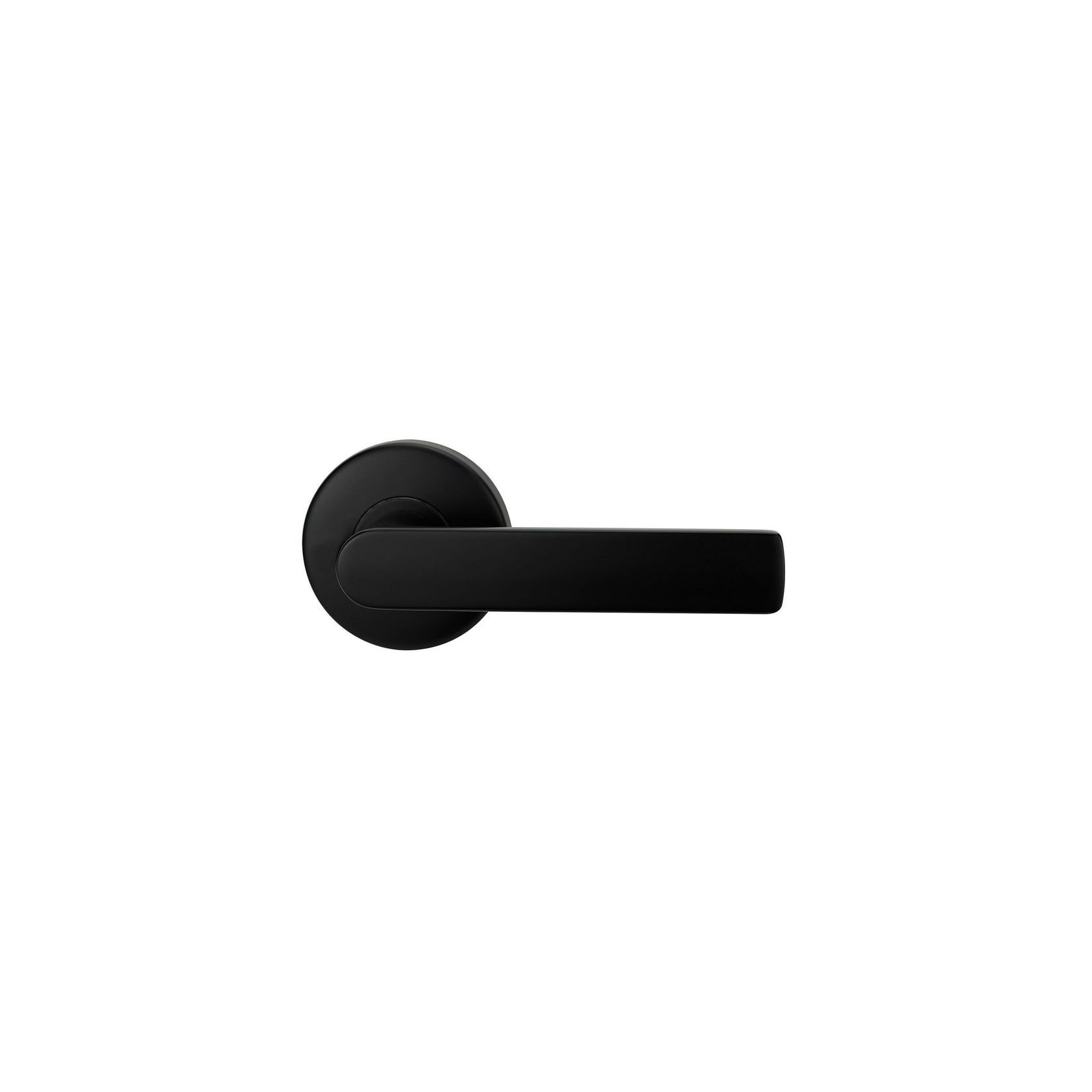

Lockwood Velocity® Series Large Rose Element Lever
- 192.9K profile views
- 17 saves
Be confident with a design that transcends the basic functional and aesthetic requirements of residential hardware.
Setting the benchmark in ease of installation, the Lockwood Velocity® leverset is supplied pre-assembled with no loose screws or spindles. Screws align through the rose removing the need to locate them blind through the door. A twist and a quick tightening of the screws and the levers are installed!
Featuring a 63mm round rose or 66.5mm square rose, the Nero® Velocity Large Rose Series is suitable for retrofit and common residential door preparations.
Features of the Velocity Series Door Furniture
- All fixings are concealed beneath a removable rose trim providing a crisp and clean presentation desired by the discerning home owner
- Simple twist and tighten fixing method with pre-assembled leverset allows for super easy and fast installation
- Available in a choice of square or round rose with the Element lever design
- The roses fit 50mm or 54mm diameter holes, making it suitable for retrofit and common door preparations
- Designed in Australia for the specific needs of the Australian market
Product Details
- Product
- Lockwood Velocity® Series Large Rose Element Lever
- Category
- Lever Handles
- Range
- Nero® Collection
Product specified by
Be confident with a design that transcends the basic functional and aesthetic requirements of residential hardware.Setting the benchmark in ease of installation, the Lockwood Velocity® leverset is supplied pre-assembled with no loose screws or spindles.
Screws align through the rose removing the need to locate them blind through the door. A twist and a quick tightening of the screws and the levers are installed!
Featuring a 63mm round rose or 66.5mm square rose, the Nero® Velocity Large Rose Series is suitable for retrofit and common residential door preparations.
Features of the Velocity Series Door Furniture
- All fixings are concealed beneath a removable rose trim providing a crisp and clean presentation desired by the discerning home owner
- Simple twist and tighten fixing method with pre-assembled leverset allows for super easy and fast installation
- Available in a choice of square or round rose with the Element lever design
- The roses fit 50mm or 54mm diameter holes, making it suitable for retrofit and common door preparations
- Designed in Australia for the specific needs of the Australian market
- Specs / Details
Lever Dimensions
- Length: 122mm
- Projection: 54.5mm
- Finger clearance: 47.5mm
Rose Dimensions
- Rouse Rose: 63mm by 12.5mm
- Square Rose: 66.5mm by 12.5mm
Product Details
Functions
- Passage
- Privacy
- Dummy
Materials: Solid zinc die-cast
Door Thickness: 32 to 45mm
Latches
- Passage sets are supplied with a pair of lever handles and a 60mm backset tubular latch
- Privacy sets are supplied with a pair of lever handles and a 60mm backset privacy tubular latch which includes an activating pin for the inside of the door and an external emergency release function. The privacy setting is automatically released when the internal handle is operated
- Dummy sets are supplied with one fixed lever handle
- All latches are supplied with industry standard "D" strikes
Standards and Compliance
- Durability - Australian Lock Standard AS4145.2-2008
- Corrosion - Australian Lock Standard AS4145.2-2008
Downloads
