LOX Electric Strike Monitored ANSI Footprint 12/24V DC ES10M

Wetherill Park, Australia

993.3K profile views
51 saves

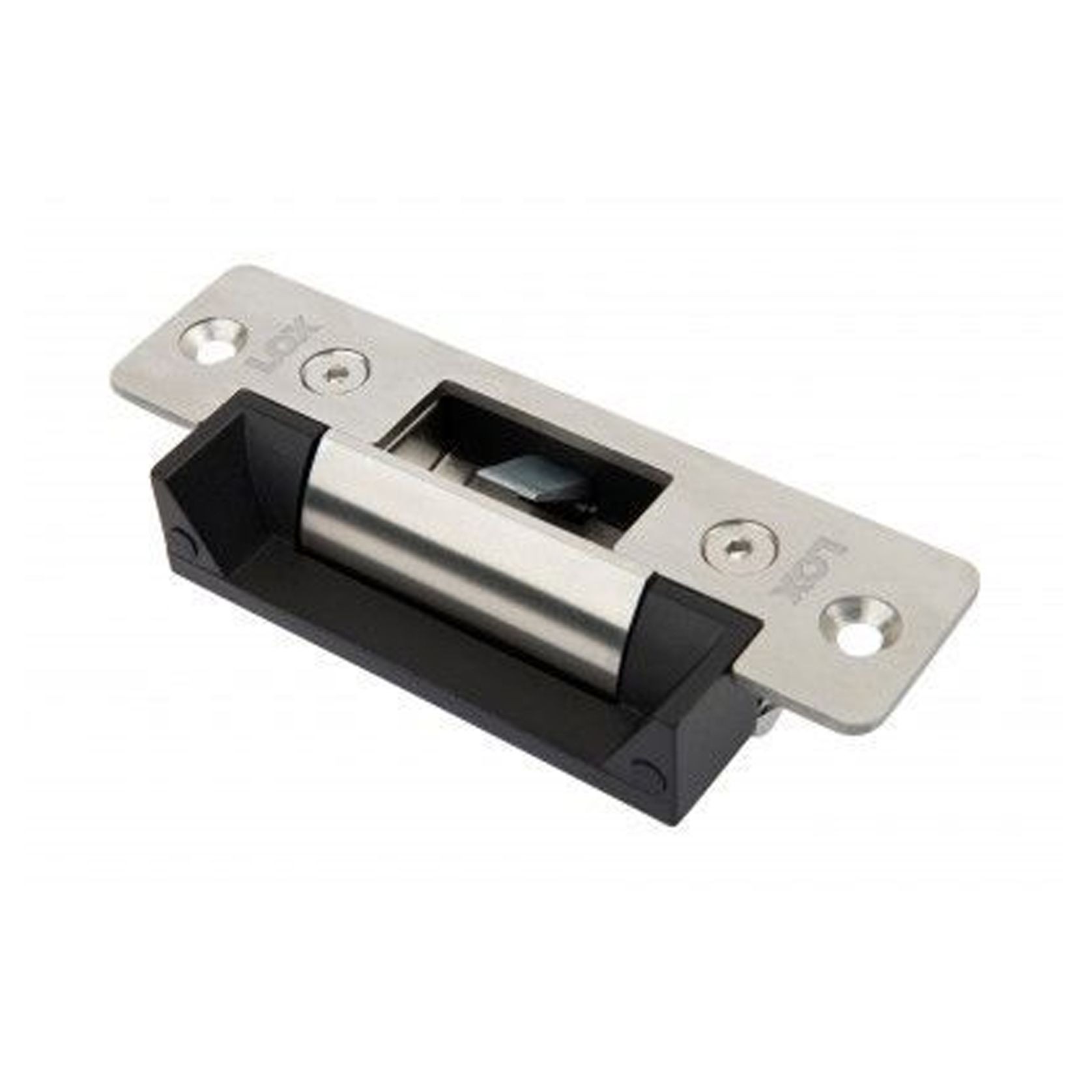

LOX Electric Strike
ES10M

Electric Strike intended for door security in commercial & industrial applications with heavy traffic that require access control systems. Suitable for use on hinged doors to work with an extensive range of locks.

Electric Stike Function - replaces a standard door strike and connected to a power supply. An electric strike's ramped surface can, upon command, pivot out of the way when the lock on the door is in the locked position and the door is opened.

One of the most successful residential & light commercial Electric Strike
Site interchangeable from FailSecure to Fail Safe (Power to Release to Power to Lock) by only using a small screw-driver
Designed to be morticed into a door frame on a single swing door equipped with either a mortice lock or a cylindrical tongue lock

Tags

lock latch electric lock weather resistant sensor

Product Details

Product: LOX Electric Strike Monitored ANSI Footprint 12/24V DC ES10M
Category: Latches and Locks
Sold by: Keeler Hardware
Range: LOX

Keeler Hardware is specified by

(34) Professionals

LOX Electric Strike Monitored ANSI Footprint 12/24V DC ES10M

Visit site

Suitable for use on hinged doors to work with an extensive range of locks. Electric Stike Function - replaces a standard door strike and connected to a power supply. An electric strike's ramped surface can, upon command, pivot out of the way when the lock on the door is in the locked position and the door is opened. One of the most successful residential & light commercial Electric Strike Site interchangeable from FailSecure to Fail Safe (Power to Release to Power to Lock) by only using a small screw-driver Designed to be morticed into a door frame on a single swing door equipped with either a mortice lock or a cylindrical tongue lock

LOX Electric StrikeES10M Electric Strike intended for door security in commercial & industrial applications with heavy traffic that require access control systems.

Suitable for use on hinged doors to work with an extensive range of locks.

One of the most successful residential & light commercial Electric Strike
Site interchangeable from FailSecure to Fail Safe (Power to Release to Power to Lock) by only using a small screw-driver
Designed to be morticed into a door frame on a single swing door equipped with either a mortice lock or a cylindrical tongue lock

Specs

Specifications:

Voltage/Current: Dual voltage 12/24VDC 12VDC = 200mA 24VDC = 100mA
Holding Strength: Up To 1200Kg Tested 1 Million Cycles
DSS Monitoring: Door Latch Sensor, Door Latch Engaged Within Strike Keeper ES10M Version
Ip Rating: Not Weather Resistant
Environmental: Operational Temperature Range - 20 Derees Celsius To 60 Derees Celsius

Features:

Monitored Non Weather Resistant
Comes with a 5-year warranty and have a holding strength of up to 1200kg.
Simple Power To Lock/Power To Release interchange
Pre-drilled for extension lips
Fire rated

Approvals:

Up To 4 Hour Fire Rated To A.S Standard, Ce & C-Tick
