HB700 Series Floor Mounted Magnetic Door Stop

The Halliday + Baillie magnetic floor-mounted door stop range is designed for applications where a reliable mechanical hold-open function is required without compromising architectural aesthetics. Suitable for interior or covered exterior doors, these units provide a controlled and secure magnetic catch via a door-mounted keeper that engages precisely with the floor-mounted magnet.

These door stops are ideal for use in residential, commercial, hospitality, and public-space environments, including high-traffic areas and premium architectural projects. Their compact footprint and high-quality construction make them suitable for:

• Swing doors requiring a tidier alternative to wall-mounted stops or overhead hold-open devices
• Full-height or heavier doors that benefit from stronger magnetic engagement (HB710-L recommended)
• Spaces with step-down floor conditions or where the keeper sits higher than standard (HB760 recommended)
• Design-driven interiors where the hardware must complement minimalist, modern, or high-end detailing
• Projects requiring consistent finish and hardware language, including flush pulls, handles, or other H+B components

Key Features

Material: Milled aluminium / aluminium-alloy body, stainless steel fasteners, steel keeper and magnets.

• Suitable for interior or covered exterior use (i.e., protected from the elements).

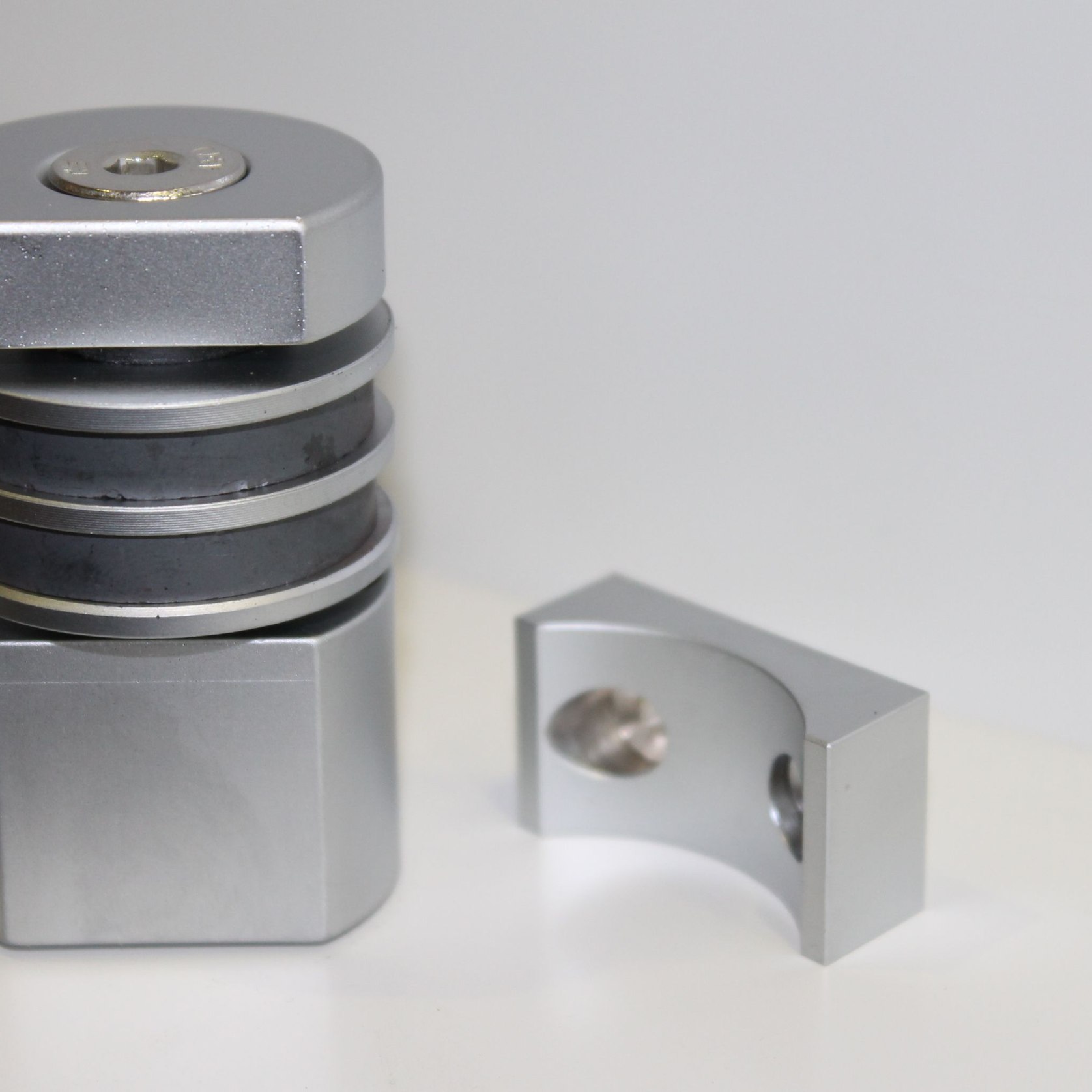

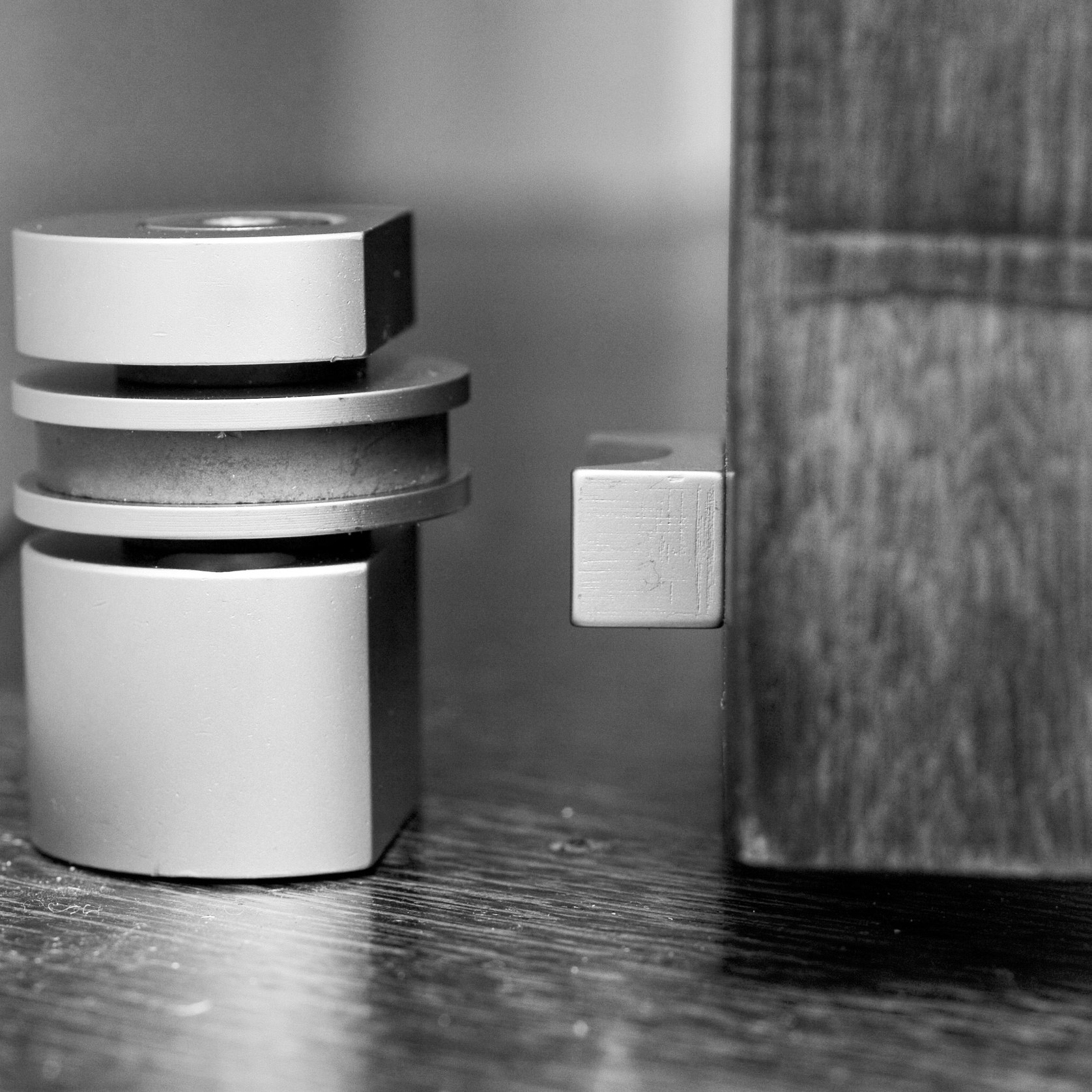

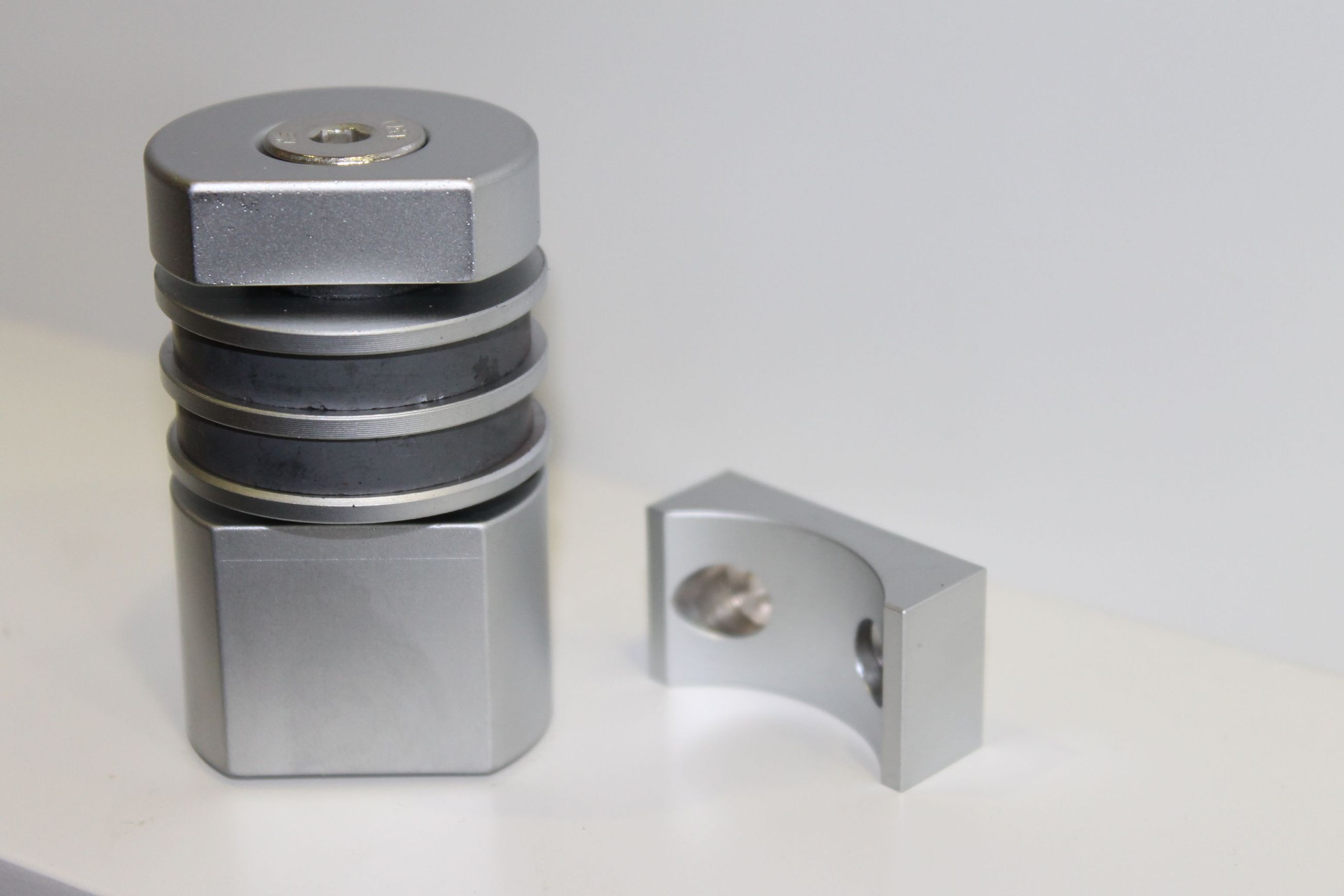

• Provides a secure mechanical hold via magnet + keeper system: the keeper on the door is finished to match the stop body, nests into the magnet, giving a clean and robust solution.
• Finish flexibility: multiple finishes available (e.g., Satin Chrome, Dark Bronze, Electro Black Ace etc). Always check regional availability.
• Designed/manufactured by Halliday + Baillie in New Zealand / Australia.

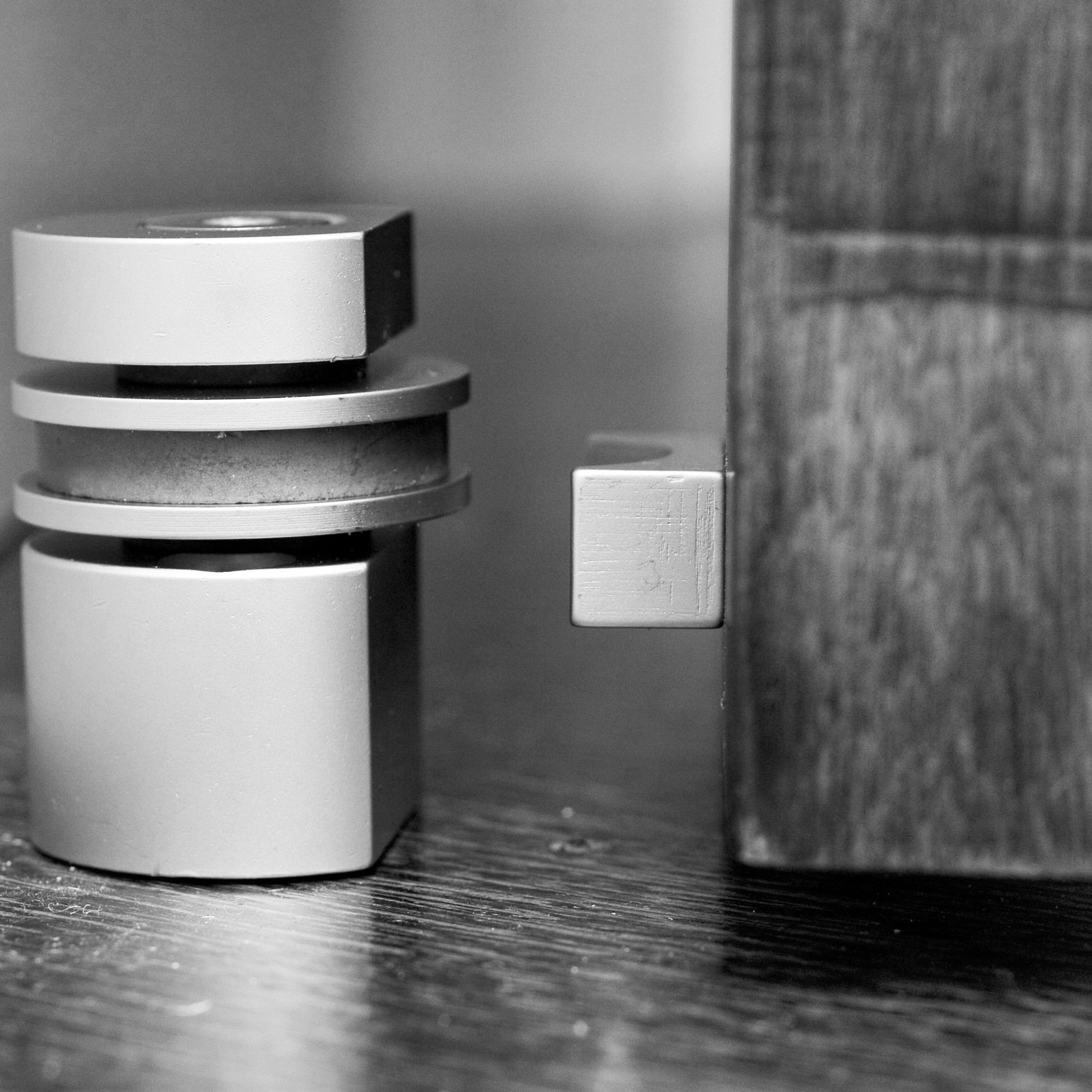

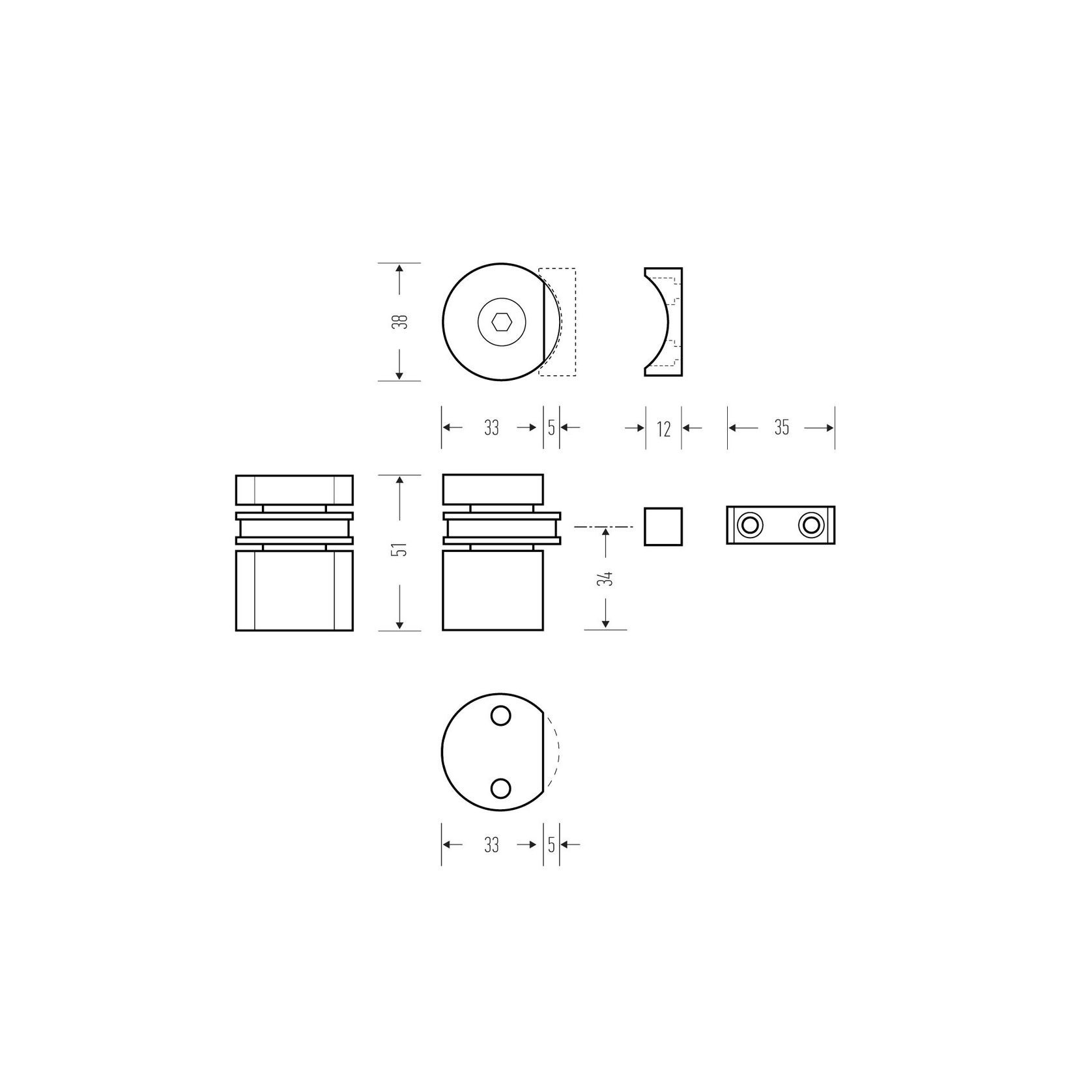

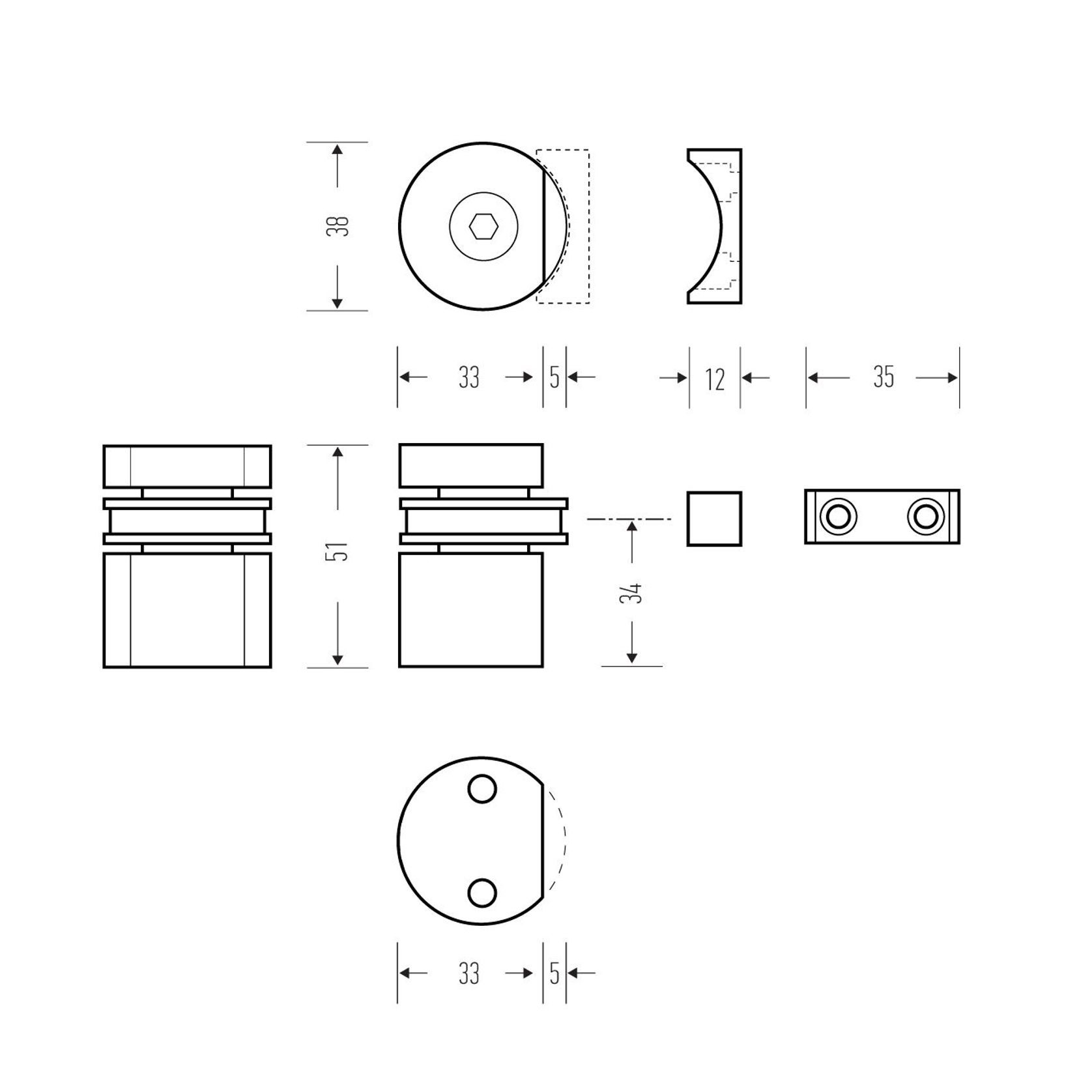

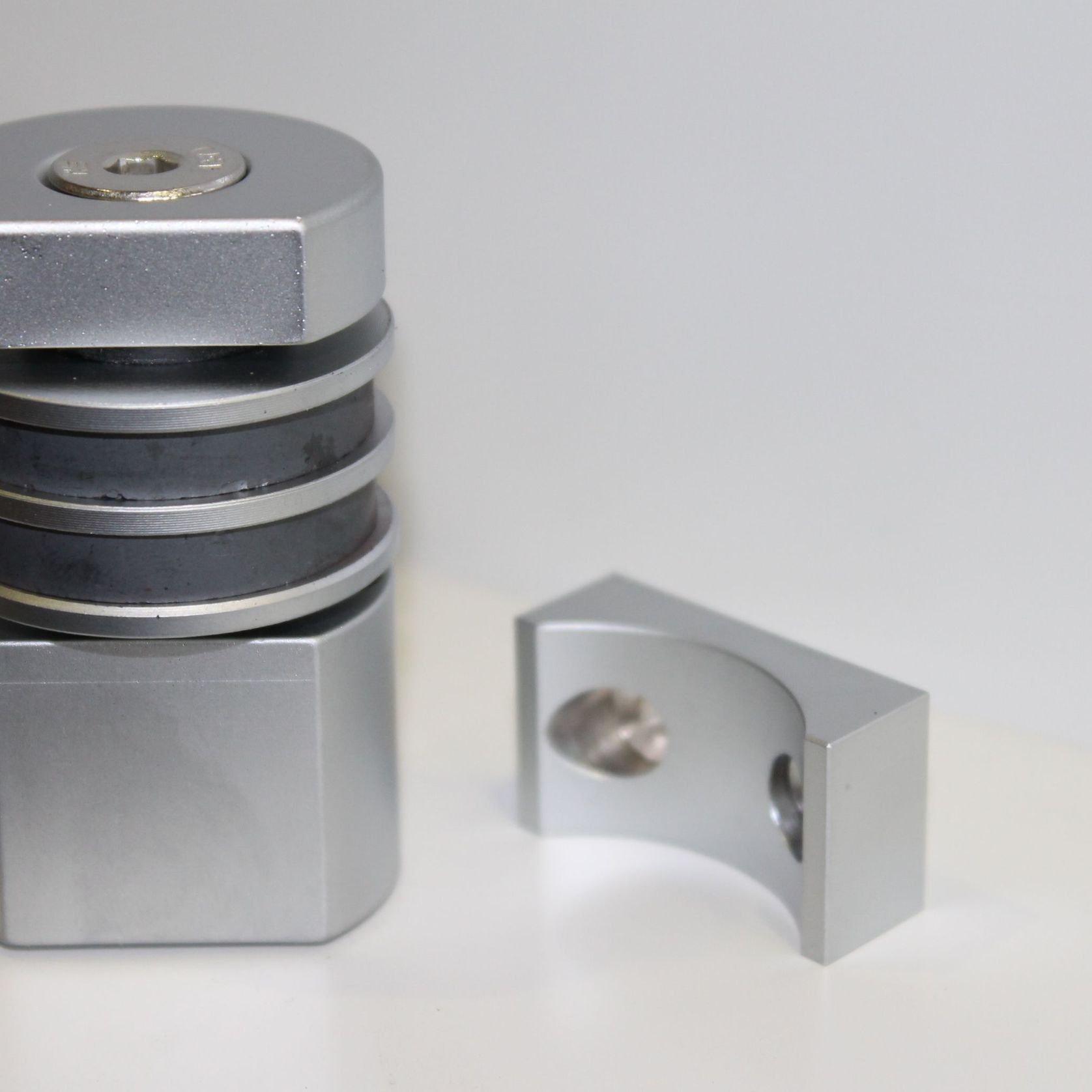

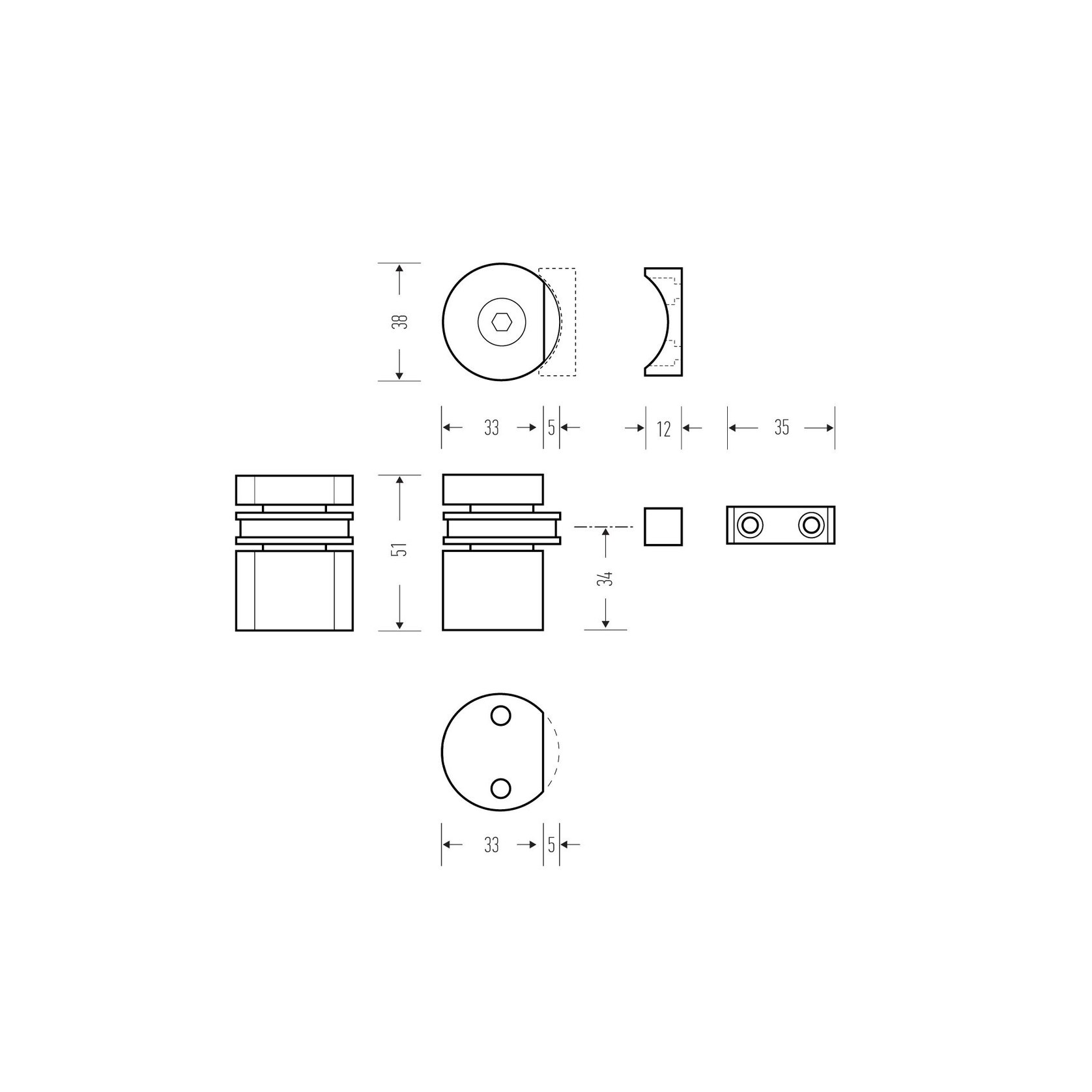

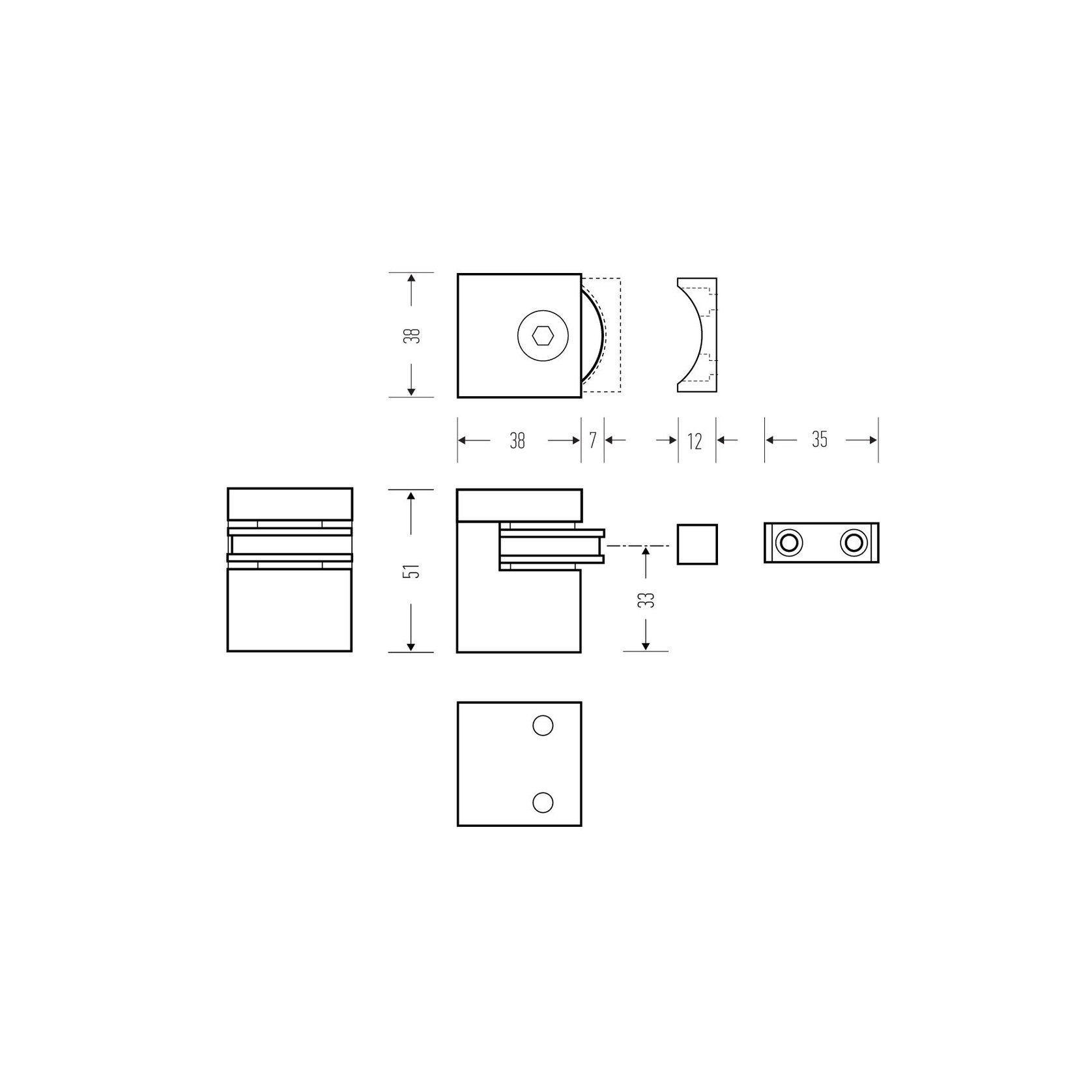

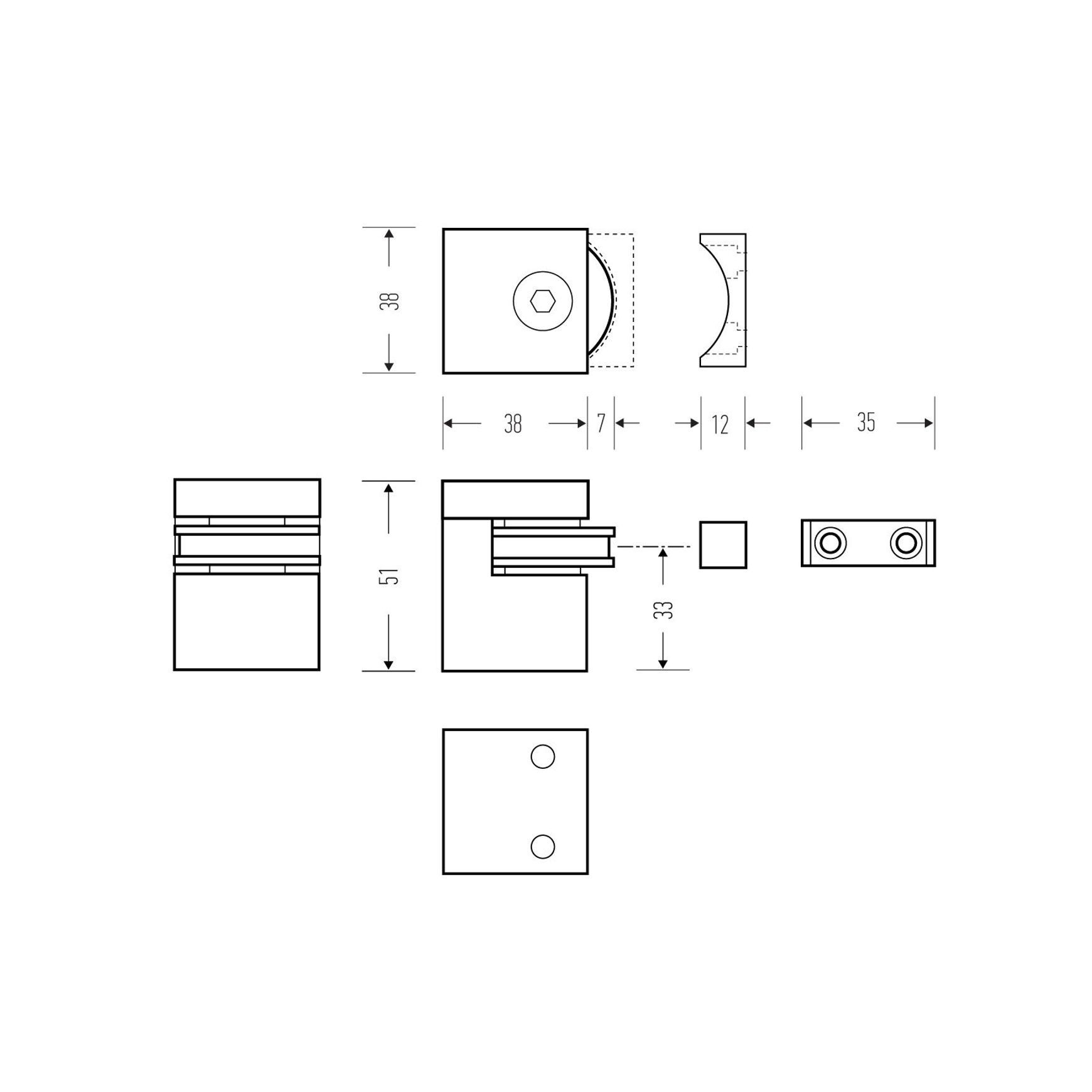

• HB 710 Round: Compact round profile, height ~51 mm, diameter of full magnet ~38 mm. A great all-purpose choice when floor-mount hold-open is required.

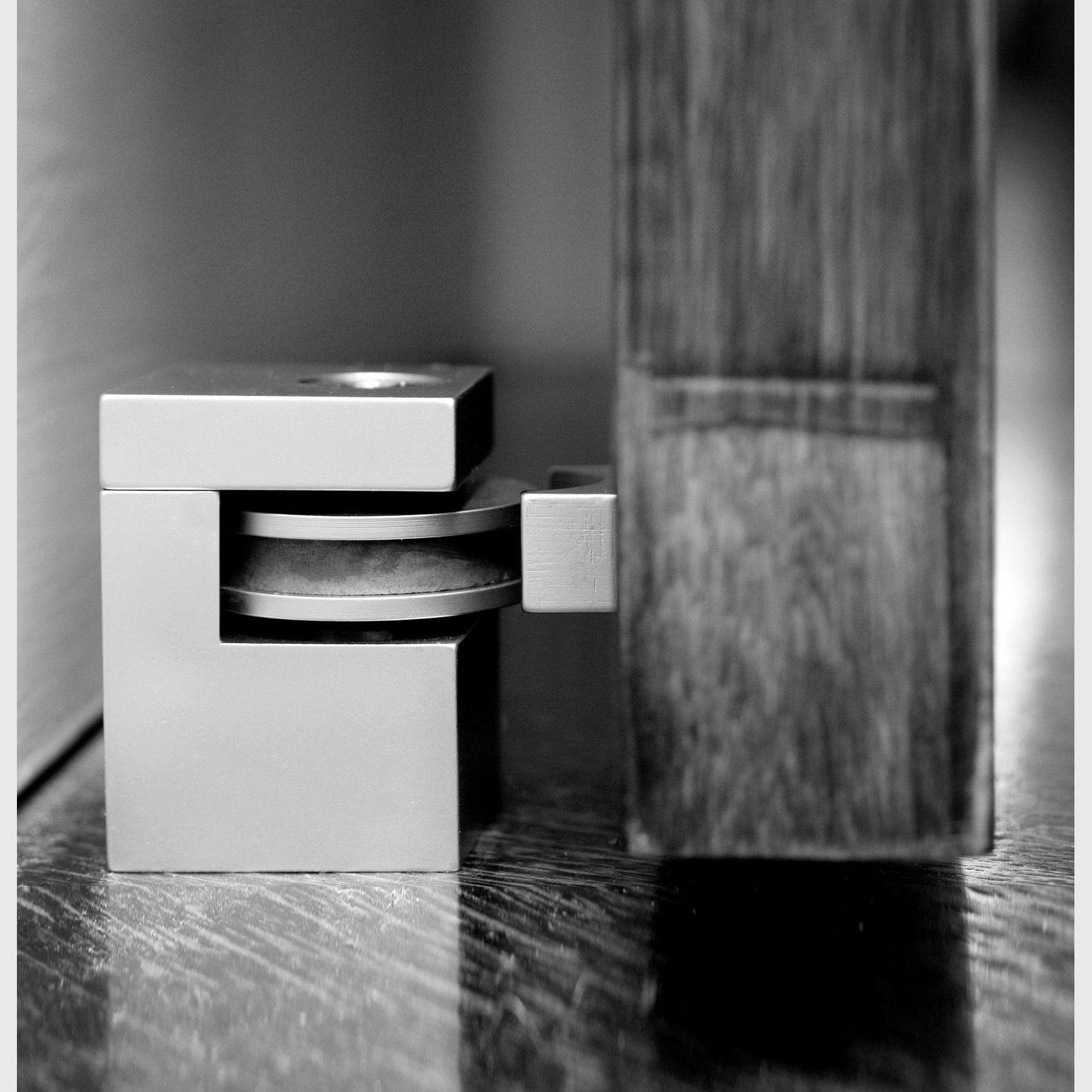

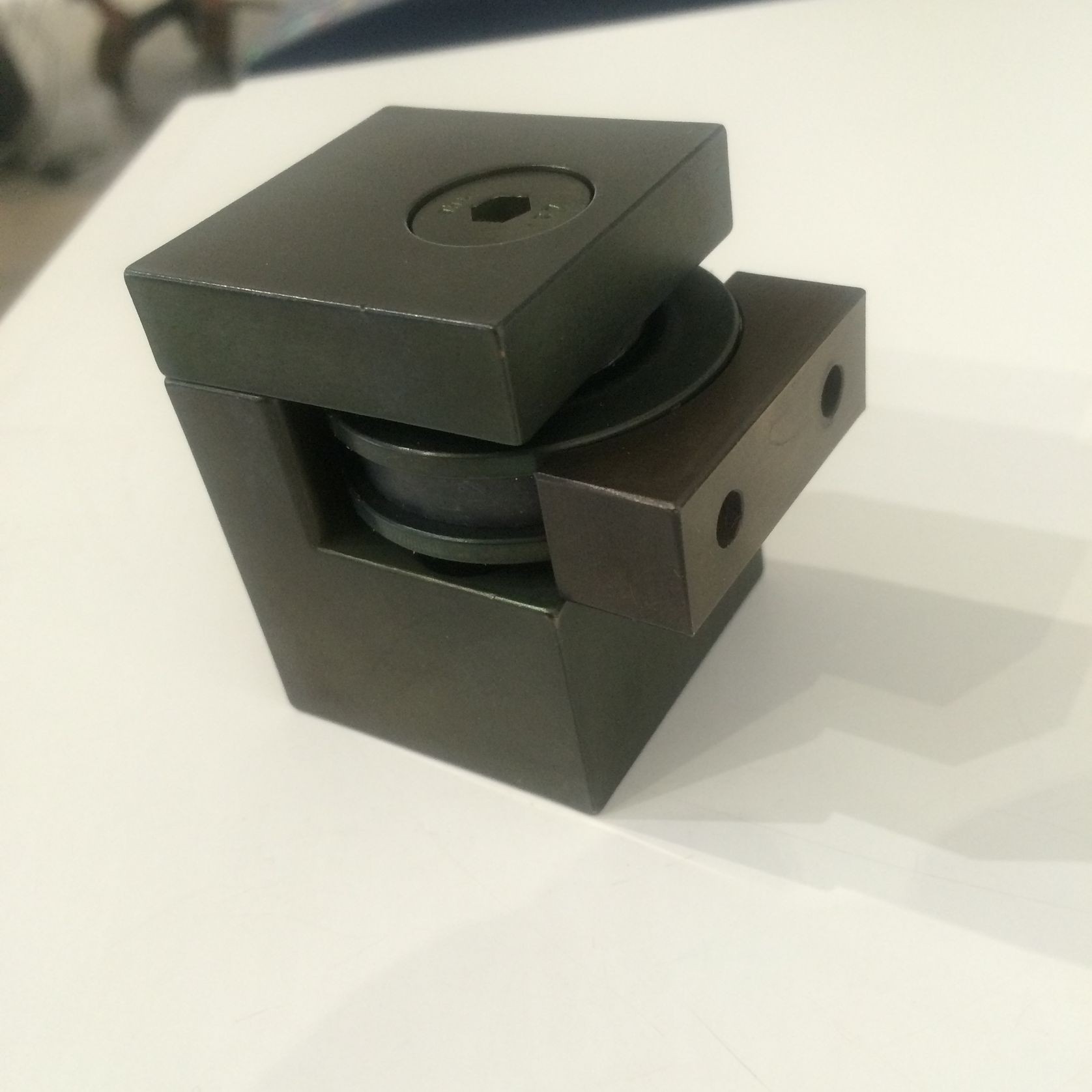

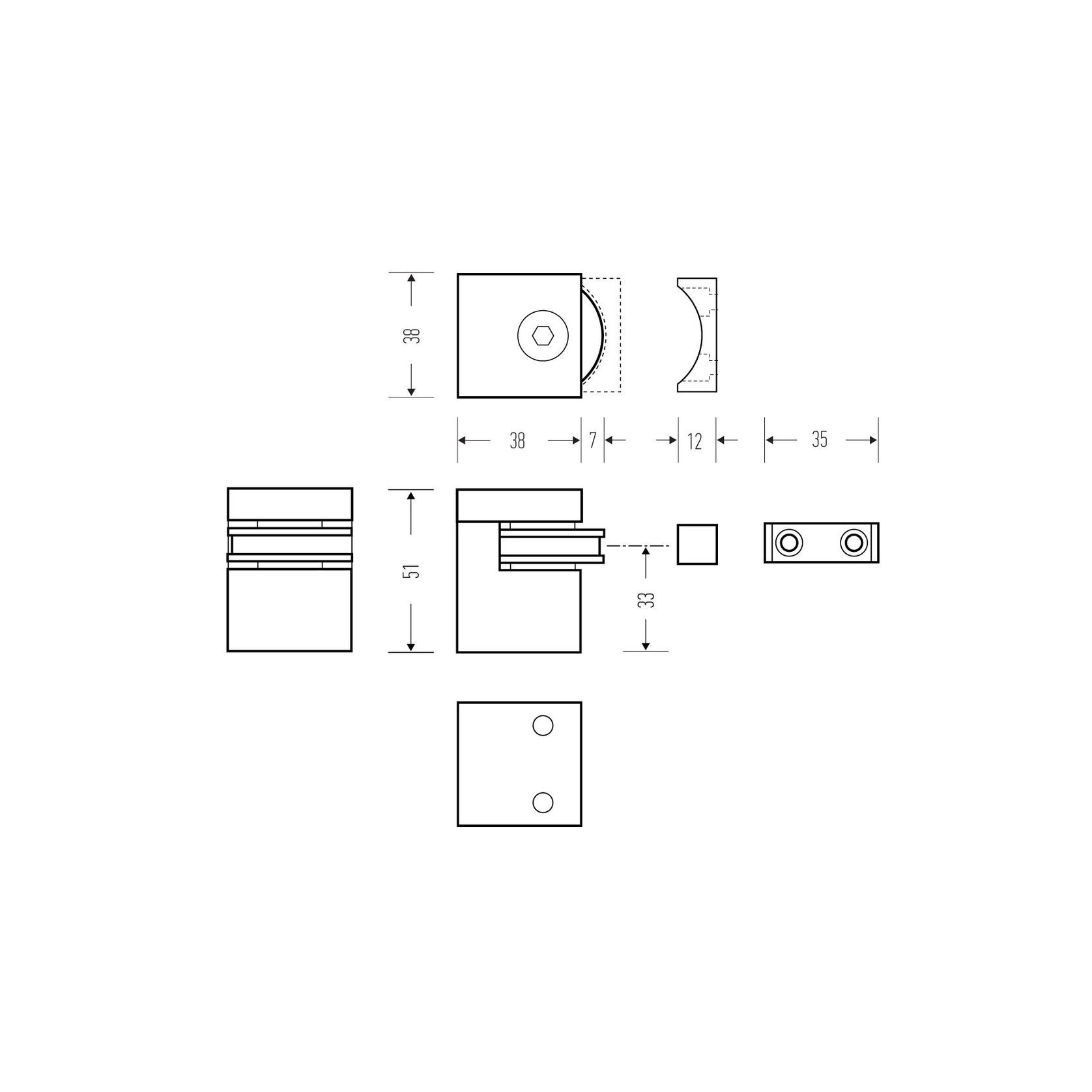

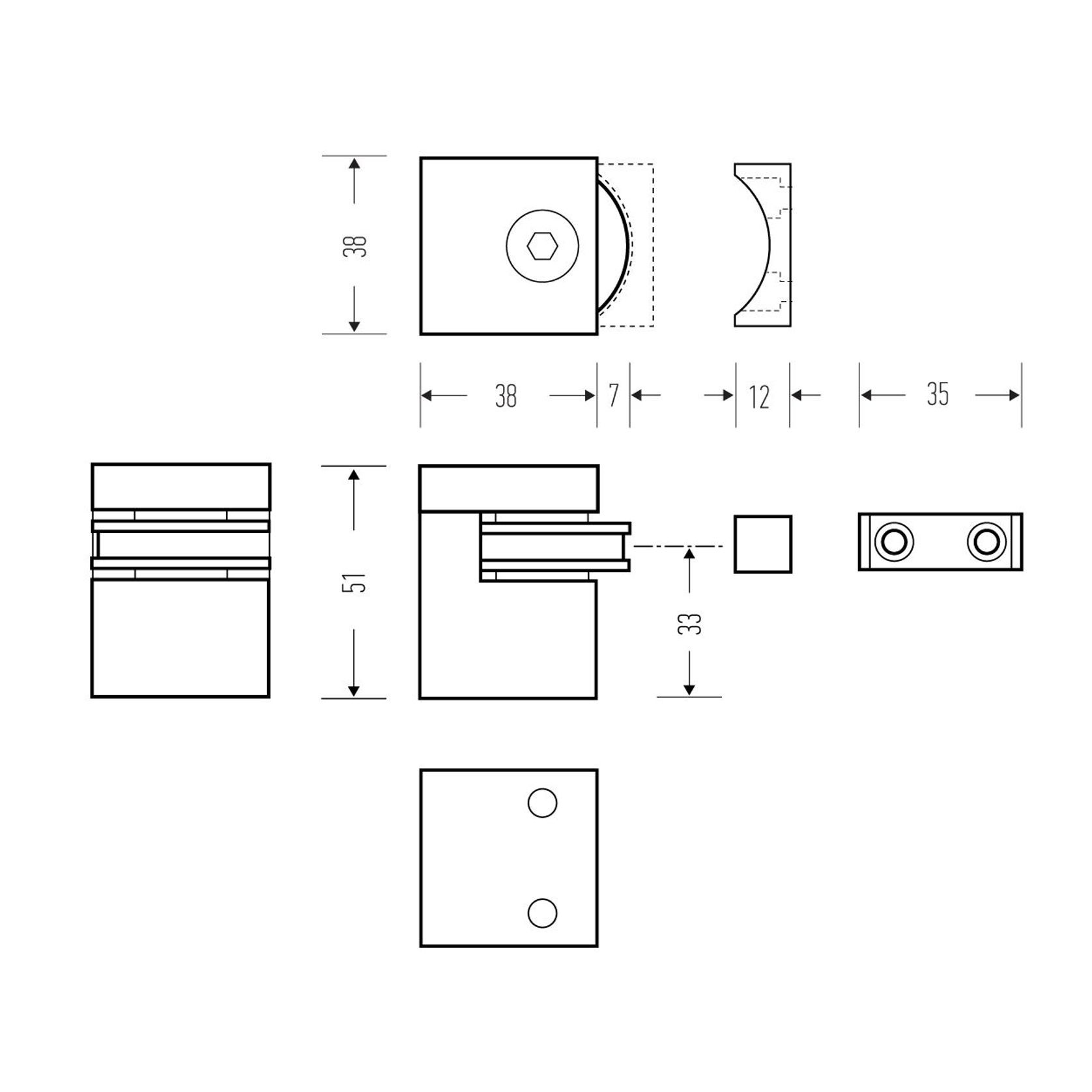

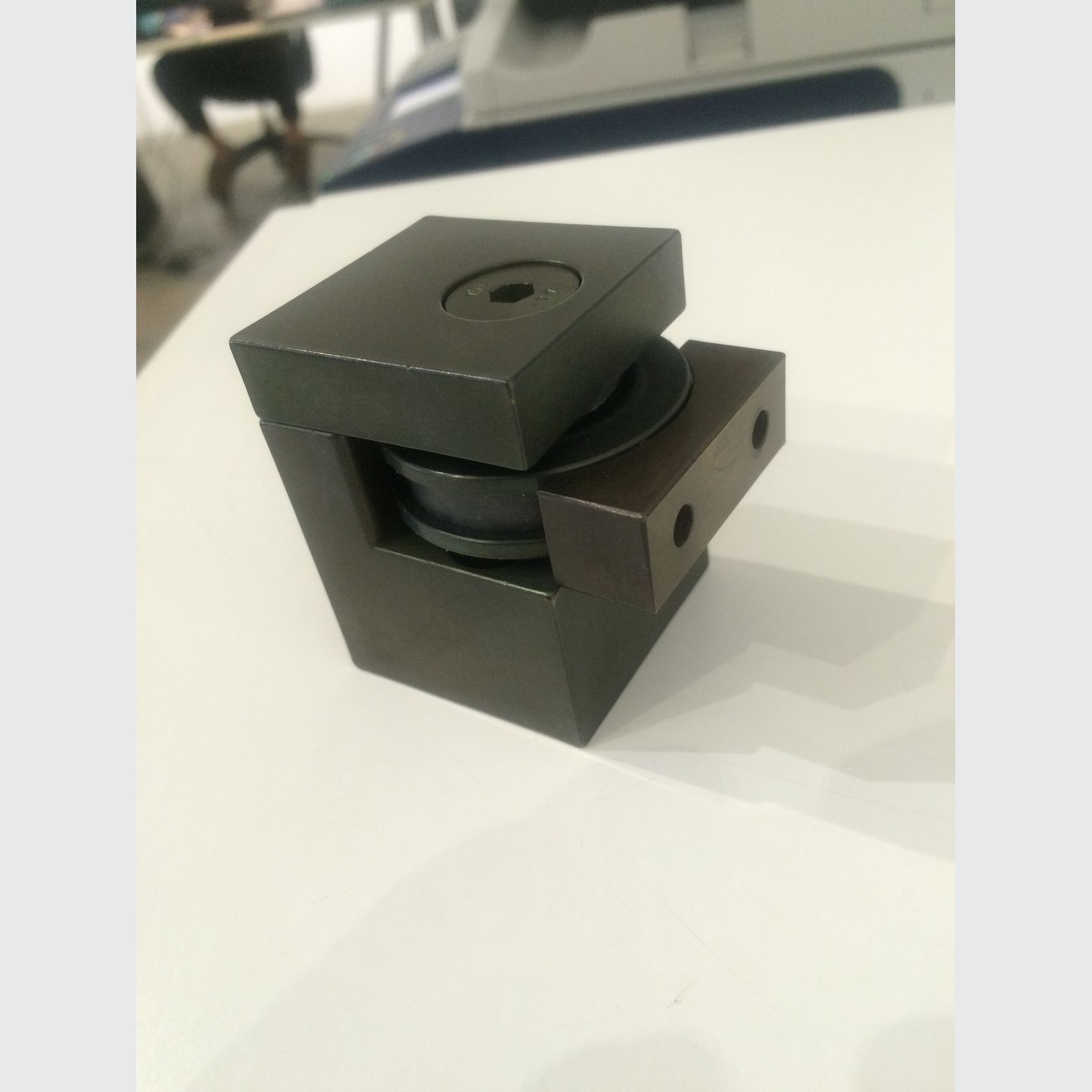

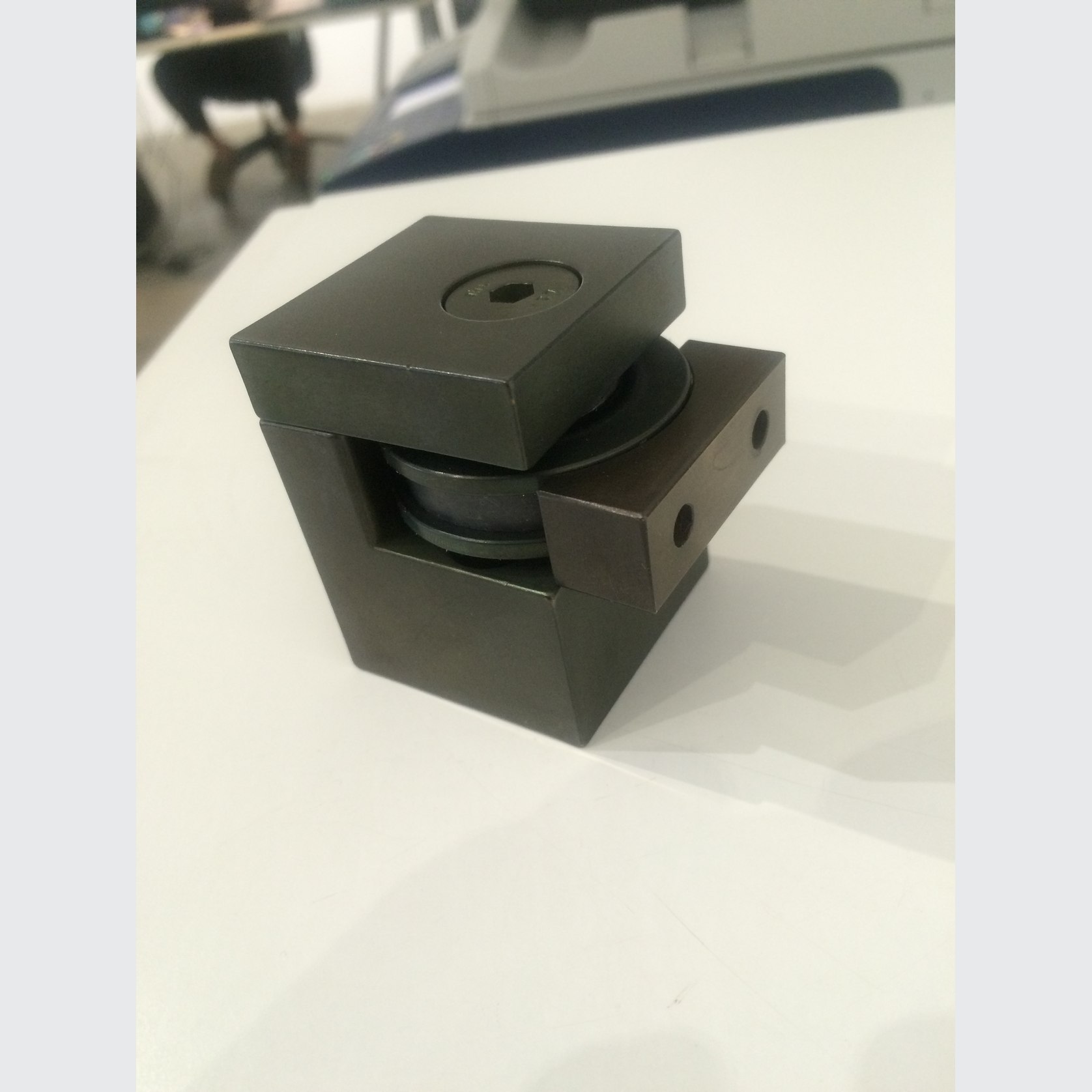

  • HB 720 Square: Same height (~51 mm) and diameter/magnet size (~38 mm) but square/cube form factor—providing a more “architectural/modern” aesthetic. Also can be mounted on optional elevating base if extra height is required.
  • HB 710-L : Same form-factor as HB 710, but designed for stronger mechanical holding (e.g., larger/heavier doors). Provides a specified holding force of ~3300 Gauss in some listings. Height ~51 mm, diameter ~38 mm.

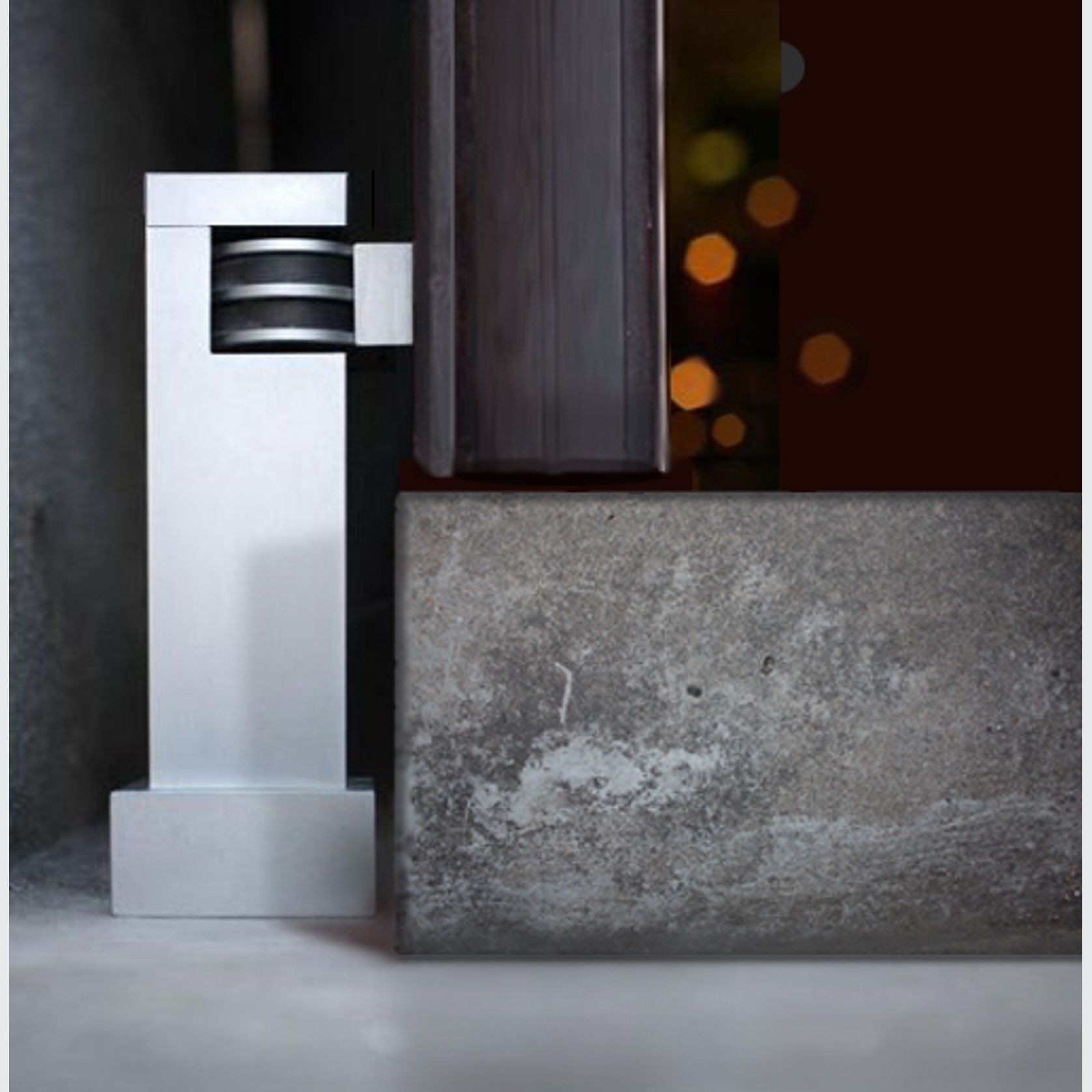

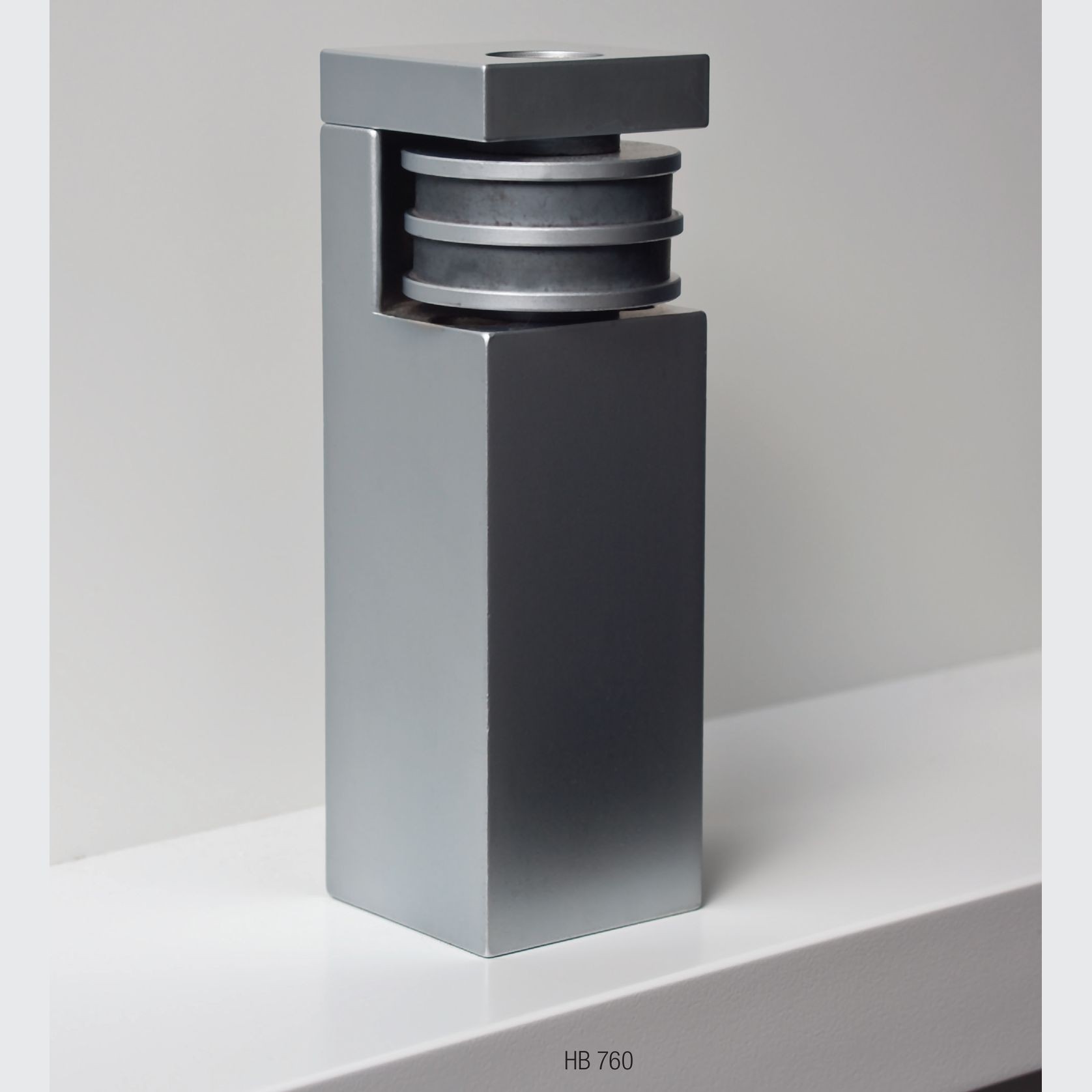

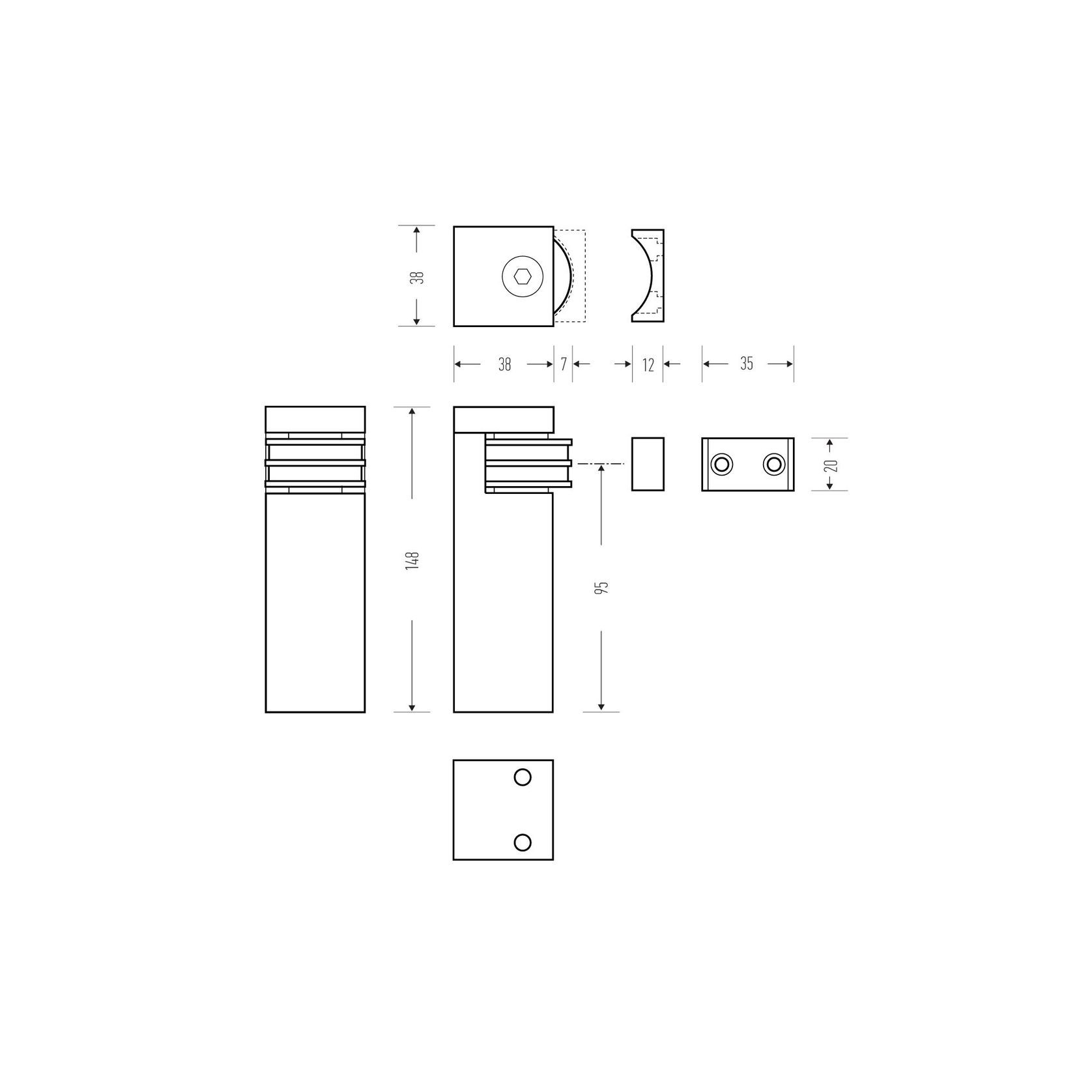

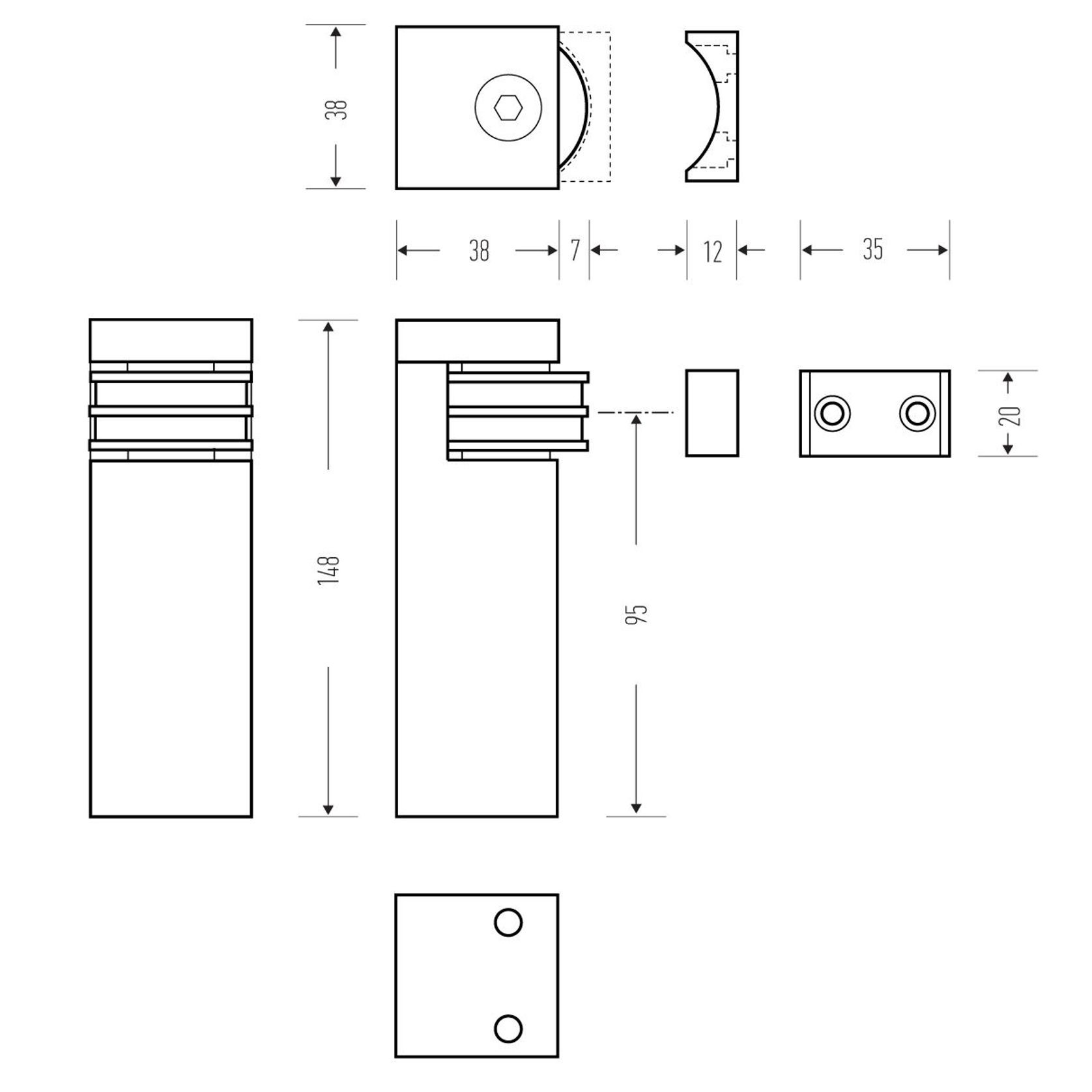

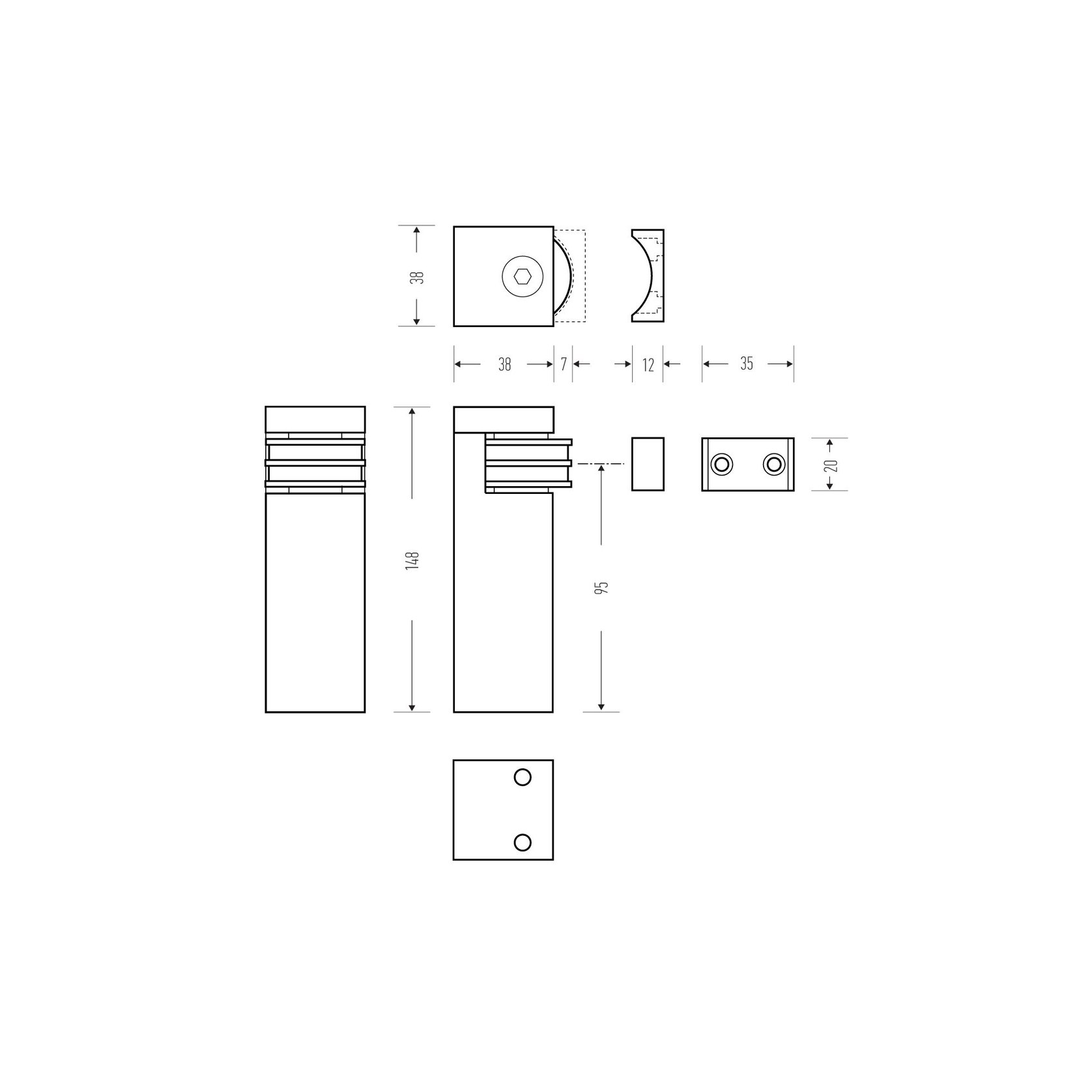

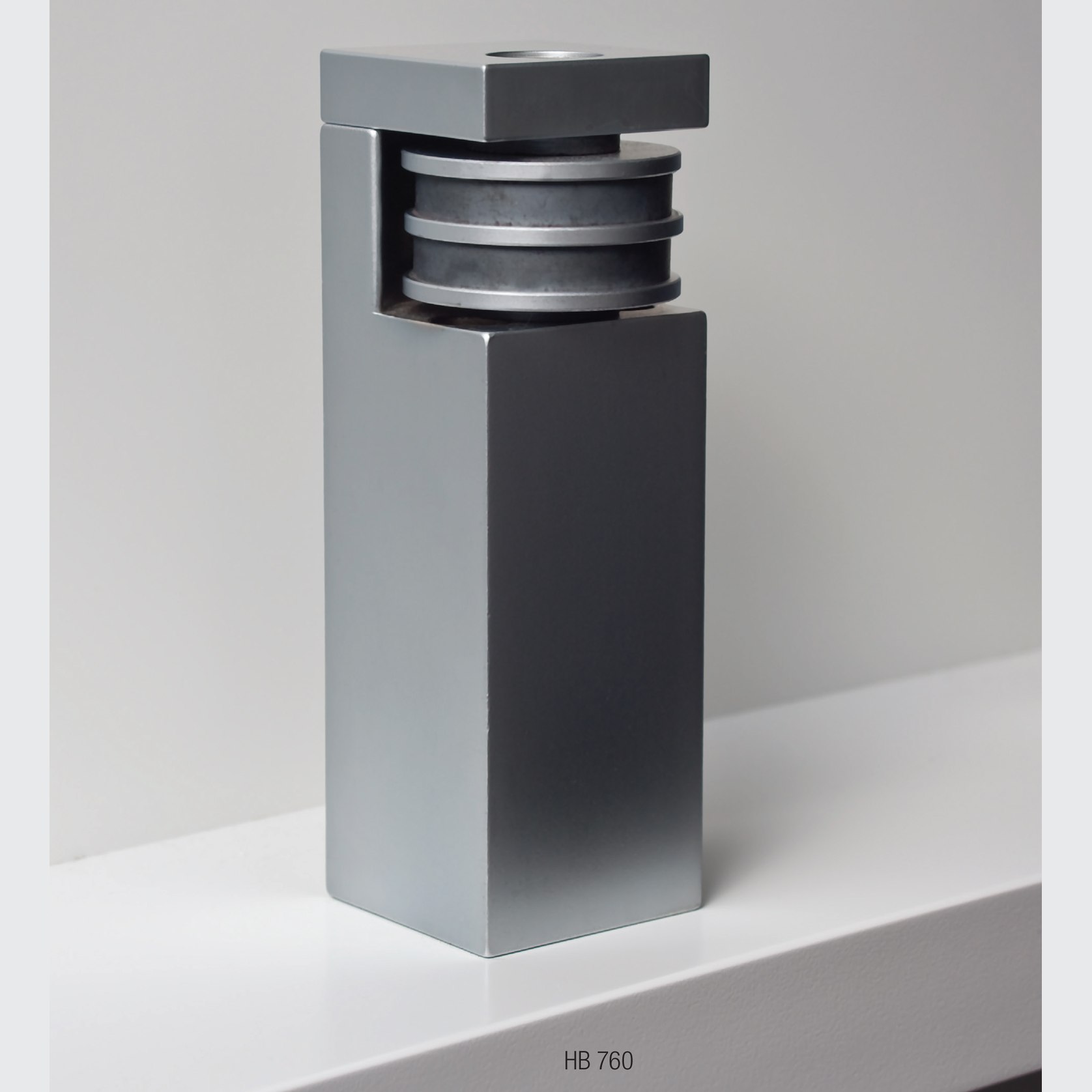

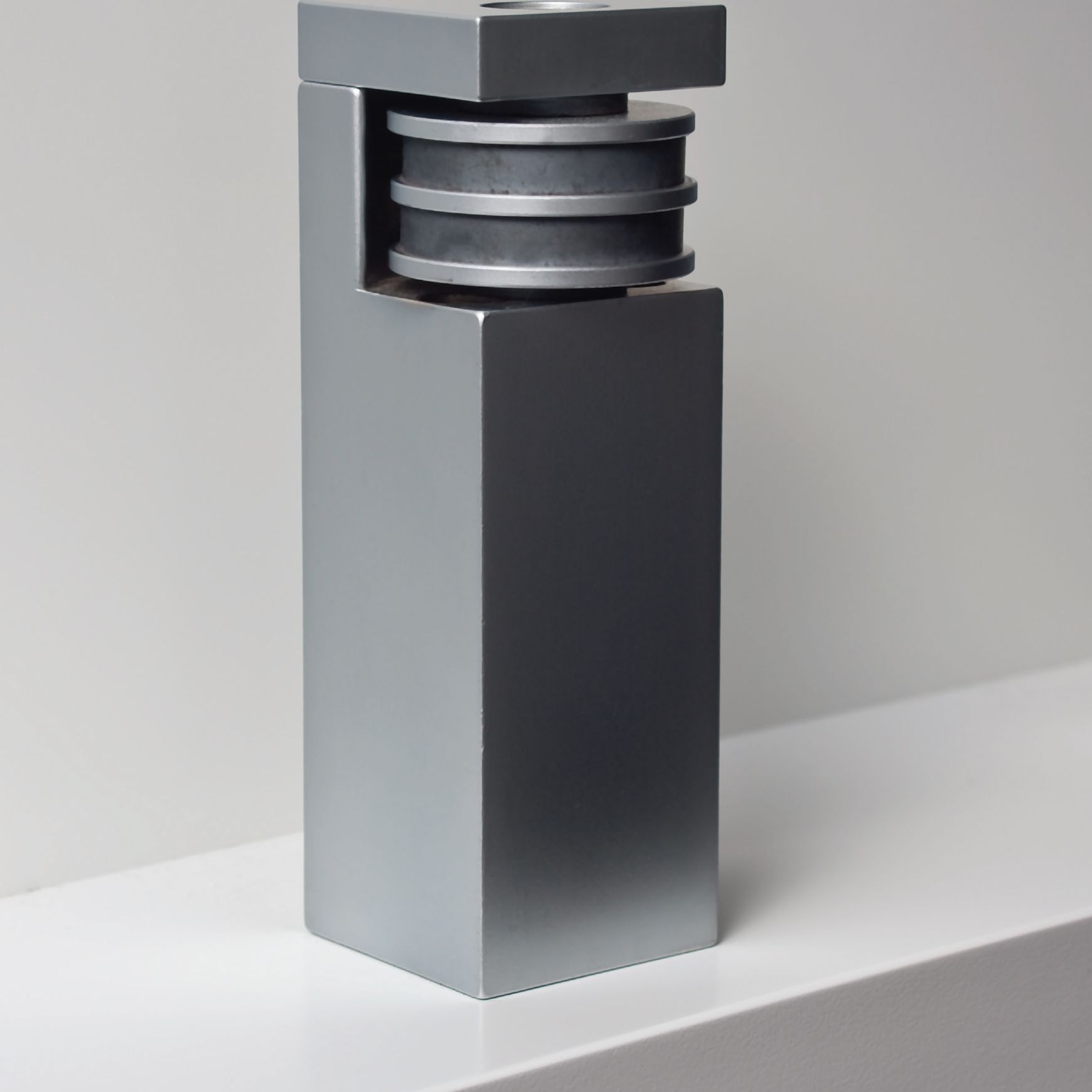

  •  HB 760 Tall Floor-Mounted Magnetic Stop: Taller height (~120 mm) for “step-down situations” or where keeper needs to be set higher above floor. Useful where floor geometry or door arrangement dictates a taller standard.
