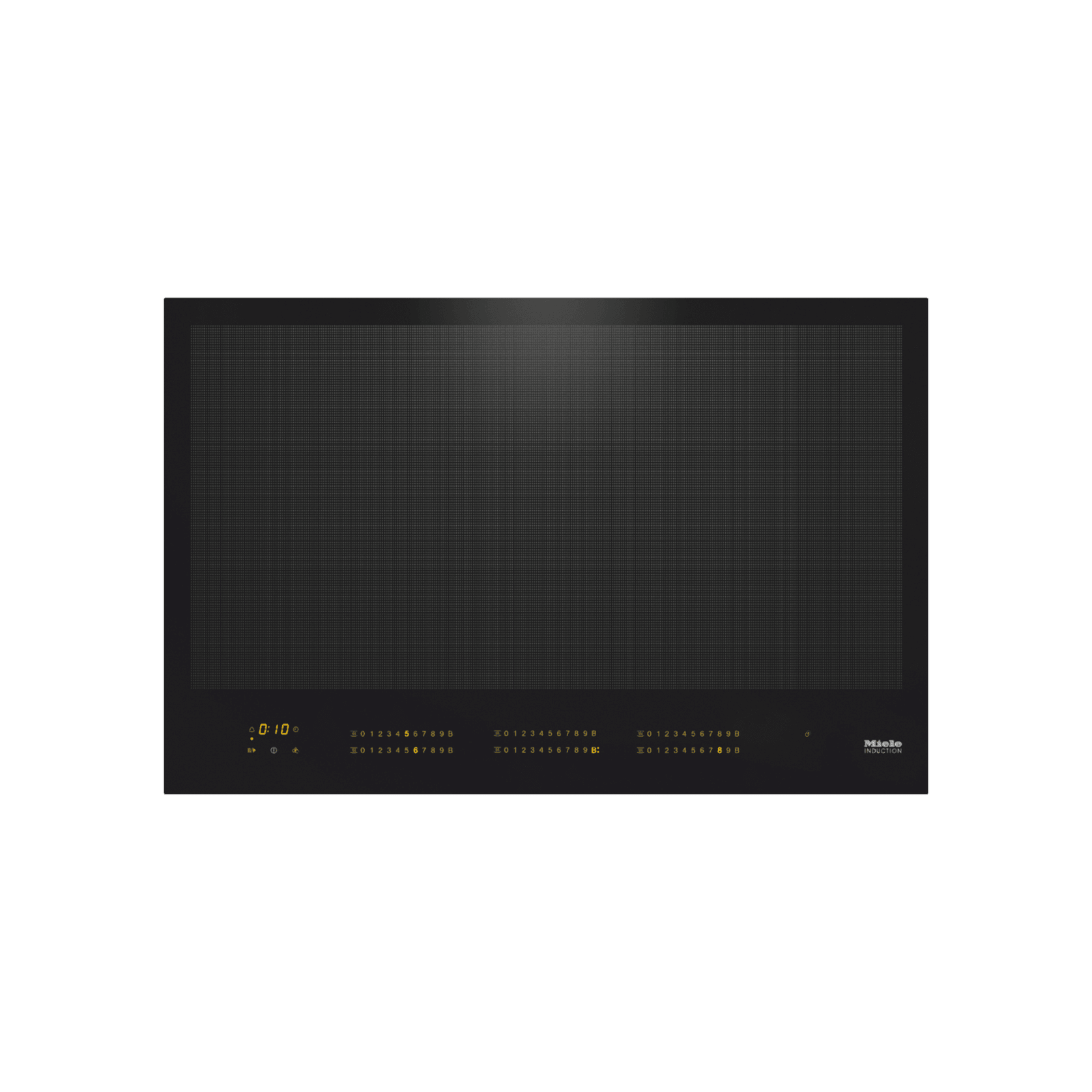

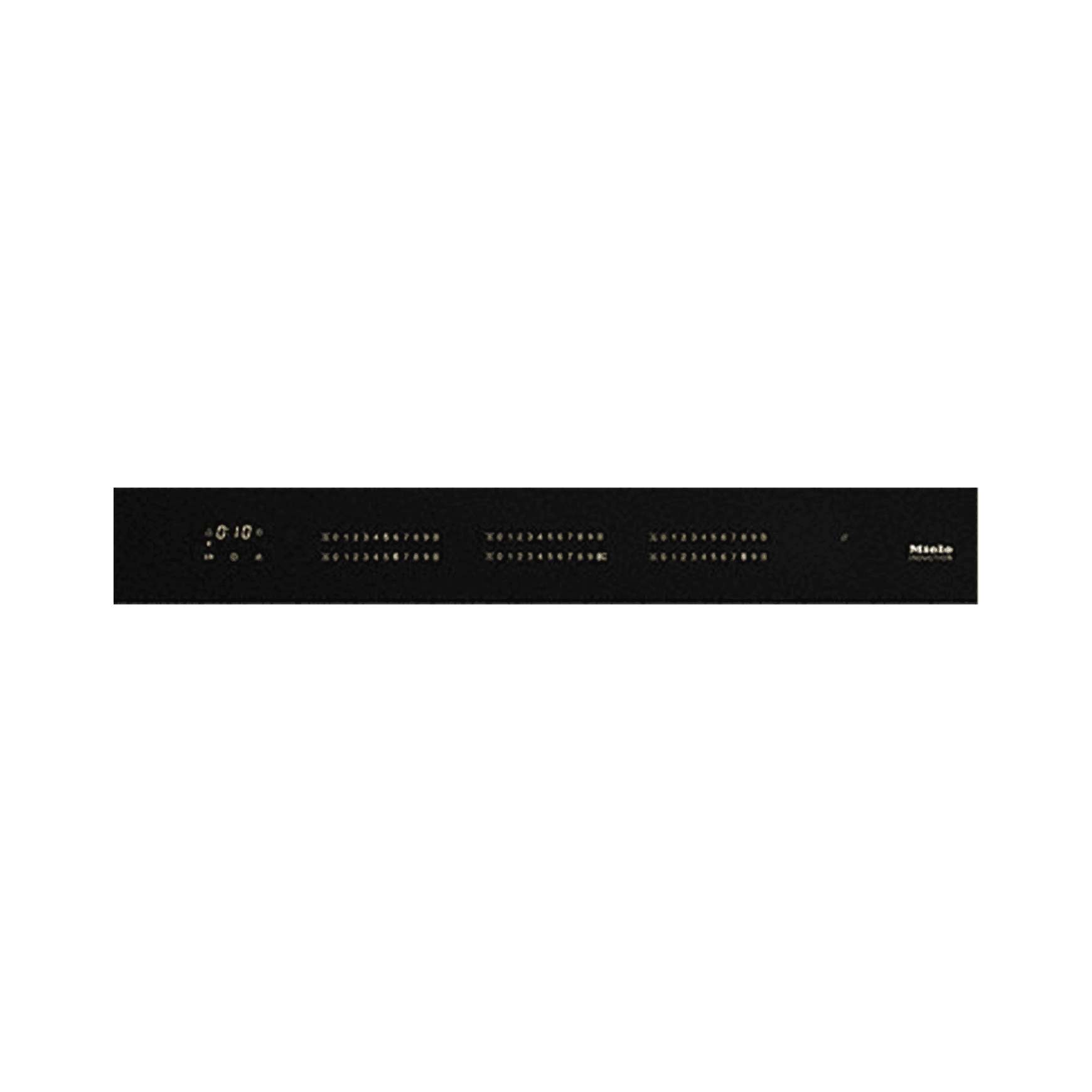

Miele KM 7678 FL Induction Cooktop 800mmW

Model and design

Heating type: Induction

Construction type

Independent of cooker

Design

• Elegant glass ceramic surface
• Ceramic surface colour: Black
• Flush-fit installation
• Surface-mounted installation
• Can be combined with SmartLine

Cooking zone details

• Number of cooking areas: 1
• Maximum number of pans: 6

Cooking zone

• Size in mm: 740x380
• Max. rating in W: 2600
• Max. Booster power rating in W: 3300
• Max. TwinBooster power rating in W: 3650

User convenience

• Networking with Miele@home
• Automatic function Con@ctivity 3.0
• Operation via sensor controls: Smart Select
• Display colour: Yellow
• Pan and pan size recognition
• Intelligent pan recognition
• Positioning aid
• Stop & Go function
• Recall function
• Minute minder
• Safety switch-off
• Auto heat-up
• Keeping warm
• Individual setting options (e.g. buzzers)
• Wipe protection

Cleaning convenience

Easy to clean ceramic glass

Safety

• Safety switch-off
• Lock function
• System lock
• Integrated cooling fan
• Overheating protection
• Residual heat indicator

Technical data

• Dimensions in mm (width): 800
• Dimensions in mm (height): 51
• Casing height incl. connection box in mm: 51
• Dimensions in mm (depth): 520
• Cutout dimensions in mm (width) with surface-mounted installation: 780
• Cutout dimensions in mm (depth) with surface-mounted installation: 500
• Internal cutout dimensions in mm (width) with flush installation: 780
• Internal cutout dimensions in mm (depth) with flush installation: 500
• External cutout dimensions in mm (width) with flush installation: 804
• External cutout dimensions in mm (depth) with flush installation: 524
• Weight in kg: 19
• Total rated load in kW: 11.0
• Voltage in V: 230
• Connection cable length in m: 1.4

Standard accessories

Mains cable

Intuitive and quick selection via number sequences

SmartSelect - Quick and intuitive: Power levels and times can be selected separately for each cooking zone.

Intelligent pan recognition

For up to 6 pans - Knows where the pan is: the control elements simply move along on the full surface.

Frameless for flush-fit or surface-mounted installation

Broad performance spectrum

Keeping warm function & TwinBooster - Flexible power: the induction power can be individually distributed or focused on just one cooking zone.

Communication with rangehood

Automatic function Con@ctivity - Innovative convenience: the rangehood reacts automatically to settings on the cooktop.
