PVE37 Two Passenger Elevator

By Vacuum Elevators NZ
Visit Website

The pneumatic vacuum elevator  PVE37 model is the flagship product of PVE with over 6.000 units installed worldwide. The  PVE37 model is an ideal homelift for detached houses, townhouses and duplexes.

The pneumatic vacuum elevator  PVE37 has an outer diameter of 93.3 cm and can accommodate two people (205 kg). This homelift is available in two, three and four stops (max. height 10.5m).

Like other lift models of vacuum elevators the  PVE37 is installed on the existing floor and does not require a machine room, shaft, or pit, making it a clean, quick and easy installation.

Since the vacuum elevator is primarily operated using air, it greatly reduces energy costs and maintenance, since no pulleys, cables , pistons are used. This two passenger homelift consumes minimal energy during ascent and zero during descent, making the pneumatic vacuum elevator an ecofriendly elevator.

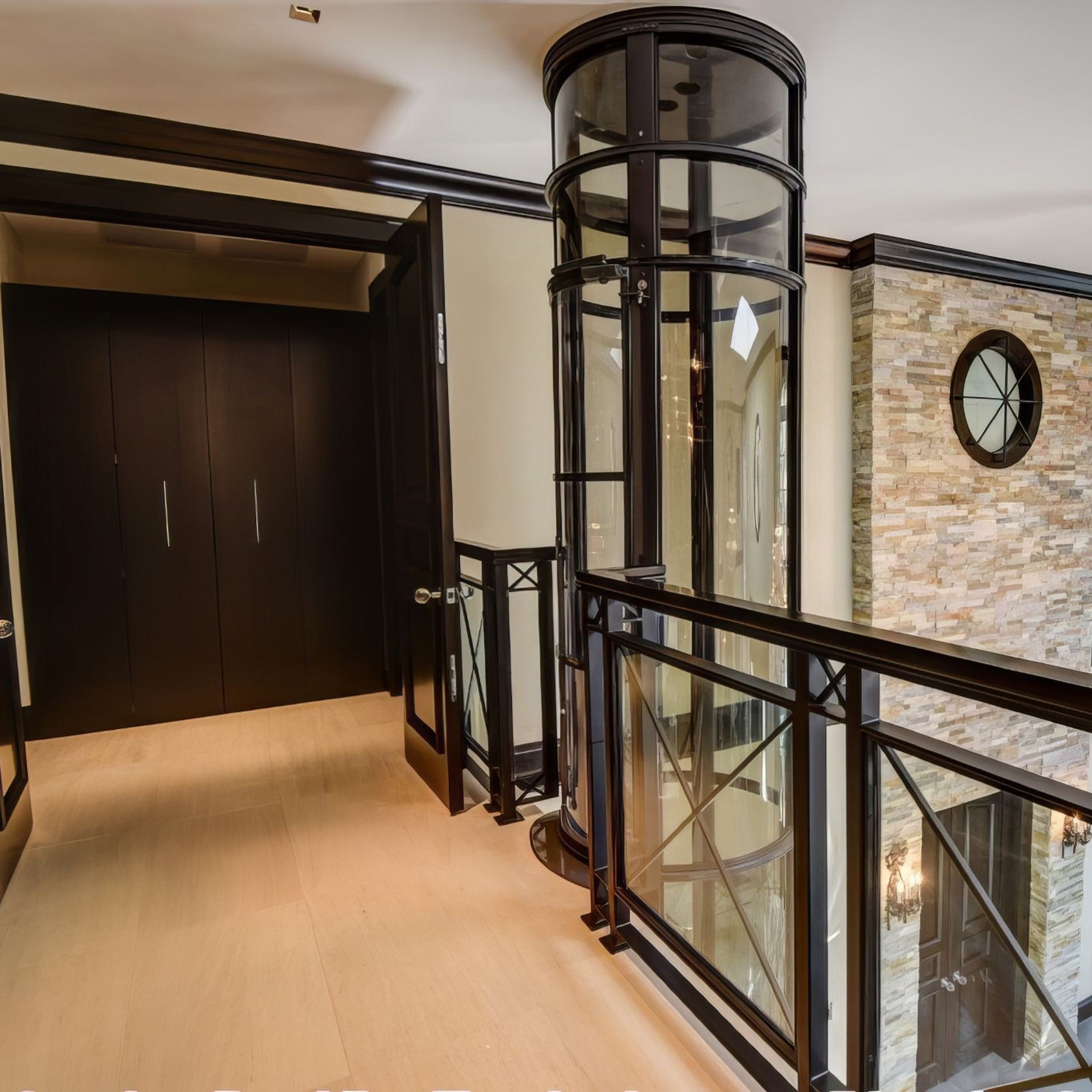

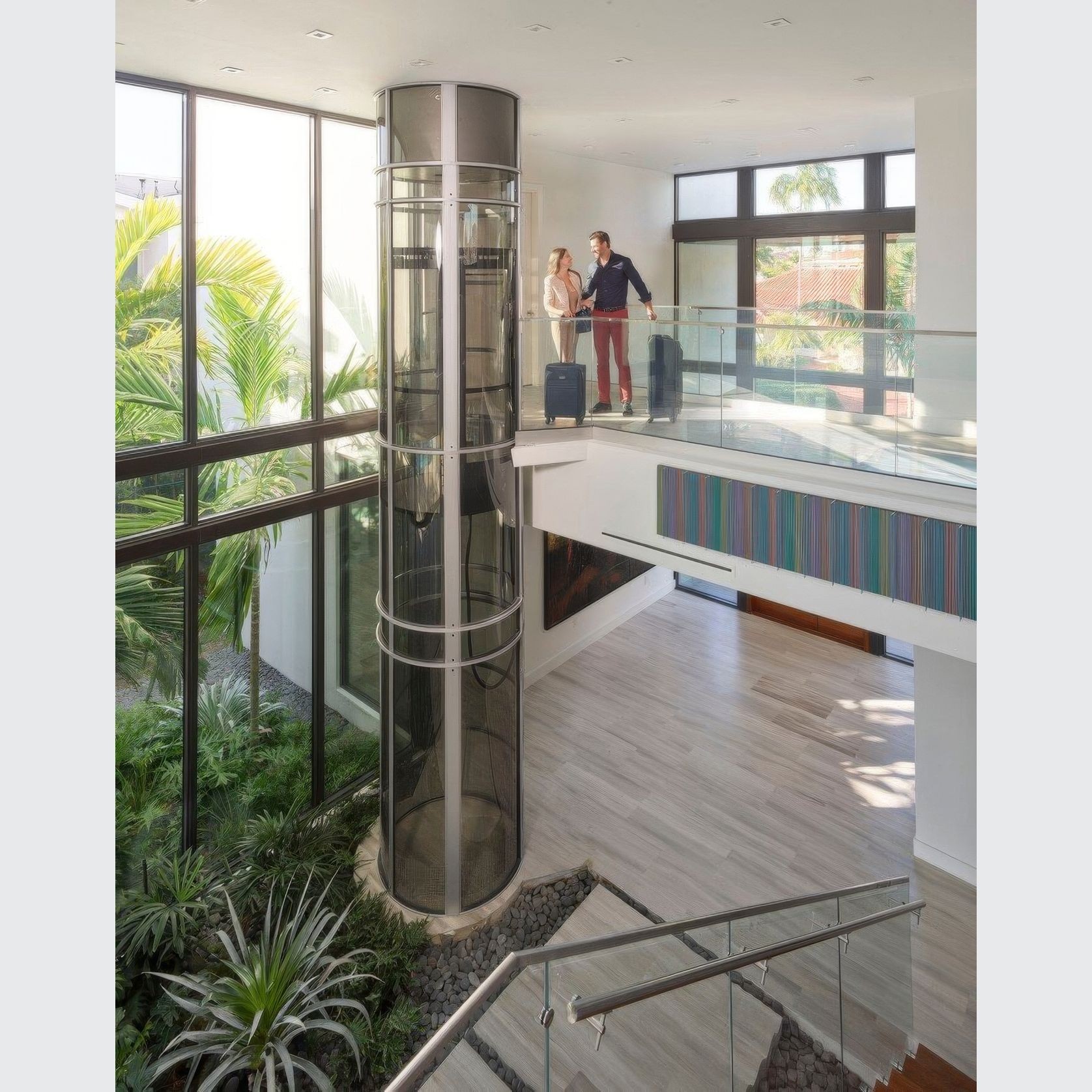

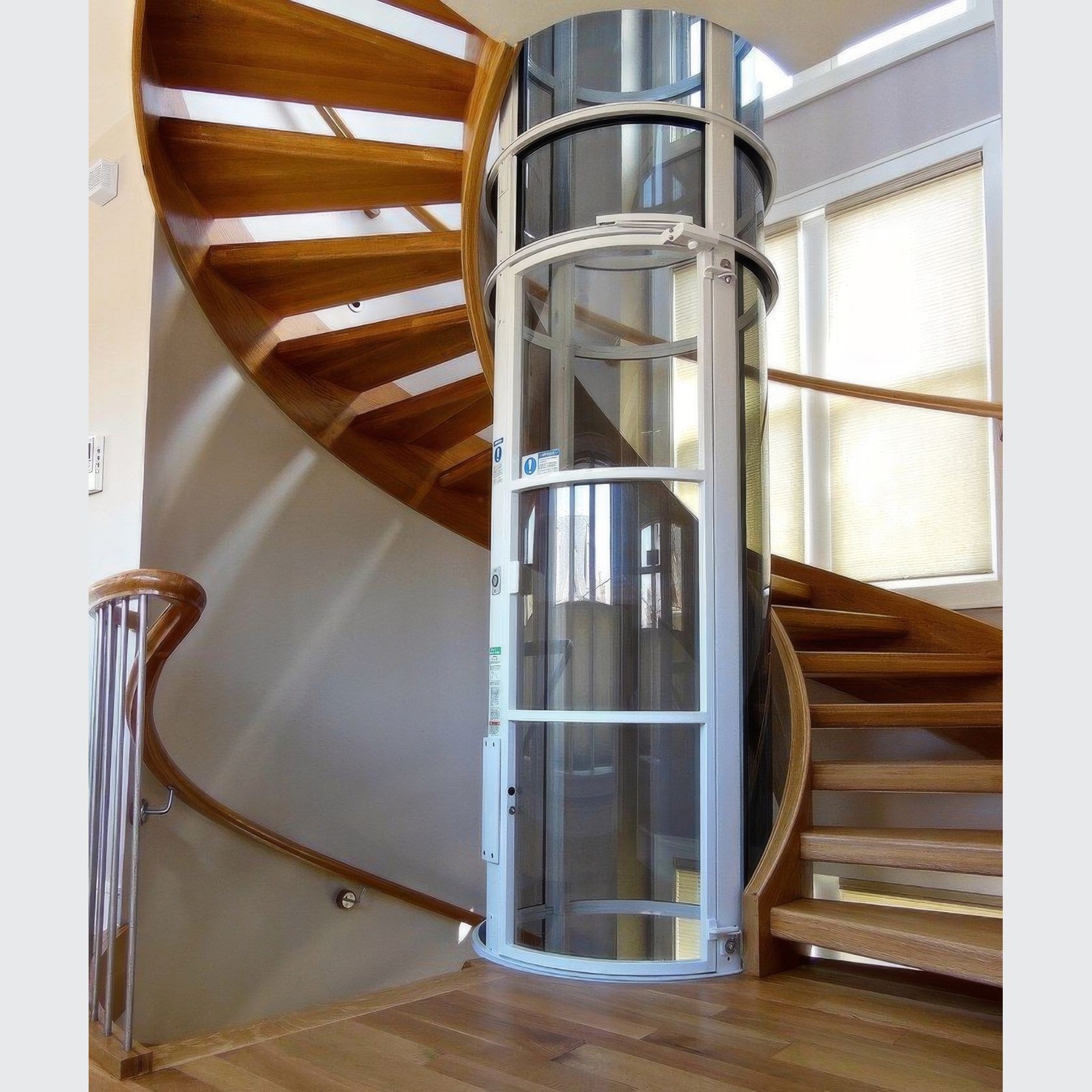

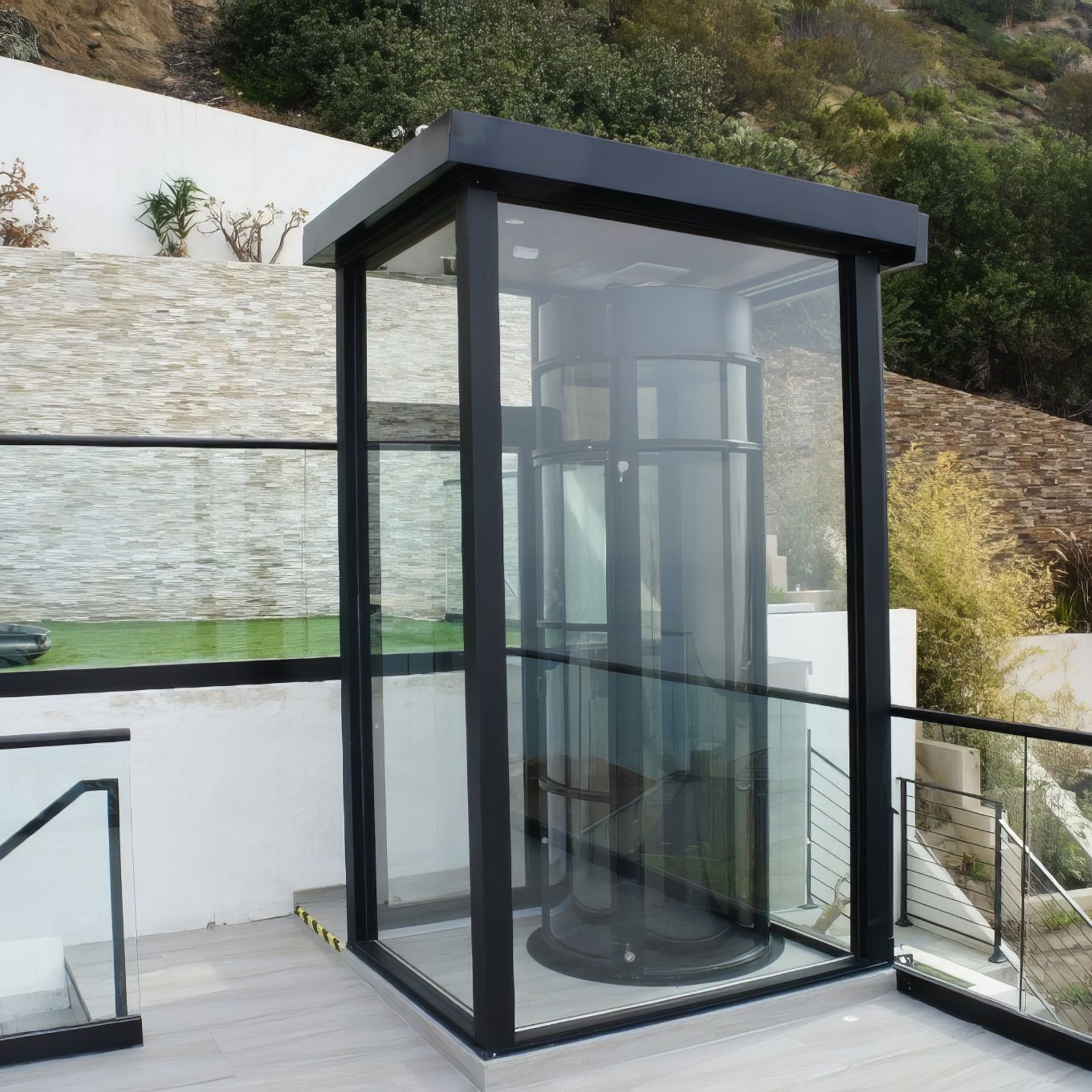

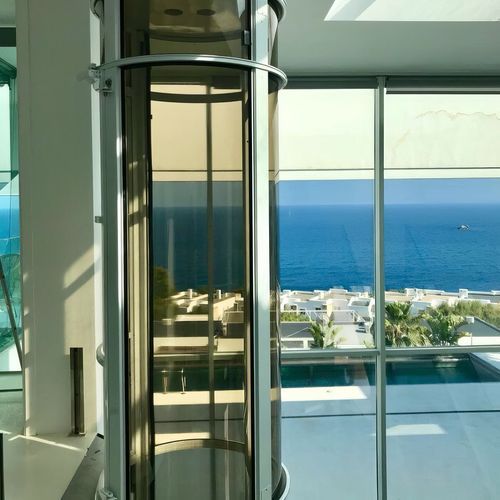

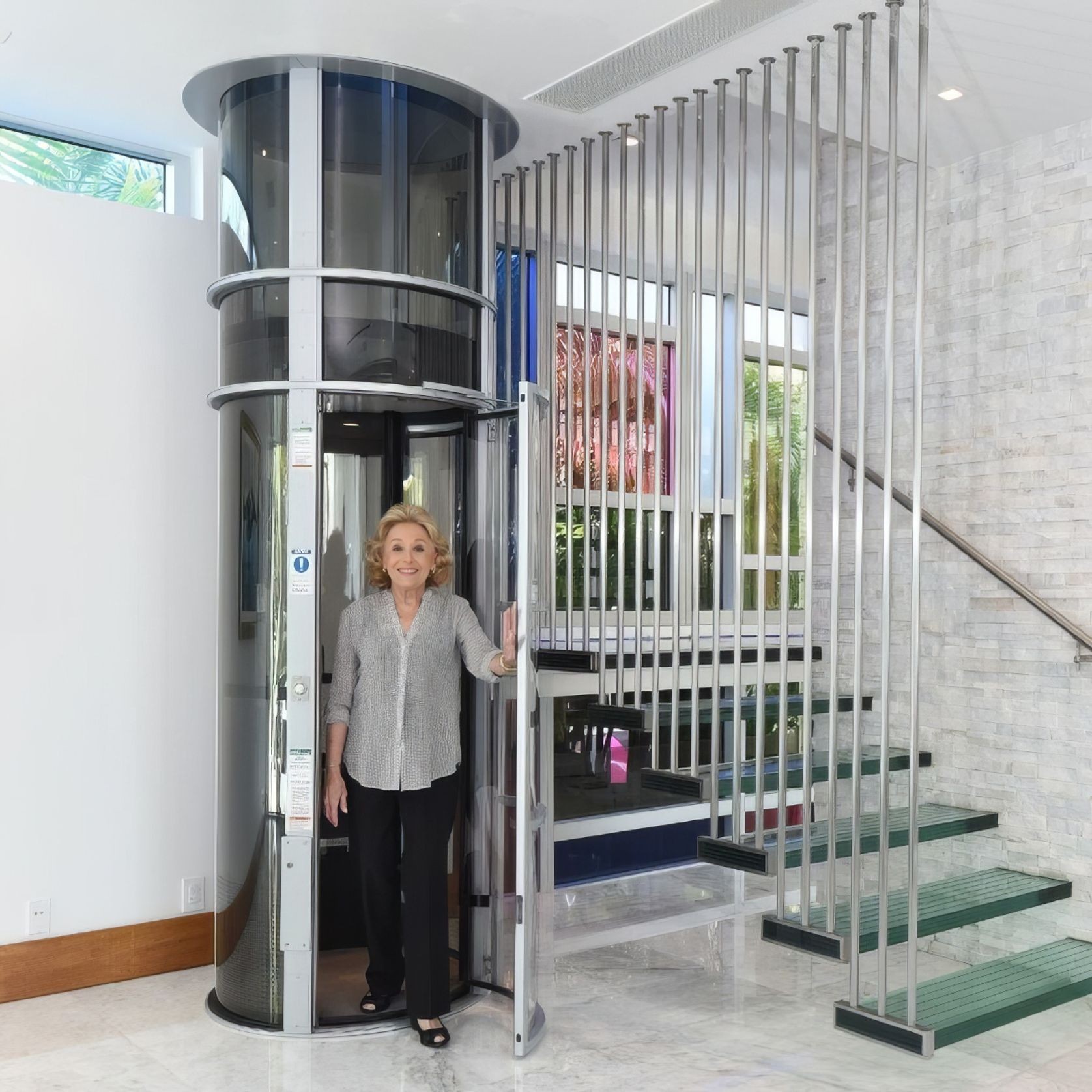

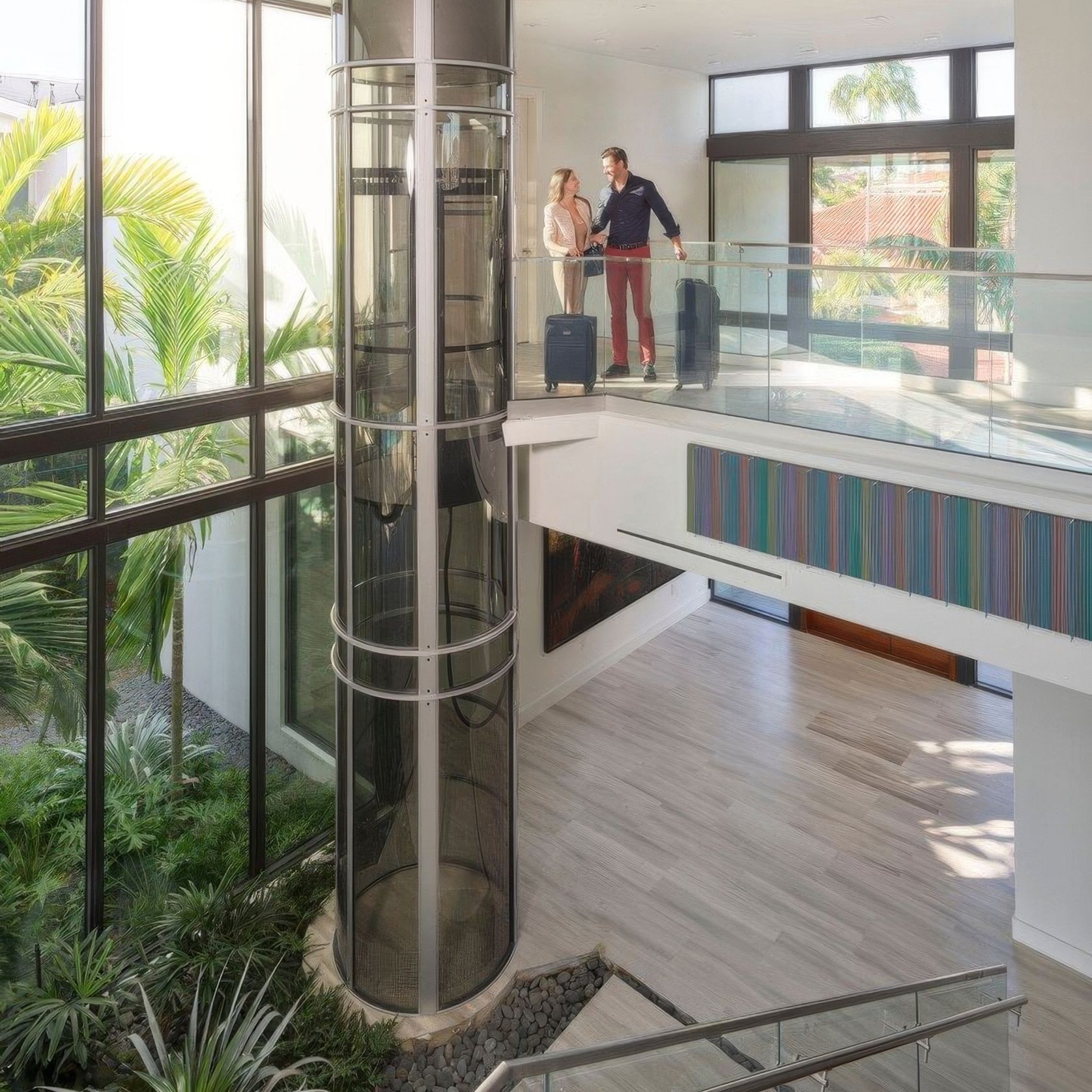

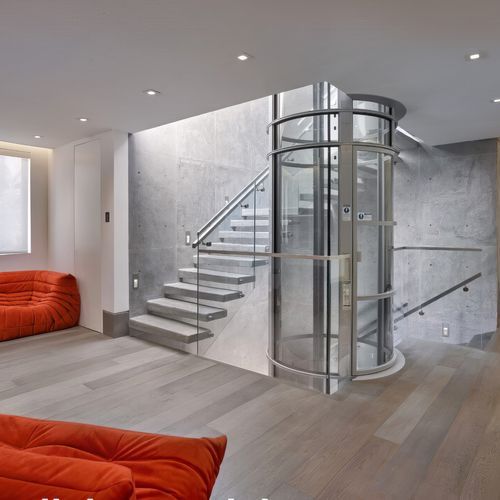

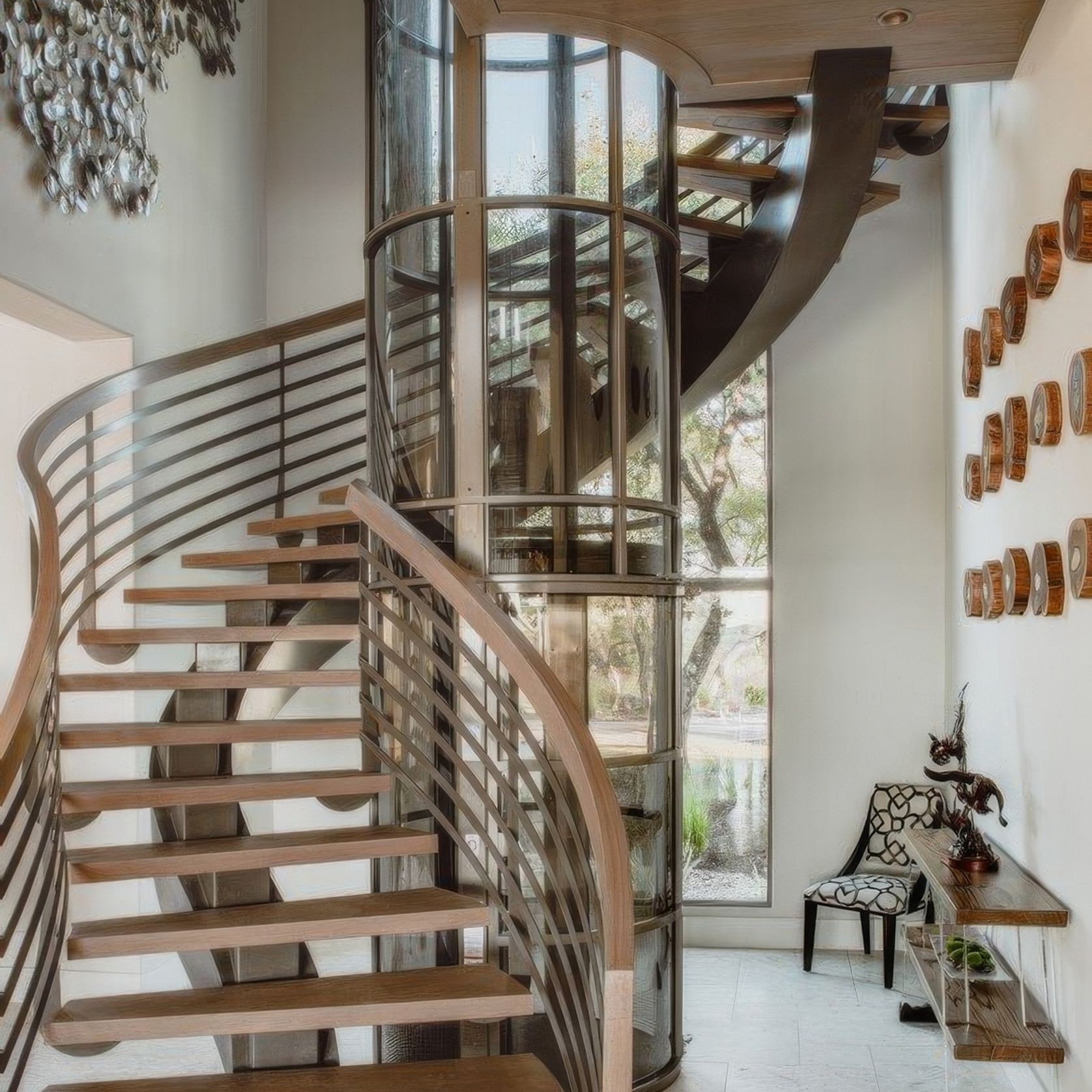

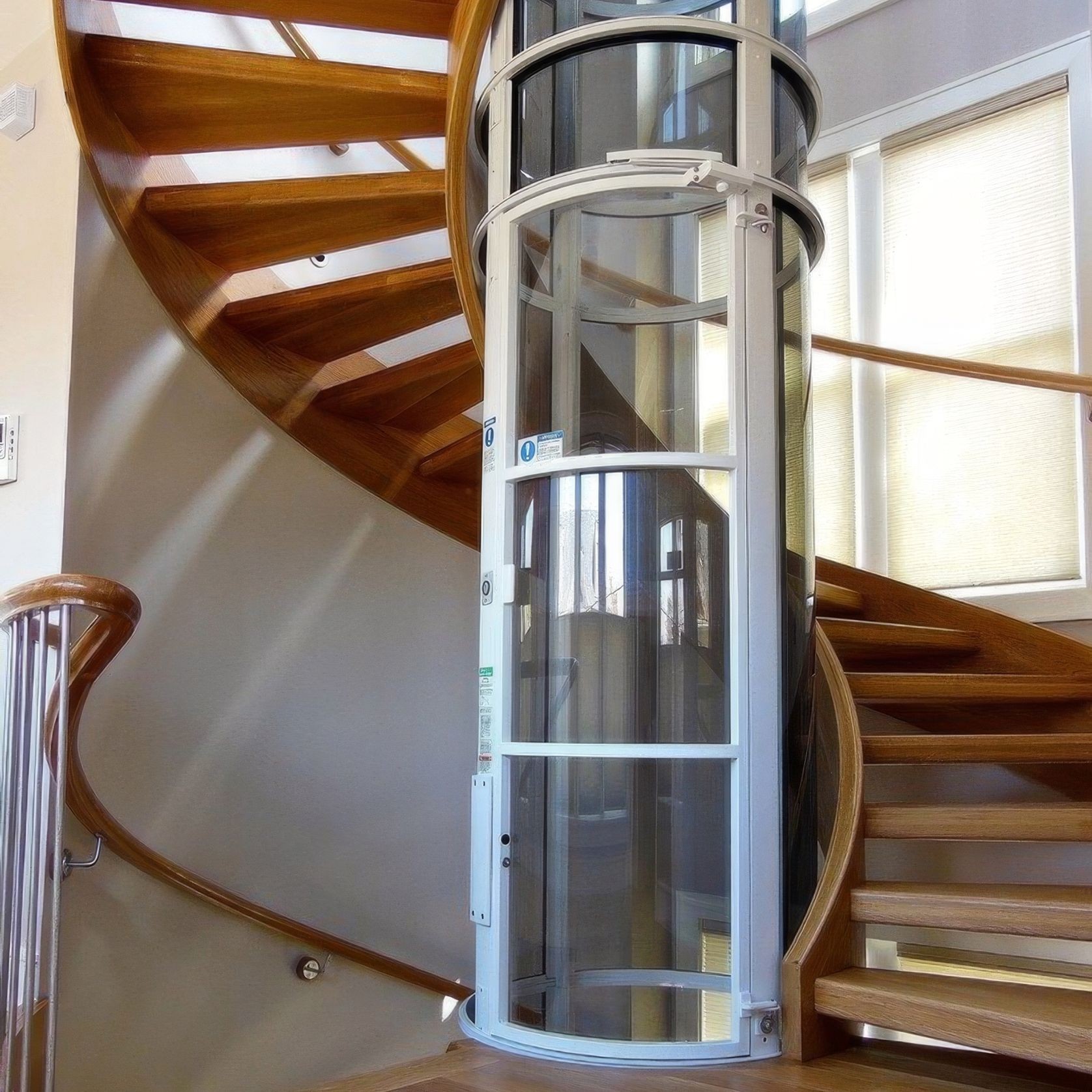

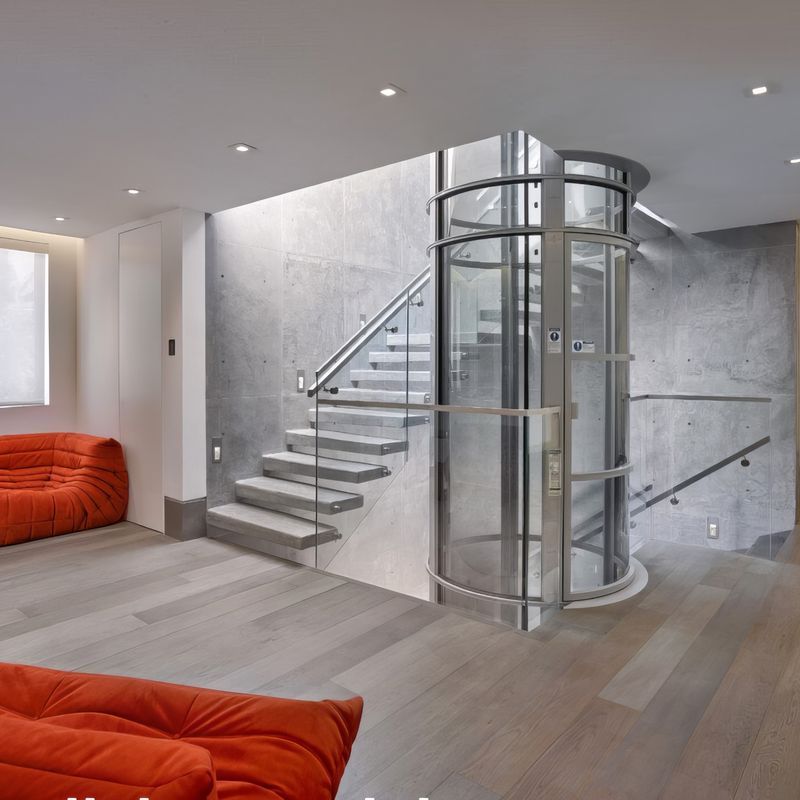

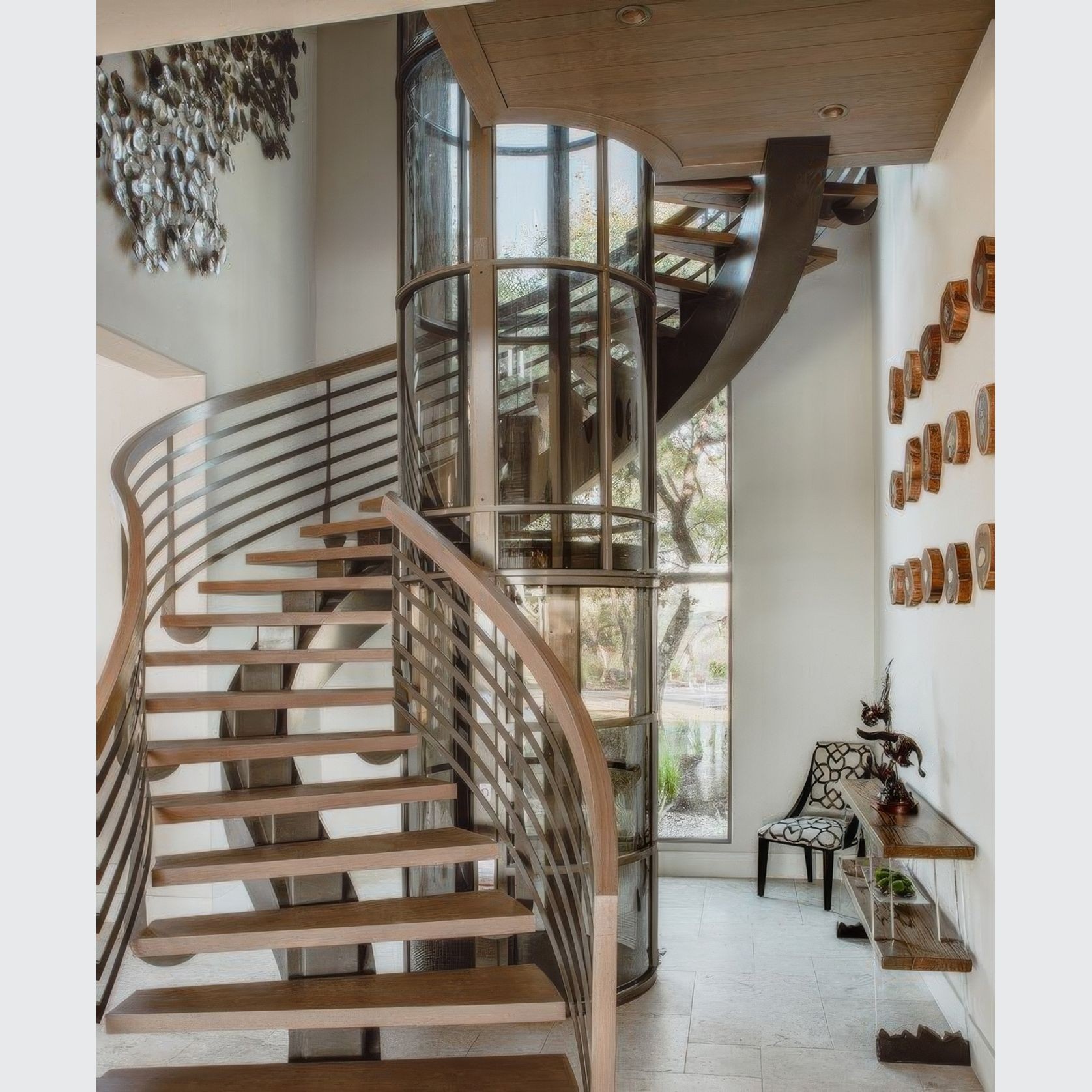

The pneumatic vacuum elevator is made of aluminum and transparent polycarbonate high strength, combining functionality with elegant design, being a transparent panoramic lift which allows 360 ° visibility inside the house.

Details
  • Category
    Lifts & Elevators
  • Brand
    Pneumatic Vacuum Elevators LLC
  • Warranty
    5 years
General
  • Country of origin
    United States of America
  • Type of use
    Residential
  • Installation
    Professional installation required
Specifications

Technical Specifications

  • Two to five stops
  • Colors: White, Gray Navy, Black, Taupe and Light Gray.
  • Power Supply: 230 VAC – 50 Hz 5.0 KW
  • Size:
    a) External cylinder diameter: 933mm
    b) Internal Cabin diameter: 820mm
    c) Internal cabin height: 1950mm
  • Total Weight: 350kg for 3000mm ceiling
  • Lift Capacity: Standard model can carry up to 205Kg – (2 persons)
  • Velocity: 0.15 m/sec
  • Inside the car
    LED lights
    Fan
    Phone
  • Electrical Circuits: 24 V.
  • Lubrication: Not required
  • Installation: No excavation or shaft required. Elevator rests on floor. Self supported.
  • Safety: Pressure switch; on free fall elevator brakes within (50.8mm); on electricity cut elevator automatically descends to ground floor; alarm system in cabin; emergency ventilation; door safety switches; telephone (optional).
