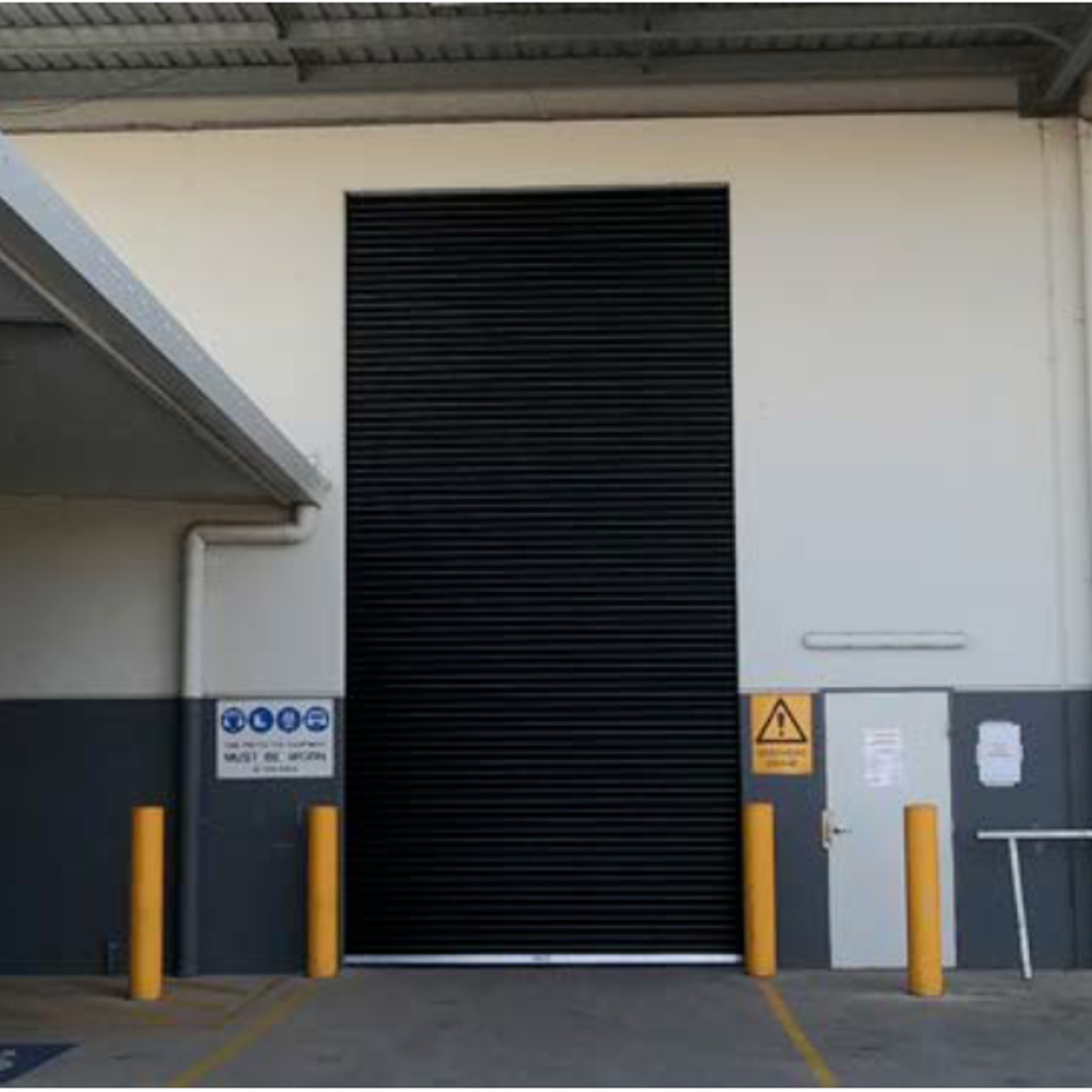

If your industrial, commercial or large shed project is on a tight timeline and budget, then the new Q75 roller shutter is the product you are looking for. There are a number of exciting model options in the Q75 series to meet the varying applications that customers need. With our new standard range of quality Australian made Colorbond steel now stocked in our factories, we can provide best in class lead times from measure to final installation and remove the need for costly powder coating. The patented, dual silencing strip in the guide channel ensures quiet operation day in day out and with full wind testing certification, our products are not only innovative in design but also built to last under the harshest of Australian conditions.
Tags
Product Details
- Product
- Q75 Roll Formed Roller Shutter | Steel Roller Shutter
- Category
- Roller Garage Doors
- Sold by
- Steel-Line Garage Doors
- Range
- Steel Roller Shutter
- Warranty
- 1 year
Product specified by
If your industrial, commercial or large shed project is on a tight timeline and budget, then the new Q75 roller shutter is the product you are looking for.
There are a number of exciting model options in the Q75 series to meet the varying applications that customers need. With our new standard range of quality Australian made Colorbond steel now stocked in our factories, we can provide best in class lead times from measure to final installation and remove the need for costly powder coating. The patented, dual silencing strip in the guide channel ensures quiet operation day in day out and with full wind testing certification, our products are not only innovative in design but also built to last under the harshest of Australian conditions.
- Features
Recommended Specification
Q75 Roll Formed Roller Shutter with 75mm Galvanized Steel material as manufactured by ARCO Australia.
Applications
The heavy duty steel slat is designed to stand the wear and tear of industrial and commercial applications such as carparks, warehouses/sheds, loading docks, schools etc.
Curtain
The Q75 roller shutter is available in two thickness (0.6mm and 0.8mm). Maximum door width for 0.6mm is 5.5m wide, maximum door width for 0.8mm is 7.0m wide.
Slotted Slats – Any number of slats can be punched with 100mm wide x 25mm high slot for ventilation.
Multihole Slats – The slats can also be continuously perforated with 2.41mm diameter holes at 3.66mm staggered centres prior to rolling. These perforation cover 40% of the slat surface.
As the perforation process removes a substantial portion of the slats zinc coating, it is not recommended to be used in highly corrosive environment.
Please note: Multihole slat is not covered by our standard warranty.
Operation
Manually Operated – Small roller shutters up to 6m2 maybe operated manually by hand. Pull hook is provided for opening and closing the door.
Electric Operated – For shutters above 6m2 motorization is recommended. It includes an option of either a 1/2 HP or 1HP motor depending on size. Both are incorporating a standard reversing contactor and an Up/Down/Stop push button controller with a hand chain override mechanism in case of power failure.
A variety of activation options are available for all applications.
We offer a range of remote control and key switch options.
Locking
Locking shall be either by shoot bolt (manually operated) or by electrical motor.
NOTE: This product may not be available in some regions in Australia. Please check with your local Steel-Line branch regarding availability.
