Raven Acoustic and Smoke Door Stop Frame Seal
10SICLS

Door Stop Frame Seal are used to seal gaps at door perimeters. By sealing the gaps along the door frame you can significantly cut down on the infiltration of sound, light, drafts, moisture, fire, and smoke.

Door Stop Frame Seal Function - to ensure a fire escape route free from smoke and the intumescent seals the gap between the door and frame to inhibit the spread of fire.

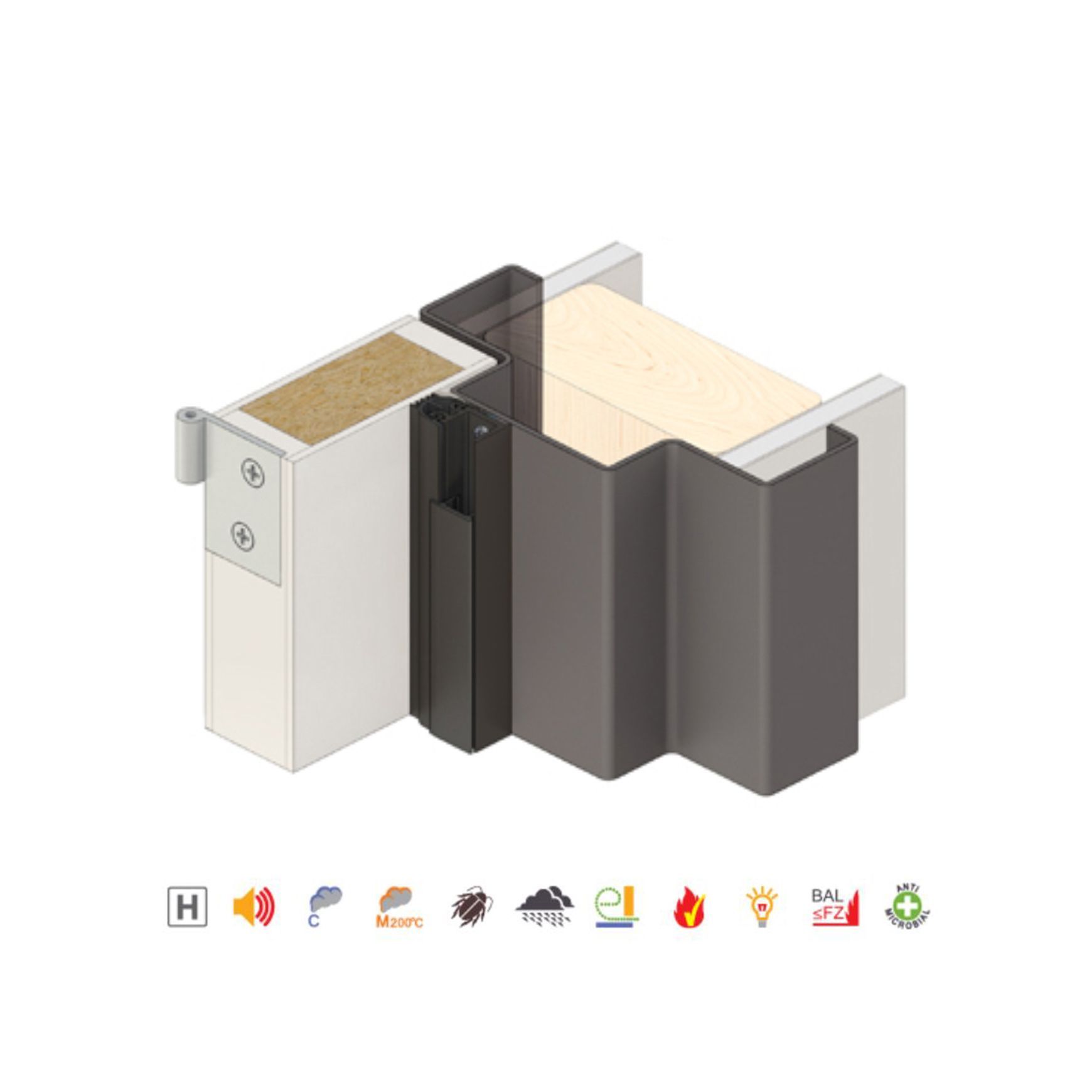

An effective acoustic and smoke door stop frame seal which is quick and easy to install on plain or rebated door frames.
Multi-fin design for improved noise and energy sealing.
Minimum deflection design creates maximum sealing efficiency.

Tags

door stop seal door multi-fin

Product Details

Product: Raven RP10Si Acoustic and Smoke Door Stop Frame Seal Long Single Door A10SICLS
Category: Door Stops
Sold by: Keeler Hardware
Range: Raven

Keeler Hardware is specified by

(34) Professionals

Raven RP10Si Acoustic and Smoke Door Stop Frame Seal Long Single Door A10SICLS

Visit site

By sealing the gaps along the door frame you can significantly cut down on the infiltration of sound, light, drafts, moisture, fire, and smoke. Door Stop Frame Seal Function - to ensure a fire escape route free from smoke and the intumescent seals the gap between the door and frame to inhibit the spread of fire. An effective acoustic and smoke door stop frame seal which is quick and easy to install on plain or rebated door frames. Multi-fin design for improved noise and energy sealing. Minimum deflection design creates maximum sealing efficiency.

Raven Acoustic and Smoke Door Stop Frame Seal 10SICLS Door Stop Frame Seal are used to seal gaps at door perimeters.

By sealing the gaps along the door frame you can significantly cut down on the infiltration of sound, light, drafts, moisture, fire, and smoke.

Door Stop Frame Seal Function - to ensure a fire escape route free from smoke and the intumescent seals the gap between the door and frame to inhibit the spread of fire.

An effective acoustic and smoke door stop frame seal which is quick and easy to install on plain or rebated door frames.
Multi-fin design for improved noise and energy sealing.
Minimum deflection design creates maximum sealing efficiency.

Specs

Specification:

Min/Max Gap: 0mm to 10mm
Finish: Clear Anodised
Fixing: Screw Fix
Seal: Silicon Rubber
Screws: Zinc plated, cross recess head S.T. screws supplied

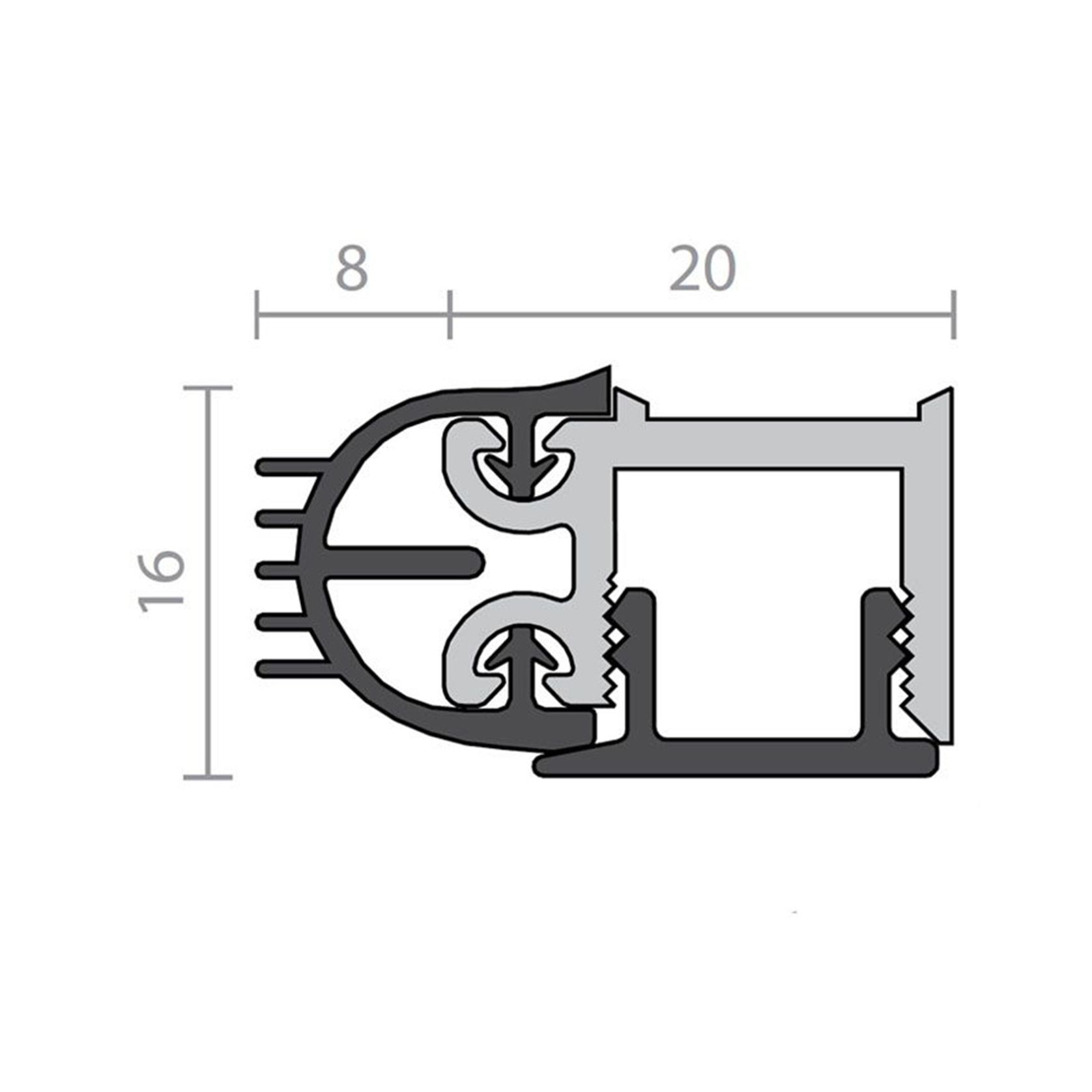

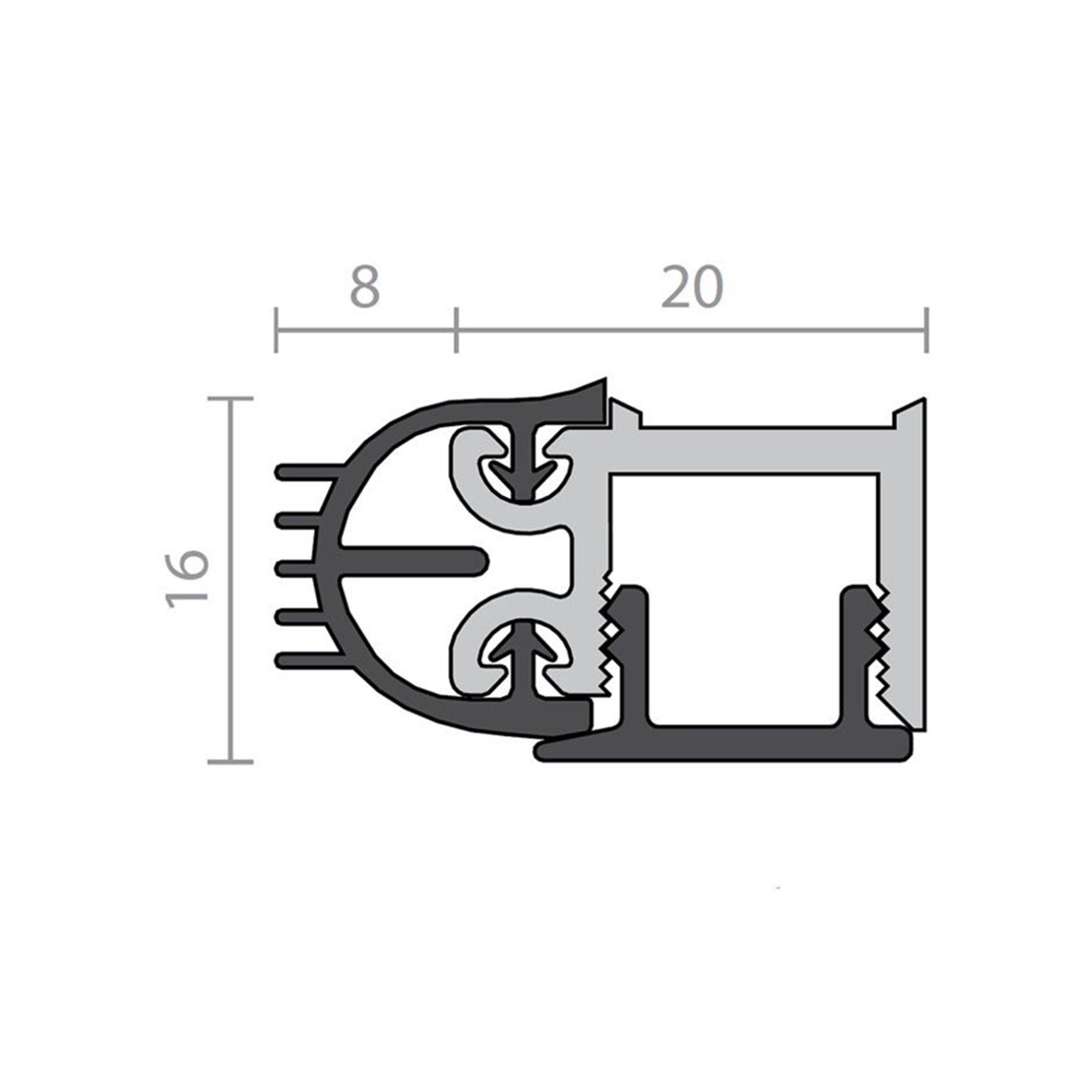

Size: 1 x 1000mm and 2 x 2750mm (6500mm)

Features:

RP10Si can be mitred or butt jointed for a neat finish
Adjustable by large concealed fixing slots for a precision fit
RP10Si has a tamper resistant, rigid PVC cover strip (SE)
Can be used on all four sides of the door to form a bulk head seal

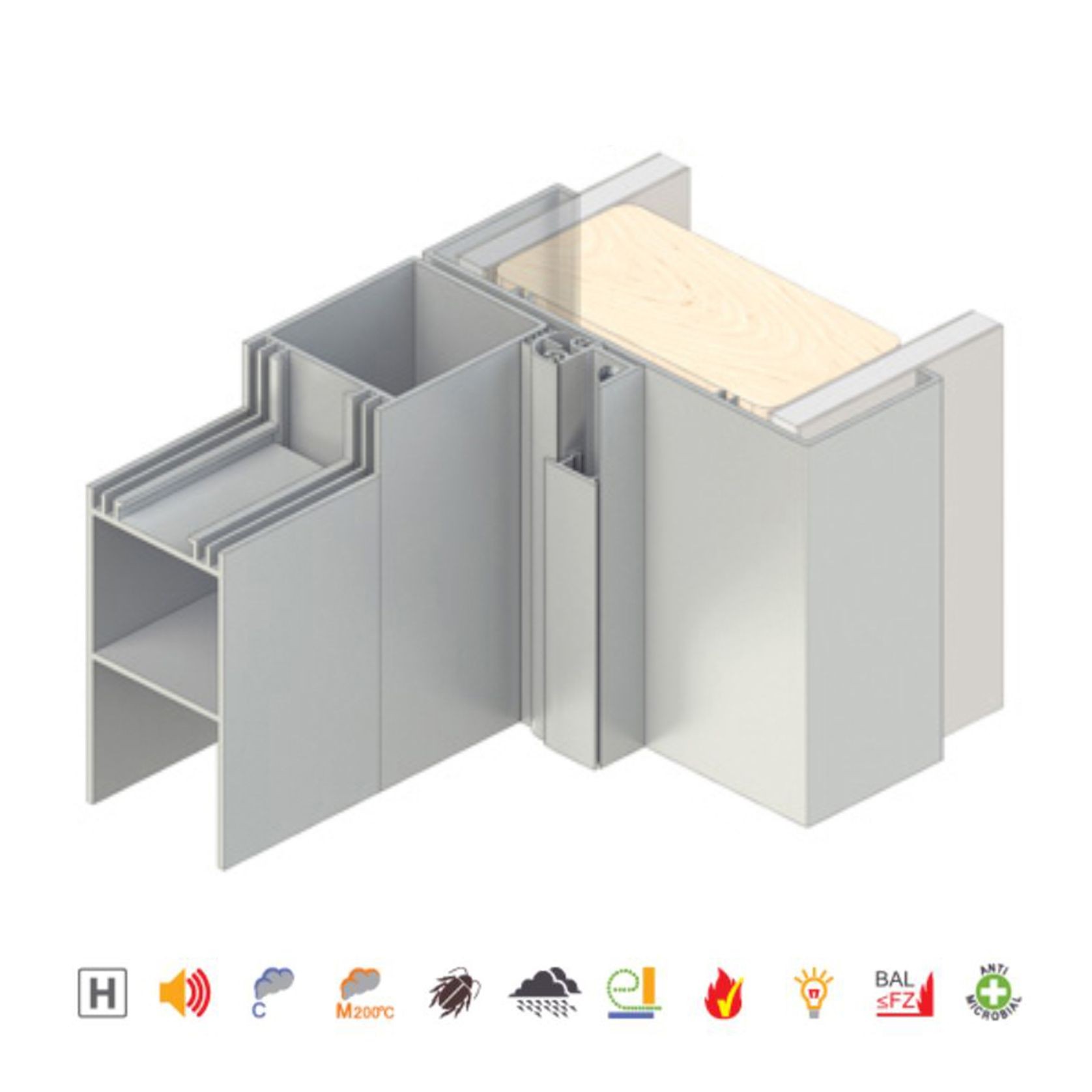

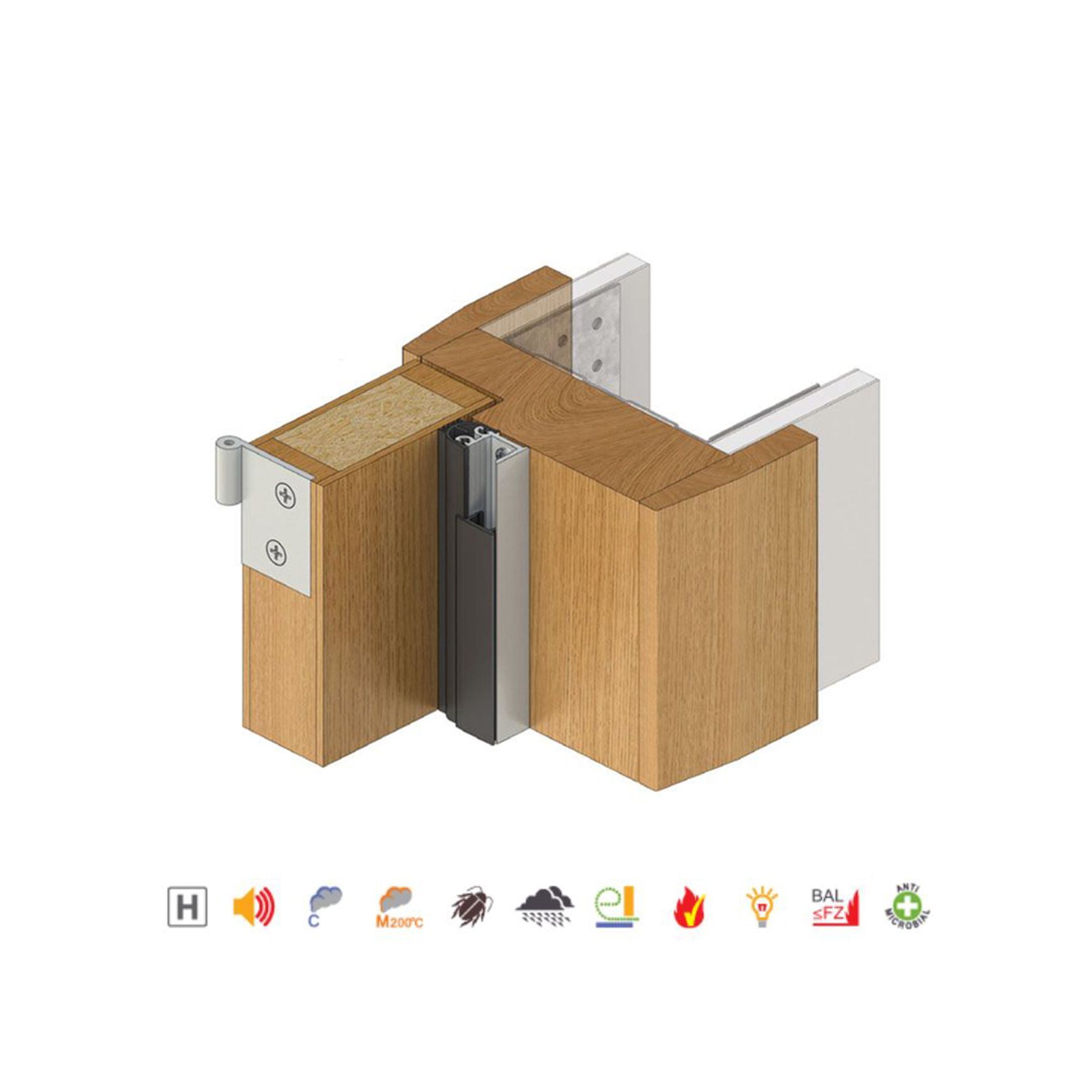

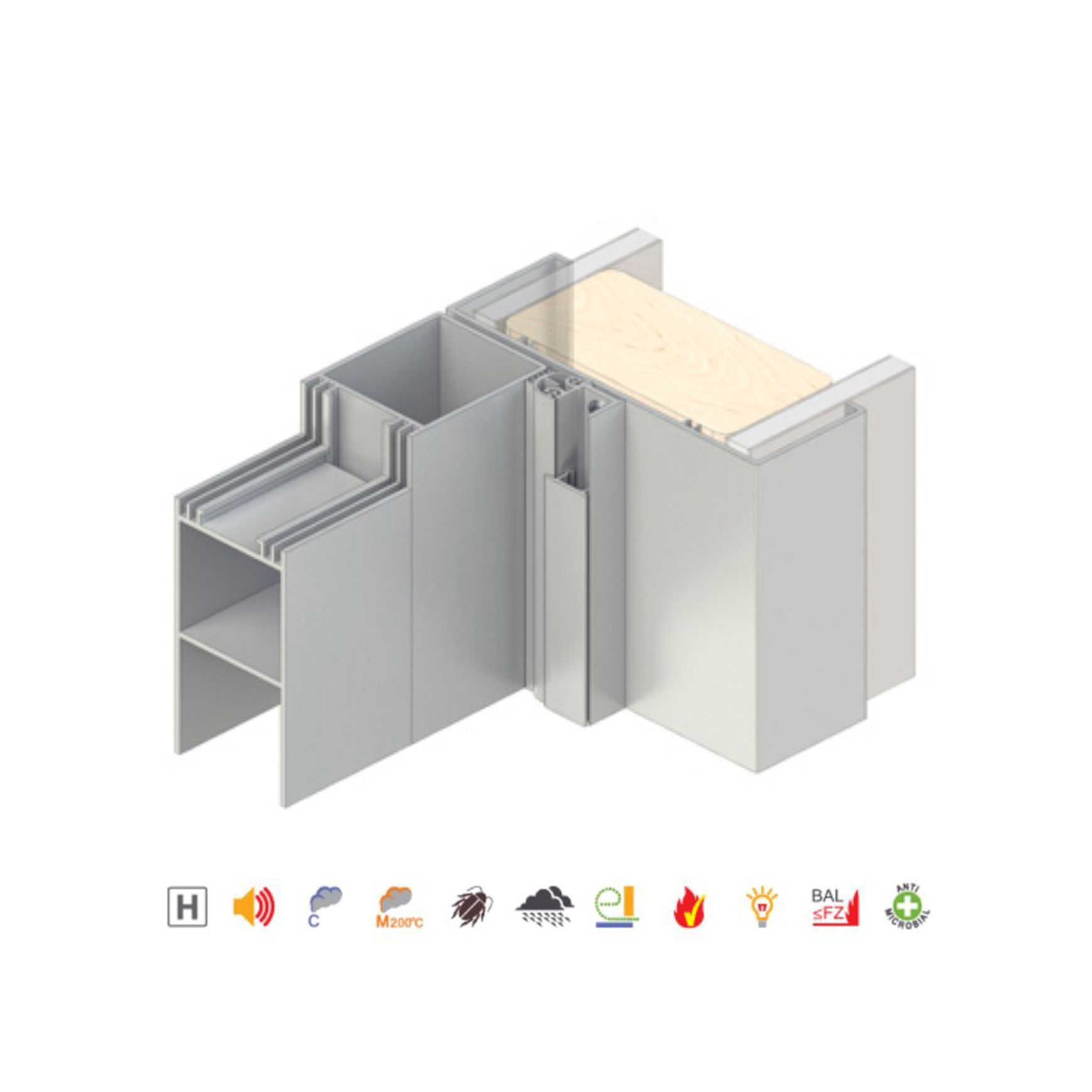

Head and jambs of single and double butt hinged doors

Approval/s:

GVYI.R37913.
Certifire CF5710
ANSI/BHMA A156.22.
Acoustic AUS/NZ: NCC Spec. F5.5.
UK/EU: Approved Document E. Rated to BS EN ISO 717.1.
Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
UK/EU: Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
FRL & FRR-/240/60 and FD240.Fire Approved
Gasket flammability index 1 when tested to AS1530.2.
Smoke NCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501-2 “Sa”, “Sm”.
Energy NCC Pt. 3.12.3.3 & J3.4.
