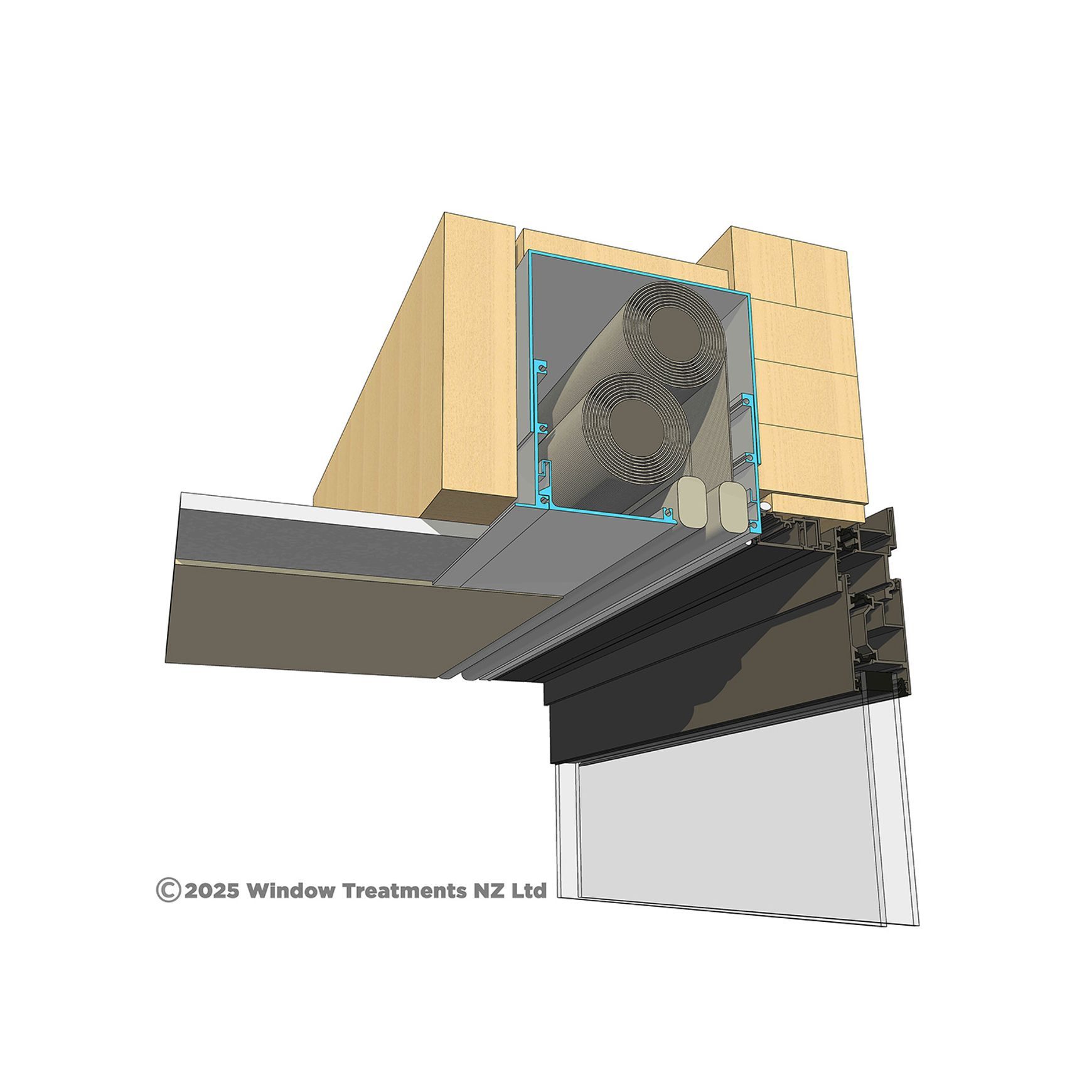

Recess Flush Boxes

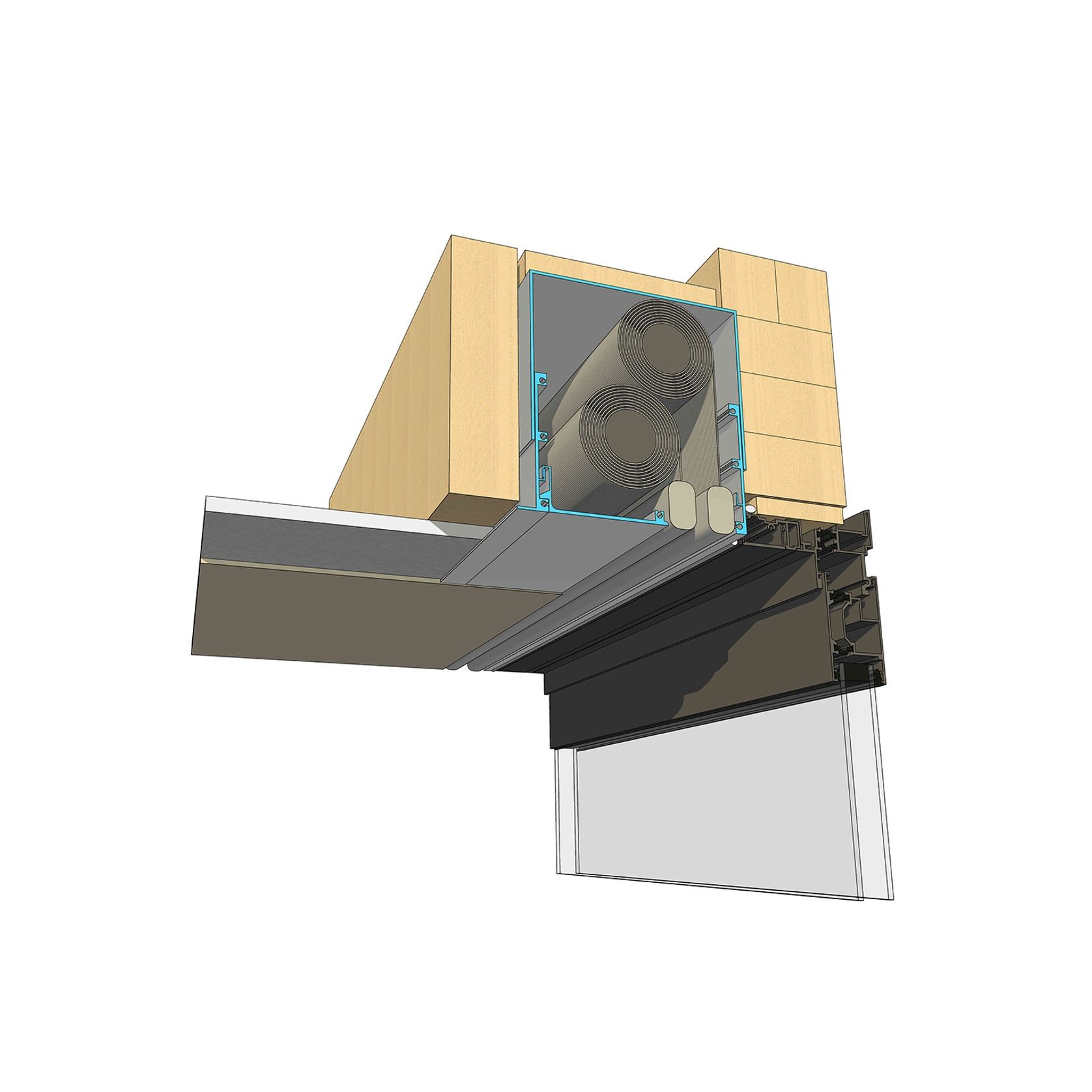

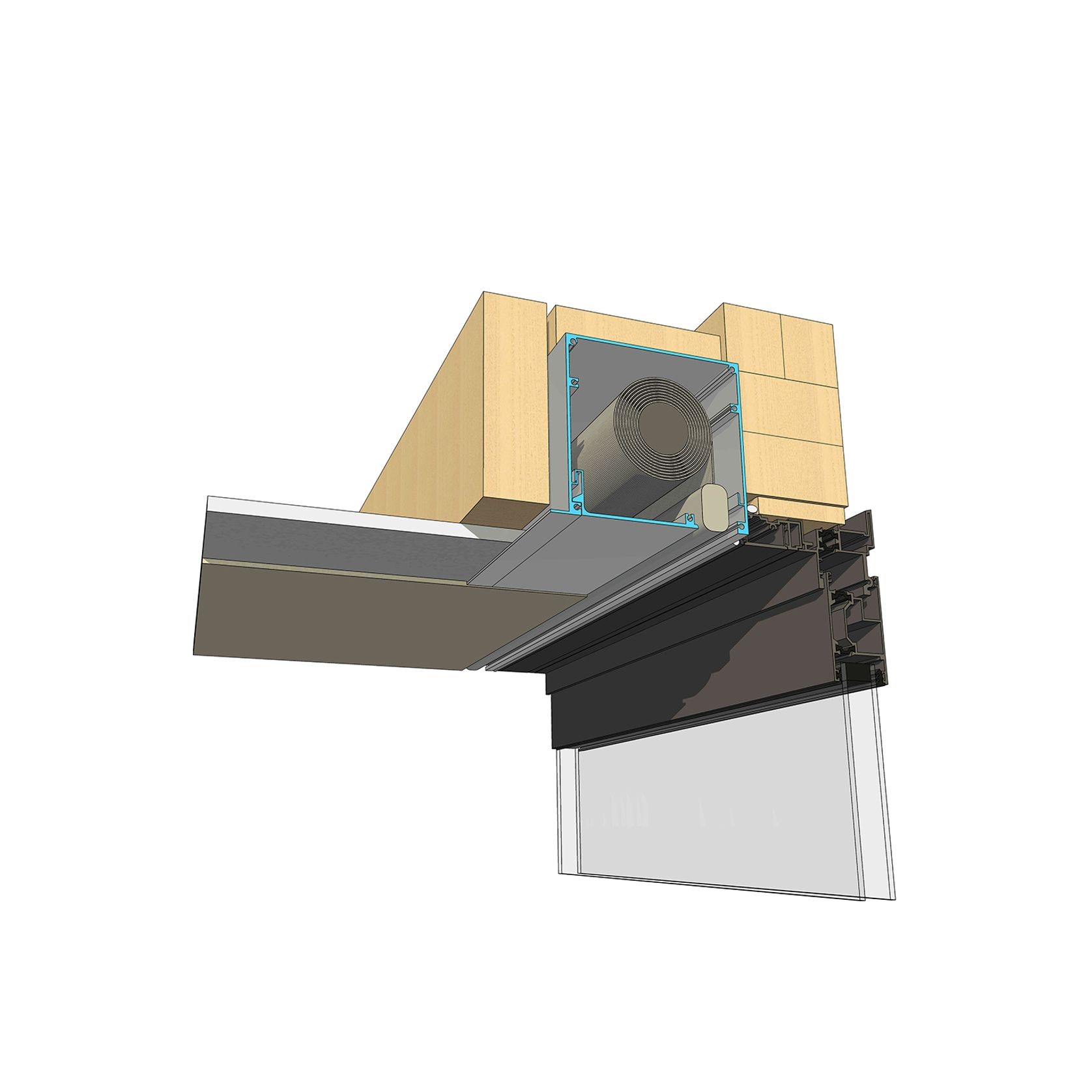

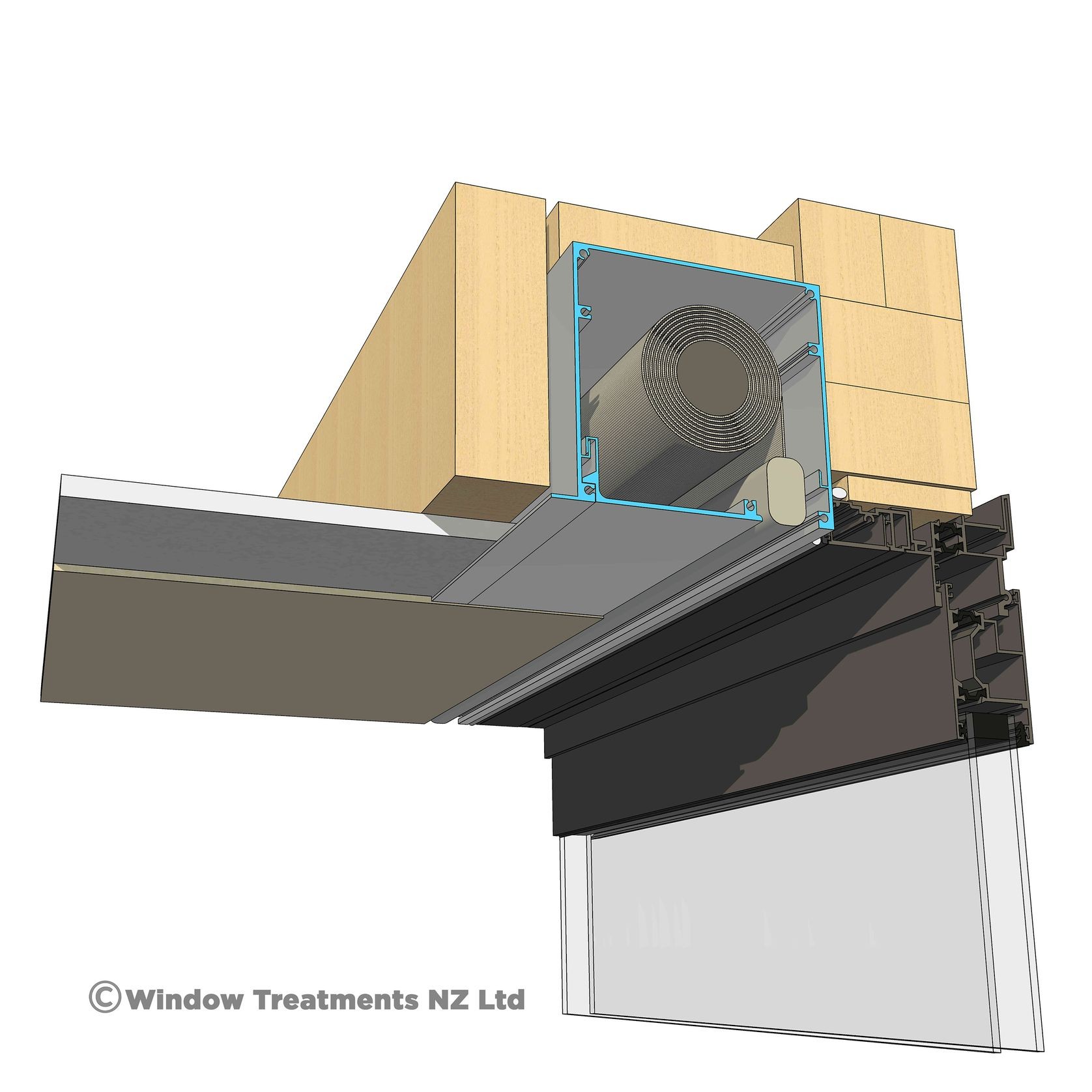

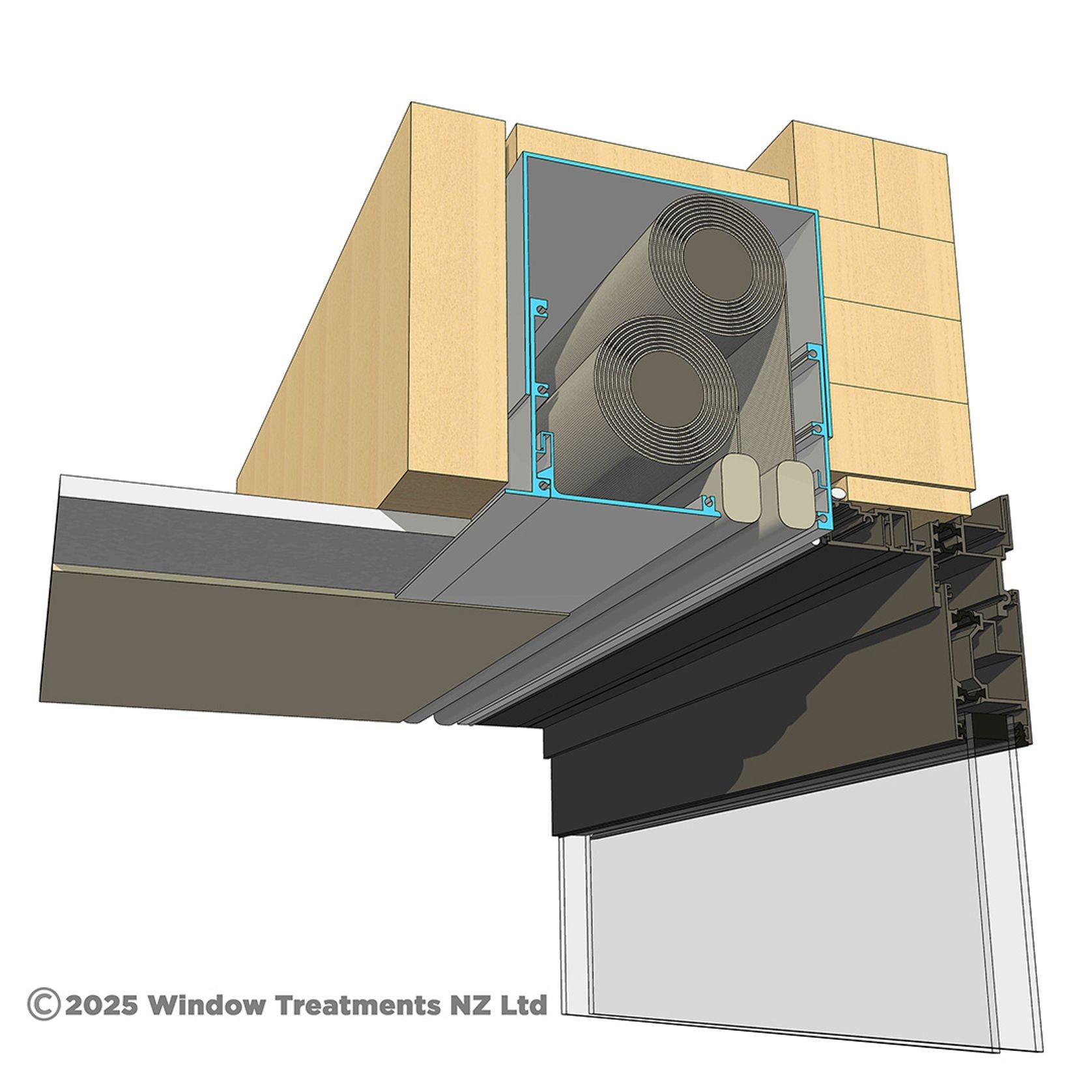

Made from a combination of extruded aluminium and folded aluminium sheet, this sleek modular system allows single or double motorised blinds and curtains to be concealed completely within the ceiling space.

Specs

See 'Spec Sheets' for Overview and PDFs, and 'Downloads' for DWGs

Features

• Modular recessed flush box for single and double motorised roller blinds, Curtain tracks and headings
• Standard 4.2m long recess flush box can be shortened or lengthened to custom size
• Standard width and height recess flush box, 4.2m long profile made from nominal 2mm gauge extruded aluminium
• Option for a "Part Recess" Flush Box (single and double)
• Non-standard recess flush box sizes can be supplied when construction/design limitations exist. P.O.A.
• A removable extruded aluminium bottom cover concealing the blind within (Curtain tracks and headings do not have a bottom cover)
• Bottom recess cover can be connected either at the front or the back internal edge of the recess box
• The sides of the recess flush box can be either flangeless for negative detail or flanged to provide a tidy cover of the ceiling gib/plaster edge
• Additional recess flush box aluminium end cap covers supplied as standard flangeless, or you can choose a flanged end cap cover
• Mill/Raw finish, Standard Powder Coated (SPC) black or white, or Custom Powder Coated (CPC)
• Option for LED strip lighting to be fitted inside the recess flush box
• Available for collection at Window Treatments Auckland, Hamilton, Wellington, Nelson, Christchurch, Dunedin and Cromwell
• Delivery to site P.O.A.
• PDF and DWG downloads available

Scope of use

All single and double roller blind combinations and curtains
