Grey
Cast Iron

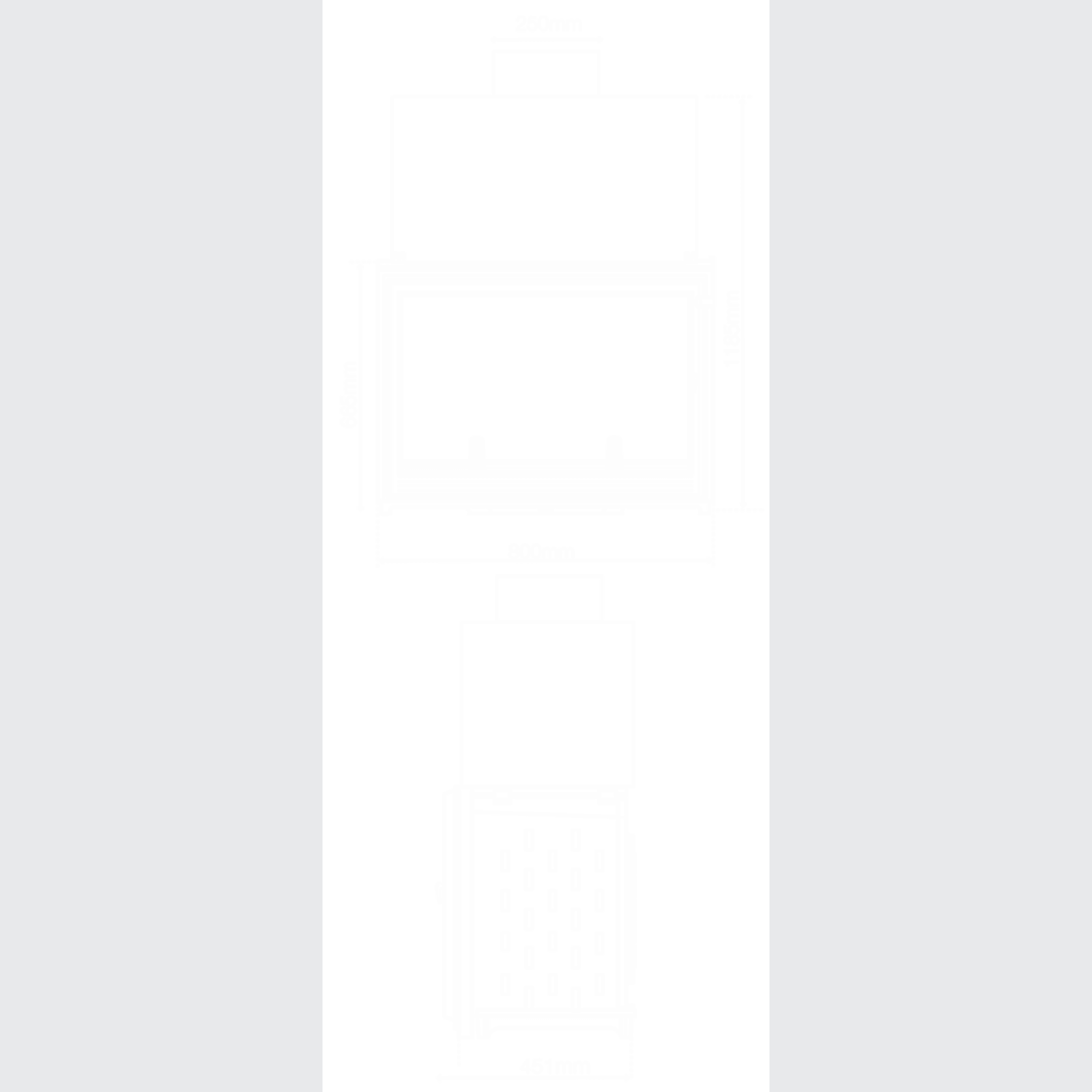

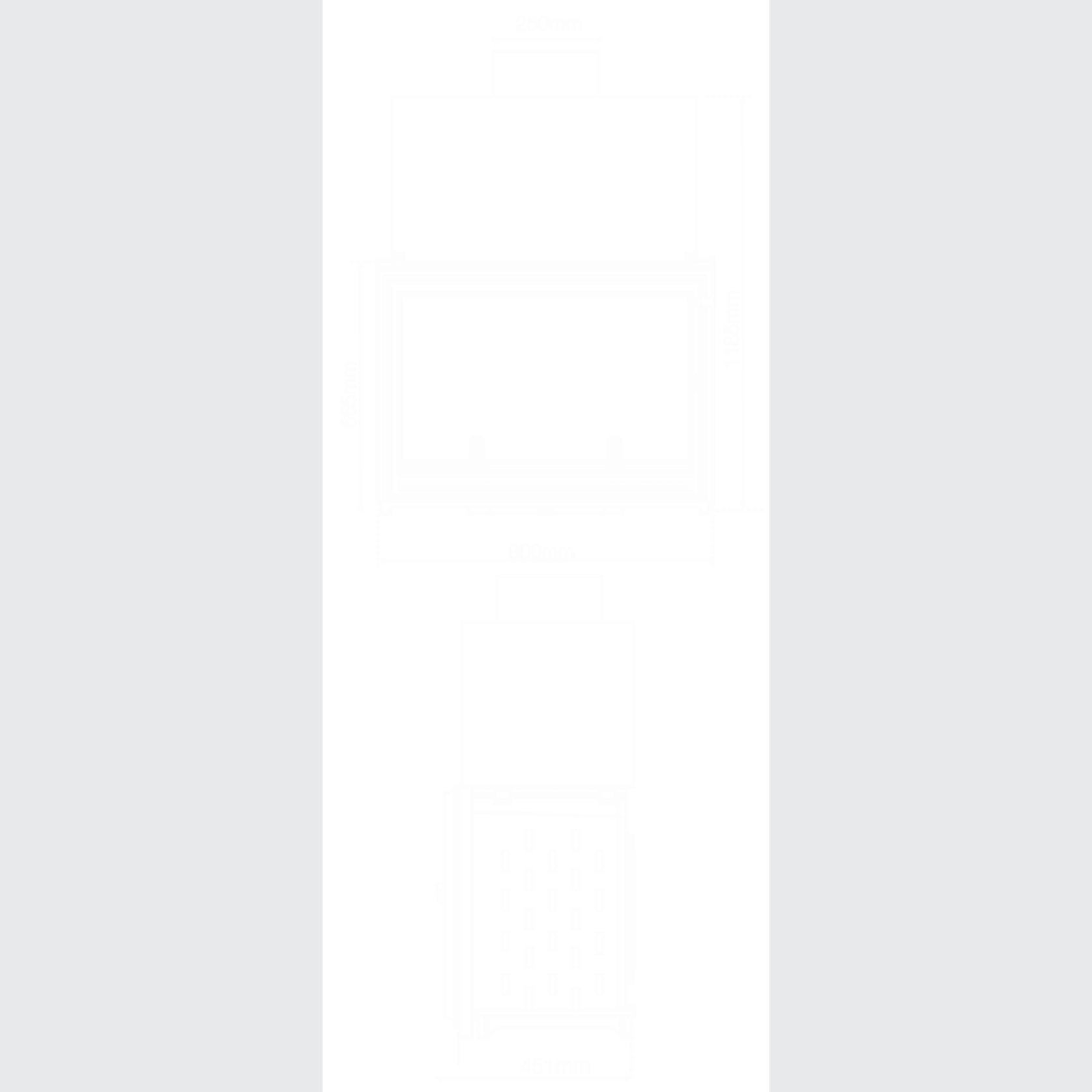

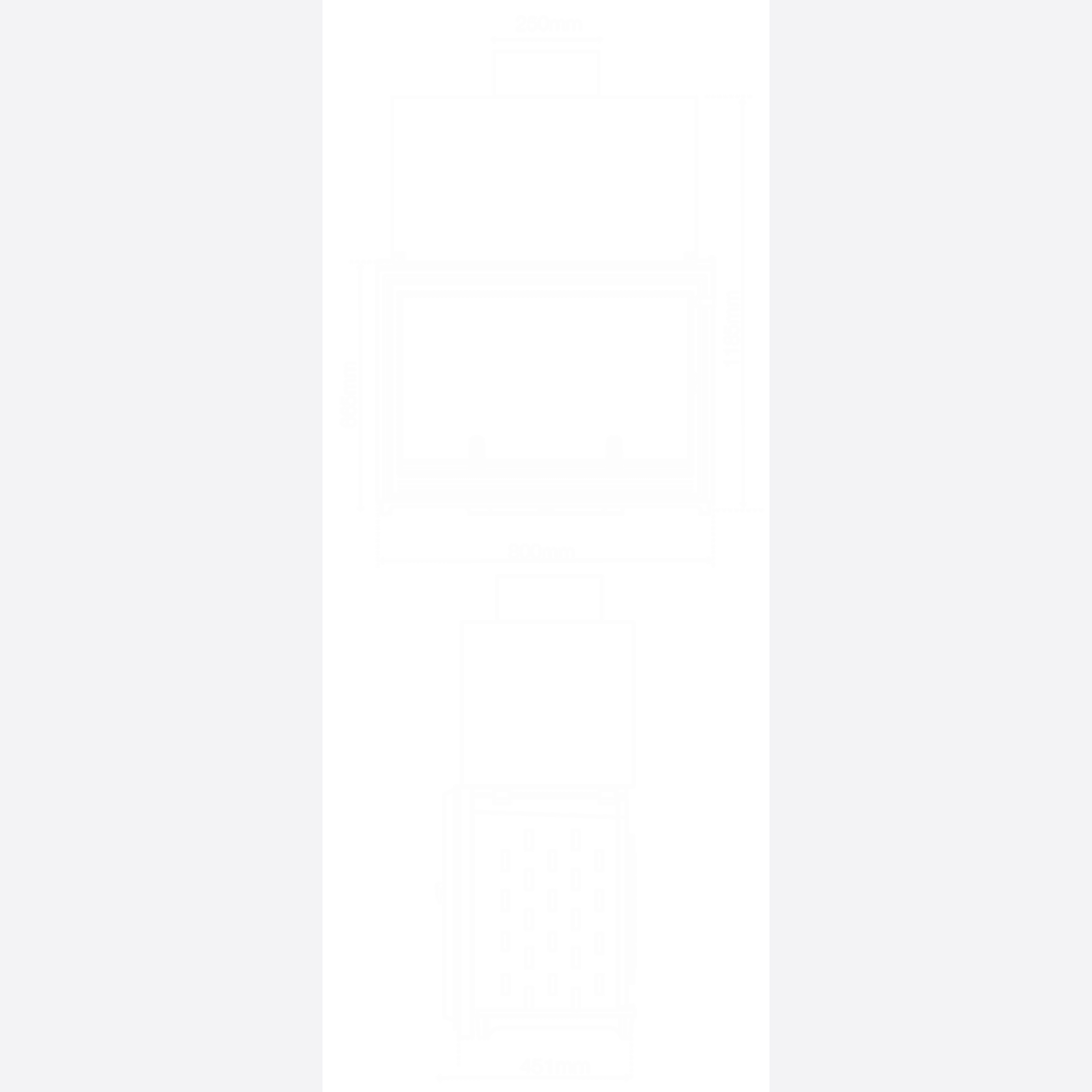

L451 x W800 x H1185 mm - 345kg

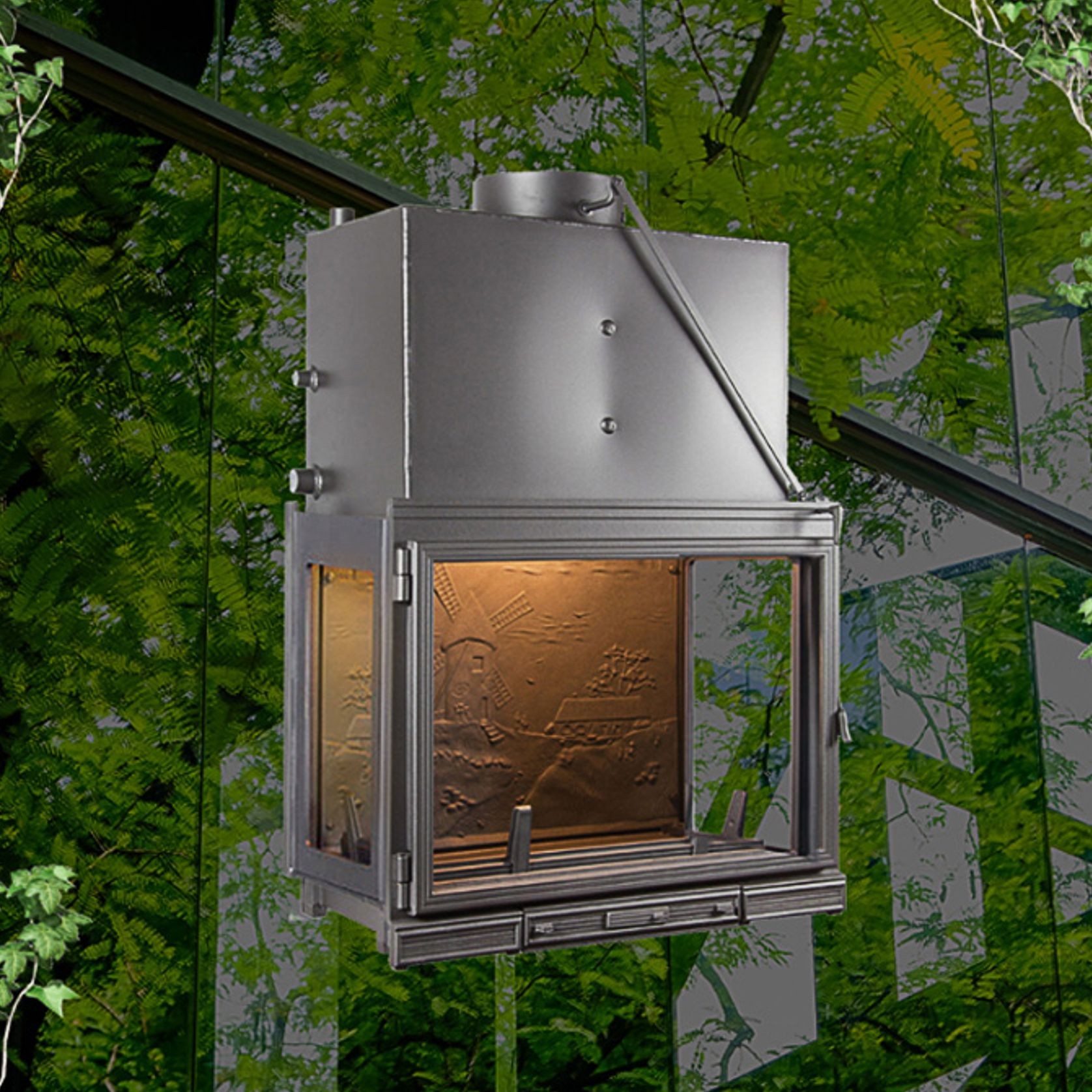

Handcrafted with raw materials to produce world-class elegance and maximums in heating performance the Seguin Multivision Hydro80 3V has been engineered to encapsulate your entire home heating solution. Offering a three-sided viewing area, this sustainable heating solution delivers maximum heat output, designed to be used to heat both your hot water, in addition to delivering heating via your in-floor heating systems or radiator panels the Seguin Multivision Hydro provides an efficient eco solution to your heating needs. Though versatility incorporated in simplicity this design is the ideal solution to heat your home comfortably.

The advantage of Seguin Multivision Hydro80 Hydronic Heating include; thermal heating which can be coupled with a reliable hot water heating solution and hydronic heating solution, large firebox makes reloading and maintaining your hydronic heating system easier without having to frequently refuel your system, thermal mass is stored and released slowly though 100% cast iron construction, radiant heat is provided through the large floating glass.

Details
  • Category
    Wood Fireplaces
  • Range
    Hydronic Wood
  • Brand
    Seguin
  • Year
    2015
  • Warranty
    10 years
Specifications

Material:
100% pure cast iron with cast iron, 8-12mm thick

kW Output:
Dry model: 26kW Wet Model: 14kW

Heating capacity (m2):
150-200m2*

Façade:
Clean frameless design (no trim)

Glassdoor:
Secure swing or lift door opening system

Minimum flue height:
4.5m

Flue dimensions:
250mm, 300mm, 350mm

Includes hot air transfer kit:
A duct and a register

Hearth dimension:
Minimum 500mm in front of any part of the fireplace, 250 on either side and 75mm thick

Outside air kit:
Recommended for well-insulated homes

Warranty:
10-year firebox warranty*

Weight:
345kg kg

*Heating capacity (when used as a slow combustion heater) is based on 2.4m ceiling heights and 6 stars rated homes. Factors such as building characteristics, quality of insulation, type of firewood used, and climatic zone will also affect the heating output. *In accordance with Australia and New Zealand Standard AS/NZS 2918:2001 *All product pictures are a guide only, all wood fires must be installed as per AS/NZS 2918:2001 *E&OE. See T’s & C’s

Performance

Seguin fireboxes are guaranteed for 10 years. This excludes the ash pan, bricks and fire grate retainers which are guaranteed for 1 year.

The warranty becomes effective at the date of purchase.
