ShadowDeck™ SuperSpan is an innovative aluminium framing system which can be used with decking and tiles. The clever design lets you change from tiles to decking without changing your framing.

Just flip the aluminium joist and insert the fasteners for tiles or a nail free timber solution.

Details
  • Category
    Deck Foundation Accessories
  • Range
    Aluminium Framing System
Features
  • Easy Installation
  • Low Profile
  • Durable & Versatile
What We Offer

Decking Substrate

Finish your deck with a tiling and/or timber decking by using our exclusive Patented ShadowDeck SuperSpan Aluminium SubFraming System & fasteners

Aluminium Framing

Our unique patented ShadowDeck SuperSpan Aluminium SubFraming System clicks into the Nurajack.

Ideal for low profile tile or timber decks.

Self Levelling Jacks

We recommend use Nurajack self levelling adjustable decking jacks to allow the deck to be adjusted to the level of the interior living space giving superior indoor outdoor flow

Floating Aluminium Deck Frame Layouts

The flipp’N click™ aluminium framing system has key advantages over traditional timber framing options. The system’s simplicity and lightweight design ensures that even apprentices can quickly master it, making it an efficient and user-friendly option for construction projects. A key feature is the ability to click the frame directly into self-levelling Nurajack head, this feature significantly speeds up installation, making it 80% faster than using timber. The patented aluminium framing is designed with strength in mind to give a wide span between jacks while still offering an incredibly stable surface.

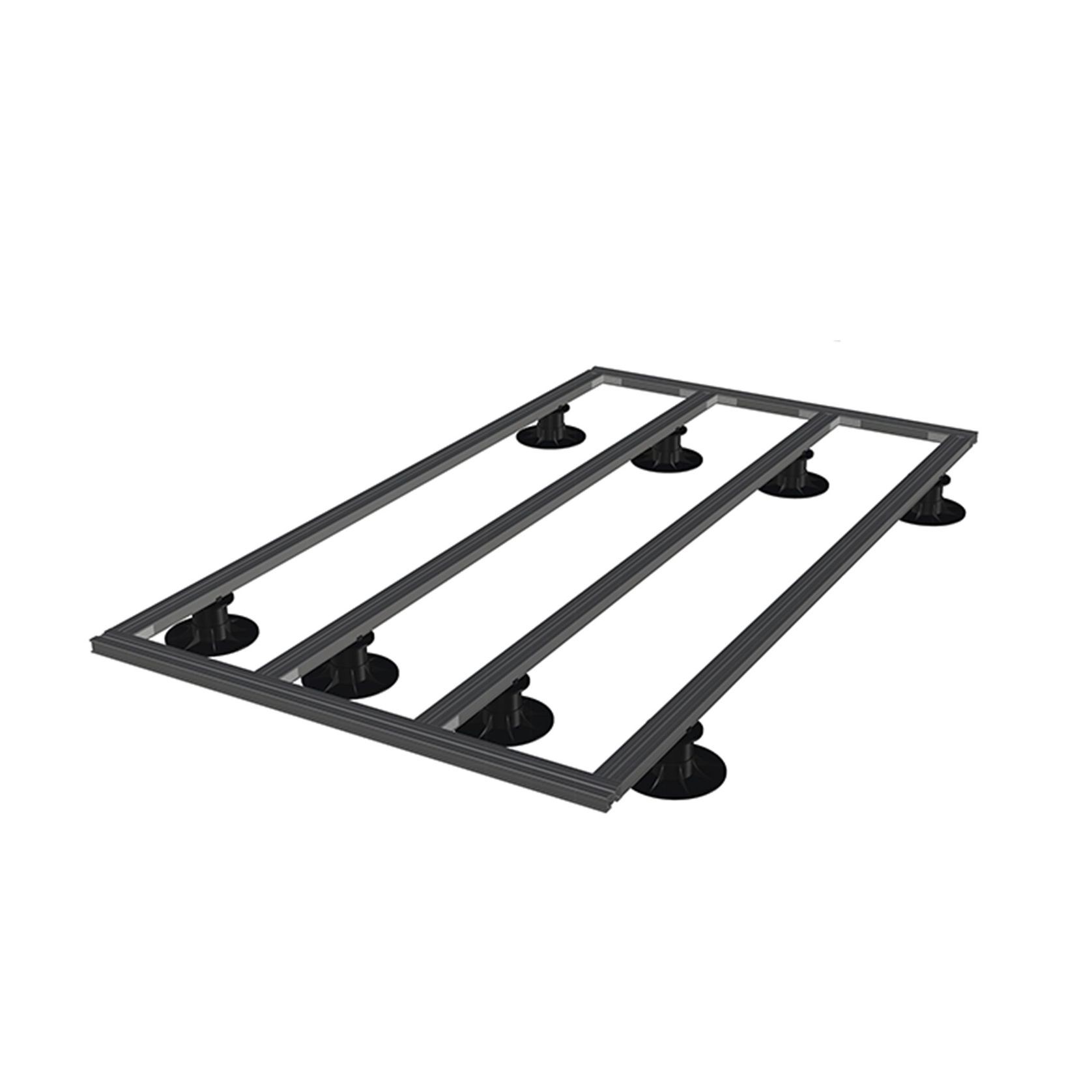

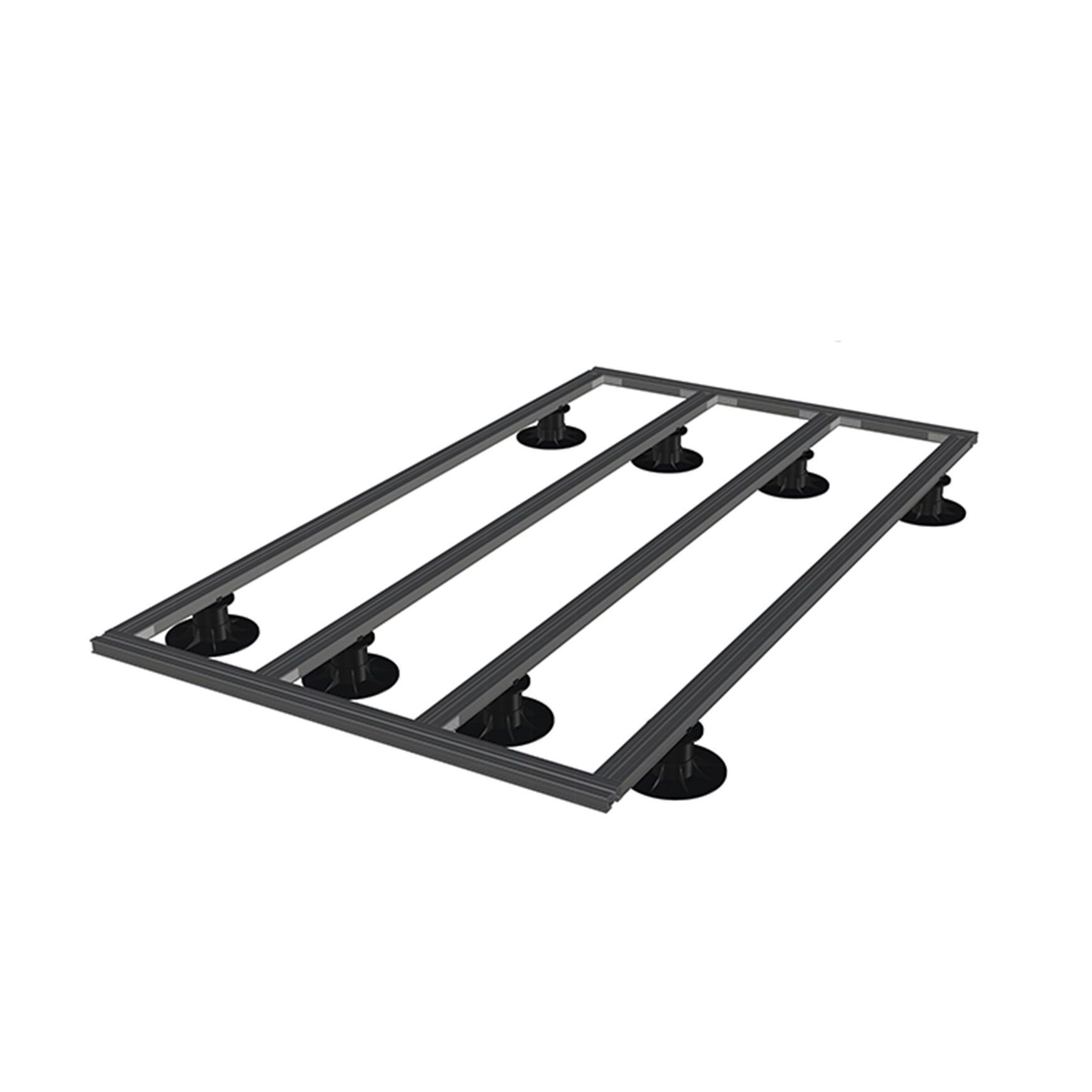

Joist Layout

Designed with spaces with low clearance in mind. The Joists are clipped directly into a Nurajack at 1200 Centres.

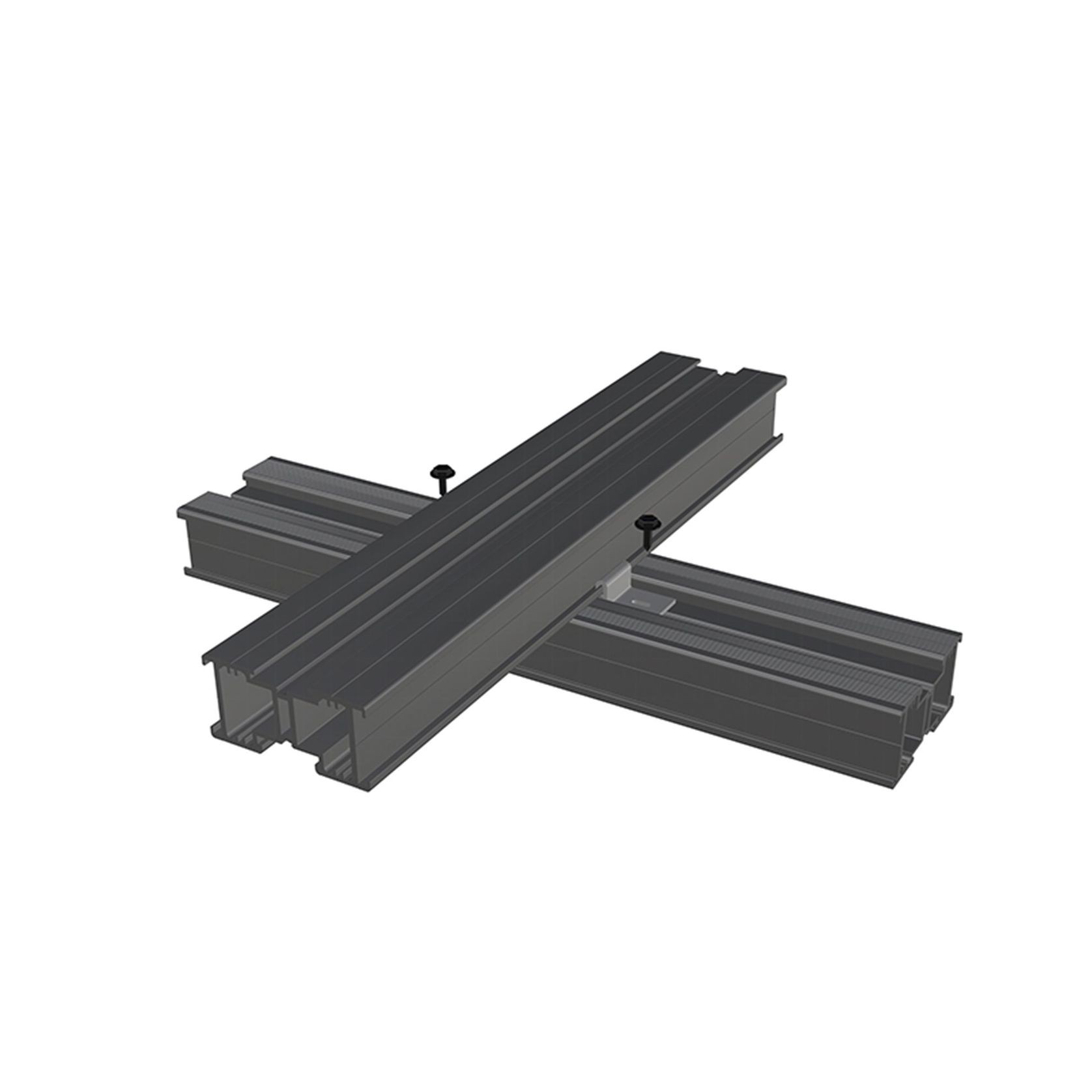

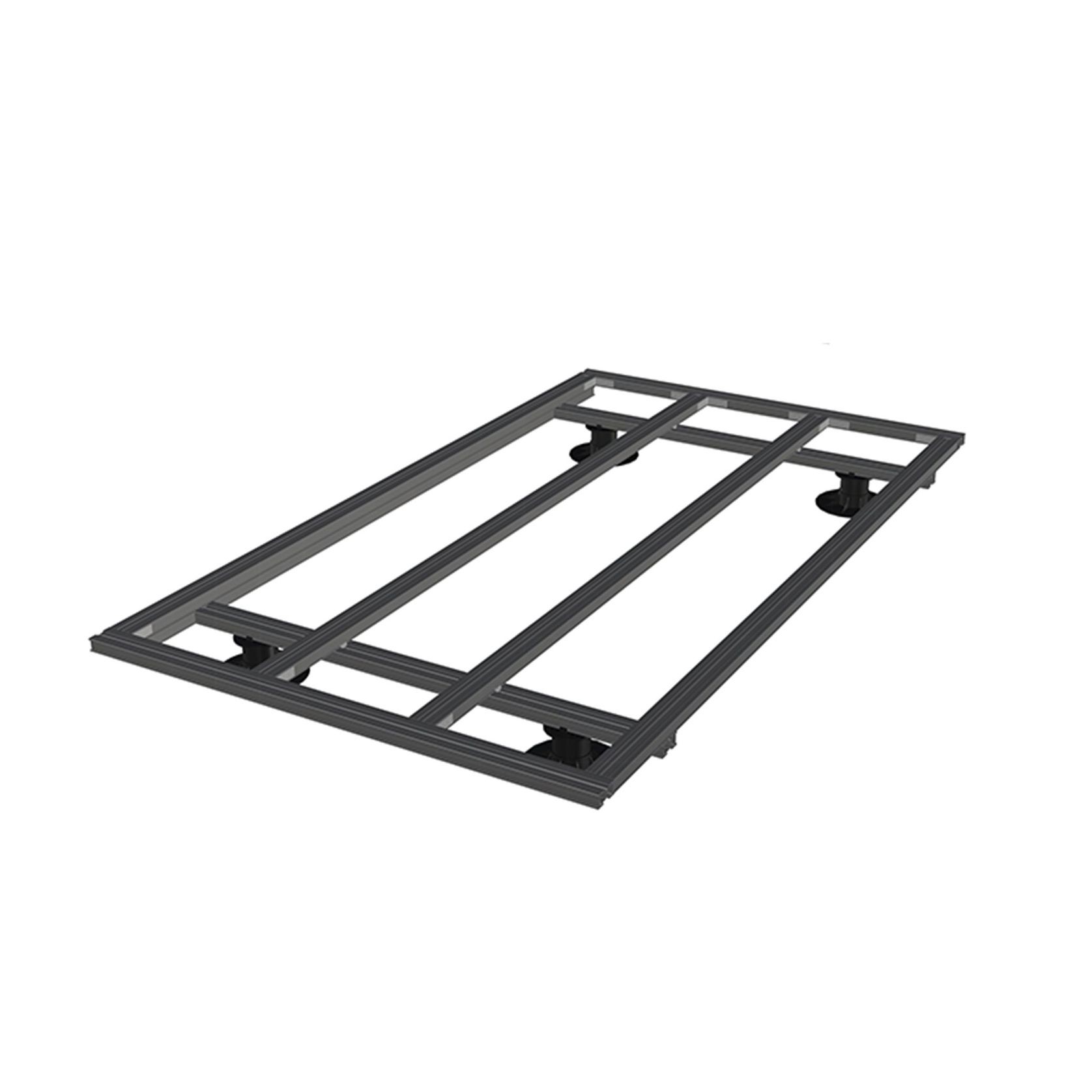

Joist & Bearer Layout

Designed to be extra strong. The Joists are fixed to the bearer using the “Joist to Bearer Side Clips” and the Bearers are clipped into a Nurajack at 1200 centres.

ShadowDeck™ SuperSpan Aluminium SubFraming Profile
  • Joist/Bearer 30mm - Frame 30mm high x 60mm wide and can go as low as 30mm
  • Joist/Bearer 60mm - Frame 60mm high x 60mm wide
  • Joist/Bearer 120mm - Frame 120mm high x 60mm wide
ShadowDeck™ Components

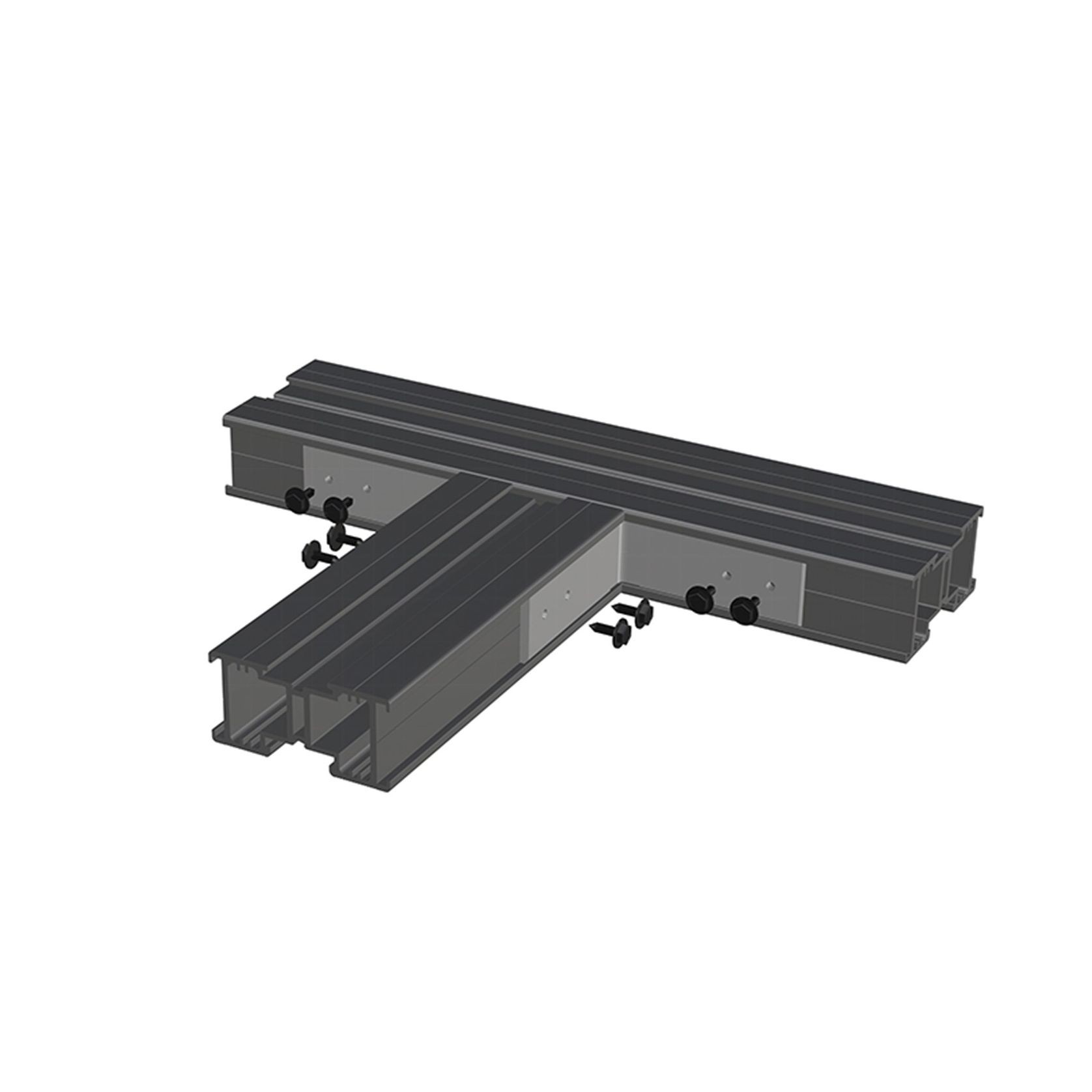

Joist to Bearer Side Clip

Designed for ease of installation, offering the flexibility to be secured with or without screws. You simply turn the side clip into the bearer framing, which locks the edge of your joist framing securely in place. This design ensures a firm and stable connection between the joist and bearer enhancing the overall structural integrity.

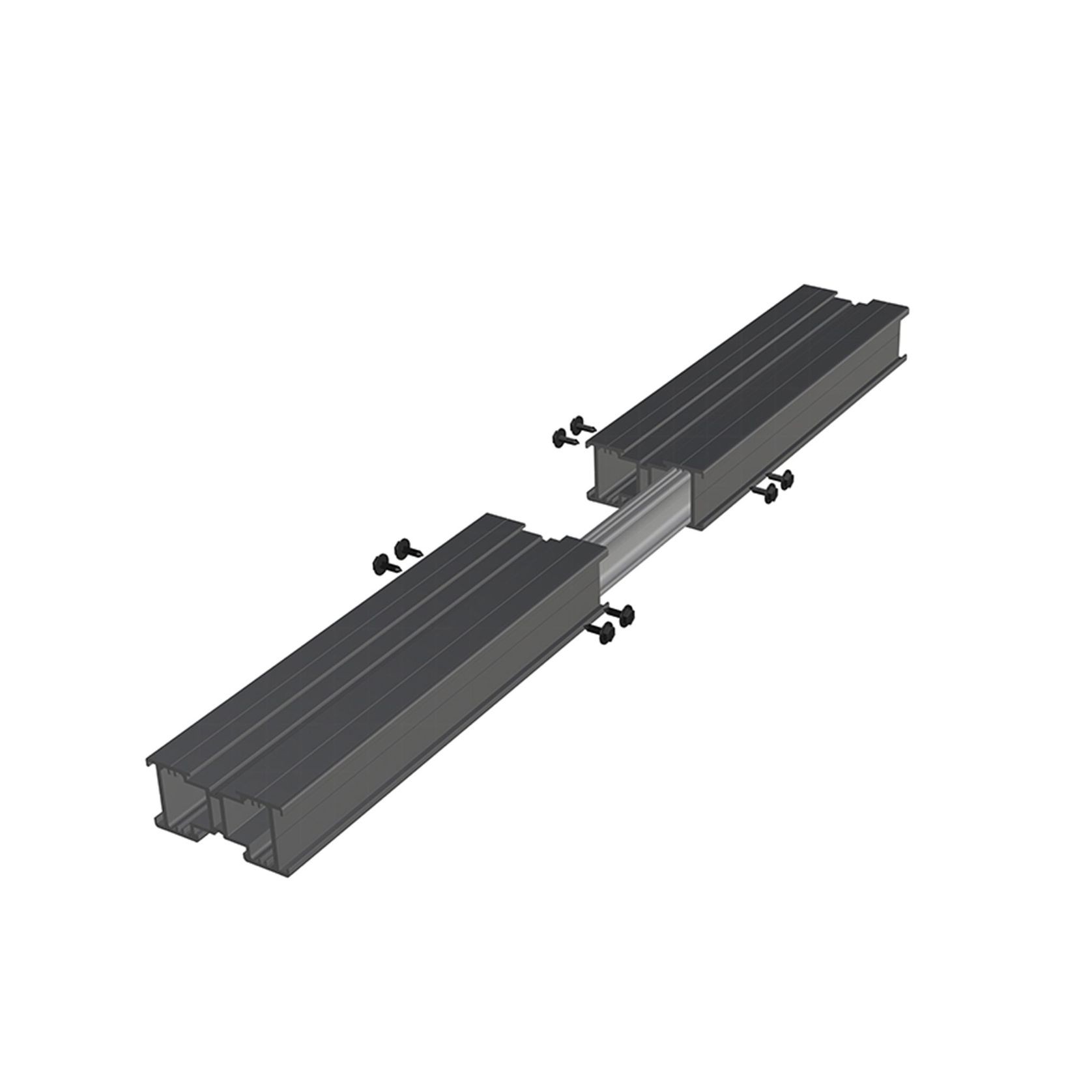

Joist/Bearer Framing Joiner

This component is designed to join and extend your framing or bearer aluminium lengths efficiently. The joiner allows you to extend your framing as required, which makes it easier to adapt the framing to different project requirements, while reinforcing it for additional strength

Joist/Bearer Corner Bracket

Designed for creating 90-degree angle connections in the framing system. The bracket component easily slides inside the frame, and can quickly screw it in place through the pre-drilled bracket holes, ensuring that the screws are properly seated. Its simple installation process provides a secure and precise corner connection.

ShadowDeck™
Visit Website

About the
Seller

ShadowDeck™ has been New Zealand’s leading decking system for more than eleven years and continues to set the standard for nail-free timber decks.

Founder Darrel Grace is a veteran of 29 years within the New Zealand building industry and has extensive experience and knowledge of the building trades both here and internationally, having worked as far afield as London, Japan, Australia and the USA.

For years, Darrel was frustrated and annoyed watching quality hardwood decking deteriorating prematurely due to the traditional drill, nail and punch techniques of deck-building. Timber expands and contracts naturally – this causes nails and screws to pop and causes the timber to split. Darrel also noticed that the rusting of the nails marred decking timber, and the uneven gaps between the decking diminished the look of the quality hardwood.

When Darrel decided he wanted to build his deck at his picturesque Titirangi home, he decided he wanted nothing less than a flawless deck, and so he set about designing the Shadow Hidden Deck Fastener. This desire for a perfect deck finish became an all-consuming passion for him, and three years on, Darrel designed and created the ultimate solution for creating the perfect Kiwi deck. Through Darrel's sheer determination and hard work, he is now delighted to offer New Zealanders a revolutionary improvement to how their decks can be finished flawlessly.

With a proven track record of high customer satisfaction throughout New Zealand, ShadowDeck™ products are expertly engineered to withstand the elements and corrosion better than any other products on the market.

Architects who specify and builders who use ShadowDeck™ construct award-winning and longer-lasting timber decks with an unbeatable finish.

The finish amazes customers who have installed ShadowDeck™. Since introducing Shadow Hidden Deck Fasteners to the New Zealand market – Darrel has been thrilled with the massive, positive response to his product and has been overwhelmed with demand by Kiwis wanting the perfect deck.

When Darrel has downtime from helping Kiwis with their decks, you can find him sitting on his deck in Titirangi, enjoying the sound of the tuis and wood pigeons while spending time with friends and family.

To get the perfect deck call Darrel directly at 0800 SHADOW (0800 742 369) or email him at darrel@shadowdeck.co.nz.
