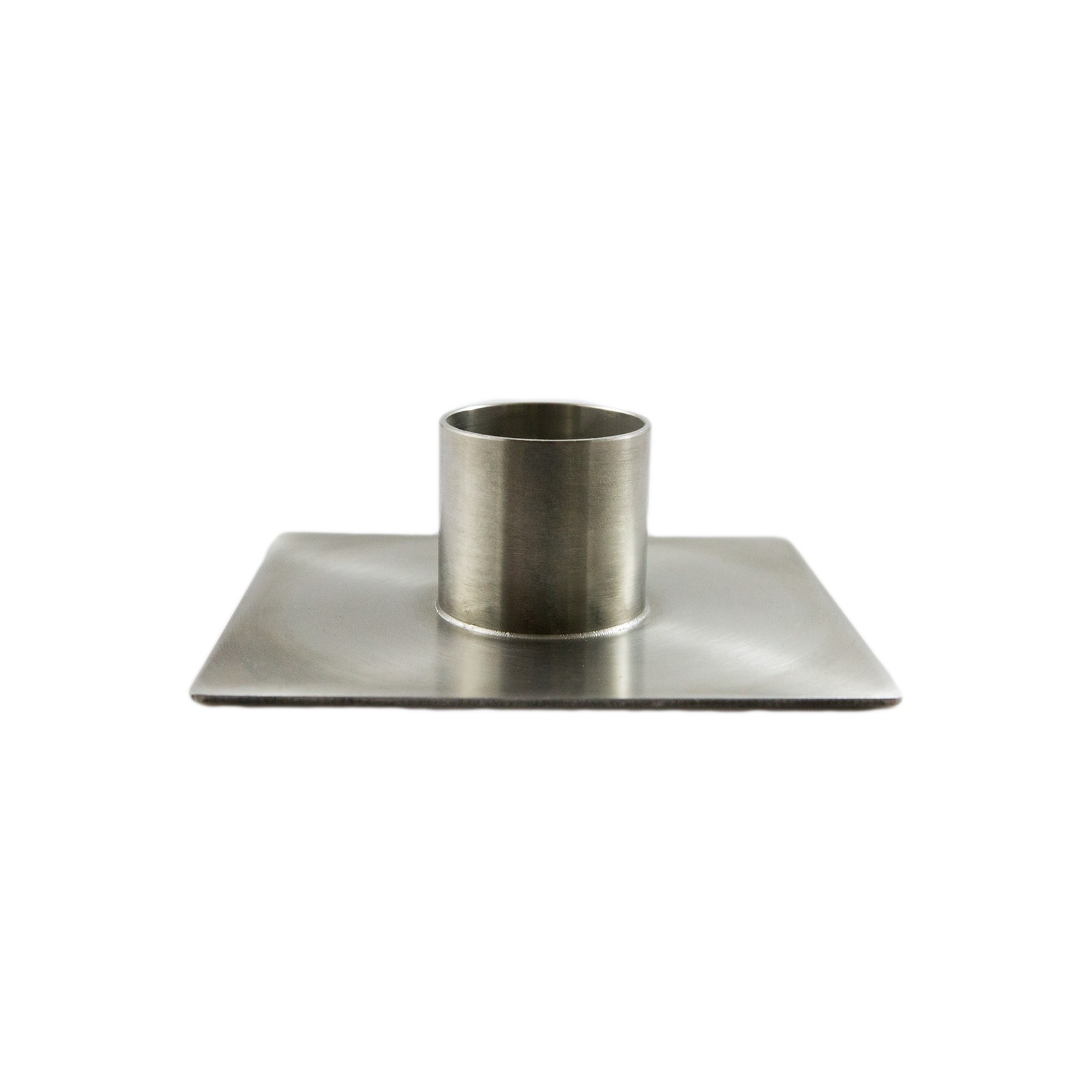

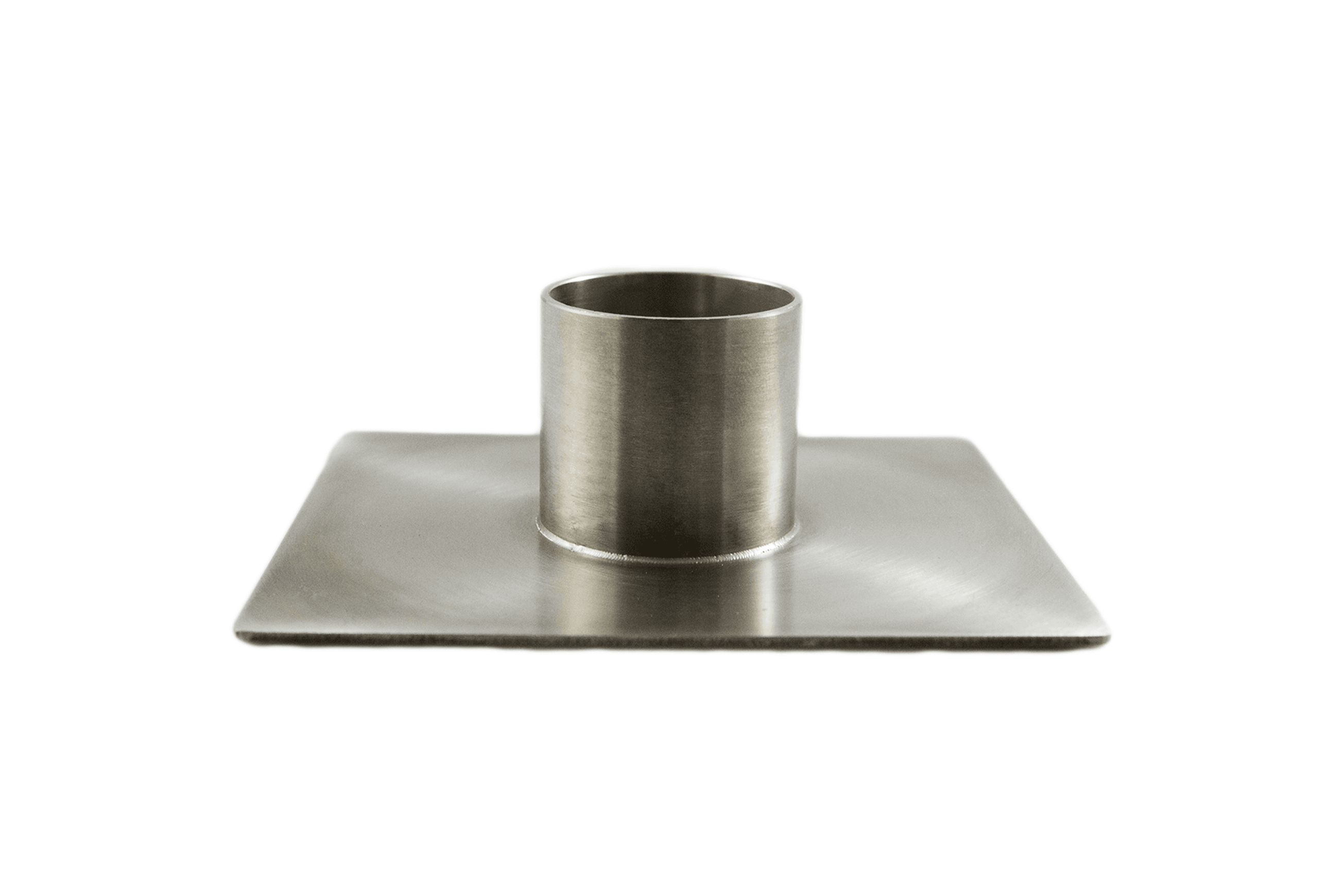

Smartfire Kamado Adaptor

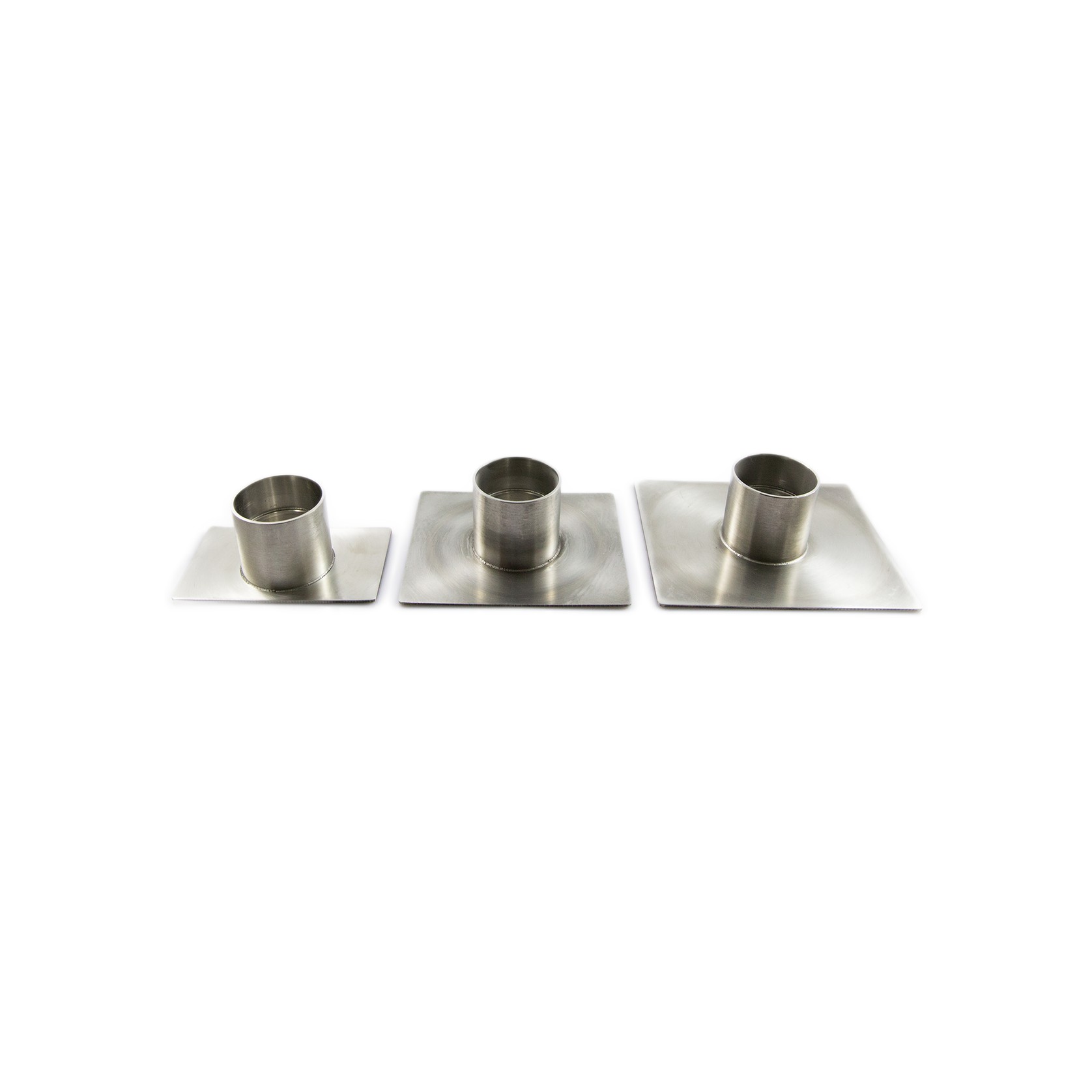

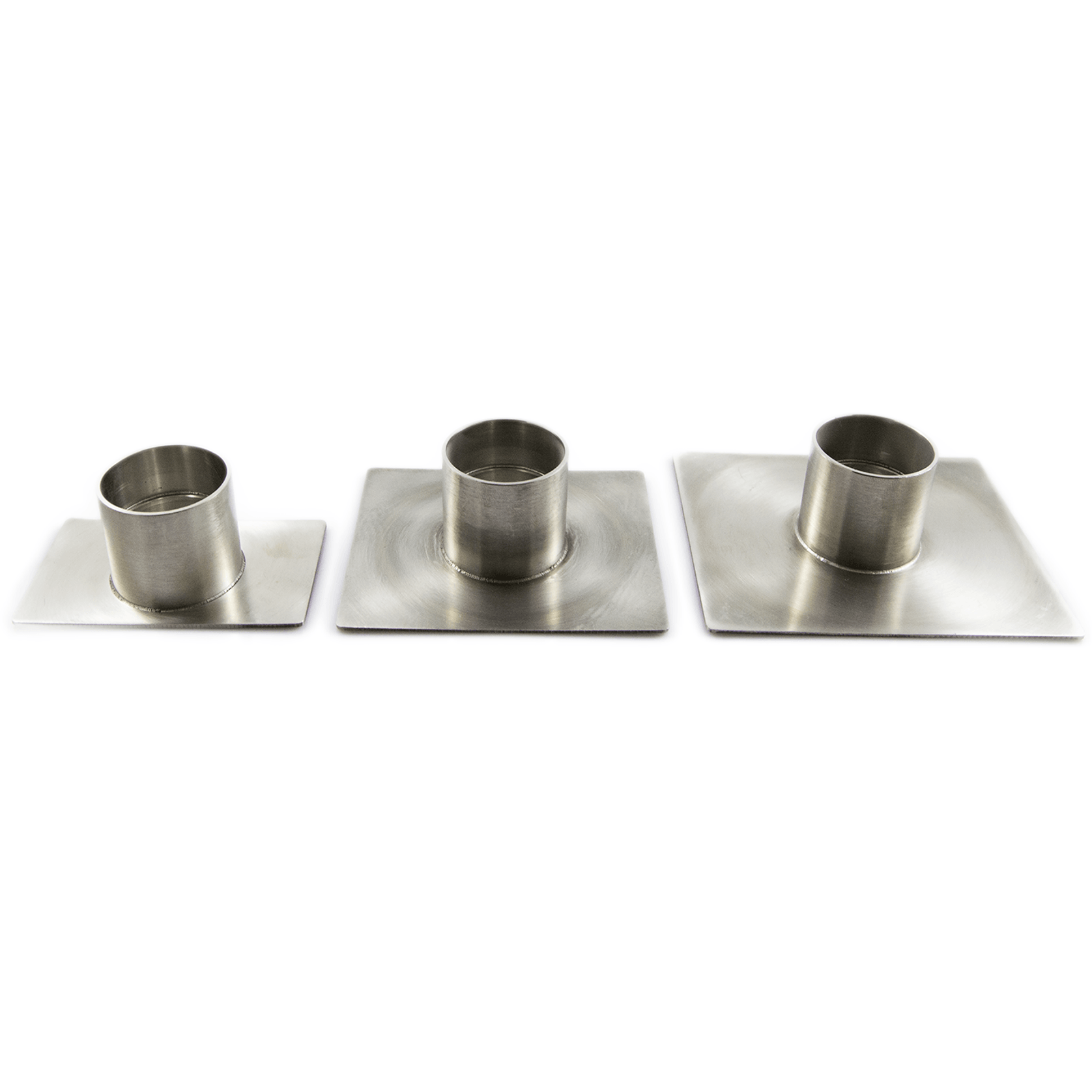

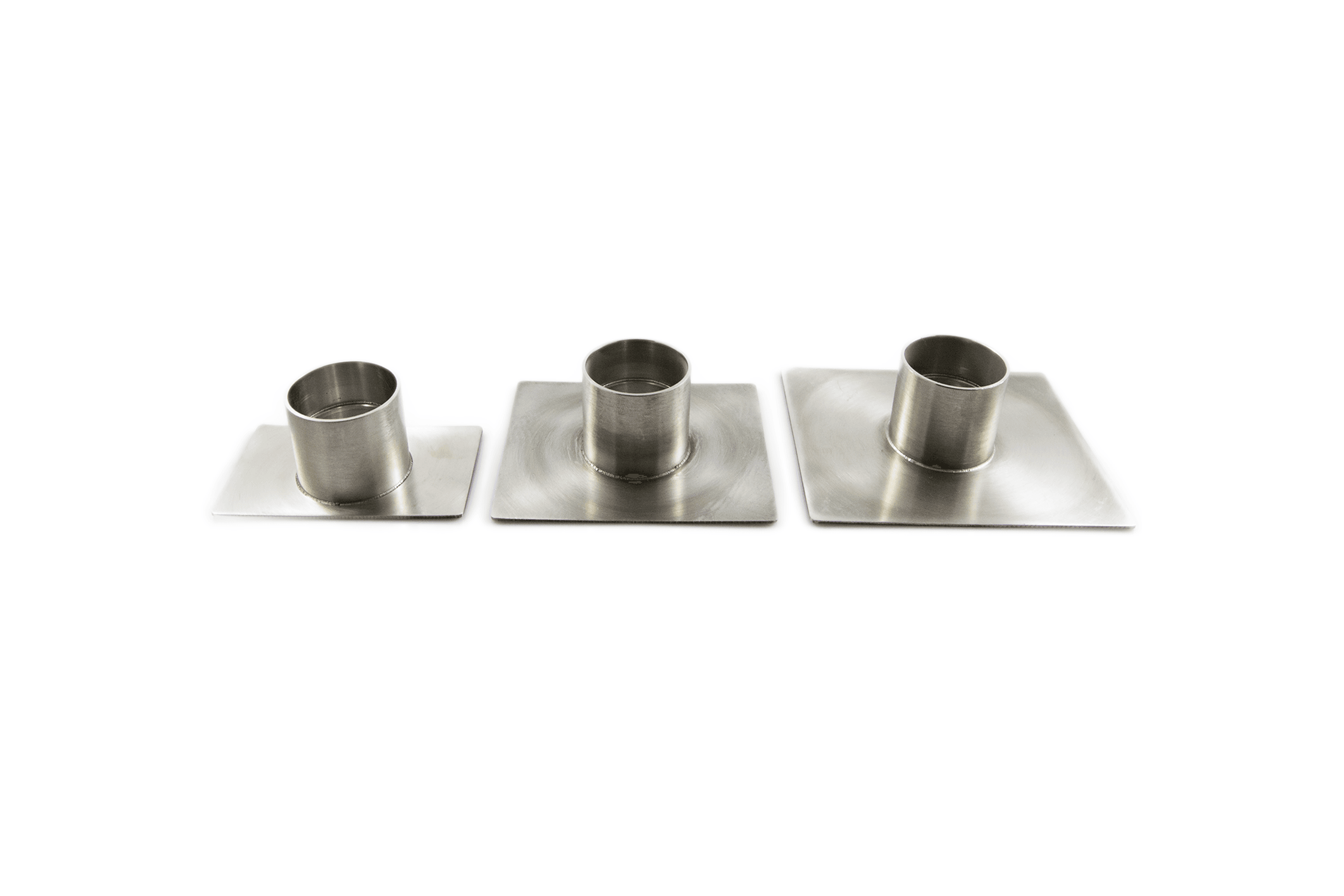

This 'Kamado' adapter has multiple variations designed for Kamado smokers such as Primo, Kamado Big Joe, Big Green Egg, Dragon, Akorn and even ugly drum smokers like Pit Barrel Cooker that may be using a slot vent.

Specs

Adaptor Suits

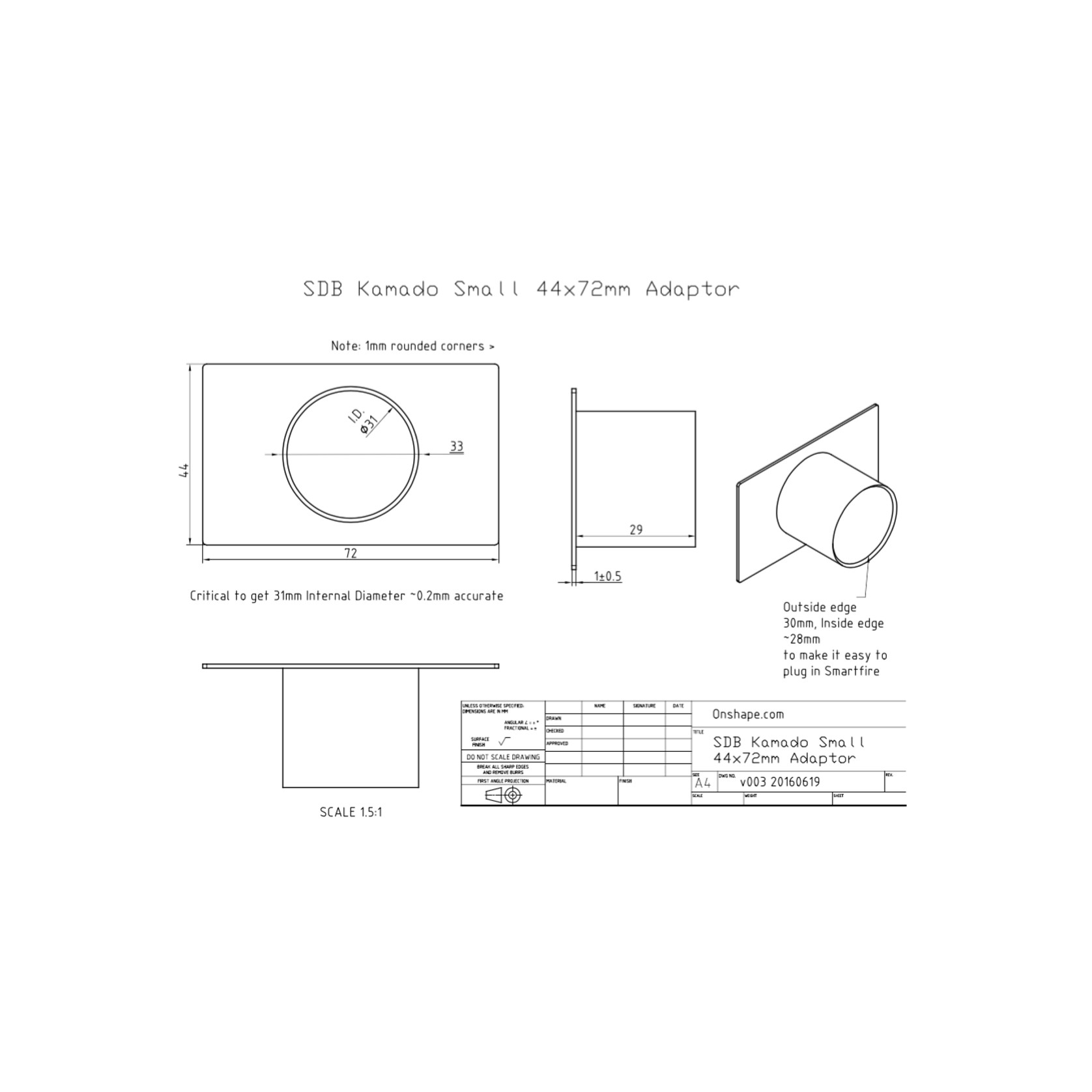

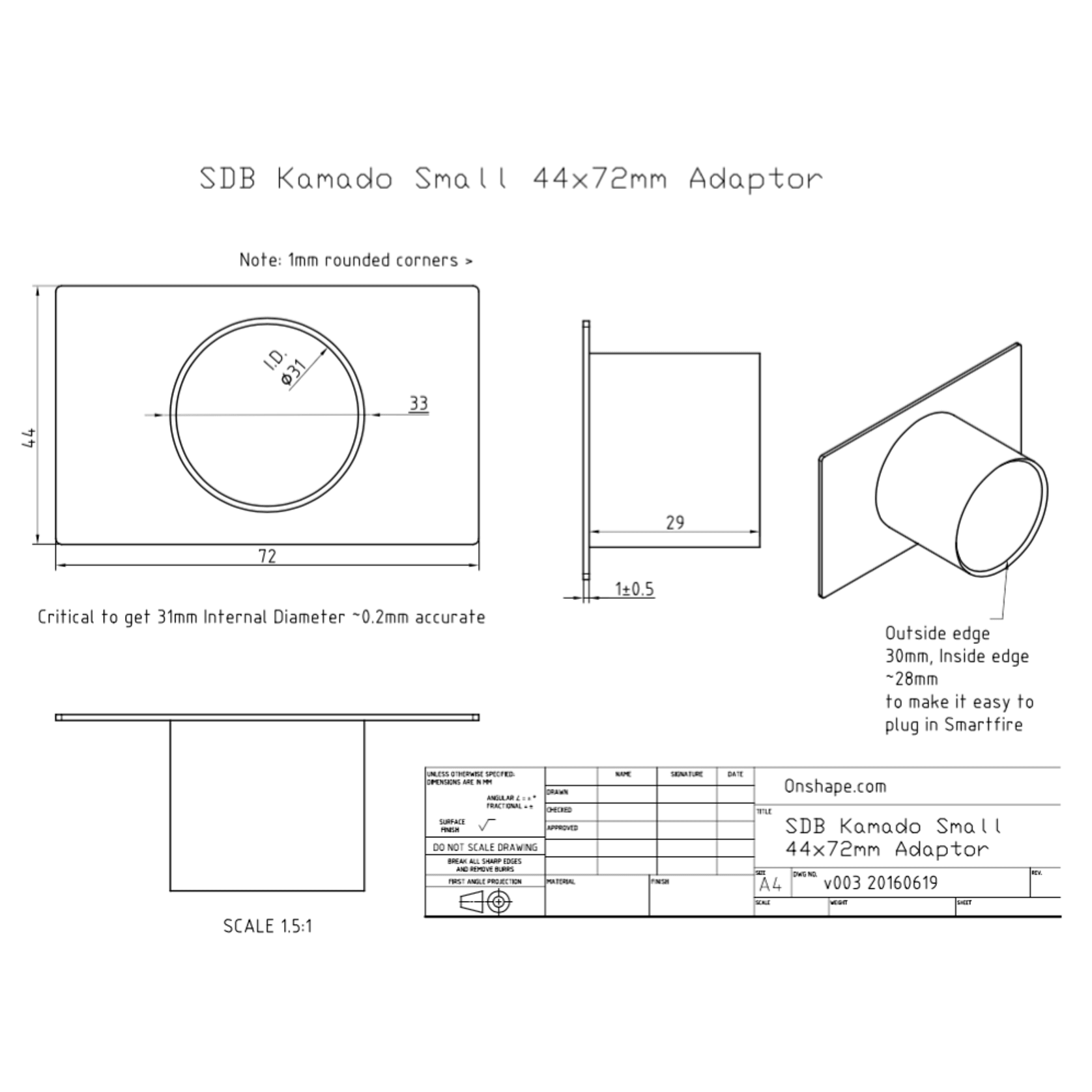

• Kamado Small 45x72mm:
  • Dragon.
  • Akorn.
  • Pit Barrel Cooker.

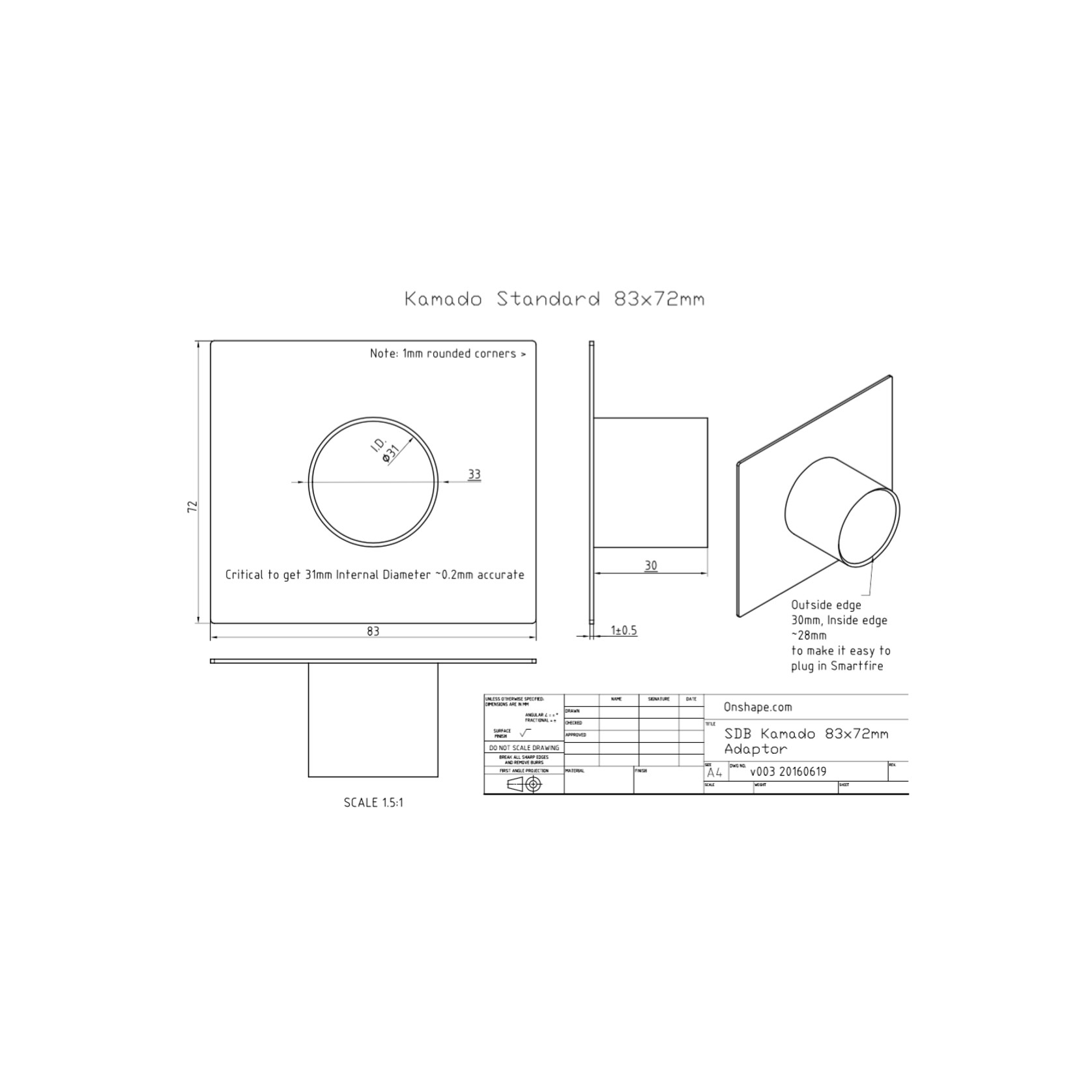

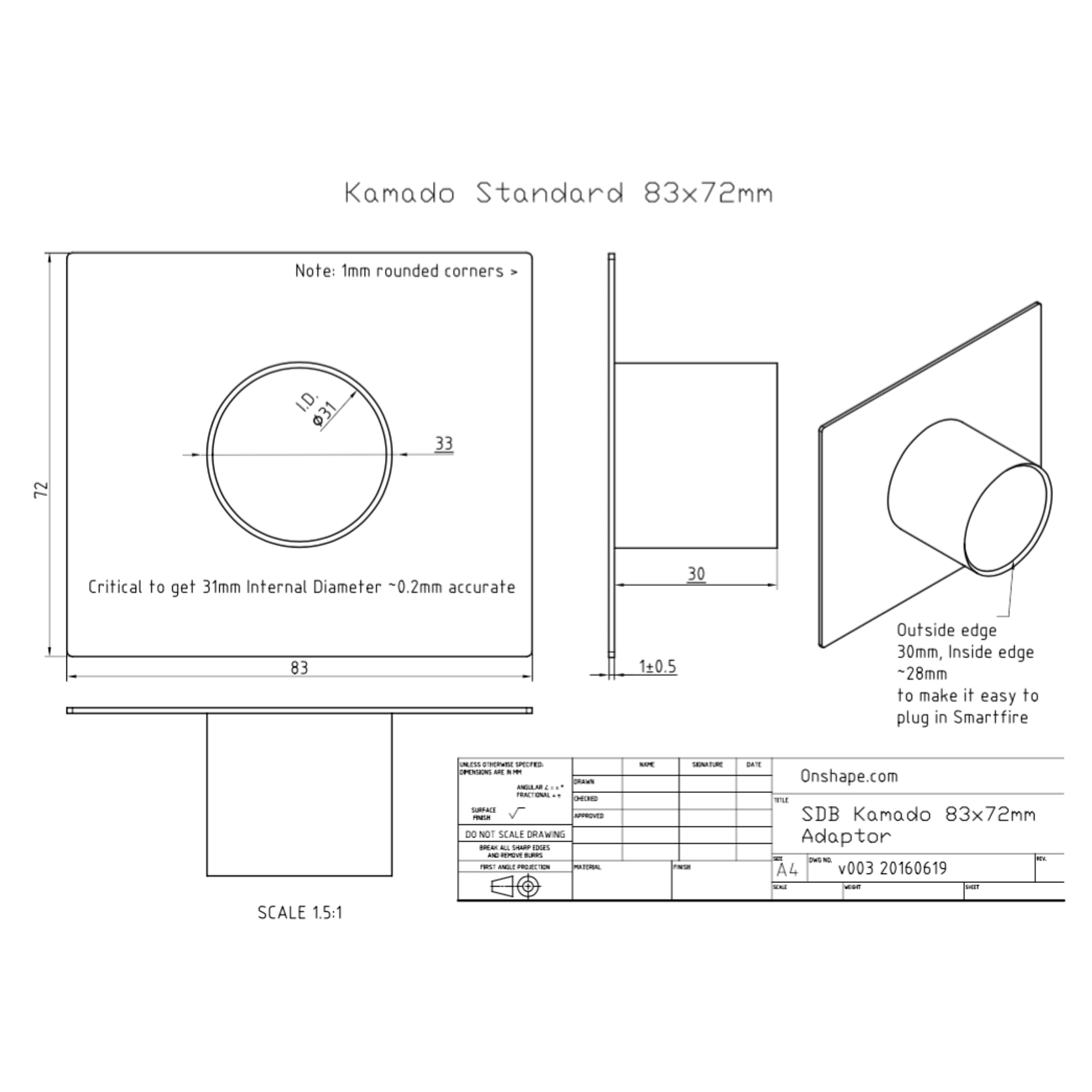

• Kamado Standard 83x72mm 83mm side:
  • Primo XL.
  • Big Green Egg Medium or Large.
  • Kamado Joe Classic.


• Turned sideways to 72mm:
  • Pit Boss (ie Costco).
  • Vision Grills Classic C.

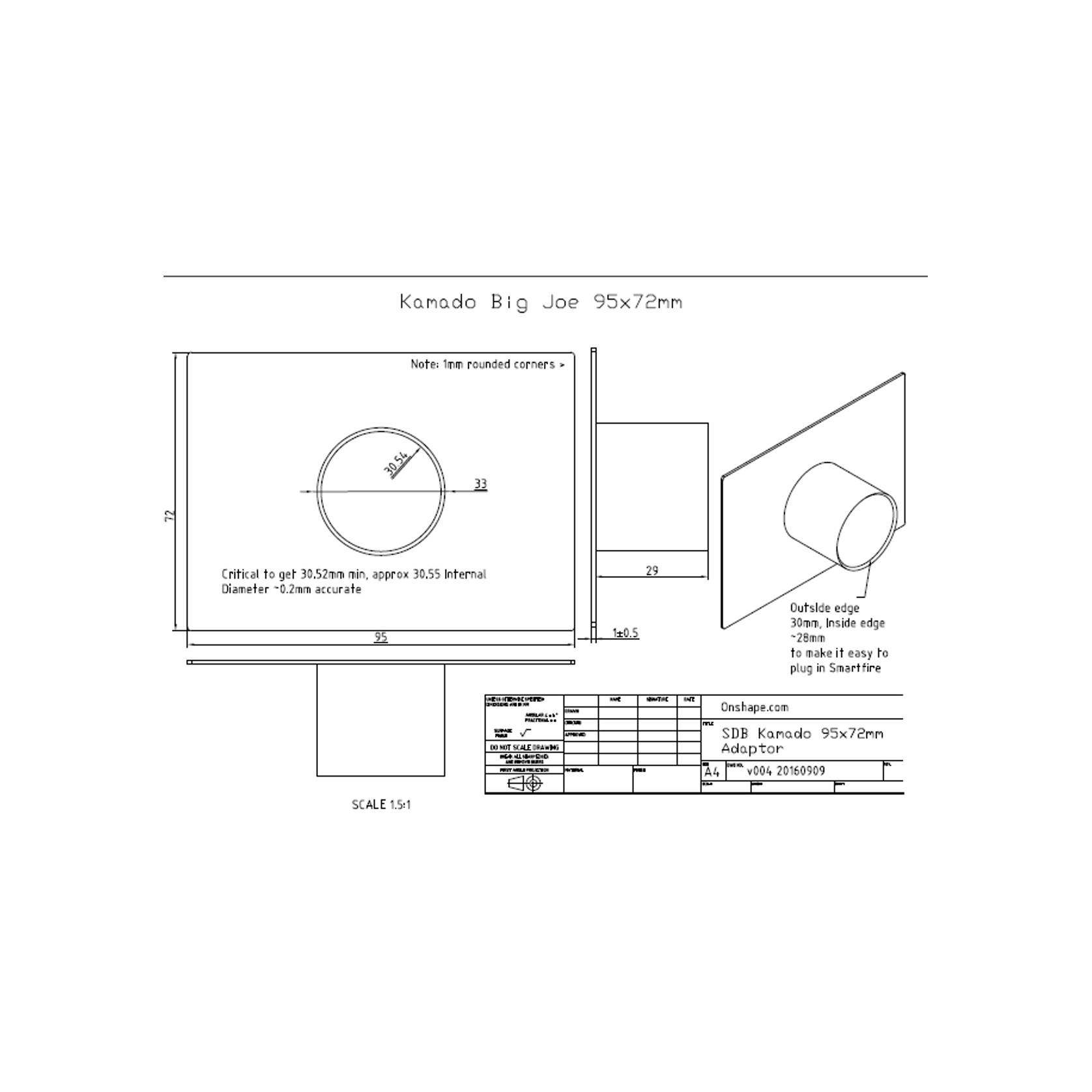

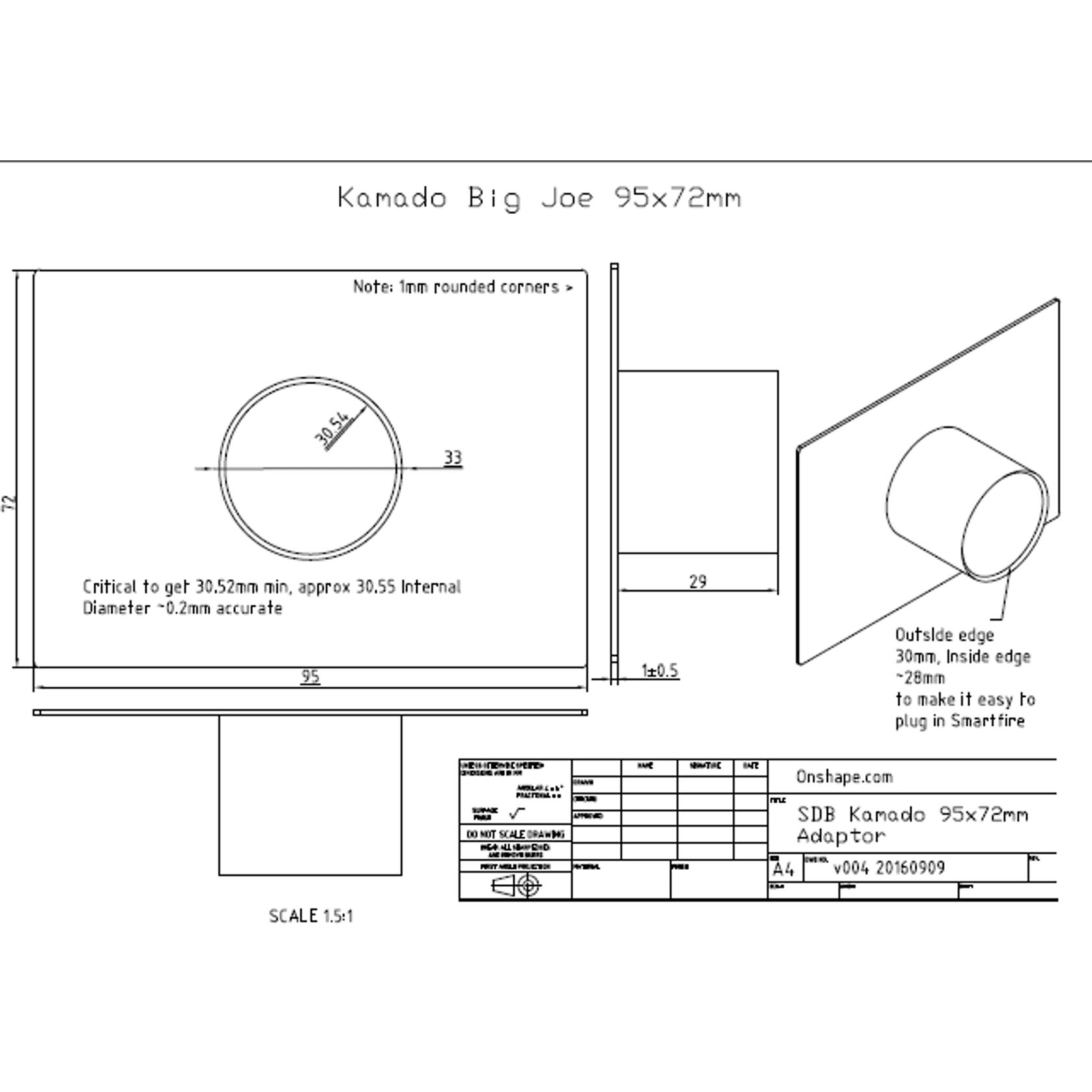

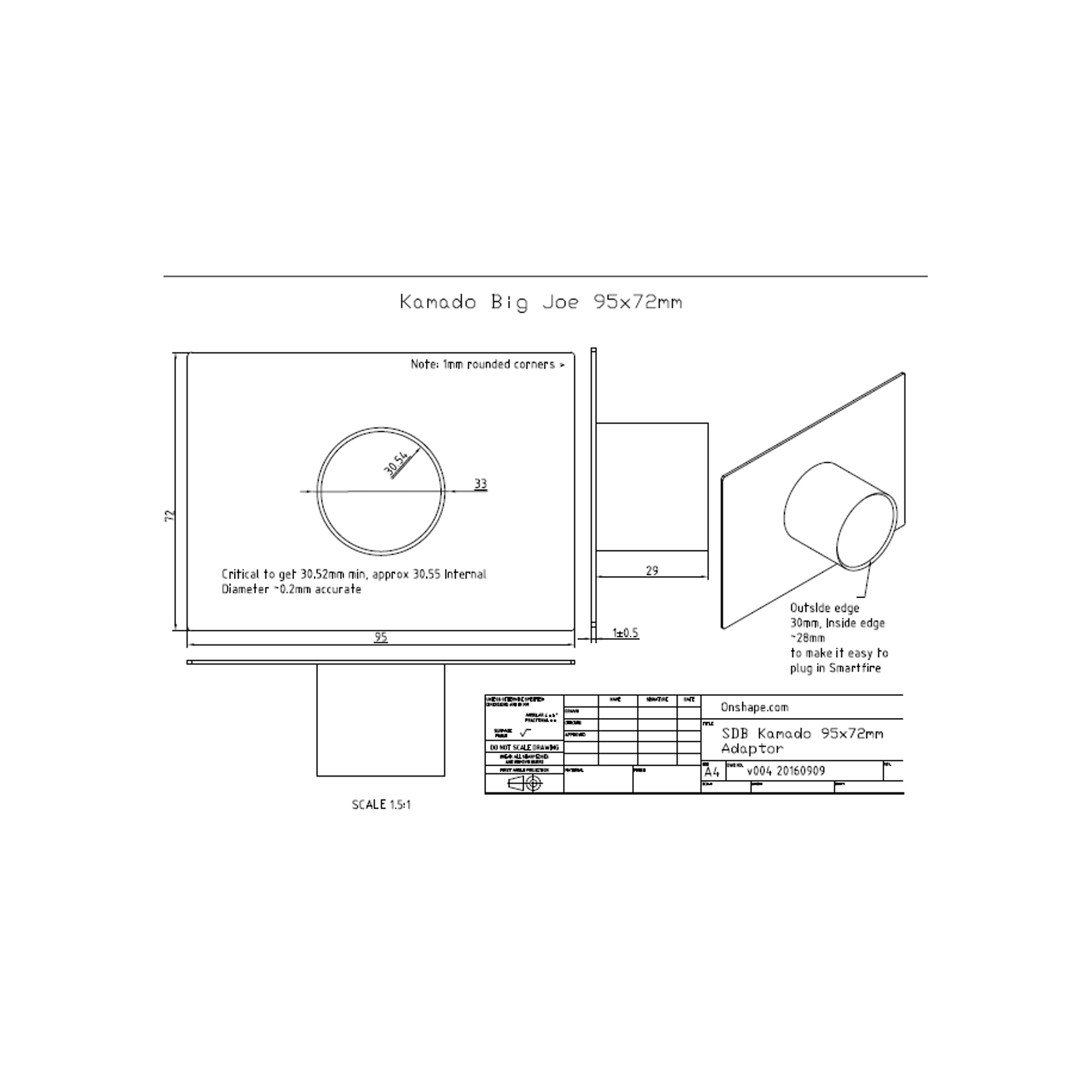

• Kamado Big 95x83mm.

Not sure which KJ or BGE you have, you just know its pretty big? All your bases are covered with this adaptor.

• 83mm short side:
  • Primo XL.
  • Kamado Joe Classic.
  • Big Green Egg Medium or Large.


• 95mm long side:
  • Kamado Big Joe.
  • Big Green Egg XL.

Universal Adaptor (Standard) is Designed For

• Offsets, such as Radar Hill Smokers.
• Custom smokers that may be using a BSP ball valve (BYO 2" to 1" adapter as required).
• Weber kettles.

Dual Thread Universal Adaptor is Designed For

• Bullet style smokers with daisy wheel air inlet(s) near the charcoal basket, ie:
  • ProQ Smokers, such as the Elite series.
  • Weber Smoky Mountains.

Scope of use

Using It

The adaptor comes perfectly flat so its recommended to introduce a little bend to the ends of the metal to match the gentle curve of the vent slider channel. First figure out which way you will orientate the adaptor with your smoker, you can line it up with the vent slider to make sure, as you only want to bend the left and right hand sides. Then place it on the end of a solid surface (kitchen bench etc) facing up towards you and gently push the last 25mm (1") towards the ground to provide a gentle curve of ~3mm (1/8").

To use it, you simply insert the Smartfire Controller into the precisely machined female adapter end. To avoid moisture leakage into the case, you'll want the probe holes to face down - though in good weather quite a few people turn theirs sideways 'gangsta style' to observe the Smartfire controller light.

Notes

• It includes a silicone red kill plug to seal the adaptor when you do not have the Smartfire Controller plugged in, it keeps the bugs out! Note, silicone is resistant to 260C so don't use it if the pit has been super hot.
• You slide your original vent in on the right to seal the opening gap.
• Pit Barrel Cooker: You can unscrew the swinging circular cover and place the Large Kamado Adaptor inside the pit (after curving the metal to suit). Use a pencil to mark where the old bolt hole matches up to the adaptor. Pull the adaptor out of the pit and drill it to suit the bolt hole and nut. Place back in the pit and use the old bolt and nut to secure the adaptor.
