In high wind and cyclonic areas, it’s sometimes necessary to engineer your garage or industrial door a little differently to ensure it withstands the particular stresses it may be subject to. Steel-Line cyclone garage doors are ideal for use in homes, sheds, commercial and industrial warehouses in high wind-prone areas.

The National Construction Code (NCC) 2013 – Housing Provisions (Building Code of Australia Volume 2) includes a reference for garage and large access doors for Region C and Region D to comply with AS/NZS 4505 – 2012 ” garage doors and other large access doors”. This came into effect on 1st May 2013.

Steel-Line Garage Doors has re-engineered our wind-rated garage doors and had them tested at the James Cook University against the wind loading requirements as laid out in the updated AS/NZS 4505-2012.

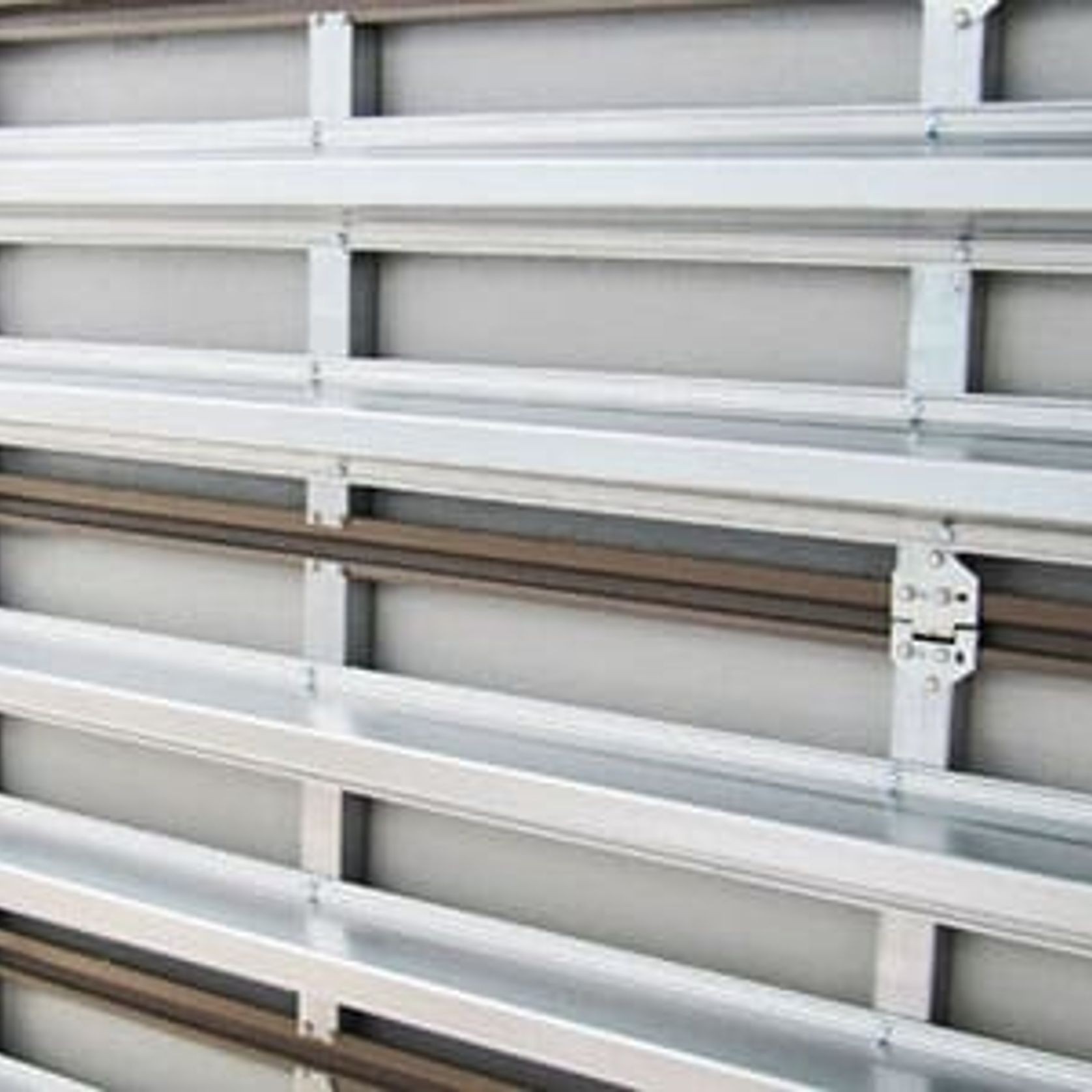

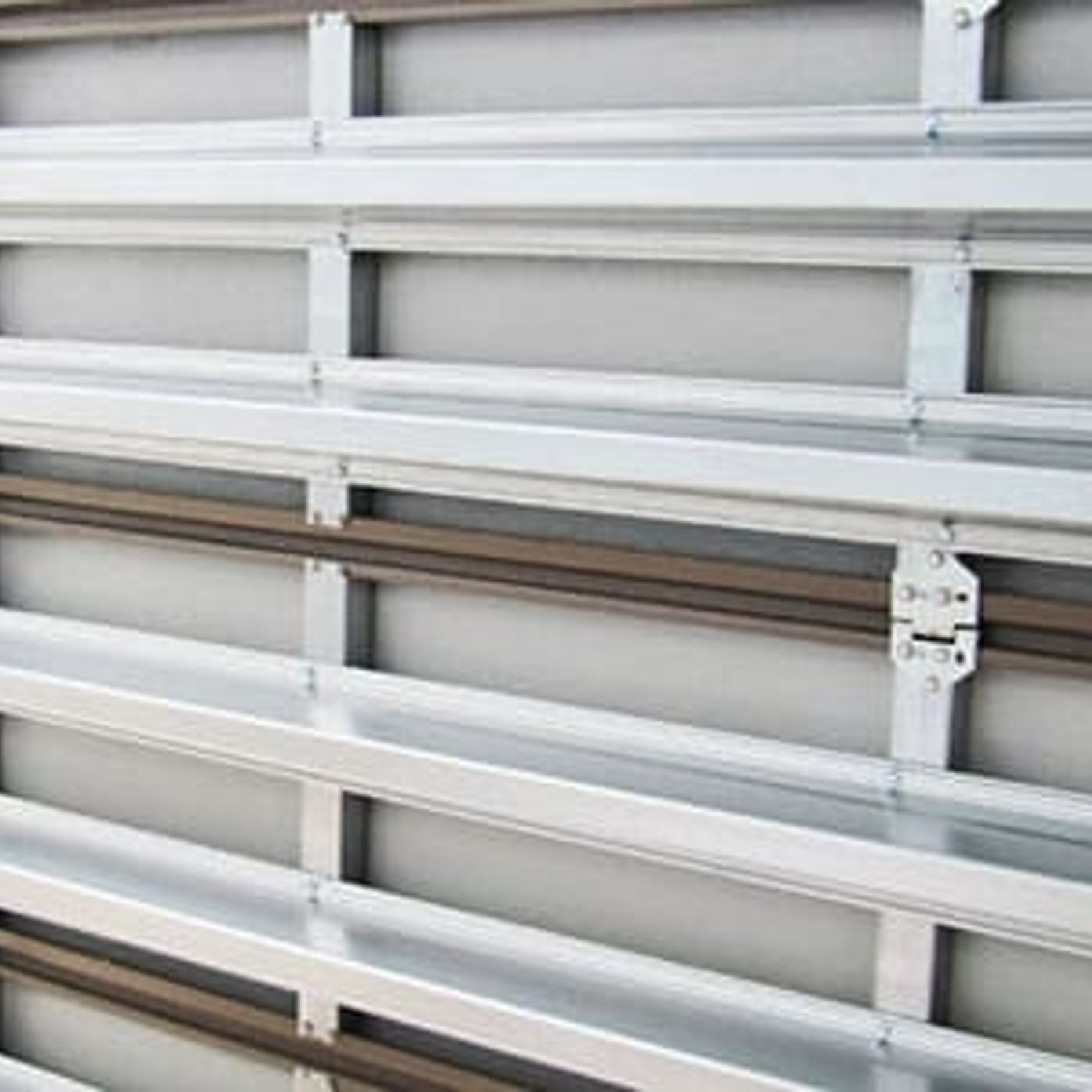

The Strut-Lock door is post-free, incorporating the use of heavy-duty struts, robust commercial hinges, top brackets in combination with a unique stile reinforcement to provide maximum resistance to forces exerted by cyclonic and high winds.

Details
  • Category
    Sectional Garage Doors
  • Range
    Cyclone Doors
  • Warranty
    1 year
Benefits
  • Post free for widths up to 5500mm, meaning you will not have to lift heavy posts, prepare in advance or have a base plate on your driveway.
  • Engineered to ensure superior strength and durability with large struts on the back of the door and double end stiles.
  • Stringently tested at James Cook University under static and cyclonic conditions, surpassing the wind load requirements of AS/NZS 4505-2012.
  • Made from Australian BlueScope steel and heavy-duty hardware.
  • Quieter operation due to robust plastic hinges.
  • Lighter making it easy to install and easier for manual operation if
  • required.
  • Suitable for most applications due to unique top bracket allowing for low-headroom situations (as little as 300mm).
  • Form 15’s and Section 40’s available for building certifiers.
  • Available in a wide range of colours and styles with a variety of design options.
Features

Strong Hinges

Steel-Line uses hinges made of robust plastic for superior strength, quieter and trouble-free operation.

Heavy Duty Bottom Rail

To increase strength in the lower part of the garage door and add extra protection.

Finger Proof Safety

Our sectional doors feature a curved finger proof joint for added safety.

Optional ‘Photo Eye’

Allows the garage door to automatically reverse when its sensory light beam is broken by an obstruction.

Additional Info

A small additional investment for greater convenience

Fit your Strut-LockTM wind rated sectional door with a specially designed automatic opener for safe and hassle free entry and exit from your garage or shed.

All of our openers are engineered to the highest standards ensuring easy operation, optimum performance, long lifeand peace of mind.

  • Soft start/stop function to ensure smooth and quiet door operation
  • Courtesy lighting illuminates your garage when the opener is activated.
  • Manual Release: in case of power failure you can simply activate the manual release to open your garage door.
  • Safety Auto Reverse System: door immediately stops and reverses when it comes into contact with an object.
  • Remote handsets and wireless wall button 5-year motor warranty / 2-year electronics warranty

Strut-LockTM Wind Rated Sectional Door

Superior strength and rigidity are qualities of the unique design of the Strut-LockTM wind-rated sectional door, suitable for high wind or cyclonic locations.

As the largest point of entry, your garage door offers the greatest threat for high-pressure destruction during a cyclone.

If you live in high wind and cyclonic areas, it’s necessary to choose a garage door that will withstand the particular stresses it may be subject to and minimise the potential damage to your home.

Steel-Line’s new Strut-LockTM wind-rated garage door has been engineered to the highest standard and tested at the James Cook University Cyclone Testing Station against the wind loading requirements of AS/NZS 4505-2012.

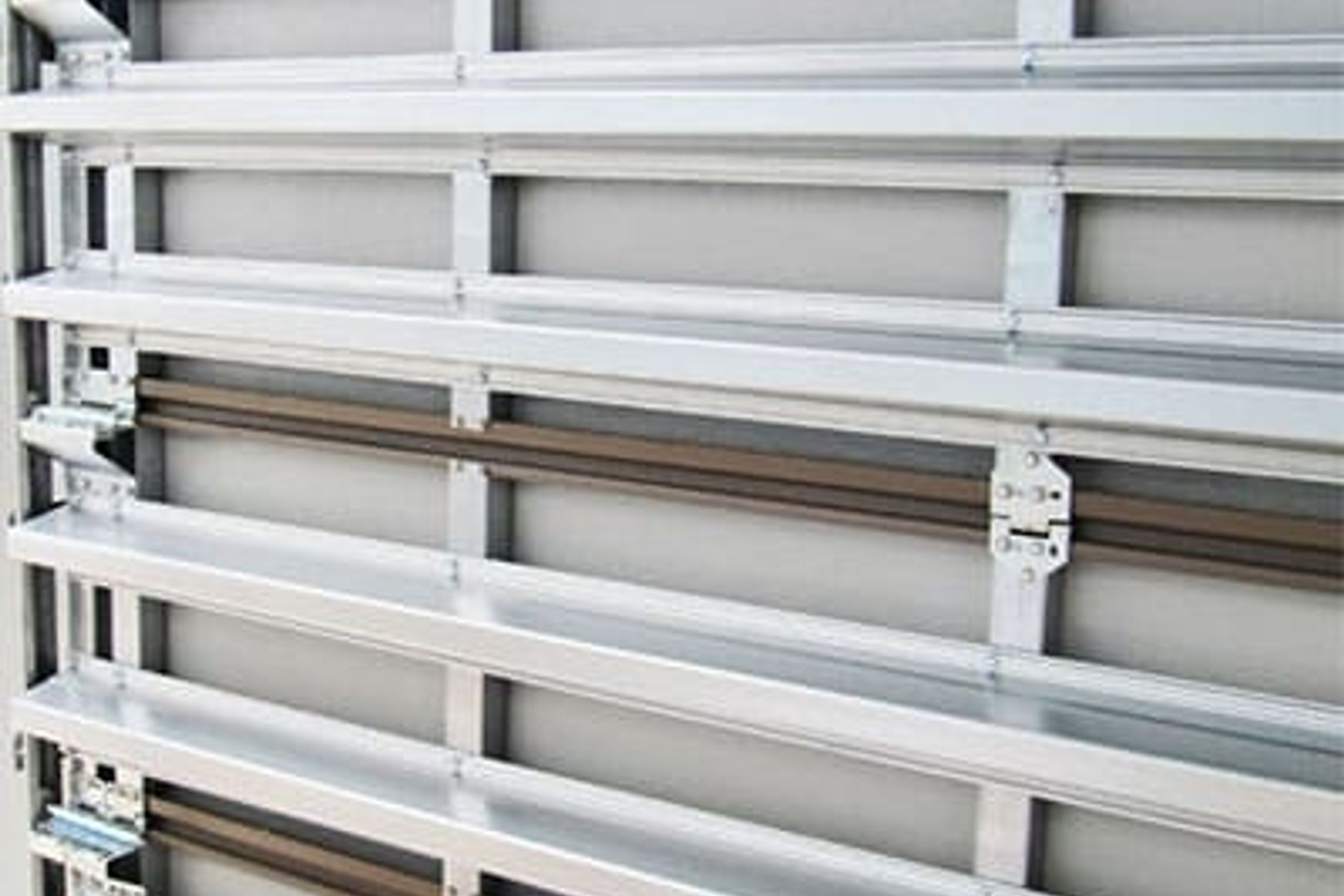

The Strut-LockTM door is post-free, incorporating the use of heavy-duty struts, robust commercial hinges, top brackets in combination with a unique stile reinforcement to provide maximum resistance to forces exerted by cyclonic and high winds.

For a door size over 5500mm wide or 2580mm high, or to meet the C3 or C4 wind classification, the Wind Brace design is the best option, which features removable steel wind brace post(s) that are installed on the garage door once a cyclone warning is received.

It takes about 2-5 minutes to install and tools are not required. This feature can significantly enhance wind resistance up to C4 wind rating whilst still ensuring a smooth door operation.
