Elevate | Series 831 | Thermally Broken Bi-Fold Door
by Architectural Window Systems
City of Liverpool, Australia
- 392.4K profile views
- 36 saves

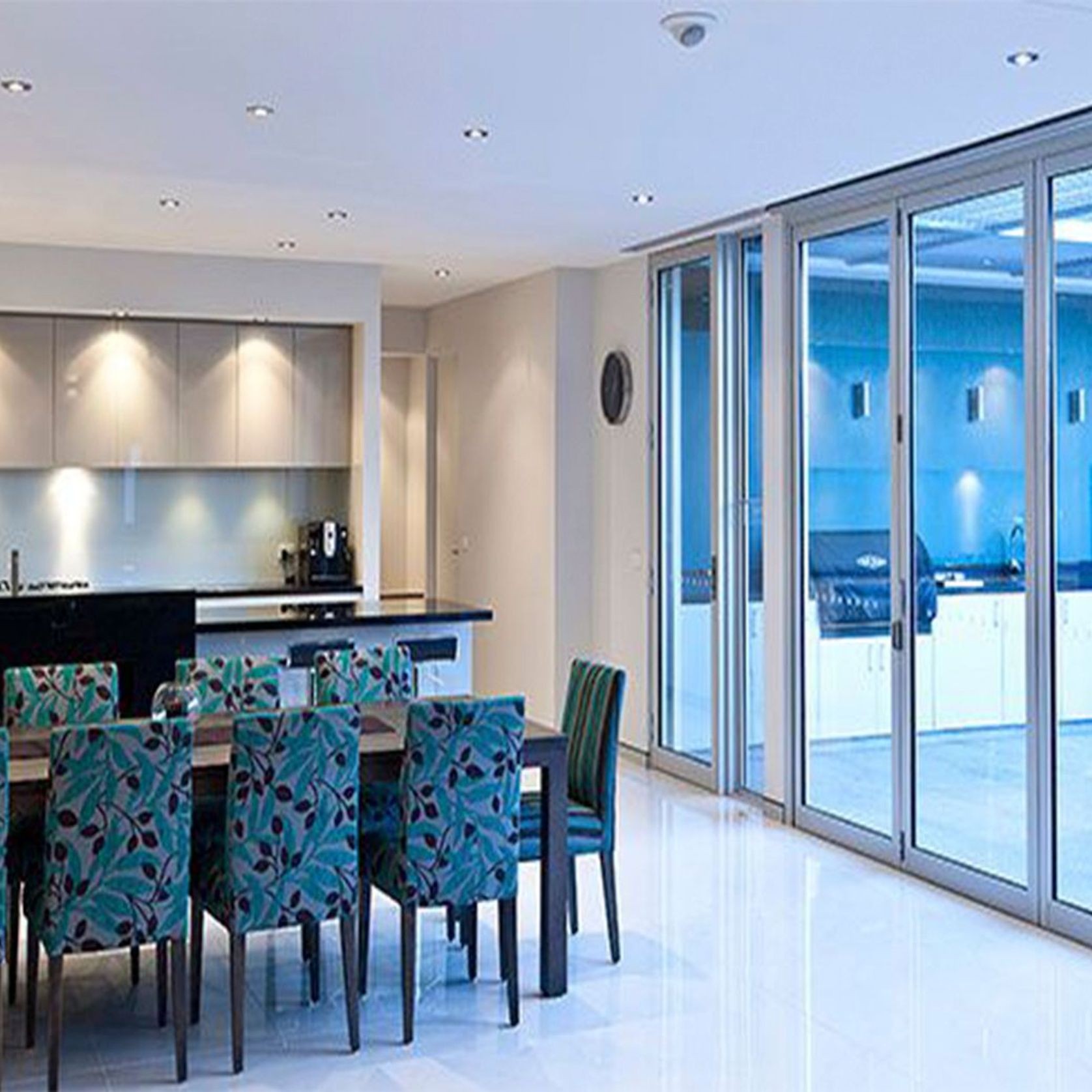

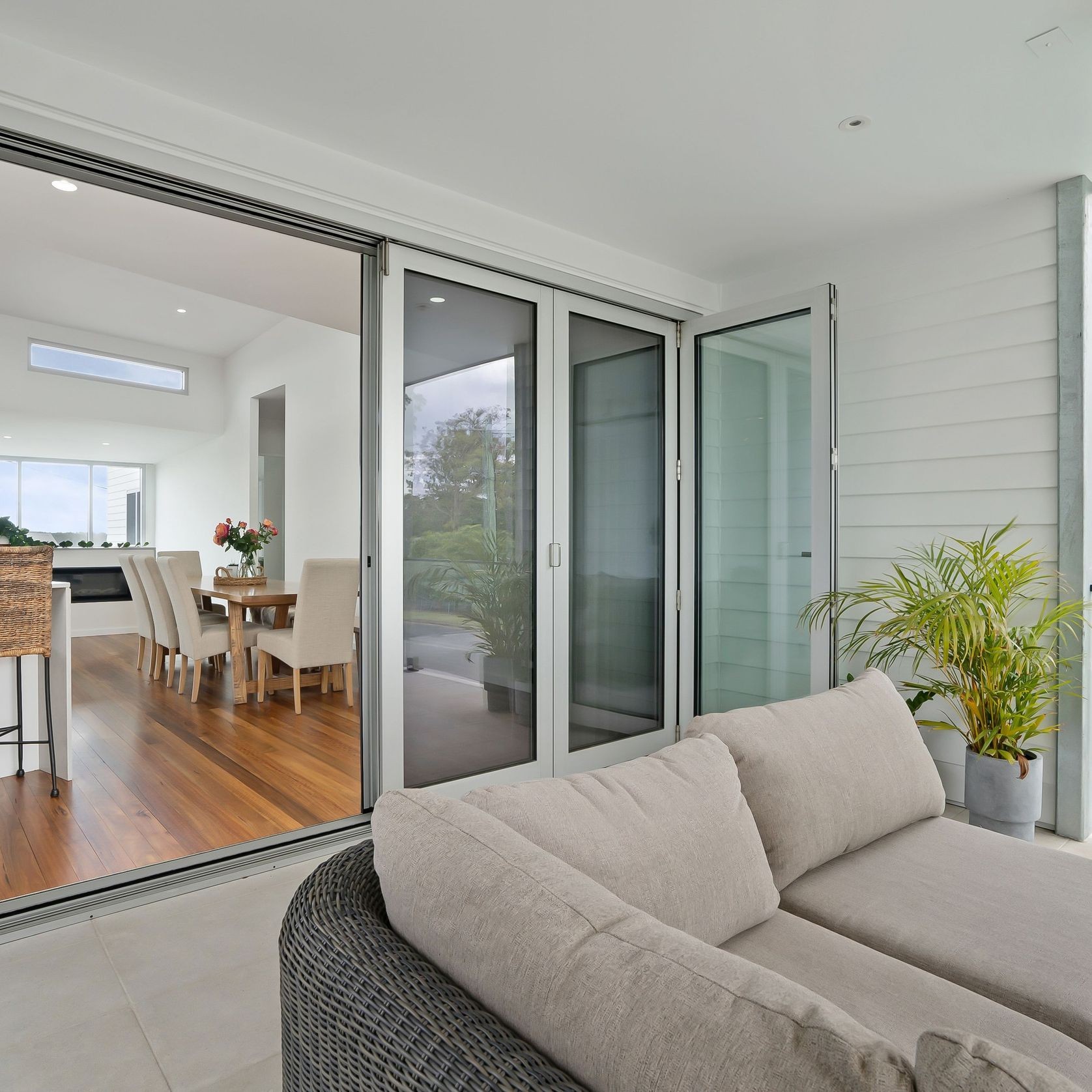

Achieve a stunning, seamless connection to your environment with the family friendly ergonomics of the Elevate™ ThermalHEART™ Top Hung Bi-Fold Door.
Product Details
- Product
- Elevate | Series 831 | Thermally Broken Bi-Fold Door
- Category
- Bifold Doors
- Sold by
- Architectural Window Systems
Architectural Window Systems is specified by
Studio SnellArchitects
Kister ArchitectsArchitects
Woods BagotArchitects
Shane Marsh ArchitectArchitects
Freckle ArchitectureArchitects
J Mammone ArchitectureArchitects
Robert Harwood ArchitectsArchitects
Brcar Morony ArchitectureArchitects
Chan ArchitectureArchitects
AO Design StudioArchitects
RobertsonCollectifArchitects
DX ArchitectsArchitects
BANHAM ArchitectsArchitects
Hindley & CoArchitects
ArdelArchitects
Habitat Studio ArchitectsArchitects
Create ArchitectureArchitects
Taylor KnightsArchitects
Design by ADBuilding Designers
Reitsma & AssociatesBuilding Designers
Studio UrboBuilding Designers
Escea Fireplace CompanyManufacturers and Suppliers
KarmatectureBuilding Designers
Walters MacriPhotographers
Millboard DeckingManufacturers and Suppliers
APC BuildBuilders
Alex Urena Design StudioBuilding Designers
Distinct InnovationsDesign & Build
Venn ConstructionsBuilders
Seidler GroupDesign & Build
Design by JonesInterior Designers
Glow DesignBuilding Designers
Alberse HomesBuilders
Cunningham Custom HomesDesign & Build
Centor®Manufacturers and Suppliers
Nadine K DesignBuilding Designers
Gold Leaf ConstructionsBuilders
Achieve a stunning, seamless connection to your environment with the family friendly ergonomics of the Elevate™ ThermalHEART™ Top Hung Bi-Fold Door.
- Specs

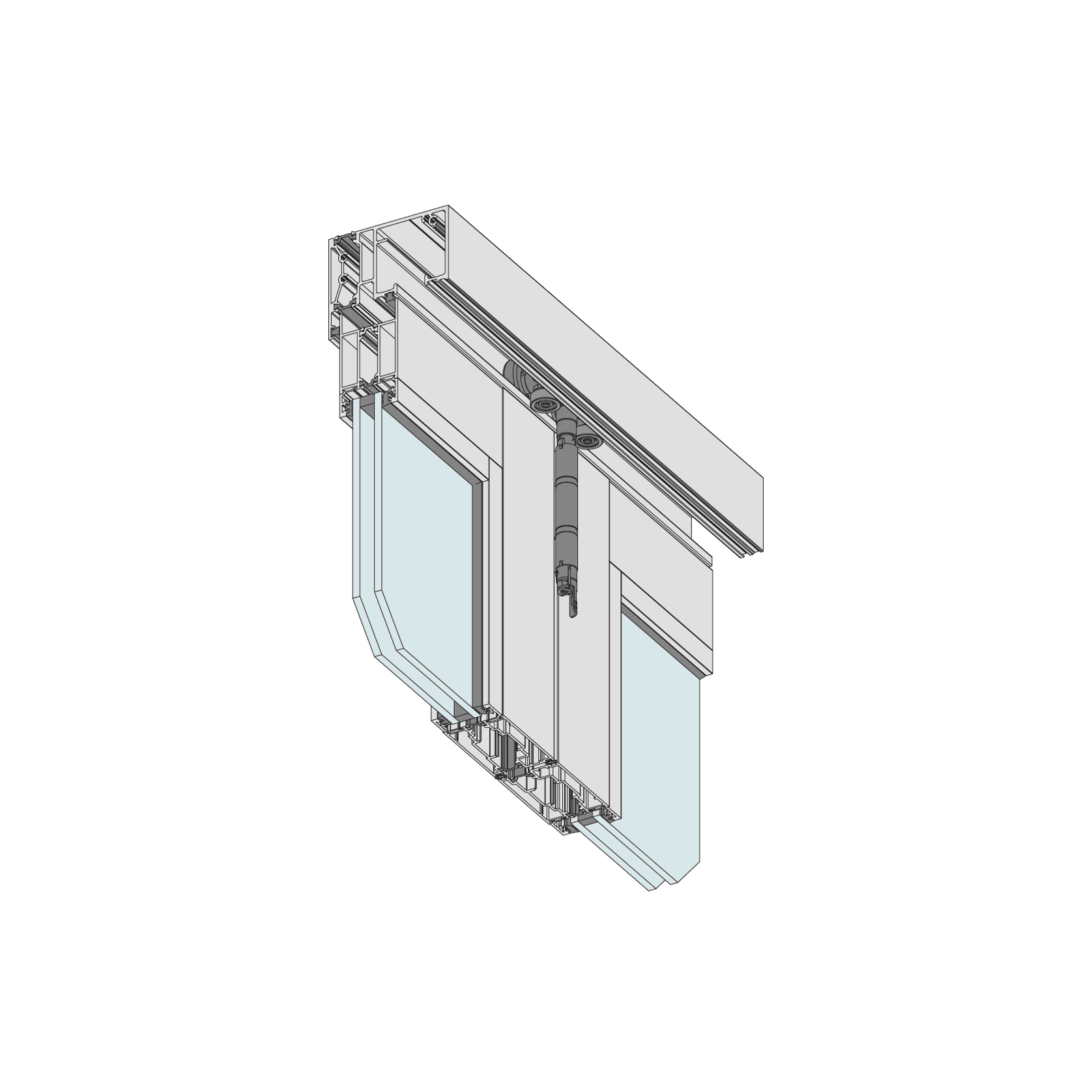

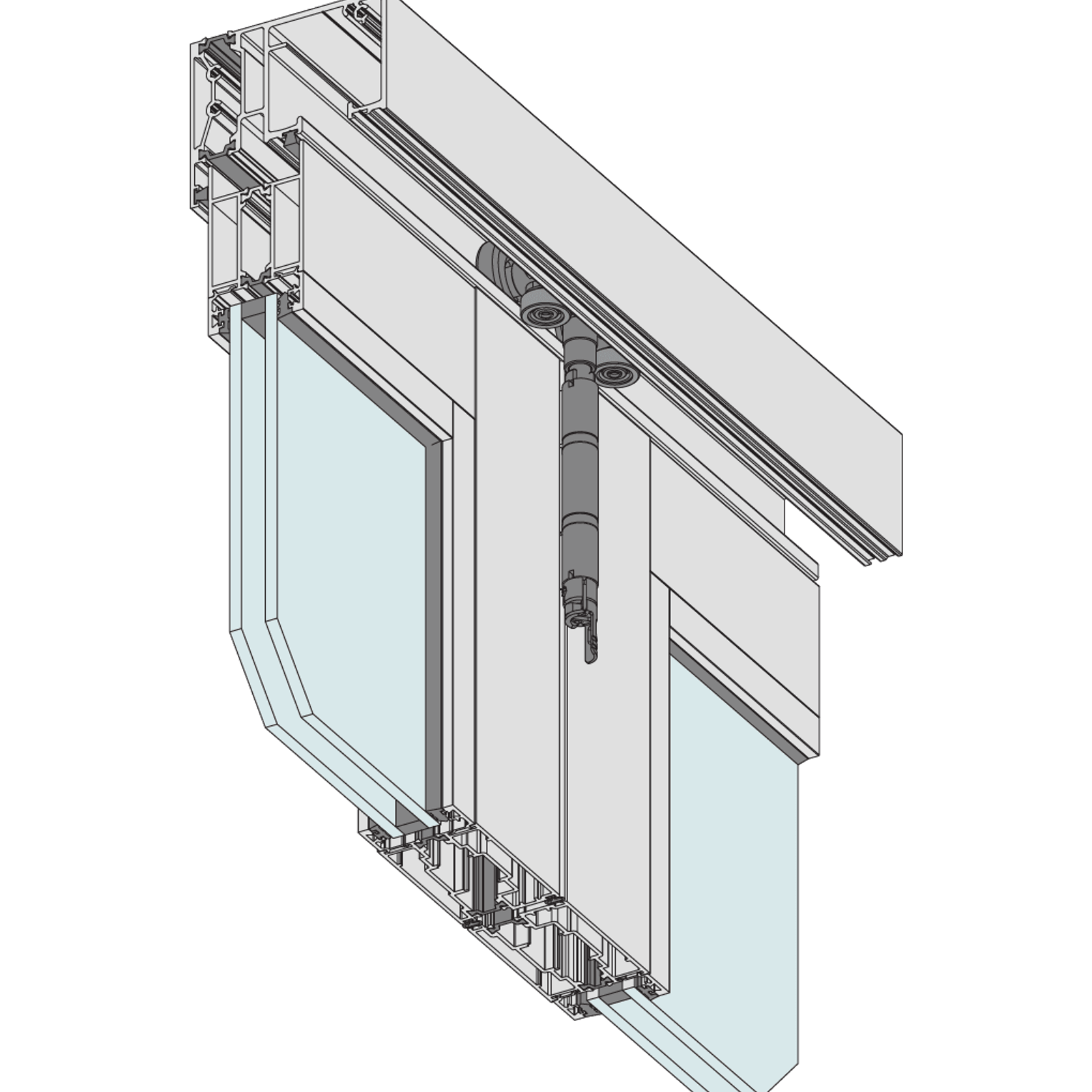

- The top hung design delivers the lightest, smoothest movement of all sliding doors for family-friendly ergonomics even with heavy-duty double-glazing options fitted.
- Not only can they redefine your living space, they can also provide a flush threshold to reduce the risk of tripping.
- Premium 50mm door panels and AWS Centor™ twin stainless roller bearings allow for thicker glass, such as double glazing.
- Adjustable rollers and pivots facilitate a perfect fit every time.
- ICON™ 316 Stainless Steel lever compression locks are corrosion resistant and provide added security and complete weather sealing for safety and comfort.
- You can even choose different colours inside and out, so you never have to compromise on style or finish!
- Maximum Panel Height* 3000mm
- Maximum Panel Width* 1000mm
- Maximum Glass Thickness ≤ 28mm
- SHGC Range 0.21 - 0.5
- Uw Range 2.4 - 5
