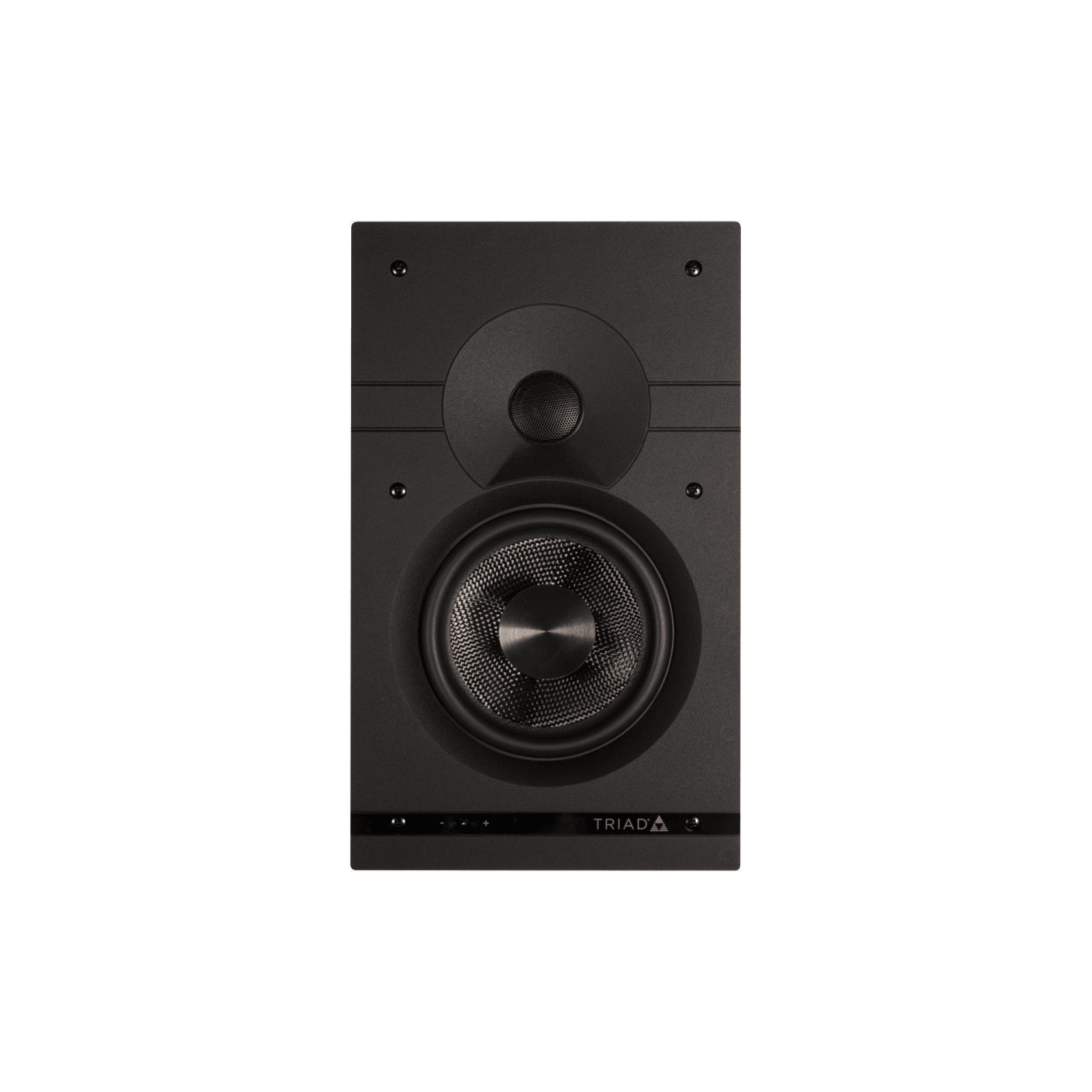

Triad In-Wall Speaker Distributed Audio Series 3 Series 3 (Each)

Speaker Type:

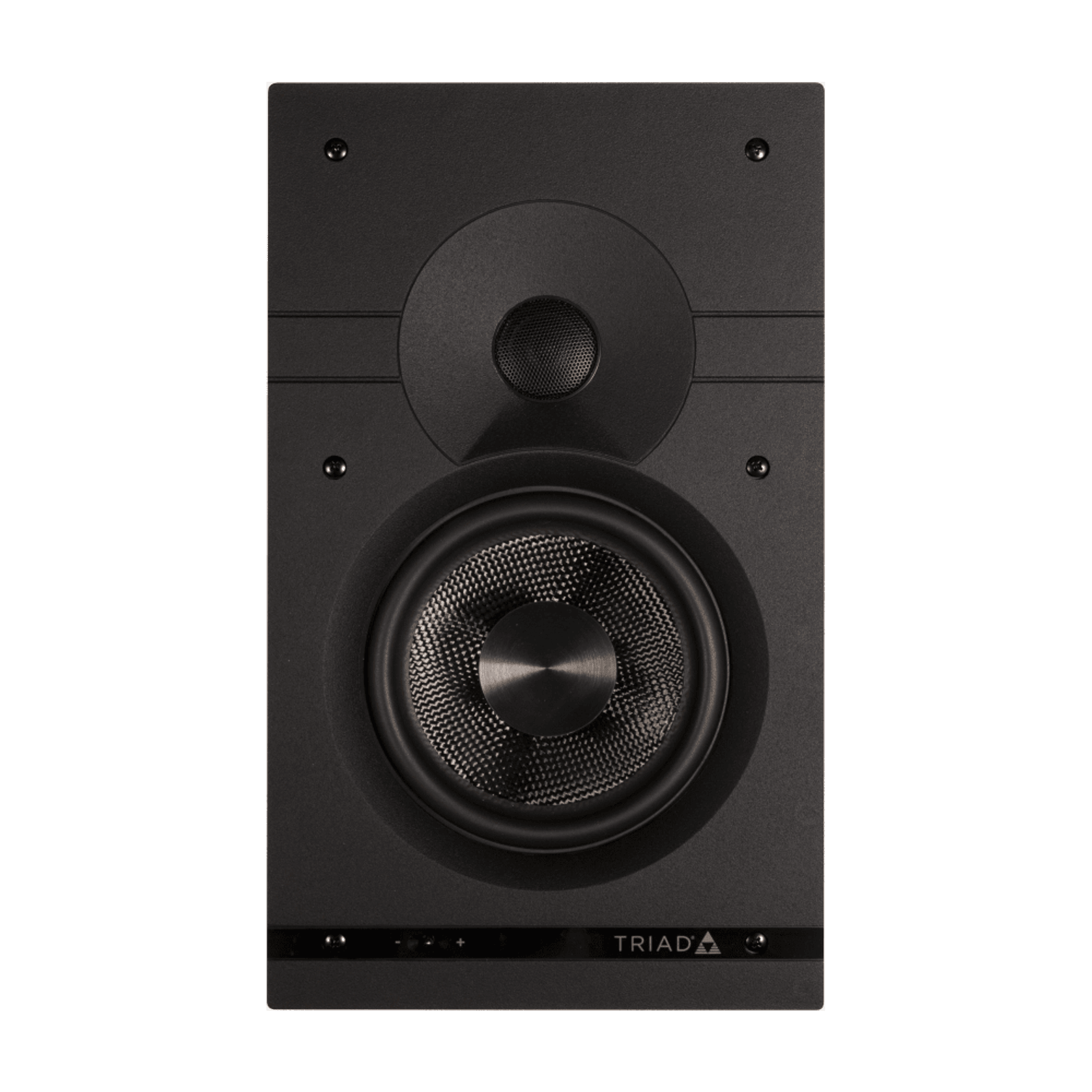

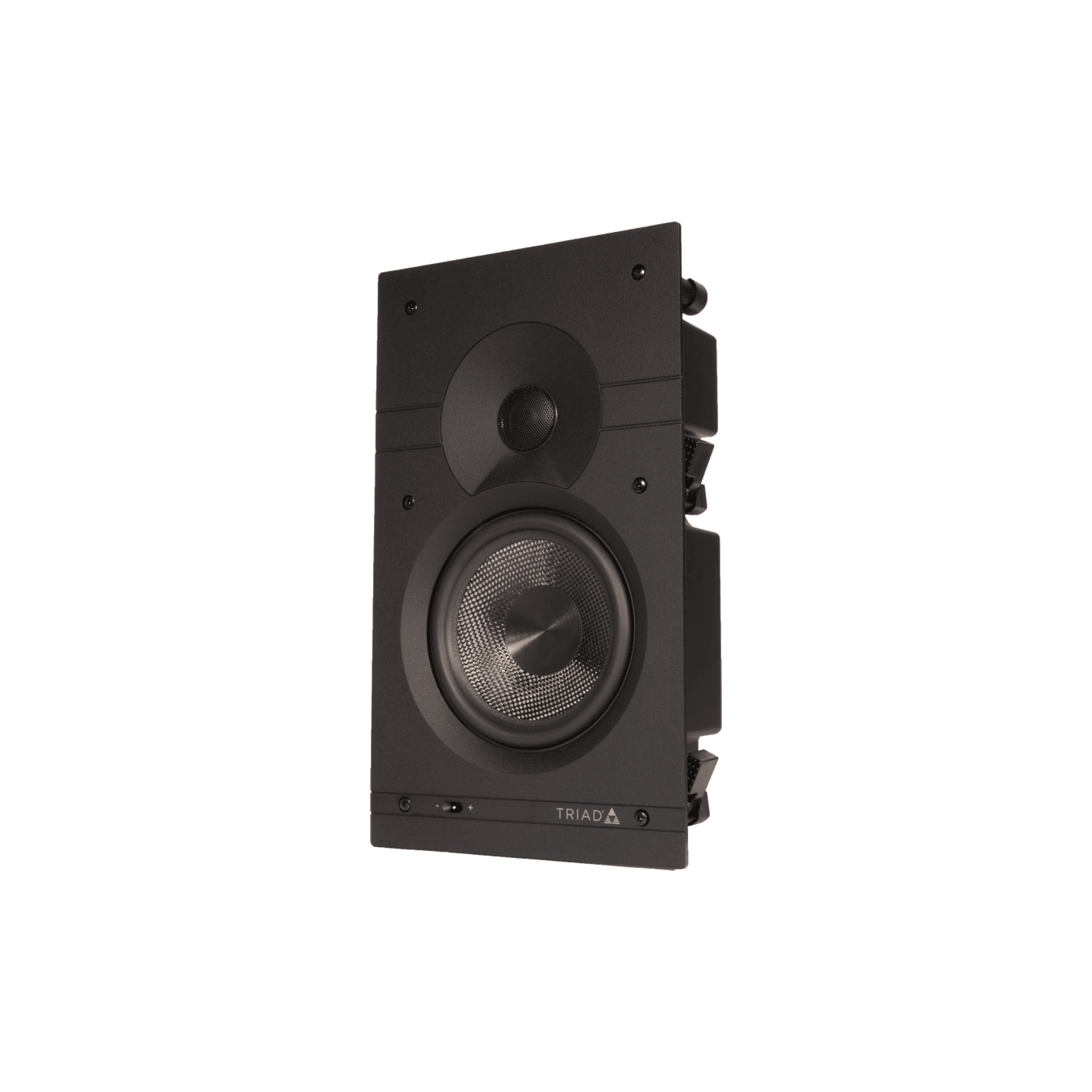

• In-wall, 2-way design

Tweeter:

• 1” (25mm) silk dome pivoting tweeter
• Up to 10° of movement for optimal sound direction

Woofer:

• 6.5” (165mm) poly-mica woofer
• Mica-infused polypropylene for enhanced rigidity and controlled damping

Frequency Response:

• 55Hz – 20kHz (±3dB)

Impedance:

• 8 ohms nominal

Sensitivity:

• 89 dB (2.83V @ 1m)

Power Handling:

• 50W nominal
• 100W peak

Crossover:

• Precision-engineered crossover for smooth frequency transitions

Mounting System:

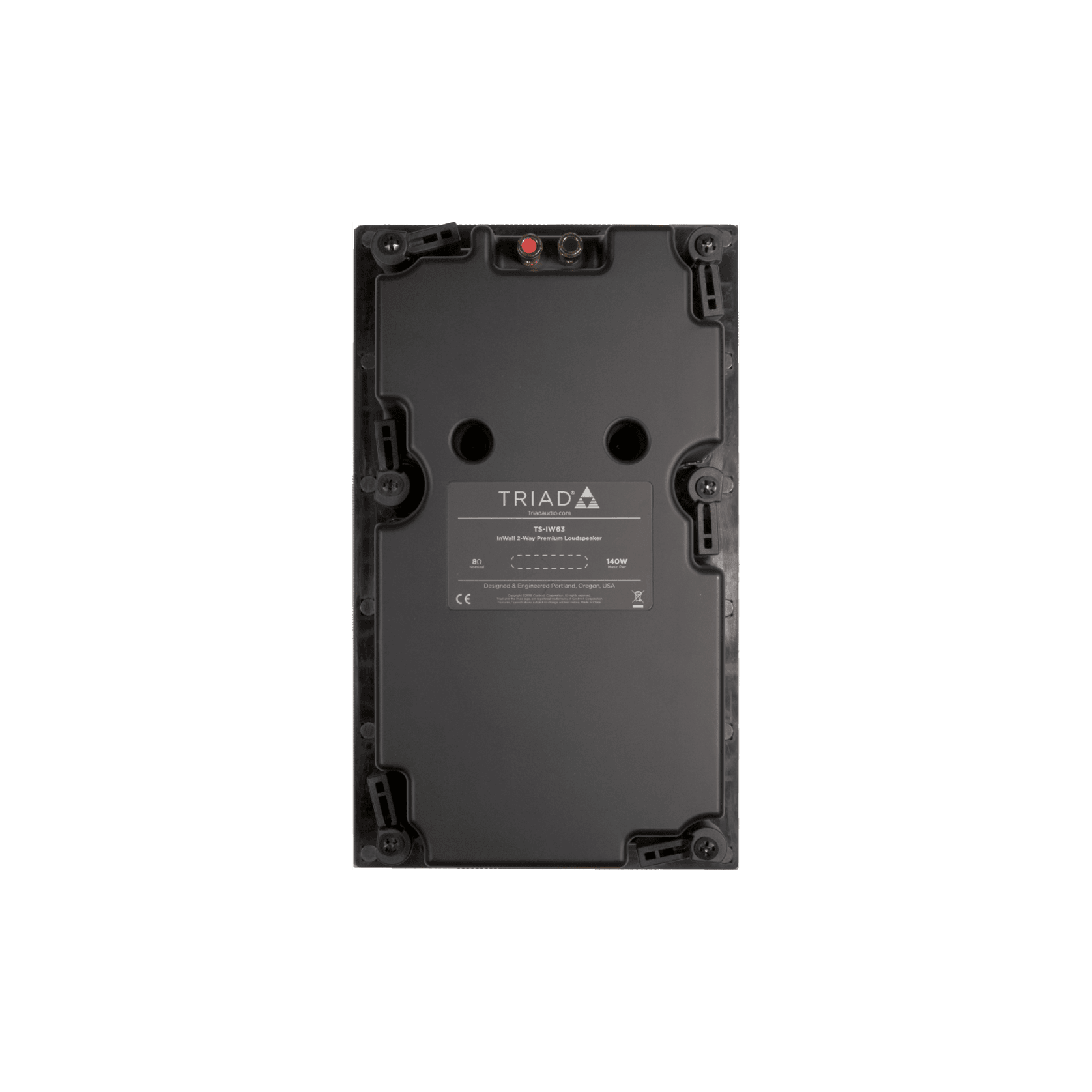

• Reinforced Triad mounting system with threaded brass inserts
• High-quality spring clamps for secure wire connections

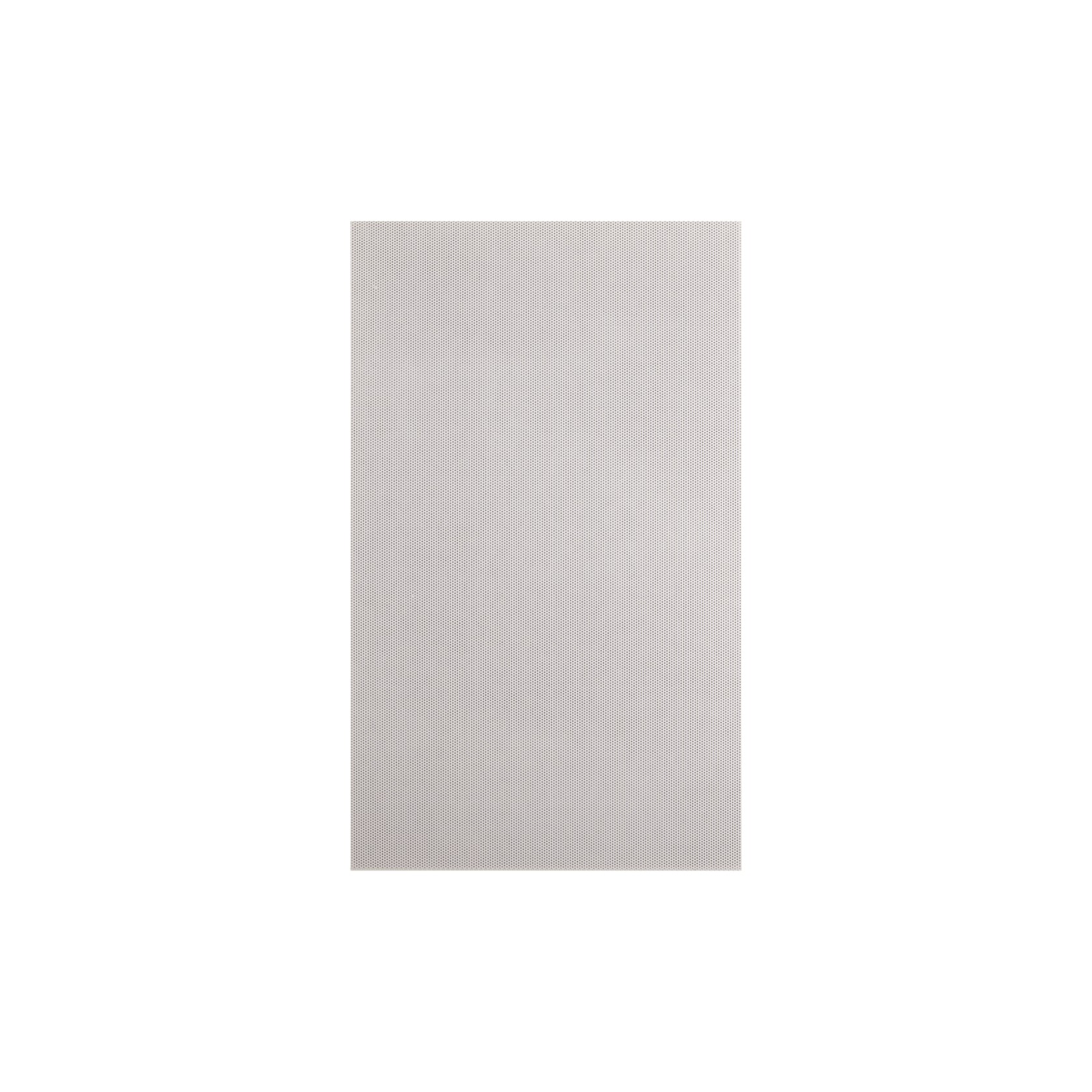

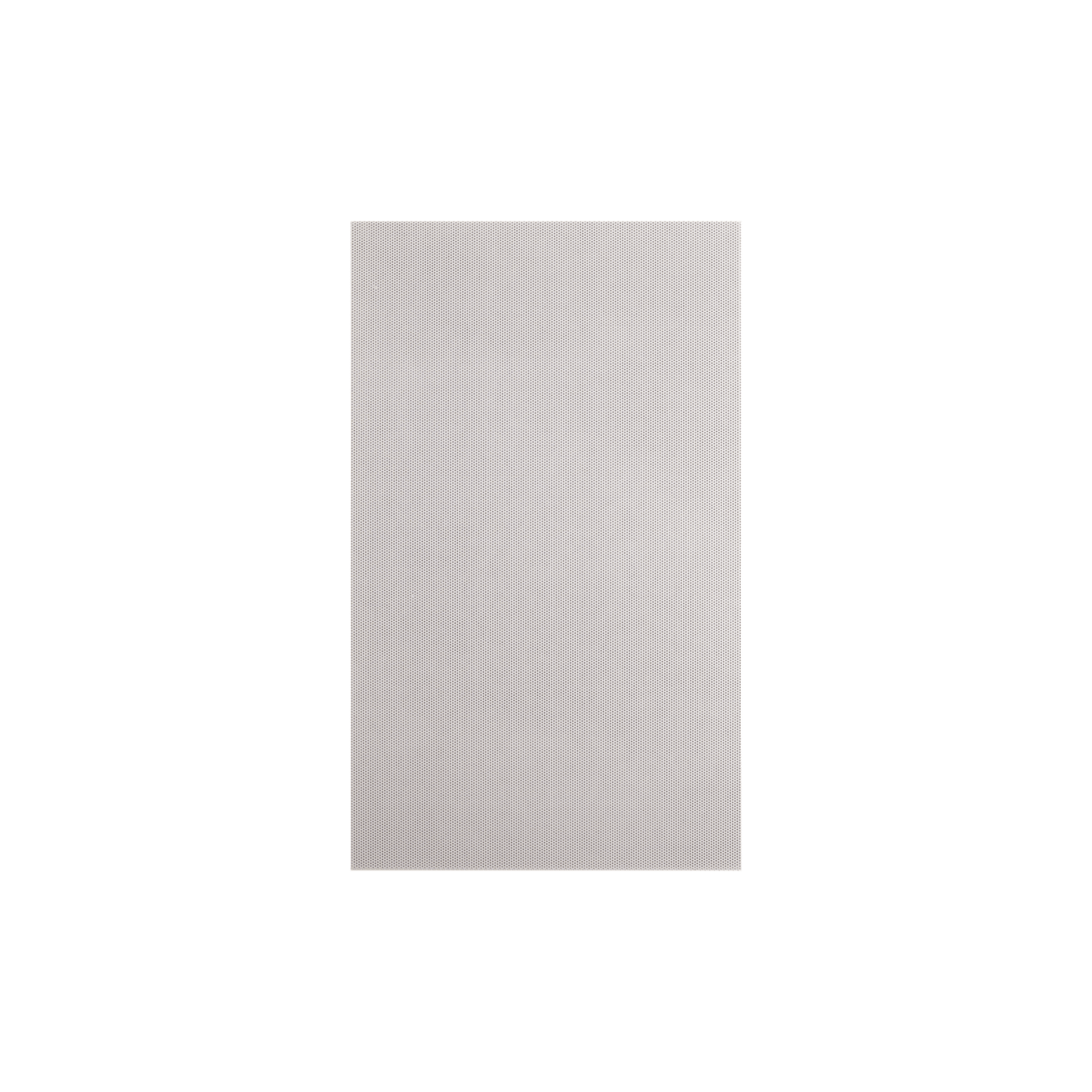

Grille:

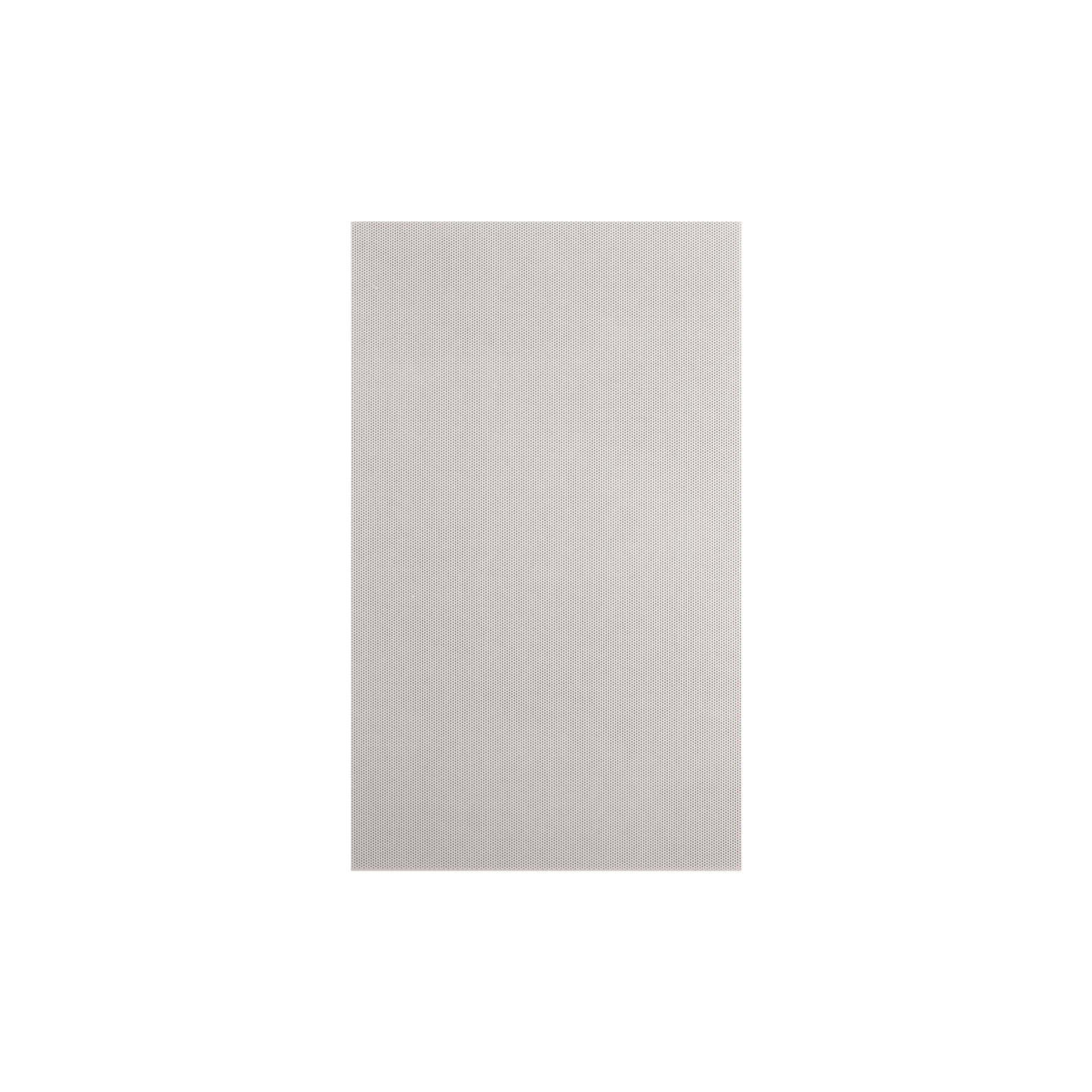

• Magnetic, low-profile frameless grille
• Paint-matching available for seamless integration

Dimensions:

• Speaker: 10.5” H x 7.5” W (267mm x 191mm)

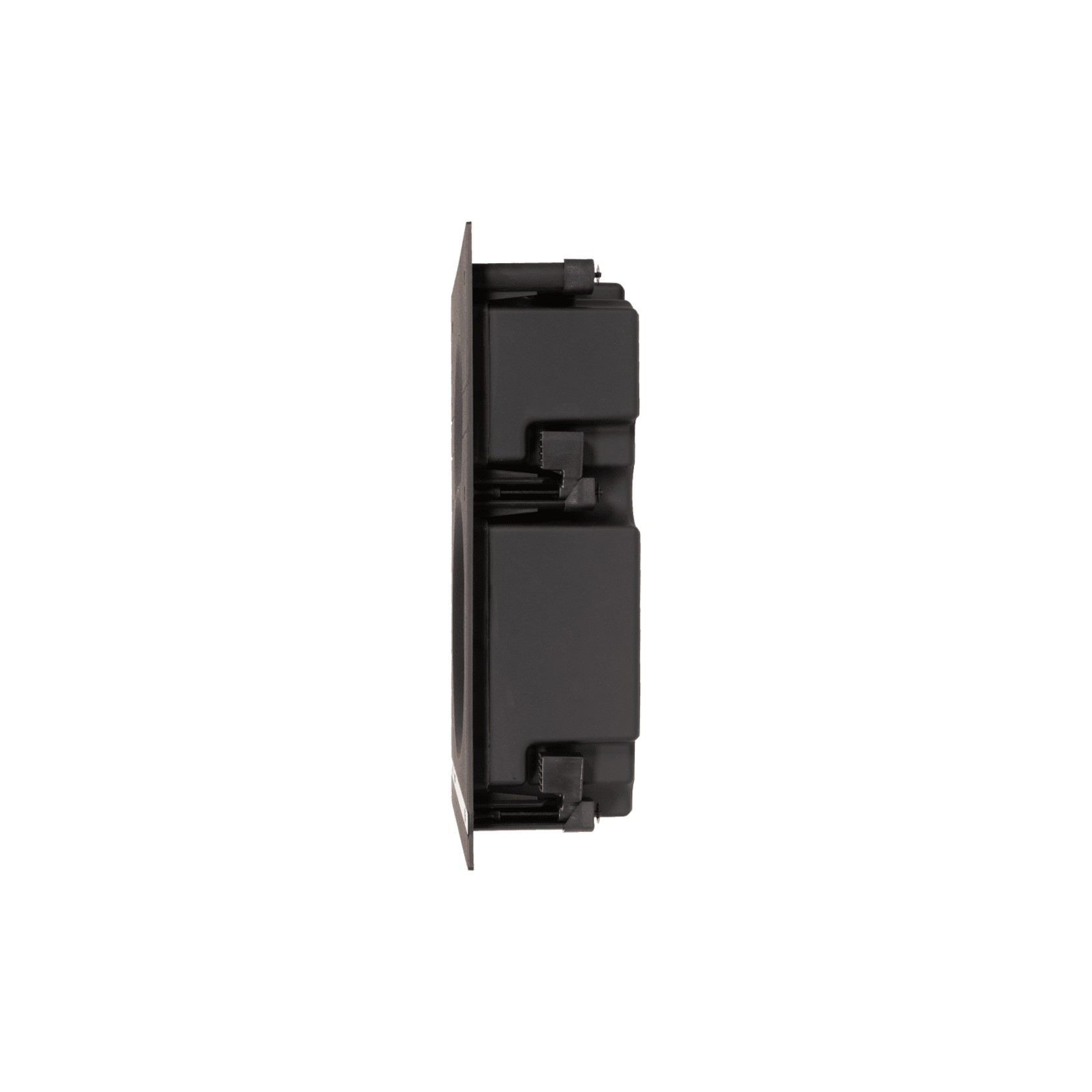

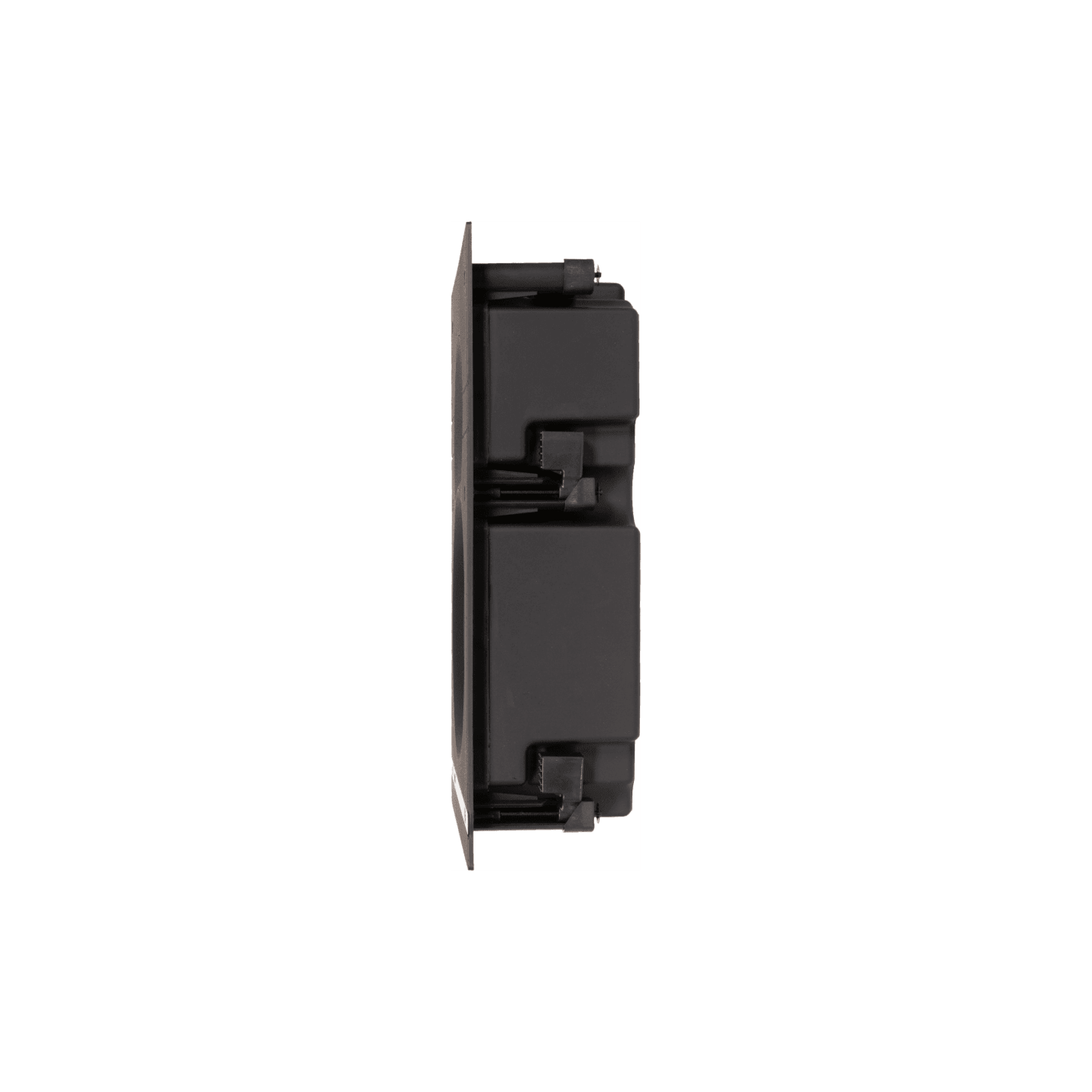

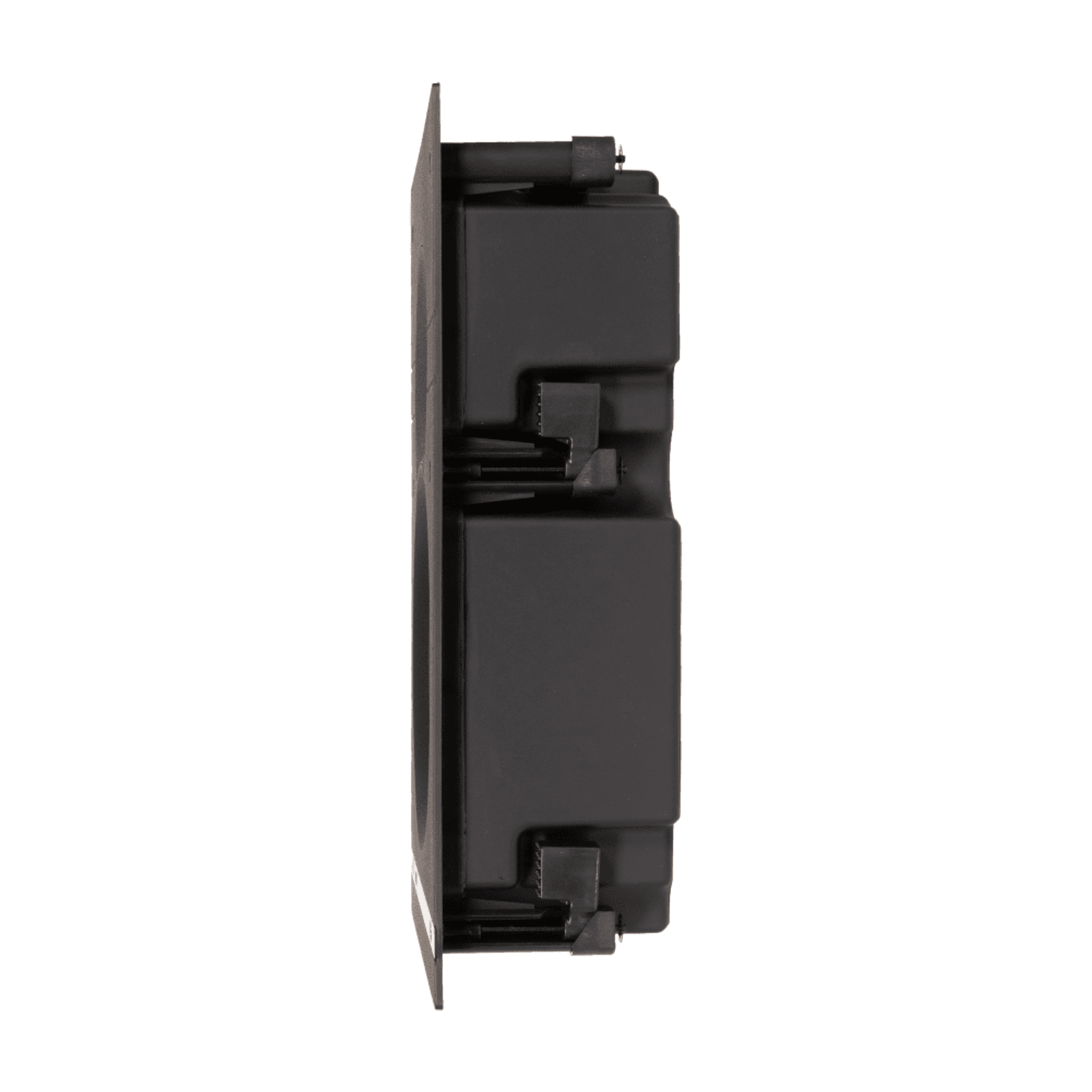

• Mounting Depth: 3.75” (95mm)

Cutout Dimensions:

• 9.75” H x 6.75” W (248mm x 171mm)

Weight:

• Approx. 3.2 lbs (1.45 kg)

Recommended Applications:

• Whole-home distributed audio
• Multi-room entertainment
• Home theatre surround systems
• Luxury residential and commercial installations

The Triad In-Wall Speaker Distributed Audio Series 3 is designed for high-performance distributed audio applications in residential and commercial environments. Engineered to deliver exceptional sound quality with a discreet aesthetic, this speaker series is ideal for:

• Whole-Home Audio – Seamless background and ambient music distribution across multiple rooms.
• Multi-Room Entertainment – Enhanced audio experiences in living spaces, kitchens, hallways, and bedrooms.
• Home Theatres & Media Rooms – Supporting immersive surround sound when integrated into an AV system.
• Luxury Residential Developments – High-end apartments, penthouses, and premium home builds.
• Hospitality & Commercial Spaces – Restaurants, hotels, lounges, and corporate environments requiring high-fidelity sound.

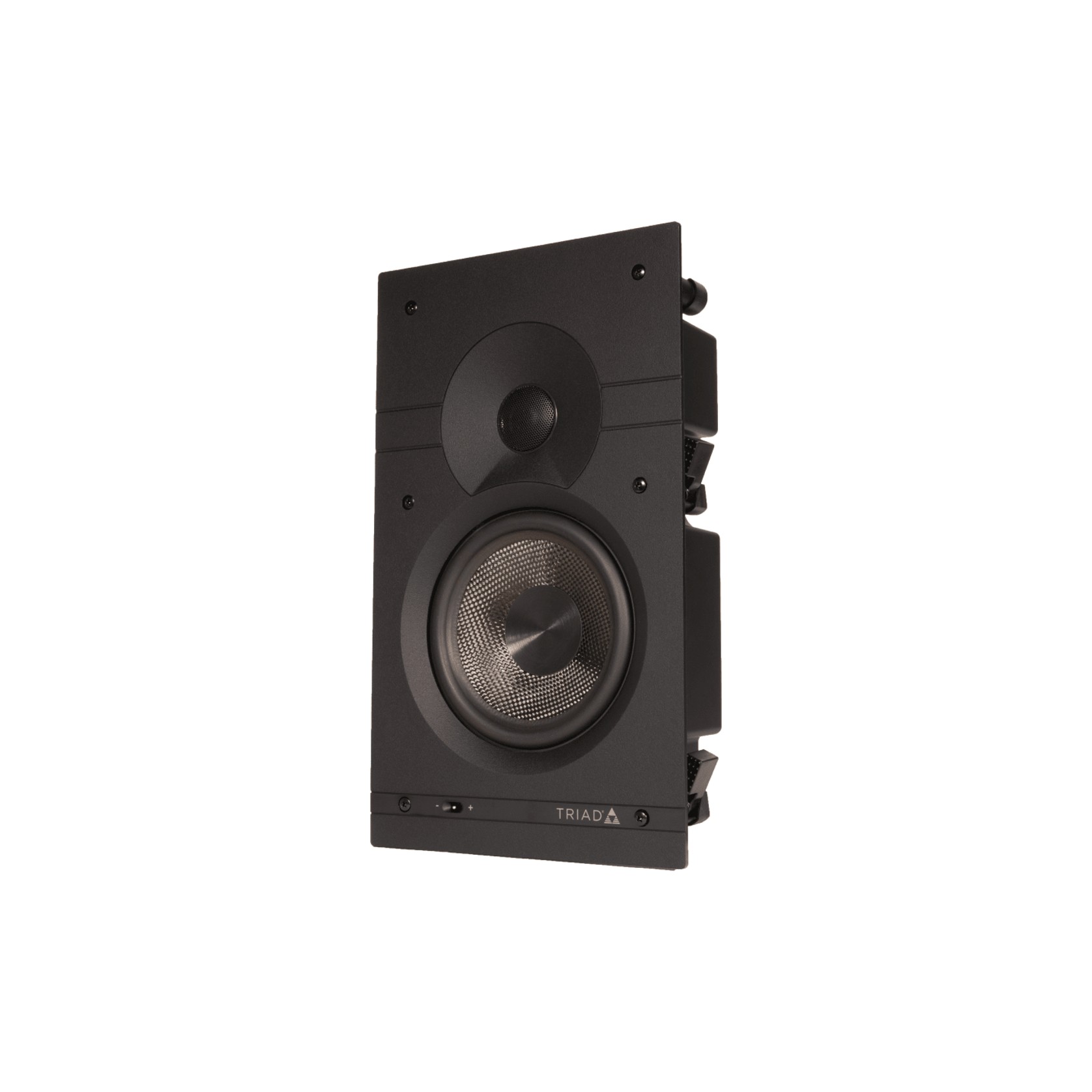

Pivoting Tweeter
With up to 10 degrees of movement, the pivoting tweeter ensures precise sound directionality, delivering high-quality audio to the listener’s position. This feature provides flexibility in installation, allowing optimal placement in any room.

Poly-Mica Woofer
The mica-infused polypropylene cone enhances rigidity while maintaining a high stiffness-to-weight ratio, resulting in improved durability and better acoustic performance. This design preserves the dampening properties of traditional polypropylene, ensuring rich and distortion-free sound.

Voice-Matched Sound
All Distributed Audio Series 3 speakers are voice-matched, enabling homeowners to mix and match speakers within the series while maintaining consistent tonal quality throughout the home. This ensures seamless audio transitions between rooms.

Magnetic Mounting System
The low-profile, frameless grille attaches securely using hidden neodymium magnets, allowing for quick, hassle-free installation and a sleek, modern aesthetic. Custom paint-matching is available to blend seamlessly with any décor.

Effortless Installation

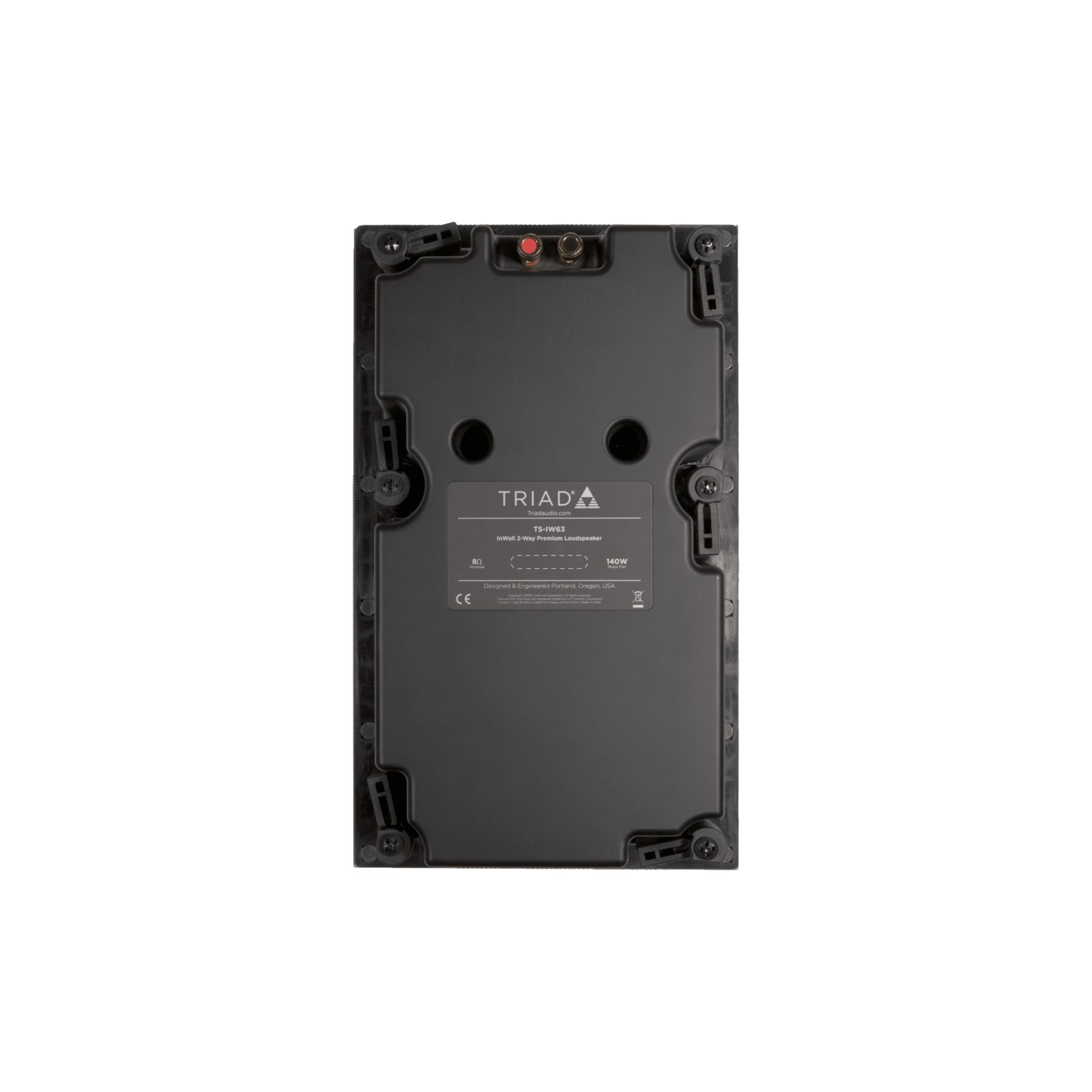

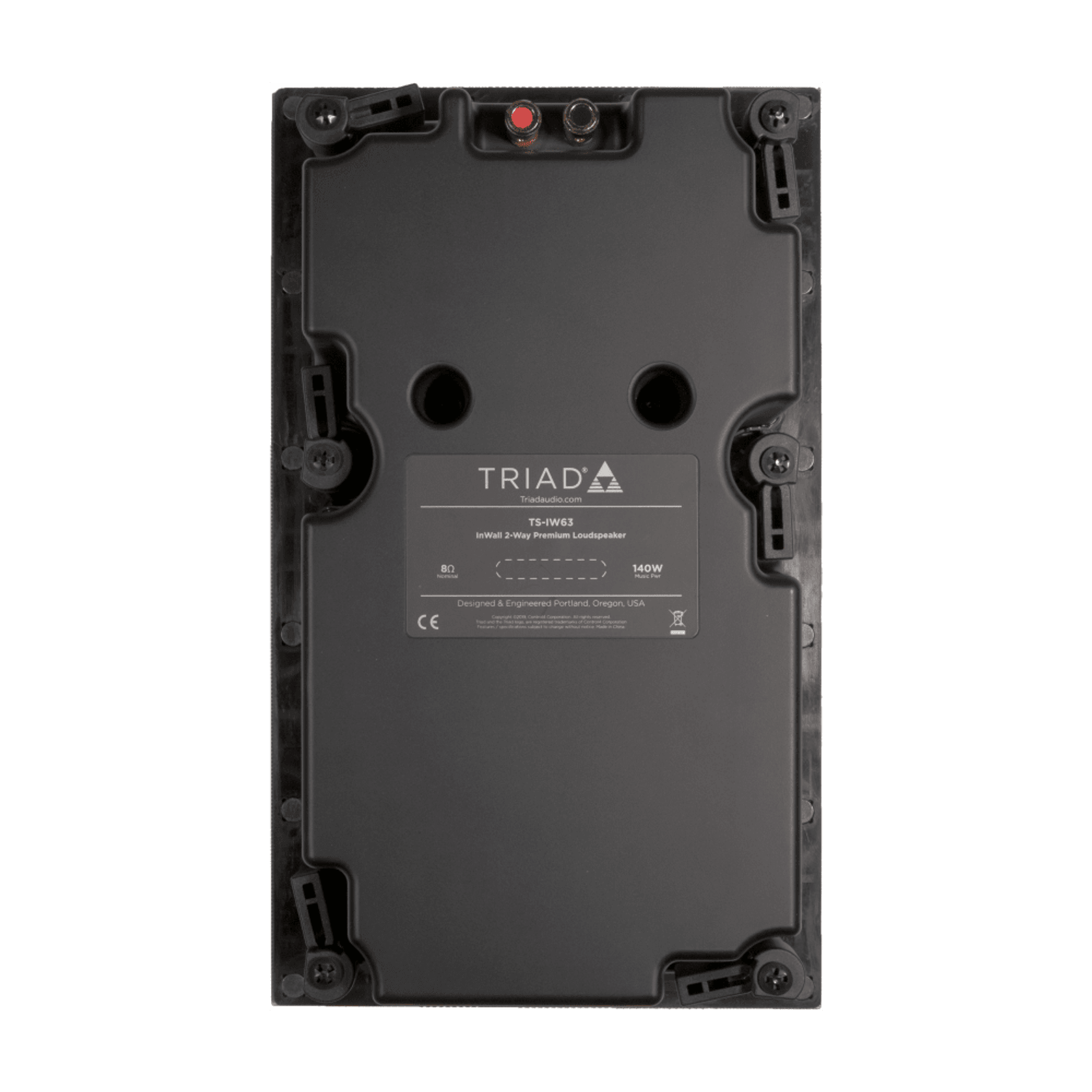

Built with Triad’s proven mounting system, featuring reinforced threaded brass inserts, these speakers are designed for secure, long-lasting placement.

• High-quality spring clamps simplify speaker wire connections for a quick and reliable setup.
• The magnetic frameless grille ensures a flush fit against the mounting surface for a clean, professional finish.
