Tweener^® LED Padel Court Lighting

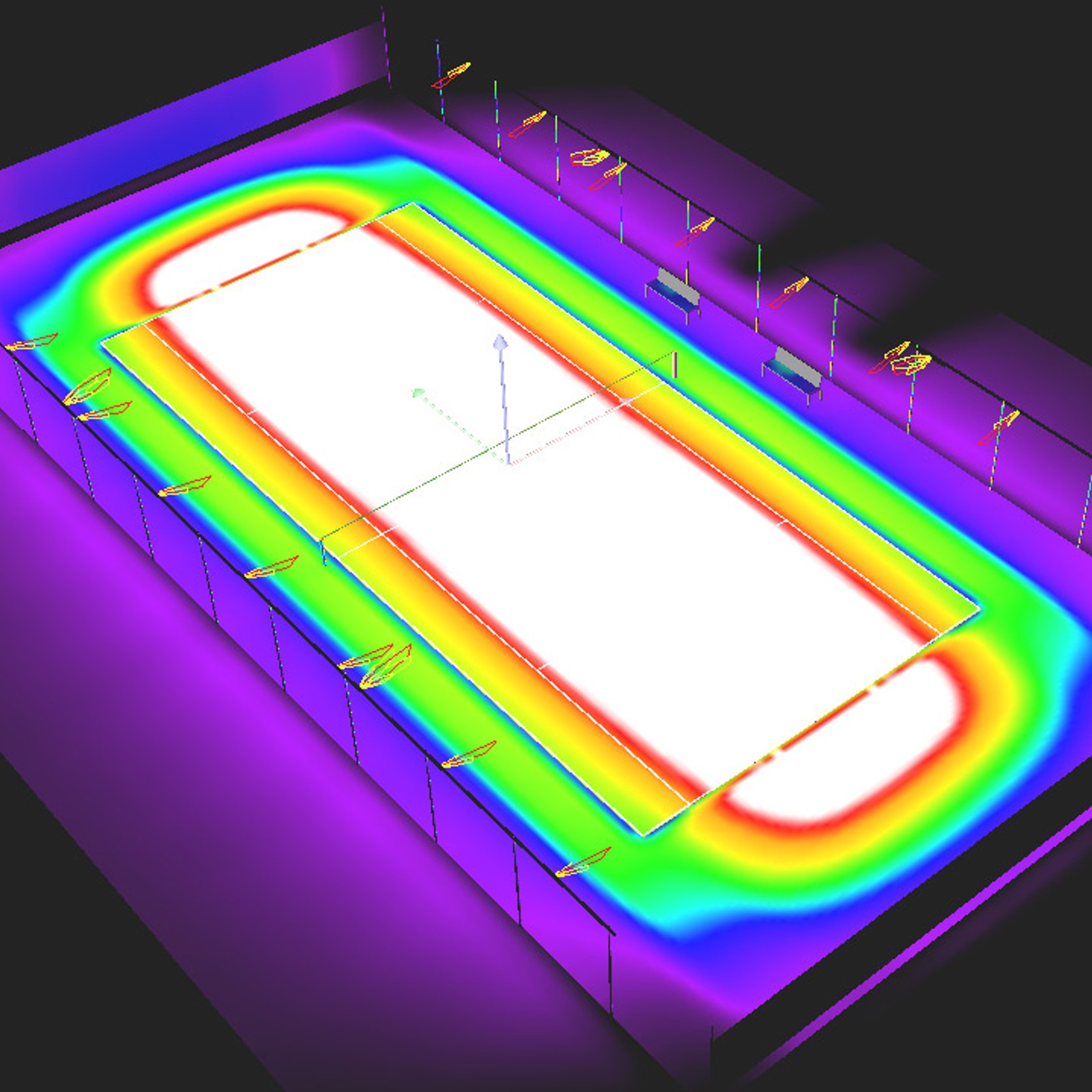

Single TWEENER® - (1 court)

Lighting:

• 300 lux – IRC Index (colour output) > 70 – 130 lm/W – LED power 1800 W – Electric power 2200 W

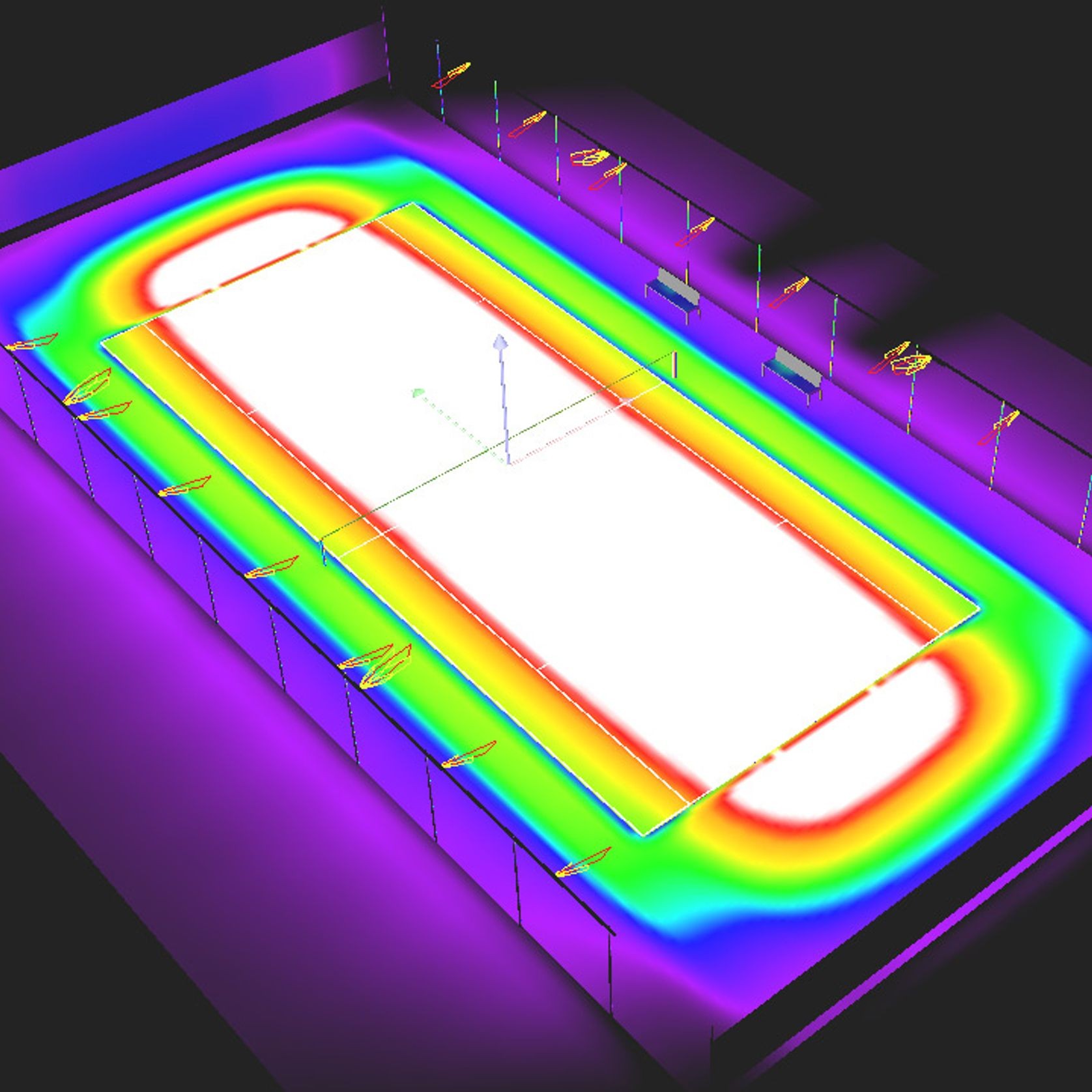

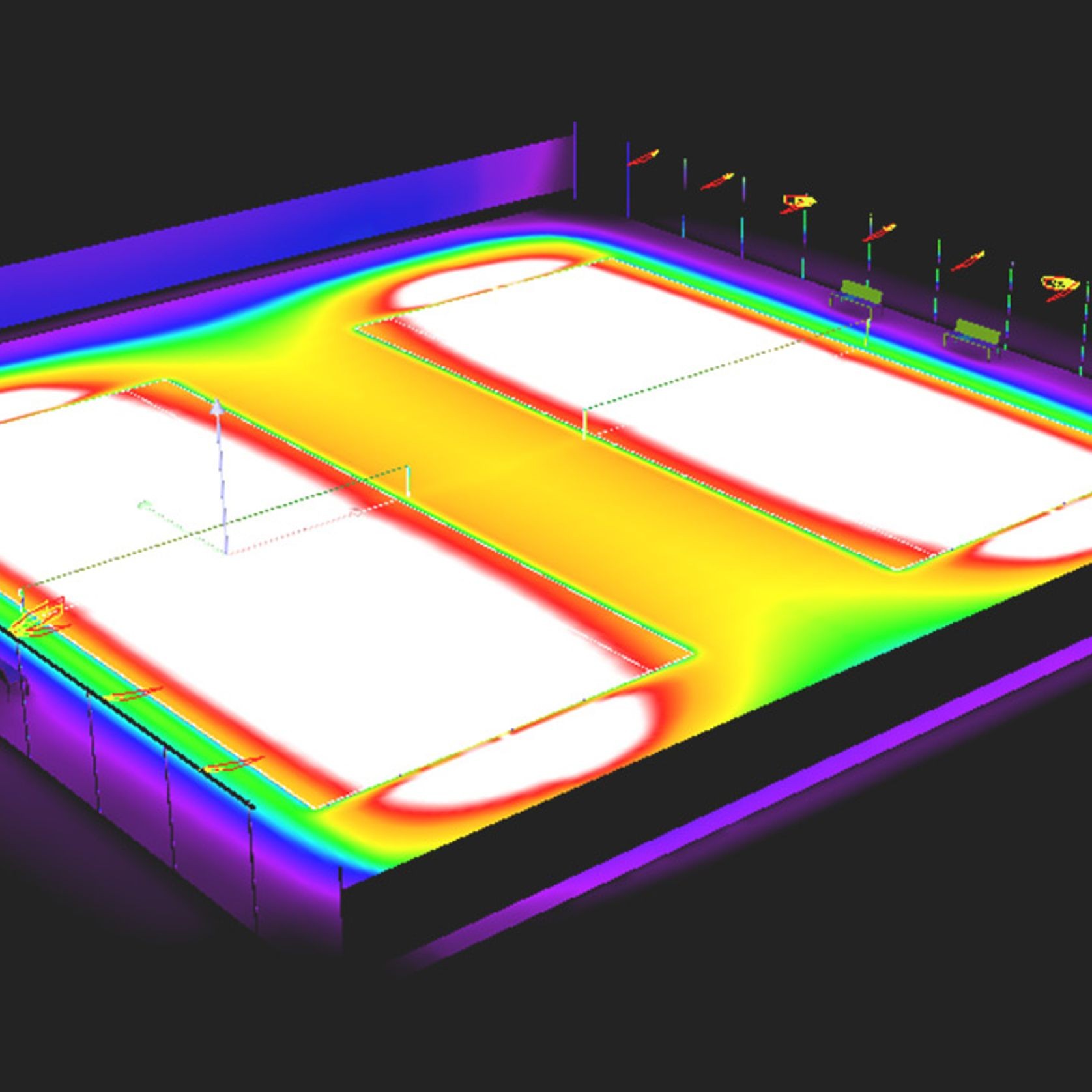

• Coefficient of uniformity ≥ 0.7
• Colour temperature: 5000 K
• Average luminous flux: 185 200 lm

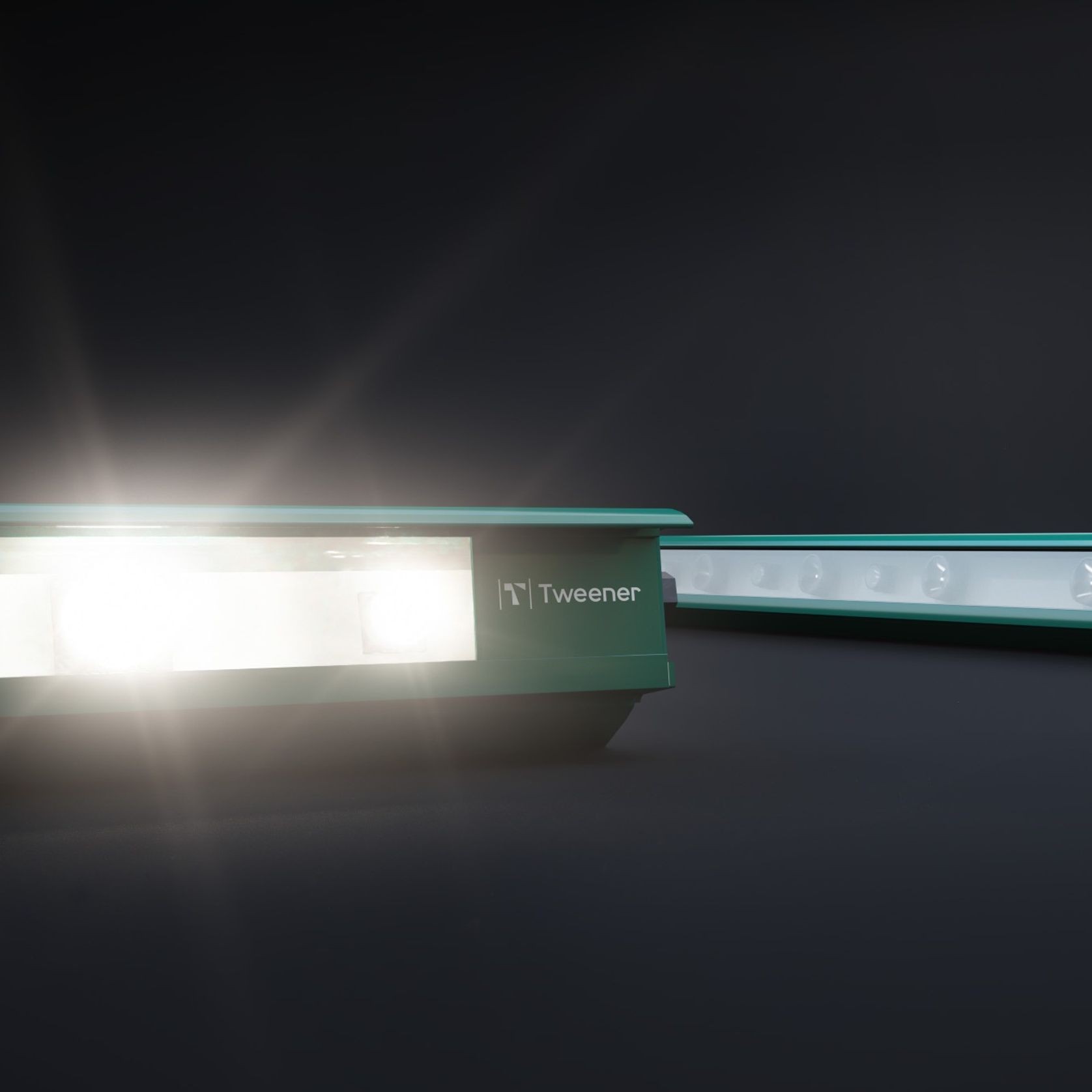

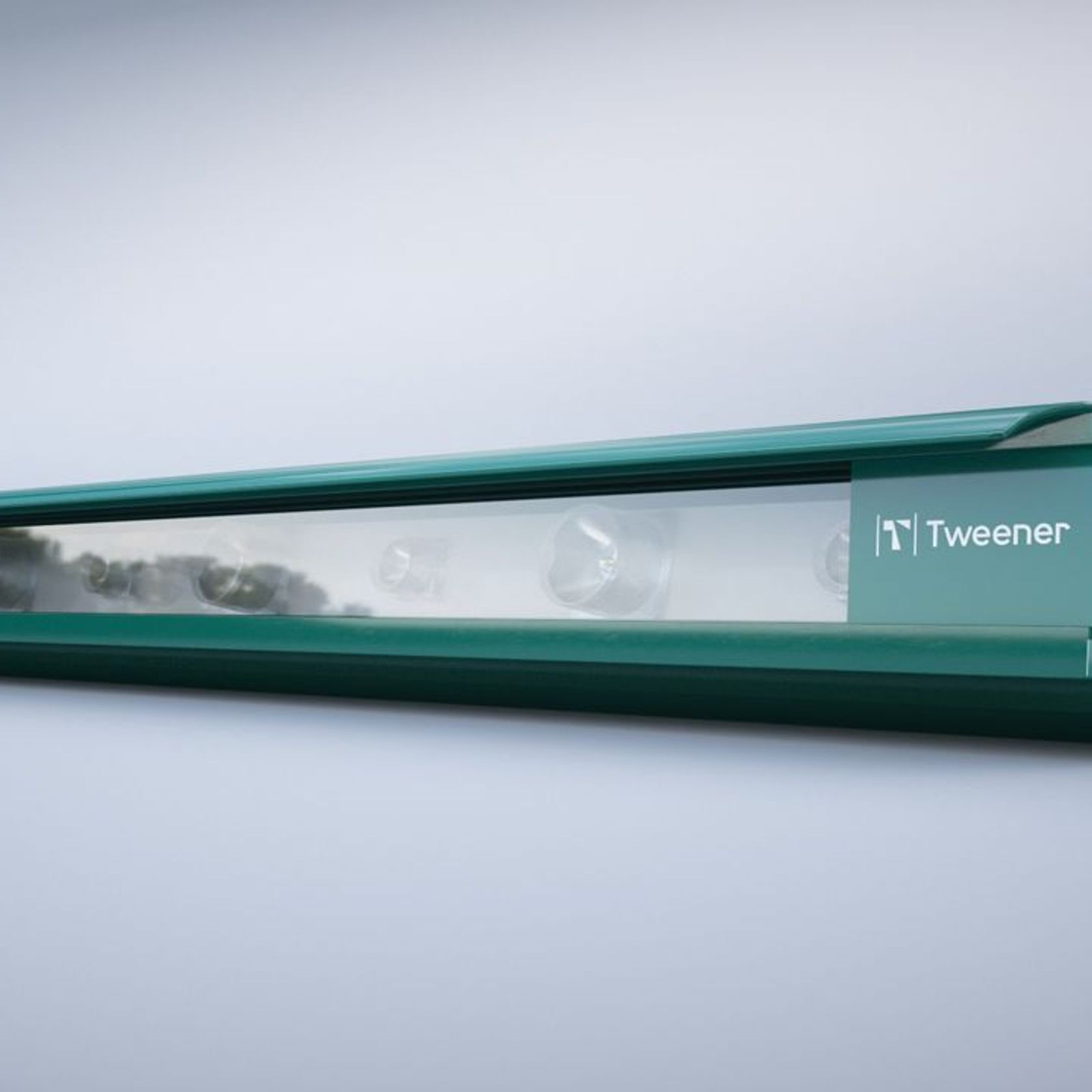

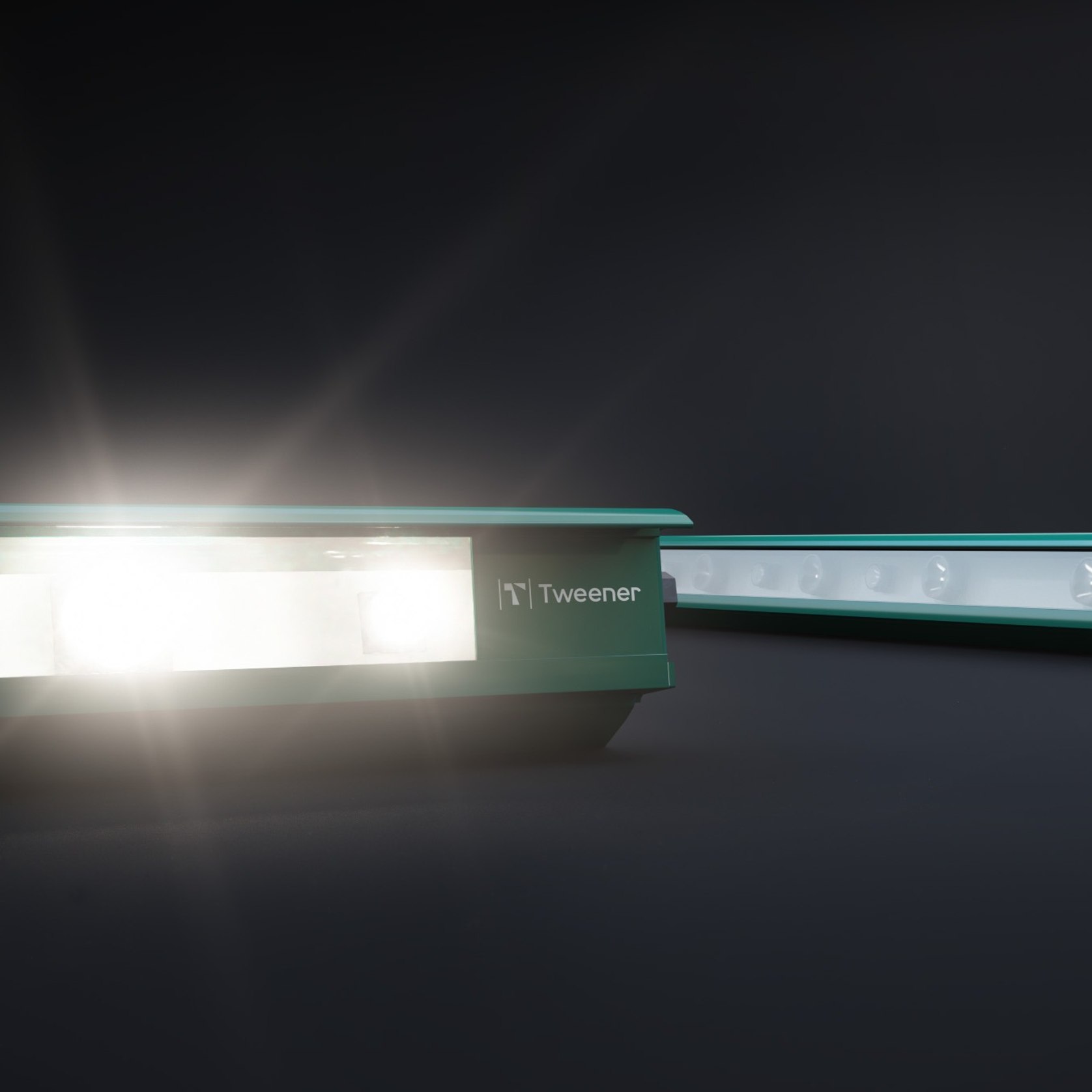

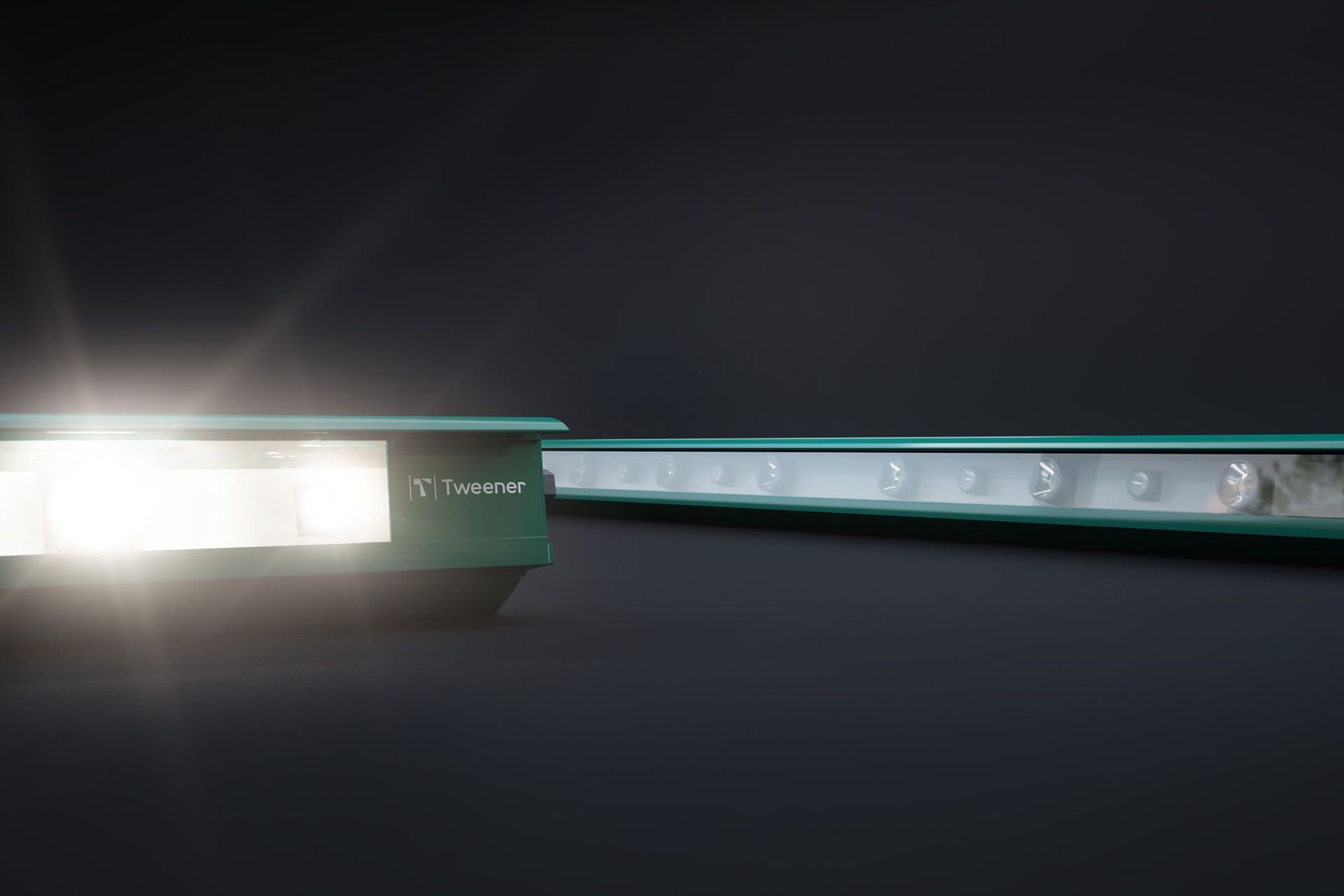

LED strips:

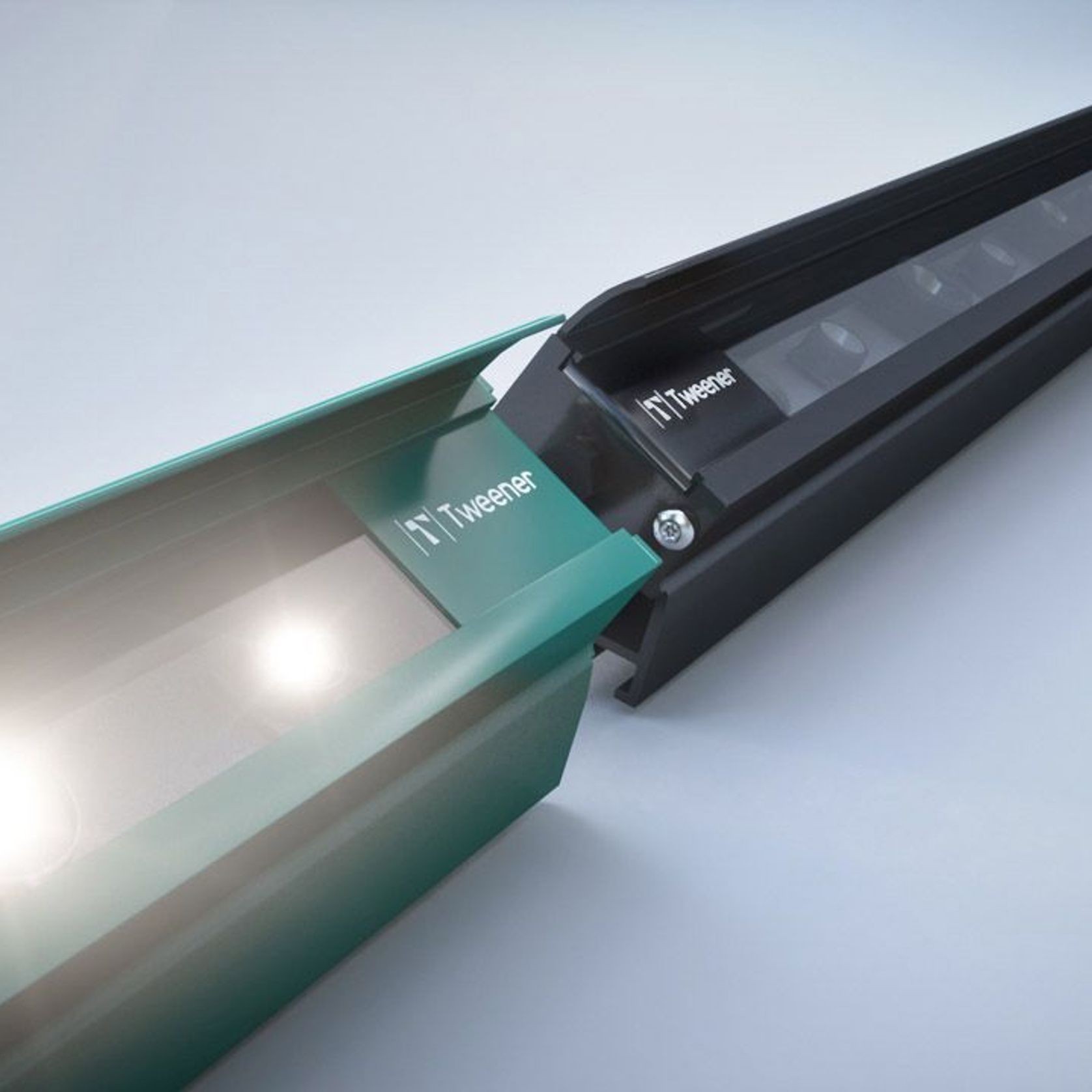

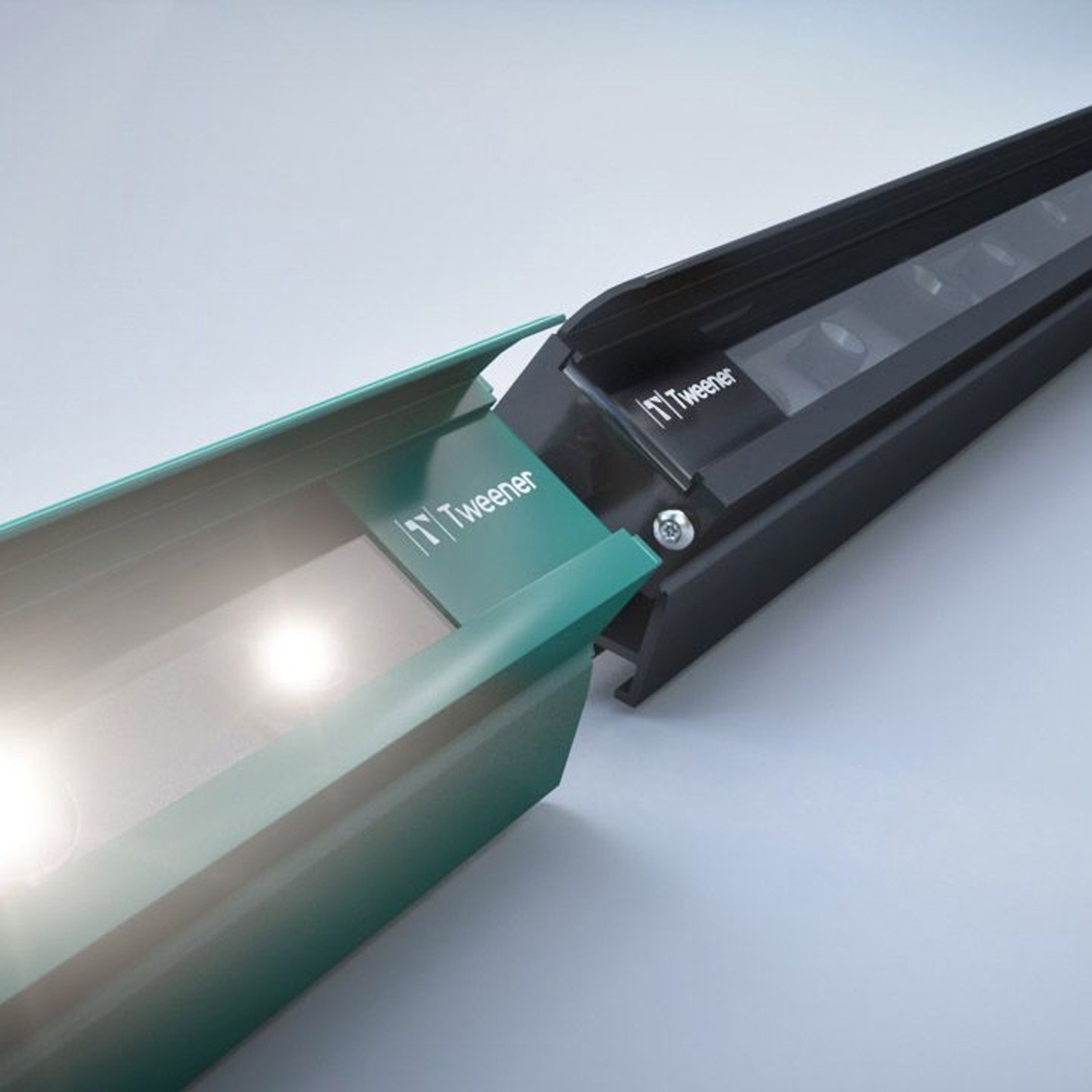

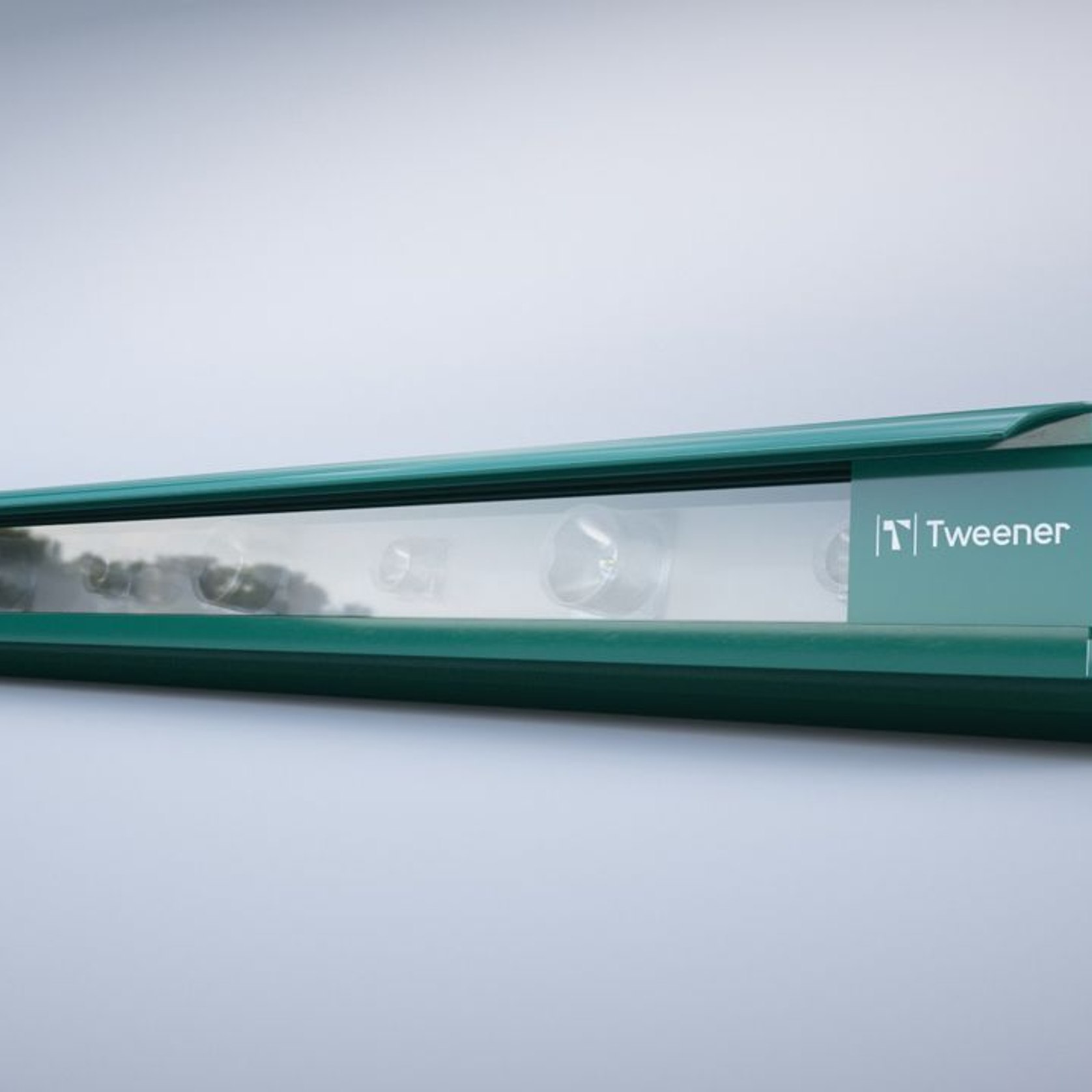

• Thermo-lacquered aluminium profile with lighting apparatus made of ultra-resistant and anti-UV treated polycarbonate
• Long LED strips: 380 x 5.9 x 7.9 cm – 6.3 kg
• Short LED strips (high balls): 95 x 5.9 x 7.9 cm – 2 kg
• Protection index: IP 65
• Impact resistance index: IK 08
• Operating temperature: -30°C to +35°C
• LED lens: patented technology owned by TWEENER®
• Quantity: 544 LEDs (272 per side of the court)

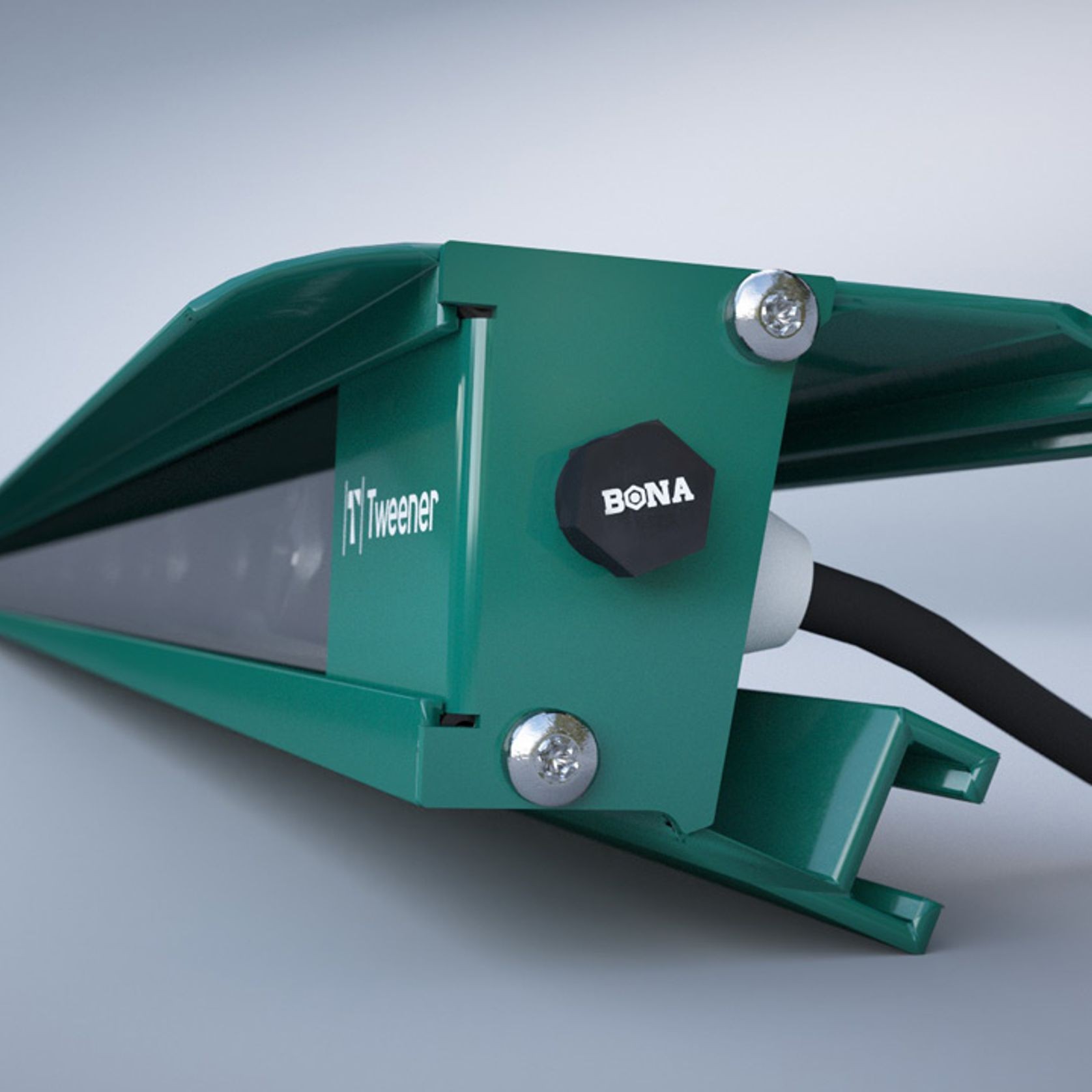

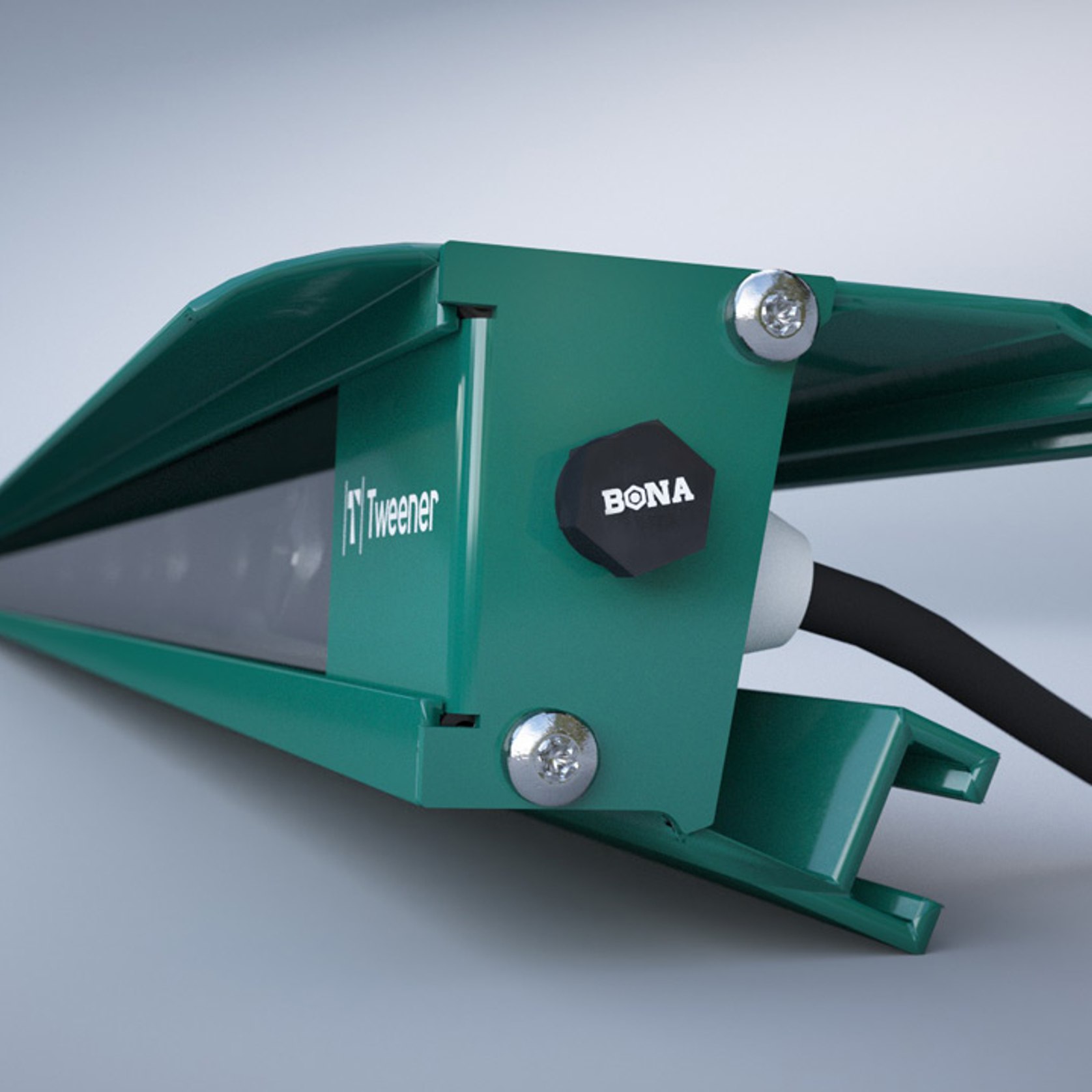

Installation system:

• Lacquered stainless steel
• Designed for round, square, L or T-shaped poles
• Customised mounting flange for non-standard poles – additional custom service.

Power supply:

• 2 integrated power supply units of 1200 W (IP67) – 64 x 30 x 8.8 cm – 10 kg per unit
• Supply voltage: 180-528 V AC

Colours:

• Standard colours: Green (RAL 6005) or black (RAL 9005). Other colours optional.

Certifications and standards:

• Quality and security validated by globally recognised certification brands: European certification with the CE&RoHS standard / US certification with the C-UL-US standard.
• Compliant with the federal standards including the French Padel Federation
• Patented technology in France (FR-3071586-B1) and USA (US-11118744-B2)

Lighting:

• 300 lux – IRC Index (colour output) > 70 – 130 lm/W – LED power 1800 W – Electric power 2200 W
• Coefficient of uniformity ≥ 0.7
• Colour temperature: 5000 K
• Average luminous flux: 185 200 lm

LED strips:

• Thermo-lacquered aluminium profile with lighting apparatus made of ultra-resistant and anti-UV treated polycarbonate
• Long LED strips: 380 x 5.9 x 7.9 cm – 6.3 kg
• Short LED strips (high balls): 95 x 5.9 x 7.9 cm – 2 kg
• Protection index: IP 65
• Impact resistance index: IK 08
• Operating temperature: -30°C to +35°C
• LED lens: patented technology owned by TWEENER®
• Quantity: 544 LEDs (272 per side of the court)

Installation system:

• Lacquered stainless steel
• Designed for round, square, L or T-shaped poles
• Customised mounting flange for non-standard poles – additional custom service.

Power supply:

• 2 integrated power supply units of 1200 W (IP67) – 64 x 30 x 8.8 cm – 10 kg per unit
• Supply voltage: 180-528 V AC

Colours:

• Standard colours: Green (RAL 6005) or black (RAL 9005). Other colours optional.

Certifications and standards:

• Quality and security validated by globally recognised certification brands: European certification with the CE&RoHS standard / US certification with the C-UL-US standard.
• Compliant with the federal standards including the French Padel Federation
• Patented technology in France (FR-3071586-B1) and USA (US-11118744-B2)

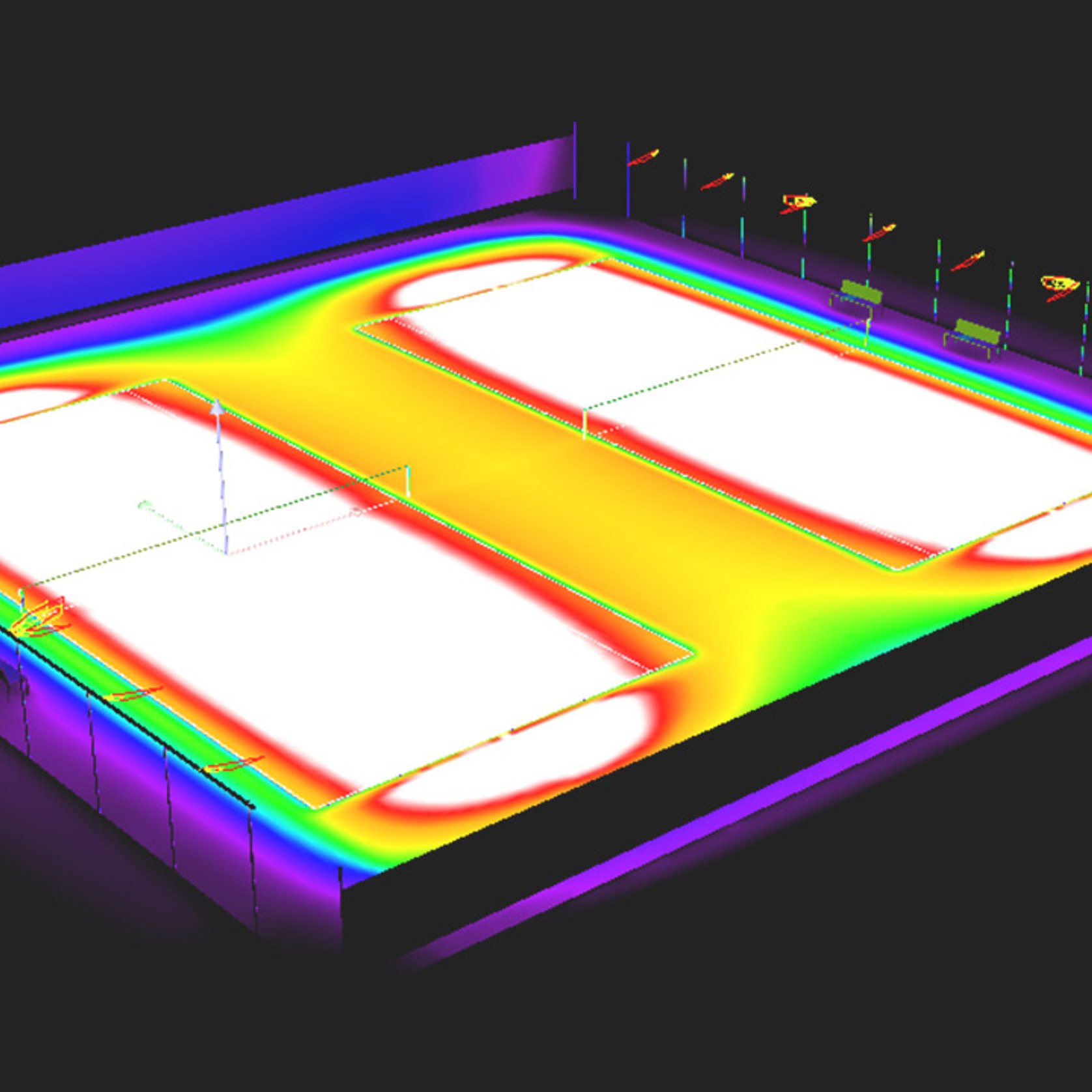

Double TWEENER® - (2 courts simultaneously)

Lighting:

• 250 lux – IRC Index (colour output) > 70 – 135 lm/W – LED power 3500 W – Electric power 4500 W
• Coefficient of uniformity ≥ 0.7
• Colour temperature: 5000 K
• Average luminous flux: 370 400 lm

LED strips:

• Thermo-lacquered aluminium profile with lighting apparatus made of ultra-resistant and anti-UV treated polycarbonate
• Long LED strips: 380 x 5.9 x 7.9 cm – 6.3 kg
• Short LED strips (high balls): 95 x 5.9 x 7.9 cm – 2 kg
• Protection index: IP 65
• Impact resistance index: IK 08
• Operating temperature: -30°C to +35°C
• LED lens: patented technology owned by TWEENER®
• Quantity: 1088 LEDs (544 per side of the court)

Installation system:

• Lacquered stainless steel
• Designed for round, square, L or T-shaped poles
• Customised mounting flange for non-standard poles – additional custom service.

Power supply:

• 2 integrated power supply units of 2×1200 W (IP67) – 63 x 53 x 8.7 cm – 19 kg per unit
• Supply voltage: 180-528 V AC

Colours:

• Standard colours: Green (RAL 6005) or black (RAL 9005). Other colours optional.

Certifications and standards:

• Quality and security validated by globally recognised certification brands: European certification with the CE&RoHS standard / US certification with the C-UL-US standard.
• Compliant with the federal standards including the French Padel Federation
• Patented technology in France (FR-3071586-B1) and USA (US-11118744-B2)

• Optimised lighting quality thanks to its proprietary LED technology
• The most appealing price on the market in all regards: purchase, installation, operation
• Attractive design: simplicity of the lines, quality of materials
• Simple and quick installation: no building permit, installed in 1 day)
• Modular system suited to the specificities of each court (dimensions, environment, etc.)
• Perfect integration in the environment: little or no visual disturbance
• A controlled carbon footprint: no works, concrete, or pylons
• Only 2200 W to light 1 court, which is equal to the power consumption of one vacuum cleaner
• Certified product, eligible for federal bonuses
• Long-term lighting: 50,000 hours minimum (equivalent to 4 hours per day for 35 years)

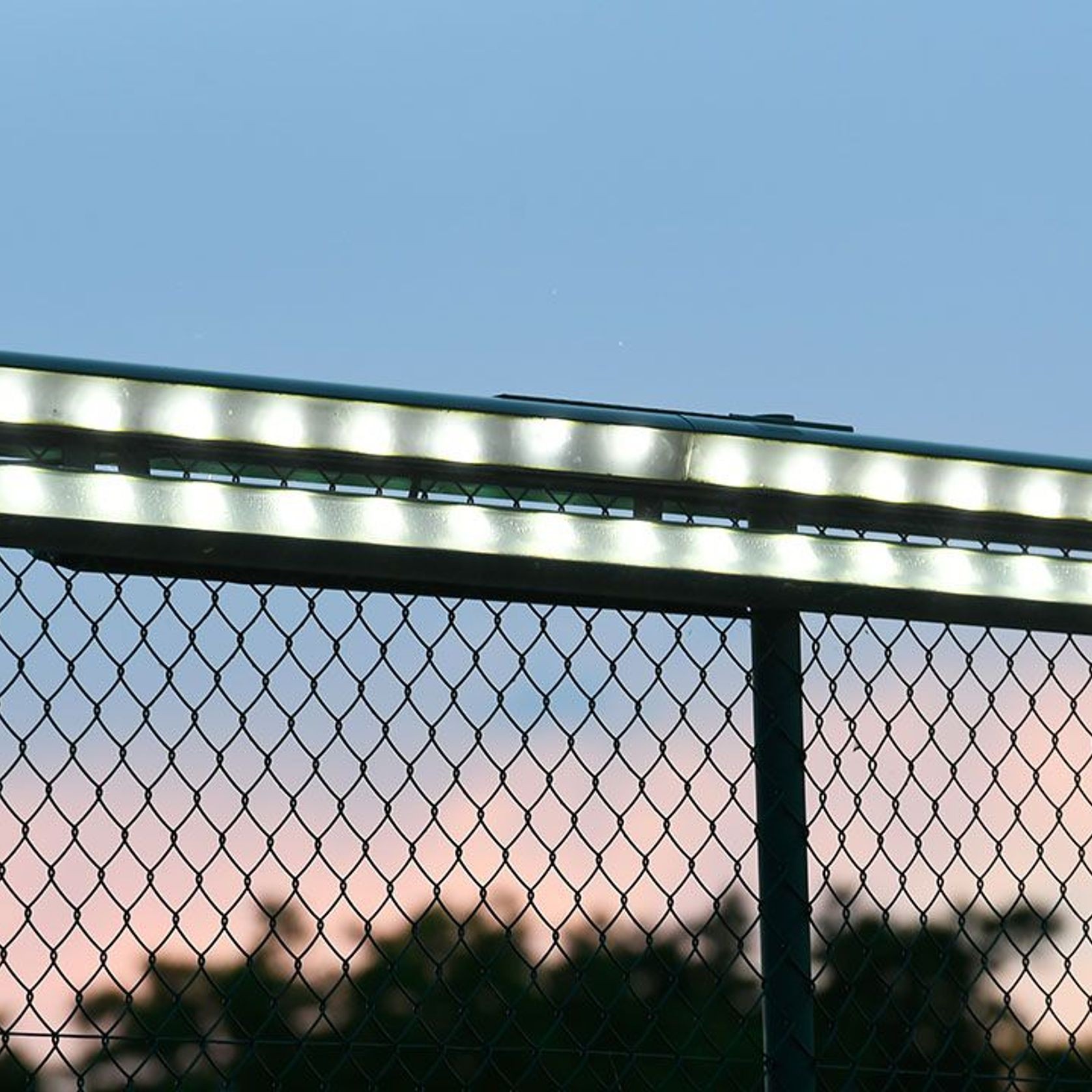

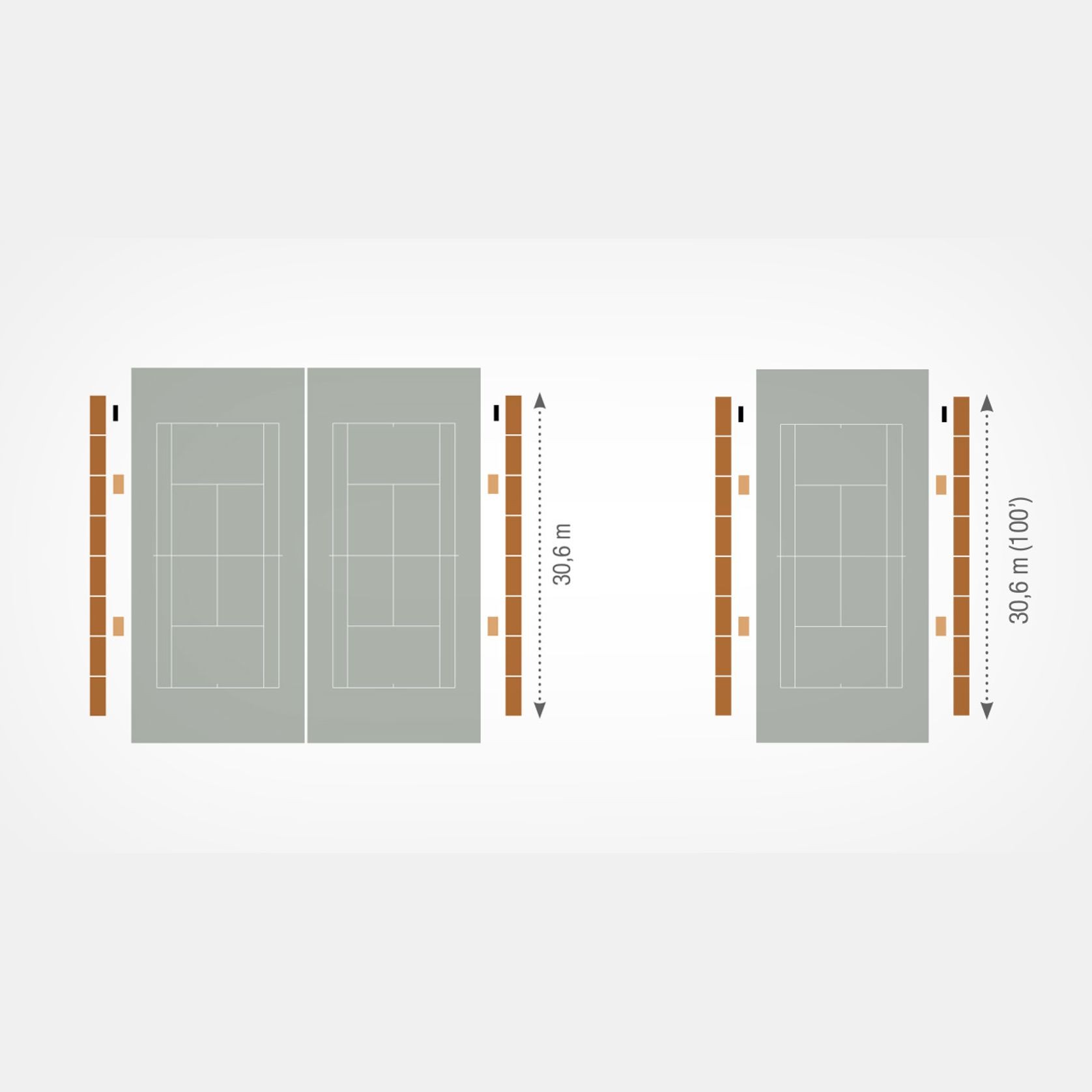

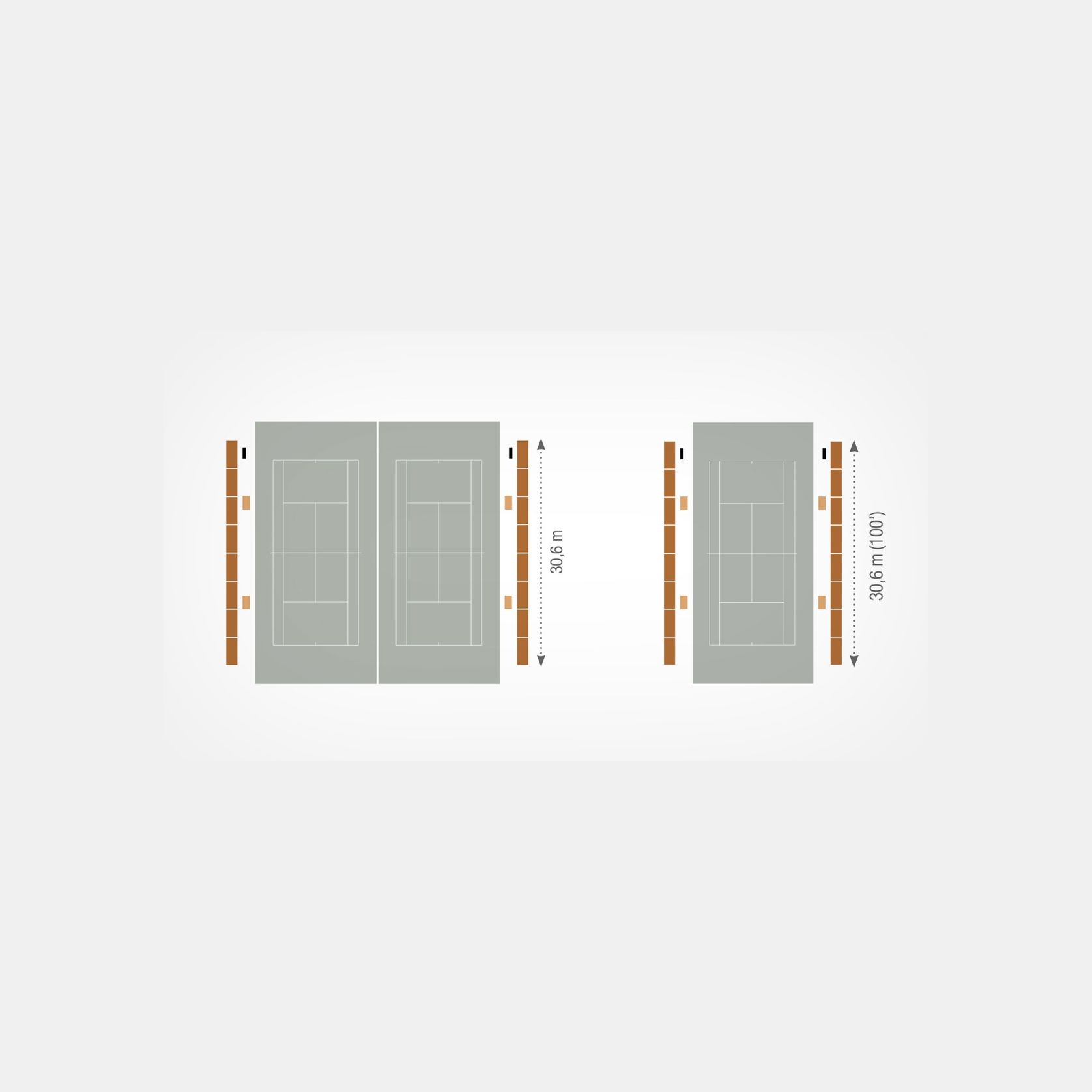

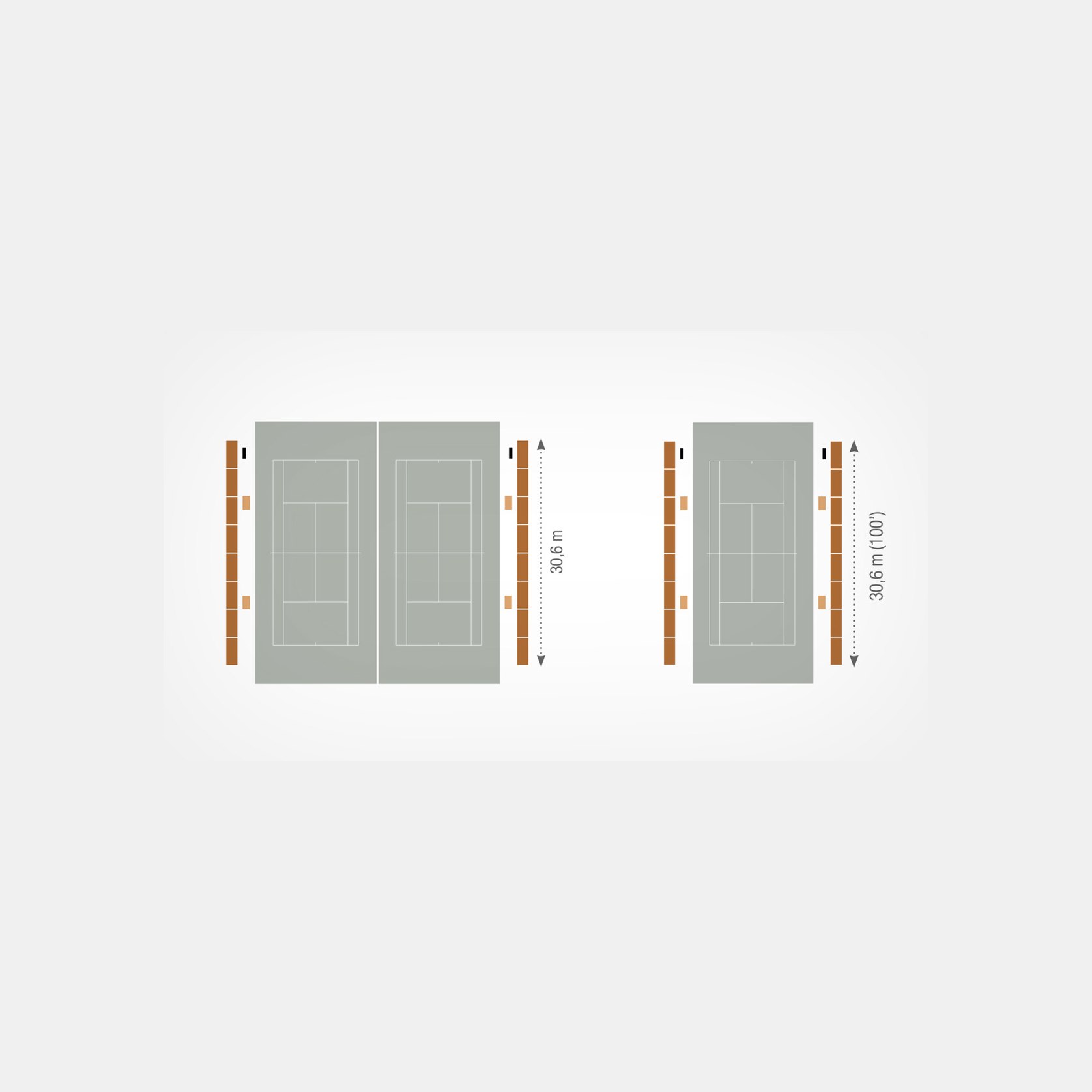

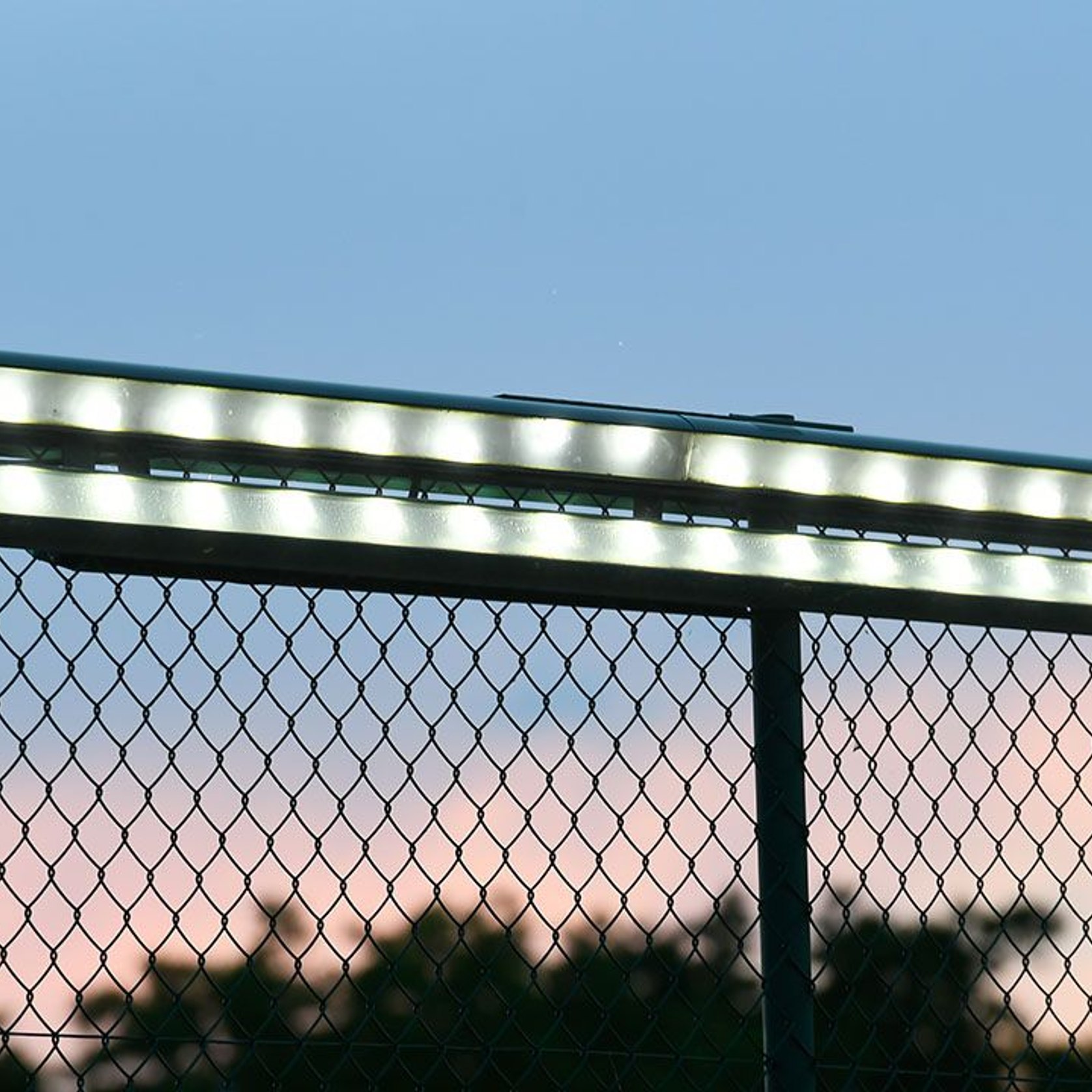

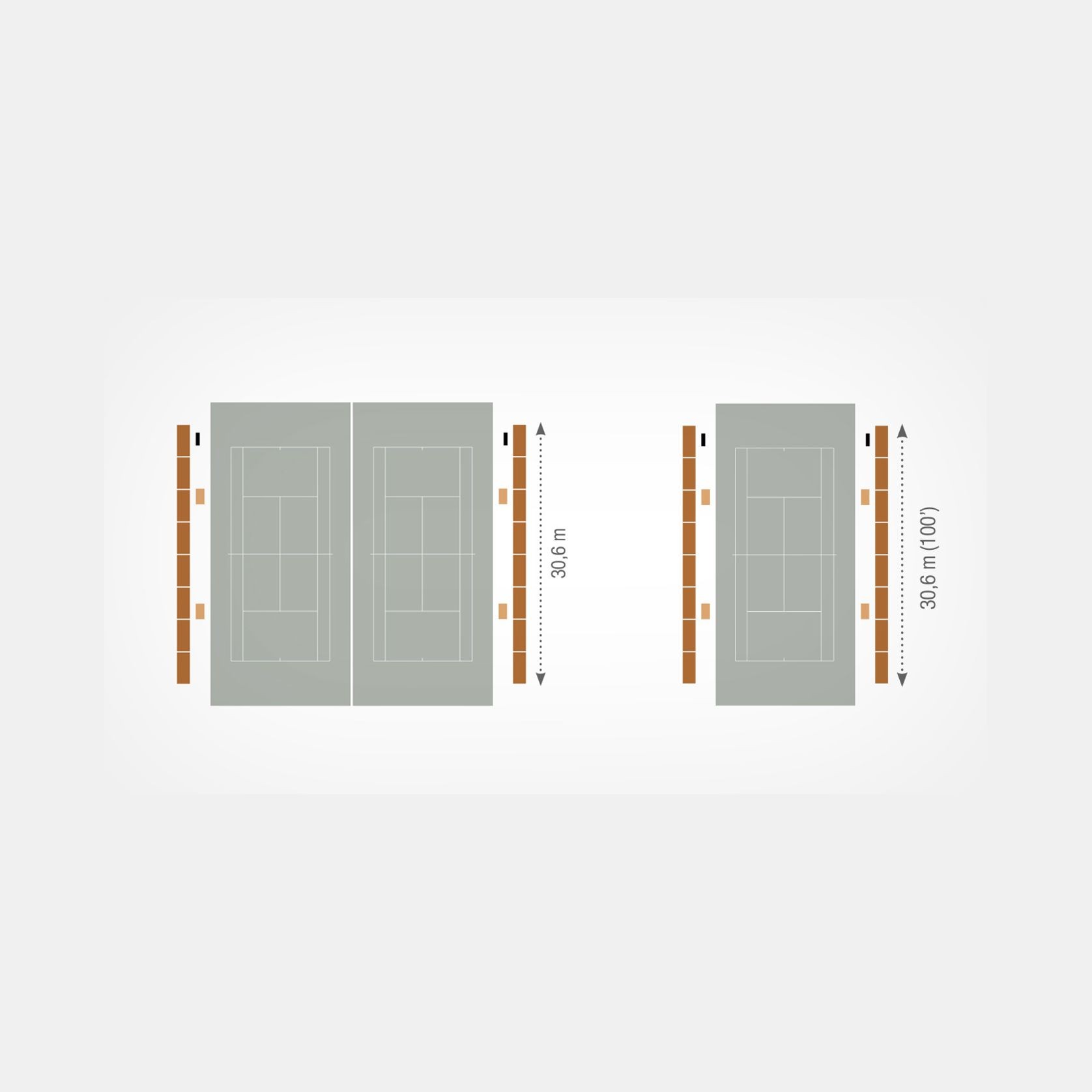

Each configuration includes: 2 x 8 LED strips fixed on 3-metre high poles + 2 “High balls” LED strips aligned on the service line. The total power depends on the single or double configuration.

Your TWEENER®  pack includes, in addition to different LED strips, all the fixing accessories (support plate, connection plate, mounting flanges and miscellaneous necessary screws and bolts), electrical extensions and a power supply unit fixed on a side at the end of the LED modules line.

A qualification sheet of the courts to be lit must be provided before the order to optimise the technical configurations of the Tweener systems in view of possible constraints of the courts.

Single TWEENER® - (1 court)
2 models – EC standard and US standard

Double TWEENER® - (2 courts simultaneously)
2 models – EC standard and US standard
