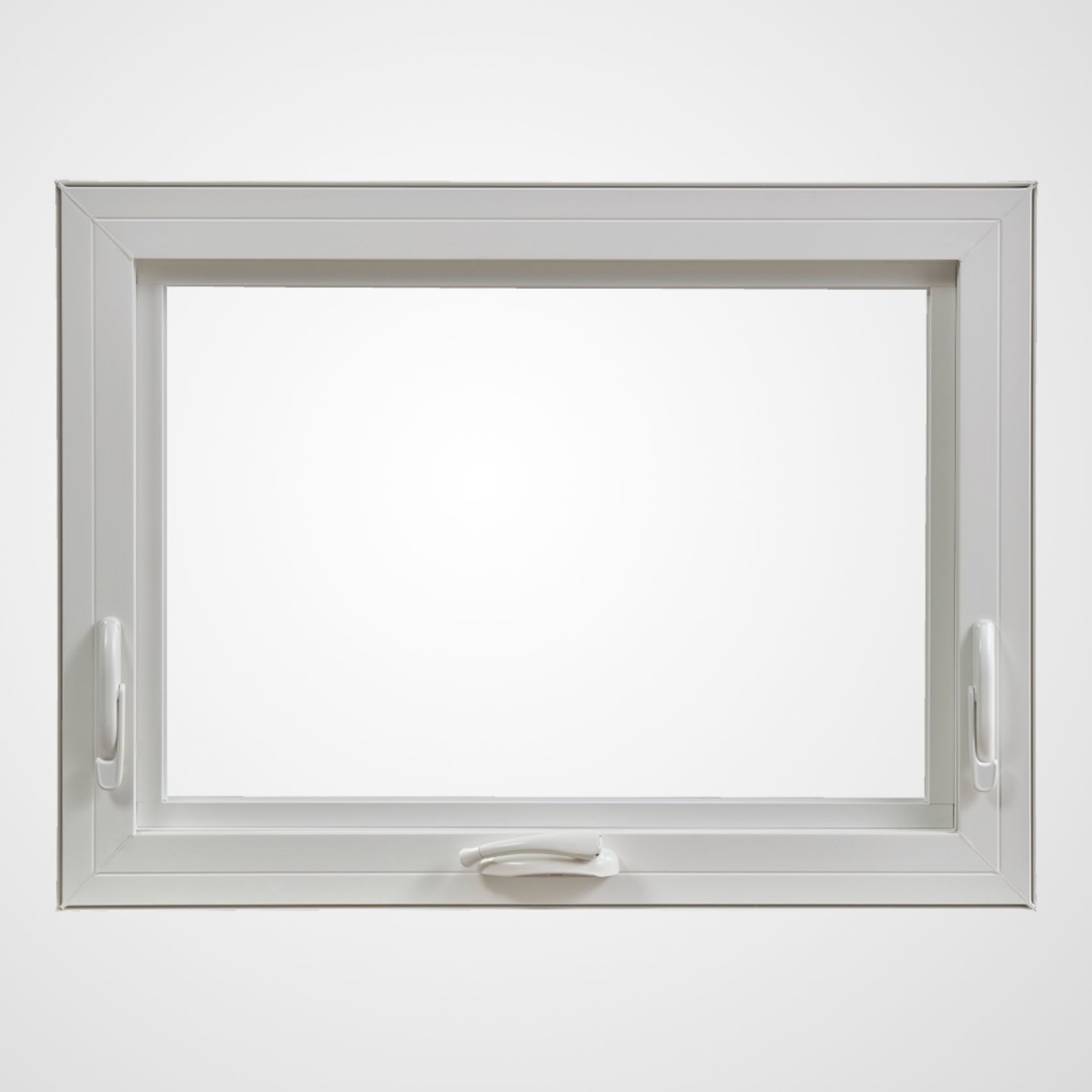

uPVC Awning Window

$400 – $600*
*Price indication
Standard Beige
Made To Order

uPVC Awning Window with Low-E glass, argon, and insect screens. Includes features that reduce heat loss and protects your home furnishings, carpets, and timber floors from harmful UV rays, which cause fading over time.

  • Category
    Awning Windows, uPVC Joinery
  • Range
  • Brand
    Sierra Pacific Windows
  • Warranty
    20 years
  • Country of origin
    United States of America
  • Type of use
    Commercial and Residential
  • Care and cleaning
    Easy maintenance
  • Installation
    Minor installation required
  • Assembly
    No assembly required
  • Double glazed with low-E glass and argon gas filling.
  • UV resistant and naturally thermally broken.
  • Lock levers with multiple locking points.
  • Fold away handle and crank arm.
  • Fully integrated, removable insect screen.

Low Emissivity (Low-E) glass

Low-E glass reduces heat loss and protects your home furnishings, carpets, and timber floors from harmful UV rays, which cause fading over time.

  • Standard Low-E 272: Good thermal performance in all seasons. Reflects heat away in summer and keeps heat inside your home in winter.
  • Low-E 340: Ideal for warm, sunny climates with the ultimate sun protection, without any tinting. Plus it still keeps heat inside during winter.
  • Low-E i89: A second layer of low-E added to maximise total performance, especially in colder climates.
  • Low-E 366: Superior thermal performance. This is our standard low-E on select products. When paired with low-E i89, it can achieve better thermal performance than our standard triple glazing.
  • Low-E 180: Ideal for colder climates or homes with passive solar heating, it traps the warmth of the sun inside keeping your home cozy. Plus it still performs well against bright summer sun.
  • Neat+™ Glass: Adds a layer of Neat+™ coating outside which reduces dust and grime on the glass.

Insulating Glazing Spacers

Sliding and hung uPVC windows can be upgraded to feature automatic locks, which lock the window the moment it’s closed. Auto locks can be further upgraded to feature a pull-cord, which enables older people, people with limited mobility, or people in wheelchairs, to easily open and close their windows.

  • Standard Lock
  • Auto Lock
  • Accessible Auto Lock

Insulating Glazing Spacers

Insulating glazing spacers are used in all double glazed joinery to hold the panes of glass in place. In our joinery, they are also used to create an air-tight compartment for our standard argon gas filling.

  • Standard Intercept® Spacer: Included in all of our glazing units, the Intercept spacer is made from foam encased steel and tin, ensuring strength and durability. Its U-shape construction allows for flexibility in response to thermal expansion in the glass.
  • XL Edge™ Spacer: An optional upgrade on select products for those wanting the absolute best performance, the XL Edge™ spacer is made from a staggered stainless steel, with two sealant layers and desiccant fill.

Decorative Grilles

Grilles (also known as glazing bars, Georgian bars, or muntins) can turn a contemporary expanse of glass into a classic look. We offer Simulated Divided Lite (SDL) grilles or maintenance free Grilles Between the Glass (GBG) options.

  • 22mm SDL Grille
  • 17mm Contour GBG
  • 17mm Flat GBG

Insect screens

Upgrade from our standard insect screen to a premium screen designed to maximise your view.

  • Standard Screen
  • Aluminium Screen
  • BetterVue® Screen
  • UltraVue® Screen

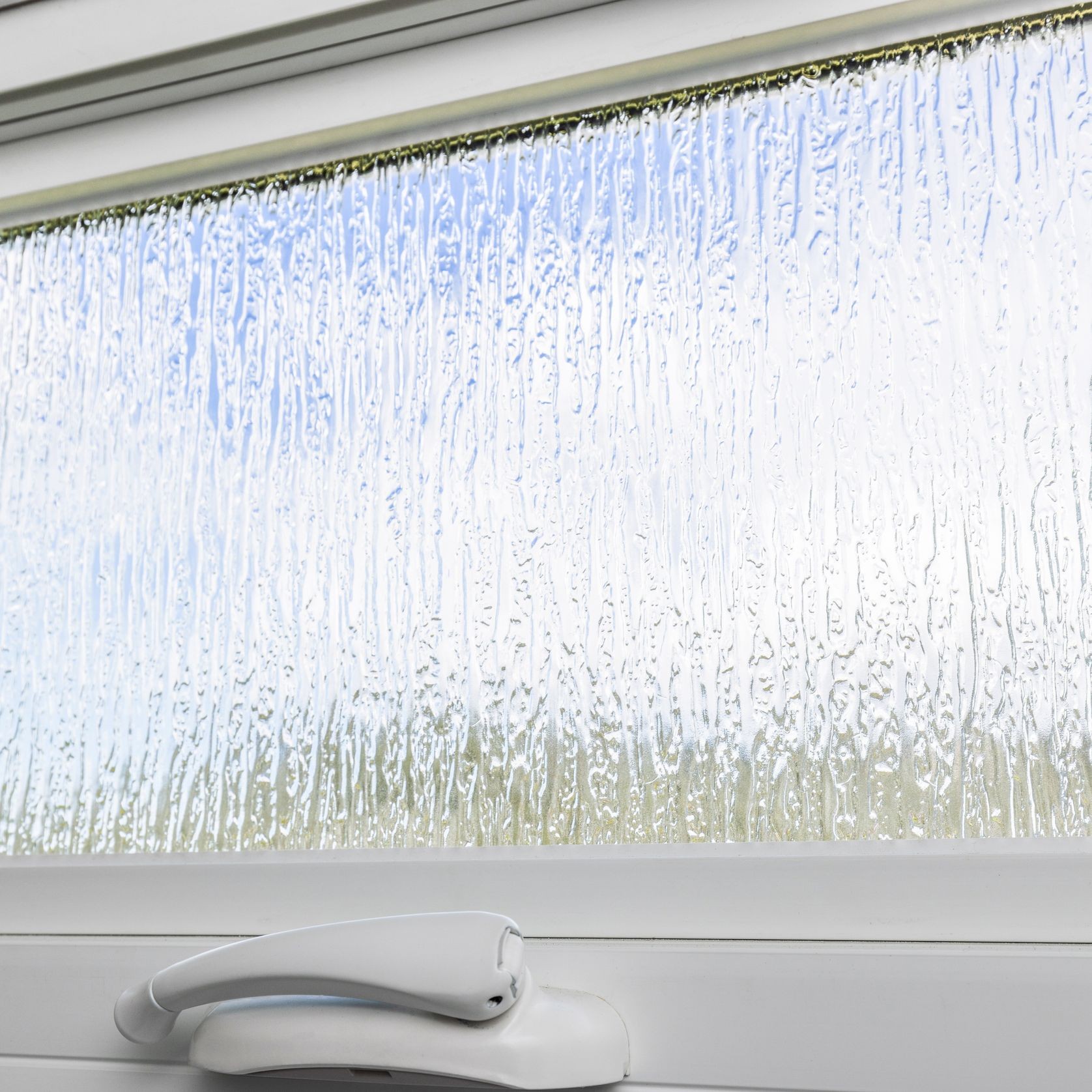

Obscured and Decorative Glass

Add texture to your design vision and privacy to key areas of the home by upgrading to one of our attractive obscured and decorative glass options.

  • Standard Obscured
  • Gluechip Obscured
  • Rain Obscured
  • Reeded Obscured
  • Satin Etch Obscured
  • Bronze Tint
  • Blue Tint
  • Green Tint
  • Grey Tint
Scope of use

Suitable for residential new construction or renovations.

SKU: upvc-aw-1
