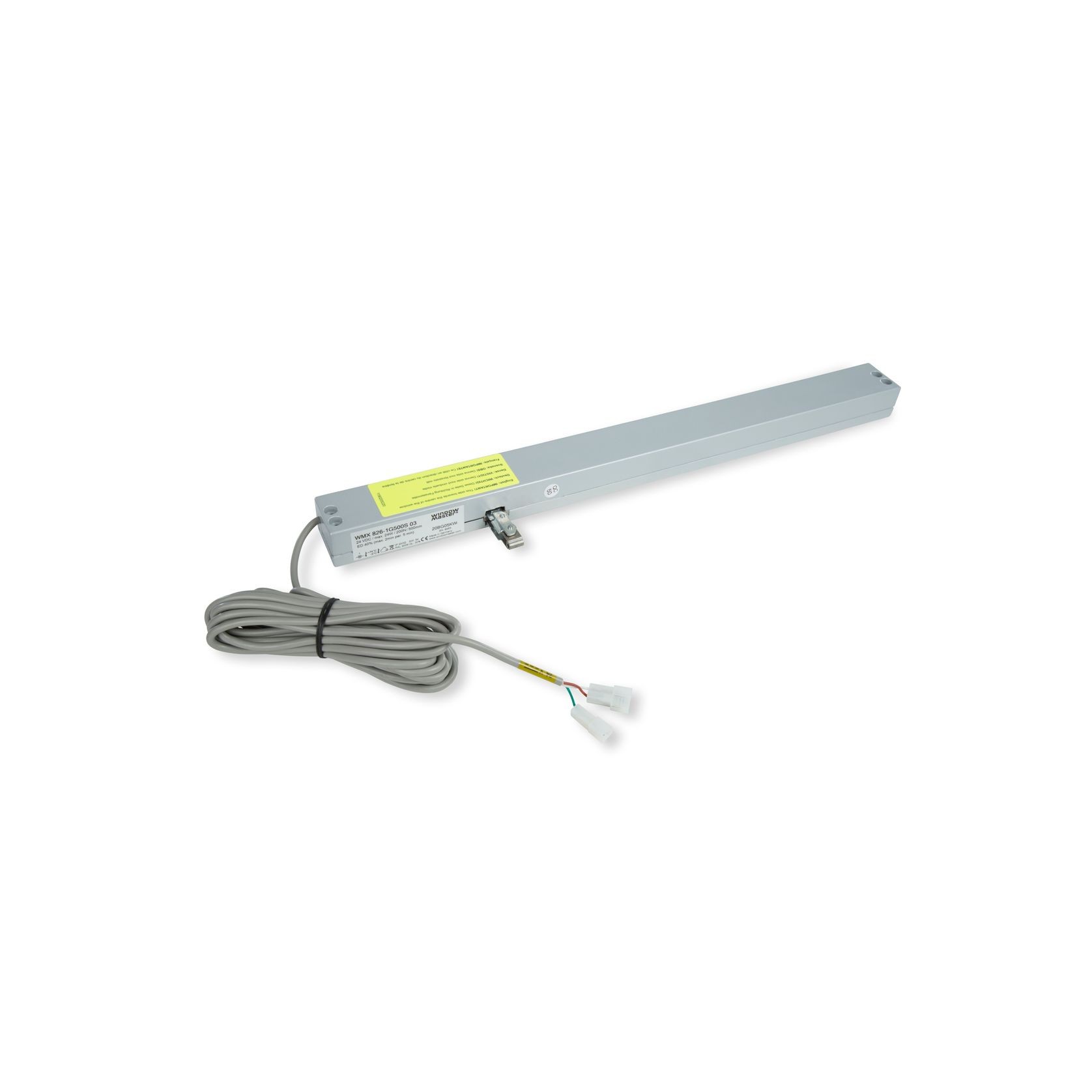

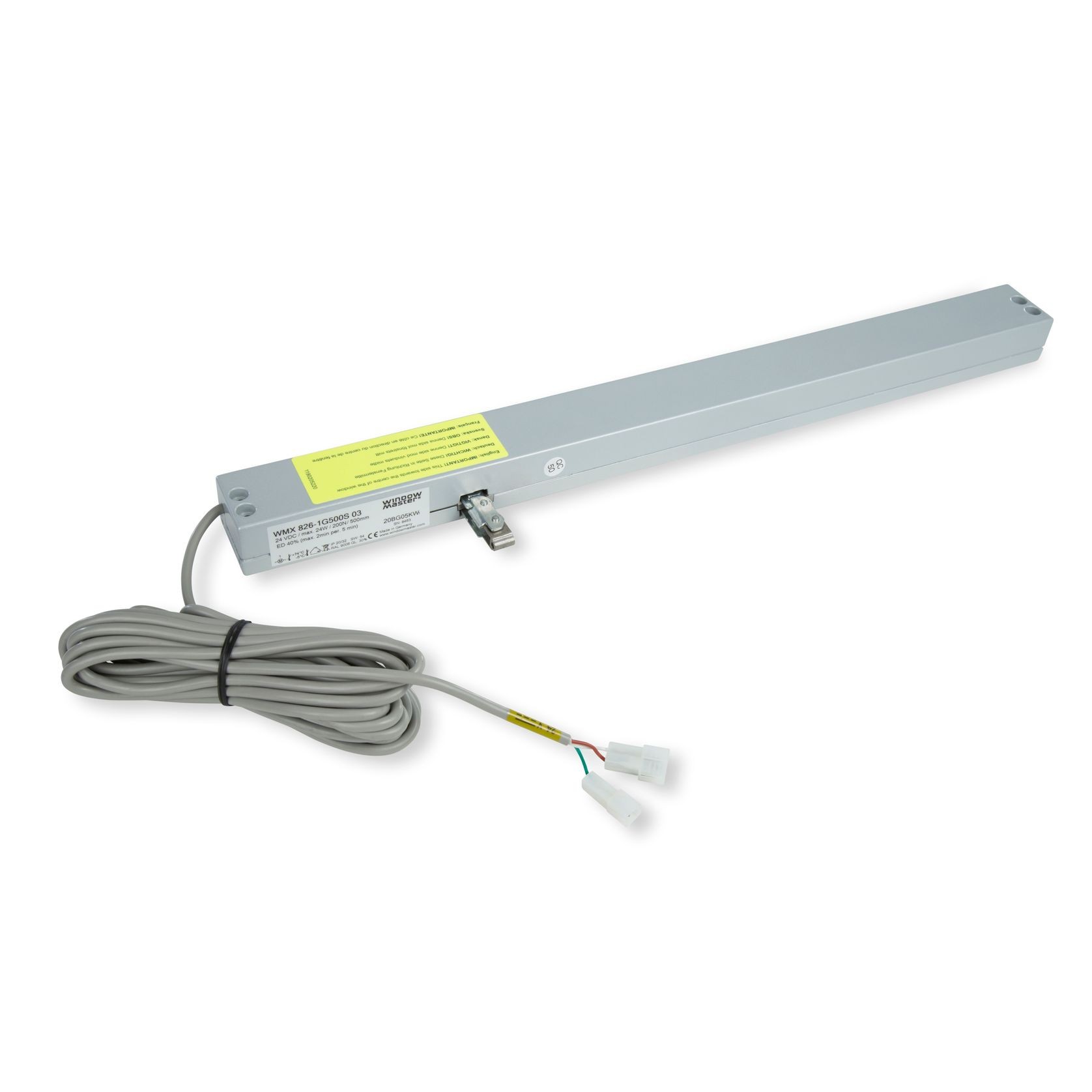

WindowMaster WMX 826-1 Grey 24V Actuator

By EllisCo
Website

Programmable 24V DC chain actuator for surface mounting for smoke and comfort ventilation.

To be used with top hung, bottom hung and turning windows. 200N, 500MM, 1amp

Description
• To be used together with ±24V control units or control units with MotorLink®

• Can be used together with espagnolette WMB

• External safety edge can be connected directly to the actuator (actuator version ’E’)

• Available with and without UL certification:

• Europe: order without UL certification (version 0)

• USA / Canada: order with UL certification (version U)

• Synchronization of up to four window actuators – no need for an external synchronization module

• Genuine position feedback and three speeds when using control unit with MotorLink®

• Soft close

• The electronics in this actuator can be programmed to suit specific requirements i.e. pressure- and traction force, stroke, speed/sound level – with the WAT 100 programming box, also possible following installation

• Built-in electronic load switch-off/end stop

• Electronic actuator with micro controller

• The actuator has an integrated reverse function to ensure a prolonged life span of the window gaskets

• Easy mounting

Details
  • Category
    Electronics & Automation
  • Range
    Natural Ventilation
